Roughness Tester PCE-RT 10

Roughness Tester PCE-RT 10

Order no.: PCE-RT 10
GTIN (EAN): 4250348713933
£ 1,177.00
£ 1,412.40
price ex. (VAT / delivery)
:
4250348713933
PCE-RT 10
Delivery time:1-2 working days

Description

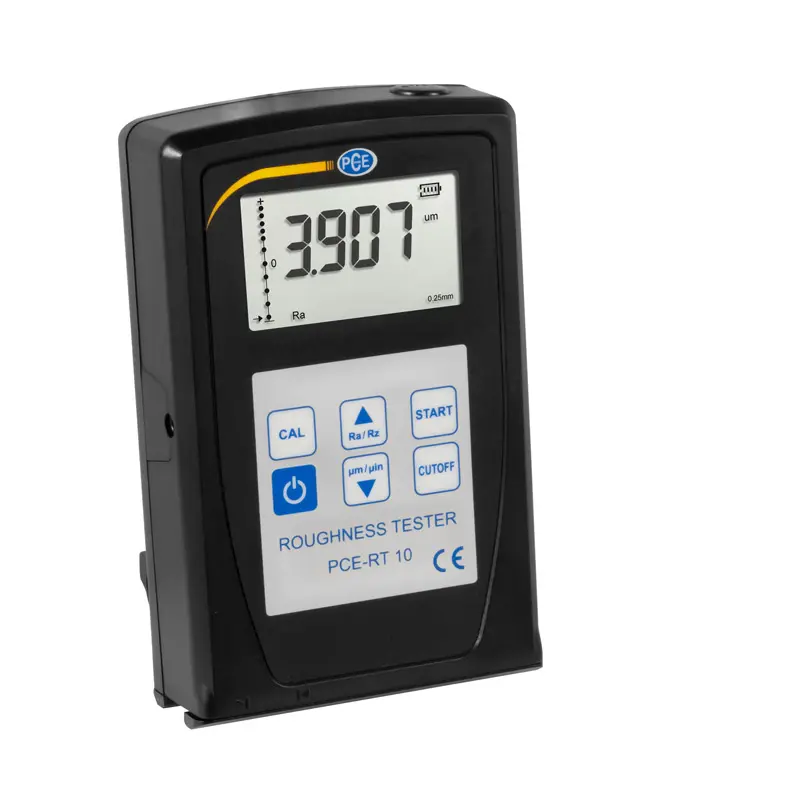

PCE-RT 10 Roughness Tester
Measurement range covers Ra and Rz /
LCD display with background light / Sensor made of a diamond / Induction principle

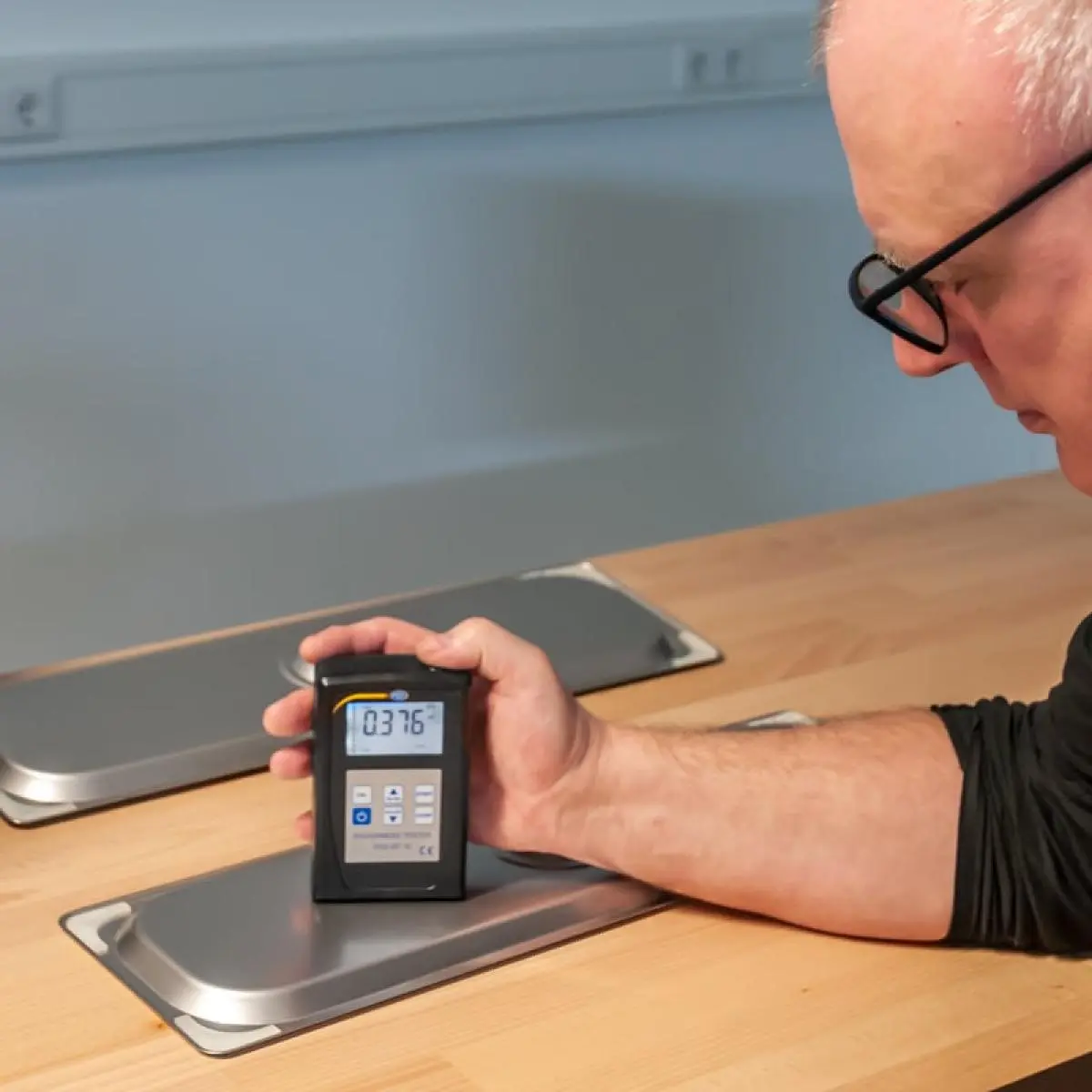

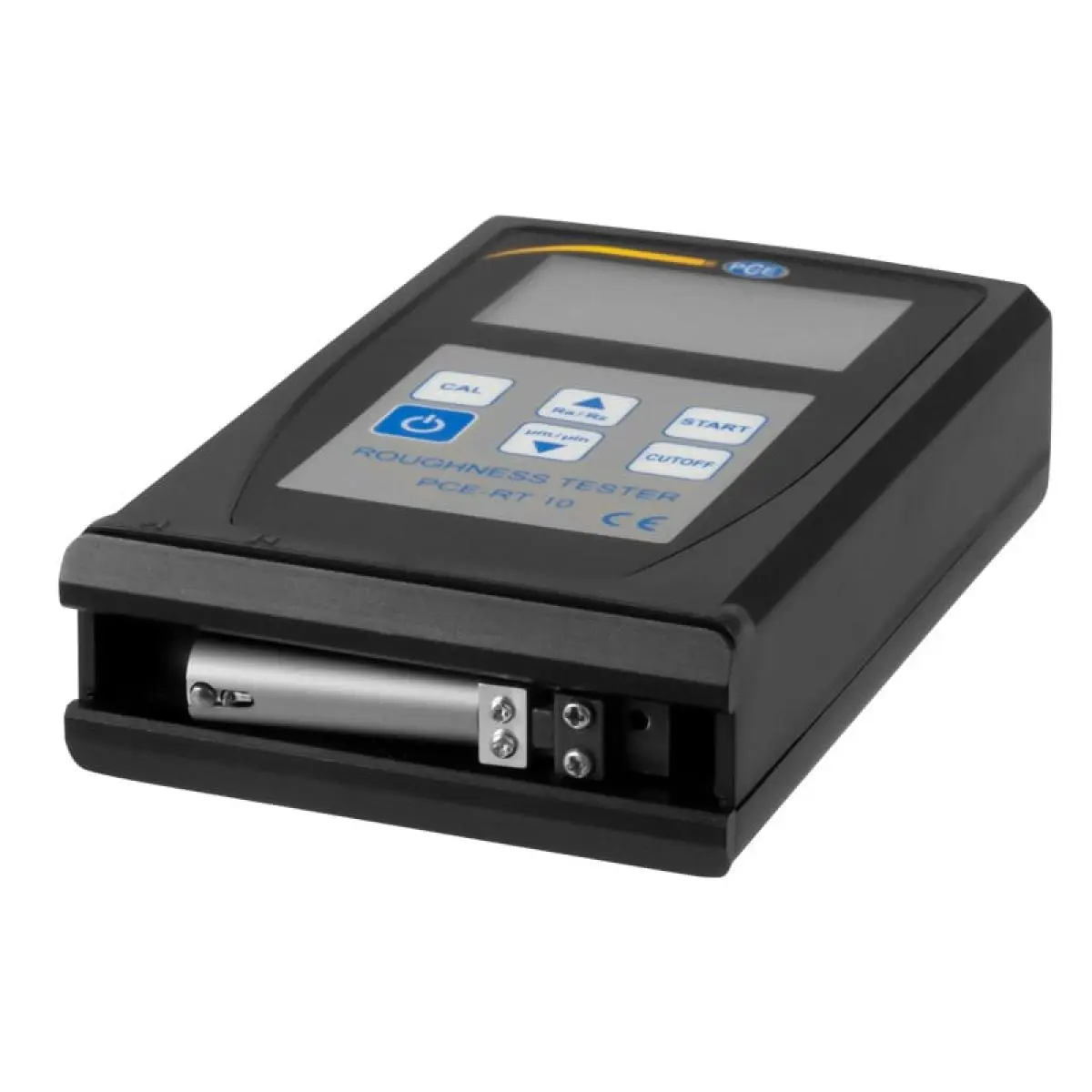

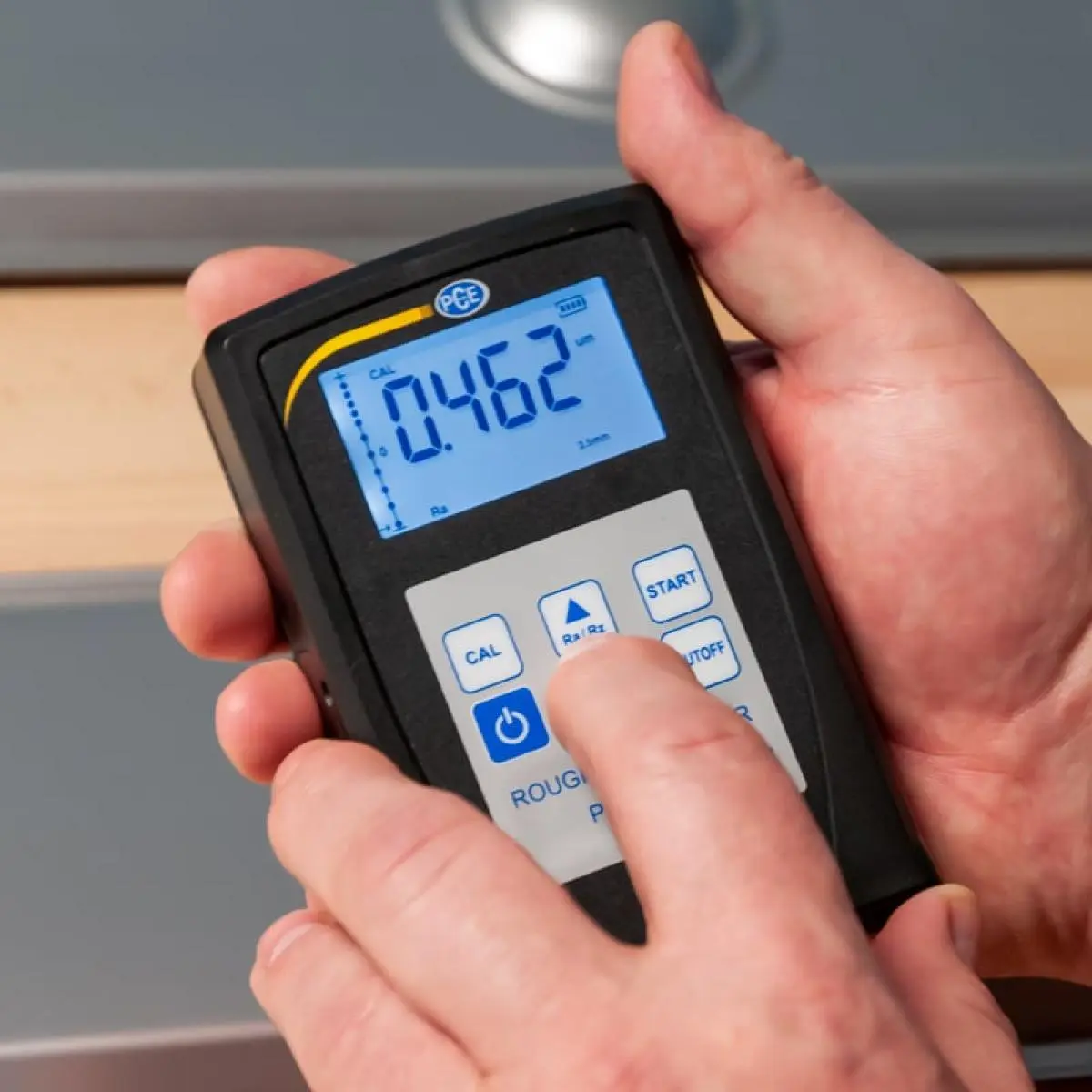

The Roughness Tester PCE-RT 10 is a small, lightweight device with simple navigation. Despite the fact that the device functions on a very complex and elaborate level, the measurement results can be gained quickly and easily. Due to its rugged design the device has a long lifetime. This device is calibrated on ISO, DIN, ABSI and JIS standards. The surface texture meter can be applied for various mechanical manufacturing processes as a controlling equipment. The device indicates all calculated measurement results on its LCD display any time. In order to measure the roughness of a surface, the sensor is to be placed onto that surface. Afterwards the sensor samples evenly the surface following its guide rail. Now the device will calculate the measuring values. Thus the indicated values are a result of the sensor's movement, while it is induced with electricity. The fast DSP processing supports quick measurements results, which are then shown on the surface texture meter's display.

Highlights

- Ra and Rz measurement range
- Induction principle
- LCD display with background lights
- With threshold function
- Easy to transport
- Easy handling
- Diamond sensor
- Low fluctuation on display

Specification

Roughness
Roughness value  Ra
Measuring range  0,05 ... 10 µm
Resolution  0,01 µm
Accuracy  ±15 %

Roughness
Roughness value  Rz
Measuring range  0,1 ... 50 µm
Resolution  0,1 µm
Accuracy  ±15 %

General technical data
Measuring functions  Ra, Rz
Units  µm
Display type  LCD with backlight
Interface  RS232
Standard(s)  GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
Sensor  Diamond
Reproducibility  10 %
Cut-off wavelength  0.25 mm, 0.8 mm, 2.5 mm
Key  - Probe radius: 10 µm
- Probe measuring force: 16 mN(1.6gf)
- Probe angle: 90º
- Vertical radius of the guide head: 48 mm
Maximum traverse distance  12,5 mm
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  batteries
(Rechargeable) battery  4 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  128 x 80 x 30 mm
Weight  280 g

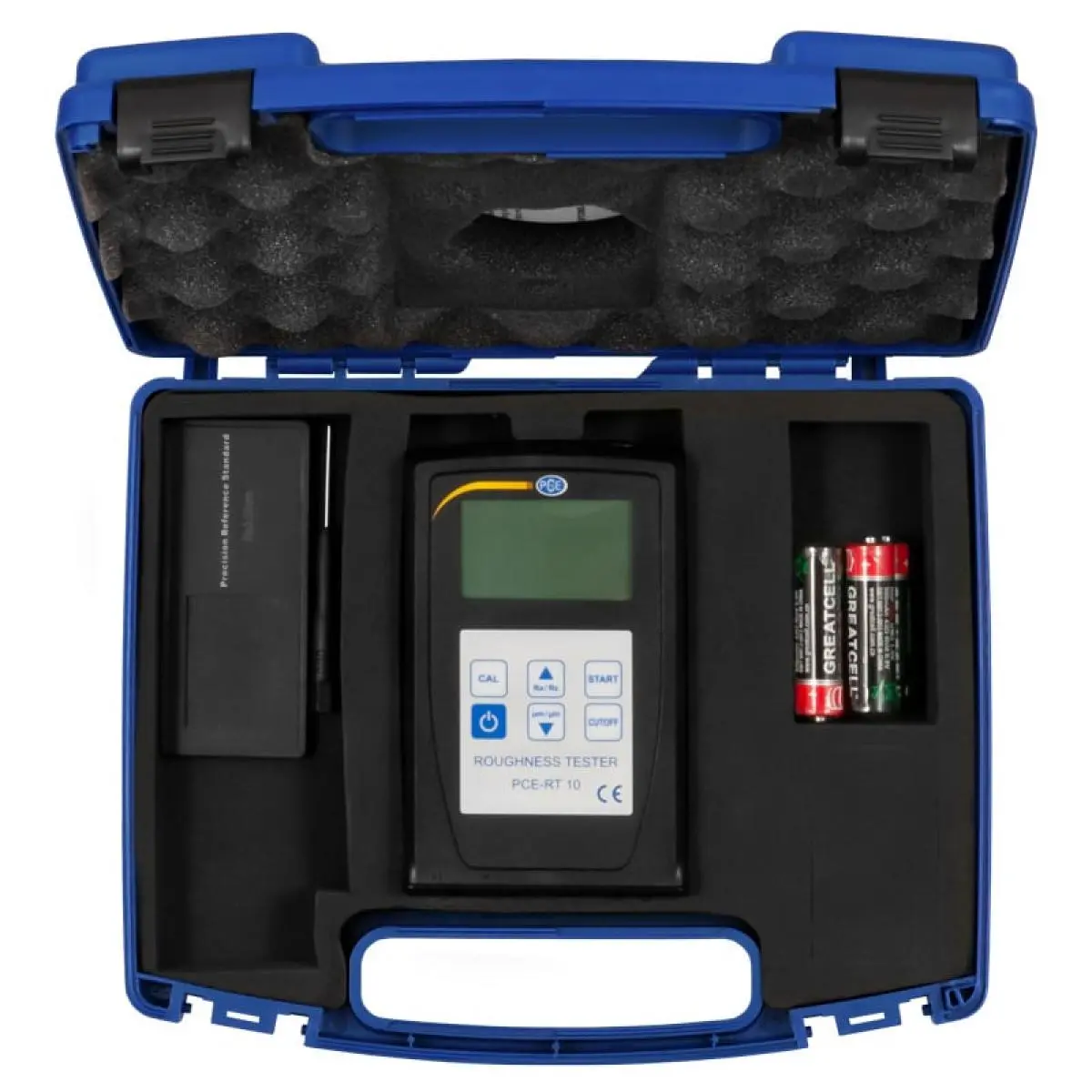

Delivery Scope

1 x PCE-RT 10 Roughness Tester
1 x Precision reference standard
4 x 1.5V AA batteries
1 x User manual
1 x Carrying case
