Order no.: PCE-G1A

Relative Humidity Meter PCE-G1A

£ 984.00
£ 1,180.80
:
4250348710925
PCE-G1A
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

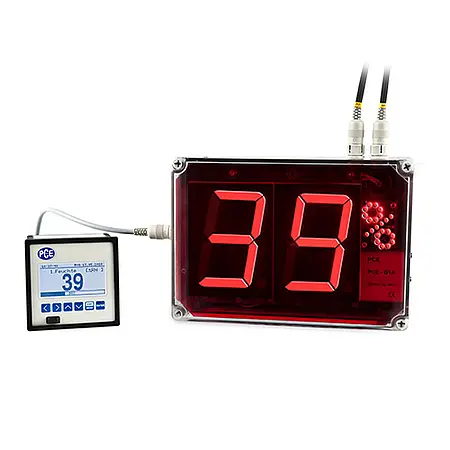

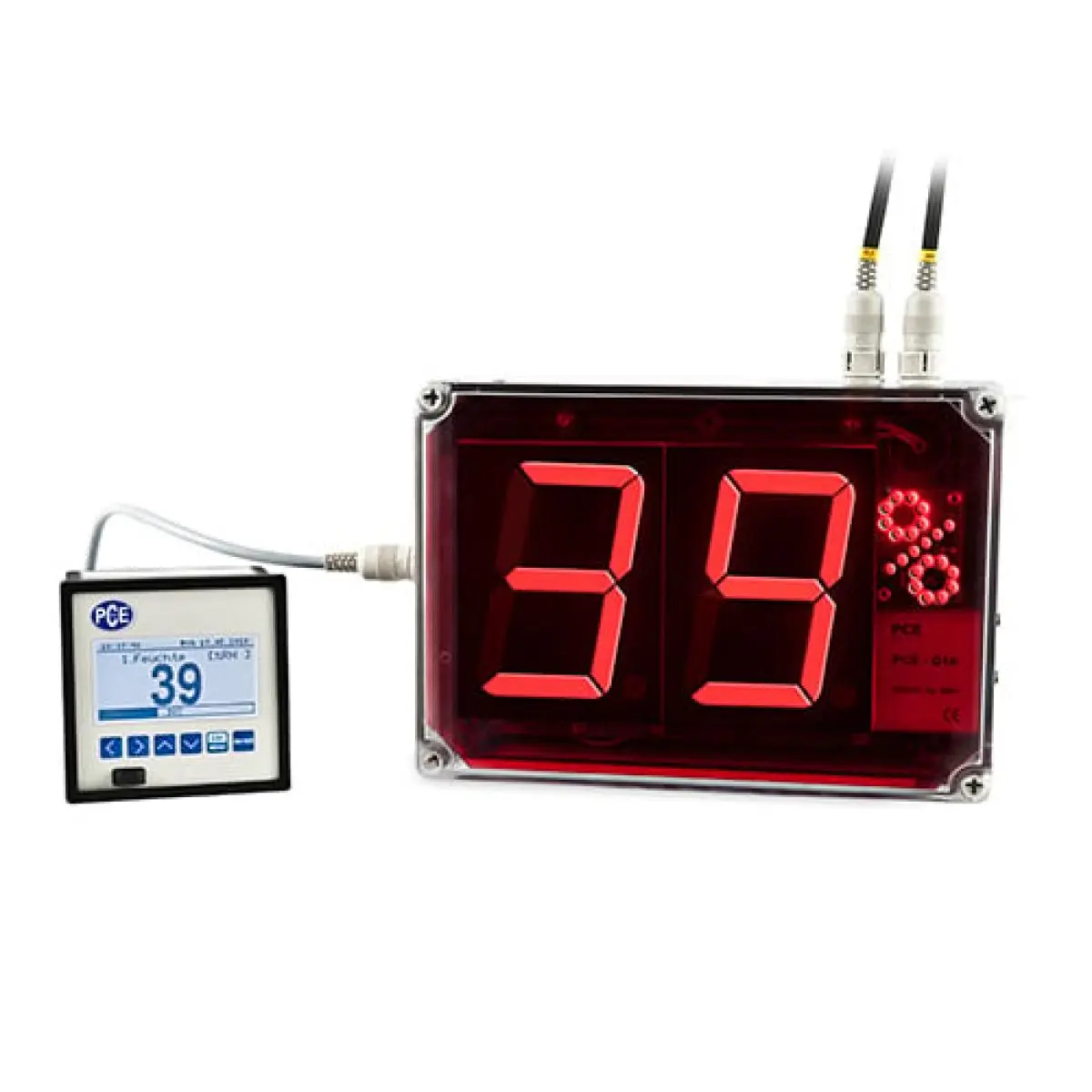

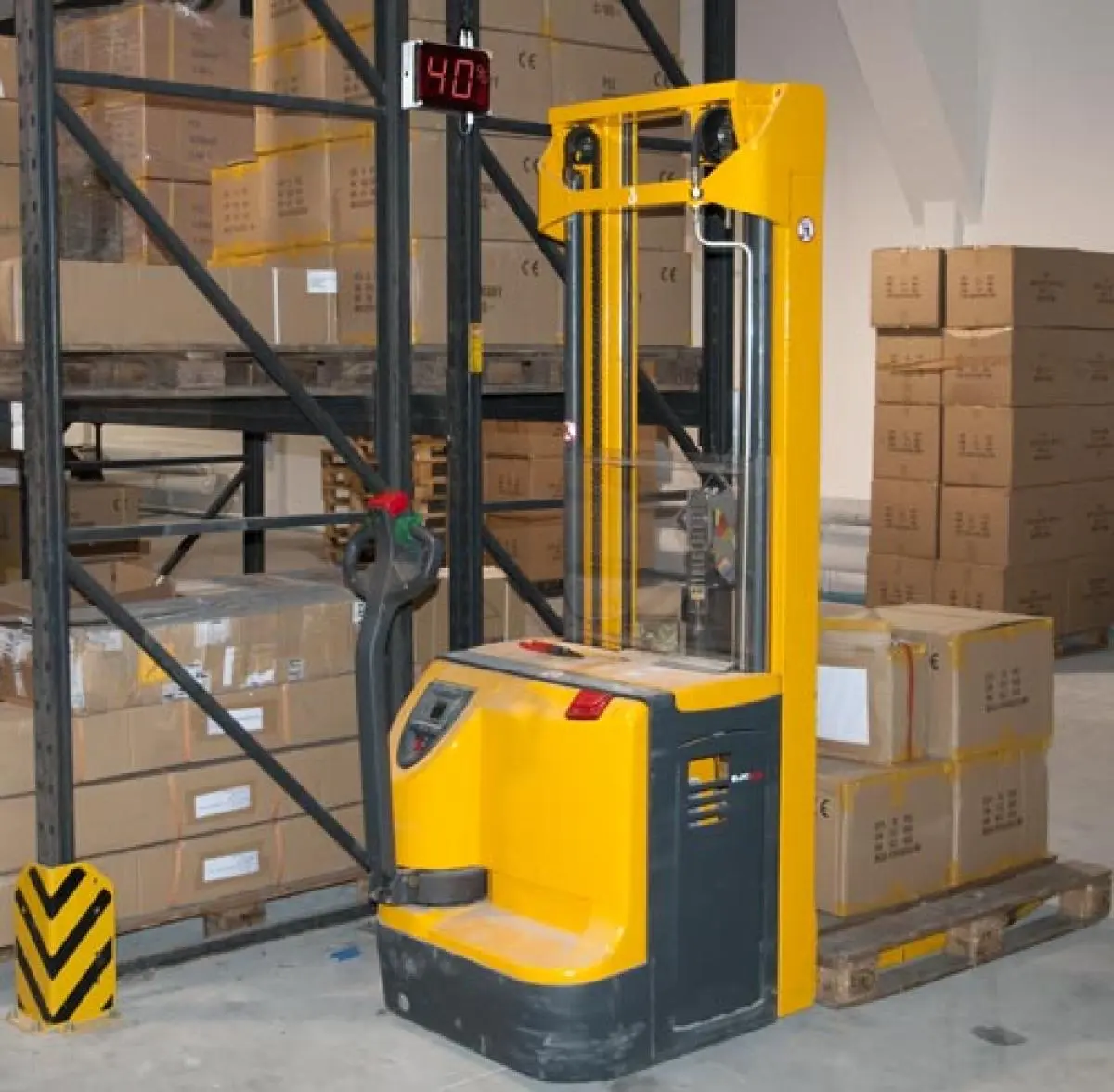

PCE-G1A is a relative humidity meter with a large display. This IP54-rated wall-mountable device measures both relative humidity (%RH) and temperature (°C only). The PCE-G1A relative humidity meter has a large LED display with a number height of 100 mm / 3.9 in, so measurement values can be seen at a distance of up to 50 m / 164 ft away.

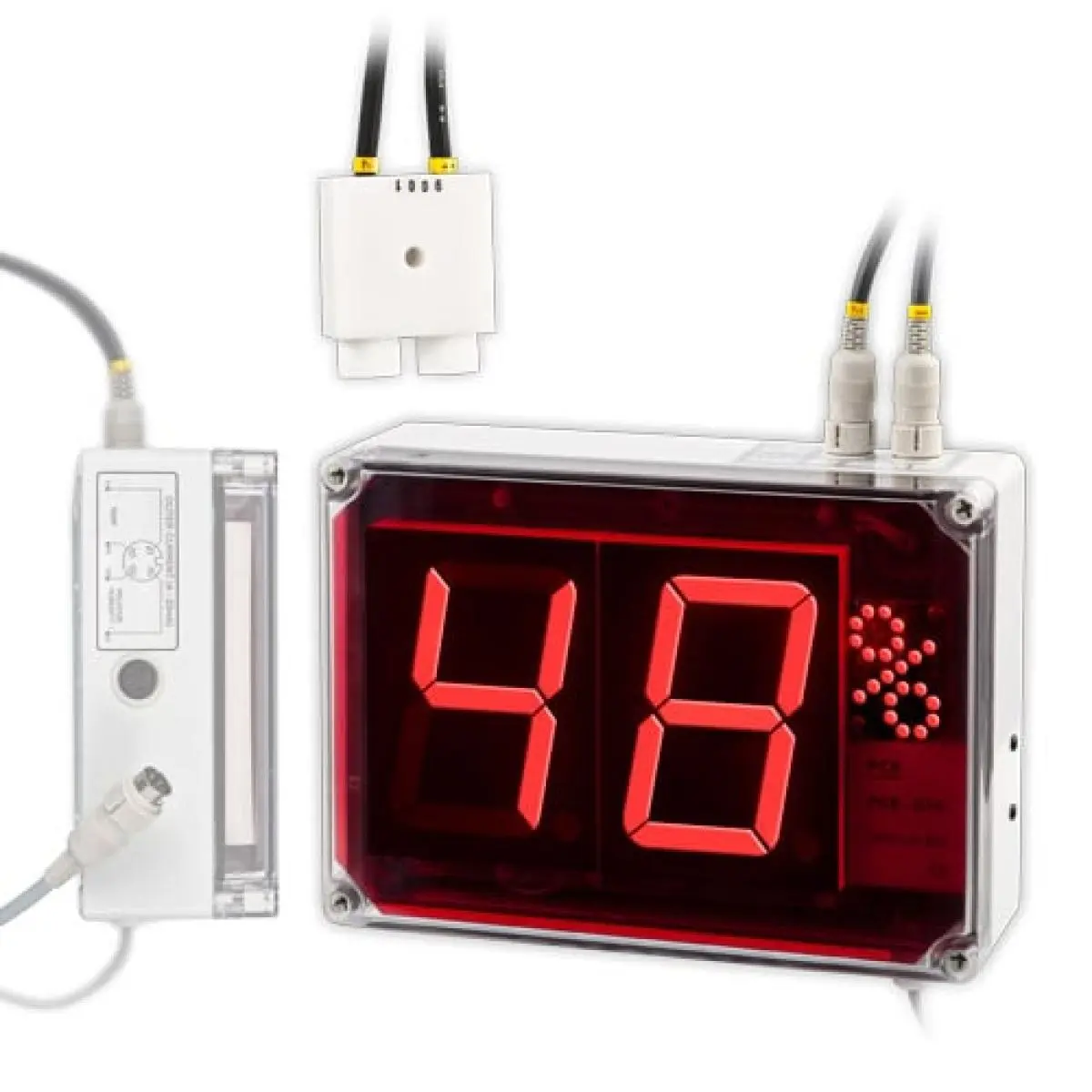

Relative humidity and temperature measurements are displayed every 5 seconds (in 5-second intervals). Sensors are mounted by means of connectors with 1 m / 3.2 ft long cable to measure relative humidity and temperature when sensors and display are in different places.

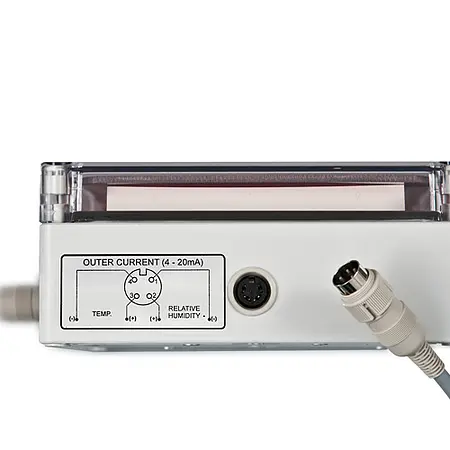

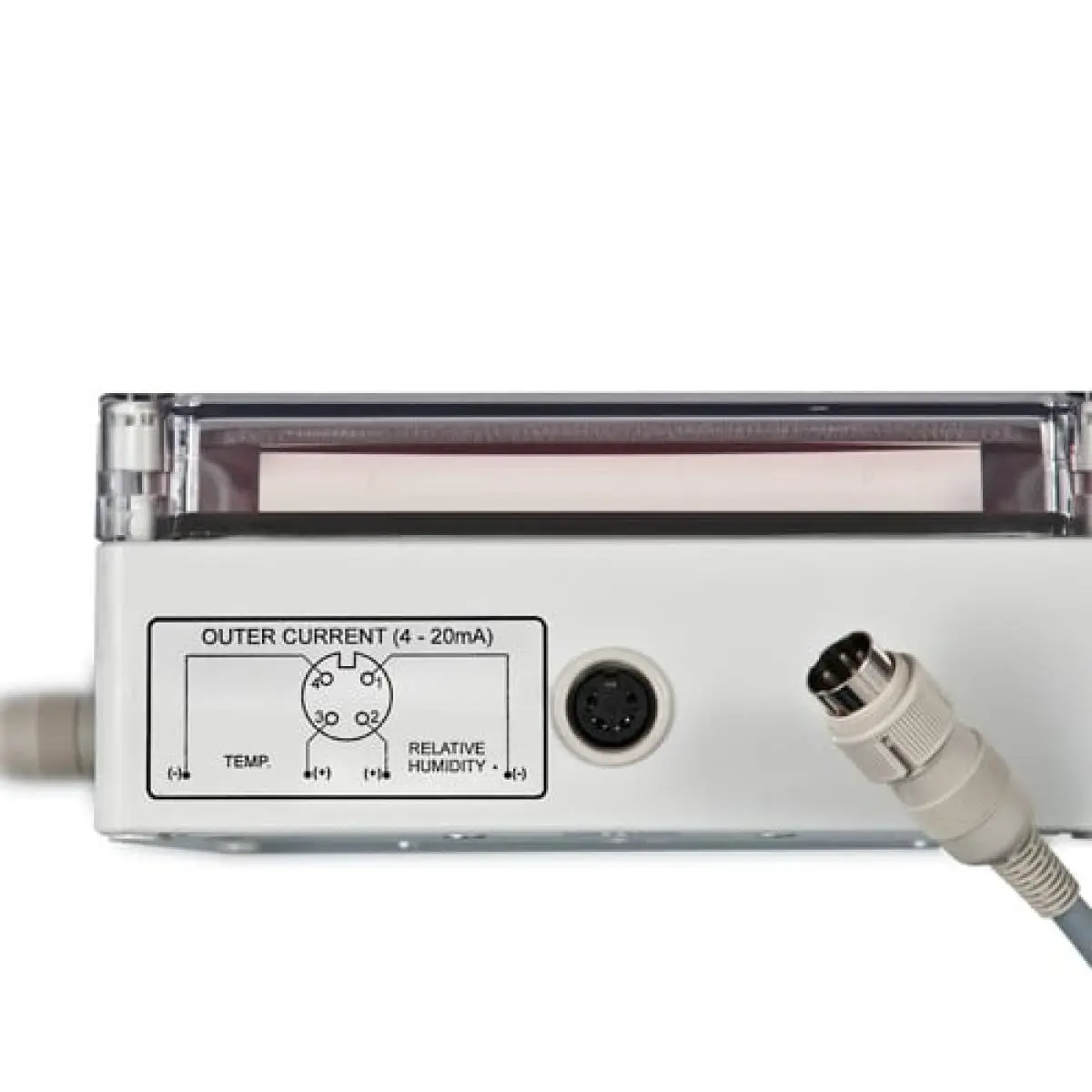

The PCE-G1A also has a 2-channel analog output of 4 ... 20-mA. The two channels convert relative humidity and temperature values into 4 ... 20-mA signals before displaying them. This means that measurements can be recorded, controlled and regulated by means of the analog output.

Highlights

- Ingress protection type: IP 54 rating
- Large, easy-to-read 100 mm / 3.9 in tall LED digits
- Analog output: 4 ... 20-mA external sensors
- Temperature and relative humidity values are displayed every 5 seconds (in 5-second intervals)
- Displays temperature in degrees Celsius (°C) only
- Ready for wall mounting
- Long life
- Excellent readability
- High accuracy

Specification

Measuring ranges
10 ... 95 % RH  /  0 ... +60 °C
Resolution
1 % RH  /  1 °C
Accuracy
±2 % RH  /  ±1 °C
Visibility readable at ca. 50 m
Sensor type
Relative humidity / Temperature		HC1000  /  Pt1000
Response time T90 ca. 4 s
Cable length (between sensor and display)   1 m
Display100 mm high LED (alternating display)
Analog output two channel 4-20 mA (passive)
Analog output scaling
temperature: 0 ... 100 °C
humidity: 0 ... 100 %
Power supply 230 V / 50 ... 60 Hz
Stromaufnahme
ca. 20 mA
Dimensions sensor 50 x 70 x 20 mm
large display 175 x 175 x 75 mm
Protection IP 54
Weight 1.3 kg (incl. sensor and cable)

Delivery Scope

1 x Relative Humidity Meter PCE-G1A
1 x Sensor for temperature and humidity with connection cable (in selected configuration)
1 x Mains power cable
1 x 4 pin DIN connector
1 x Instruction manual

Downloads

Accessories

Accessories

ISO Calibration Certificate for PCE-G1
£ 154.00

Price excl. VAT &. delivery
2 year Warranty

ISO calibration certificate, e.g. to comply with your DIN ISO 9000. For this we give the measuring device to our in-house calibration laboratory. You as the client, the measured values and the serial number are recorded in this ISO calibration certificate.

  • Thermometer function (3 measuring points) 15 °C, 25 °C and 35 °C
  • Hygrometer function (3 measuring points) 30% RH, 50% RH and 80% RHN.B. Calibration certificates are issued specifically for the customer and are non-returnable.
