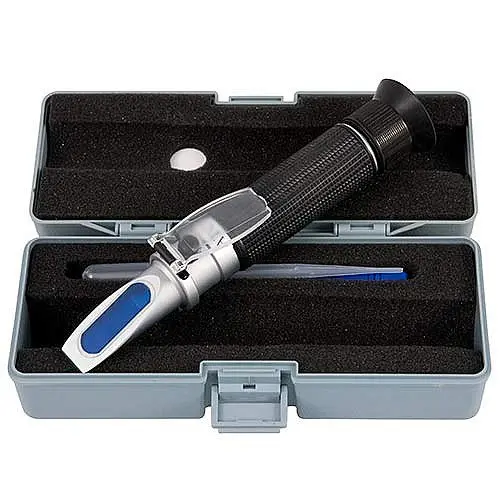

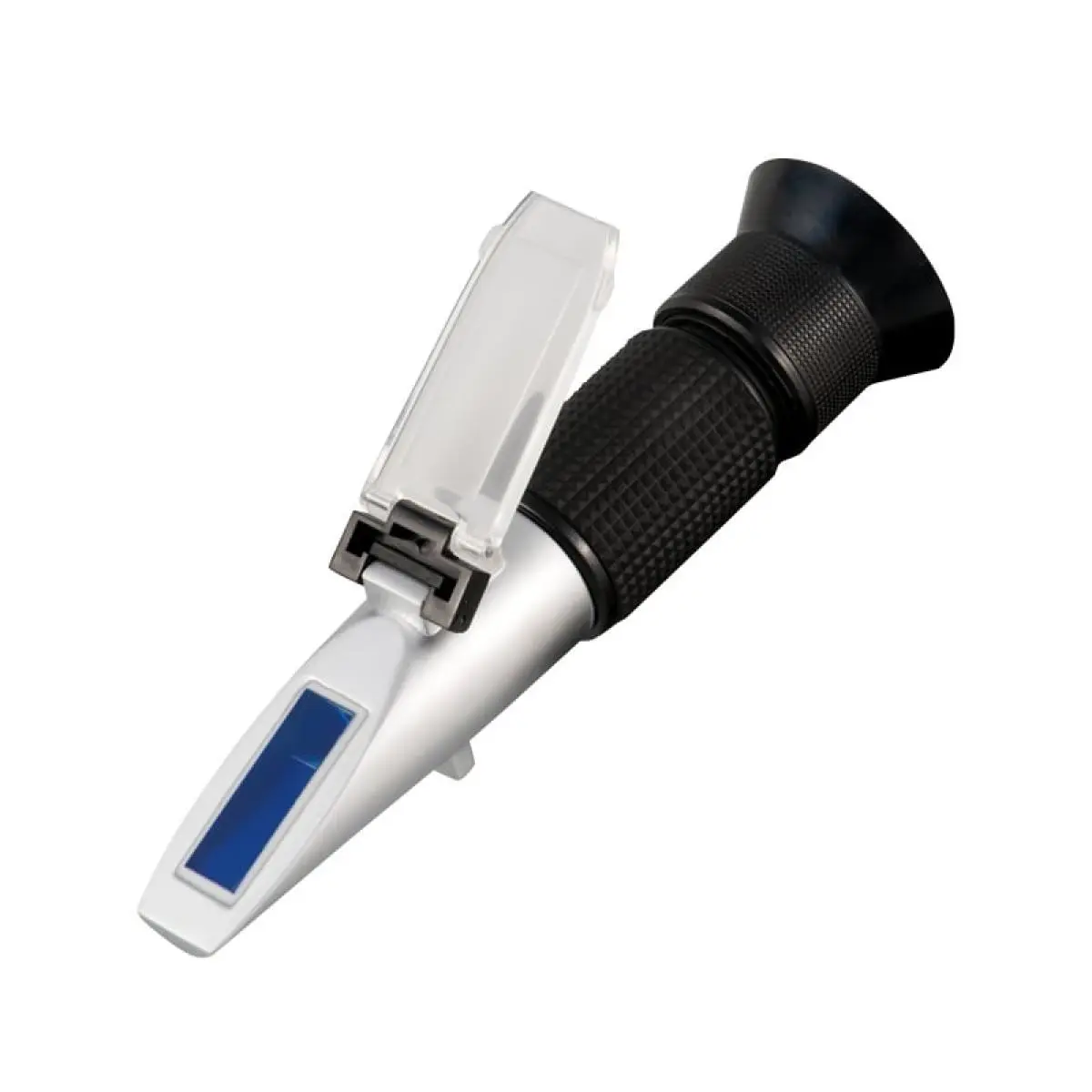

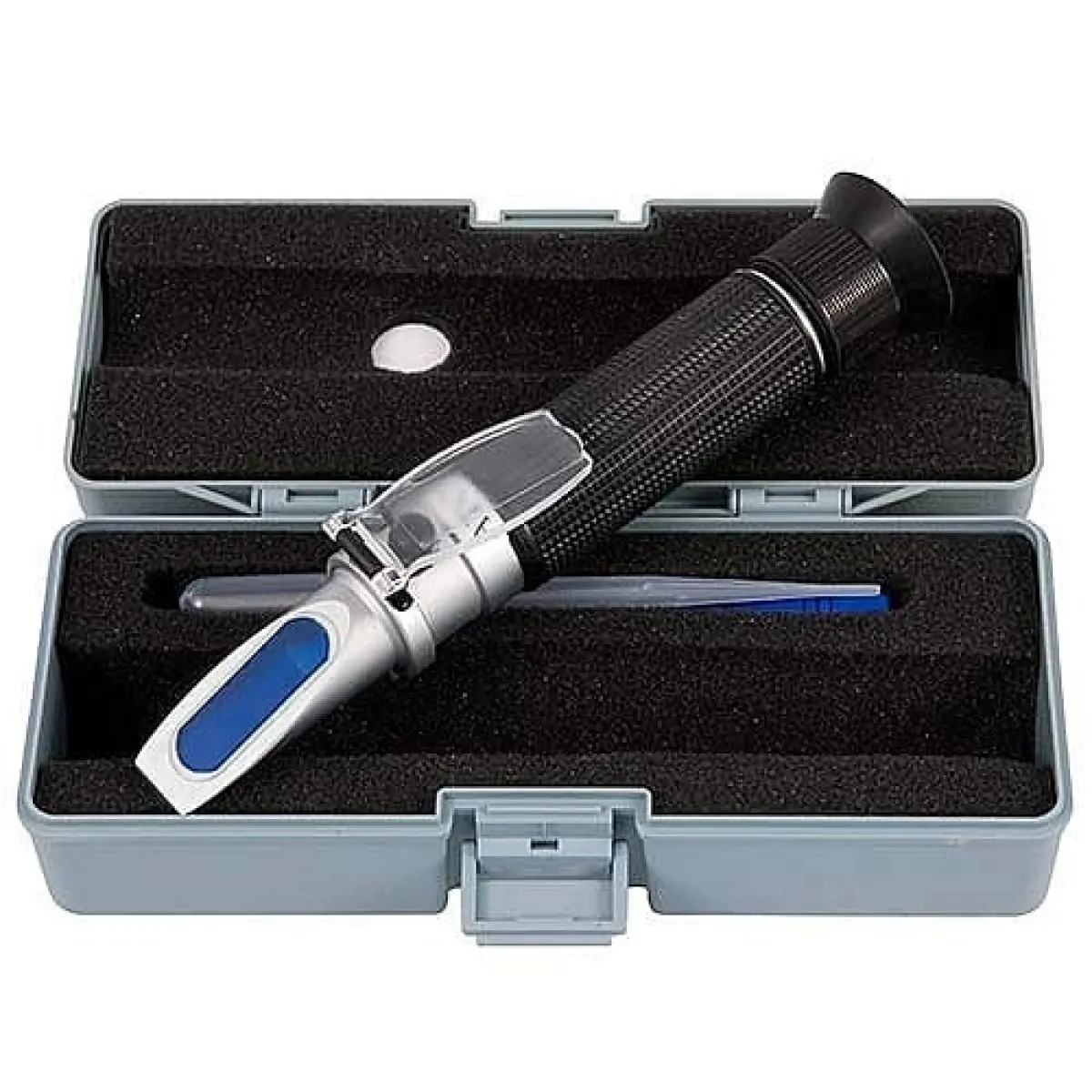

PCE-Oe Handheld Refractometer
Portable pocket refractometer for winemakers measures sugar content in °Oechsle (°Oe), % Brix / sac and KMN / babo

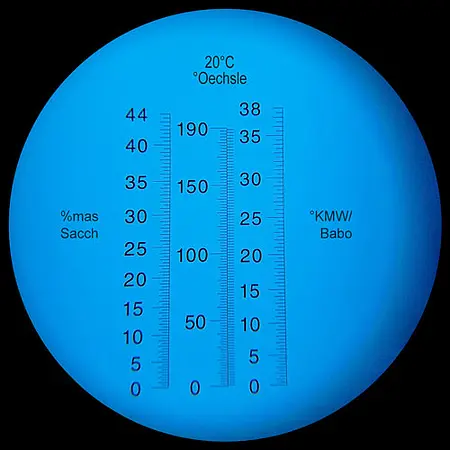

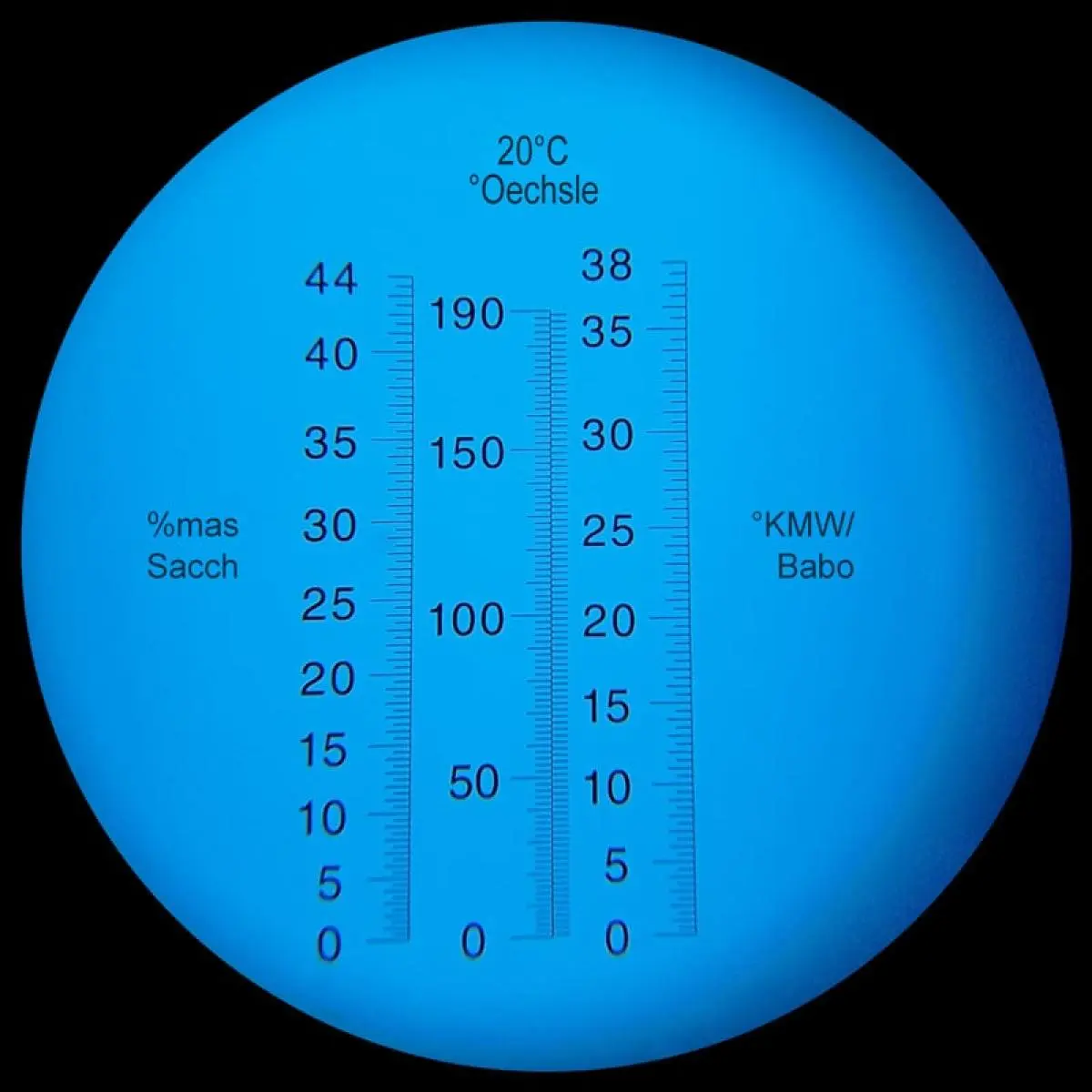

PCE-Oe is a handheld refractometer used by winemakers to determine the sugar content of unfermented grape juice to predict the alcohol content of wine. This portable pocket winemaker's refractometer has a triple scale to allow the user to view all three measurement parameters at once.
The ultra-smooth focusing eyepiece provides high-quality optics, presenting an easy-to-read scale on a semi-transparent blue and fully transparent clear background. Ambient room lighting offers ample illumination to clearly read the results.
| Brix | |
| Measuring range | 0 ... 44 % |
| Resolution | 0,4 % |
| Accuracy | ± 0.2 % |
| Sugar content | |
| Measuring range | 0 ... 190 °Oe |
| Resolution | 2 °Oe |
| Accuracy | ±2°Oe |
| Sugar content | |
| Measuring range | 0 ... 25 KMN |
| Resolution | 0,4 KMN |
| Accuracy | ±0.5 KMN |
| General technical data | |
| Temperature compensation | yes |
| Protection class (device) | IP20 |
| Operating conditions | 10 ... 30 °C , 0 ... 90 % RH |
| Storage conditions | 10 ... 30 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 203 x 29 x 29 mm |
| Weight | 285 g |
