Handheld Digital Refractometer PCE-DRP 1 Coffee

Handheld Digital Refractometer PCE-DRP 1 Coffee

Order no.: PCE-DRP 1
GTIN (EAN): 4250348716910

£ 304.00
£ 364.80
price ex. (VAT / delivery)
:
4250348716910
PCE-DRP 1
Delivery time:1-2 working days
Coffee
Digital
Handheld
Brix, coffee P1, nD, °C

Description

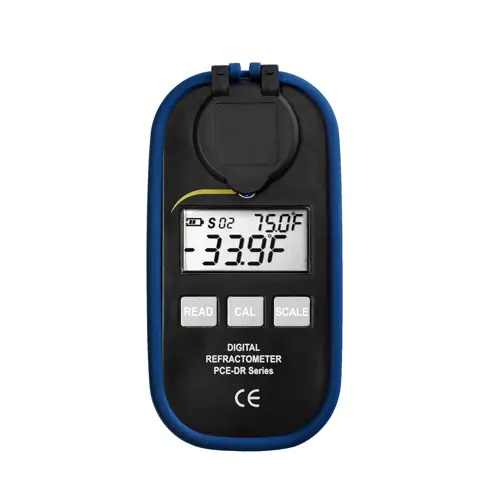

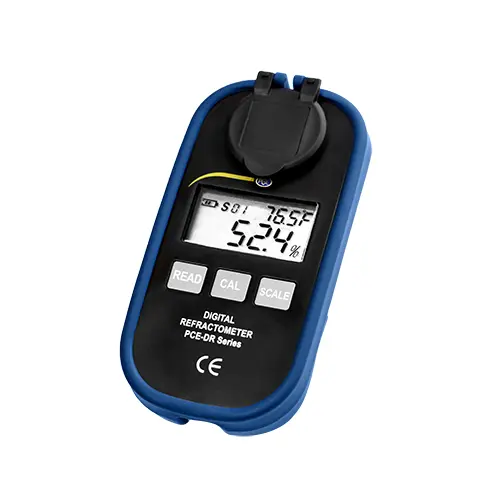

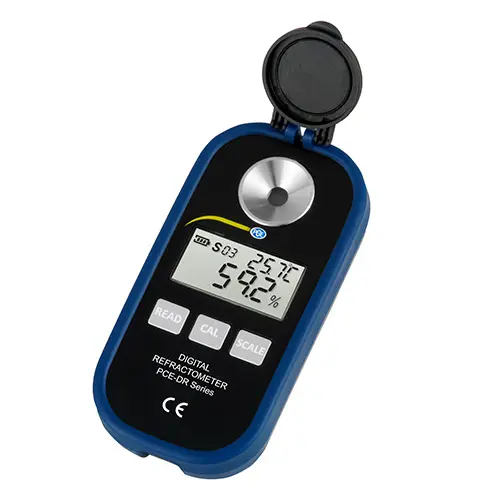

PCE-DRP 1 Coffee Handheld Digital Refractometer

Waterproof IP65-rated Brix / coffee p1 / refractive index (nD) refractometer with easy-to-read LCD

PCE-DRP 1 is a handheld digital refractometer used to determine the sugar content / coffee p1 / refractive index of coffee and similar liquids in the 0 ... 50 % Brix / 0 ... 25 coffee p1 / 1.3330 ... 1.4200 nD measuring range. This waterproof IP65-rated digital refractometer features automatic temperature compensation (ATC) from +10 ... +40 °C / +50 ... +104 °F, as well as a large, easy-to-read LCD that shows both the measured value and the temperature.

Fields of application

Millions of people do not imagine the start of their day without a cup of a good coffee. The word “good” is of crucial importance. This “treat” named coffee is known all over the world and the variety of its kinds is overwhelming. Coffee-shops, stores, restaurants, even coffee-to-go sellers are all interested in providing the customers with the best possible product. Handheld digital refractometer for coffee.Coffee refractometer has been created to help in the creation of an impeccable drink. By using this device, it is possible to determine caffeine amount, as well as amount of total dissolved solids (TDS) in a particular drink, sugars etc. in other words, coffee refractometer provides a really scientific approach with involvement of “smart” equipment to such a simple routine thing as making a cup of coffee. The values received from the coffee refractometer can be used by the producer immediately; they give an indication of whether the used recipe is correct or imperfect and whether the proportions of the ingredients, coffee beans, water (sugar) should be changed. Baristas and professional brewers apply coffee refractometer as an auxiliary tool, for calculating the extraction yield. For sure, the drink may also be changed and adjusted to the personal taste, but technological measurement with the help of the precise equipment provides reliable measurements which indicate to what extent the official general standards are met, which is the pledge of the good-quality product.


Highlights

- Measurement parameters: Brix, coffee p1, refractive index, temperature
- Automatic temperature compensation (ATC) from +10 ... +40 °C / +50 ... +104
°F
- Handheld and portable
- User-friendly 3-button operation
- Fast and precise measuring results in approx. 1 sec.
- ABS plastic housing with IP65 ingress protection rating against water and
dust
- Large, easy-to-read digital LCD shows both the measured value and the
temperature
- Average function measures same sample 15 times and displays the mean value

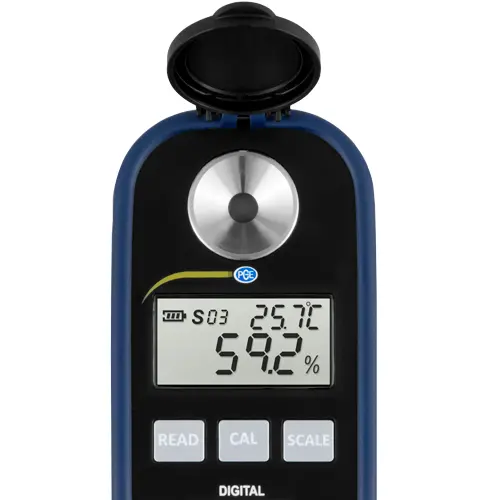

- Stainless-steel ring on sample well protects glass prism from damage
- Internal light source for improved accuracy
- Small liquid sample size of just 4 to 5 drops
- Easy calibration with distilled water
- Battery-saving automatic power off after 1 min. of inactivity

Specification

Brix
Measuring range  0 ... 50 % Brix
Resolution  0,1 % Brix
Accuracy  ±0.2% Brix

Refractive index
Measuring range  1,333 ... 1,42 nD
Resolution  0,0001 nD
Accuracy  0.0003 nD

Coffee p1
Measuring range  0 ... 25
Resolution  0,1
Accuracy  ±0.2

Temperature
Measuring range  0 ... 40 °C
Resolution  0,1 °C
Accuracy  ±0.5 °C

General technical data
Temperature compensation  automatic 10 ... 40 °C
Display type  LCD
Response time  1 s
Automatic power-off  1 min
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Sample quantity  4 ... 5 drops
Sample tray  Stainless steel ring with glass prism
Menu language  English, English (GB)
Protection class (device)  IP65
(Rechargeable) battery  1 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  10 ... 40 °C , 0 ... 80 % RH
Storage conditions  -10 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  125 x 62 x 28 mm
Weight  144 g

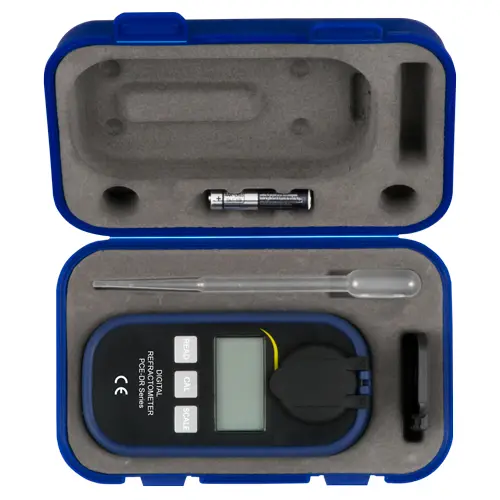

Delivery Scope

1 x PCE-DRP 1 coffee handheld digital refractometer
1 x pipette
1 x prism cover
1 x 1.5V AAA battery
1 x user manual
1 x carrying case
