Redox Meter PCE-PH 30R for Water Analysis

Redox Meter PCE-PH 30R for Water Analysis [zoom]

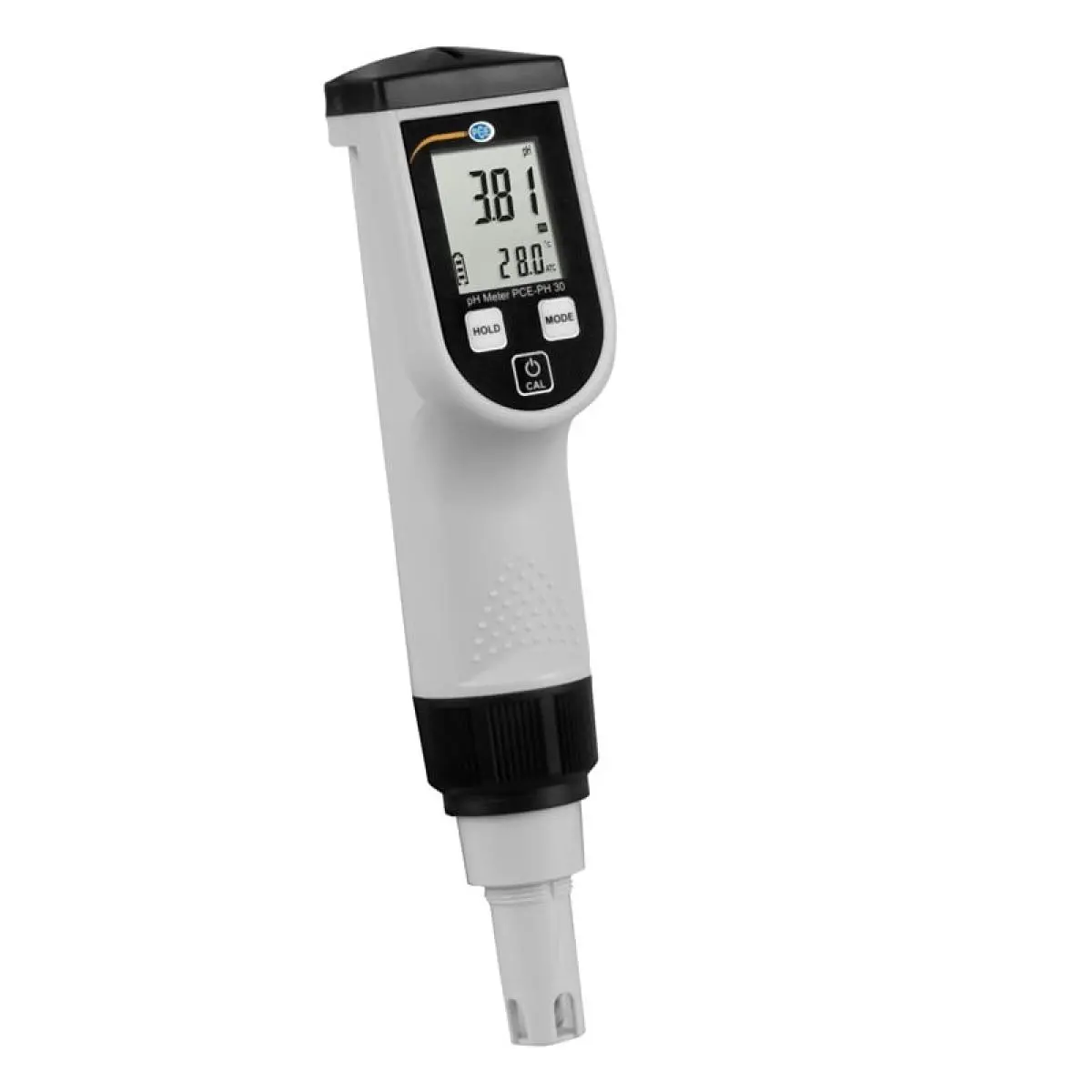

Redox Meter PCE-PH 30R for Water Analysis

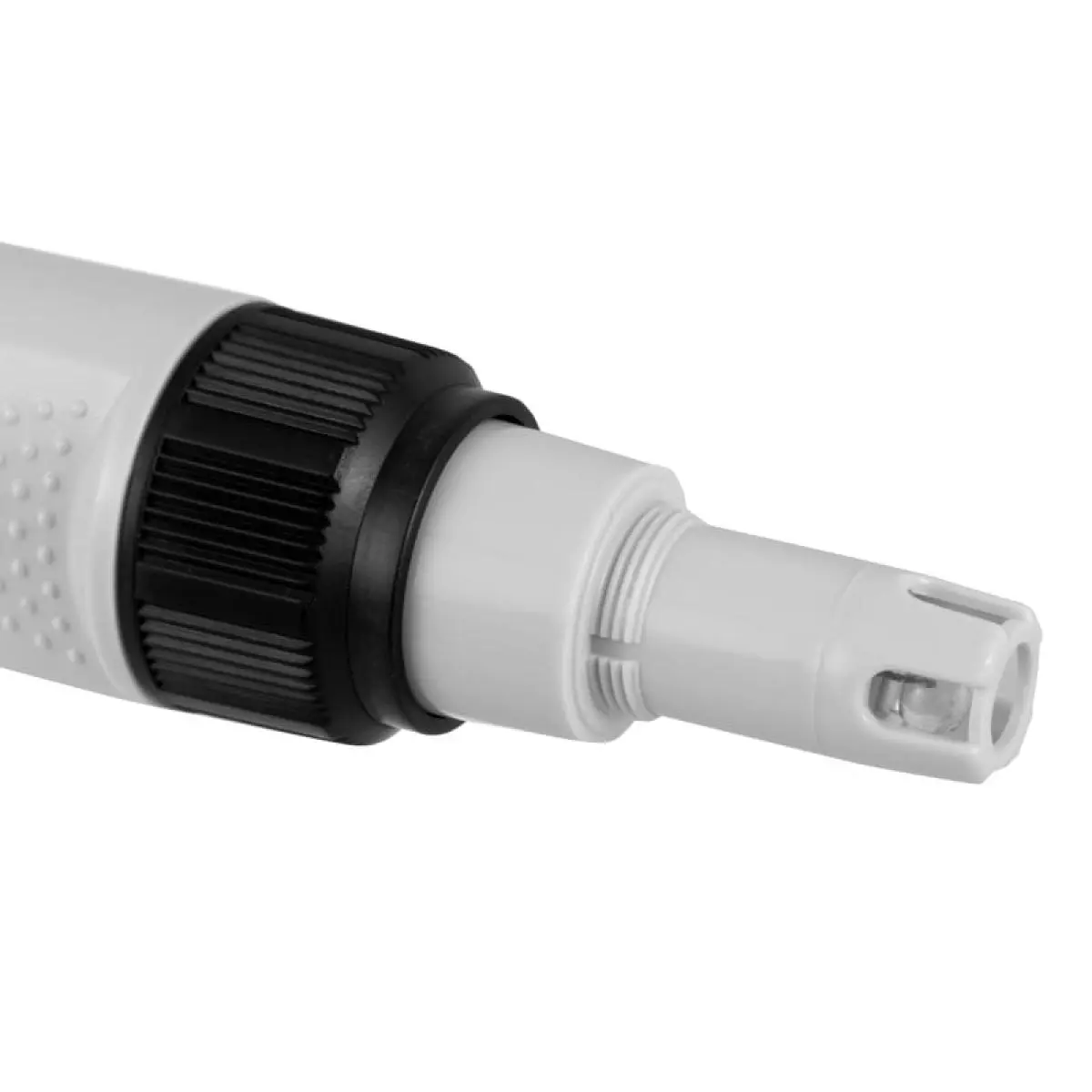

Redox Meter Sensor

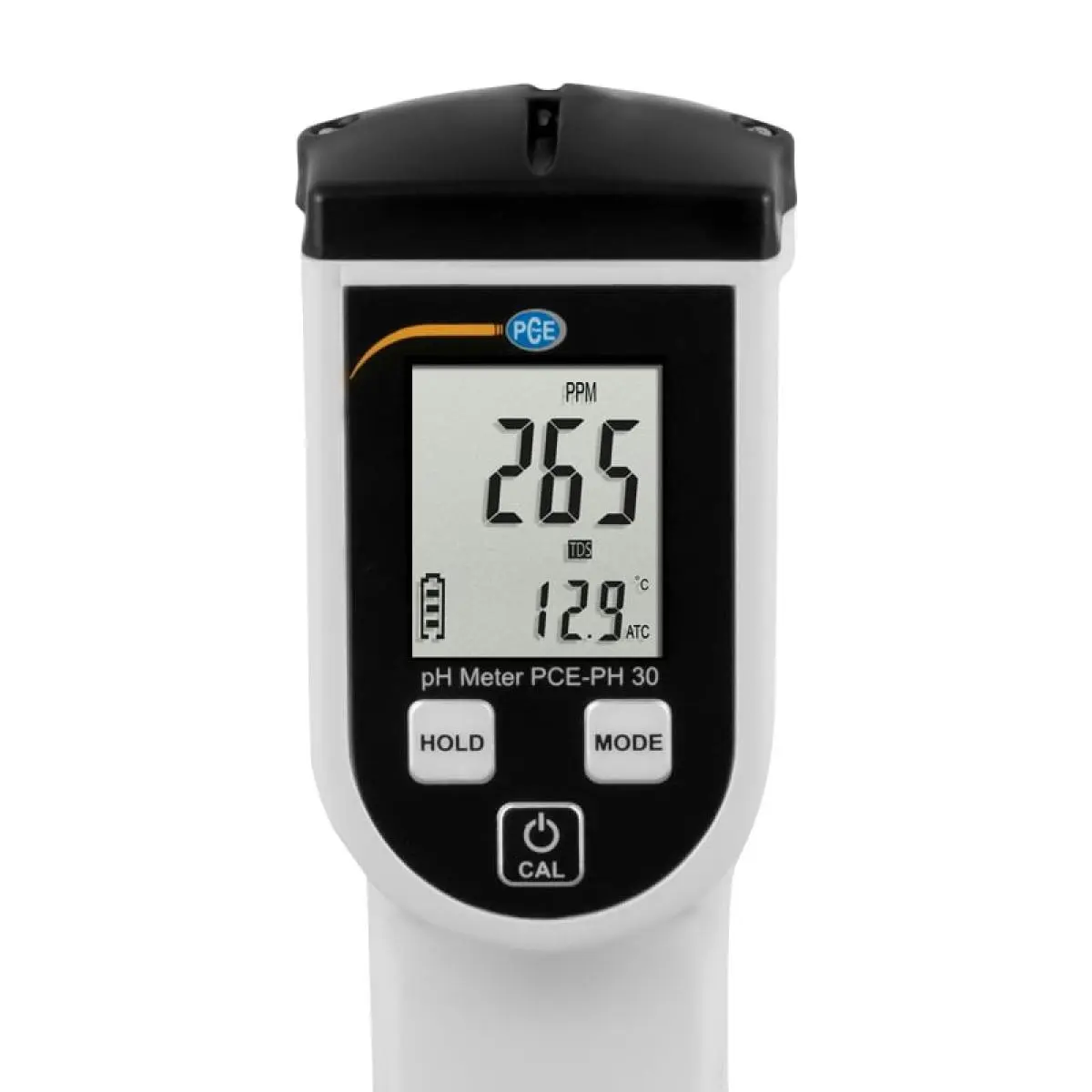

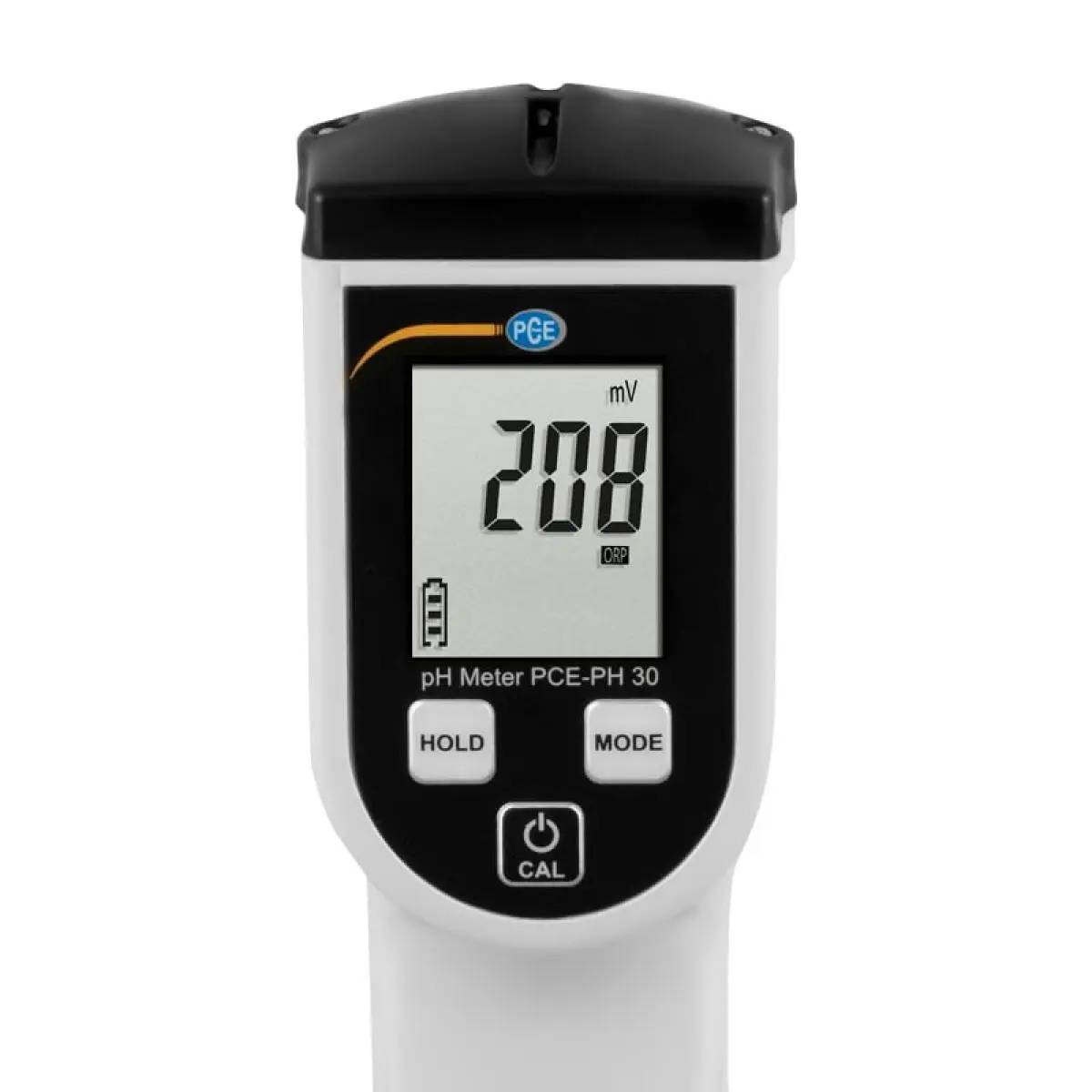

Redox Meter Display

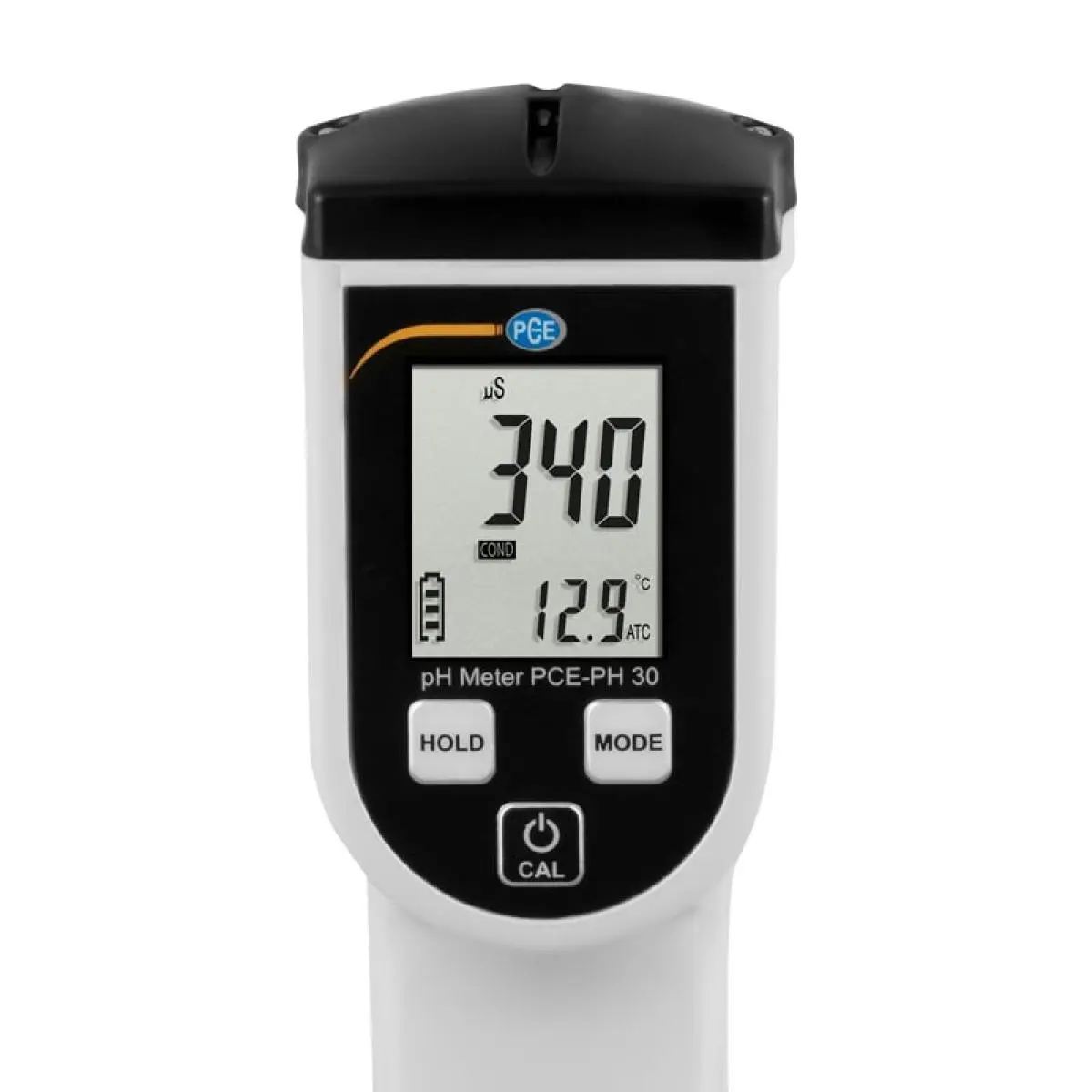

Redox Meter Display
Redox Meter Display
Redox Meter Display
Redox Meter Connections

Redox Meter PCE-PH 30R for Water Analysis

Order no.: PCE-PH 30R
GTIN (EAN): 4250348719744
£ 218.00
£ 261.60
price ex. (VAT / delivery)
:
4250348719744
PCE-PH 30R
Delivery time:1-2 working days

Accessory

Description

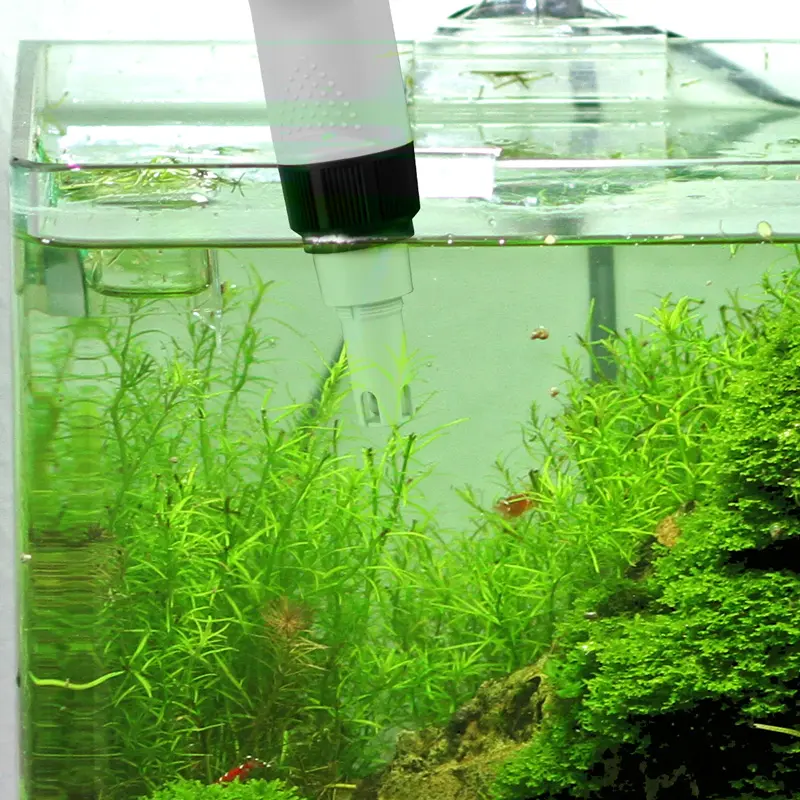

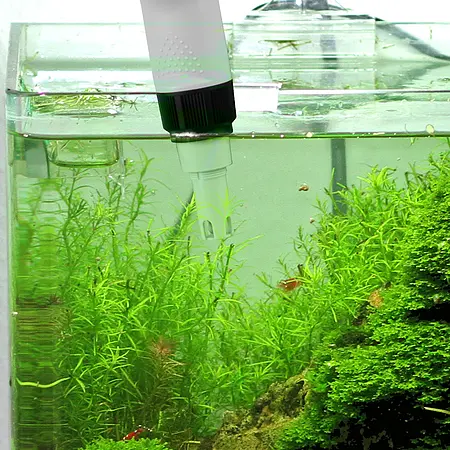

Redox meter PCE-PH 30R for water analaysis, e.g. in aquariums
pH, conductivity, redox tester with interchangeable sensors /  Easy-to-read LC display / Automatic temperature compensation

The redox meter is the optimal tool for checking the most important water parameters. The portable redox meter is used to control pH and conductivity. It also serves for simultaneous temperature measurement. Furthermore, the redox meter can be used to measure the redox potential.

A three-point calibration and automatic temperature compensation up to 90°C / 194°F guarantee high accuracy even with fluctuating measuring temperatures. The redox meter has an easily readable display. The test device is delivered including a redox probe, calibration and storage liquid.

Highlights

- 6 in 1 pH tester
- IP57 housing
- Automatic temperature compensation
- Battery operation
- 3 point pH calibration
- Exchangeable electrodes
- Max-Min Hold function
- Automatic electrode detection

Specification

Conductivity
Measuring range  0 ... 2000 µS
Resolution  1 µS
Accuracy  ±2% FS

pH
Measuring range  -2 ... +16 pH
Resolution  0,01 pH
Accuracy  ±0.01 pH +1 digit

Redox
Measuring range  -1000 ... +1000 mV
Resolution  1 mV
Accuracy  ±2 mV +1 digit

Salinity
Measuring range  0 ... 1000 ppm
Resolution  1 ppm
Accuracy  ±2% FS

TDS
Measuring range  0 ... 1300 ppm
Resolution  1 ppm
Accuracy  ±2% FS

Temperature
Measuring range  0 ... 90 °C
Resolution  0,1 °C
Accuracy  ±0.2°C +1 Digit

General technical data
Measuring functions  MIN, MAX, HOLD
Temperature compensation  0 ... 90°C / 32 … 194°F, automatic
Display type  LCD
Number of calibration points  3
Menu language  English, English (GB)
Protection class (device)  IP57
(Rechargeable) battery  4 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 60 °C , 0 ... 80 % RH
Storage conditions  0 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  195 x 40 x 36 mm
Weight  135 g

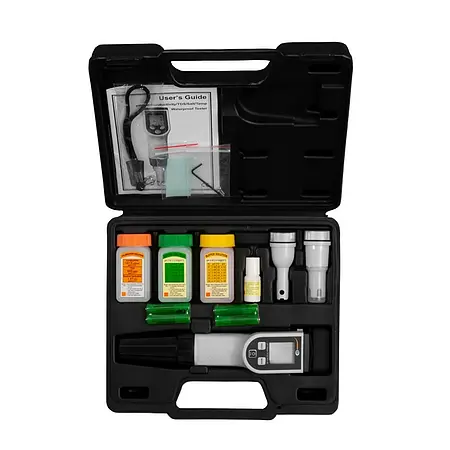

Delivery Scope

1 x Redox meter PCE-PH 30R
1 x Redox electrode SE-PH30-ORP
1 x Conductivity electrode
1 x 1413 μS / cm calibration fluid
1 x Storage solution
1 x Wrist strap
4 x 1.5V AAA battery
1 x User manual
