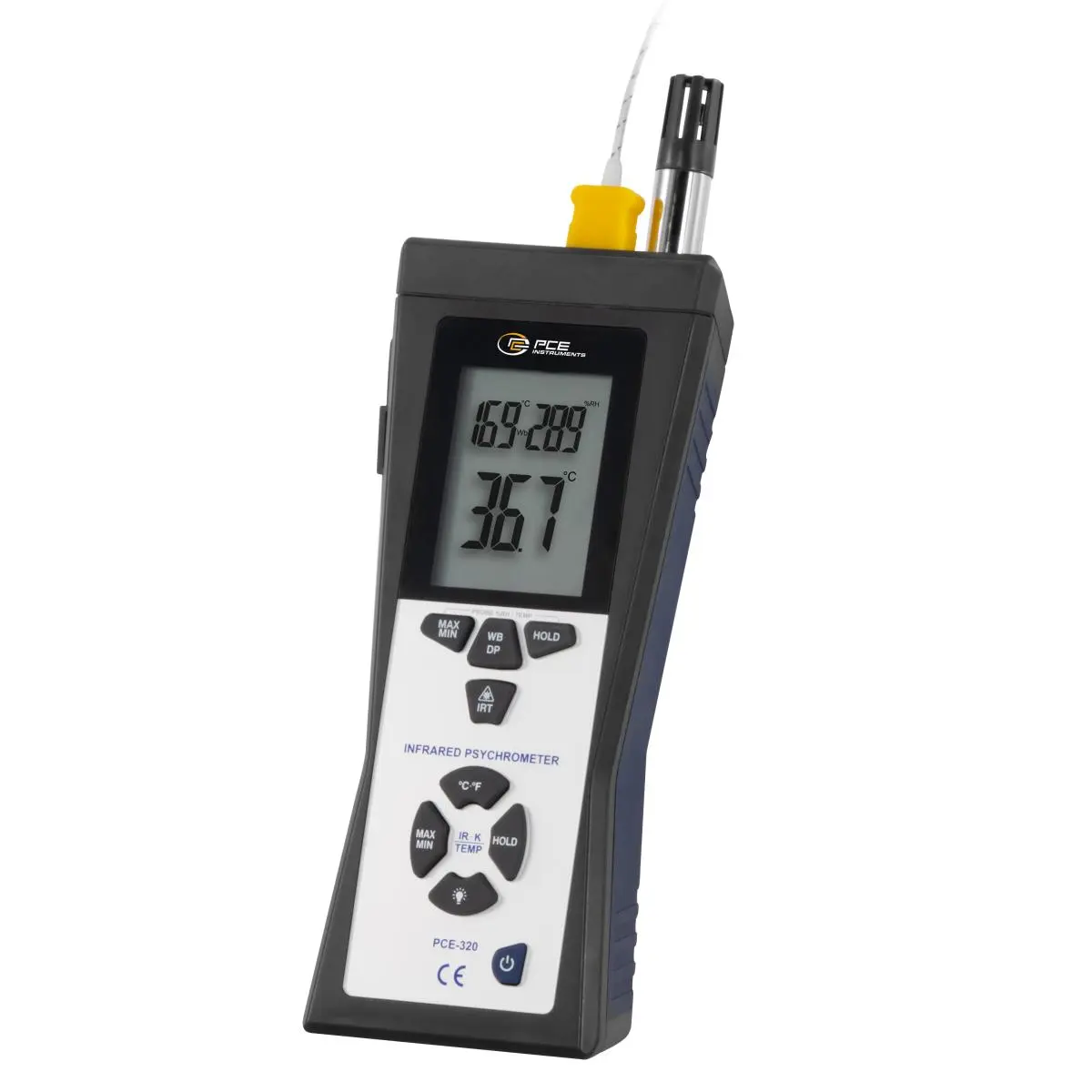

Psychrometer PCE-320
Humidity / Temperature / Dew point / Wet bulb globe temperature / Surface temperature

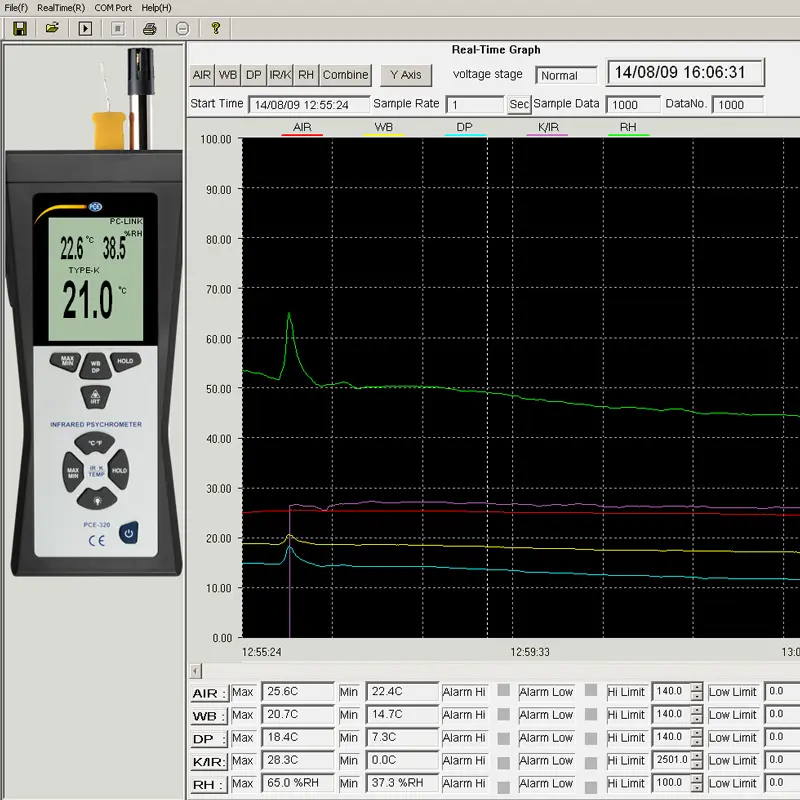

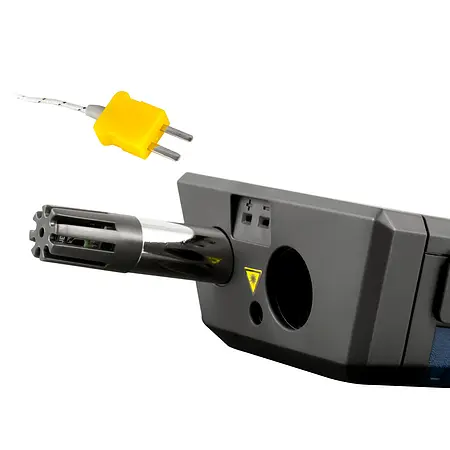

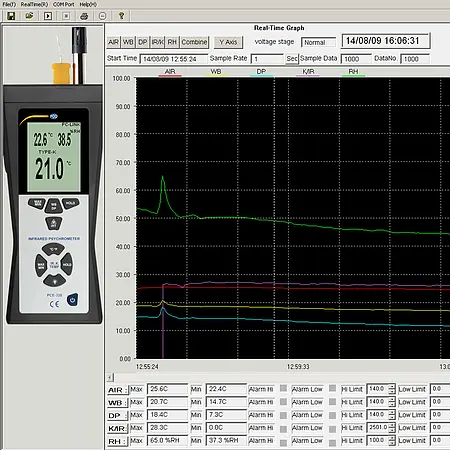

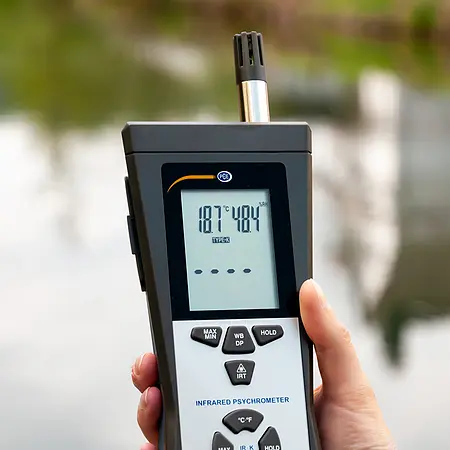

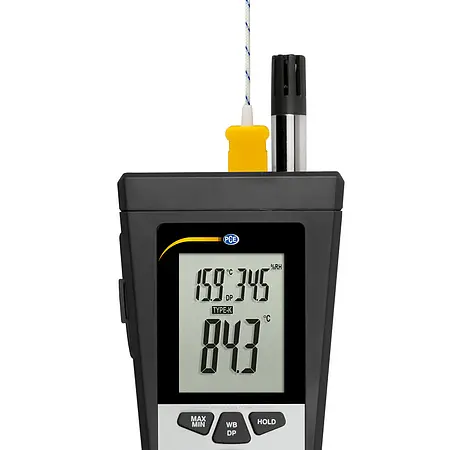

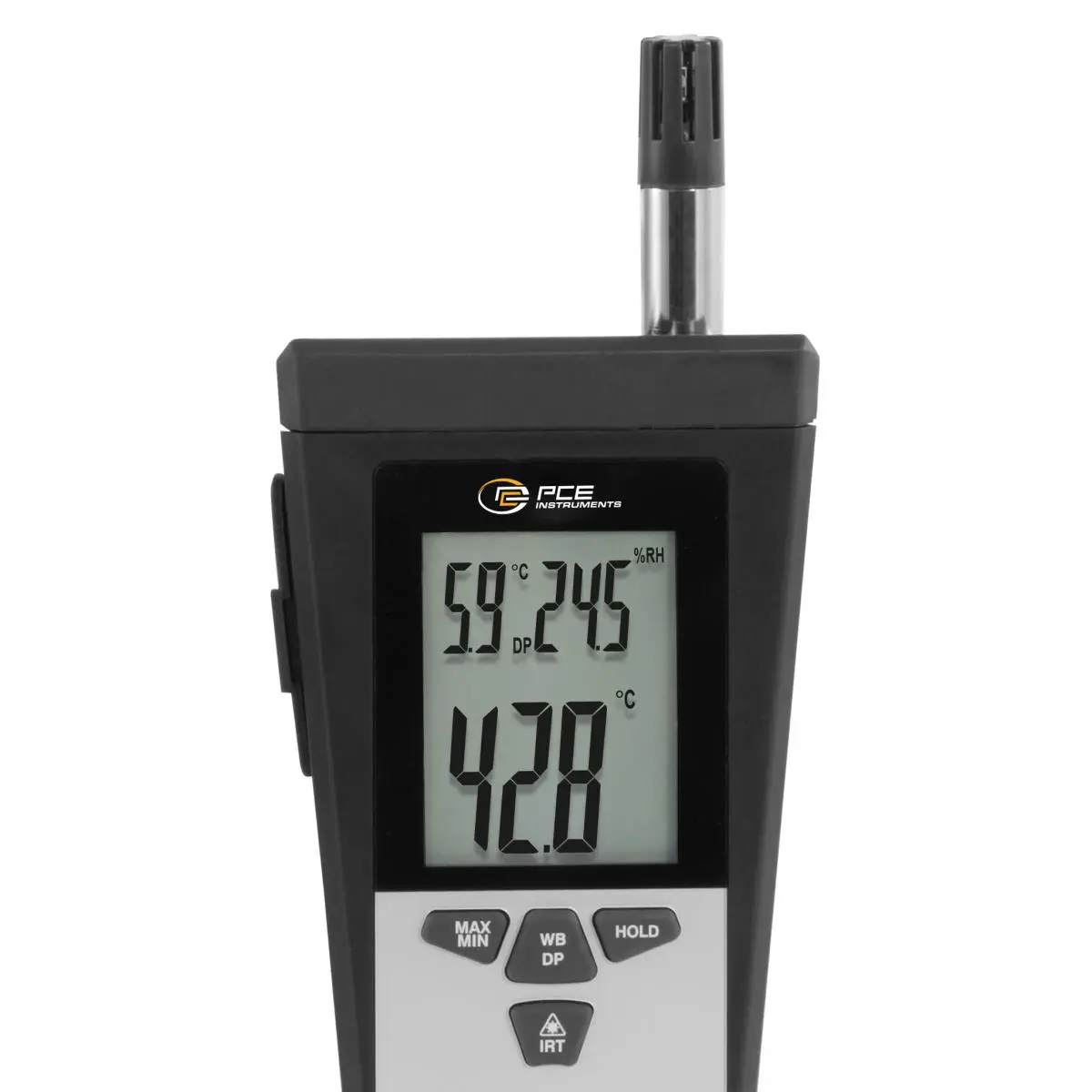

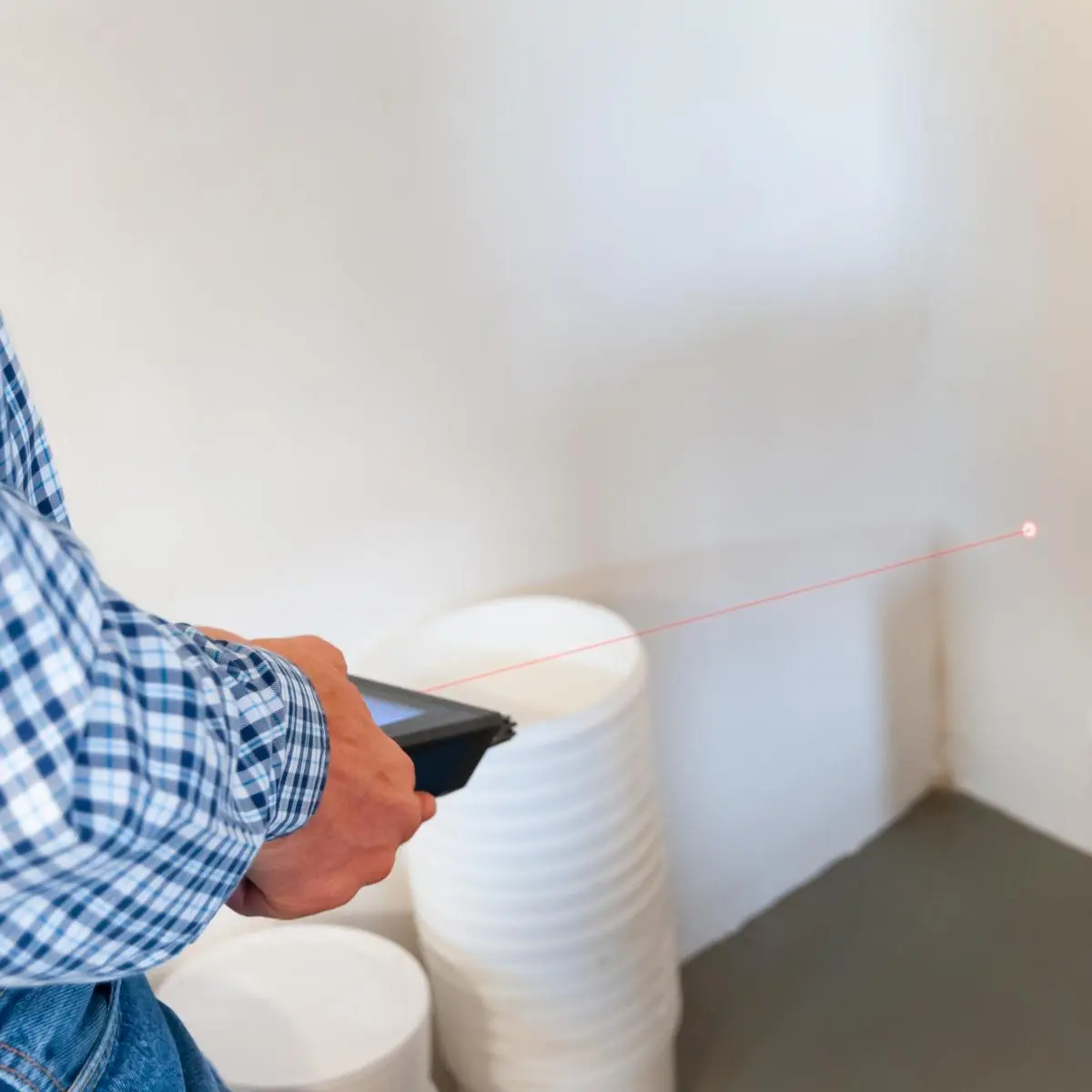

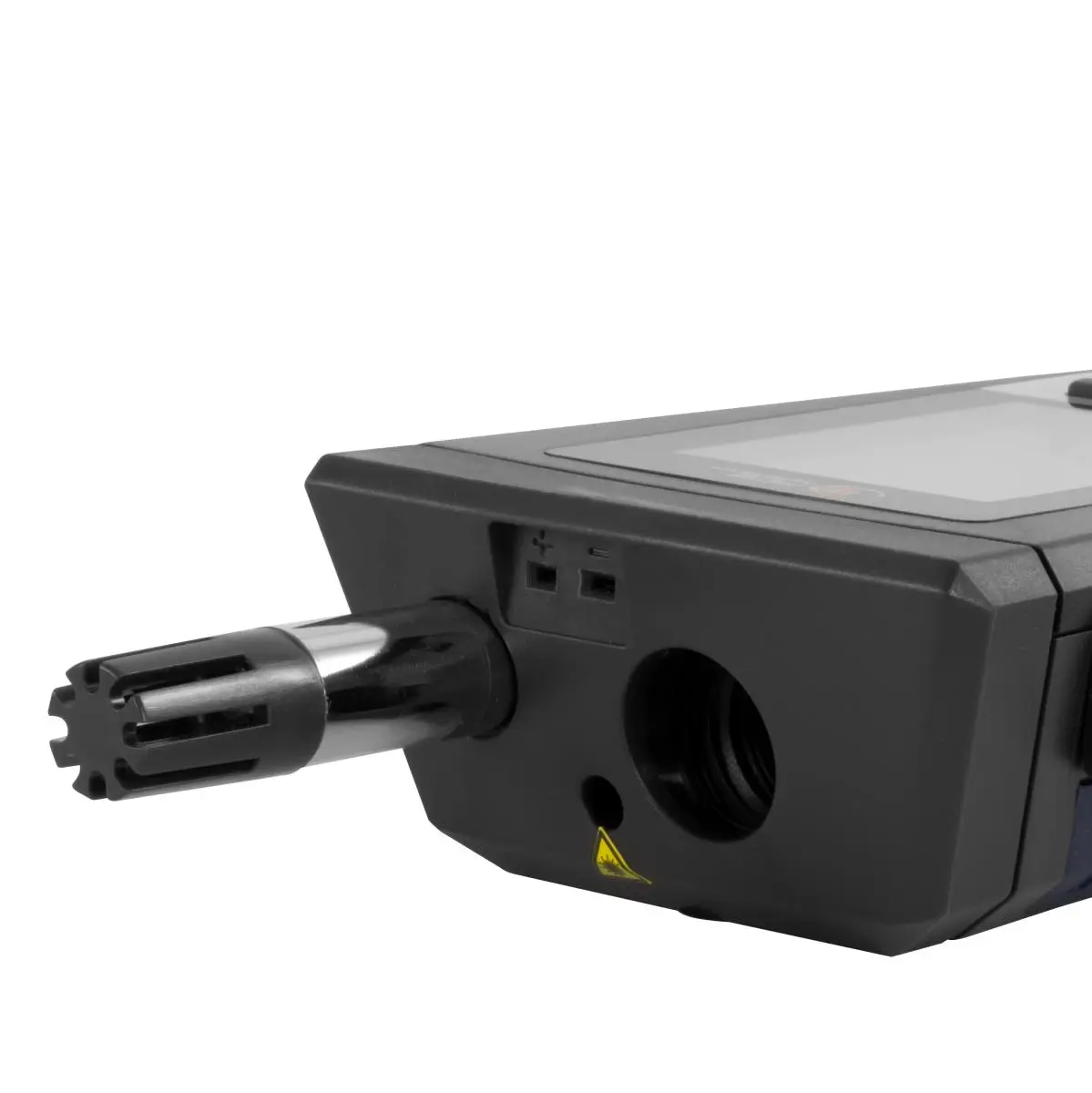

With the psychrometer it is possible to measure climate conditions such as temperature and relative humidity, as well as determining surface temperature of objects simultaneously by using the included external temperature sensor or using an infrared measurement. The psychrometer offers features such as average value, maximum, minimum, and hold functions. The psychrometer provides additional information relating to dew point temperature and the global humidity temperature. Measurement values can be directly seen on the device's LCD display, and maximum and minimum values can be registered or transferred to a PC or portable computer for further analysis.

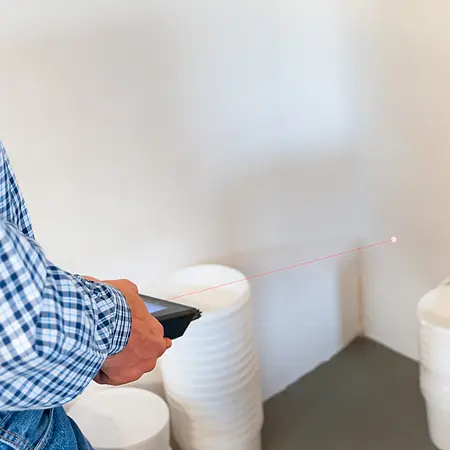

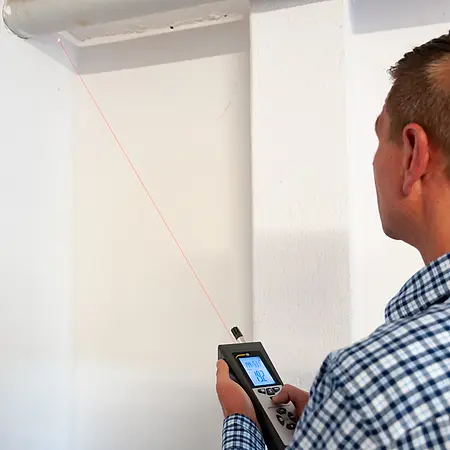

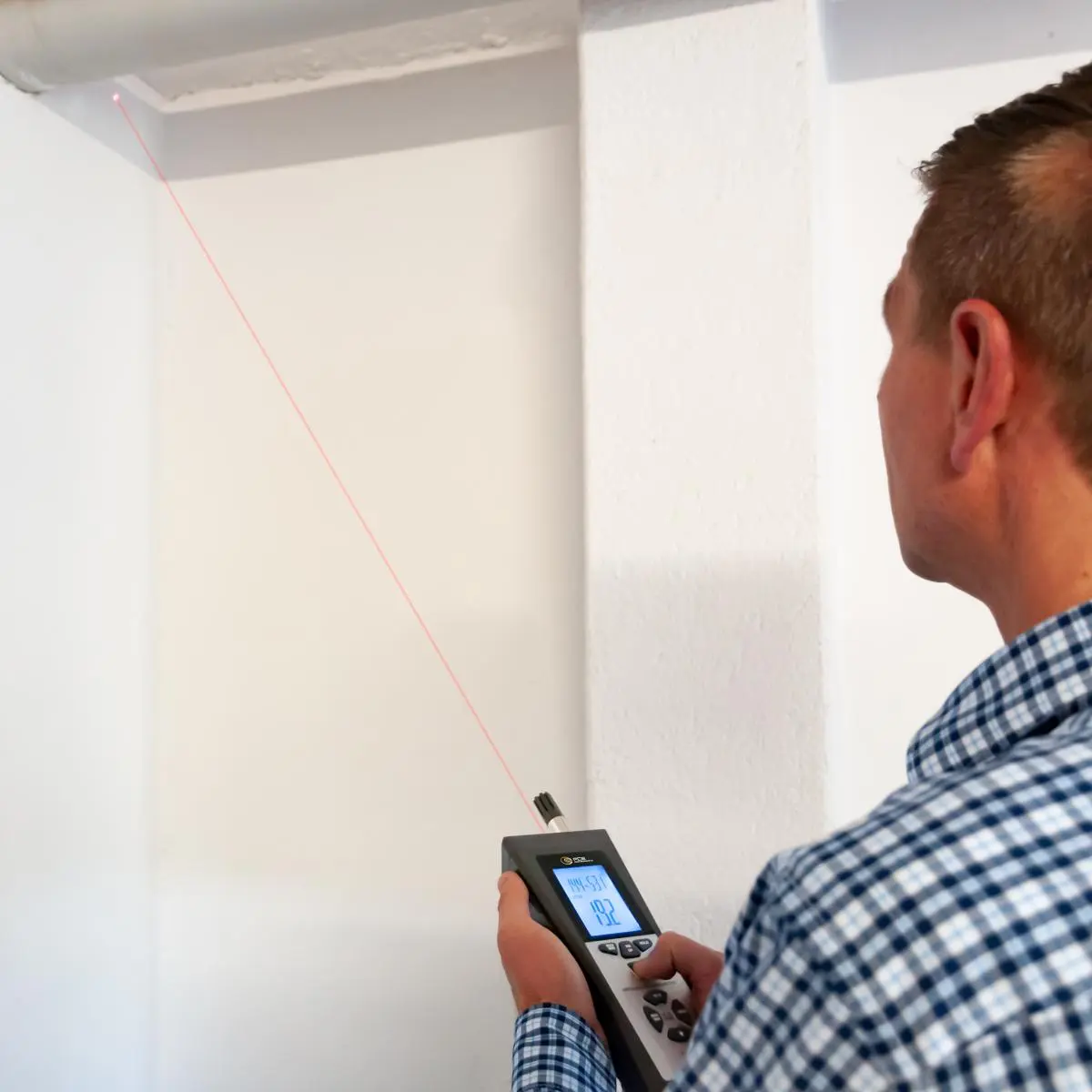

The psychrometer helps prevent damage to products, such as allowing for the elimination of fungus in food when being stored and during transportation. The psychrometer is also very useful in the construction industry, industrial sector, or in product development. Customers frequently complain about not having a tool available that can measure ambient conditions and surface temperature of a wall both inside and outside. The device can be sent away to be calibrated by an accredited DIN ISO laboratory. We offer the possibility of ISO calibration from factory (when the device is ordered or as an annual recalibration).
| Wet bulb temperature | |
| Measuring range | 21,6 ... 60 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.0 °C |
| Temperature K-type | |
| Measuring range | -100 ... +1372 °C |
| Resolution | 0,1 °C |
| Accuracy | ±5.0 °C |
| Infrared temperature | |
| Measuring range | -20 ... +500 °C |
| Resolution | 0,1 °C |
| Accuracy | ±2 °C or ±2 % (the higher value applies) |
| Dew point | |
| Measuring range | -68 ... +60 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.0°C |
| Relative humidity | |
| Measuring range | 10 ... 90 % RH |
| Resolution | 0,1 % RH |
| Accuracy | ±3% |
| Temperature | |
| Measuring range | -20 ... +60 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.0 °C |
| General technical data | |
| Number of measuring channels | 1 |
| Measuring functions | MIN, MAX, HOLD |
| Display type | LCD |
| Display size | 2,8 Inch |
| Storage medium | Internal memory |

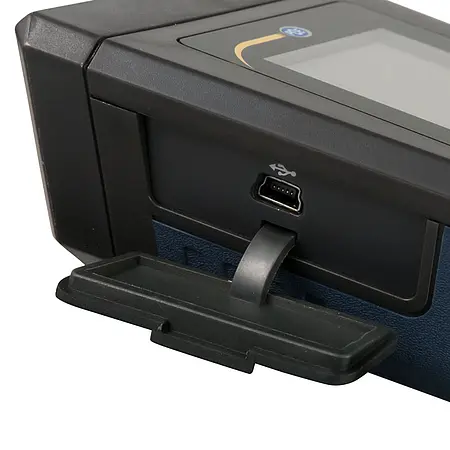

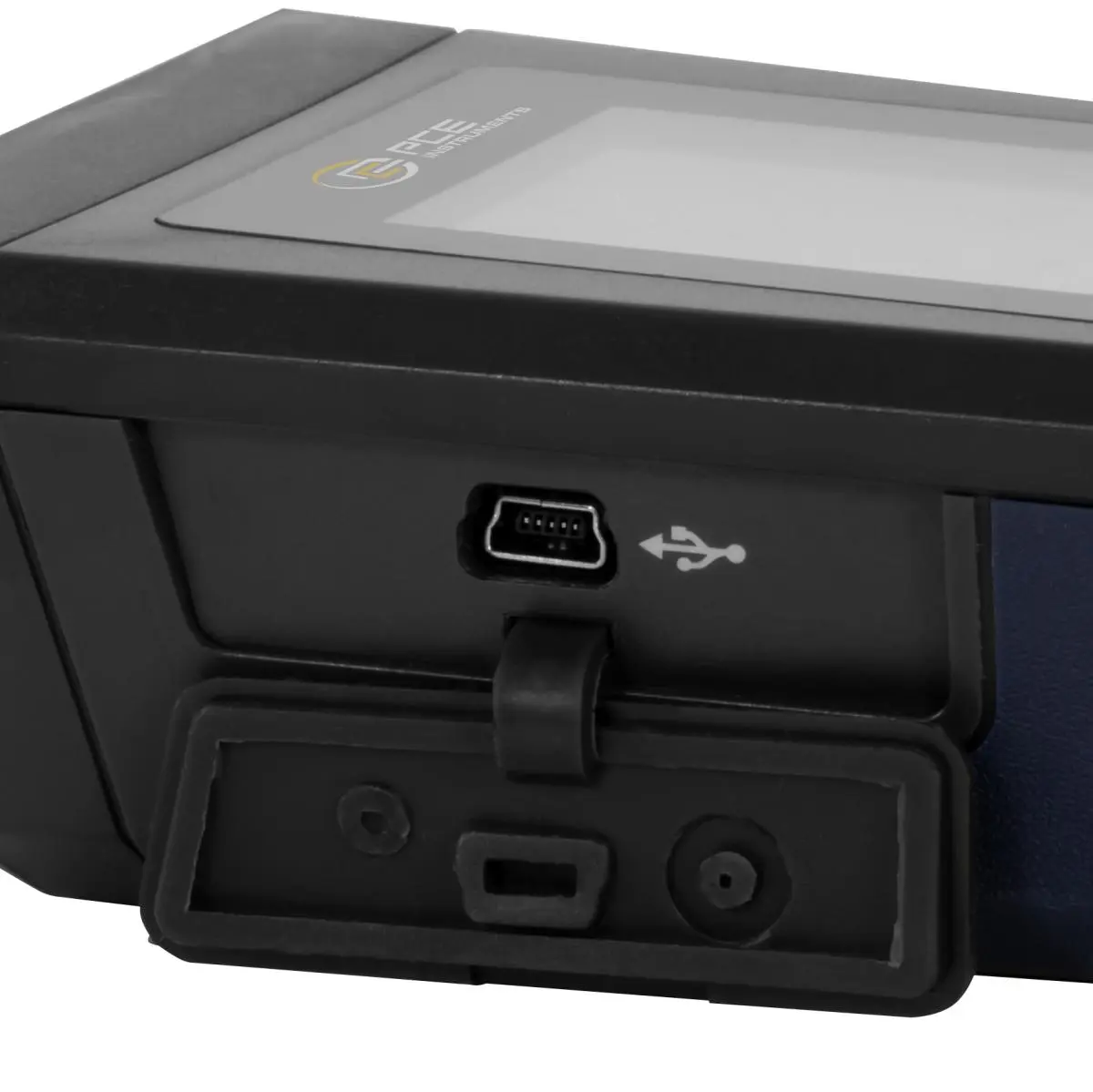

| Interface | Mini-USB |
| Sensor | Resistance sensor |
| Response time | 60 s |
| Automatic power-off | 15 min |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |

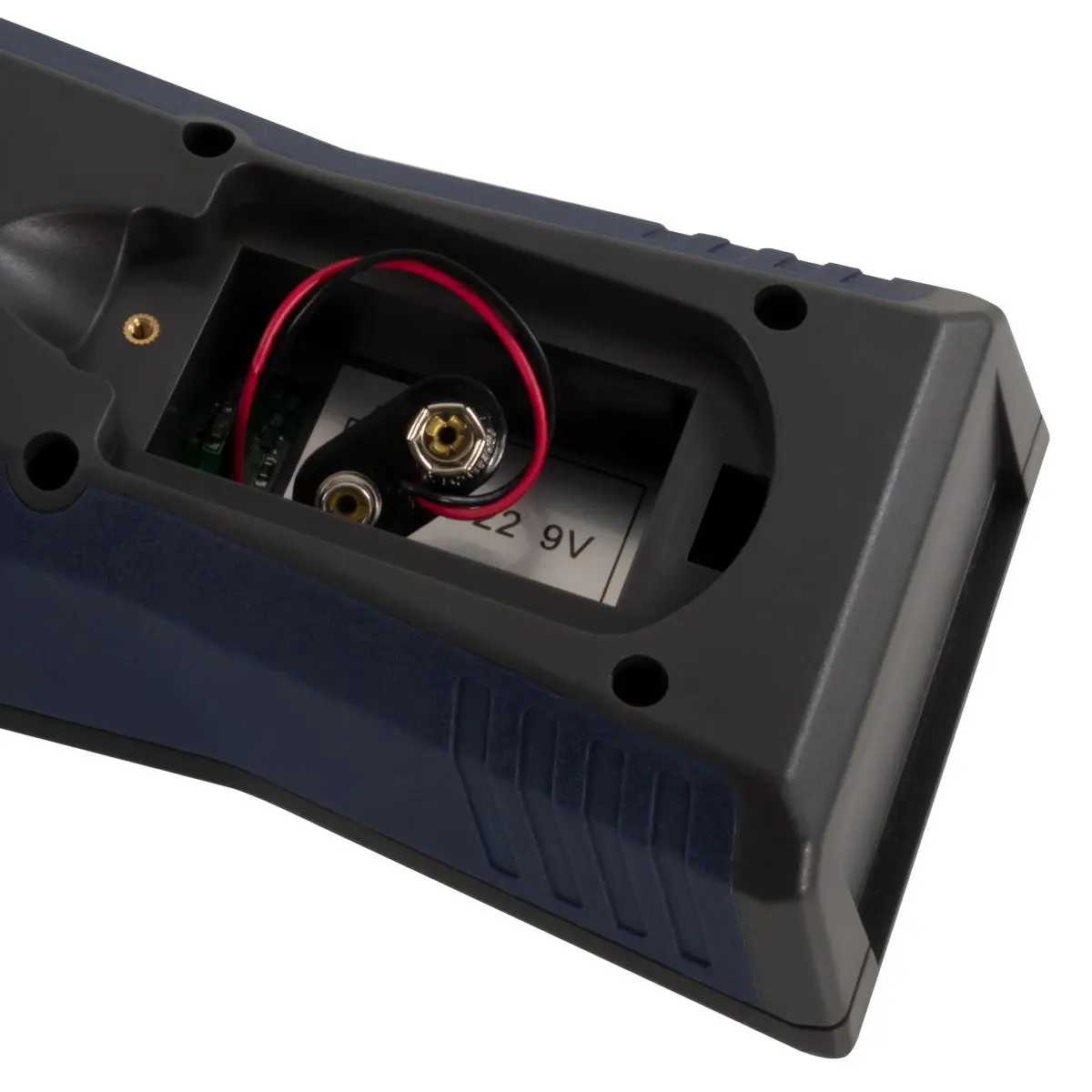

| (Rechargeable) battery | 1 x 9 V 9V block , Zinc carbon |
| Capacity | 400 mAh |
| Operating conditions | -20 ... 60 °C , 0 ... 90 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 260 x 95 x 45 mm |
| Weight | 350 g |
