Profilometer PCE-RT 2200

Order no.: PCE-RT 2200
£ 1,508.00
£ 1,809.60
4250348715425
PCE-RT 2200
price ex. (VAT / delivery)
Delivery time: 1-2 working days

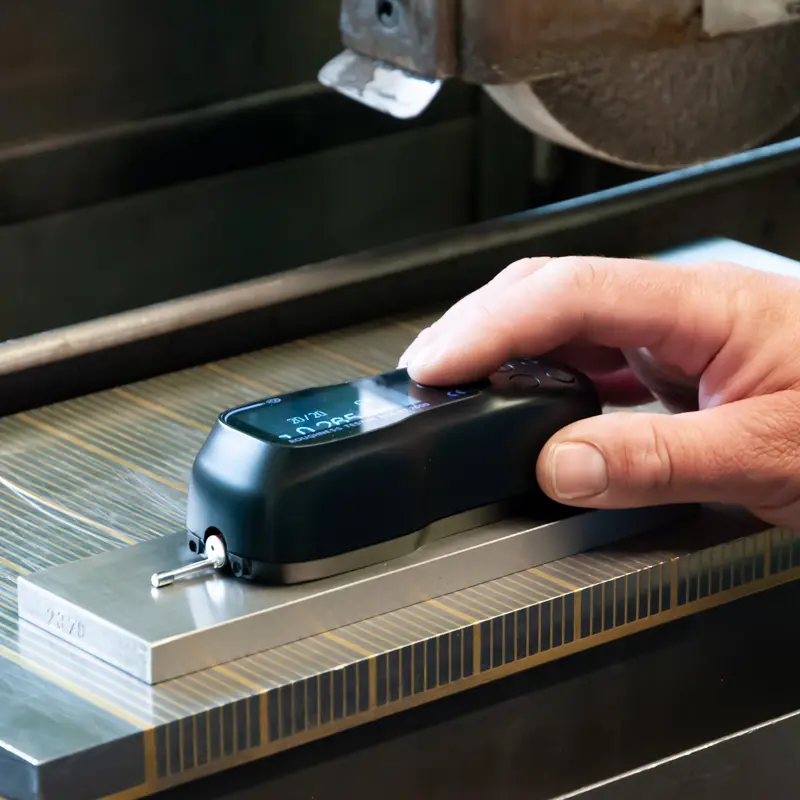

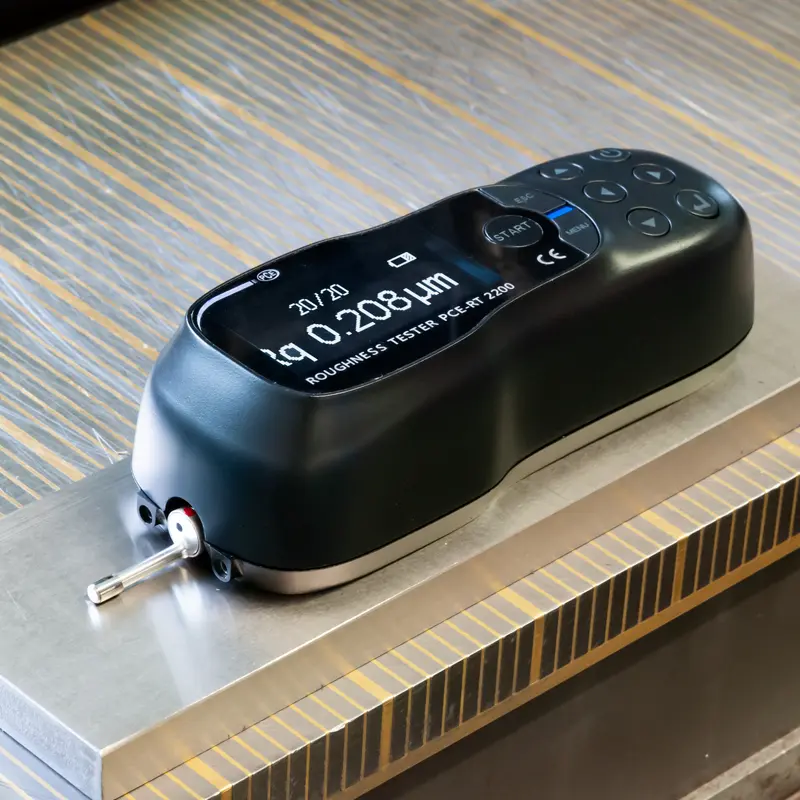

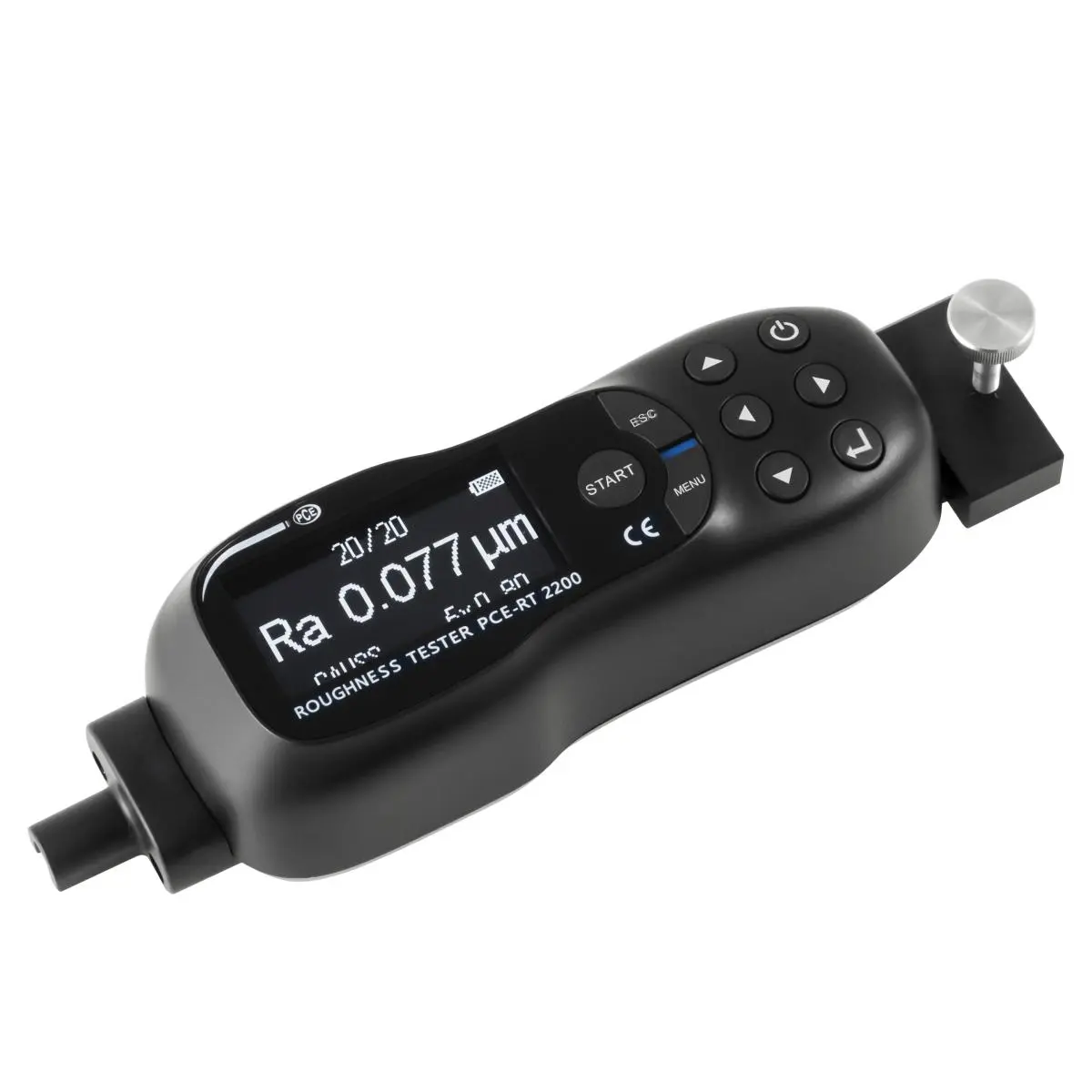

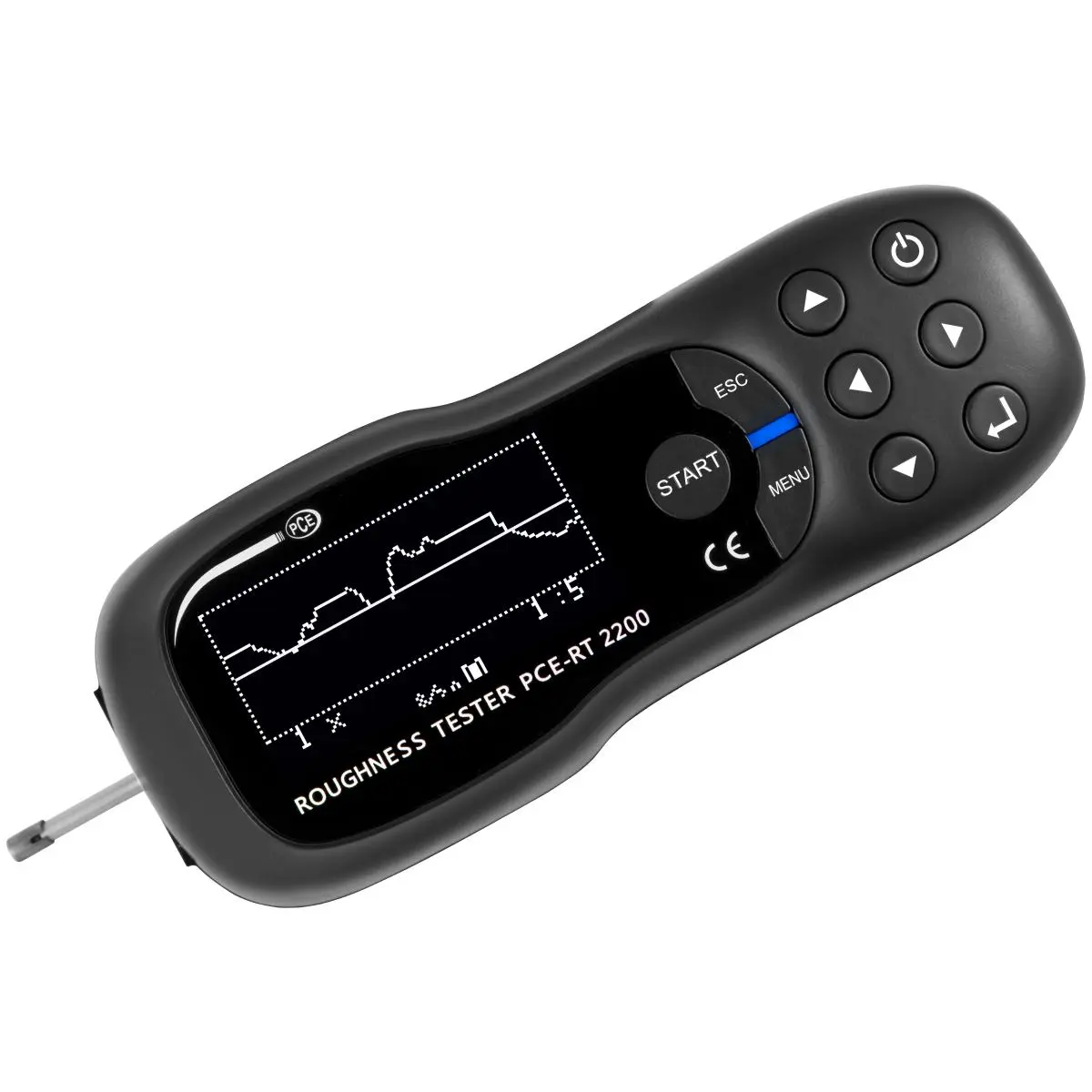

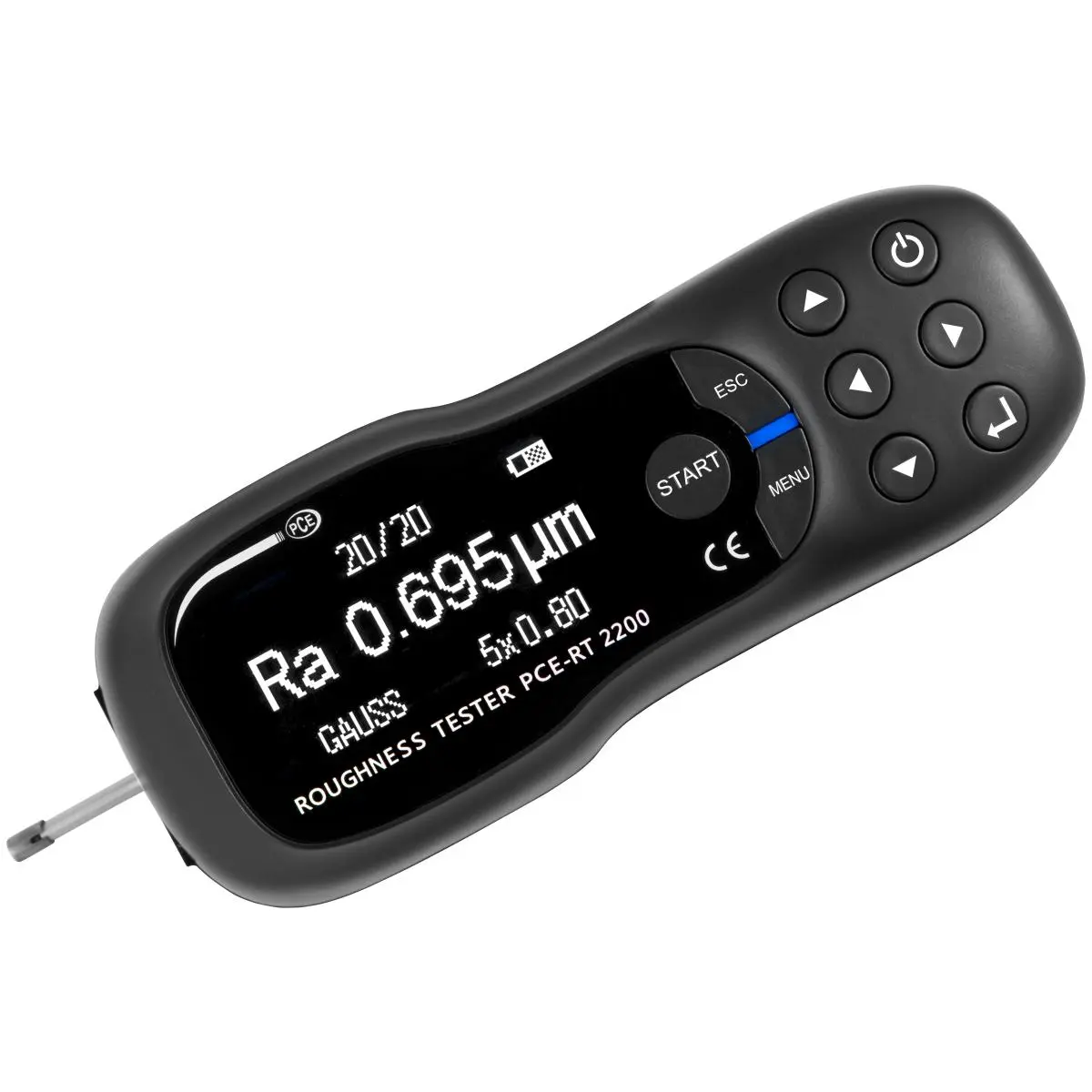

PCE-RT 2200 Profilometer

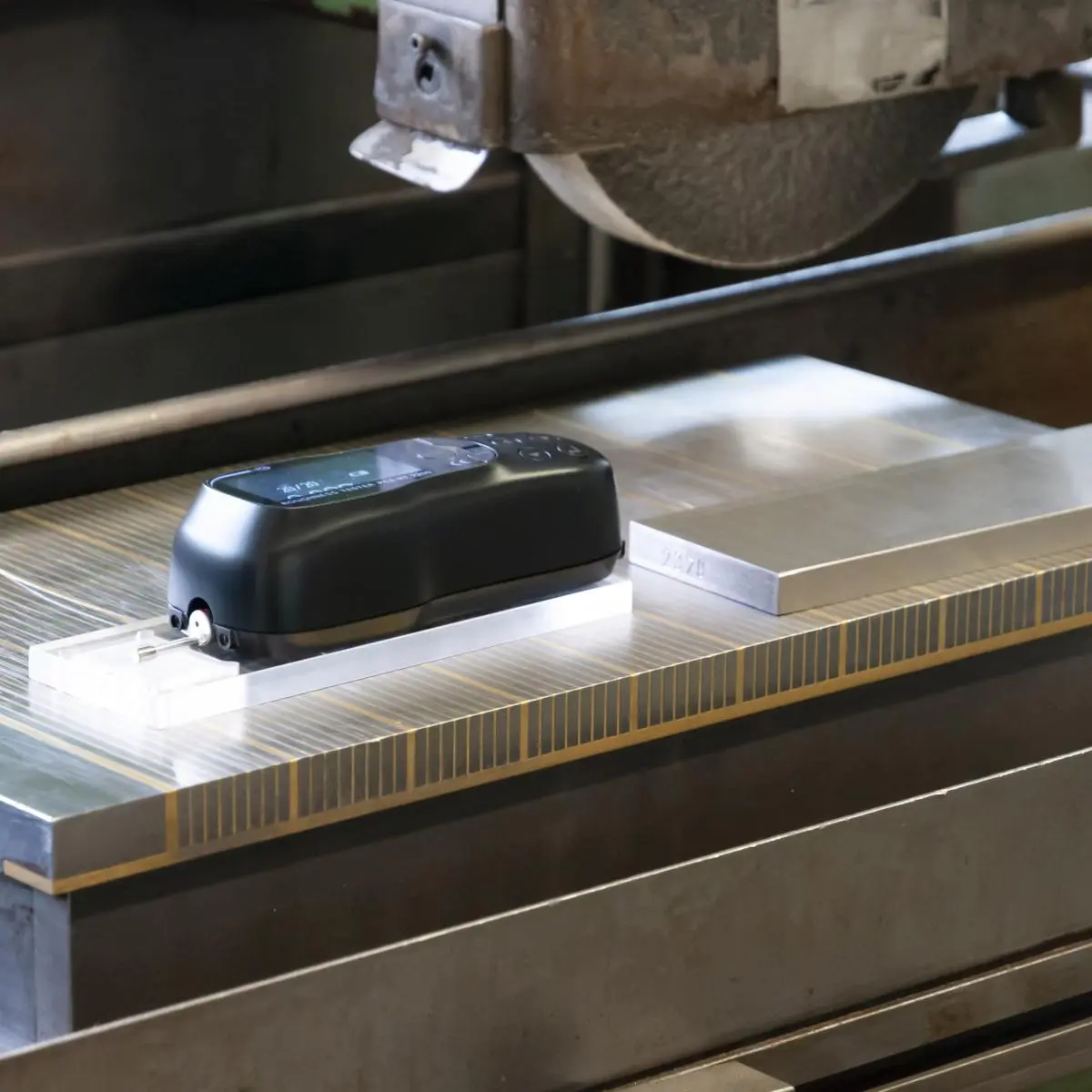

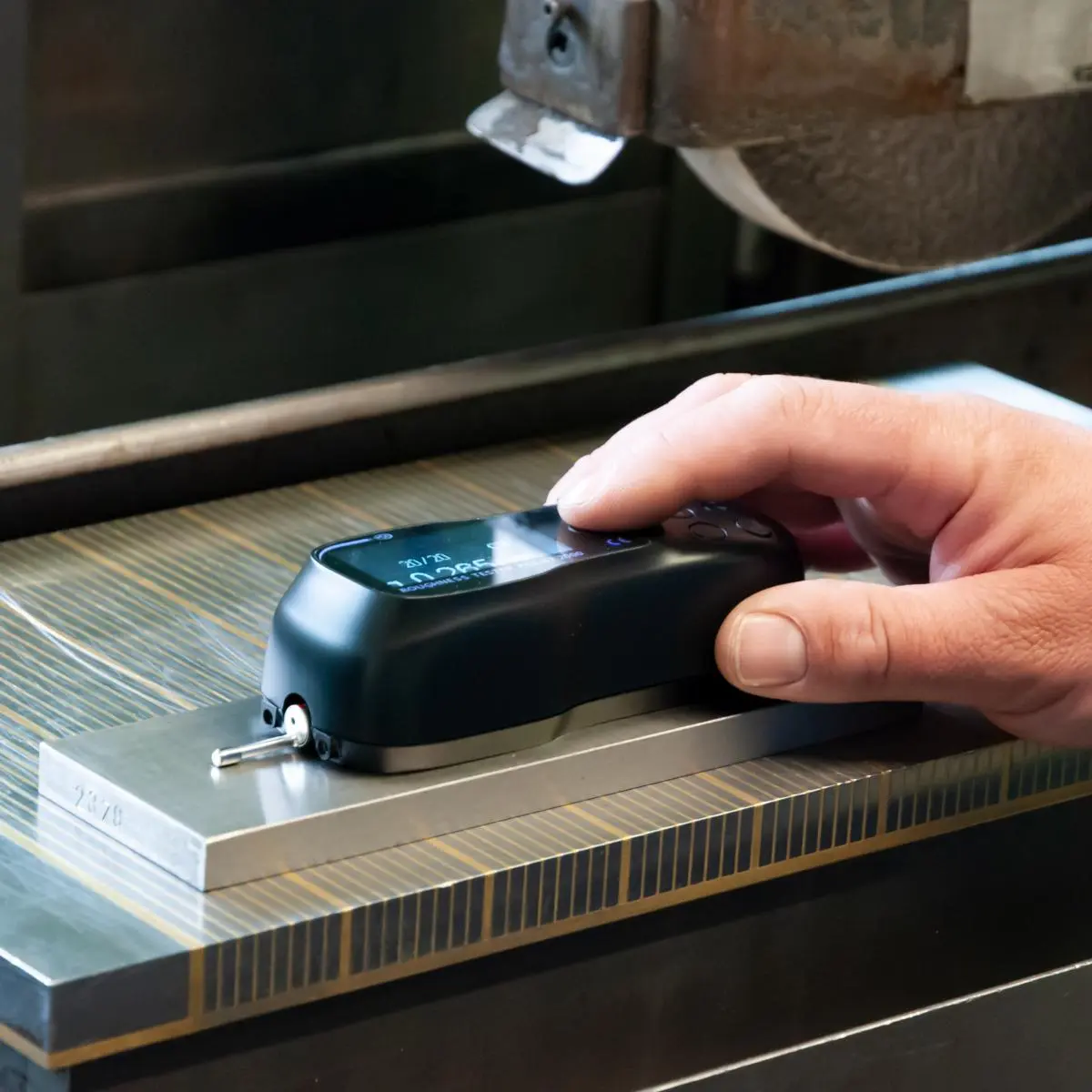

For the measurement of surface texture or surface roughness



Meet ISO, ANSI, DIN and JIS standards with PCE-RT 2200, a portable profilometer with an easy-to-read LCD display, large internal memory and convenient USB port. Ideal for taking quick and accurate measurements of surface texture roughness, the PCE-RT 2200 profilometer uses a digital signal processing (DSP) chip for high-speed data processing and control with low-power consumption.

- Select from 14 measured parameters
- Choose from 4 different filters: RC, PC-RC, Gauss, D-P
- Display measurements in μm or μinch (adjustable)
- Store up to 100 data sets on the internal memory
- Download data to PC for further analysis and long-term storage
- Meet ISO, ANSI, DIN and JIS standards
- Mount to a test stand for added stability
- Enjoy more than 20 hours of battery life with the 3.7 V rechargeable Li-ion battery
- See accessories for ISO calibration, test stand and sensor probe options
- Free software for data transfer downloadable from the PCE website

Measured parametersRa, Rz, Rq, Rx, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr
Measuring rangeRa: 0.005 ... 16 µm
Rz: 0.02 ... 160 µm
Sampling length/cutoff wavelength lr = λc0.25 / 0.8 / 2.5 mm
Total scanning distance1 ... 5 mm
StandardsANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)

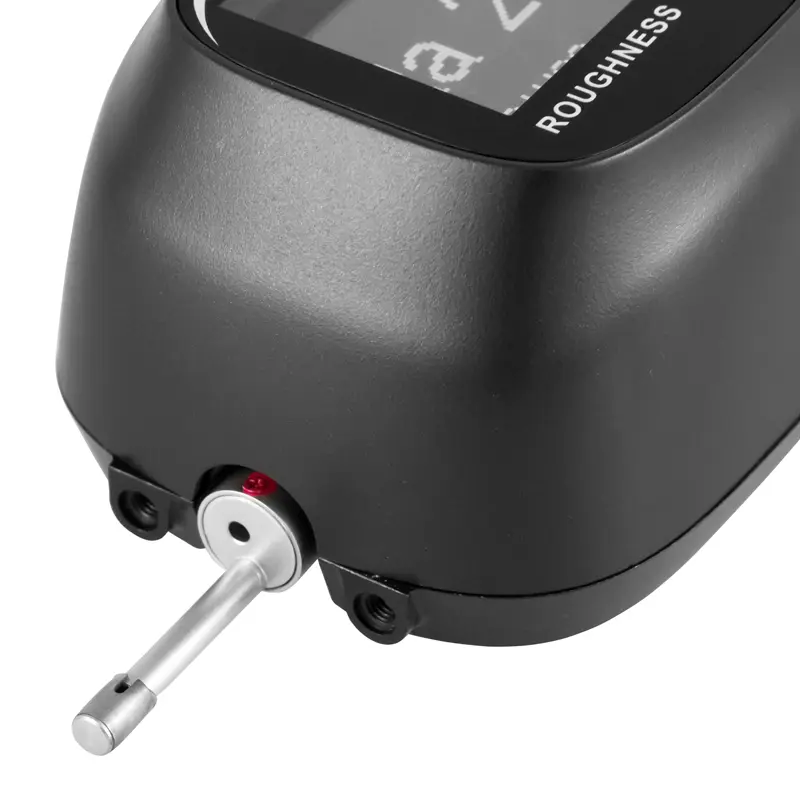

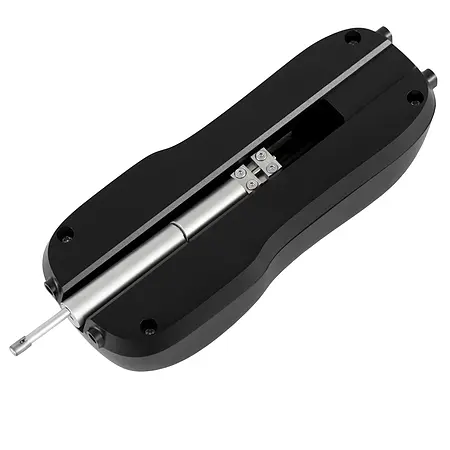

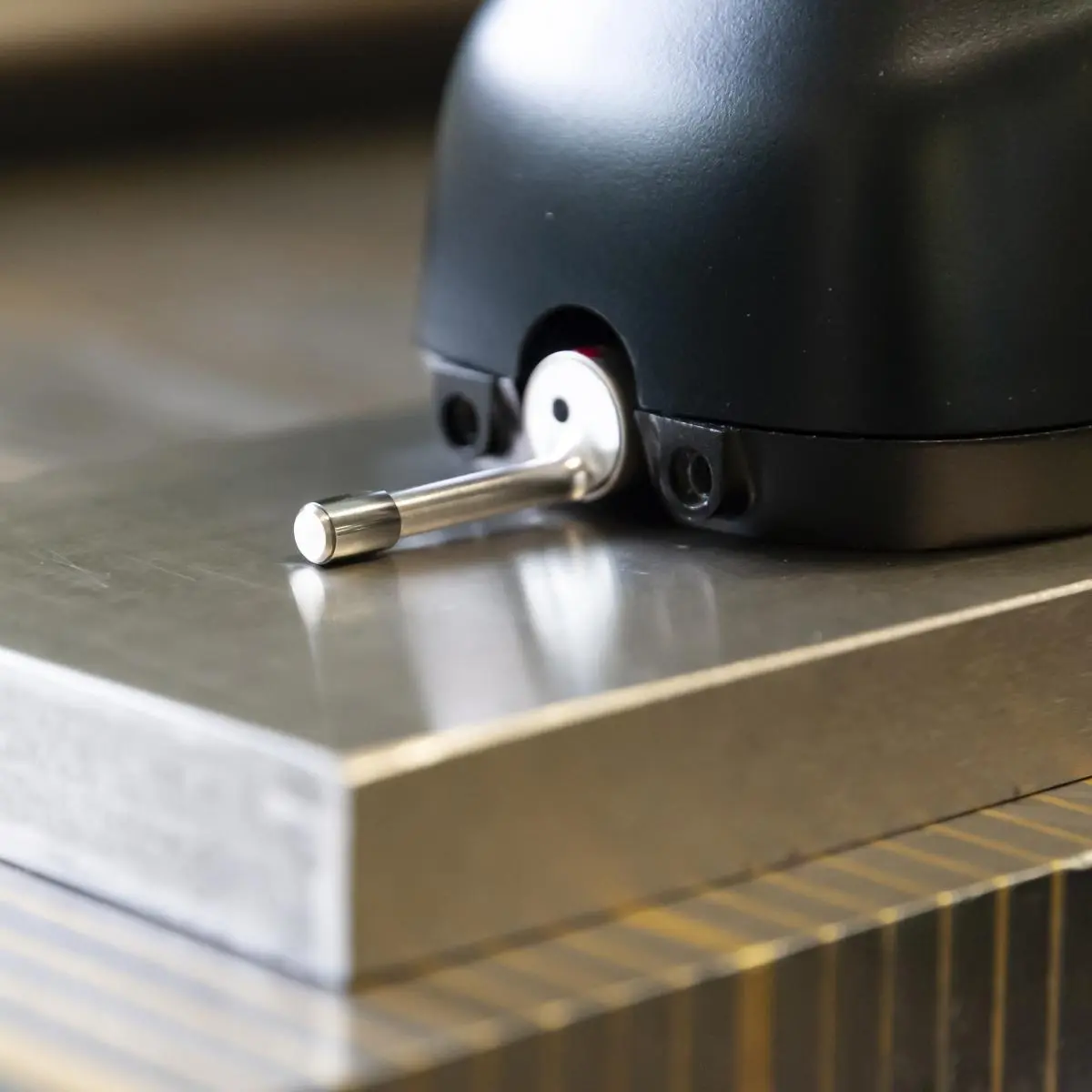

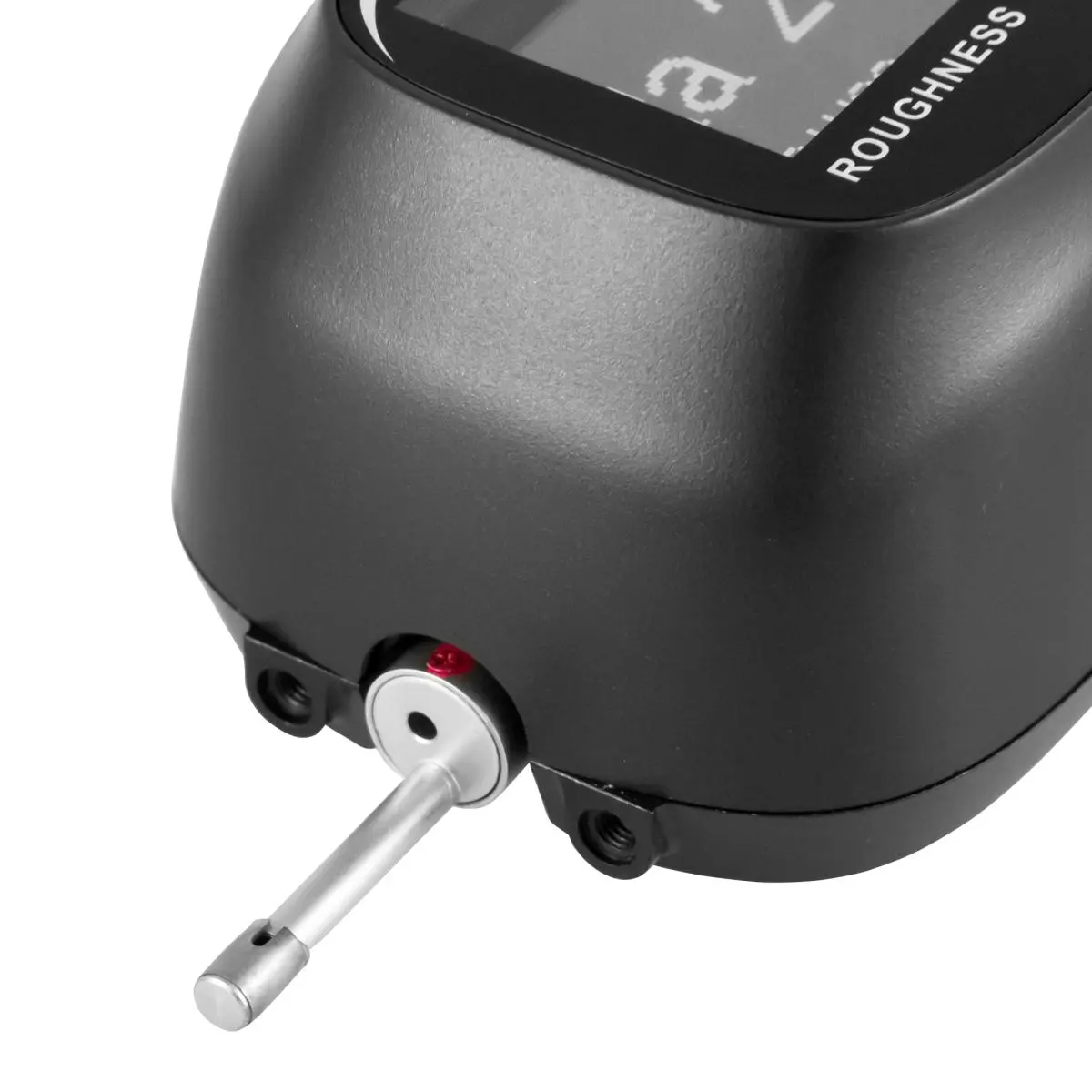

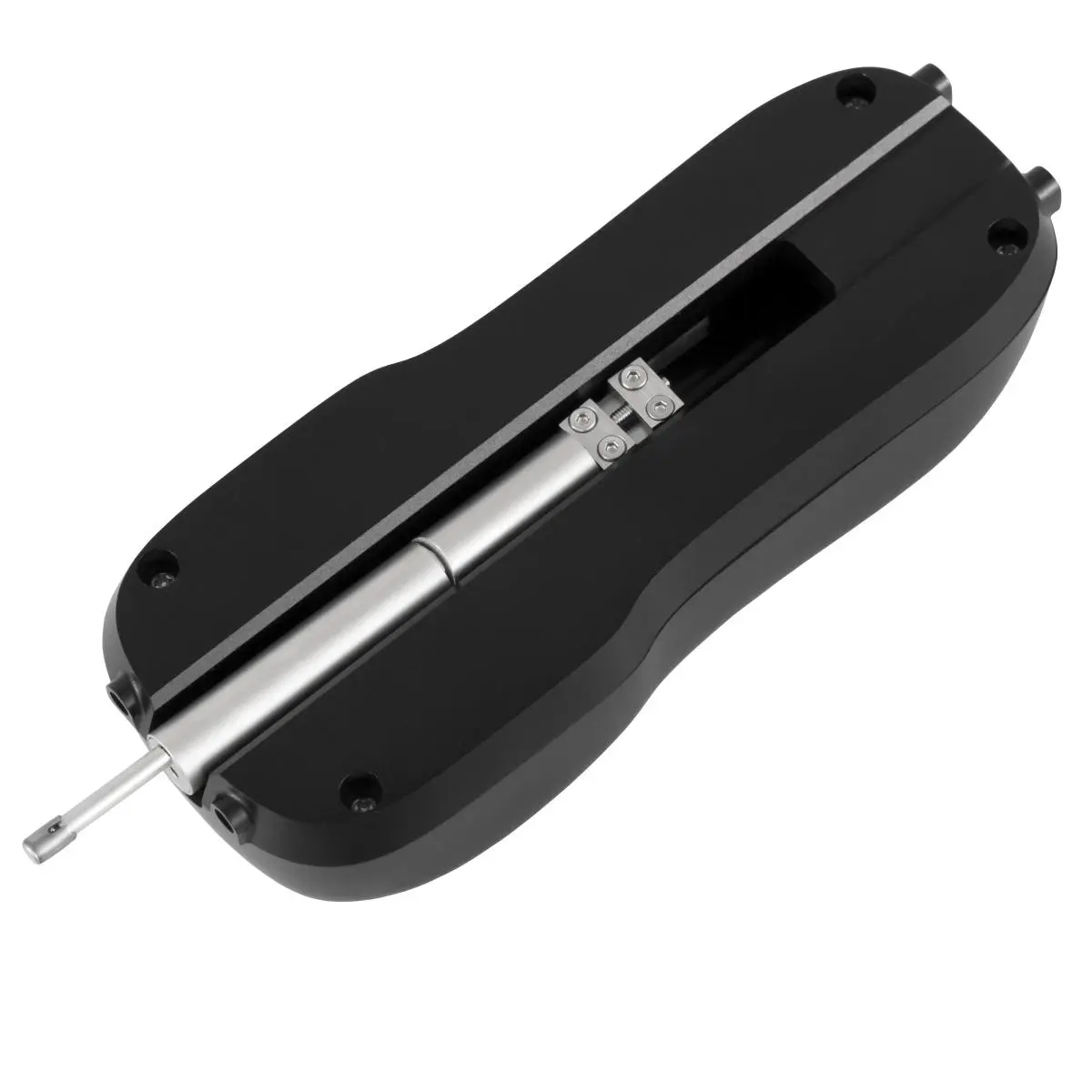

StylusTouch diamond with 5 μm tip radius
FiltersRC, PCRC, Gauss, ISO13565
DisplayLCD 128 x 64 Dot matrix

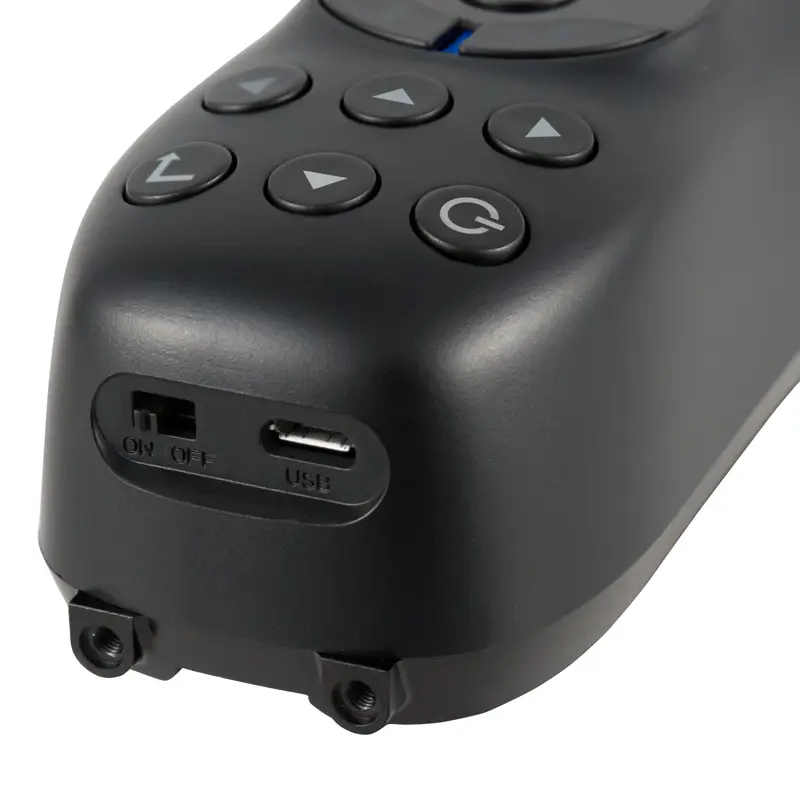

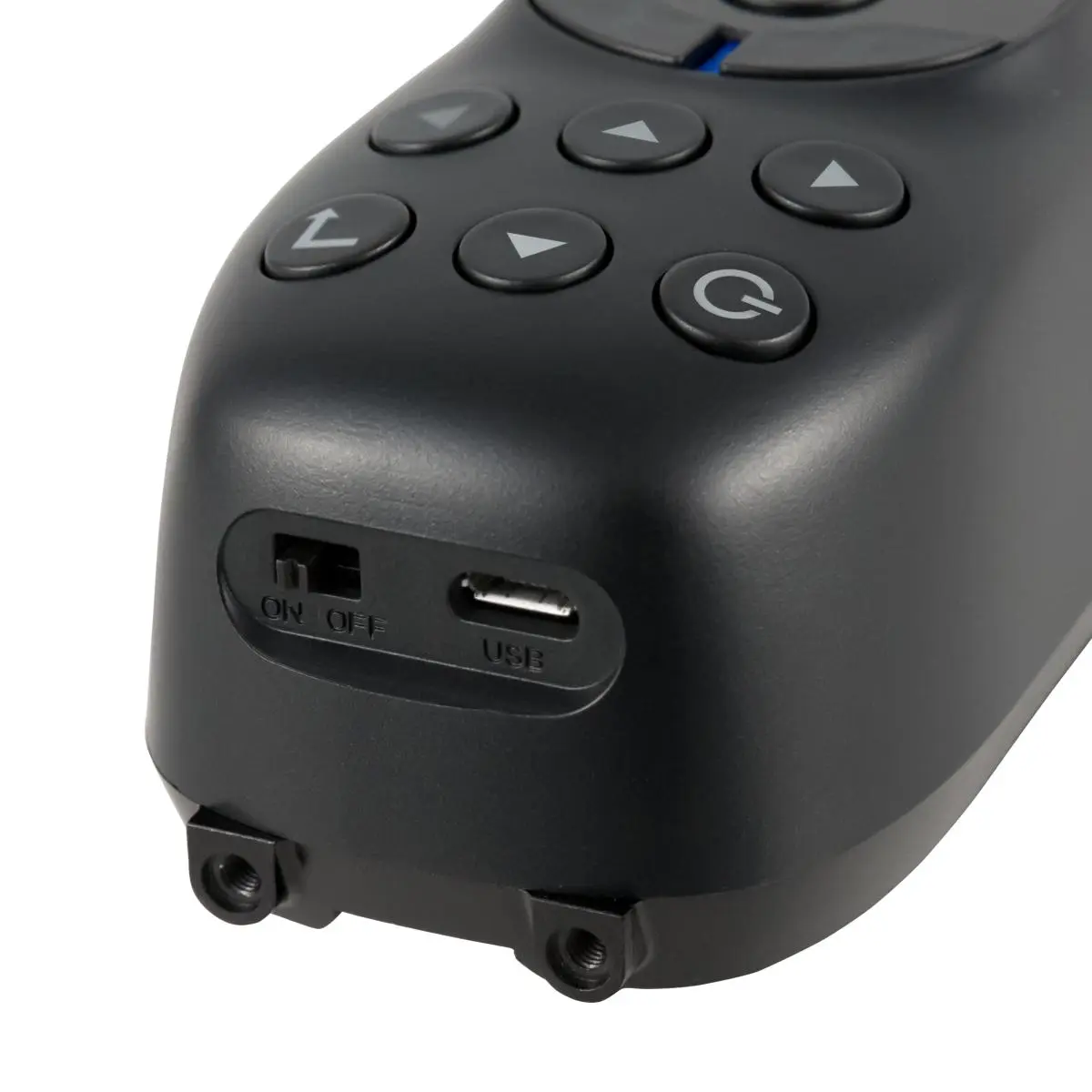

InterfaceUSB
Internal memoryStores up to 100 data sets
Power supplyRechargeable Li-Ion battery
Dimensions141 x 55 x 40 mm / 5.55 x 2.17 x 1.57 in
Weight400 g / 0.88 lbs

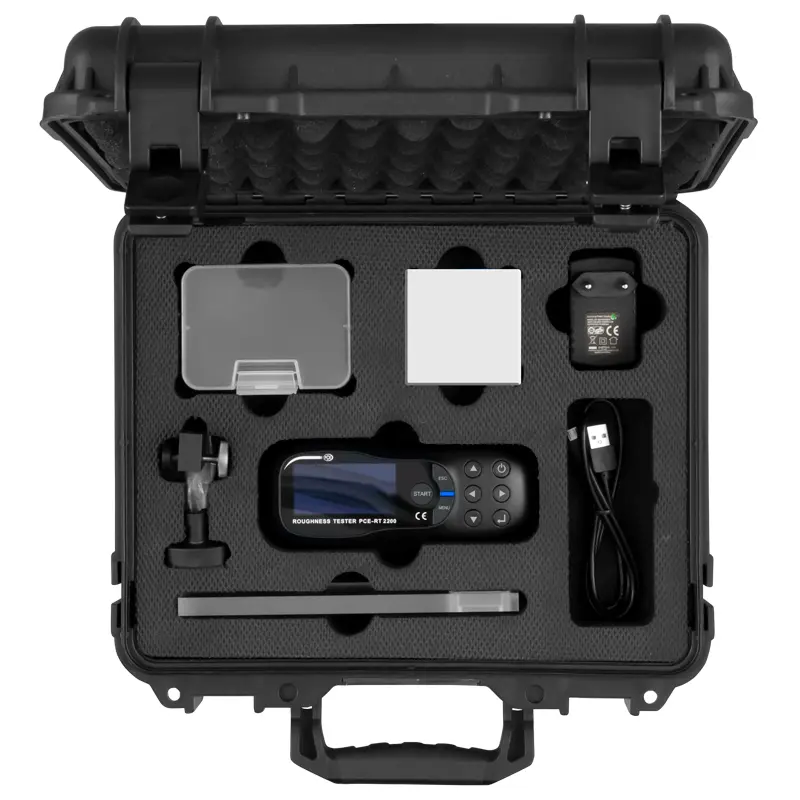

1 x PCE-RT 2200 Profilometer
1 x Micro switch

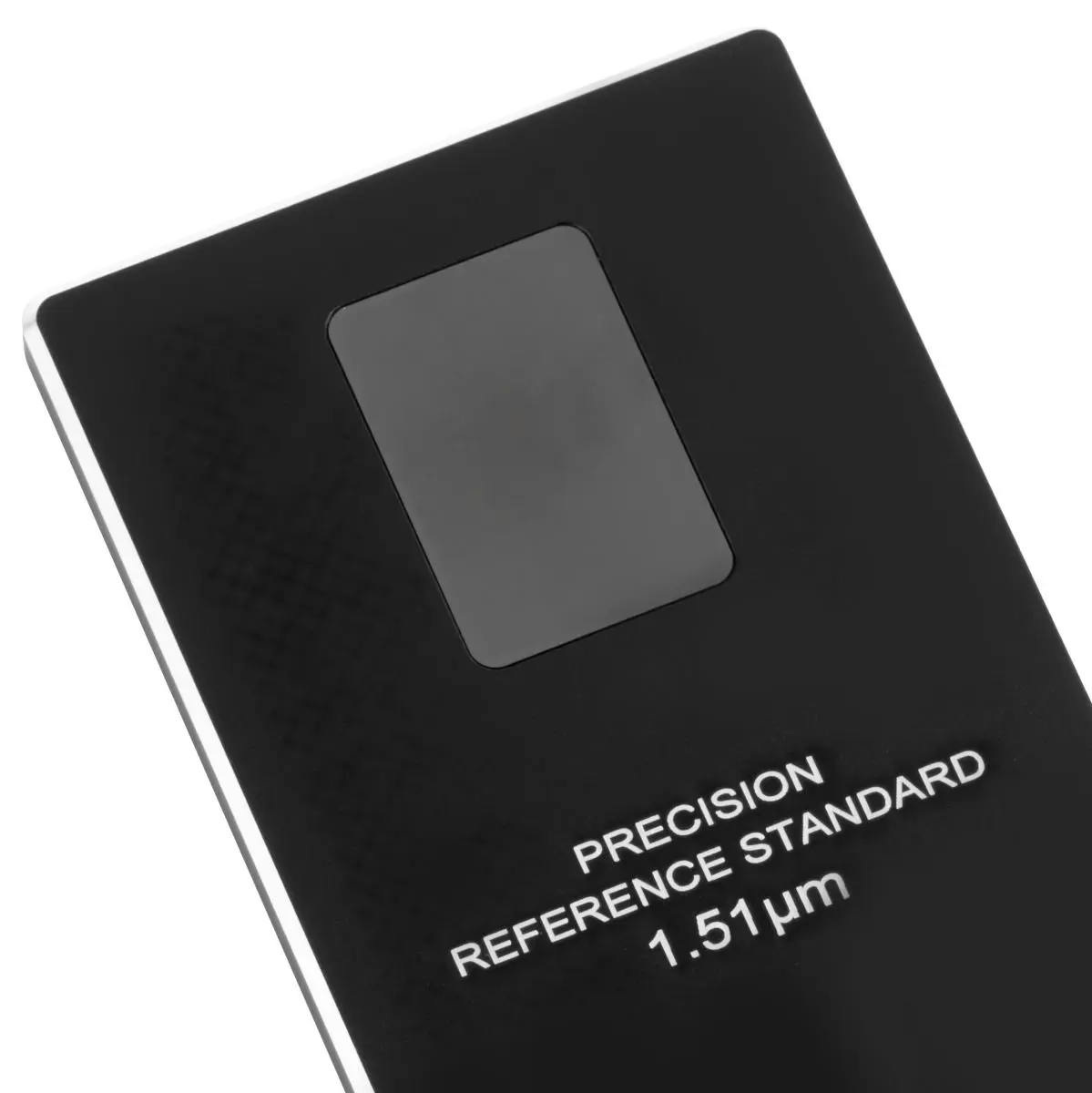

1 x Roughness standard
1 x Charger
1 x USB cable
1 x Sensor cap
1 x Screwdriver

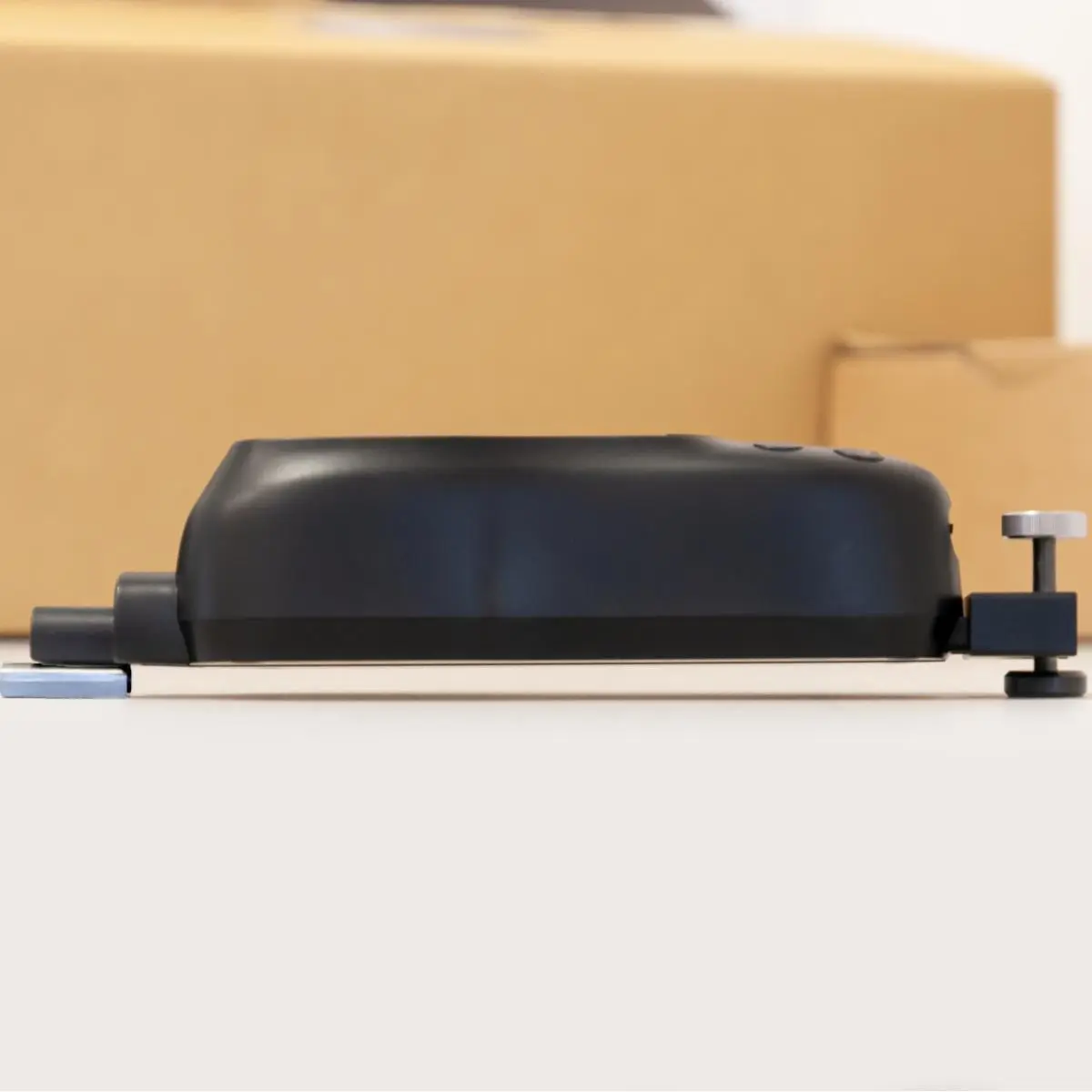

1 x Adjustable support
1 x User manual

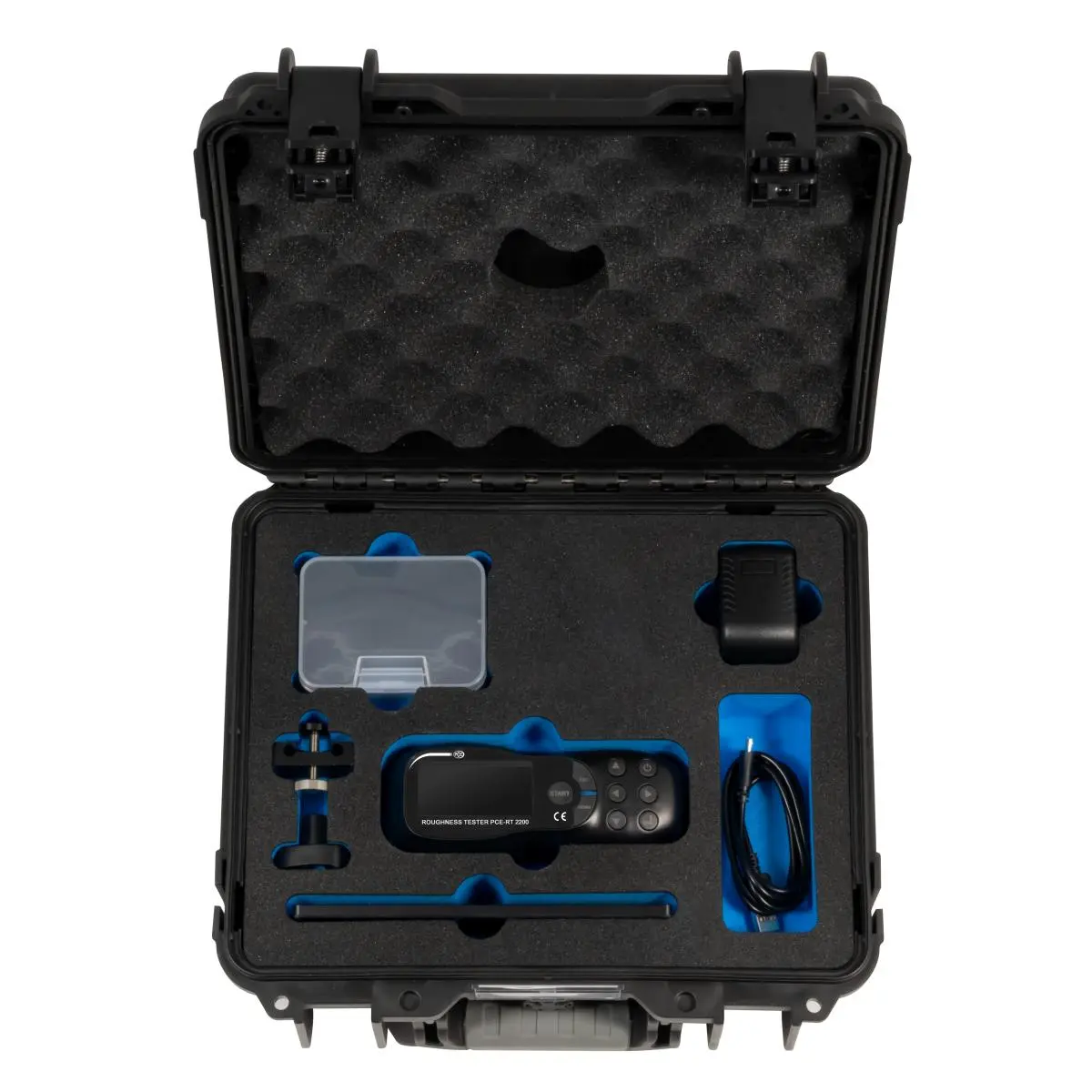

1 x Carrying case

Accessories

Order no.: PCE-RP-100
Probe PCE-RP-100 for Small Holes
Probe PCE-RP-100 for Small Holes
Manufacturer: PCE Instruments
£ 756.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-RP-110
Probe PCE-RP-110 for Curved Surfaces
Sensor probe PCE-RP-110 for Curved Surfaces

-The sensor PCE-RP-110 is suited for measuring convex or concave surfaces with a curvature radius of 3 mm or more.

**We recommend using the sensor in combination with the PCE-RTS 620 test stand.
Manufacturer: PCE Instruments
£ 1,241.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-RP-120
Probe PCE-RP-120 for Extra Small Holes

Sensor probe PCE-RP-120 for extra small holes

-The sensor PCE-RP-120 is suited for measuring surfaces in holes with a diameter of 2 mm or more.

**We recommend using the sensor in combination with the PCE-RTS 620 test stand.
Manufacturer: PCE Instruments
£ 1,241.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-RP-131
Probe PCE-RP-131 for Grooves
Sensor probe PCE-RP-131 for grooves for the PCE-RT 2200 Roughness Tester.

-sensor PCE-RP-131 is suited for measuring surfaces in grooves with a minimum width of 3 mm and a maximum depth of 10 mm.

**We recommend using the sensor in combination with a PCE-RTS 620 test stand.

Manufacturer: PCE Instruments
£ 1,241.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-RTS 520
Roughness Test Stand PCE-RTS 520

The PCE-RTS 520 is a roughness force test stand that works with the PCE-RT Series. If the Ra value of the surface is low then you should use a test stand to ensure precise measurements.


- Stroke is 200 mm
- Dimensions are 260 x 180 x 12 mm
- Weight is 7.3 kg



Catalogue: Measuring Instruments / Test Meters / Test Stand
Manufacturer: PCE Instruments
£ 423.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: PCE-RTS 620
Roughness Test Stand PCE-RTS 620

The PCE-RTS 620 is a roughness test stand that works with the PCE-RT 2200. If the Ra value of the surface is low then you should use a test stand to ensure precise measurements.


- Stroke is 300 mm
- Dimensions are 400 x 250 x 70 mm
- Weight is 30 kg



Catalogue: Measuring Instruments / Test Meters / Test Stand
Manufacturer: PCE Instruments
£ 1,112.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: CAL-PCE-RT
ISO Calibration Certificate CAL-PCE-RT
CAL-PCE-RT includes calibration of the instrument in accordance with applicable ISO standard(s), along with documentation containing all readings taken.

**US calibration certificate is ISO 17025**

Each calibration certificate is issued especially for the customer and instrument, and therefore is exempt from the right of return.
