The Pressure Meter enables precise and reliable monitoring of vacuum systems and supports installation, maintenance, and testing of a wide range of systems. The measuring range of the Pressure Meter is 0 ... 75000 µmHg. The device supports the vacuum units micron, mTorr, µmHg, Torr, mmHg, Pa, hPa, kPa, mbar, psia and inHg. The vacuum resolution is 1 ... 5,000 µmHg depending on the measuring range. In addition, the Pressure Meter calculates the moisture evaporation temperature to assist when evacuating refrigeration systems.

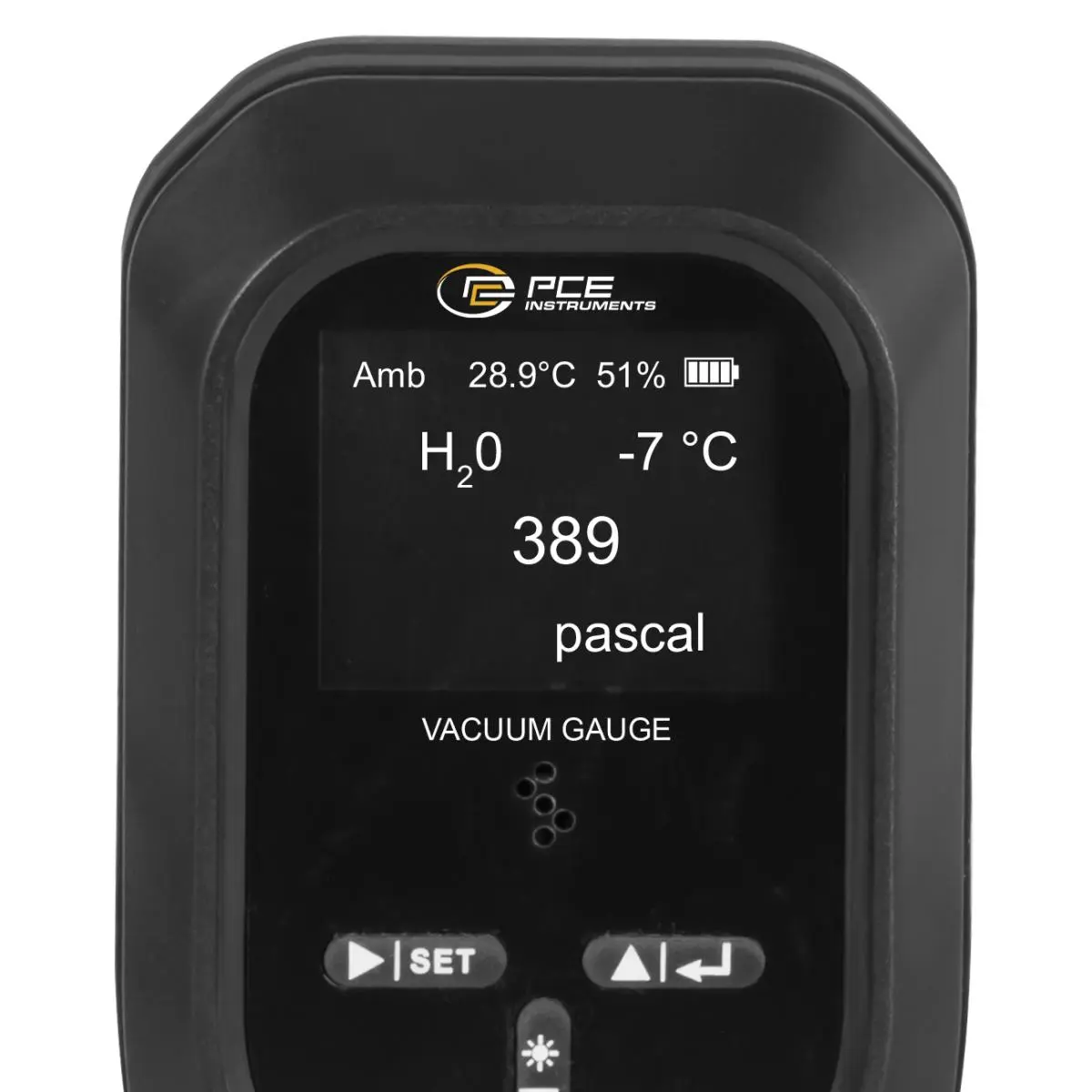

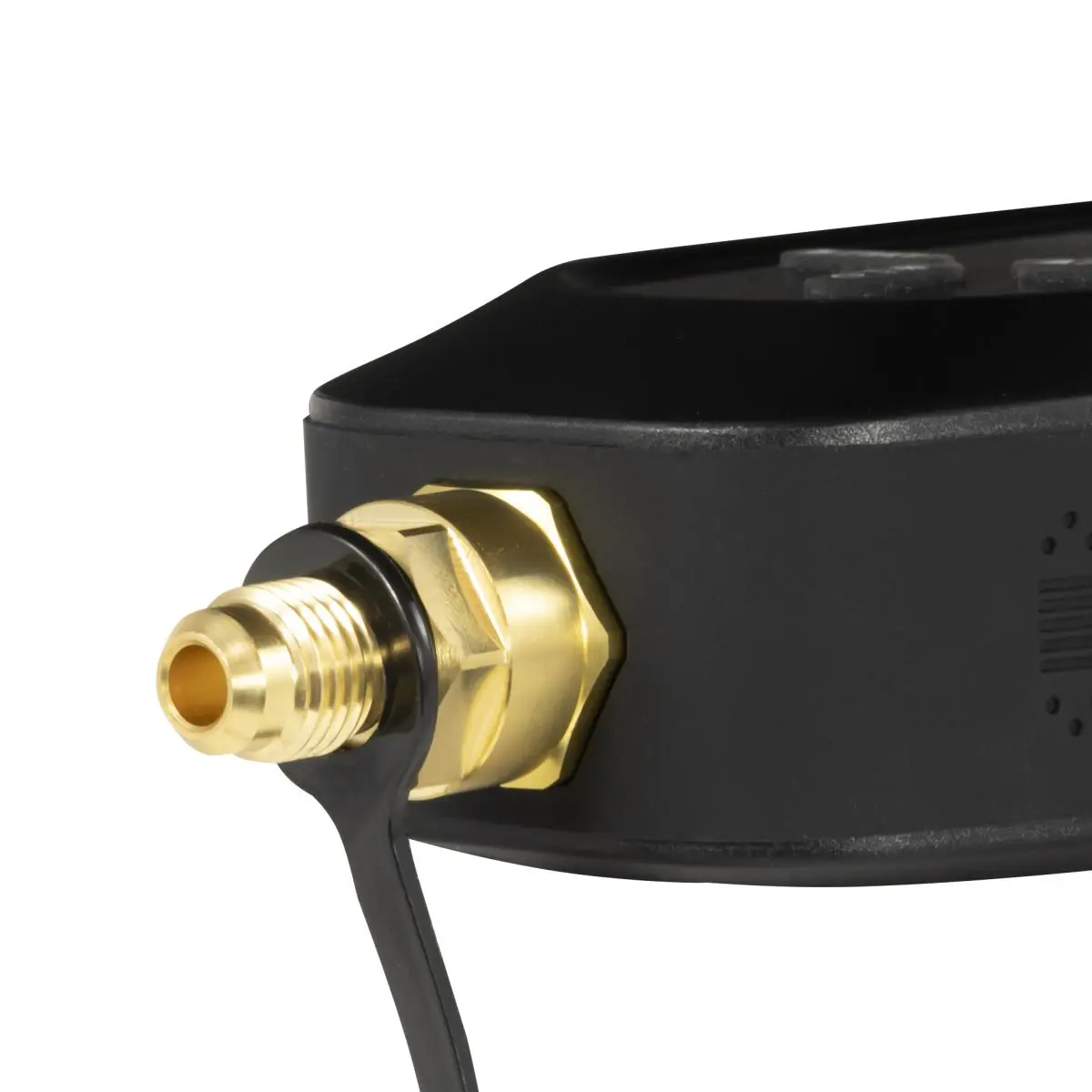

Reliable measurement is ensured by a precise Pirani sensor, while the measured values are updated every 0.5 seconds. The Pressure Meter features an easy-to-read 1.8-inch TFT-LCD display and also measures ambient temperature in the range of -10 ... +50 °C as well as relative humidity from 0 ... 100 % RH. Power is supplied by three AA batteries. Connection to the system is via a 1/4 inch SAE male thread (7/16 inch-20 UNF).
The Pressure Meter also features an adjustable threshold alarm with coloured backlight. As soon as the preset vacuum limit is reached, a visual alarm indication is triggered. The device is suitable for installation, maintenance, and testing of refrigeration systems, air conditioning systems, cold rooms and for monitoring vacuum pumps.
| Pressure | |
| Measuring range | 0 ... 1000 µmHg |
| Resolution | 1 µmHg |
| Accuracy | ±(10% of measured value +10 µm Hg @ 100 ... 1.000 µm Hg) % |
| Pressure | |
| Measuring range | 1000 ... 2000 µmHg |
| Resolution | 10 µmHg |
| Pressure | |
| Measuring range | 2000 ... 5000 µmHg |
| Resolution | 100 µmHg |
| Pressure | |
| Measuring range | 5000 ... 10000 µmHg |
| Resolution | 500 µmHg |
| Pressure | |
| Measuring range | 10000 ... 75000 µmHg |
| Resolution | 5000 µmHg |
| Relative humidity | |
| Measuring range | 0 ... 100 % |
| Resolution | 1 % |
| Accuracy | ±3% |
| Temperature | |
| Measuring range | -10 ... +50 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.5 °C |
| Temperature | |
| Measuring range | 14 ... 122 °F |
| Resolution | 0,2 °F |
| Accuracy | ±0.9 °F |
| General technical data | |
| Units | °C, °F, Torr, mmHg, Pa, mT, microns, µmHg, hPa, kPa, mbar, psia, inHg |
| Connections | 1/4 inch SAE |
| Display type | TFT-LCD-Display |
| Display size | 1,8 in |
| Automatic power-off | 30 min |
| Alarm | optical, Acoustic |
| Alarm modes | Alarm mode: target vacuum alarm Alarm limit: adjustable threshold: 0 ... 75000 µmHg |
| Overpressure | 2 bar |
| Sensors | Pirani sensor |
| Measuring interval | 0,5 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 3 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 2970 mAh |
| Performance | 2,96 |
| Operating conditions | -10 ... 50 °C , 10 ... 90 % RH |
| Storage conditions | -20 ... 50 °C , 10 ... 90 % RH |
| Dimensions ( L x W x H ) | 150 x 65 x 35 mm |
| Weight | 190 g |
