Pressure Meter PCE-P05-ICA incl. ISO calibration certificate

Order no.: PCE-P05-ICA
ISO Calibration

£ 258.00
£ 309.60
4250348701114
PCE-P05-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

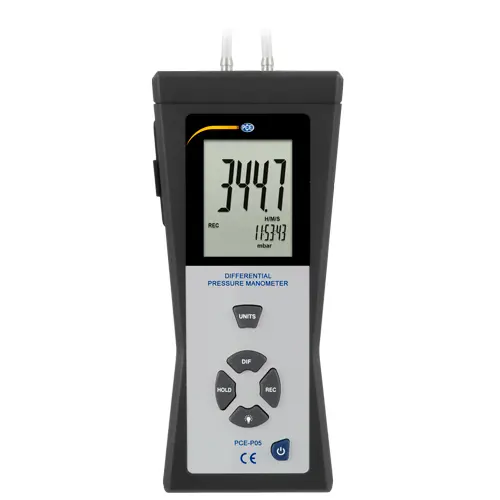

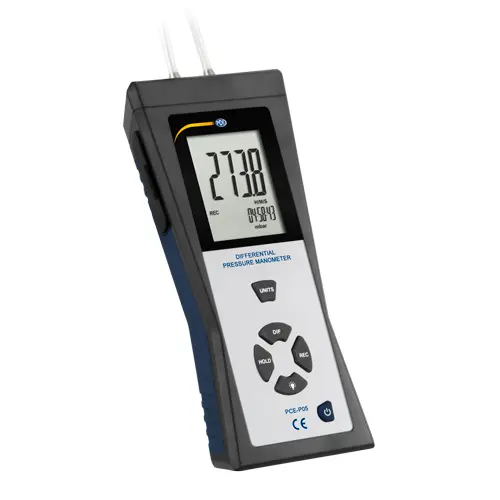

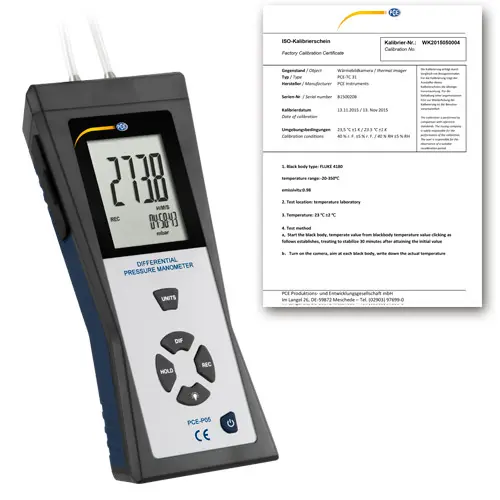

PCE-P05 Differential Pressure Meter incl. ISO calibration certificate
Portable handheld manometer measures differential pressure from
-0.344 to 0.344 bar (-5.000 to 5.000 psi) / Features real-time data-logging capabilities using the included PC software and USB cable

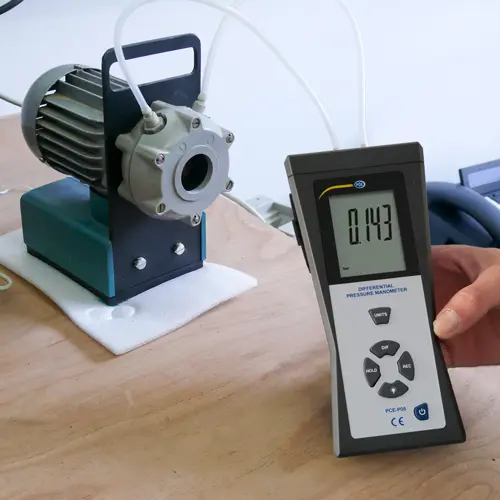

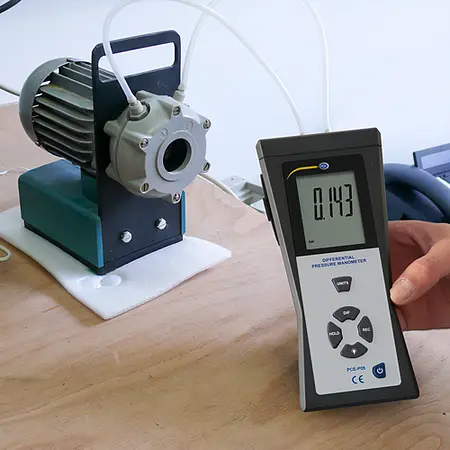

PCE-P05 is a portable handheld digital differential pressure meter or manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-P05 displays min / max / average values right on the meter's screen for comparison against current measurement values.

In addition, the PCE-P05 differential pressure manometer features real-time data-logging capabilities with an adjustable interval from 1 second to 24 hours. The device comes with 4 x 30 cm / 11.81 in silicon tubes, 1 x 9V block battery and 1 x AC power adapter. Also included in the delivery contents are PC-compatible software and a USB cable. The software can be used to detect and document pressure fluctuations, and to display the data graphically or in a table. For real-time data recording, simply connect the differential manometer via USB to your computer, and save the measured values ​​according to your selected time interval. You can then calculate average values ​​directly in the software or export the saved data to Microsoft Excel.


-0.344 to 0.344 bar (-5.000 to 5.000 psi) measuring range
- 11 measurement units: bar, mmHg, ozin², kgcm², psi, inH2O, kPa, ftH2O, inHg, cmH2O, mbar
- Data hold function
- Zero adjustment at any time
- Low battery indicator
- Auto power off (can be disabled)

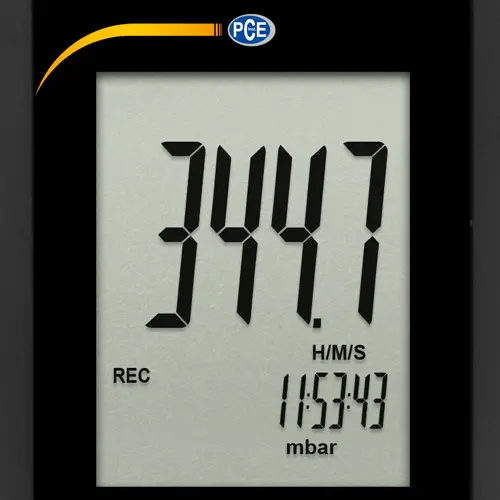

- Large dual LCD screen with backlight (on / off mode)
- Displays min / max / average values right on the meter's screen for comparison against current measurement values

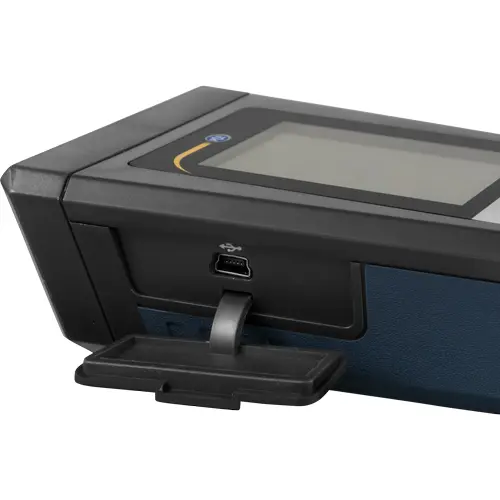

- Features real-time data-logging capabilities using the included PC software and USB cable
- Incl. ISO calibration certificate
Measuring range
inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar
 (±)
138.30

5.000
344.7
34.47
1.018
258.5
80.00
11.53
351.5
0.351
0.344

Resolution

inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar


0.1

0.001
0.1
0.01
0.001
0.1
0.01
0.001
0.1
0.001
0.001

Measuring range: 0.000 to 5.000 psi
Units of measure: bar, mmHg, ozin², kgcm², psi, inH2O, kPa, ftH2O, inHg, cmH2O, mbar
Resolution: 0.001 psi
Accuracy: ±0.2% of full scale at 25°C / 77°F
Response time: 0.5 seconds

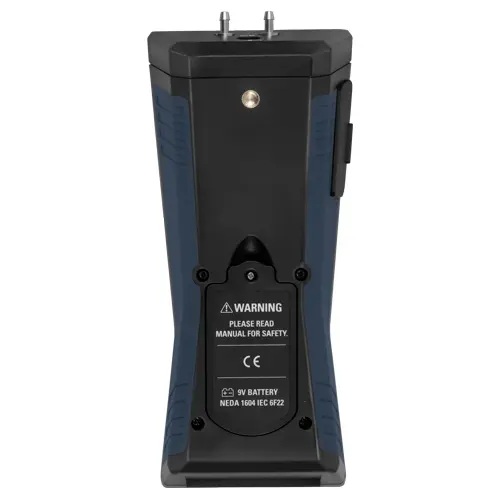

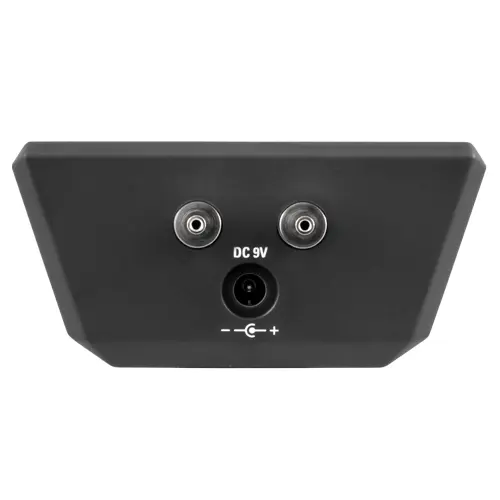

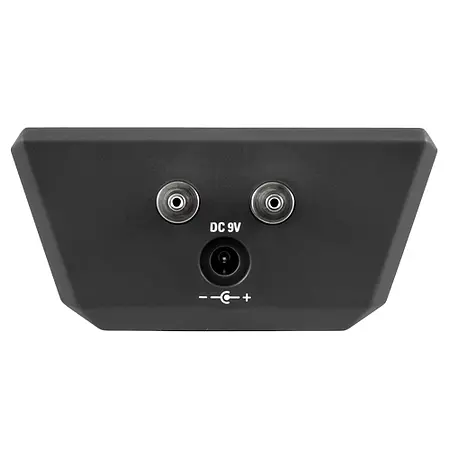

Power supply: 1 x 9V battery or 1 x 9V DC / 500-mA power supply (included)
Approx. Dimensions: 210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in
Approx. Weight: 650 g / 1.44 lb

See user manual for complete technical specifications.

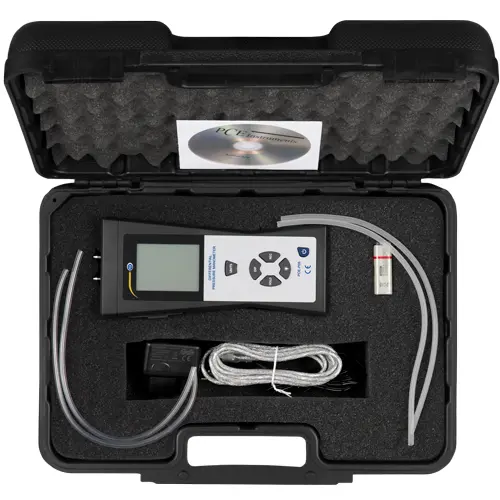

1 x PCE-P05 differential pressure meter

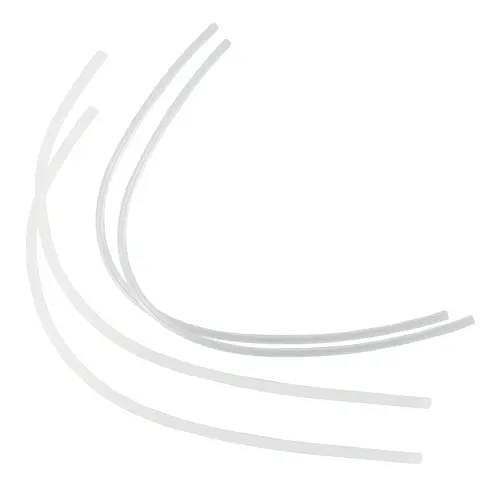

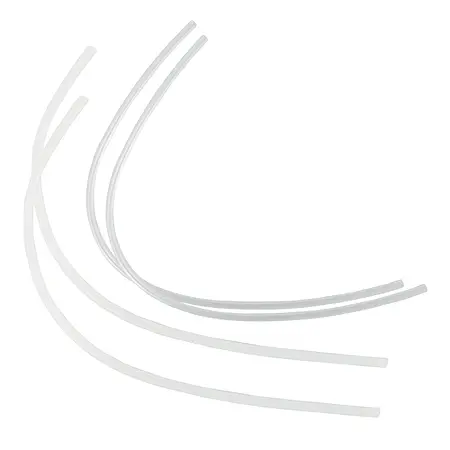

4 x 30 cm / 11.81 in silicon tubes
1 x CD-ROM with PC software
1 x USB cable
1 x 9V block battery
1 x 9V DC / 500-mA power adapter
1 x Plastic carrying case
1 x User manual
1 x ISO calibration certificate
