Pressure Meter PCE-P01

Order no.: PCE-P01

£ 93.00
£ 111.60
4250348708144
PCE-P01
price ex. (VAT / delivery)
Digital
Handheld
No
No
Delivery time: 1-2 working days

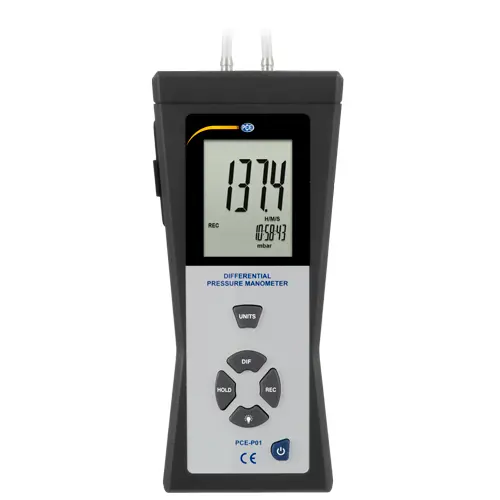

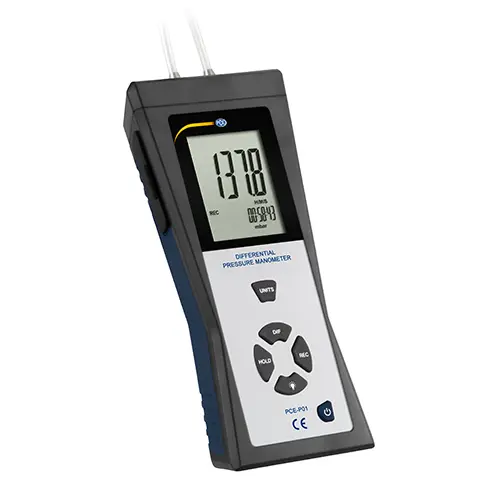

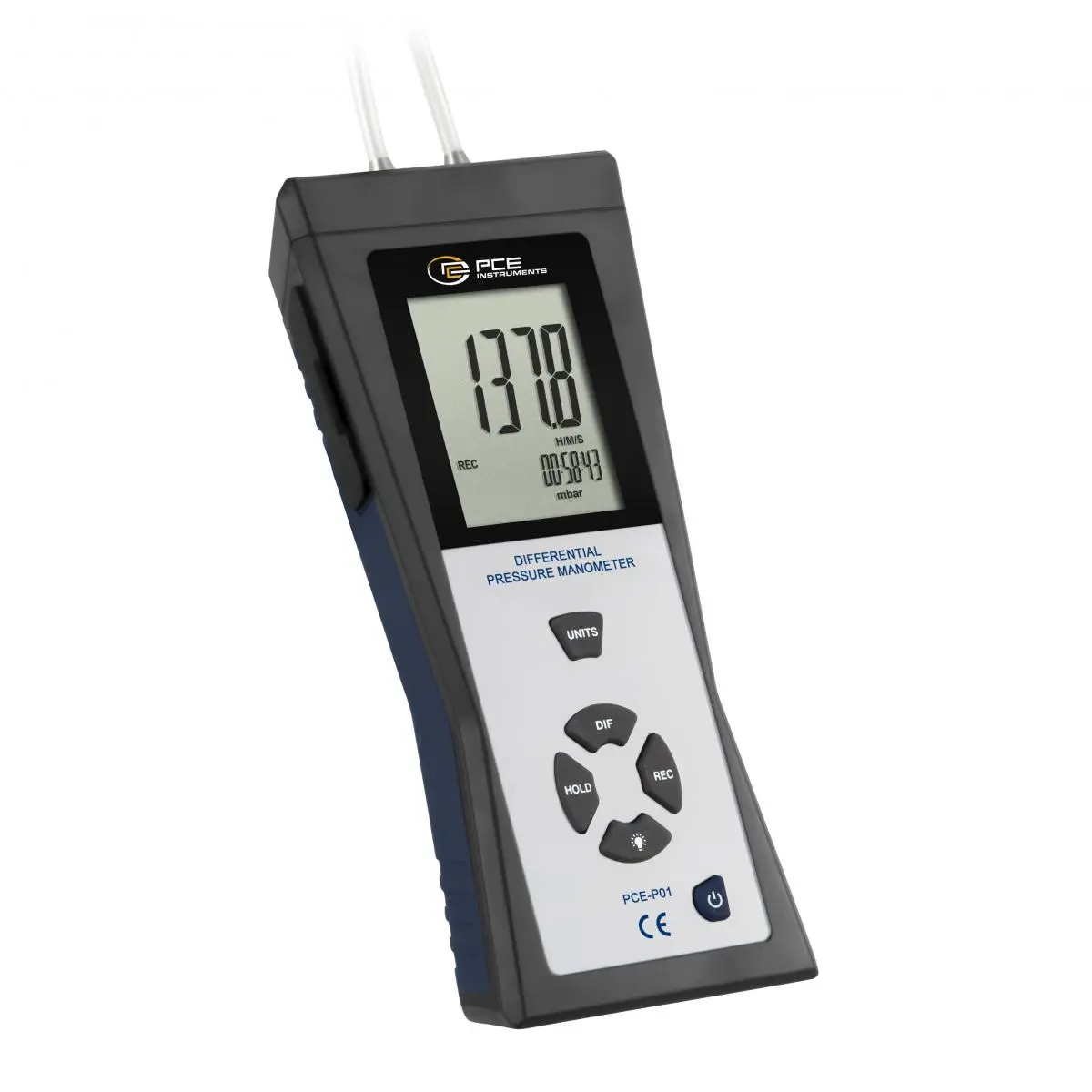

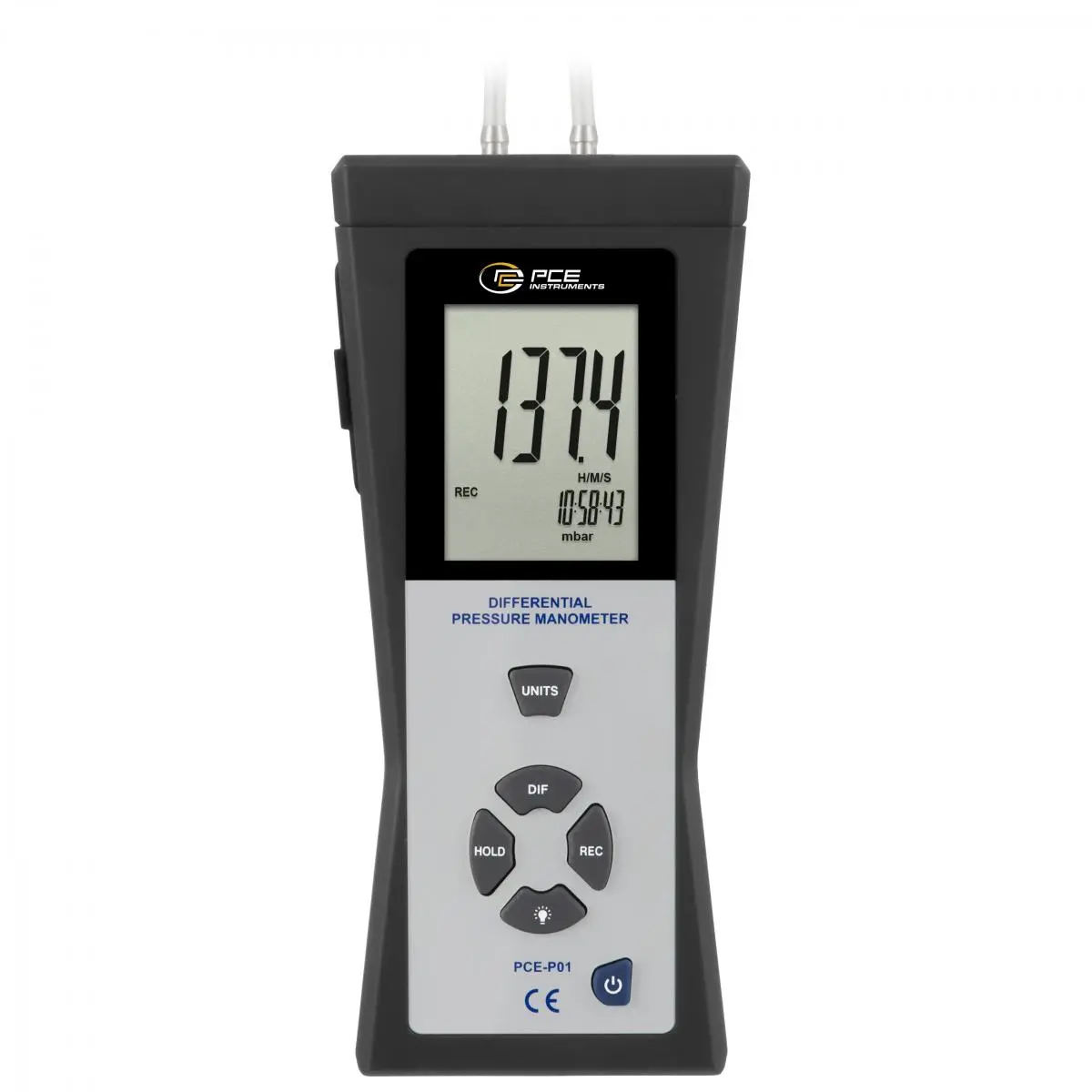

PCE-P01 Pressure Meter
Portable handheld manometer measures differential pressure from
-0.137 to 0.137 bar (-2.000 to 2.000 psi) / Features real-time data-logging capabilities using the included PC software and USB cable

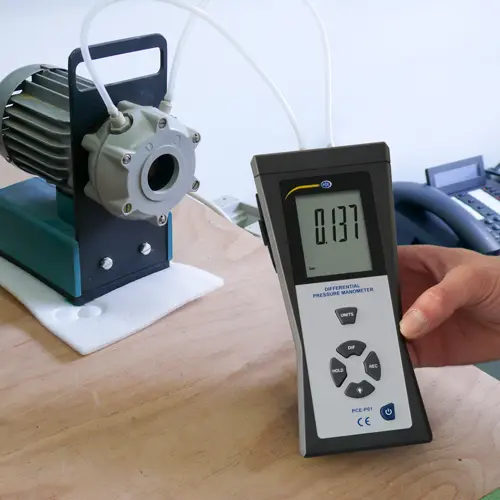

PCE-P01 is a portable handheld digital pressure meter or manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-P01 displays min / max / average values right on the meter's screen for comparison against current measurement values.

In addition, the PCE-P01 differential pressure manometer features real-time data-logging capabilities with an adjustable interval from 1 second to 24 hours. The device comes with 4 x 30 cm / 11.81 in silicon tubes, 1 x 9V block battery and 1 x AC power adapter. Also included in the delivery contents are PC-compatible software and a USB cable. The software can be used to detect and document pressure fluctuations, and to display the data graphically or in a table. For real-time data recording, simply connect the differential manometer via USB to your computer, and save the measured values ​​according to your selected time interval. You can then calculate average values ​​directly in the software or export the saved data to Microsoft Excel.


-0.137 to 0.137 bar (-2.000 to 2.000 psi) measuring range
- 11 measurement units: bar, mmHg, ozin², kgcm², psi, inH2O, kPa, ftH2O, inHg, cmH2O, mbar
- Data hold function
- Zero adjustment at any time
- Low battery indicator
- Auto power off (can be disabled)

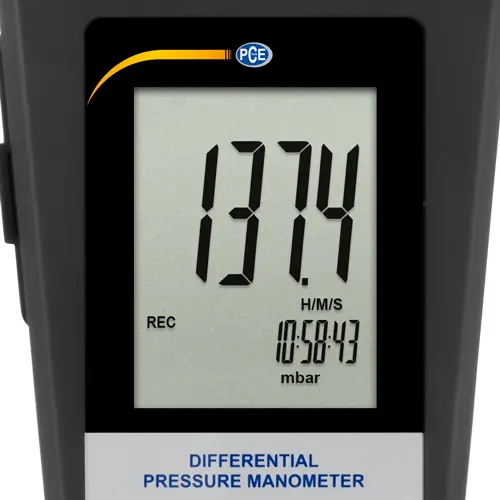

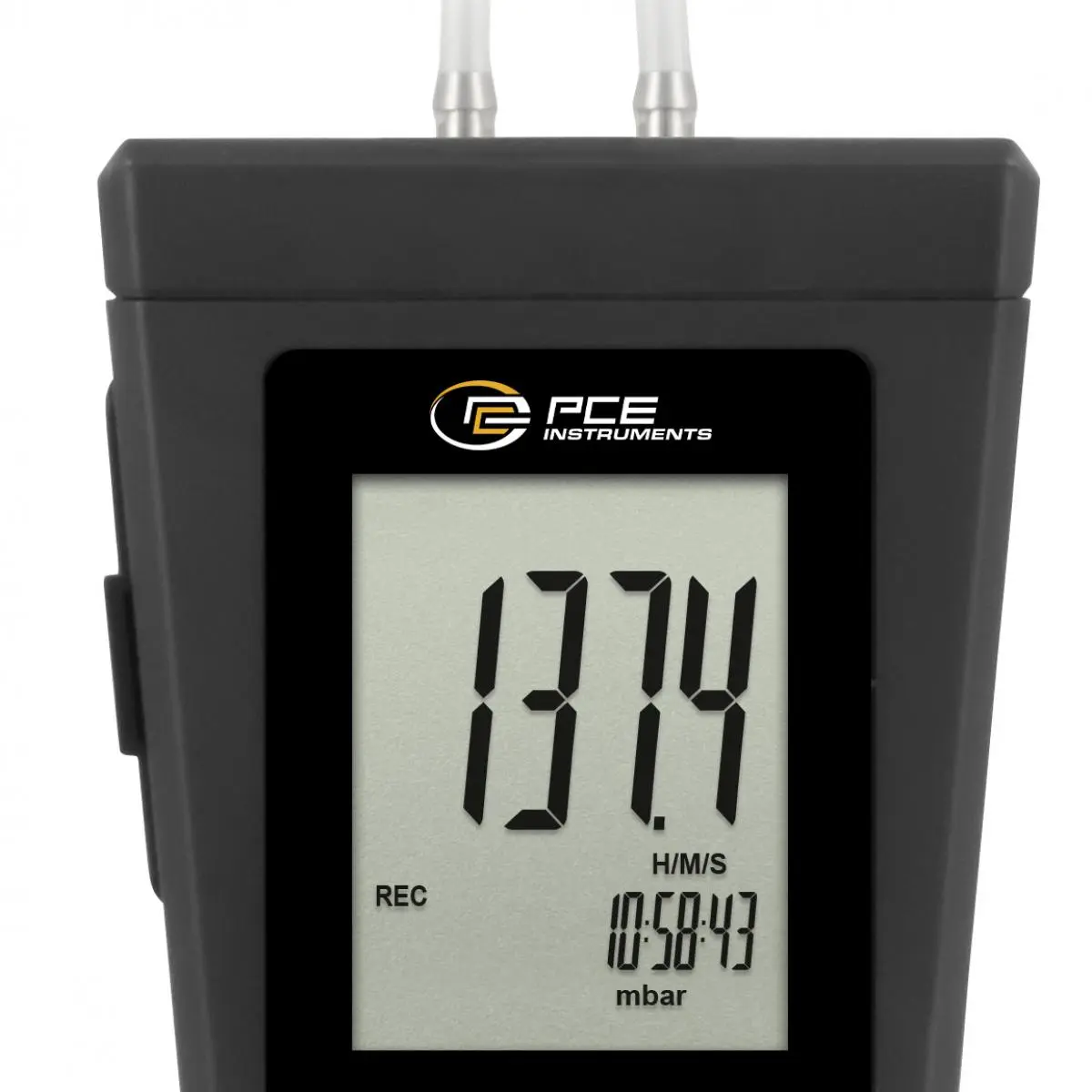

- Large dual LCD screen with backlight (on / off mode)
- Displays min / max / average values right on the meter's screen for comparison against current measurement values
- Features real-time data-logging capabilities using the included PC software and USB cable
Measuring range  (±)
inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar

55.40
2.000
137.8
13.79
4.072
103.4
32.00
4.612
140.6
0.140
0.137
Resolution
inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar

0.01
0.001
0.1
0.01
0.001
0.1
0.01
0.001
0.1
0.001
0.001
Accuracy (at +25 °C / +77 °F)± 0.3%
Linearity± 0.2%
Response timeApprox. 0.5 sec.
Max. pressure689 mbar
Operating temperature0 ... 50°C / 32 ... 122°F
Storage temperature-10 ... 60°C / 14 ... 140°F
MediaAir and non-explosive gases
Real-time data-logging interval    1 sec. to 24 h adjustable
DisplayDual LCD
Dimensions210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
Weight (without batteries)650 g / 1.44 lbs

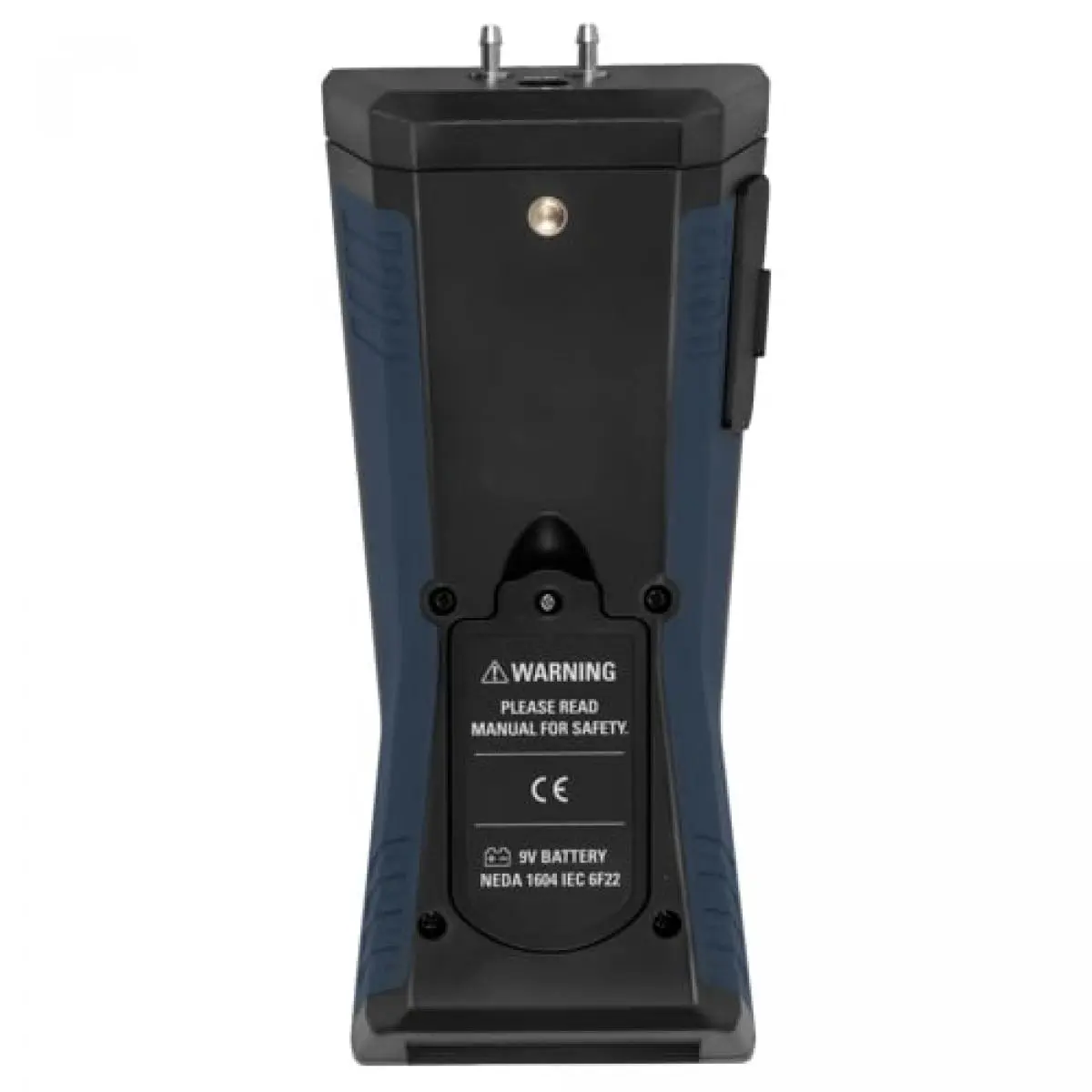

Power supplyBattery: 1 x 9V block

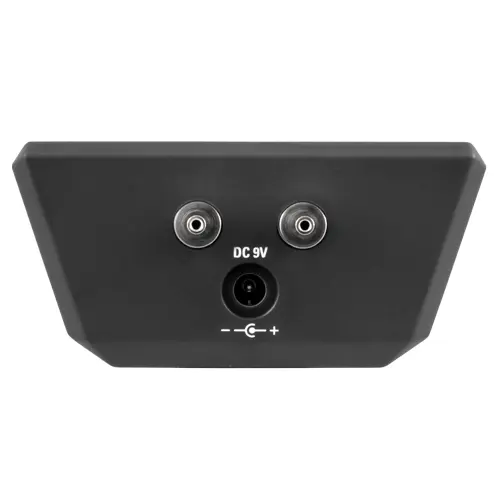

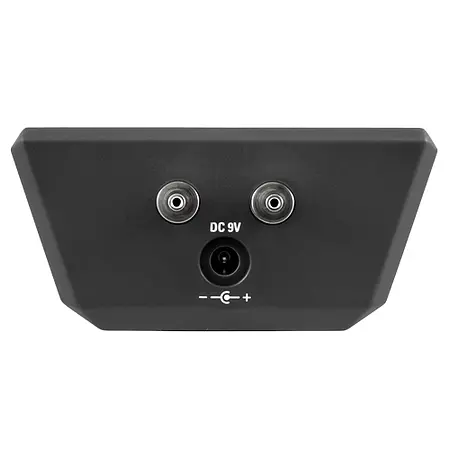

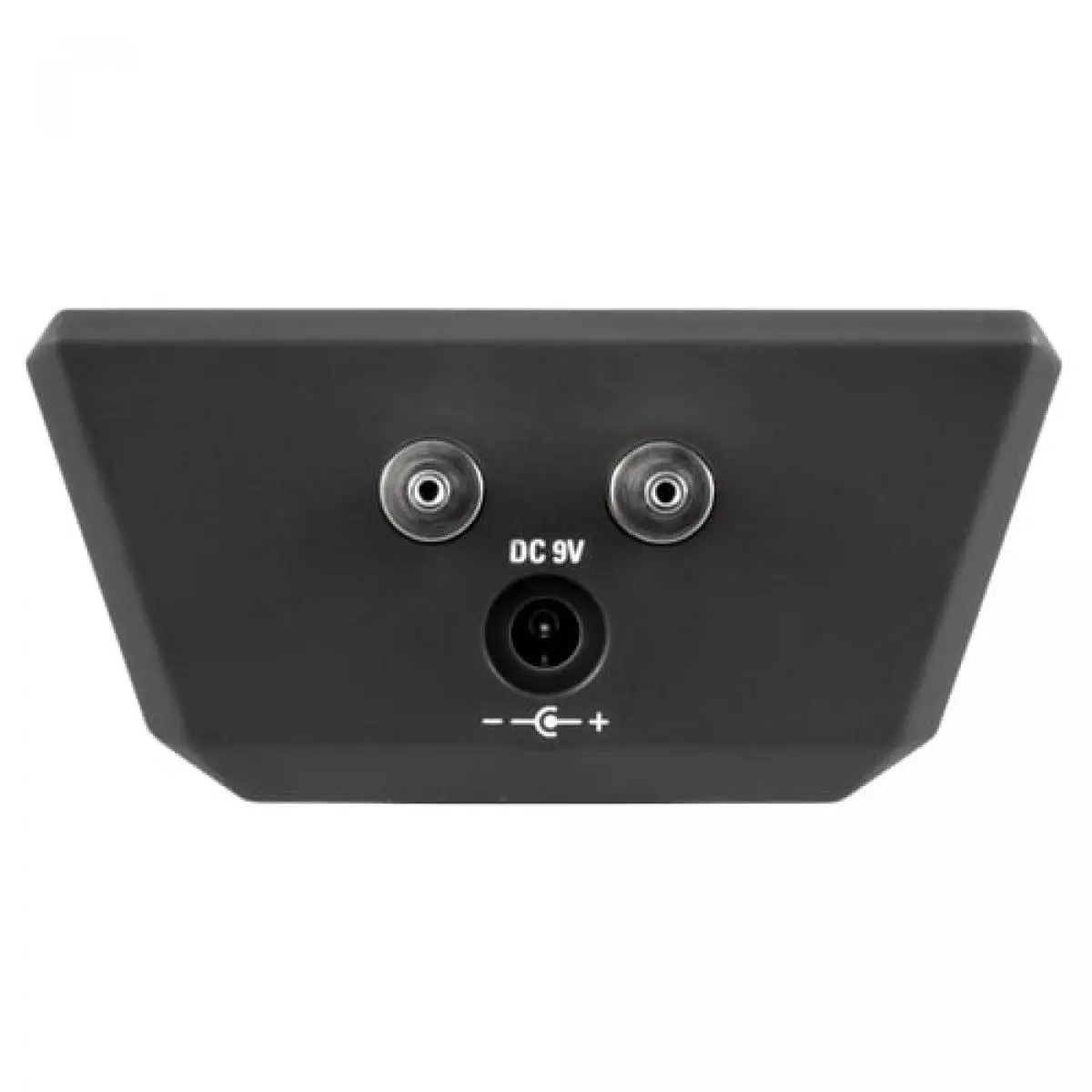

AC adapter: 9V DC / 500-mA

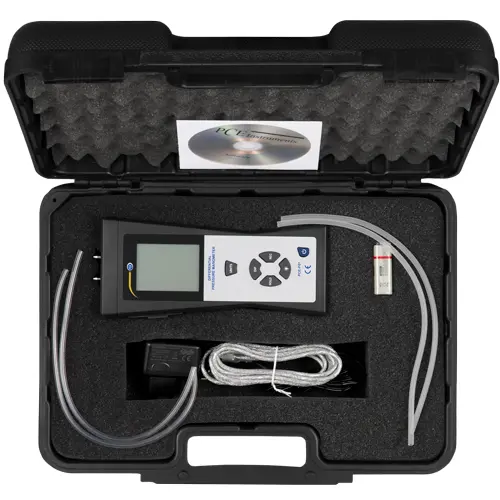

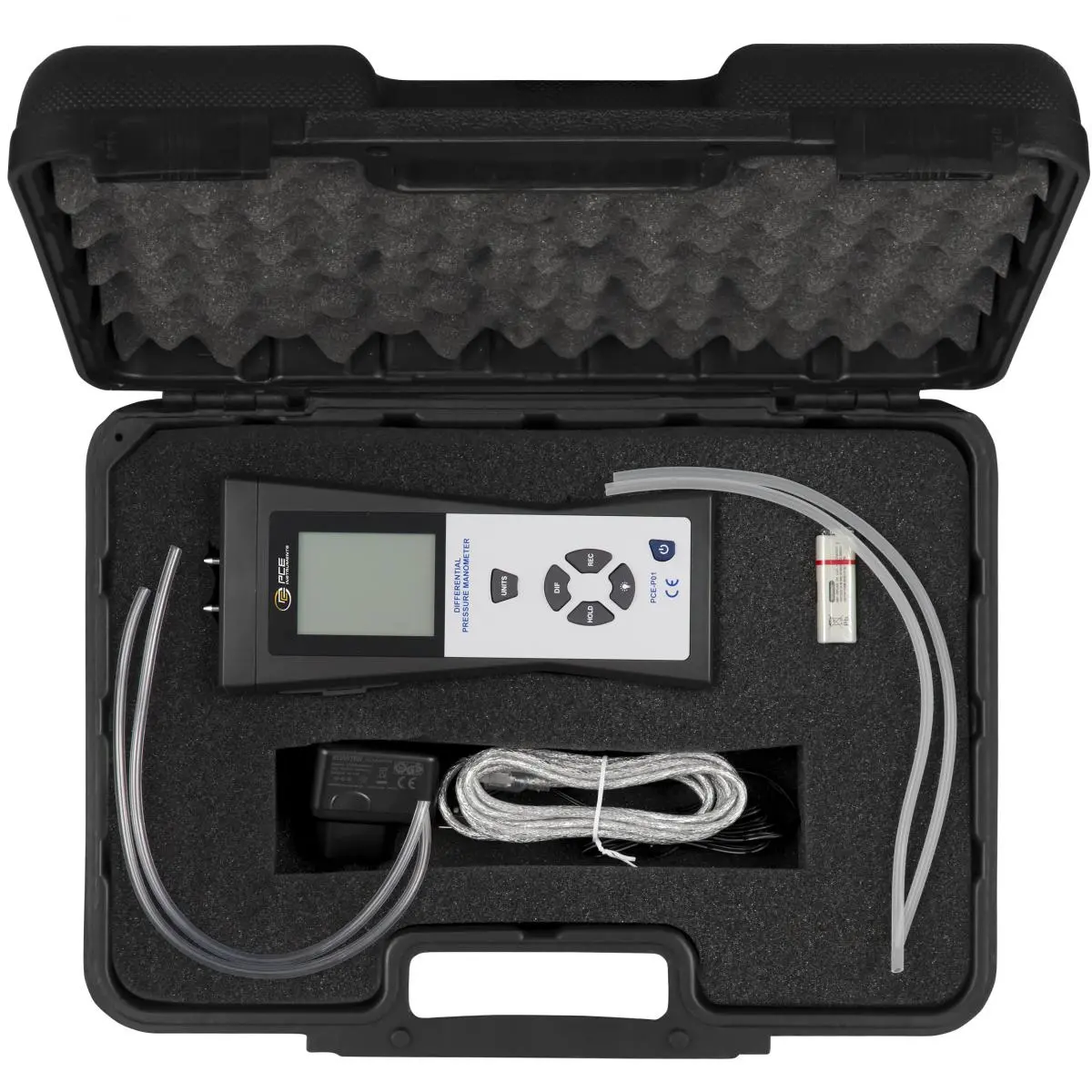

1 x PCE-P01 pressure meter

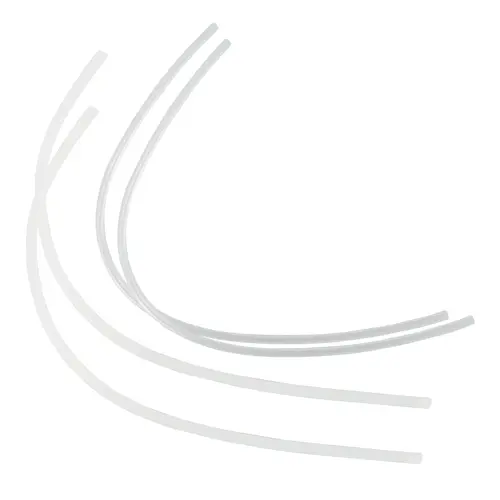

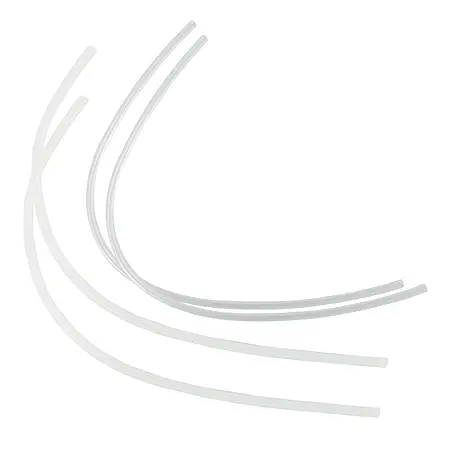

4 x 30 cm / 11.81 in silicon tubes
1 x CD-ROM with PC software

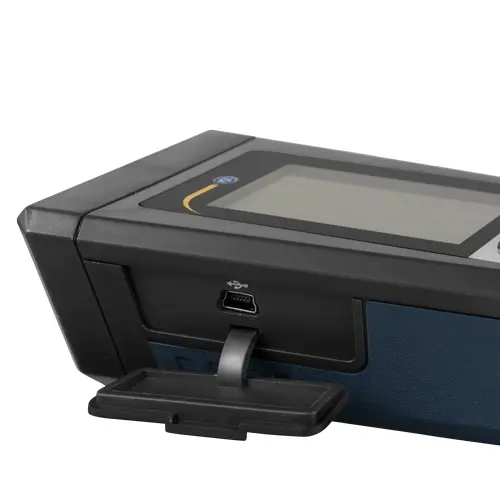

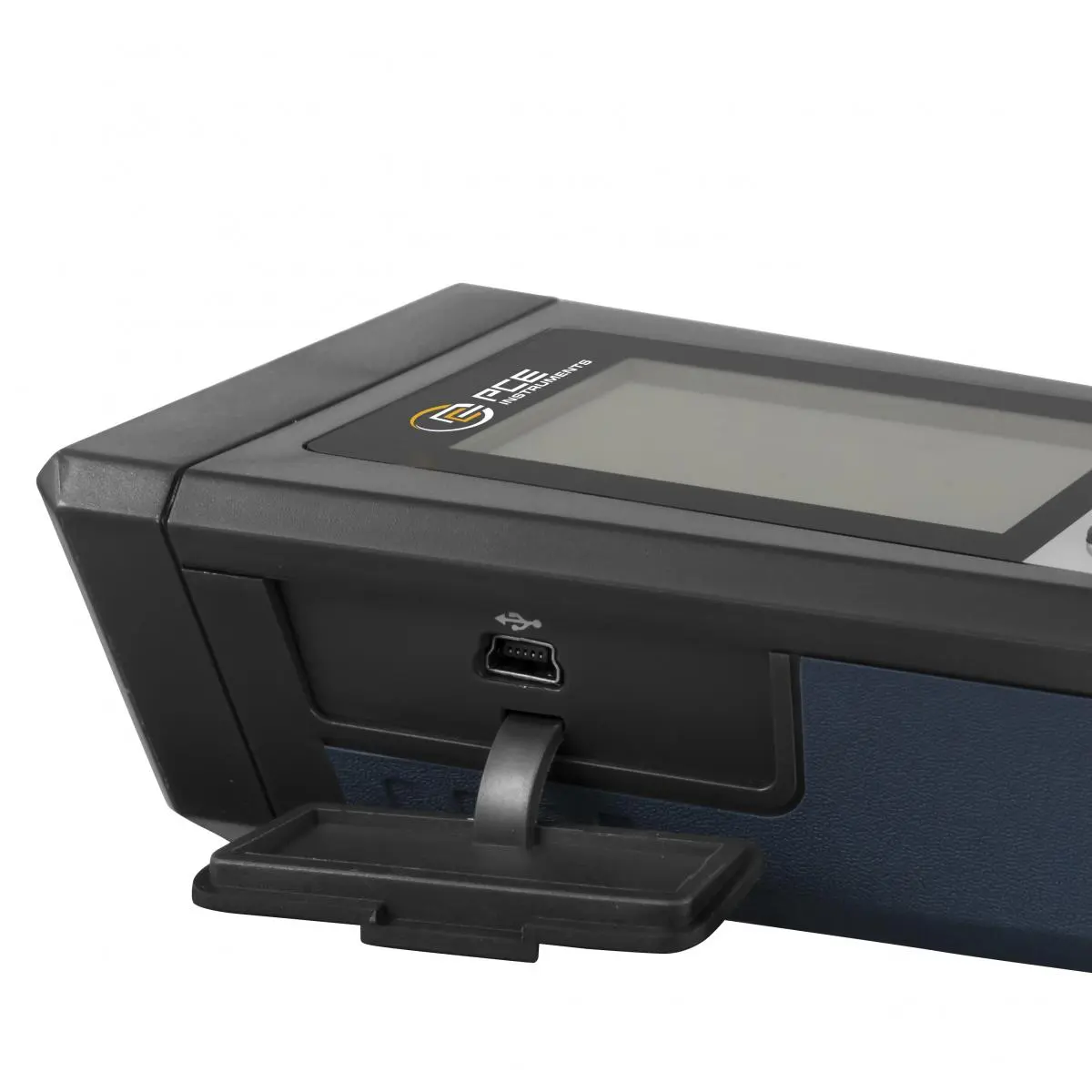

1 x USB cable
1 x 9V block battery
1 x 9V DC / 500-mA power adapter
1 x Plastic carrying case
1 x User manual
