Specification
| TR-PS2W-50bar |
|
| Measuring range |
Resolution |
| 0 ... 50 bar |
0.05 bar |
| 0 ... 725 PSI |
1 PSI |
| 0 ... 50.95 Kg / cm² |
0.05 kg / cm² |
| 0 ... 37500 mm Hg |
50 mm Hg |
| 0 ... 1476 inch Hg |
1 inch Hg |
| 0 ... 509.5 meters H20 |
0.5 meter H20 |
| 0 ... 20050 inches H20 |
20 inch H20 |
| 0 ... 49.35 ATP |
0.05 ATP |
| 0 ... 5000 kPa |
5 kPa |
| |
|
| Exit |
4 to 20-mA DC |
| 4-mA |
= normal pressure |
| 20-mA |
= maximum pressure |
| Precision pressure sensor made of ceramic |
| Linearity output signal |
± 1% FS |
| Zero Offset |
± 2% FS |
| Operating temperatur |
-20 ... 80°C / -4 ... 176°F |
| Ambient humidity |
80% RH |
| Size |
Ø 30 mm x 85 mm |
| Weight |
160 g / < 1 lb |
| |
|
Delivery Scope

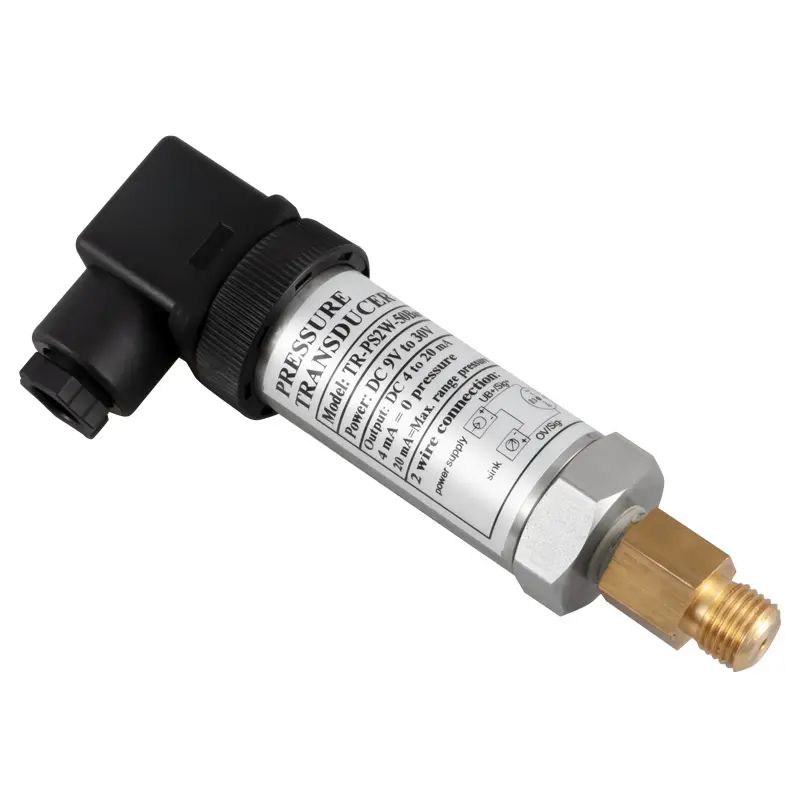

1 x Pressure sensor TR-PS2W-50BAR
