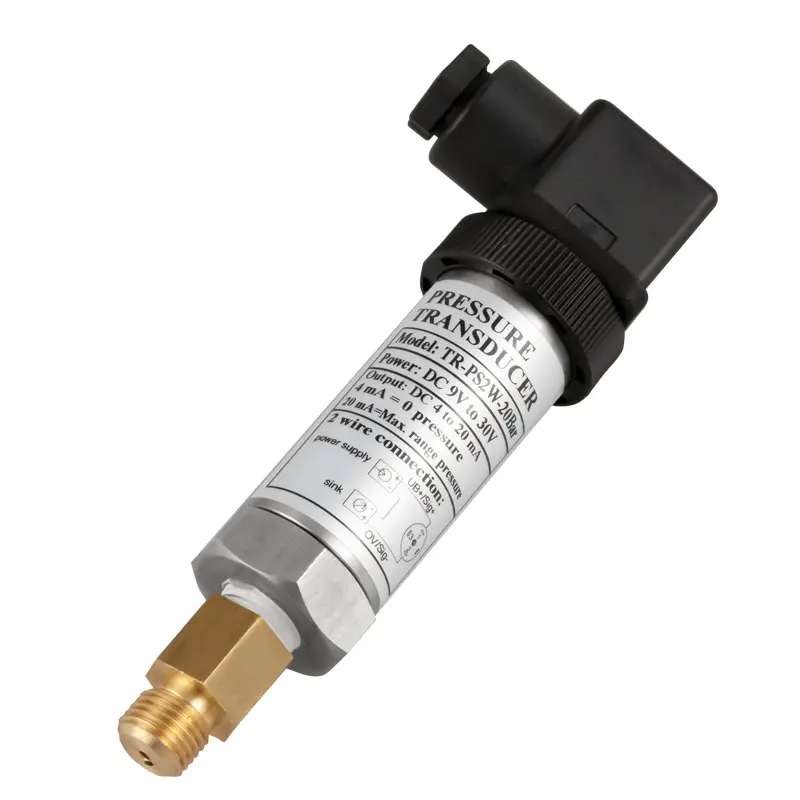

Pressure Sensor TR-PS2W-20BAR

Order no.: TR-PS2W-20BAR
£ 173.00
£ 207.60
TR-PS2W-20BAR
price ex. (VAT / delivery)
Delivery time: 1-2 working days
TR-PS2W-20BAR
Measuring range Resolution
0 ... 20 bar 0.02 bar
0 ... 290 PSI 0.2 PSI
0 ... 20.40 Kg / cm² 0.02 kg / cm²
0 ... 15000 mm Hg 20 mm Hg
0 ... 590.5 inch Hg 0.5 inch Hg
0 ... 204.0 meters H20 0.2 meters H20
0 ... 8020 inches H20 10 inch H20
0 ... 19.74 ATP 0.02 ATP
0 ... 2000 kPa 2 kPa

Exit 4 to 20-mA DC
4-mA = normal pressure
20-mA = maximum pressure
Precision pressure sensor made of ceramic
Linearity output signal         ± 1% FS
Zero Offset ± 2% FS
Operating temperature -20 ... 80°C / -4 ... 176°F
Ambient humidity 80% RH
Size Ø 30mm x 85mm
Weight 160 g / < 1 lb




1 x Pressure sensor TR-PS2W-20BAR
