Specification
| TR-PS2W-100BAR |
|
| Measuring range |
Resolution |
| 0 ... 100 bar |
0.1 bar |
| 0 ... 1450 PSI |
2 psi |
| 0 ... 101.9 Kg / cm² |
0.1 kg / cm² |
| 0 ... 75000 mm Hg |
100 mm Hg |
| 0 ... 2952 inch Hg |
2 inch Hg |
| 0 ... 1019 meters H20 |
1 meter H20 |
| 0 ... 40100 inches H20 |
50 inches H20 |
| 0 ... 98.7 ATP |
0.1 ATP |
| 0 ... 10000 kPa |
10 kPa |
| |
|
| Exit |
4 to 20-mA DC |
| 4-mA |
= normal pressure |
| 20-mA |
= maximum pressure |
| Precision pressure sensor made of ceramic |
| Linearity output signal |
± 1% FS |
| Zero Offset |
± 2% FS |
| Operating temperatur |
-20 ... 80°C / -4 ... 176°F |
| Ambient humidity |
80% RH |
| Size |
Ø 30 mm x 85 mm |
| Weight |
160 g / < 1 lb |
| |
|
Delivery Scope

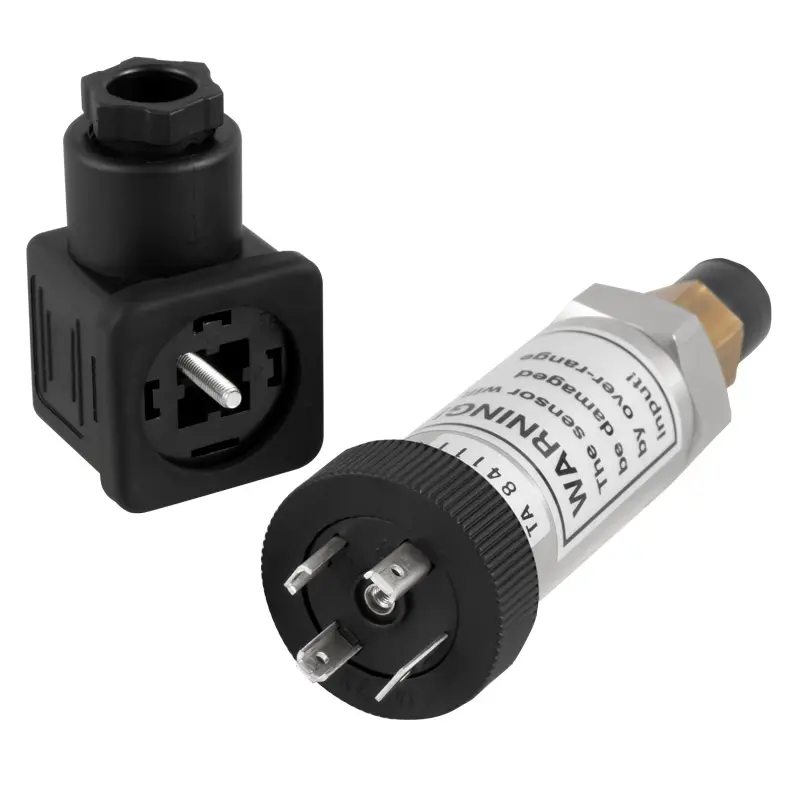

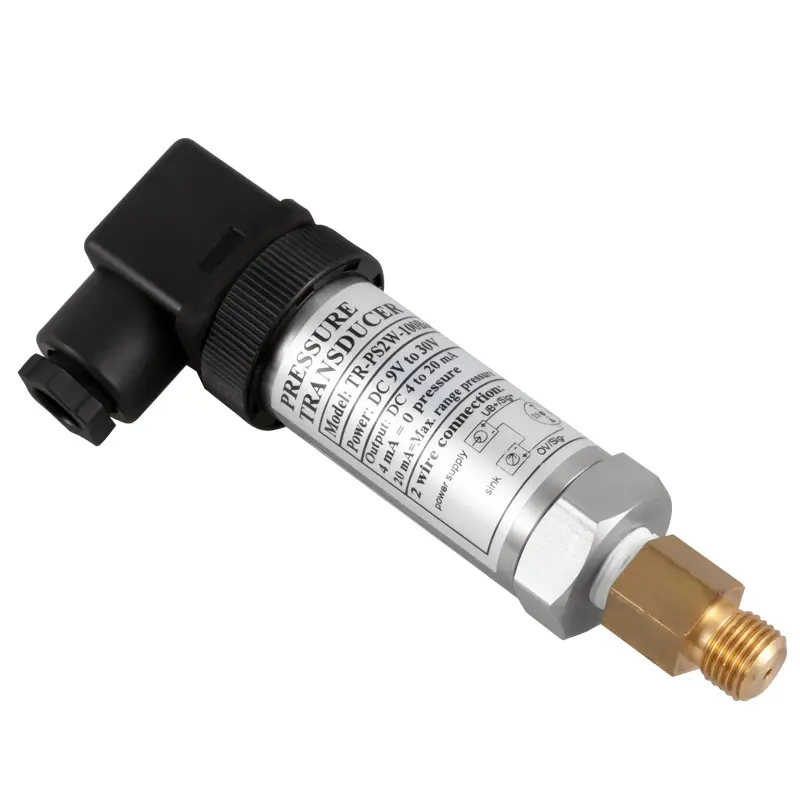

1 x Pressure sensor TR-PS2W-100BAR
