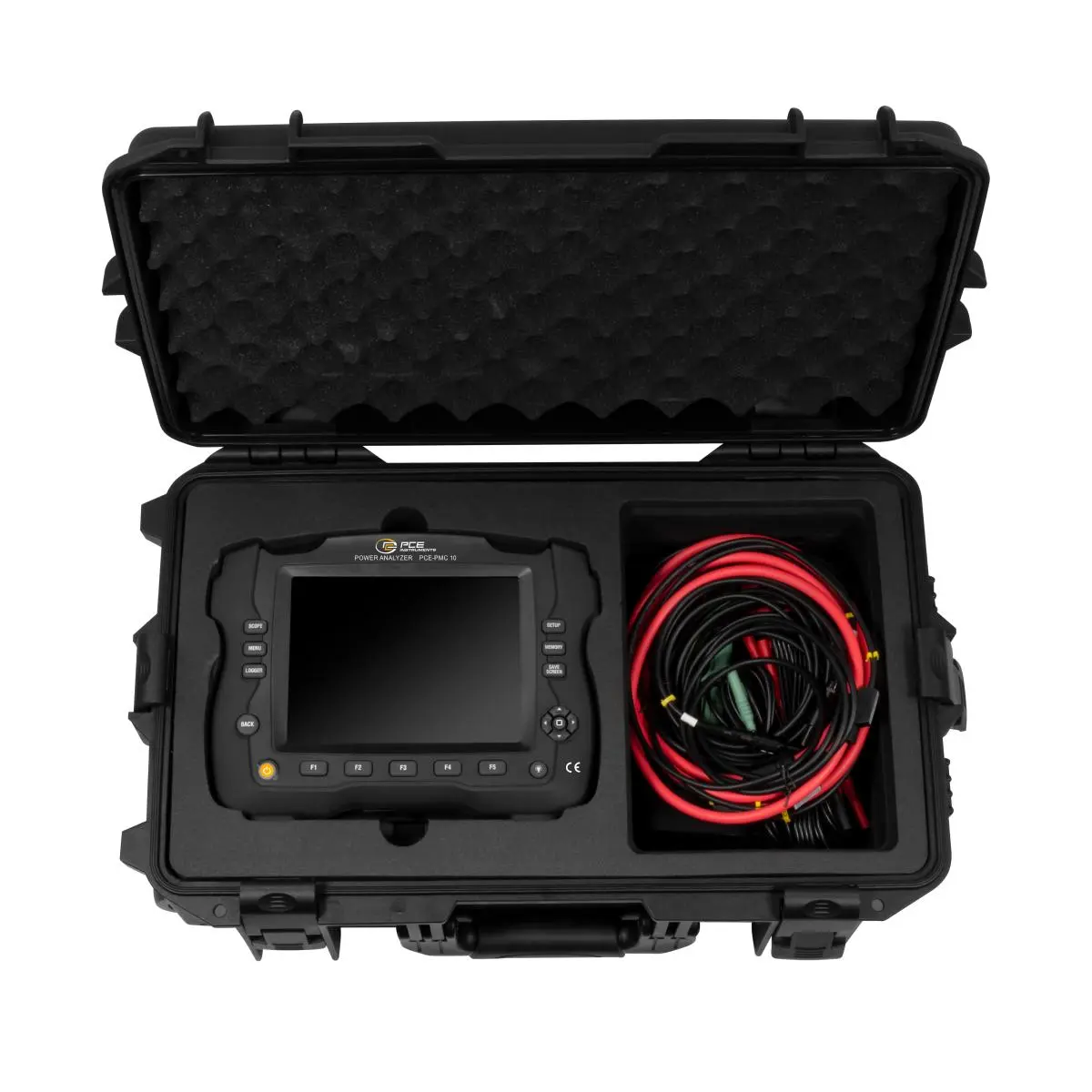

The state-of-the-art Power Quality Analyser / Power Analyzer enables precise and comprehensive measurements in the areas of current, voltage, frequency, power, energy flicker and harmonics. It has been specially developed to provide reliable data both in industrial applications and when analyzing photovoltaic or inverter systems.

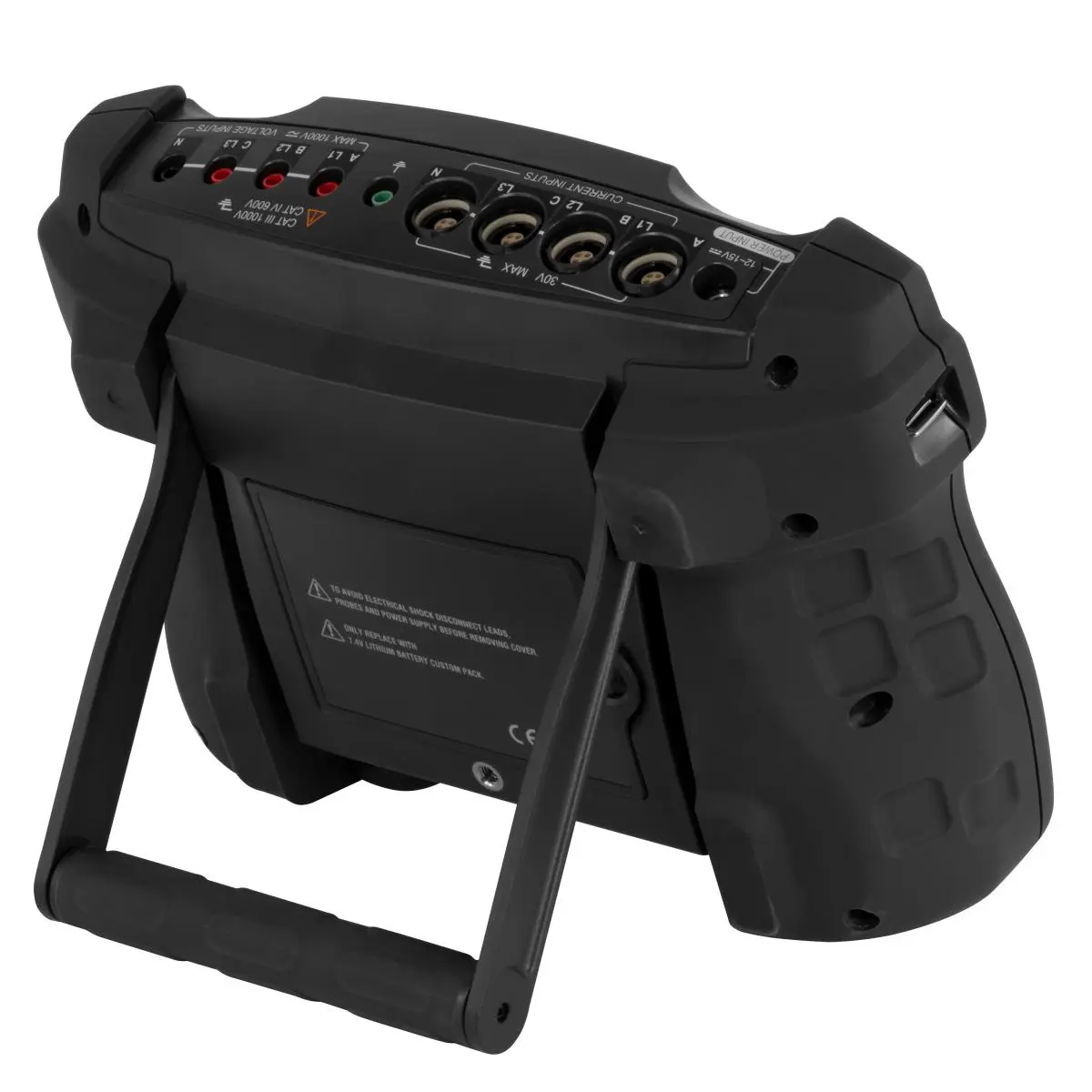

Simultaneous monitoring of all three phases and the neutral conductor provides a complete picture of the electrical system. The efficiency measurement of inverters allows a detailed analysis of the energy conversion, while the grid signal monitoring continuously detects deviations and faults. This Power Quality Analyser / Power Analyzer is therefore an indispensable tool for professional energy analyses.
Thanks to modern communication interfaces such as Wifi, the Power Quality Analyser / Power Analyzer can be easily integrated into existing systems and enables wireless analysis of measurement data. The integrated logger function and the memory reliably save all relevant data for later analysis.

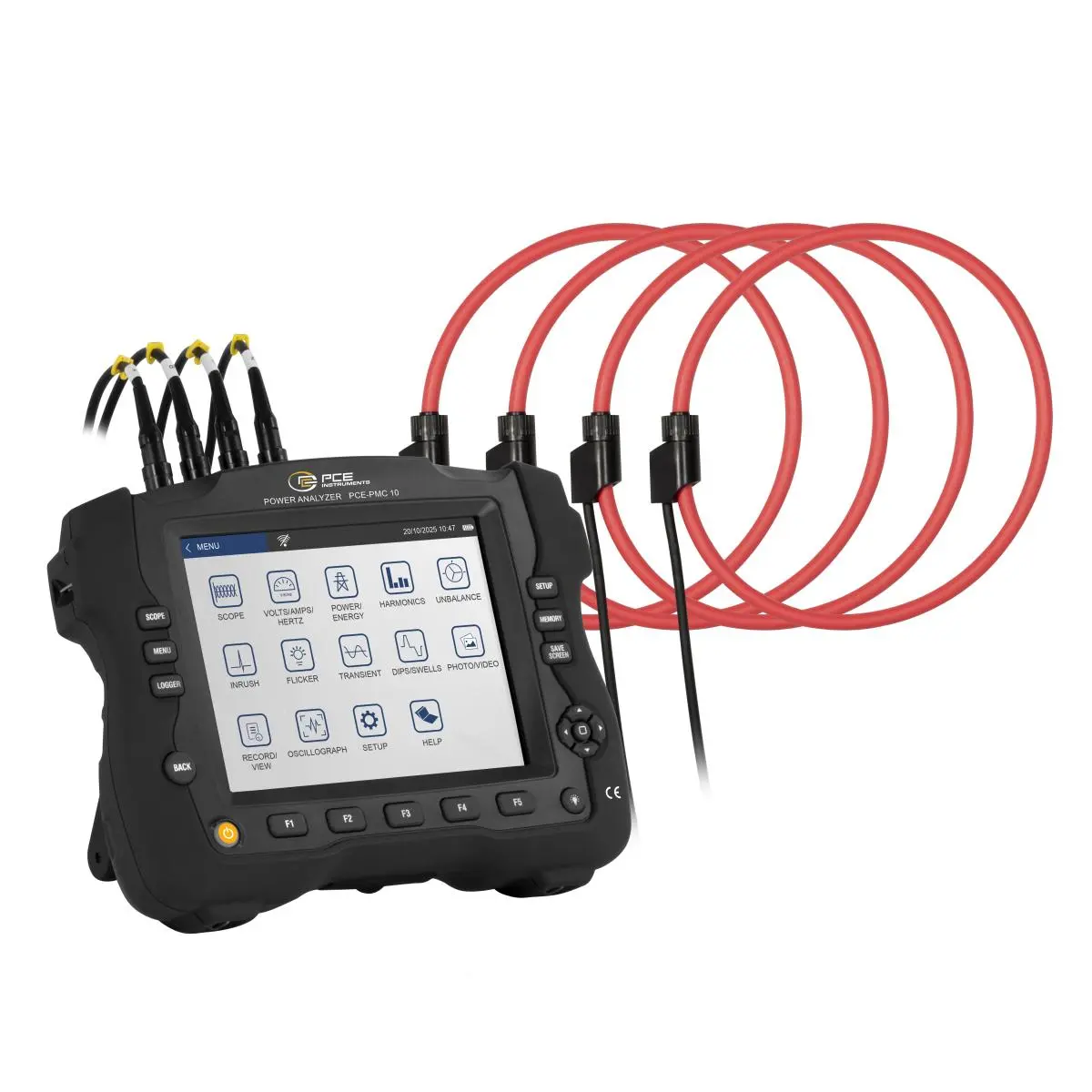

An integrated oscilloscope function allows the visual display of signal curves, including inrush currents, and thus supports the analysis of transient phenomena. The 7.8-inch touch display ensures intuitive operation and a clear presentation of all measured values, diagrams and analysis functions. The Power Quality Analyser / Power Analyzer fulfils the requirements of IEC 61000-4-30 Class A and thus guarantees standard-compliant analysis of the power quality parameters.
This Power Quality Analyser / Power Analyzer combines precision, versatility and modern user-friendliness and is ideal for energy analyses, fault diagnostics and efficiency tests in complex electrical systems.
| Direct voltage DC | |
| Measuring range | 1 ... 1000 V |
| Resolution | 0,1 V |
| Accuracy | ±0.5 % of Rd |
| Direct current DC | |
| Measuring range | 0,5 ... 6000 A |
| Resolution | 0,1 A |
| Accuracy | ±5% ±5 Counts |
| AC voltage | |
| Measuring range | 1 ... 1000 V |
| Resolution | 0,1 V |
| Accuracy | ±0.5 % of Rd |
| Frequency range | 42.5 ... 69 Hz |
| Alternating current AC | |
| Measuring range | 0,5 ... 6000 A |
| Resolution | 0,1 A |
| Accuracy | ±0.5 % of Rd |
| Phase angle | |
| Measuring range | -360 ... 0 ° |
| Resolution | 1 ° |
| Accuracy | 1 ° |
| Inrush current | |
| Measuring range | 0,5 ... 6000 A |
| Resolution | 0.1 A |
| Accuracy | 0.5 % ofRd |
| Power factor | |
| Measuring range | 0 ... 1 |
| Resolution | 0.001 |
| Accuracy | ±0.1 % |
| Flicker | |
| Measuring range | 0 ... 20 |
| Resolution | 0,01 |
| Accuracy | ±5% |
| Unbalance | |
| Measured variable | Tension |
| Measuring range | 0 ... 20 % |
| Resolution | 0,1 % |
| Accuracy | ±0.1% |
| Unbalance | |
| Measured variable | Electricity |
| Measuring range | 0 ... 20 % |
| Resolution | 0,1 % |
| Accuracy | ±1% |
| Frequency | |
| Measuring range | 42,5 ... 460 Hz |
| Resolution | 0,001 Hz |
| Accuracy | ±0.01 Hz |
| Harmonic measurement (harmonics) | |
| Measuring range | 1 ... 50 (ordinal number) |
| Current range | 0 ... 100 % |
| Voltage range | 0 ... 100 % |
| General technical data | |
| Display type | Touch screen |
| Display size | 7,8 Inch |
| Storage medium | SD card |
| Storage capacity | 64 GB |
| Storage interval from | 1 s |
| Storage interval to | 60 min. |

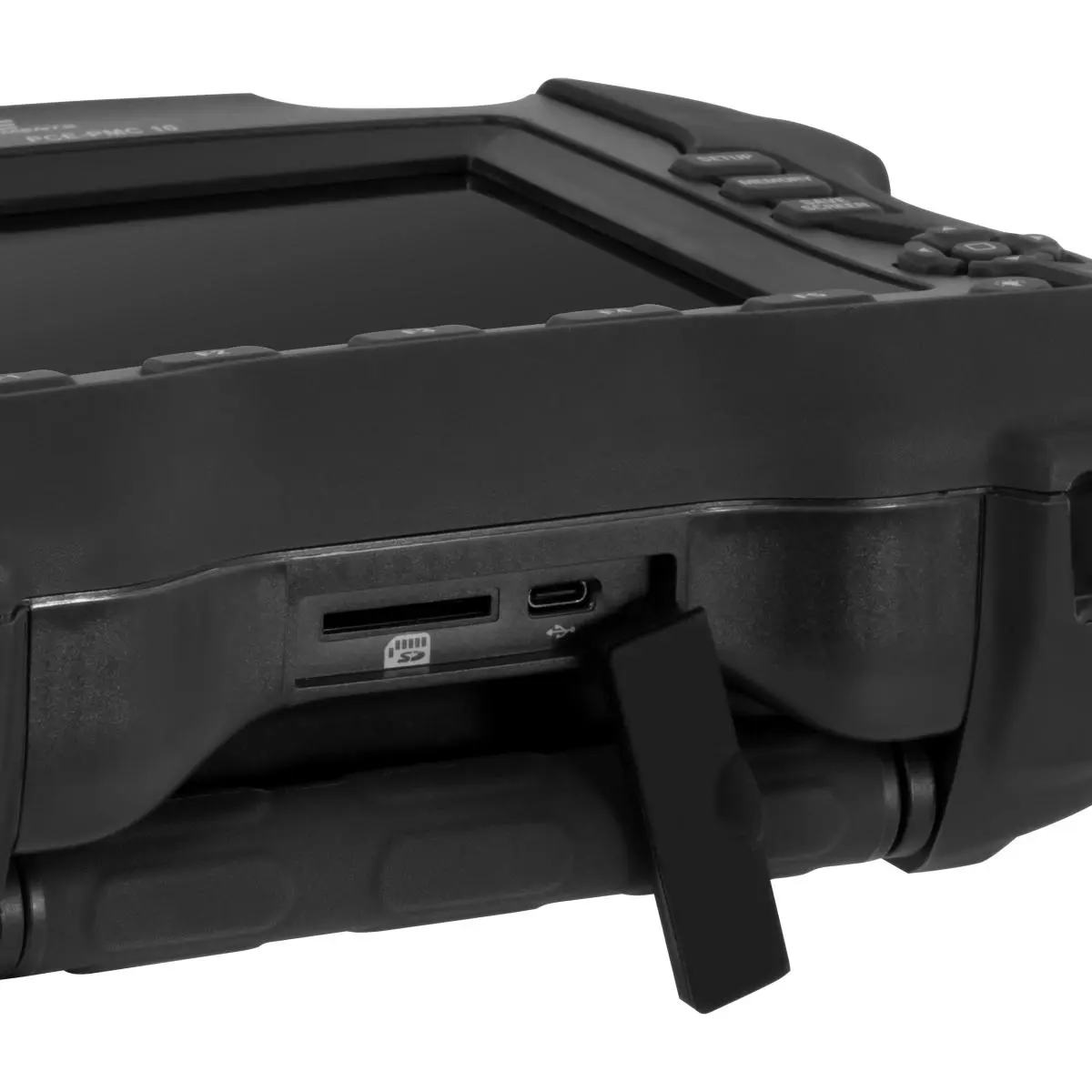

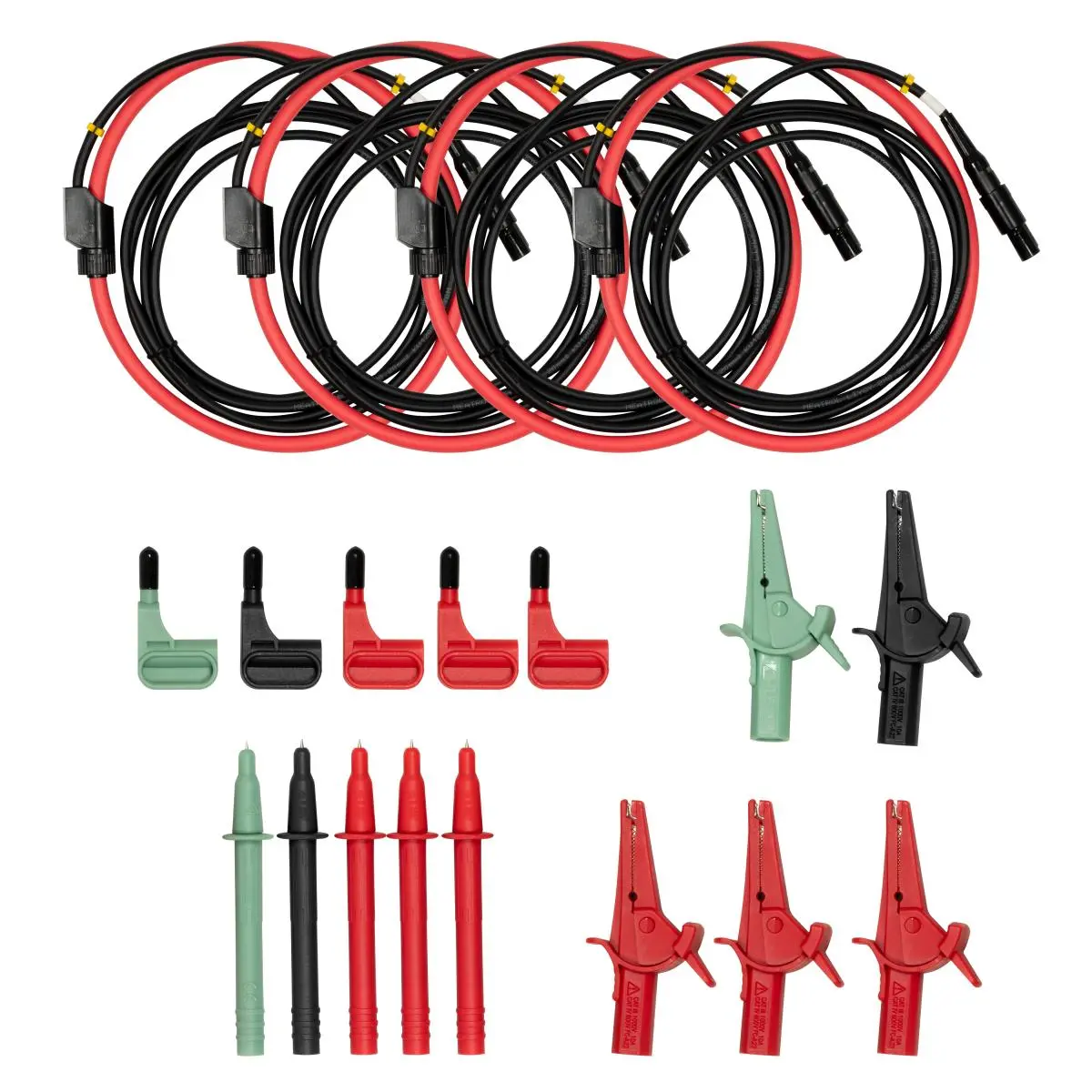

| Interface | USB-C, WiFi |
| Standard(s) | IEC 61000-4-30, IEC 61000-4-15, IEC 61000-4-7 |
| Maximum cable diameter | 150 mm |

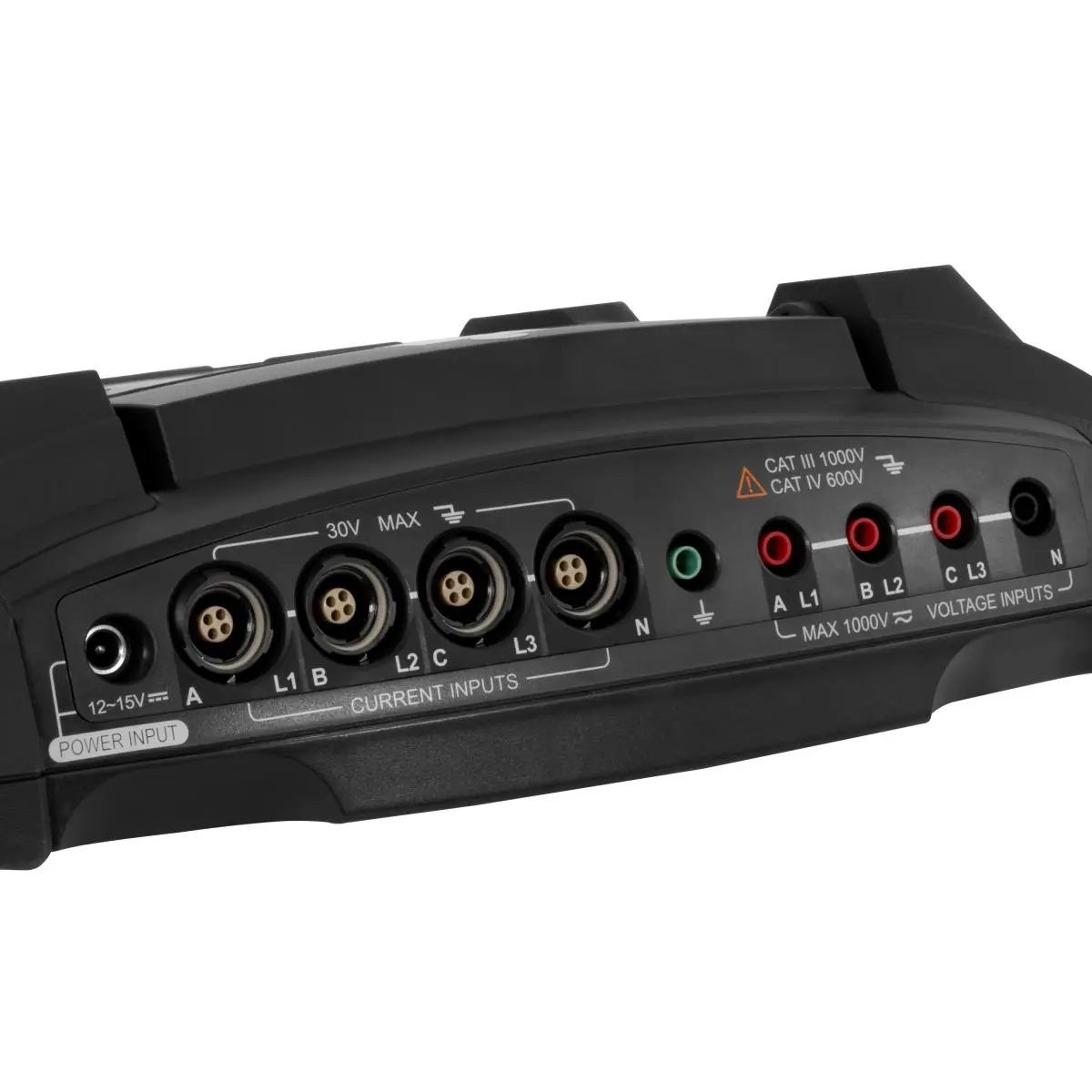

| Safety standard | CAT III 1000V, CAT IV 600V |
| Menu language | English (GB), English, Chinese |
| Protection class (device) | IP42 |

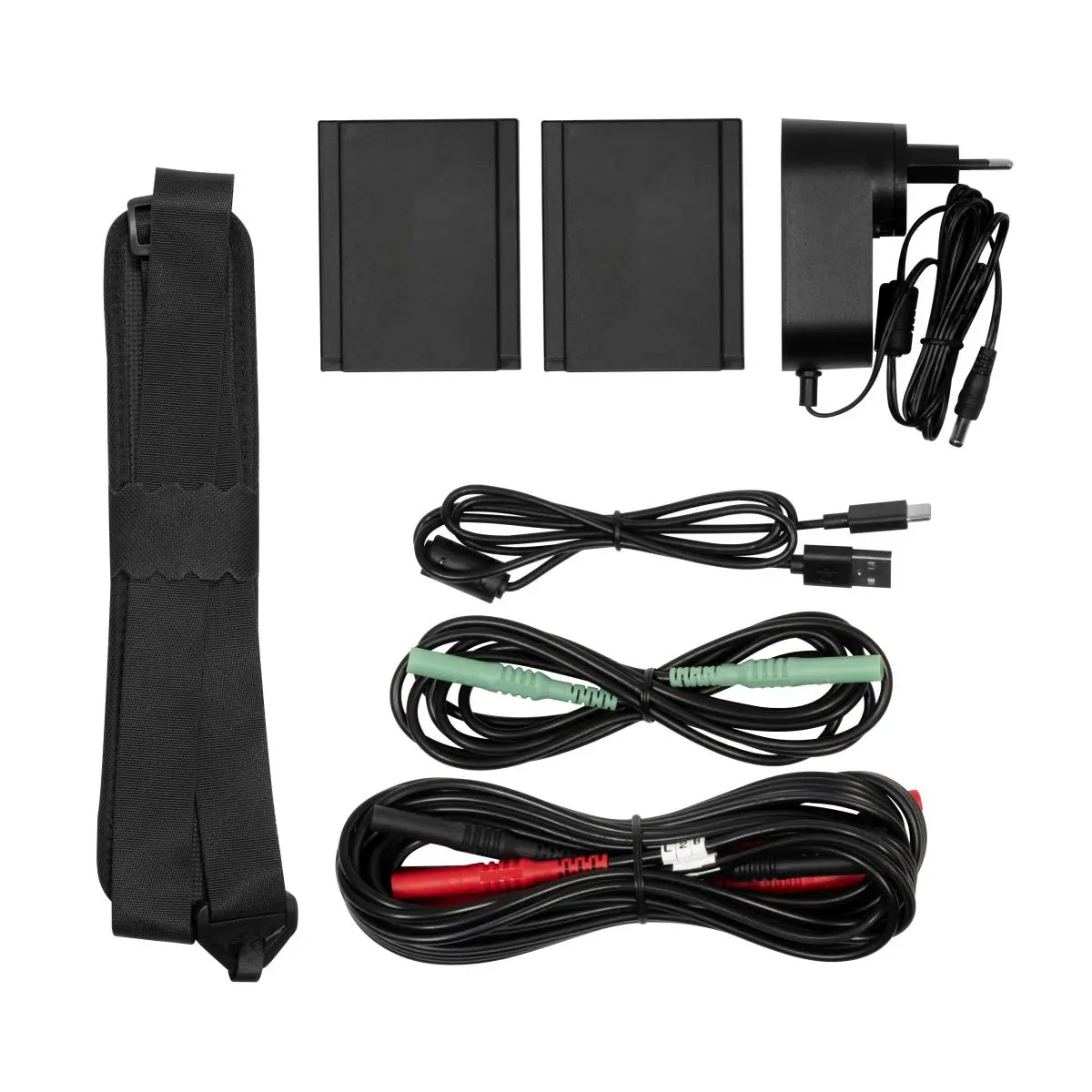

| Power supply | 12 ... 15V DC (power supply unit included) |
| Connector type | Euro plug |

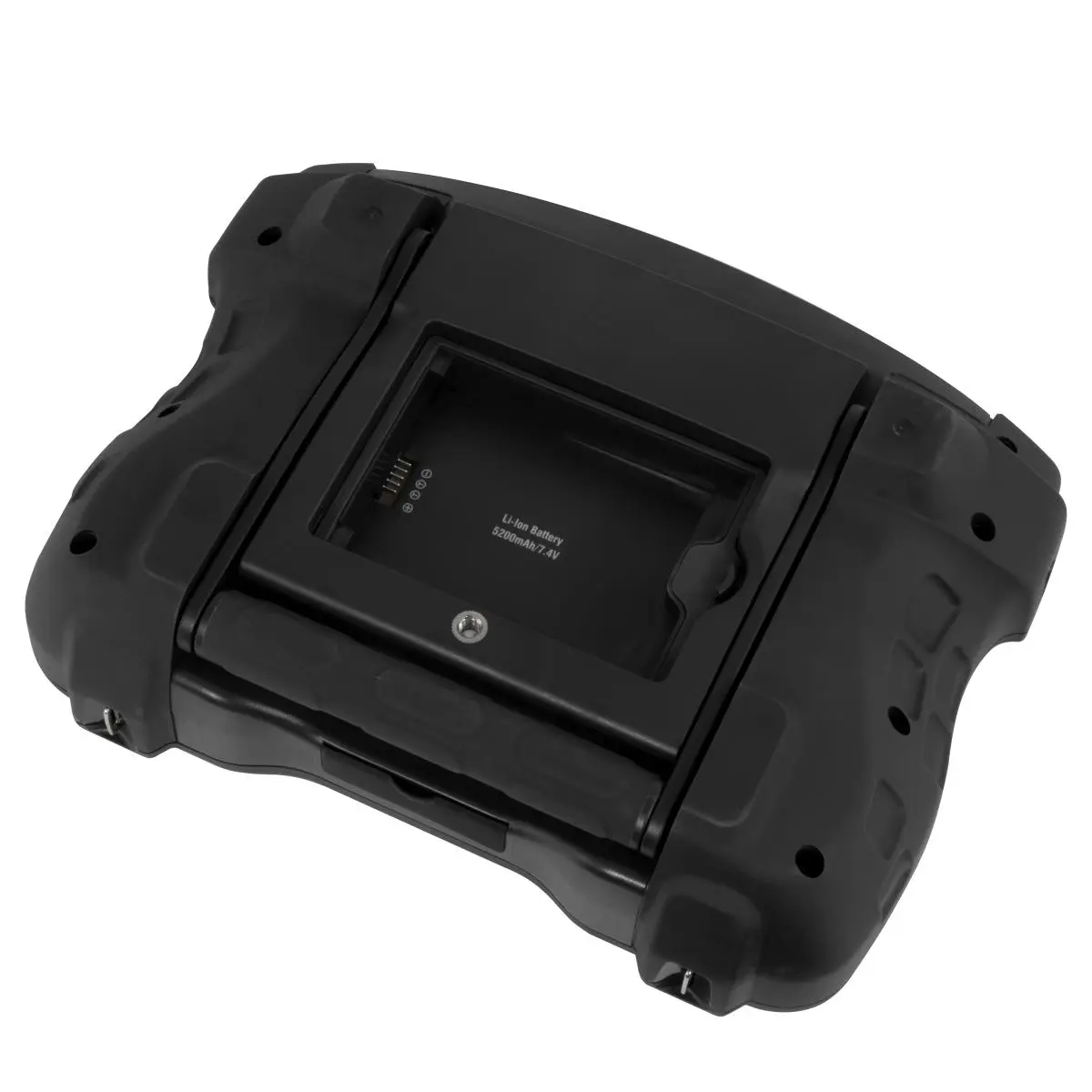

| (Rechargeable) battery | 2 x 7,4 V internal , Lithium-ion battery |
| Capacity | 5200 mAh |
| Operating conditions | -10 ... 40 °C , 10 ... 95 % RH |
| Storage conditions | -20 ... 60 °C , 10 ... 95 % RH |
| Dimensions ( L x W x H ) | 280 x 75 x 215 mm |
| Weight | 1834 g |
