£ 199.00

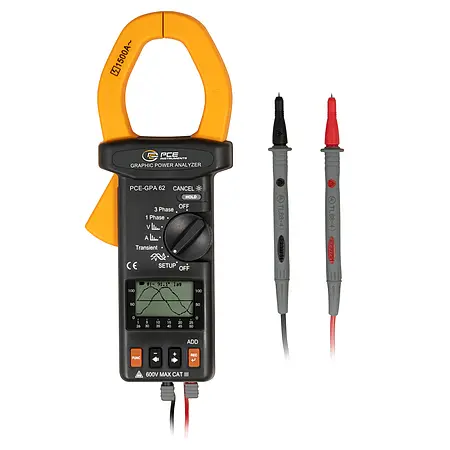

The Three-Phase Power Analyzer (Graphic Power Quality Analyzer) PCE-GPA 62 is used for single-phase or three-phase measurements of the active, reactive and apparent power, power factor, phase angle, energy, voltage, current as well as peaks and harmonics up to 50º of the harmonic waveform. The Three-Phase Power Analyzer PCE-GPA 62 comes with a built-in graphic display to show network analyzer values. Measured values can be both recorded and transferred to a PC for further analysis. The Three-Phase Power Analyzer PCE-GPA 62 is a professional handheld device to determine several parameters. Thanks to the backlight display, it is possible to get an accurate reading of measured values even with poor light conditions. Although the Three-Phase Power Analyzer PCE-GPA 62 comes calibrated from the manufacturer, an optional laboratory calibration and certificate, that meets ISO standards, can be ordered separately with the device or when an annual recalibration is required.
| AC voltage | |
| Measuring range | 4 ... 600 V |
| Resolution | 0,1 V |
| Accuracy | ±0.5 % ±5 digits |
| Overload | 800V |
| Frequency range | 50 ... 60 Hz |
| Alternating current AC | |
| Measuring range | 4 ... 1500 A |
| Resolution | 0,1 A |
| Accuracy | ±1% ±5 digits |
| Overload | 2000 A |
| Frequency range | 50 ... 60 Hz |
| Active power | |
| Measuring range | 10 ... 999,9 W |
| Resolution | 0,1 W |
| Accuracy | ±1% ±20 digits (>20V and >20 A) / ±2% ±40 digits (<20V <20 A) |
| Active power | |
| Measurement range up to | 1 kW |
| Measurement range from | 9,999 kW |
| Resolution | 0,001 kW |
| Accuracy | ±1% ±20 digits (>20V and >20 A) / ±2% ±40 digits (<20V <20 A) W |
| Active power | |
| Measuring range | 10 ... 99,99 kW |
| Resolution | 0,01 kW |
| Accuracy | ±1% ±20 digits (>20V and >20 A) / ±2% ±40 digits (<20V <20 A) |
| Active power | |
| Measuring range | 100 ... 999,9 kW |
| Resolution | 0,1 kW |
| Accuracy | ±1% ±20 digits (>20V and >20 A) / ±2% ±40 digits (<20V <20 A) |
| Active power | |
| Measuring range | 1000 ... 9999 kW |
| Resolution | 1 kW |
| Accuracy | ±1% ±20 digits (>20V and >20 A) / ±2% ±40 digits (<20V <20 A) |
| Reactive power | |
| Measuring range | 10 ... 999,9 VAR |
| Resolution | 0,1 VAR |
| Accuracy | ±2% ±30 digits (>20V and >20 A) / ±3% ±40 digits (<20V <20 A) |
| Reactive power | |
| Measuring range | 1 ... 9,999 kVAR |
| Resolution | 0,001 kVAR |
| Accuracy | ±2% ±30 digits (>20V and >20 A) / ±3% ±40 digits (<20V <20 A) |
| Reactive power | |
| Measuring range | 10 ... 99,99 kVAR |
| Resolution | 0,01 kVAR |
| Accuracy | ±2% ±30 digits (>20V and >20 A) / ±3% ±40 digits (<20V <20 A) |
| Reactive power | |
| Measuring range | 100 ... 999,9 kVAR |
| Resolution | 0,1 kVAR |
| Accuracy | ±2% ±30 digits (>20V and >20 A) / ±3% ±40 digits (<20V <20 A) |
| Reactive power | |
| Measuring range | 1000 ... 9999 kVAR |
| Resolution | 1 kVAR |
| Accuracy | ±2% ±30 digits (>20V and >20 A) / ±3% ±40 digits (<20V <20 A) |
| Phase angle | |
| Measuring range | -180 ... +180 ° |
| Resolution | 0,1 ° |
| Accuracy | ±1 ° |
| Phase angle | |
| Measuring range | 0 ... 360 ° |
| Resolution | 0,1 ° |
| Accuracy | ±1° |
| Apparent power | |
| Measuring range | 10 ... 999,9 VA |
| Resolution | 0,1 VA |
| Accuracy | ±1% ±20 digits (>20V and >20 A) / ±2% ±40 digits (<20V <20 A) |
| Apparent power | |
| Measuring range | 1 ... 9,999 kVA |
| Resolution | 0,001 kVA |
| Accuracy | ±1% ±20 digits (>20V and >20 A) / ±2% ±40 digits (<20V <20 A) |
| Apparent power | |
| Measuring range | 10 ... 99,99 kVA |
| Resolution | 0,01 kVA |
| Accuracy | ±1% ±20 digits (>20V and >20 A) / ±2% ±40 digits (<20V <20 A) |
| Apparent power | |
| Measuring range | 100 ... 999,9 kVA |
| Resolution | 0,1 kVA |
| Accuracy | ±1% ±20 digits (>20V and >20 A) / ±2% ±40 digits (<20V <20 A) |
| Apparent power | |
| Measuring range | 1000 ... 9999 kVA |
| Resolution | 1 kVA |
| Accuracy | ±1% ±20 digits (>20V and >20 A) / ±2% ±40 digits (<20V <20 A) |
| Power factor | |
| Measuring range | 0 ... 1 |
| Resolution | 0.001 |
| Accuracy | ±0.04 (>20 V and >20 A) / ±0.1 (<20 V and <20 A) |
| Active energy | |
| Measuring range | 0 Wh ... 999,999 kVArh |
| Resolution | 20 Digits |
| Accuracy | ±1% of Rd |
| Apparent energy | |
| Measuring range | 0 VAh ... 999,999 kVAh |
| Resolution | 20 Digits |
| Accuracy | ±1% of Rd |
| Reactive energy | |
| Measuring range | 0 varh ... 999,999 kVArh |
| Resolution | 20 Digits |
| Accuracy | ±1% of Rd |
| Frequency | |
| Measuring range | 46 ... 65 Hz |
| Resolution | 0,1 Hz |
| Accuracy | ±0.3 Hz |
| Harmonic measurement (harmonics) | |
| Measuring range | 1 ... 50 (ordinal number) |
| General technical data | |
| Measuring functions | HOLD |
| Frequency | 50 ... 60 Hz |
| Display type | LCD graphic display with backlight |
| Display size | 2 Inch |
| Storage medium | Internal memory |
| Storage capacity | 50000 Data records |
| Interface | USB |
| Standard(s) | EN 61010-2-032 |
| Maximum cable diameter | 55 mm |
| Automatic power-off | 15 min |
| Safety standard | CAT III 600V |
| Dimensions | Current clamp opening: max. 55 mm |
| Measuring range selection | Automatic |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 2 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | -10 ... 50 °C , 0 ... 85 % RH |
| Storage conditions | -10 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 271 x 112 x 46 mm |
| Weight | 650 g |
