Power Analyzer PCE-830-2-ICA incl. ISO Calibration Certificate

Order no.: PCE-830-2-ICA

GTIN (EAN):

Description

Power Analyzer with 3 phases, measures power and analyses

harmonics with memory, interface and software

The Power Analyzer is used for measuring one to three phases of electrical quantities for alternating current (AC). This 3-Phase Power Analyzer also measures such parameters as voltage, current, frequency, harmonics and power as well as indicating, according to standard EN50160, harmonic values, interharmonics and asymmetrics. Interference, such as interruptions, leaks, overloads or transience (from 16µs) are detected with their corresponding values. The backlit LCD, with high resolution, can show up to 35 parameters simultaneously. It can have up to 3 clips attached at the same time. In data logger mode, it can save up to 17,470 readings (3 phases / 4 conductors), in a simpler set up (1 phase / 2 conductores) it can save up to 52,400 readings, split into 85 groups. All this makes the Power Analyzer the ideal instrument for taking measurements over long durations. Measurement values obtained can be sent to a computer and be processed with the analysis software which comes included. The device comes with everything needed to be measuring and analysing from the moment the device arrives. Although the Power Analyzer comes calibrated from the manufacturer, an optional laboratory calibration and certificate, that meets ISO standards, can be ordered seperately with the device or when a recalibration is required.

Highlights

- Analysis of a network of 3 phases/4 conductors, 3 phases/3 conductors, 1 phase/2 conductors, 1
phase/3 conductors
- Measures effective real value (V 123 and I 123)
- Measures active power (W, KW, MW, GW)
- Measures apparent and reactive power (KVA, KVAR)
- Power Factor (PF), phase angle (Φ)
- Measures energy and work (Wh, KWh, KVARh, PFh)
- Measures current from 0.1mA to 3000A, allowing for the reserve power of a factory to be determined
- Large LCD that shows up to 35 parameters simultaneously (3P4W [=3 phases/4 conductors])
- CT conditions (1 to 600) and PT (1 to 3000) are programmable
- Indicates current wave forms and voltage overlap.
- 512KB of memory with programmable intervals to save data every 2 to 3000 seconds, 17,470 readings
using the system of 3 phases / 4 conductors)
- Indicates wave forms, efficiency parameters and harmonic distortion
- Backlit LCD wth dot matrix
- Average power (AD in W, KW, MW)
- Maximum power (MD in W, KW, MW) with the programmable period
- Analysis of harmonic distortion up to a curvature of 99
- Indication of up to 50º form of harmonic wave
- Indication of the wave form with maximum value (1024 readings / period)
- Analysis of absolute distortion (%THD-F)
- Diagram of graphic equilibrium with parameters of a 3 phase system
- Detects up to 28 transistors (time and cycles) with a programmable threshold (%)
- Relation of 3 phases of voltage or asymmetrical current (VUR)
- Factor of 3 phases of voltage and asymmetrical current (d0%, d2%)
- USB port (optically insulated)
- Integrated timer and calendar to record data

Specification

AC voltage
Measurement range up to	20 ... 500 V
Accuracy	±0.5 % ±5 digits

Alternating current AC
Measurement range up to	0,04 ... 1 A
Accuracy	±0.5 % ±0.05 A
Overload	Overload protection AC 200 A

Phase angle
Measurement range up to	-180 ... +180 °
Accuracy	±1 °

Power factor
Measurement range up to	0 ... 1
Accuracy	±0.04

Frequency
Measurement range up to	45 ... 65 Hz
Resolution	0,1 Hz
Accuracy	0.1 Hz

General technical data
Measuring functions	HOLD
Frequency	50 ... 60 Hz
Display type	LCD with backlight
Display size	4,9 Inch
Storage medium	Internal memory
Storage capacity	52420 Values
Storage interval from	2 s
Storage interval to	3000 min.
Interface	RS232, USB
Standard(s)	IEC 61010
Maximum cable diameter	55 mm
Safety standard	CAT III 600V
Menu language	English
Power supply	12V
Connector type	Device-europlug
(Rechargeable) battery	8 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	-10 ... 50 °C , 0 ... 75 % RH
Storage conditions	-20 ... 60 °C , 0 ... 75 % RH
Dimensions ( L x W x H )	257 x 155 x 57 mm
Other dimensions	Current clamp PCE-6802 244 x 97 x 46 mm
Weight	1160 g
Other weights	Current clamp PCE-6802 600g

Delivery Scope

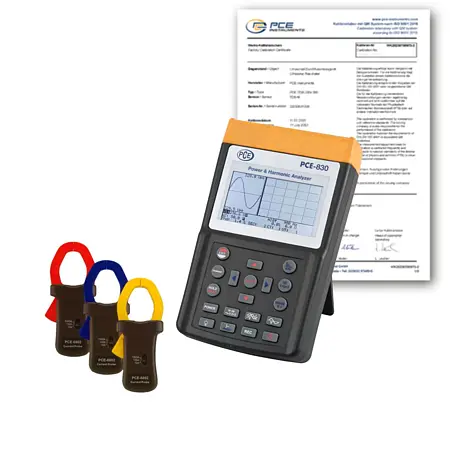

1 x PCE-830-2 Power Analyzer3 x PCE-6802 current clamp (1000A)
4 x insulated tap-off clamp
4 x safety measuring cable, each 3m long
8 x 1.5 V AA batteries
1 x power supply
1 x device bag
1 x USB PC cable
1 x software (English)
1 x operating instructions
1 x ISO calibration certificate
