Portable Ultrasonic Flow Meter

[zoom]

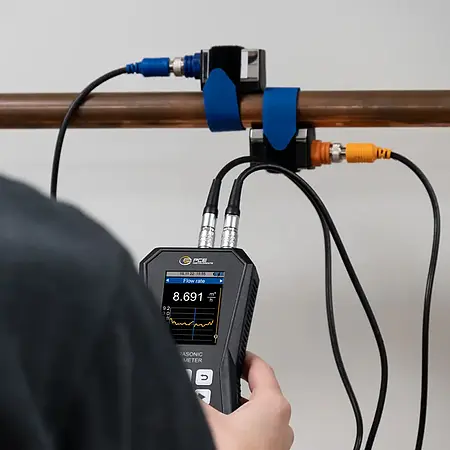

Portable Ultrasonic Flow Meter Sensor connection

Portable Ultrasonic Flow Meter Screenshot

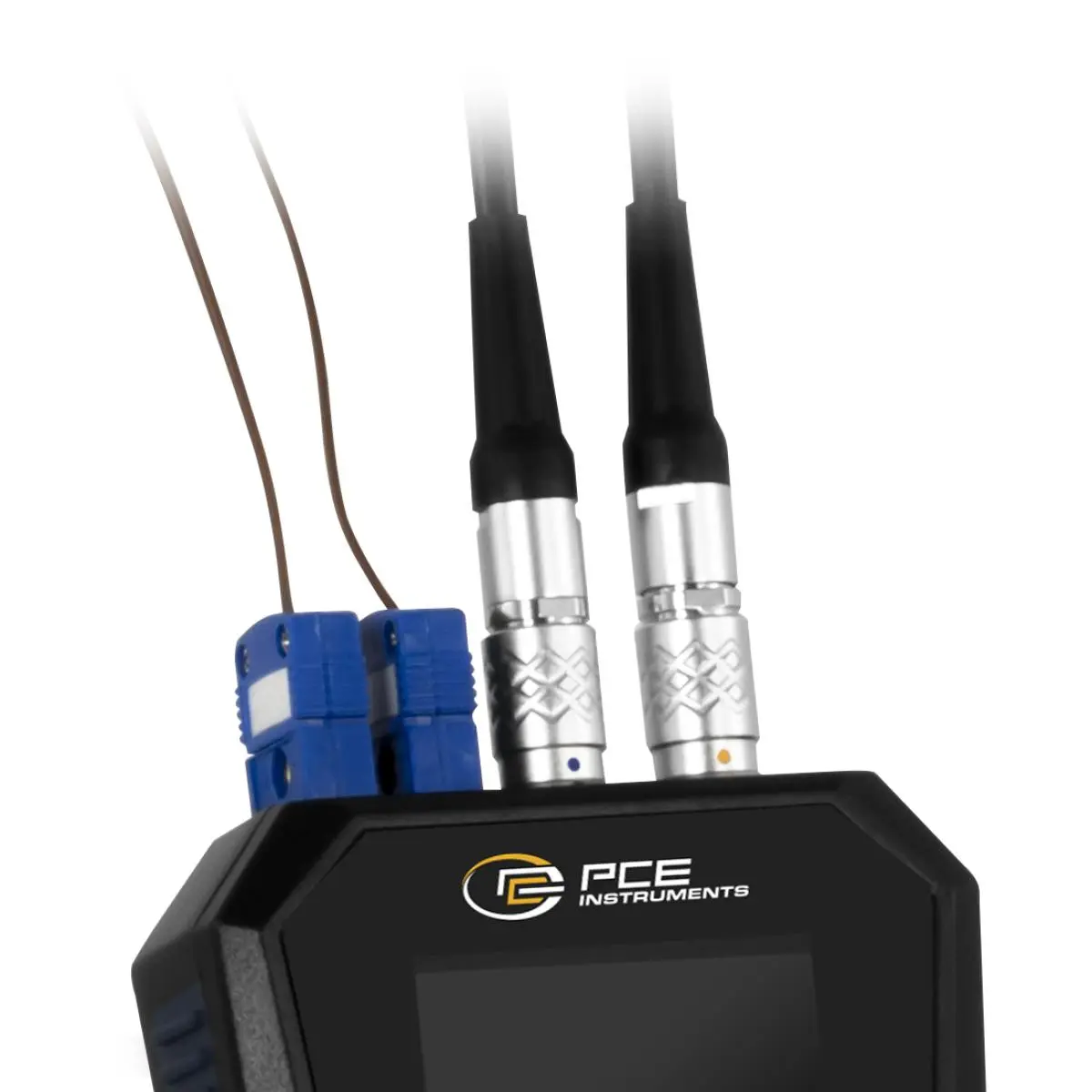

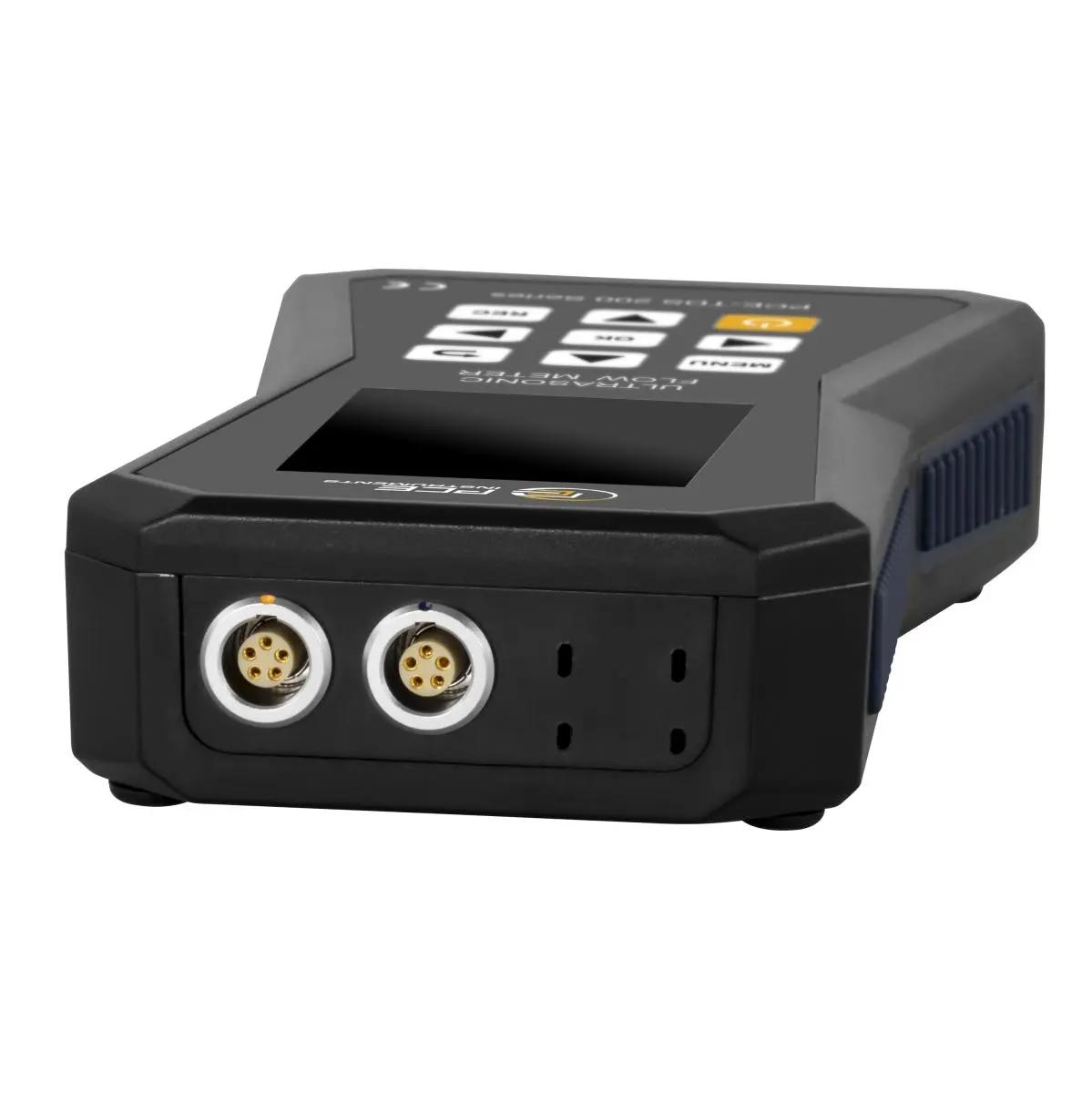

Portable Ultrasonic Flow Meter Connections

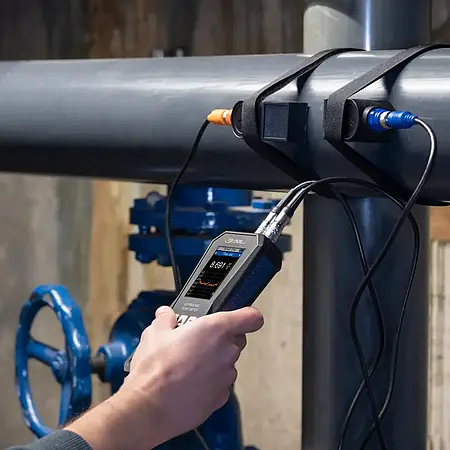

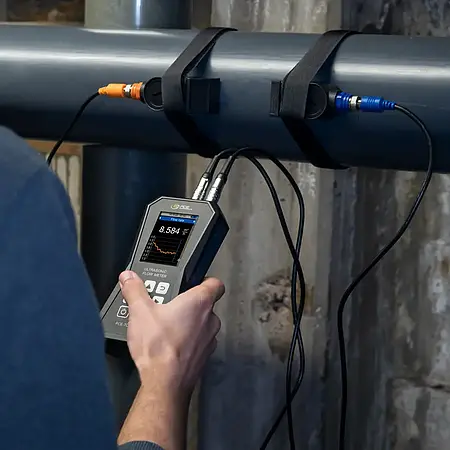

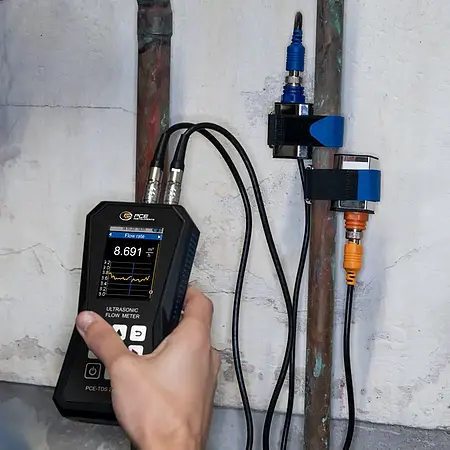

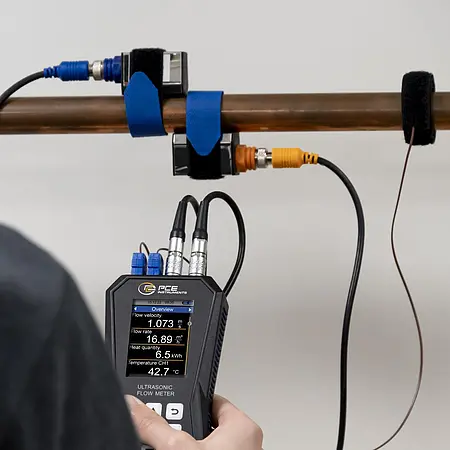

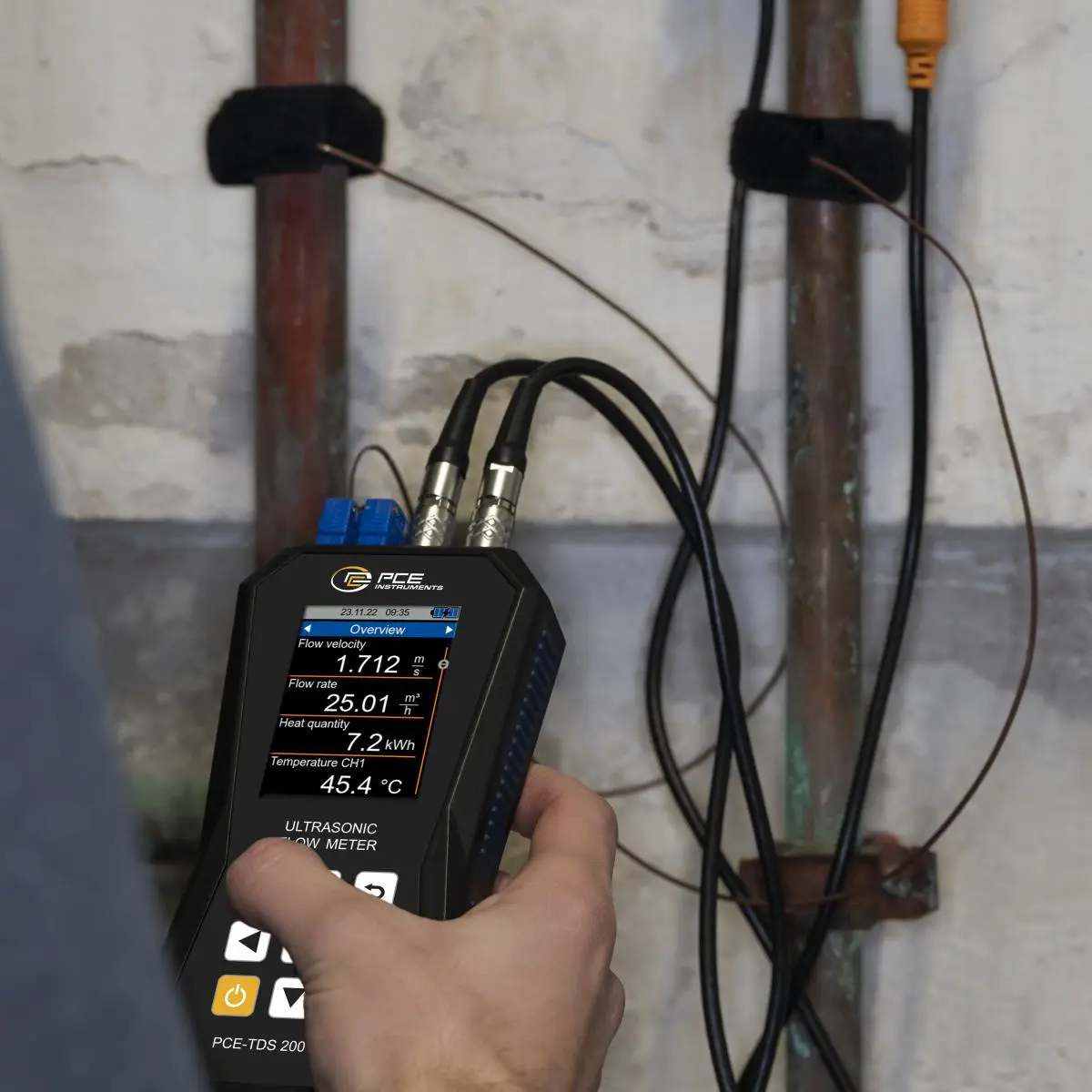

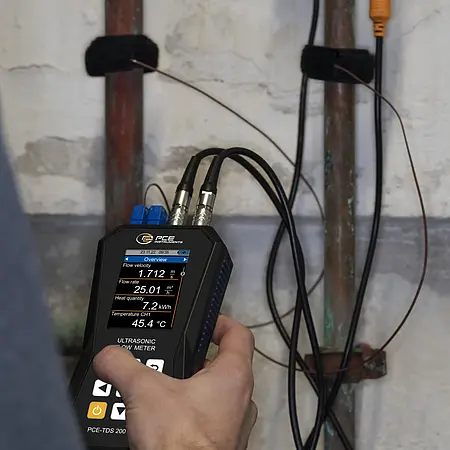

Portable Ultrasonic Flow Meter Application picture

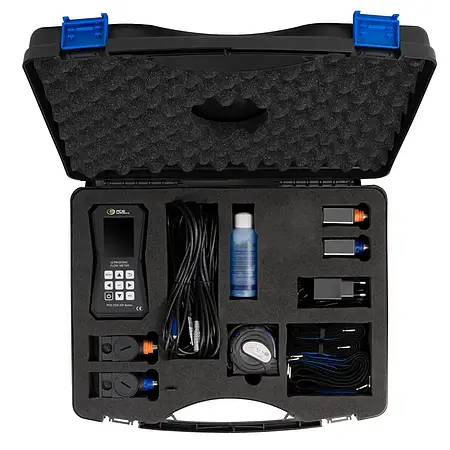

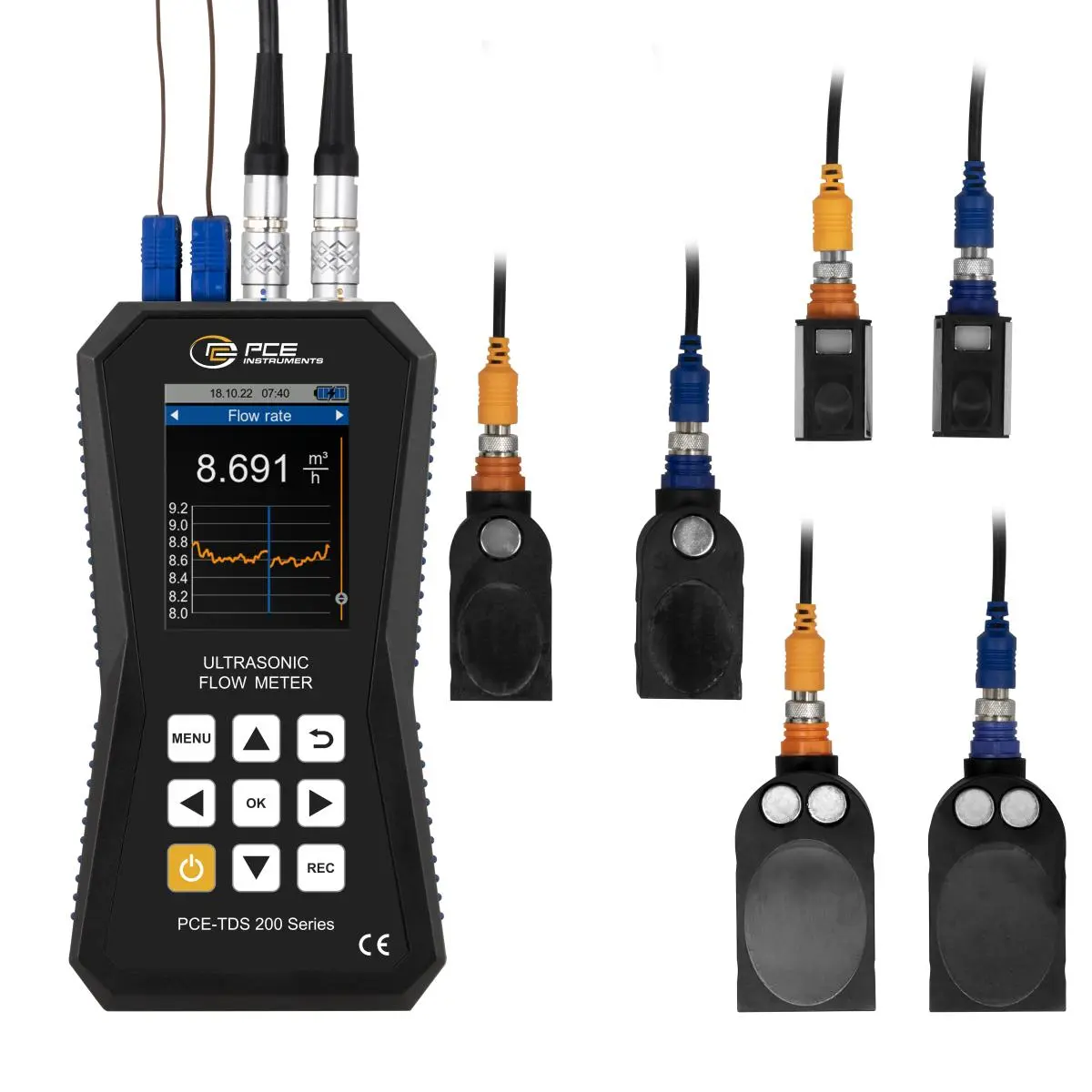

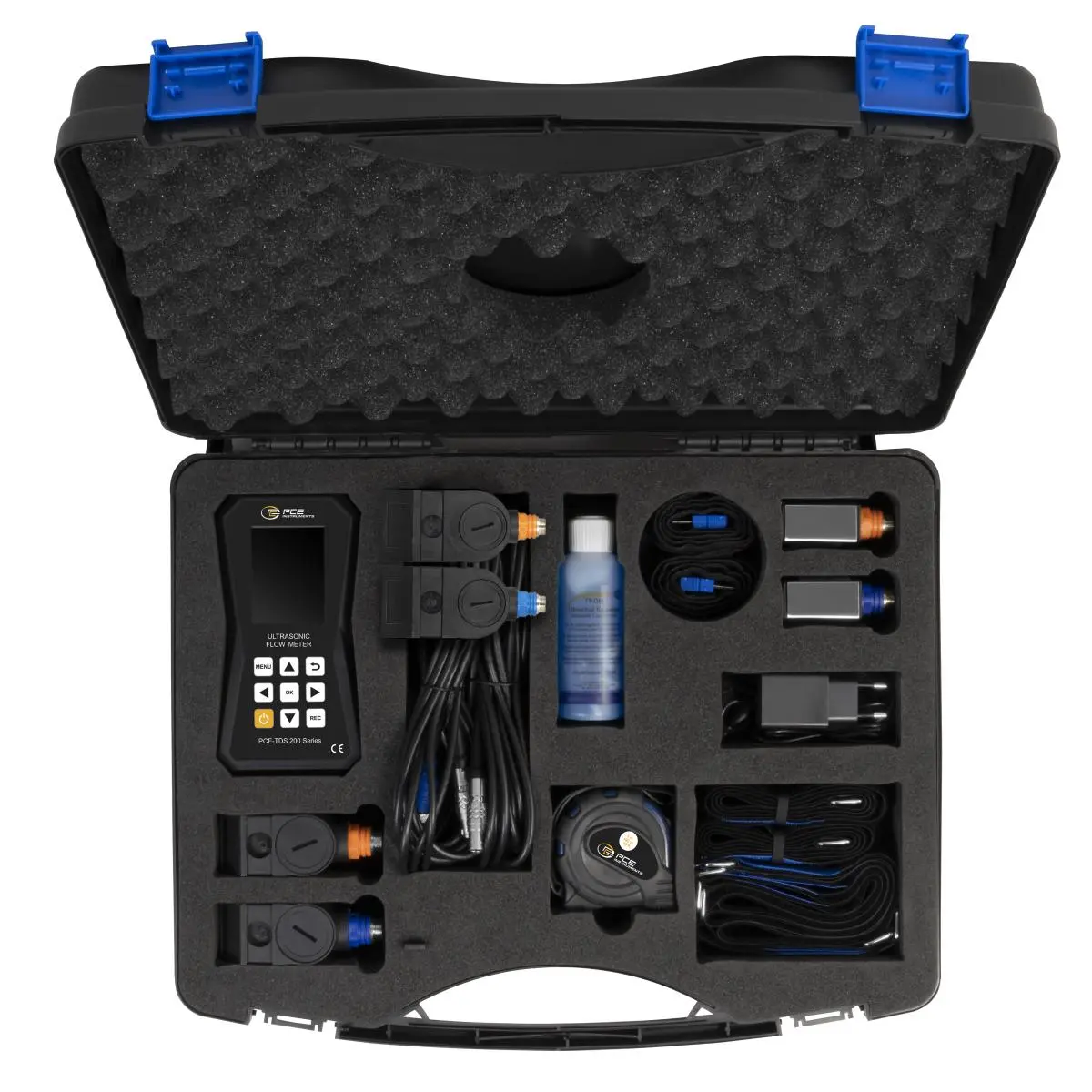

Portable Ultrasonic Flow Meter Delivery scope

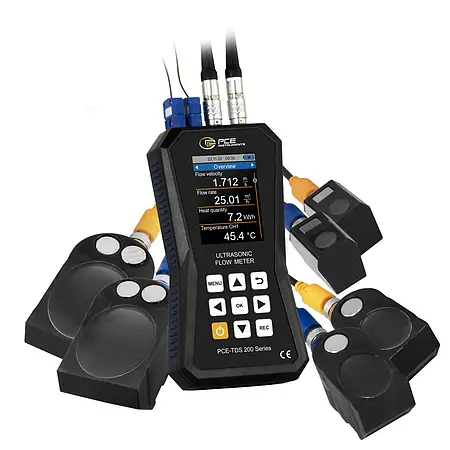

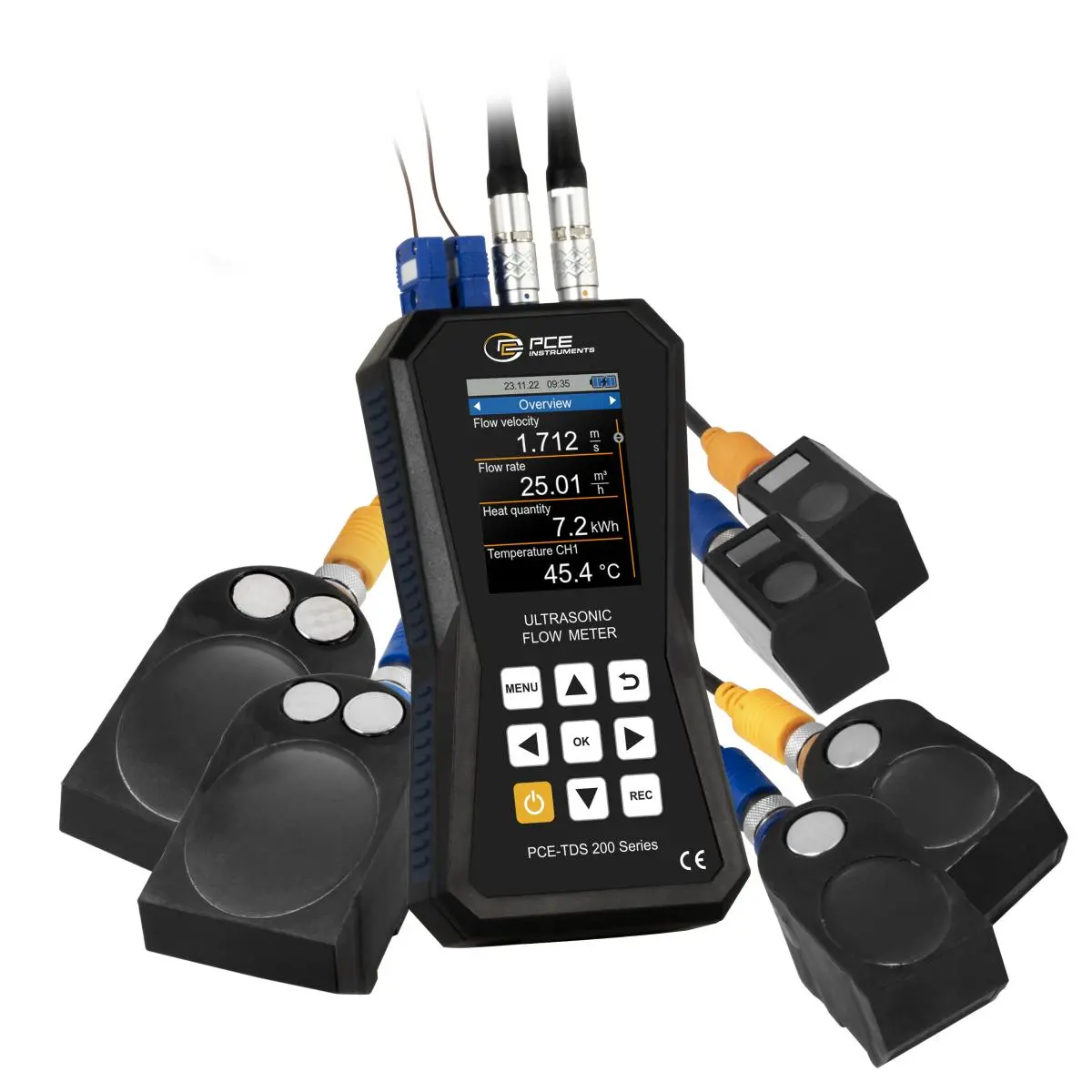

Portable Ultrasonic Flow Meter PCE-TDS 200+ SML with heat meter

Order no.: PCE-TDS 200+ SML

GTIN (EAN): 4250348732286

Accessory

K-Gel High Temperature Coupling Gel

£ 88.00

Ultrasonic Contact Gel (100 ml)

£ 26.00

ISO Calibration Certificate CAL-PCE-TDS-ISO

£ 334.00

DAkkS Calibration Certificate for Ultrasonic Flow Meter

£ 1,333.00

Description

Ultrasonic flowmeter with 32 GB data memory / measuring range ±32 m/s /

reproducibility ±0.5 % of measured value / different measuring probes / alarm limit values /

2.8 " LC display / for all media / optionally with DAkkS or ISO calibration certificate

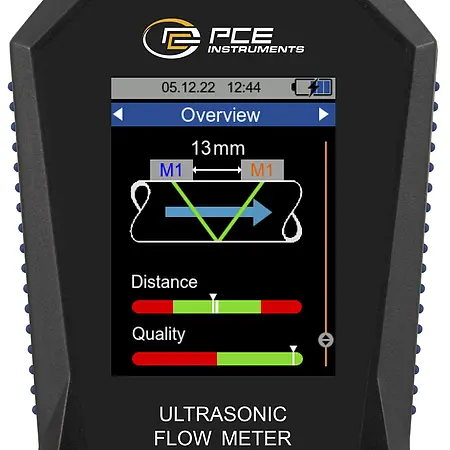

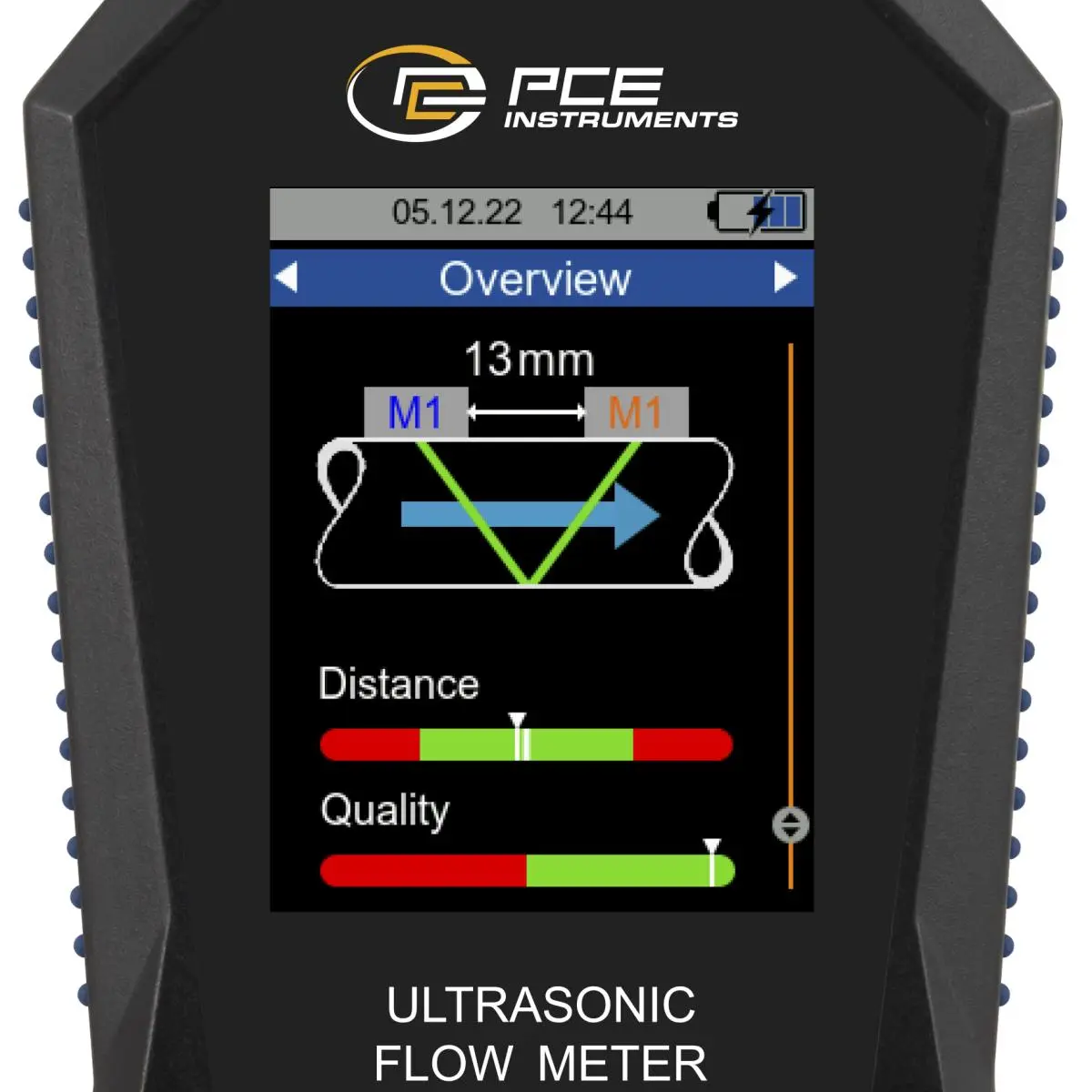

The ultrasonic flowmeter has a measuring range of ±32 m/s. With an accuracy of ±1.5 % f.s. for a pipe diameter of DN ≥50, ±3.5 % f.s. for a pipe diameter of DN <50 and a reproducibility of ±0.5 % f.s., the Portable Ultrasonic Flow Meter is a particularly precise measuring device. An installation aid is available for installing the sensors of the Portable Ultrasonic Flow Meter. The installation aid graphically displays the signal quality of the Portable Ultrasonic Flow Meter. In addition, it is graphically displayed whether the sensors of the Portable Ultrasonic Flow Meter are positioned at the correct distance from each other. To carry out flow measurements with the Portable Ultrasonic Flow Meter, the flow velocity, the volume flow and the volume are displayed after entering the pipe and medium specifications. The Portable Ultrasonic Flow Meter displays the measured values in a wide range of units. For example: m³, l, gal, igl, mgl, cf, bal, ib and ob.

During a measurement, it is possible to record the measured values via the data logger function of the Portable Ultrasonic Flow Meter. Start and stop conditions and the storage interval can be set from 1 second to 12 hours for the Portable Ultrasonic Flow Meter. A memory point of the Portable Ultrasonic Flow Meter contains all measured values once. The measured values are stored on the 32 GB built-in memory of the Portable Ultrasonic Flow Meter. 10 million measuring points can be stored on the Portable Ultrasonic Flow Meter.

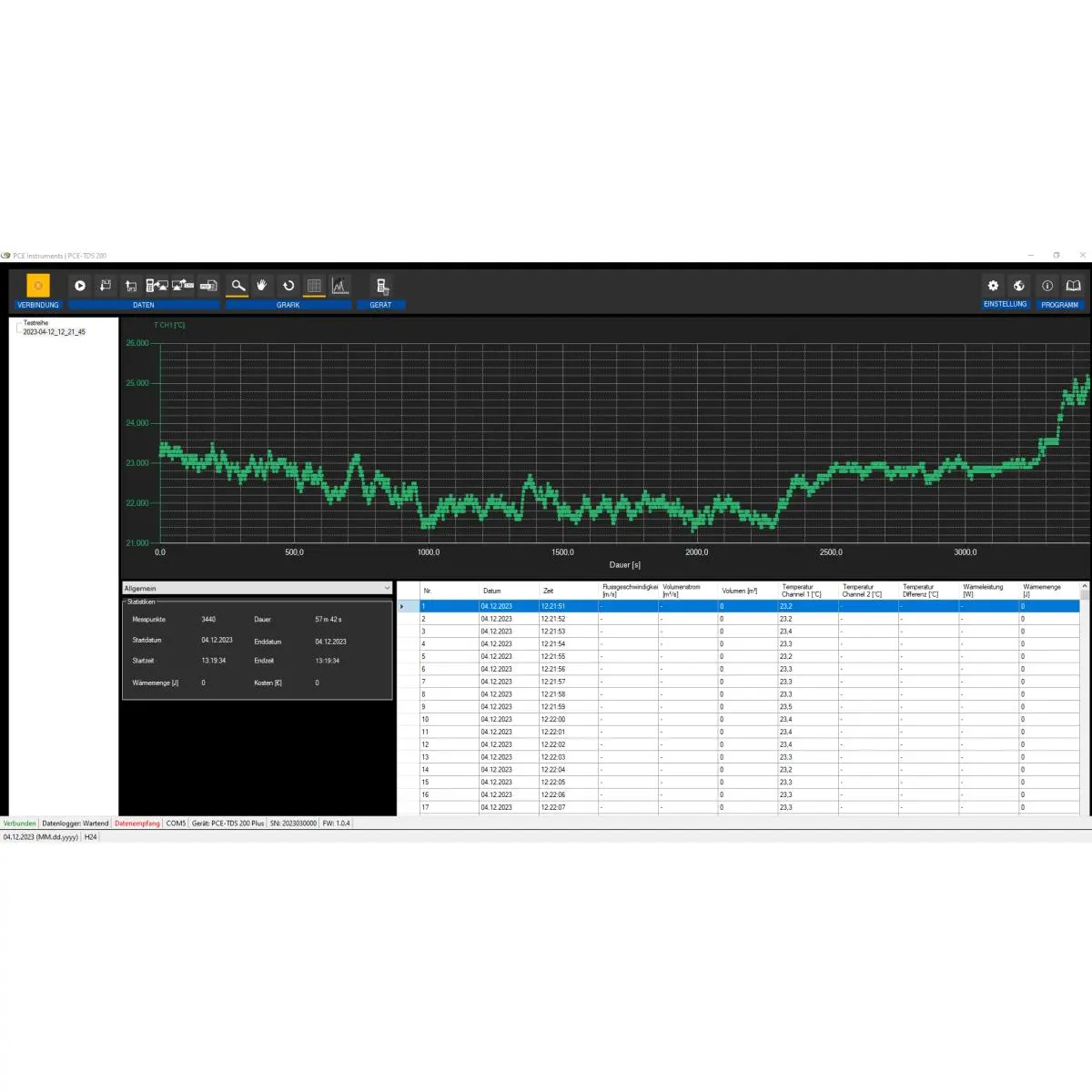

With the optional software, the recorded measured values can be read out from the Portable Ultrasonic Flow Meter. For analysis, the measured values from the Portable Ultrasonic Flow Meter can be displayed in tabular and graphic form. For further processing of the measured values from the Portable Ultrasonic Flow Meter, they can be exported in .csv file format. Alternatively, a PDF report can be created via the software. For simplified operation, the Portable Ultrasonic Flow Meter can be set via the software. A live view of the measured values from the Portable Ultrasonic Flow Meter is also possible with the software.

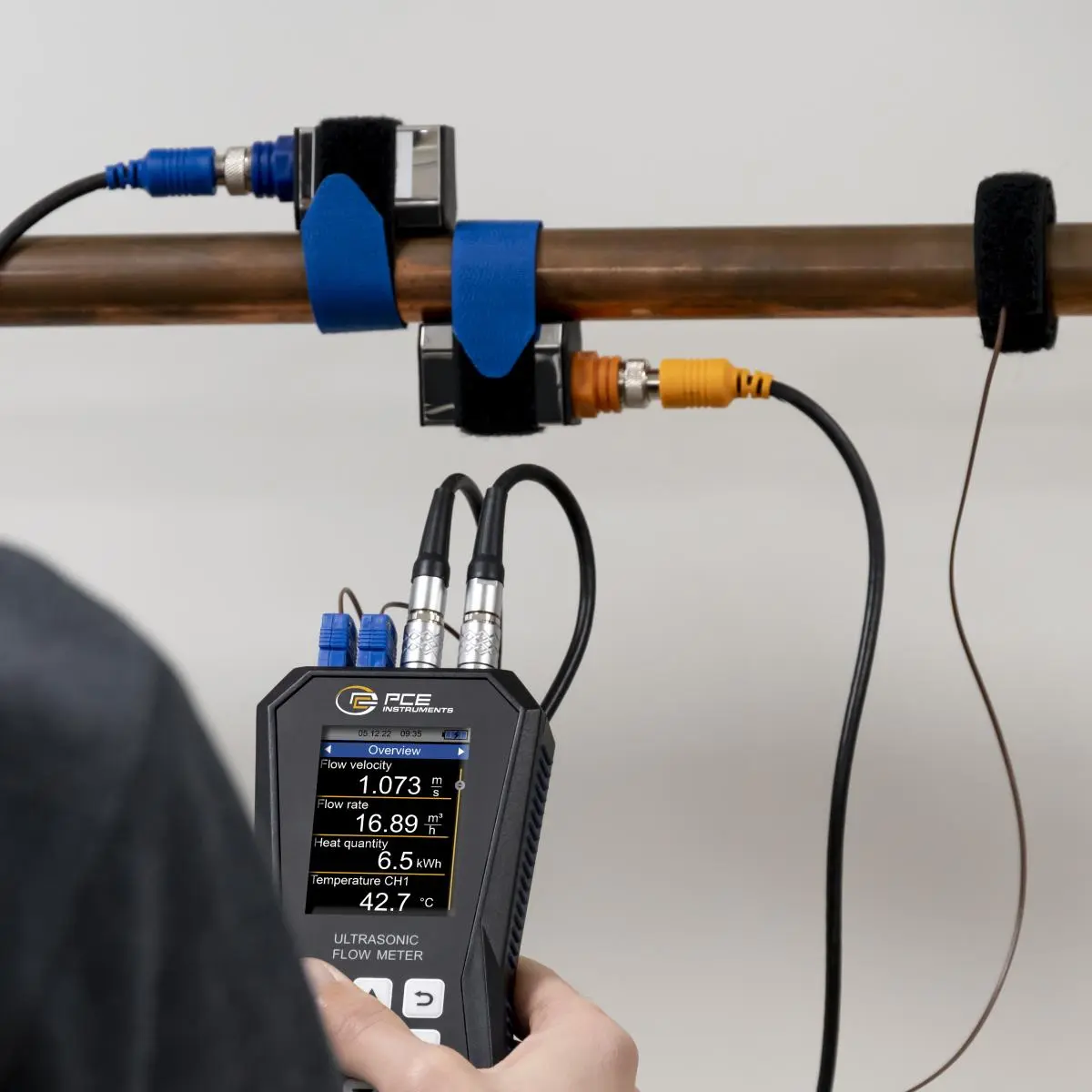

In order to determine the amount of heat with the Portable Ultrasonic Flow Meter, two additional thermocouples are required. These are available with the PCE-TDS 200+. The two thermocouples of the Portable Ultrasonic Flow Meter are connected to the flow and return of a pipe system. Based on the temperature difference and the measured flow rate, the Portable Ultrasonic Flow Meter can determine the amount of heat. If required, the Portable Ultrasonic Flow Meter can calculate and display the costs per heat quantity unit simultaneously during the measurement. Thus, the Portable Ultrasonic Flow Meter is used, for example, in the inspection of heating systems.

The LC colour display of the Portable Ultrasonic Flow Meter has a size of 2.8" and is therefore easy to read. Optionally, the Portable Ultrasonic Flow Meter can be equipped with an ISO or DAkkS calibration certificate.

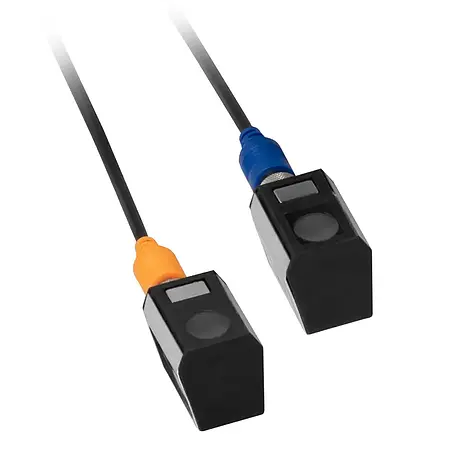

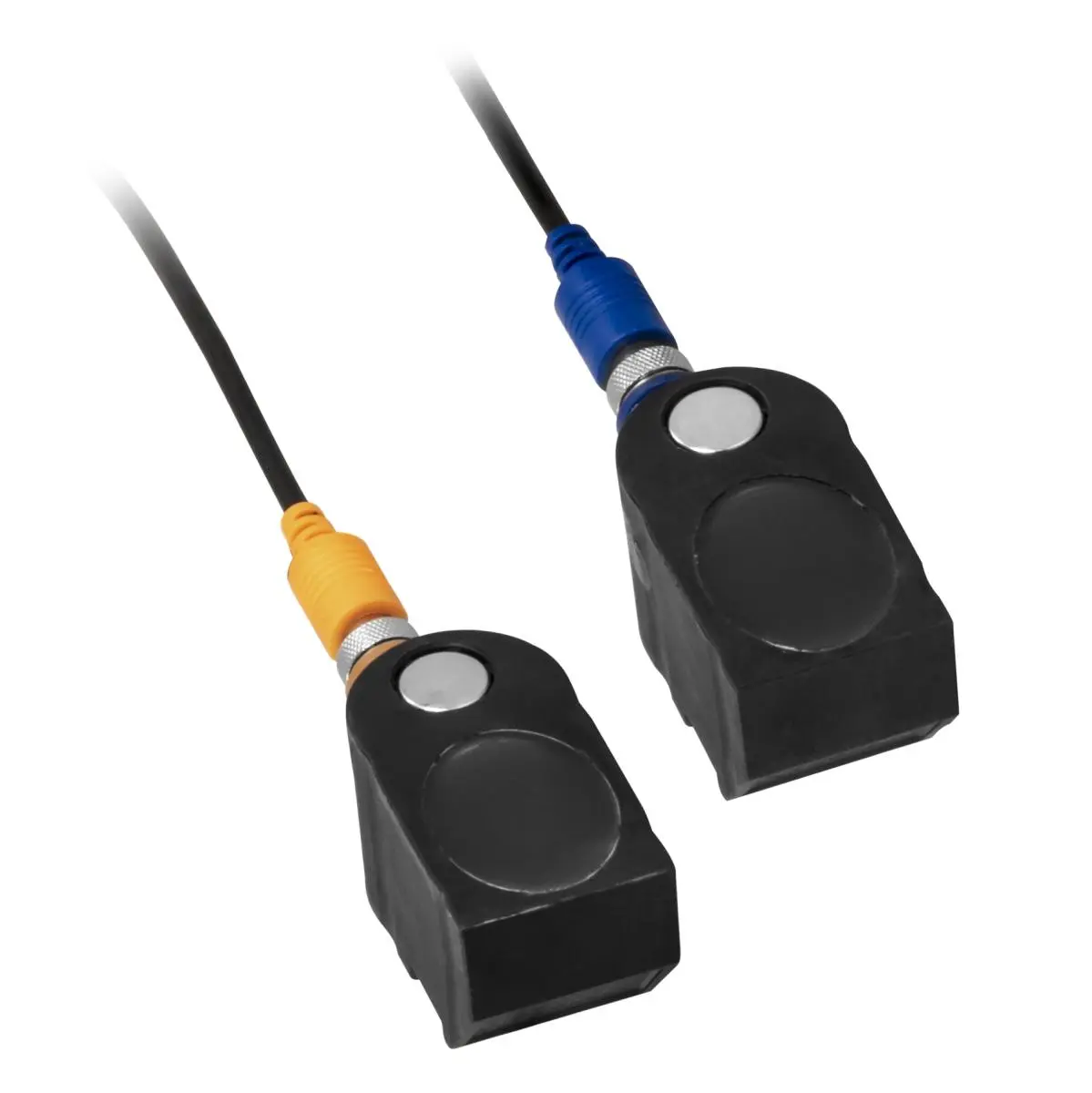

PCE-TDS 200 S SENSOR

Small sensor pair for pipe diameters DN 15 ... 100 / 20 ... 108 mm. Suitable for particularly small pipes. The sensors have a particularly small dimension of 45 x 30 x 30 mm and a temperature resistance of -30 ... 160 °C. Thanks to the magnets on the underside, the sensors can be mounted on ferrous metals. In addition, the sensors for the ultrasonic flowmeter can be connected to the pipe by means of detachable cable ties.

PCE-TDS 200 M SENSOR

Medium sensor pair for pipe diameters DN 50 ... 700 / 57 ... 720 mm. Suitable for flow measurement on medium-sized pipes. With the built-in magnets on the sensors for the Portable Ultrasonic Flow Meter, they can be attached to ferrous pipes. Alternatively, the sensors can be mounted to the pipe with detachable cable ties. The temperature resistance is between -30 ... 160 °C.

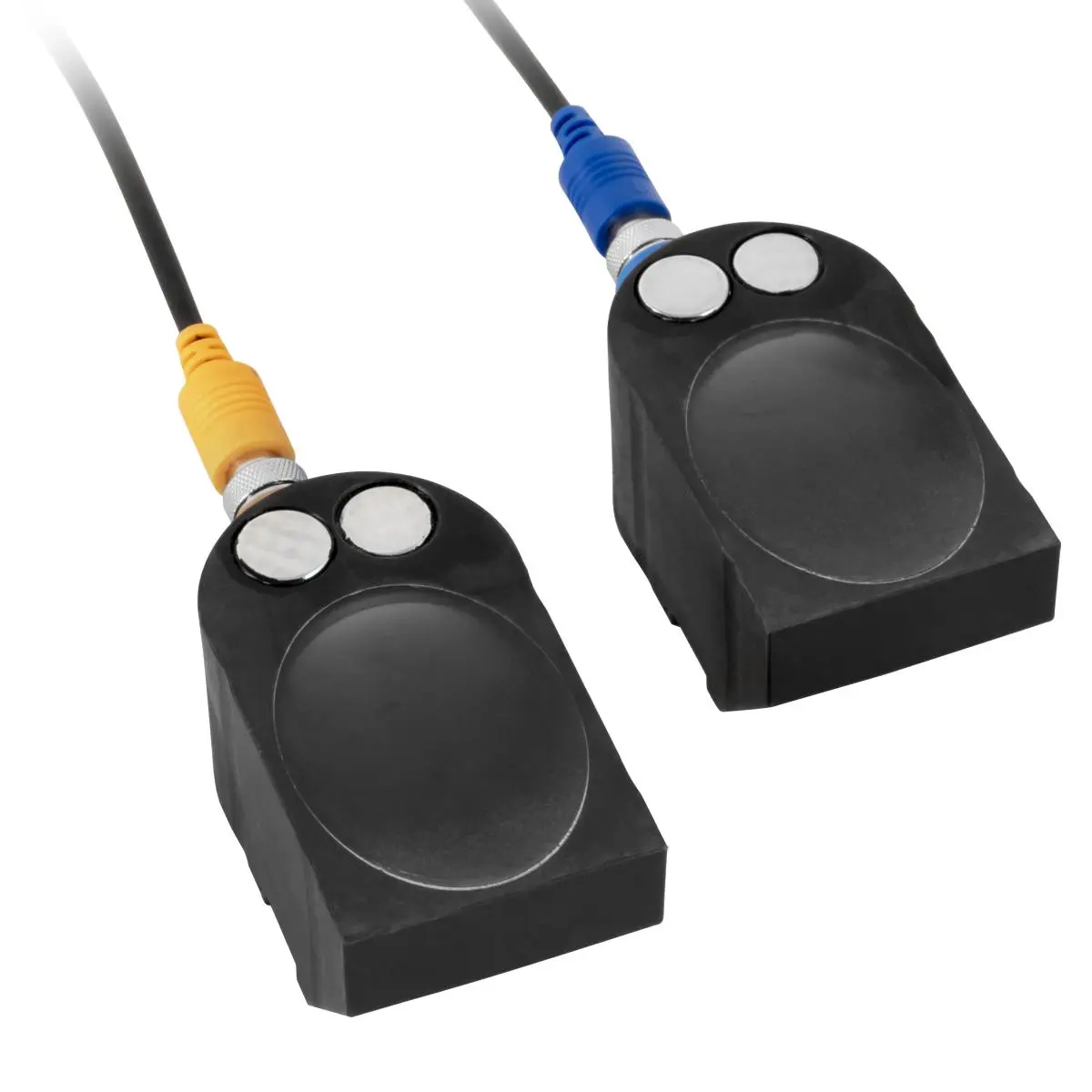

PCE-TDS 200 L SENSOR

Large sensor pair for pipe diameters DN 300 ... 6000. 6000. This sensor pair is therefore suitable for particularly large pipes. The sensors can be attached to the Clamp-on Ultrasonic Flow Meter with detachable cable ties. Thanks to the built-in magnets, the sensors can be attached to pipes with ferrous metal. The sensors have a dimension of 91 x 52 x 44 mm.

Highlights

- Measuring range ±32 m/s

- USB-C interface for data transfer

- Optional software for analysing the measured values

- Reproducibility ±0.5 % of measured value

- Heat quantity measurement

- Data memory for 10 million measuring points

- individually adjustable alarm limits

- optionally with ISO or DAkkS calibration certificate

- 3 sensor pairs for pipe diameters DN 20 ... 6000

Specification

Speed
Measuring range	-32 ... +32 m/s
Resolution	0.001 m/s
Accuracy	DN ≥50 mm: ±1.5 % of Rd for velocities >0.3 m/s / DN <50 mm: ±3.5 % of Rd for velocities >0.3 m/s

Temperature K-type
Measuring range	-100 ... +1370 °C
Resolution	0,1 °C
Accuracy	±0.4 %

Temperature J-type
Measuring range	-100 ... +1150 °C
Resolution	0,1 °C
Accuracy	±0.4 %

Temperature S-type
Measuring range	0 ... 1500 °C
Resolution	0,1 °C
Accuracy	±0.5%

Temperature R-type
Measuring range	0 ... 1700 °C
Resolution	0,1 °C
Accuracy	±0.5%

Temperature E-type
Measuring range	-100 ... +900 °C
Resolution	0,1 °C
Accuracy	±0.4 %

Temperature T-type
Measuring range	-100 ... +400 °C
Resolution	0,1 °C
Accuracy	±0.4 %

Temperature N-type
Measuring range	-100 ... +1150 °C
Resolution	0,1 °C
Accuracy	±0.4 %

Temperature B-type
Measuring range	600 ... 1800 °C
Resolution	0,1 °C
Accuracy	±0.5%

Ultrasonic sensor
Designation	PCE-TDS 200 S SENSOR
Pipe diameter	DN 15 ... 100 mm / Ø 20 ... 108 mm
Dimension	45 x 30 x 30 mm
Battery type	Ultrasound
Frequency	1 MHz
Operating temperature	-30 ... 160 °C
Sensor cable length	5 m

Ultrasonic sensor
Designation	PCE-TDS 200 M SENSOR
Pipe diameter	DN 50 ... 700 mm / Ø 57 ... 720 mm
Dimension	70 x 40 x 40 mm
Battery type	Ultrasound
Frequency	1 MHz
Temperature	-30 ... 160 °C
Sensor cable length	5 m

Ultrasonic sensor
Designation	PCE-TDS 200 L SENSOR
Pipe diameter	DN 300 ... 6000 mm / Ø 300 ... 6000 mm
Dimension	91 x 52 x 44 mm
Battery type	Ultrasound
Frequency	1 MHz
Temperature	-30 ... 160 °C
Sensor cable length	5 m

General technical data
Measuring functions	Flow velocity, Volume flow, Volume, Temperature, Heat output, Heat quantity
Units	metric, imperial
Units additional information	Dimensions: mm, in Flow velocity: m/s, ft/s Temperature: °C/°F Heat quantity: K, kJ, MJ, Wh, kWh, MWh, Btu, kBtu, MBtu Heat output: W, kW, MW, J/h, kJ/h MJ/h, Btu/h, kBtu/h, MBtu/h Volume flow: m³, l, gal, igl, mgl, cf, bal, ib, ob Volume: m³, l, gal, igl, mgl, cf, bal, ib, ob Time specification: seconds, minutes, hours, days Cost display: EUR, GBP, USD, Turkish Lira, Zloty, Yen
Display size	2,8 in
Storage medium	Internal memory
Storage capacity	32 GB
Storage interval from	1 s
Storage interval to	12 h
Interface	USB-C
Pipe material	Steel, Cast iron, Stainless steel, Aluminium, Brass, Copper, PVC, Iron, Nickel, Titanium, Zinc, Acrylic, Polyethylene, Polypropylene, Nylon, User-defined (manual entry of the transversal sound velocity of the pipe material)
Pipe material additional information	Inner lining of the pipe: - No lining - Epoxy resin - Rubber - Mortar - Polystyrene - Polyethylene - Polytetrafluoroethylene - Polyurethane - Polypropylene - Customised (manual entry of the longitudinal sound velocity of the inner lining of the pipe)
Measured medium	Water, Seawater, Oil, Crude oil, Methanol, Ethanol, Diesel, Petrol, Petroleum, User-defined (manual entry of the sound velocity of the medium)
Operating time	10 h
Automatic power-off from...to	1 ... 15 min.
Measuring method	Z, V, N, W
Alarm	optical, Acoustic
Alarm modes	Undercut, overflow, within, beyond
Reproducibility	±0.5%
Menu language	Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese
Protection class (device)	IP52
Power supply	USB 5 V DC, 500 mA
Connector type	Device-europlug
(Rechargeable) battery	1 x 3,7 V LP785060 , Lithium polymer battery
Capacity	2500 mAh
Performance	9,25
Operating conditions	-20 ... 65 °C , 10 ... 95 % RH
Storage conditions	-20 ... 65 °C , 10 ... 95 % RH
Dimensions ( L x W x H )	165 x 85 x 32 mm
Weight	263,5 g
