Portable Power Analyzer PCE-PA 8300-2

Order no.: PCE-PA 8300-2

GTIN (EAN): 4250348716767

Accessory

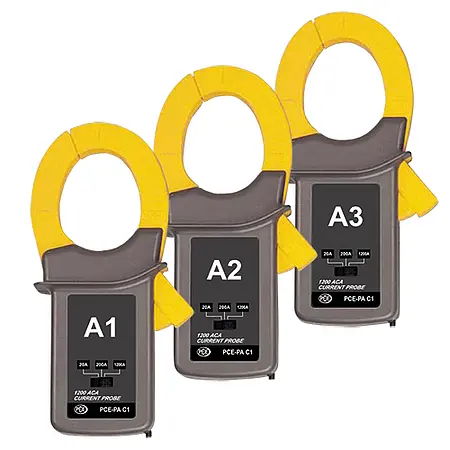

Clamp for the PCE-PA 8300 (up to 3,000 A) (3 flexible)

£ 660.00

Description

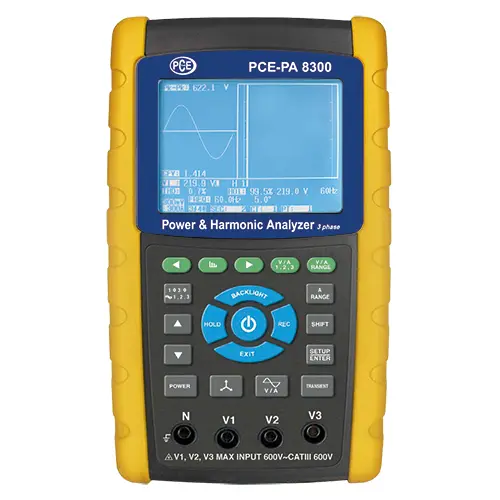

PCE-PA 8300 Three Phase Power Data Logger
3-phase / 3 current clamps / LCD graphic display / SD card memory

The PCE-PA 8300 is a Three Phase Power Data Logger that features a durable enclosure, SD card memory, a LCD graphic display, as well as apparent, effective, and reactive power measurement. The easy-to-use PCE-PA 8300 Three Phase Power Data Logger is the ideal tool for performing power and harmonics analysis as well as for measuring network capacity.

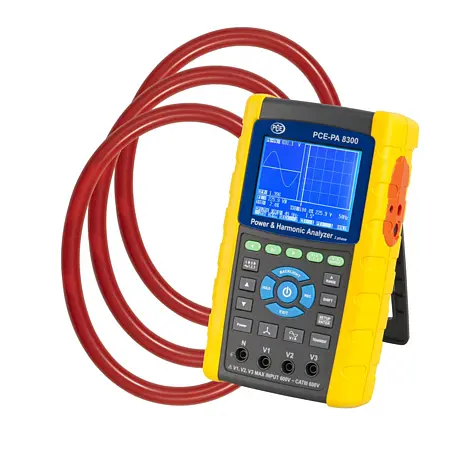

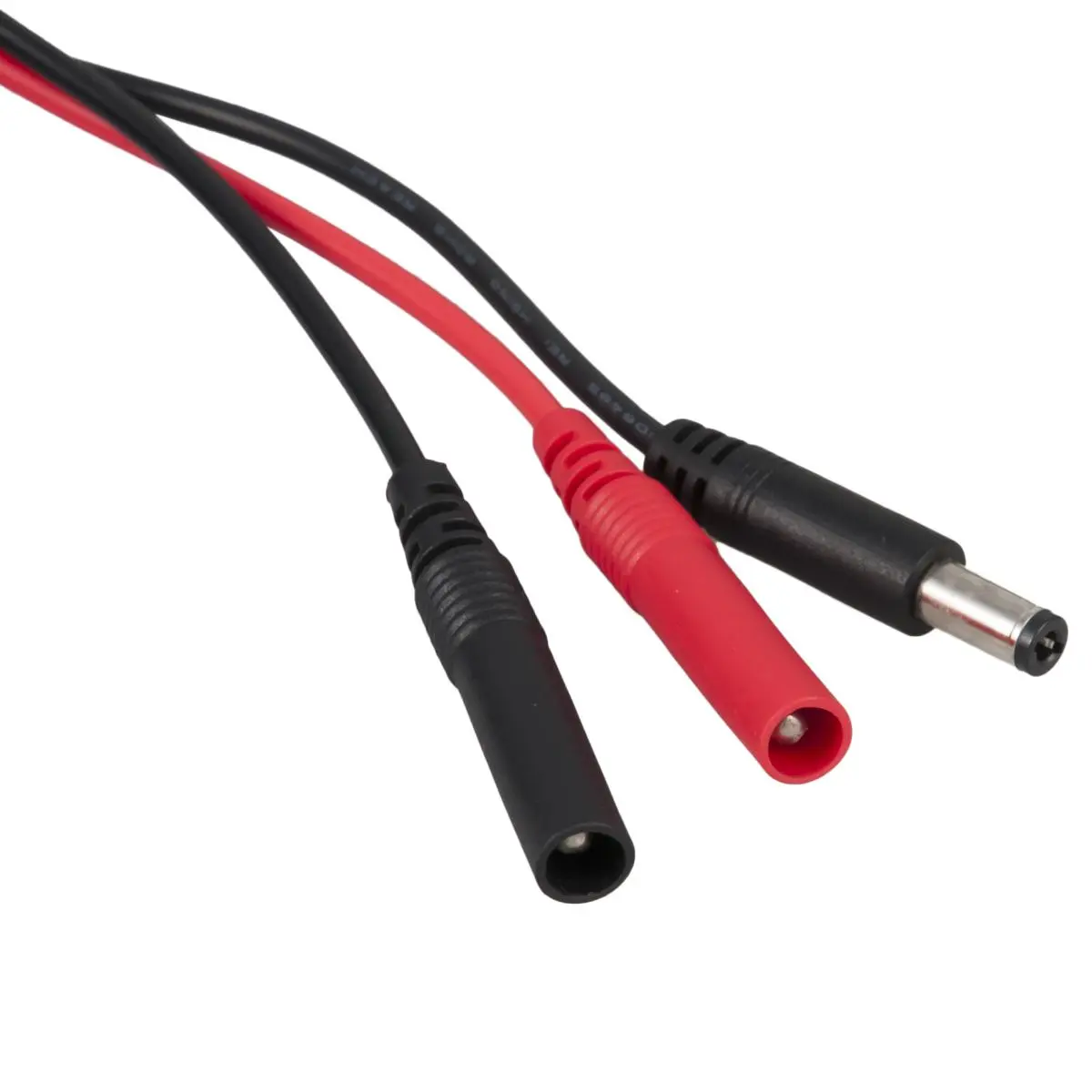

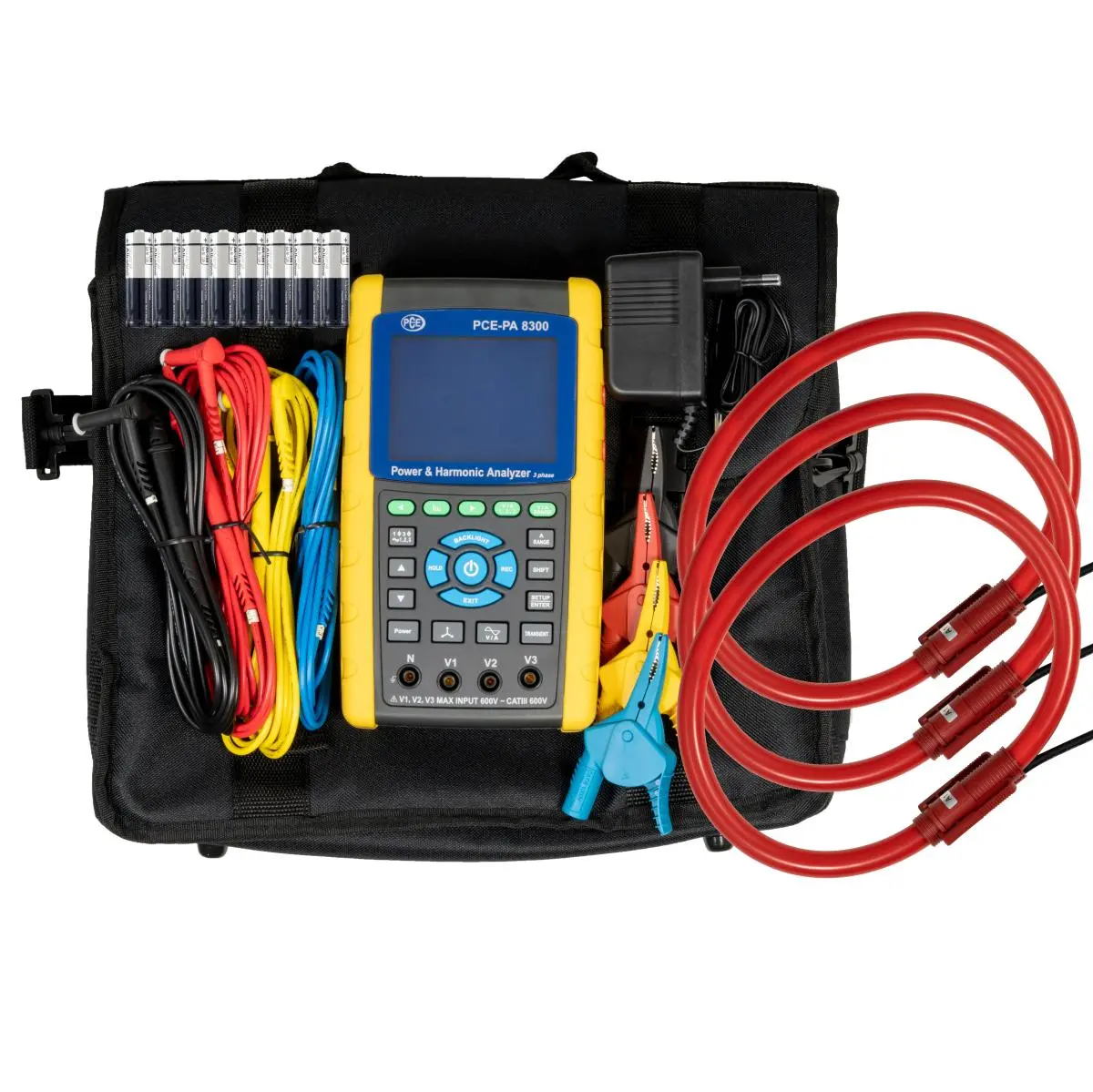

Set 2: Includes 3 flexible Rogowski coils for measurements up to 3000 A AC

Highlights

- Voltage measurement range of 10 V ... 600 V AC

- Current measurement range of 30 A ... 3000 A AC (Set 2)

- Performance measurement range of 0 kW ... 9.999 MW (VA/VAR)

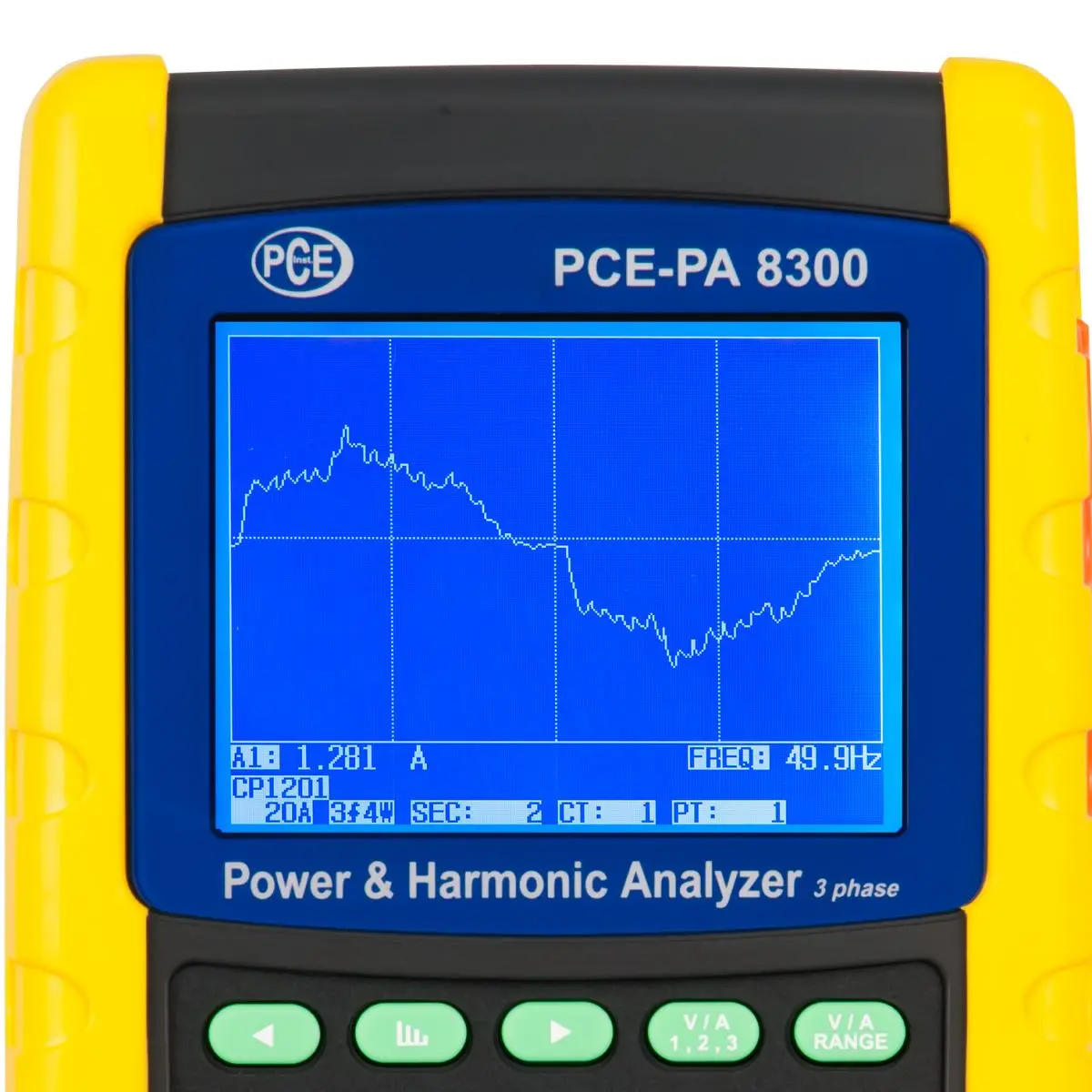

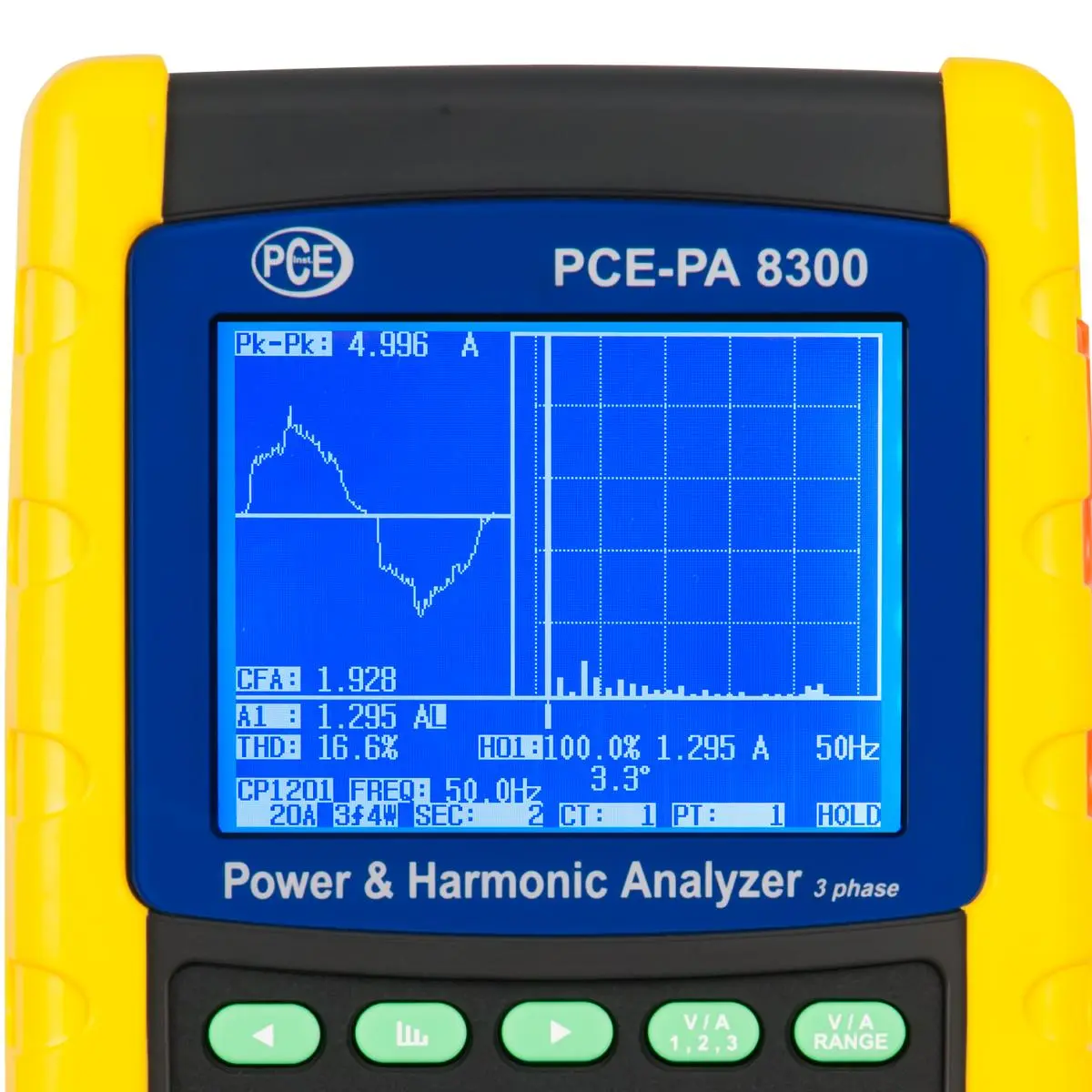

- Simultaneous display of harmonics and waveform

- Graphic Phasor diagram

- Captures transients including dip, swell, and outage

- SD card memory

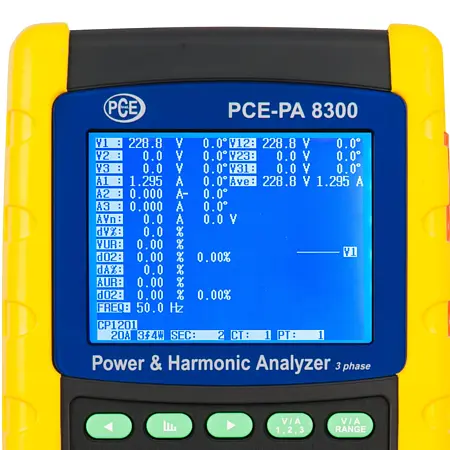

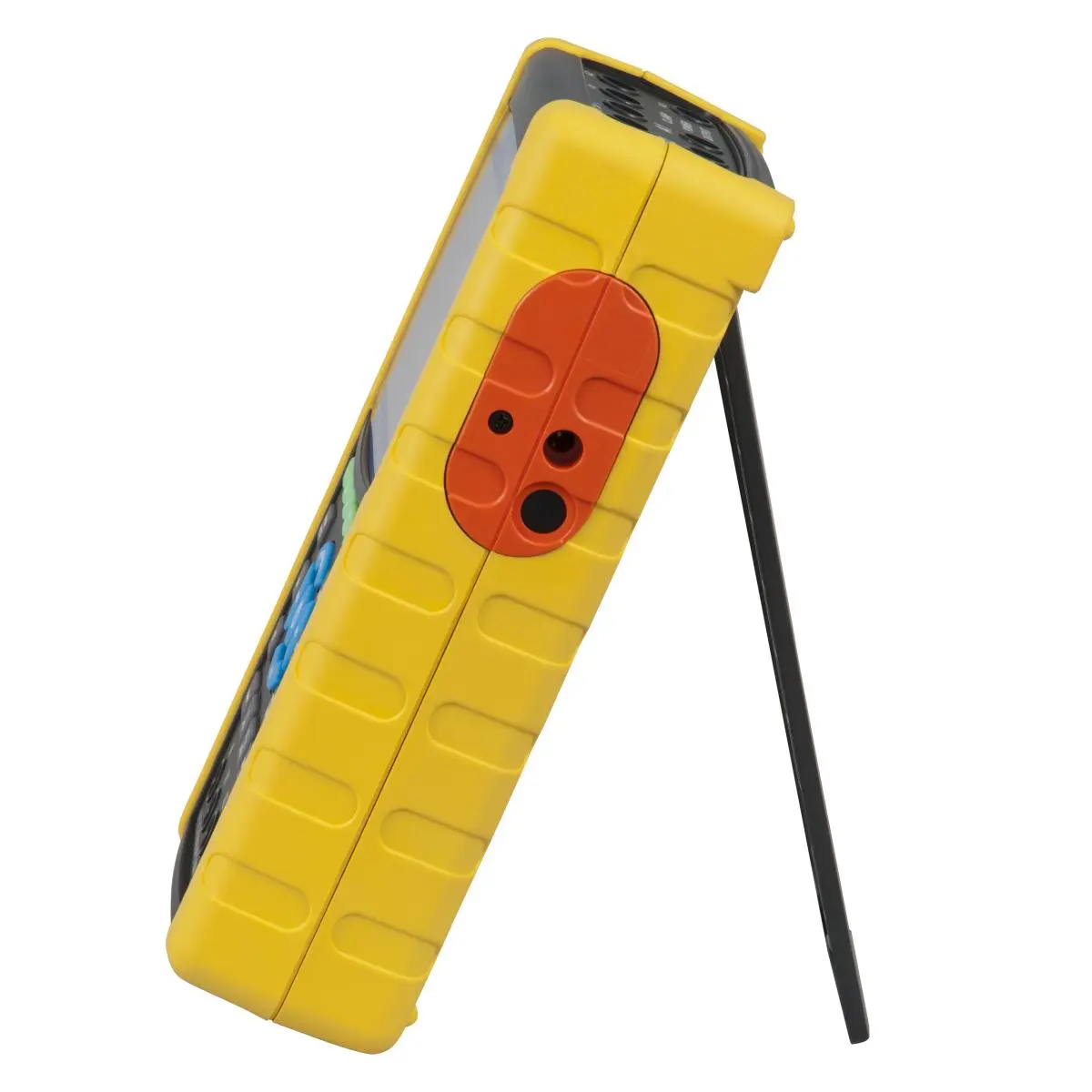

- LCD graphic display

- Durable enclosure

- Compatibility with various manufacturers' power clamps

- Adjustable back-up interval, allowing for long-term data collection

- Auto-setting of measurement range (AC V)

- Power efficiency, delay angle, and frequency measurement

- Apparent, effective, and reactive power measurement

- Harmonic spectrum measurement up to the 50th order

Specification

AC voltage
Measuring range	10 ... 600 V
Accuracy	±(0.5 % +0.5 V)
Overload	720 V RMS

Alternating current AC
Measuring range	0,2 ... 10 A
Resolution	0,001 A
Accuracy	±(0.5 % +0.1 A)
Overload	1300 A with current clamp
Frequency range	40 ... 1000 Hz

Alternating current AC
Measuring range	10 ... 30 A
Resolution	0,01 A
Accuracy	±(0.5 % +0.1 A)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measuring range	0,2 ... 100 A
Resolution	0,01 A
Accuracy	±(0.5% +0.5 A)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measuring range	100 ... 300 A
Resolution	0,1 A
Accuracy	±(0.5% +0.5 A)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measuring range	0,2 ... 1000 A
Resolution	0,1 A
Accuracy	±(0.5 % +5 A)
Frequency range	40 ... 1000 Hz

Alternating current AC
Measuring range	1000 ... 3000 A
Resolution	1 A
Accuracy	±(0.5% +5 A)
Frequency range	40 ... 1000 Hz

Active power
Measuring range	0 ... 9,999 kW
Resolution	0,001 kW
Accuracy	±(1 % +0.008 kW)

Active power
Measurement range up to	10 kW
Measurement range from	99,99 kW
Resolution	0,01 kW
Accuracy	±(1 % +0.008 kW) W

Active power
Measuring range	100 ... 999,99 kW
Resolution	0,1 kW
Accuracy	±(1% +0.8 kW)

Active power
Measuring range	1 ... 9,999 MW
Resolution	0,001 MW
Accuracy	±(1 % +0.008 MW)

Reactive power
Measuring range	0 ... 9,99 kVAR
Resolution	0,001 kVAR
Accuracy	±(1 % +0.008 kVAR)

Reactive power
Measuring range	10 ... 99,9 kVAR
Resolution	0,01 kVAR
Accuracy	±(1 % +0.08 kVAR)

Reactive power
Measuring range	100 ... 999,99 kVAR
Resolution	0,1 kVAR
Accuracy	±(1 % +0.8 kVAR)

Reactive power
Measuring range	1 ... 9,99 MVAR
Resolution	0,001 MVAR
Accuracy	±(1% +0.008 MVAR)

Phase angle
Measuring range	-180 ... +180 °
Resolution	0,1 °
Accuracy	±1 °

Apparent power
Measuring range	0 ... 9,999 kVA
Resolution	0,001 kVA
Accuracy	±(1% +0.008 kVA)

Apparent power
Measuring range	10 ... 99,99 kVA
Resolution	0,01 kVA
Accuracy	±(1% +0.08 kVA)

Apparent power
Measuring range	100 ... 999,9 kVA
Resolution	0,1 kVA
Accuracy	±(1 % +0.8 kVA)

Apparent power
Measuring range	1 ... 9,999 MVA
Resolution	0,001 MVA
Accuracy	±(1 % +0,008 MVA)

Power factor
Measuring range	0 ... 1
Resolution	0.01
Accuracy	±0.04

Active energy
Measuring range	0 ... 9,99 kWh
Resolution	0,001 kWh
Accuracy	±(2% +0.008 kWh)

Active energy
Measuring range	10 ... 99,9 kWh
Resolution	0,01 kWh
Accuracy	±(2 % +0.08 kWh)

Active energy
Measuring range	100 ... 999,9 kWh
Resolution	0,1 kWh
Accuracy	±(2 % +0.8 kWh)

Active energy
Measuring range	1 ... 9,99 MWh
Resolution	0,001 MWh
Accuracy	±(2% +0.008 MWh)

Apparent energy
Measuring range	0 ... 9,99 kVAh
Resolution	0,001 kVAh
Accuracy	±(2% + 0.008kVAh)

Apparent energy
Measuring range	10 ... 99,99 kVAh
Resolution	0,01 kVAh
Accuracy	±(2 % +0.08 kVAh)

Apparent energy
Measuring range	100 ... 999,9 kVAh
Resolution	0,1 kVAh
Accuracy	±(2% + 0.8 kVAh)

Apparent energy
Measuring range	1 ... 9,999 MVAh
Resolution	0,001 MVAh
Accuracy	±(2 % +0.008 MVAh)

Reactive energy
Measuring range	0 ... 9,99 kVArh
Resolution	0,001 kVArh
Accuracy	±(2% +0.008 kVARh)

Reactive energy
Measuring range	10 ... 99,99 kVArh
Resolution	0,01 kVArh
Accuracy	±(2 % +0.08 kVARh)

Reactive energy
Measuring range	100 ... 999,99 kVArh
Resolution	0,1 kVArh
Accuracy	±(2% +0.008 kVARh)

Reactive energy
Measuring range	1 ... 9,99 MVARh
Resolution	0,001 MVARh
Accuracy	±(2% +0.008 MVARh)

Frequency
Measuring range	45 ... 65 Hz
Resolution	0,1 Hz
Accuracy	±0.1 Hz

Harmonic measurement (harmonics)
Measuring range	1 ... 50 (ordinal number)
Current range	0.2 ... 1200 A
Voltage range	10 ... 600 V

General technical data
Measuring functions	HOLD
Frequency	40 ... 1000 Hz
Display type	LCD with backlight
Display size	3,7 Inch
Storage medium	SD card
Storage capacity	2 GB
Storage interval from	2 s
Storage interval to	7200 min.
Interface	RS232, USB
Standard(s)	IEC 1010
Current consumption meter	500 mA DC
Current consumption current clamp	34 mA DC
Maximum cable diameter	175 mm
Safety standard	CAT III 600V
Dimensions	Rogowski coils: 175 mm
Measuring range selection	Automatic, Manual
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	9V
Connector type	Device-europlug
(Rechargeable) battery	8 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	0 ... 50 °C , 10 ... 80 % RH
Storage conditions	0 ... 50 °C , 10 ... 80 % RH
Dimensions ( L x W x H )	225 x 125 x 64 mm
Weight	1010 g
