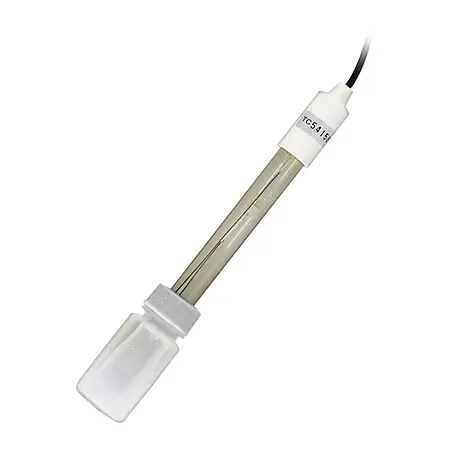

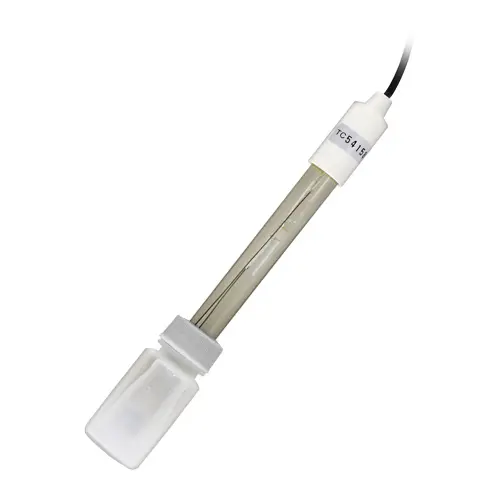

| pH electrode | |
| Measuring range | 0 … 14 pH |
| Temperature range | 0 … 95 °C |
| Application | Aqueous media |
| Reference |
Food processing, photography, laboratory, paper industry, Electroplating industry, schools & universities |
| Electrolyte | 3M KCL |
| Diaphragm | Ceramic |
| Tip shape | Rounded tip |
| Shaft / sensor material | PPS |
| Shaft / sensor length | 177.5 mm |
| Shaft / sensor diameter | 26.5 mm |
| Min. immersion depth | 35 mm |
| Cable length | 5 m |
| Connection | BNC |
| Operating pressure | 6 bar max. |
| Housing thread size | 3/4” NPT |
| Weight | 250 g |
