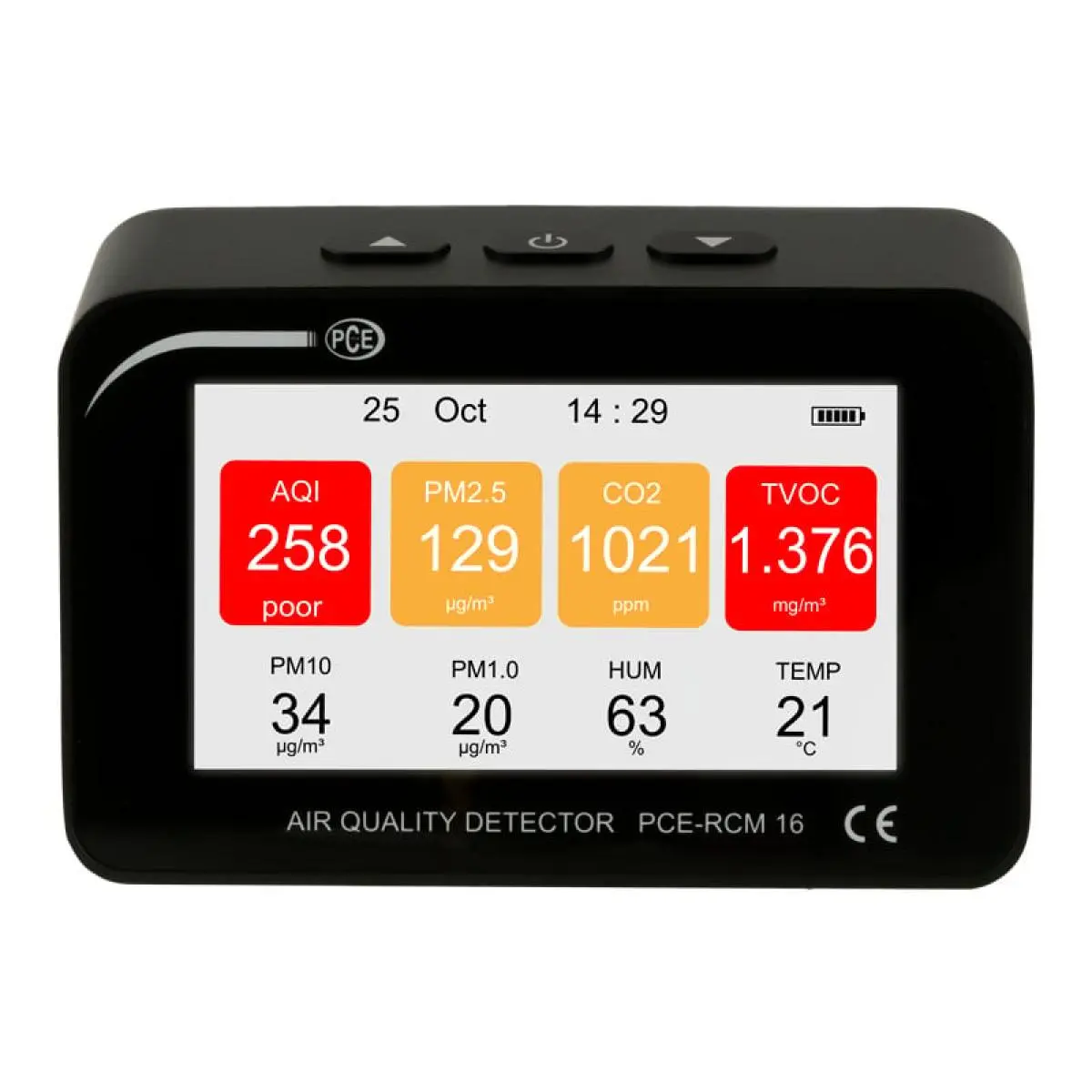

Particle Counter PCE-RCM 16

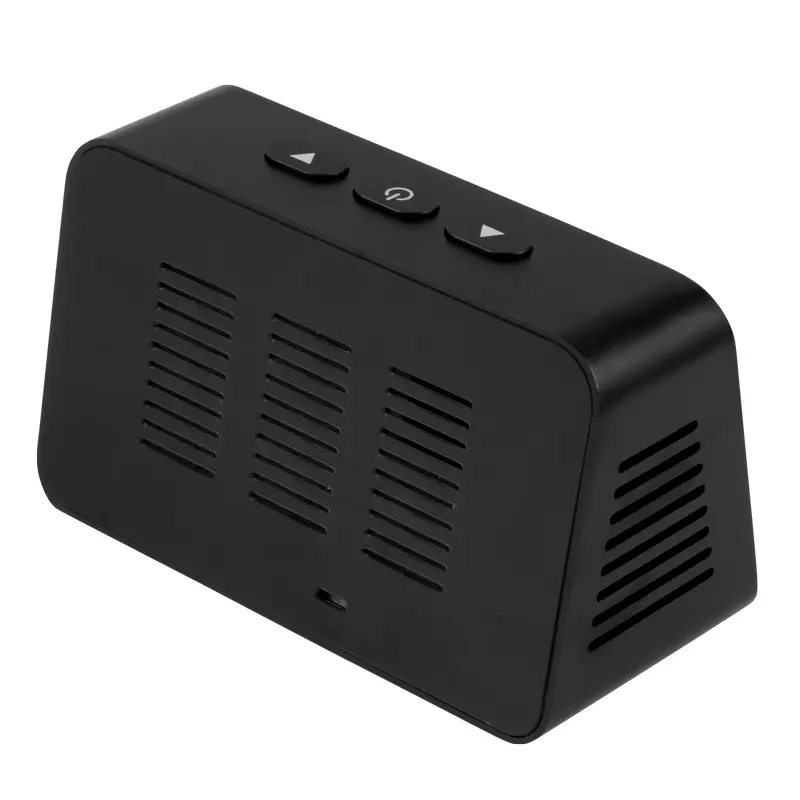

Particle Counter PCE-RCM 16 [zoom]
Particle Counter PCE-RCM 16

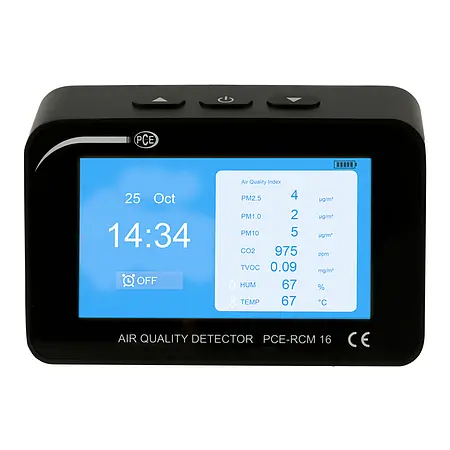

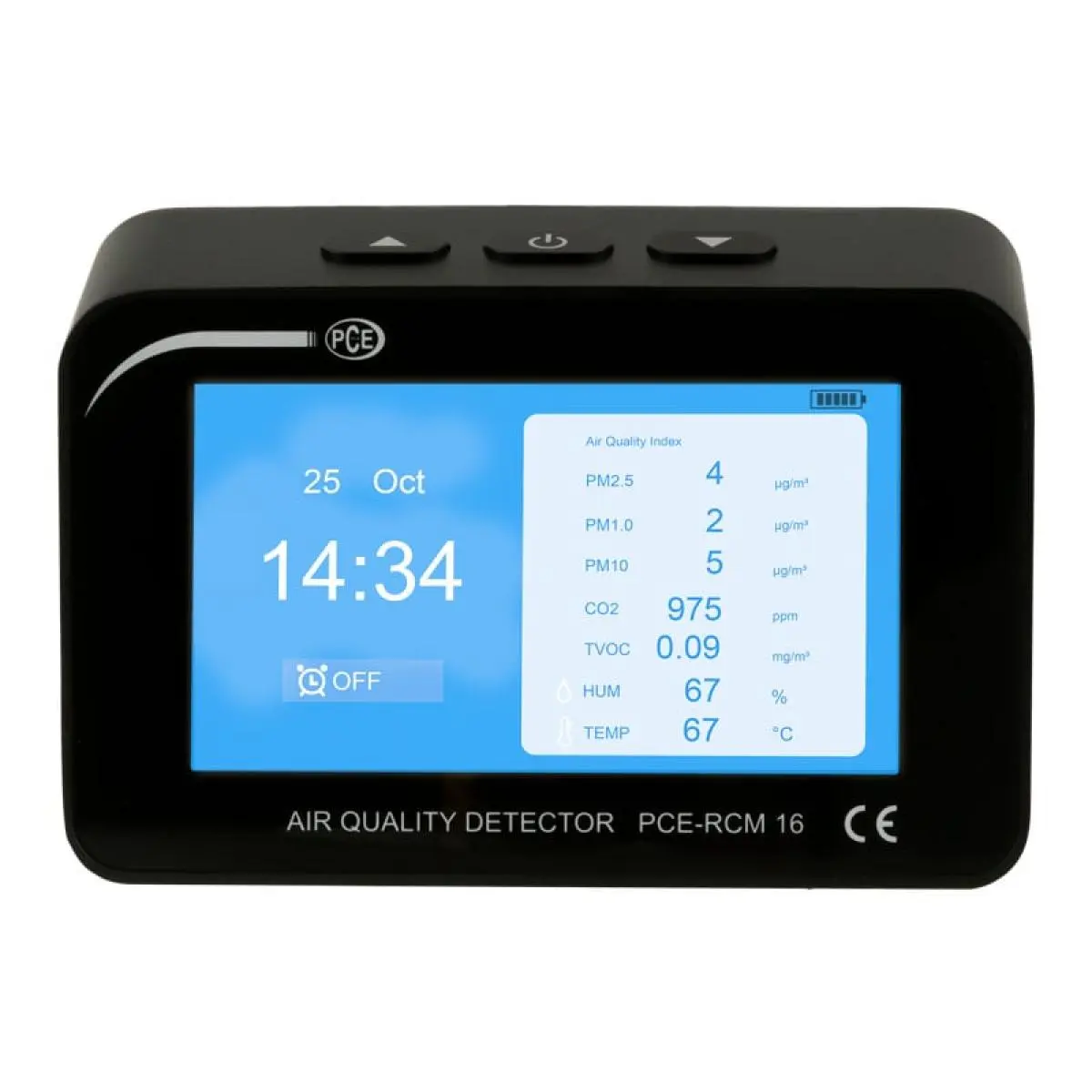

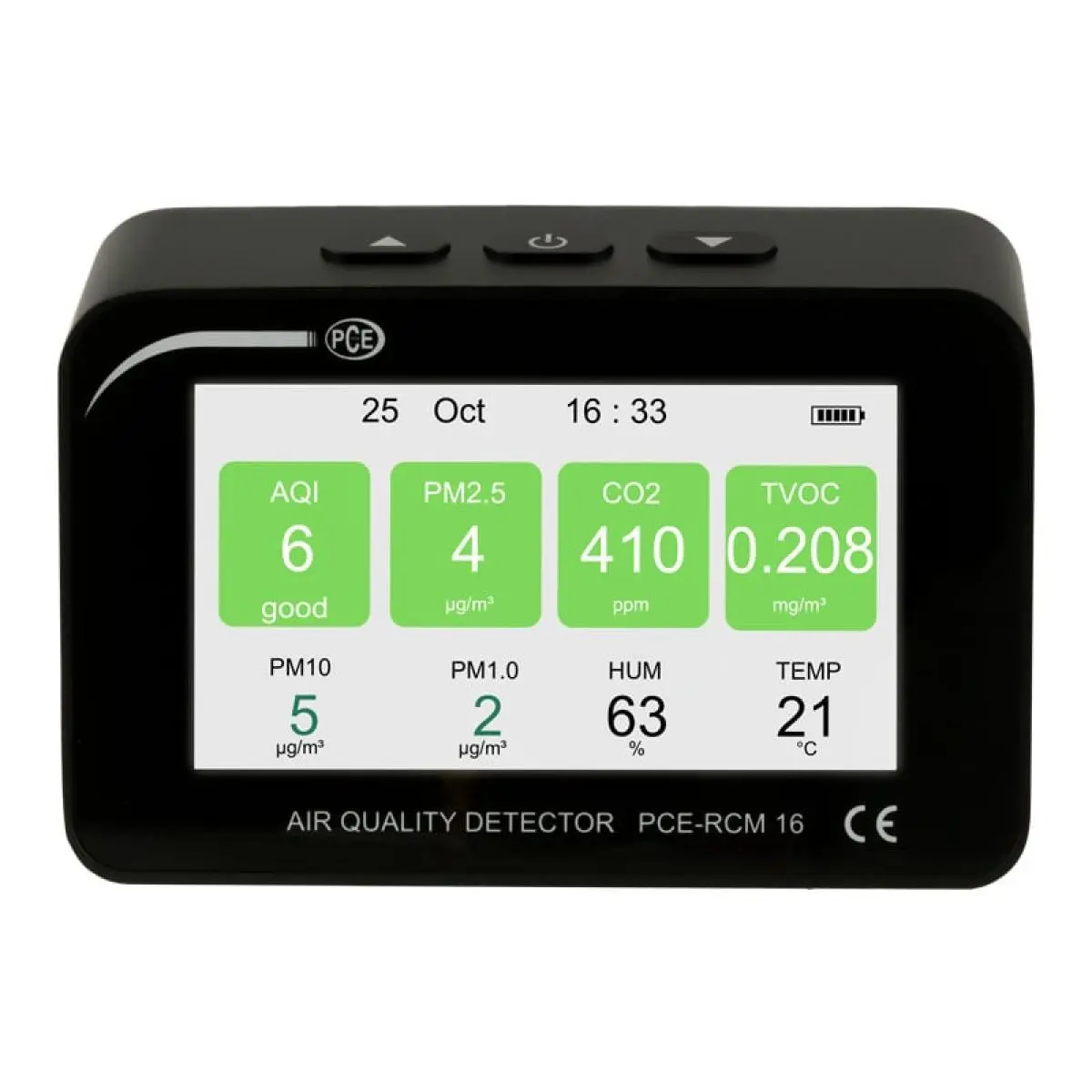

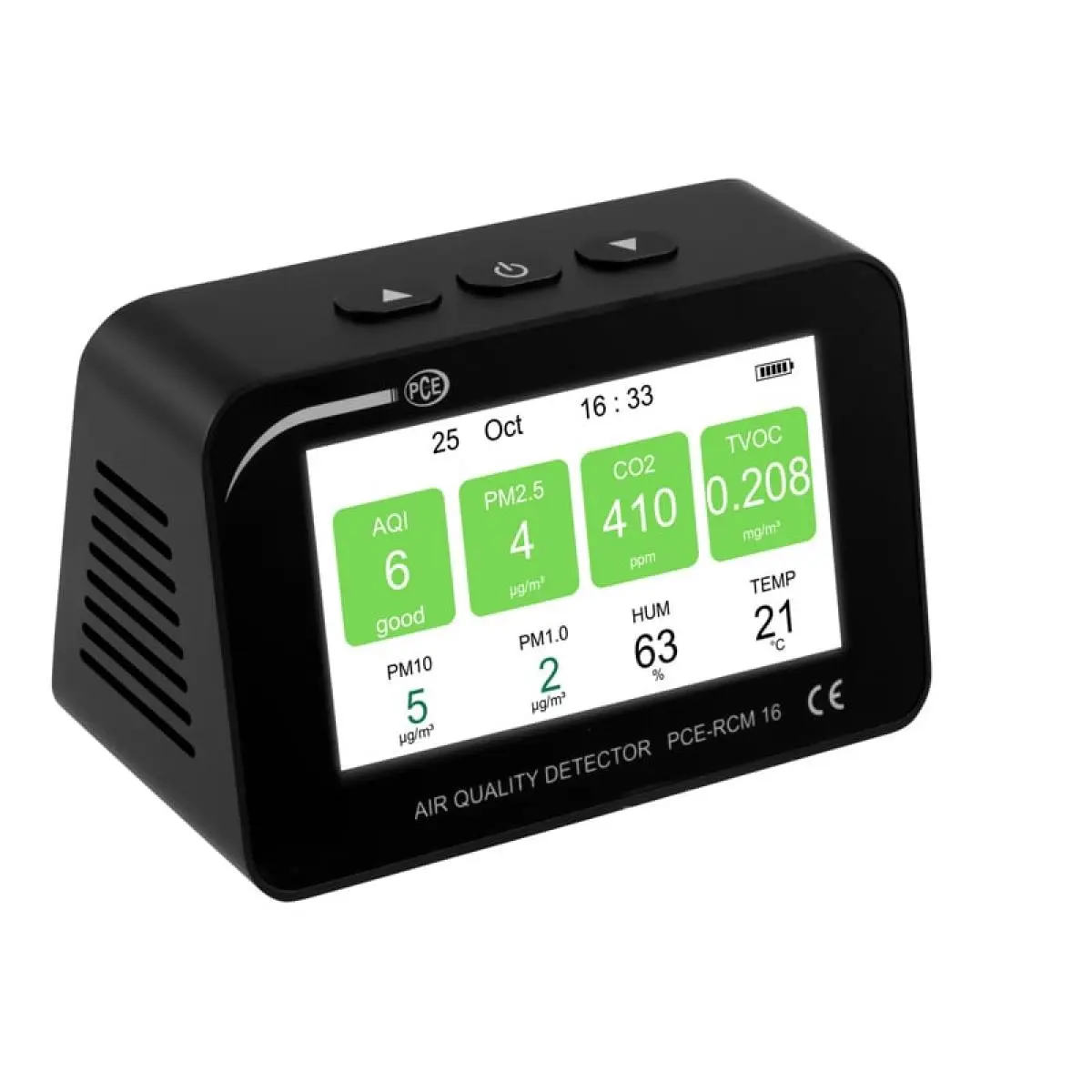

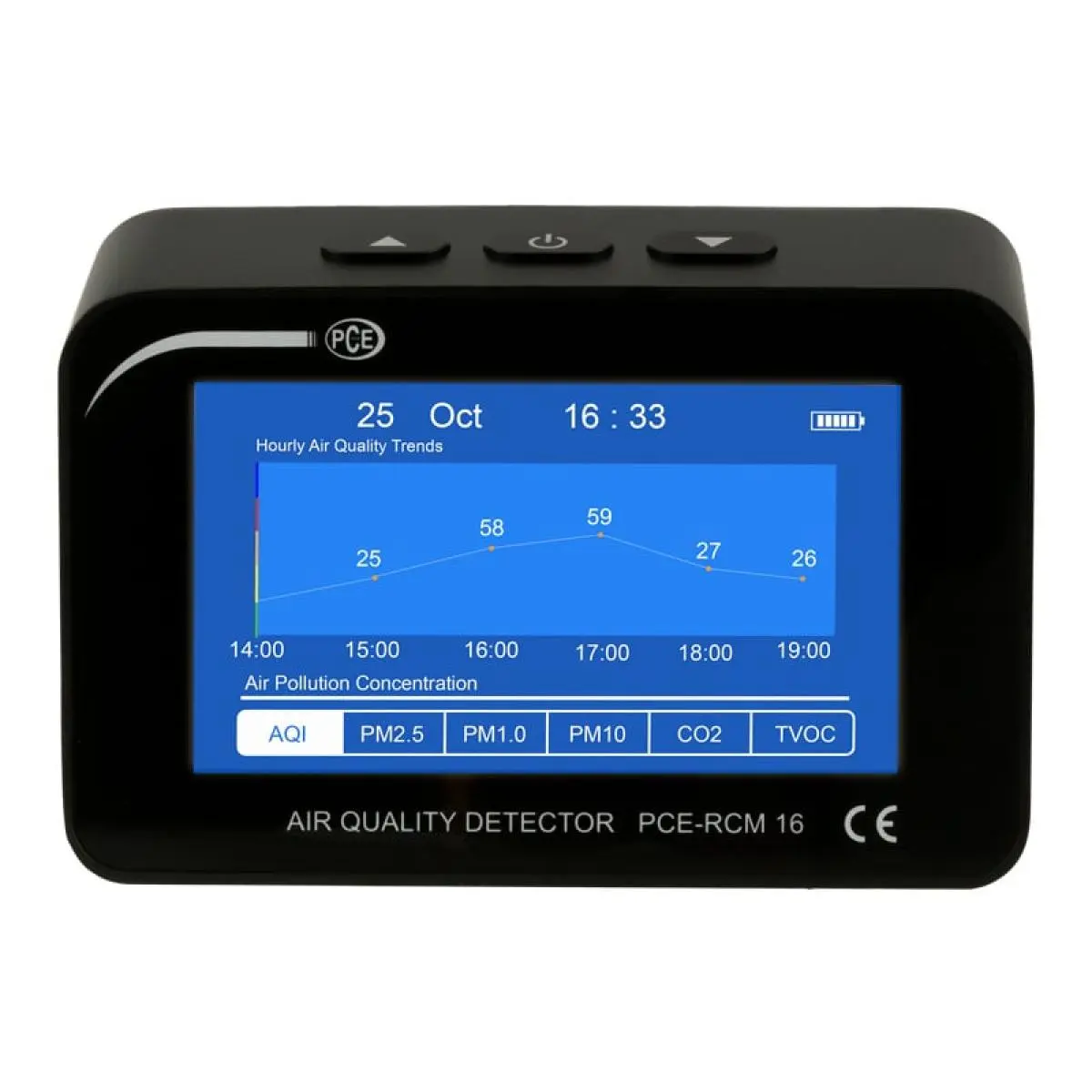

Particle Counter Display
Particle Counter Display
Particle Counter Display
Particle Counter Display

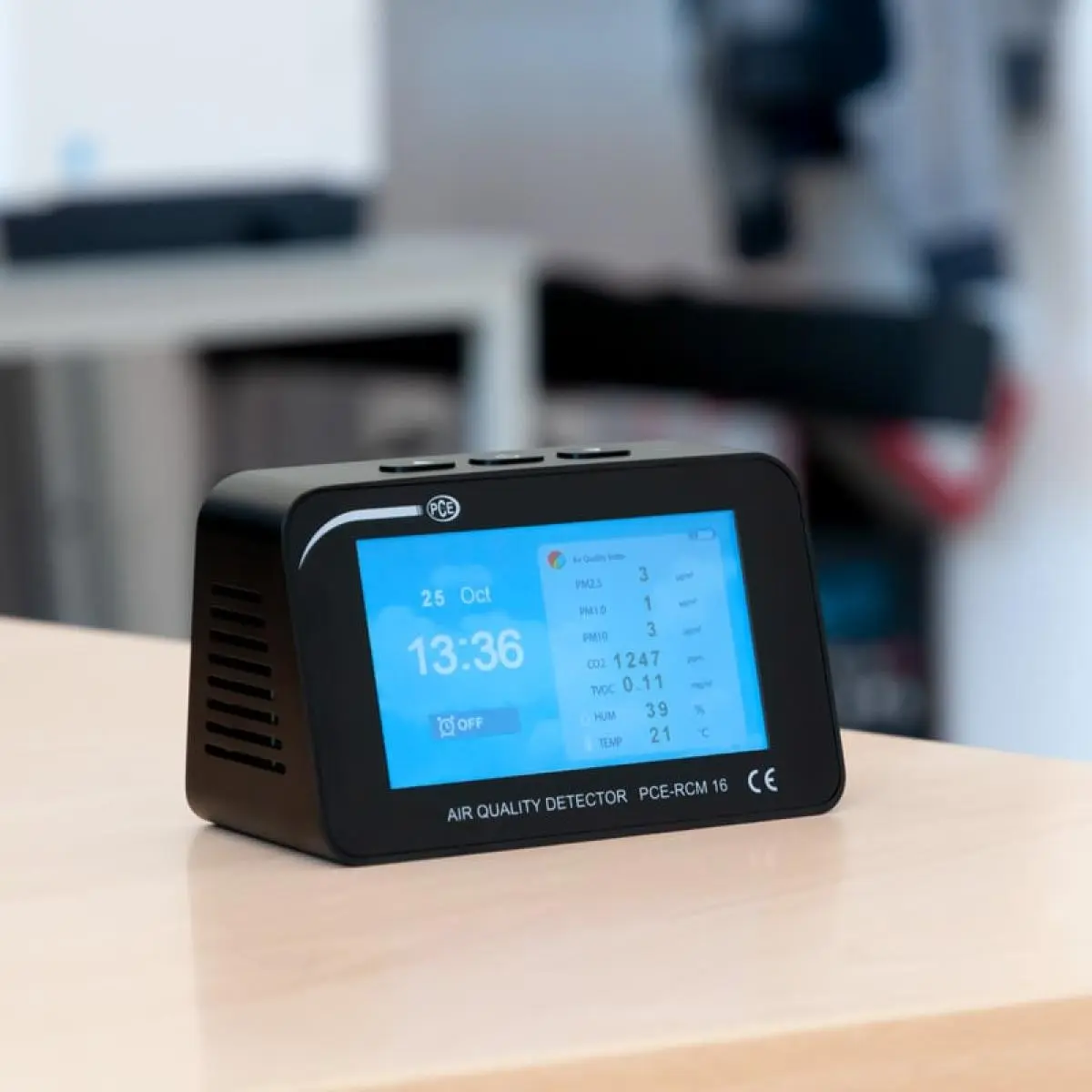

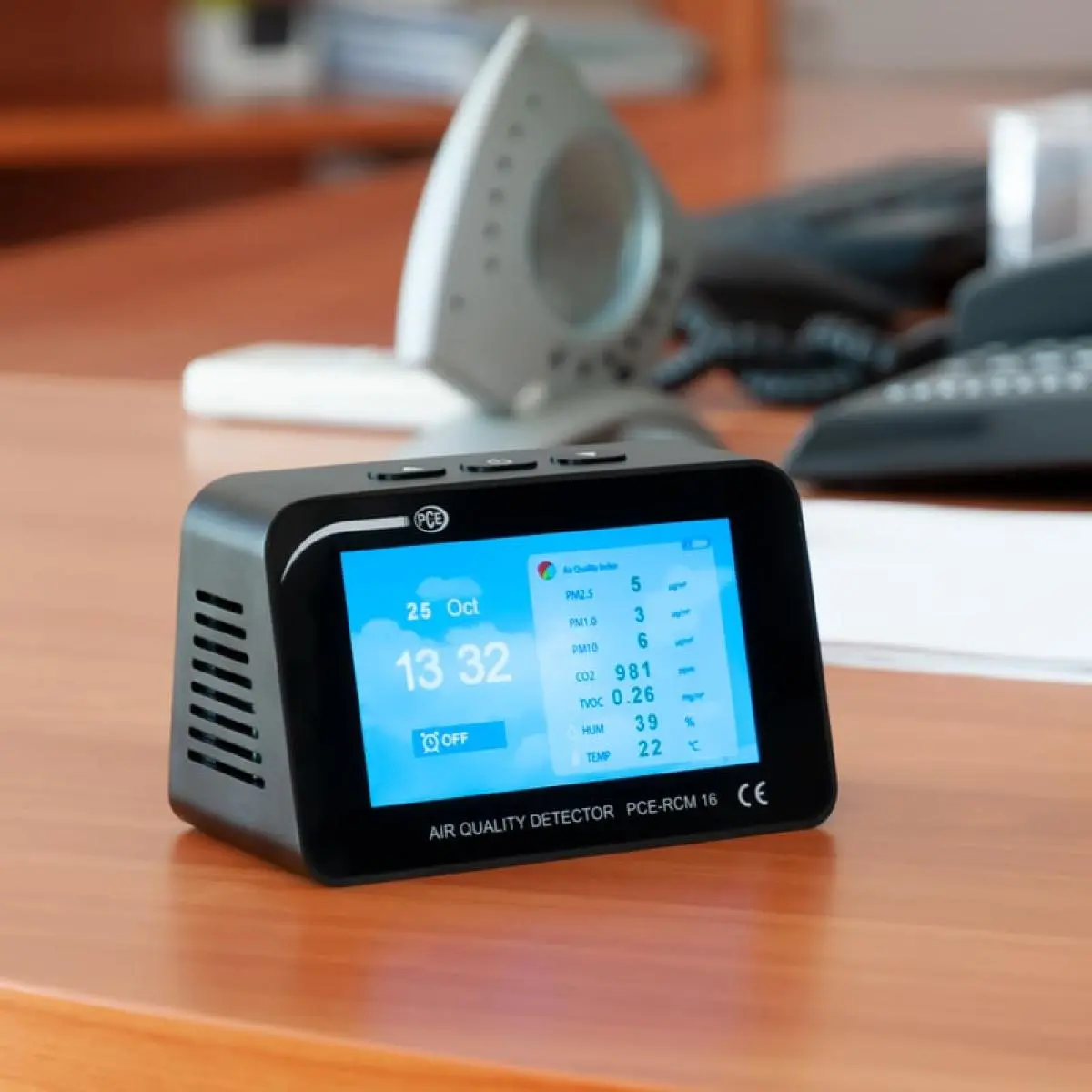

Particle Counter Application picture
Particle Counter Application picture

Particle Counter PCE-RCM 16

Order no.: PCE-RCM 16
GTIN (EAN): 4250348719645
£ 255.00
£ 306.00
price ex. (VAT / delivery)
:
4250348719645
PCE-RCM 16
Delivery time:1-2 working days

Description

Particle counter PCE-RCM 16
Air quality meter for measuring the air quality / 4.3 inch TFT display / Metal housing / Alarm function / TVOC, CO2, PM1, PM 2.5, PM10, temperature, humidity measurement /  Rechargeable battery / For enclosed spaces / Limit alarm

The air quality meter PCE-RCM 16 is ideal for monitoring the air quality in homes, businesses or public buildings where people are staying. The 4.3-inch TFT display on the air quality meter is dimensioned so that all measured values ​​can be read directly. Supported measurements on the air quality meter are CO2, TVOC, PM1, PM2.5, PM10, temperature and ambient humidity. On the display of the air quality meter, the measured values ​​are updated every second. As soon as a measured value exceeds the fixed limit, this is visually indicated to the user.

To power the air quality meter can be operated directly via the micro USB port on the back. The built-in battery with the air quality meter is charged via this interface. Thus, the air quality meter is versatile. It should be noted that the measured values ​​settle within 24 hours after switching on the air quality meter.



N.B. the meter is designed to be operated by mains power, and will run only a few hours by the battery.


Highlights

- 4.3-inch TFT screen
- Many different measuring functions
- Robust metal housing
- Calculation of the air quality index (AQI)
- Rechargeable battery via micro USB
- Adjustable alarm clock
- Different display modes
- Fixed limit function

Specification

CO²
Measuring range  0 ... 5000 ppm
Resolution  1 ppm
Accuracy  ±10 % of Rd

Particle
Measuring channel sizes  1.0, 2.5, 10
Measuring range  0 ... 999 µg/m³
Resolution  1 µg/m³
Accuracy  ±10% v.Mw.

TVOC
Measuring range  0 ... 9,999 mg/m³
Resolution  0,001 mg/m³
Accuracy  ±10 % of Rd

Relative humidity
Measuring range  20 ... 90
Resolution  1
Accuracy  ±4 % RH

Temperature
Measuring range  0 ... 50 °C
Resolution  1 °C
Accuracy  ±1 °C

General technical data
Display type  TFT-LCD-Display
Display size  4,3 in
Interface  Micro-USB
Operating time  6 h
Housing  Metal
Stabilisation time  24 h
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  Rechargeable battery: 3.7V
Mains adaptor: 5 V / 2 A
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  3400 mAh
Operating conditions  0 ... 50 °C , 0 ... 90 % RH
Storage conditions  0 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  191 x 78 x 67,5 mm
Weight  336 g

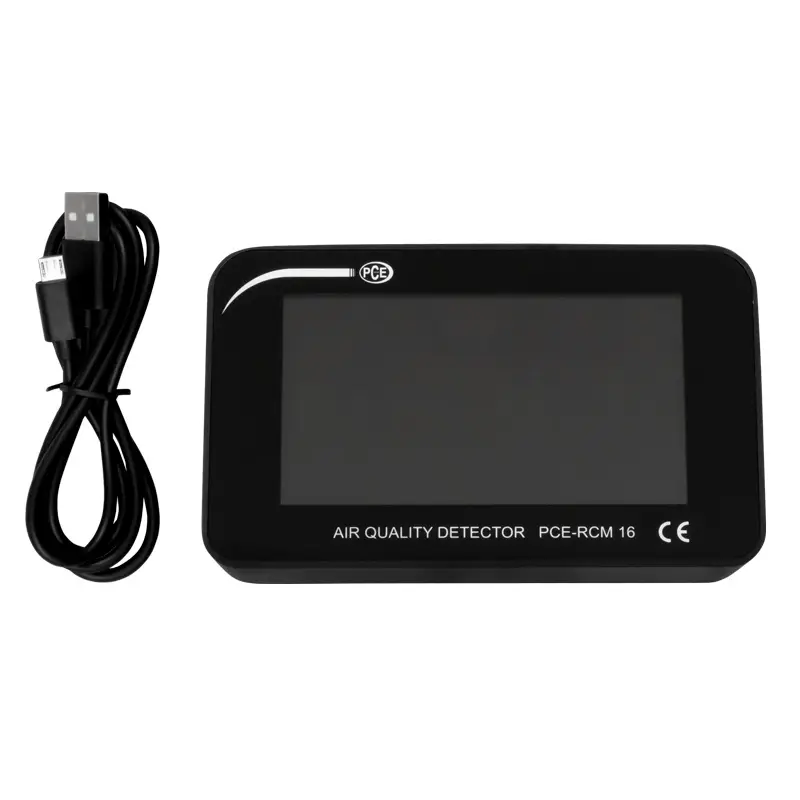

Delivery Scope

1 x Particle Counter PCE-RCM 16
1 x Micro USB cable
1 x User manual
