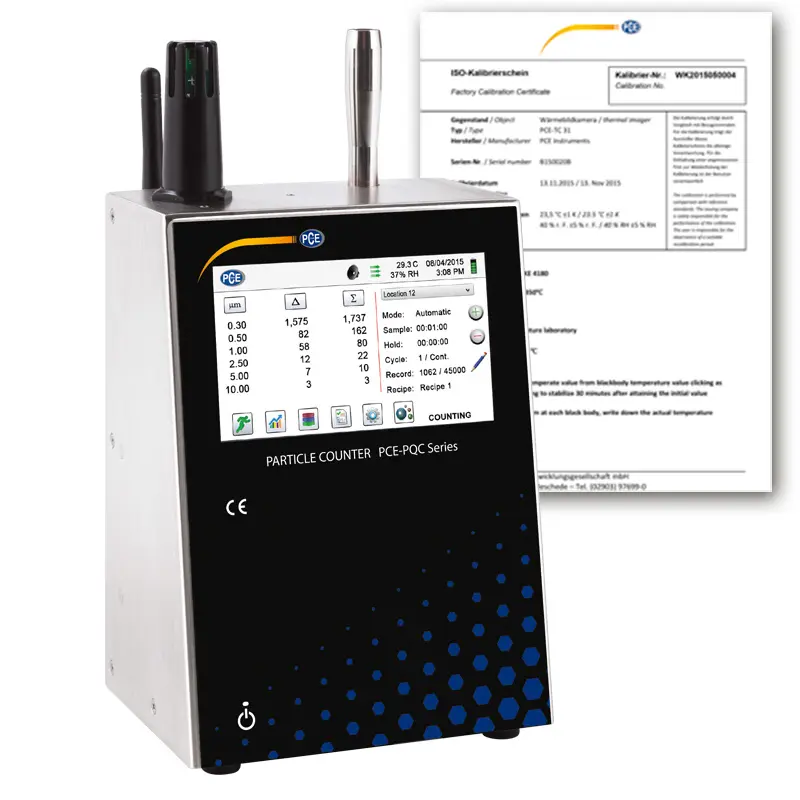

Particle Counter PCE-PQC 20EU Incl. Calibration Certificate

Order no.: PCE-PQC 20EU

GTIN (EAN): 4250348720405

Accessory

PCE-PQC-WIFI Antenna for PCE-PQC series

£ 305.00

Cleaning filter for PCE-PQC series

£ 198.00

Isokinetic sensor for PCE-PQC series

£ 76.00

Re-Calibration Certificate CAL-PCE-PQC

£ 621.00

Description

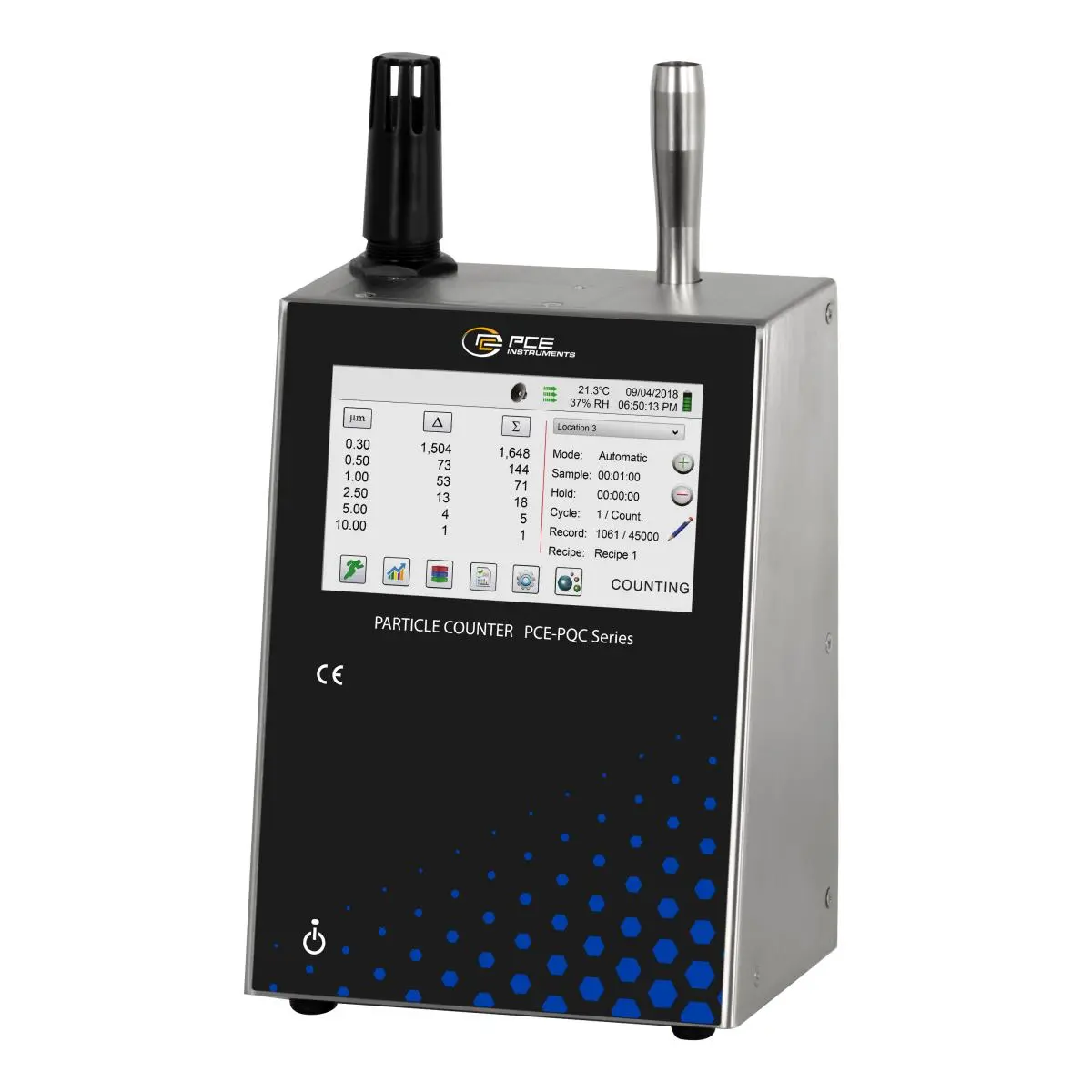

Air particle counter PCE-PQC 2xEU series incl. calibration certificate
Counting of six particle sizes / flow rate of 2.83 l / min / 4.3" color touch display / Ethernet and USB (optional Wifi) / Incl. temperature and humidity sensor

The PCE-PQC 2xEU series air particle counters are portable detection systems that include particles of specific sizes in the air. Furthermore, the air temperature and the relative humidity are monitored. The fixed flow rate of 2.83 l / min complies with current standards for air particle counter ISO 21501-4 and JIS B9921. Due to the compact design, the air particle counter of the PCE-PQC 2xEU series can be used in a variety of ways. These include the monitoring and inspection of clean rooms, filter systems in operating theaters and bottling plants in the pharmaceutical industry.

The internal memory of the air particle counter is sufficiently large for up to 45000 data sets. These data sets each include the metering parameters, temperature and humidity sensor readings, locations, and timestamp. An optionally available printer enables the measurement results to be printed directly. On the other hand, the stored data records of the air particle counter can be read out and processed via the supplied software via Ethernet, USB or Wifi.

Highlights

- Captures 6 particle sizes

- Flow rate 2.83 l / min

- Including software package

- 4.3" color touch display

- Ethernet and USB interfaces

- Installed in a stainless steel housing

- Incl. temperature and humidity sensor

- Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921

Specification

Particle
Measuring channel sizes	0.3, 0.5, 1.0, 3.0, 5.0, 10
Measuring range	0,3 ... 25 µm
Counting efficiency	50 % at 0.3 µm, 100 % at >0.45 µm according to JIS
Flow volume	2,83 l/min

Relative humidity
Measuring range	15 ... 90 %
Accuracy	±2 % RH

Temperature
Measuring range	0 ... 50 °C
Accuracy	±0.5 °C

General technical data
Display type	Colour touch display
Display size	4,3 Inch
Storage medium	Internal memory
Storage capacity	45000 Data records
Memory capacity (additional information)	Ring memory consisting of particle count, temperature and humidity, locations and times
Storage interval from	1 s
Storage interval to	99 min.

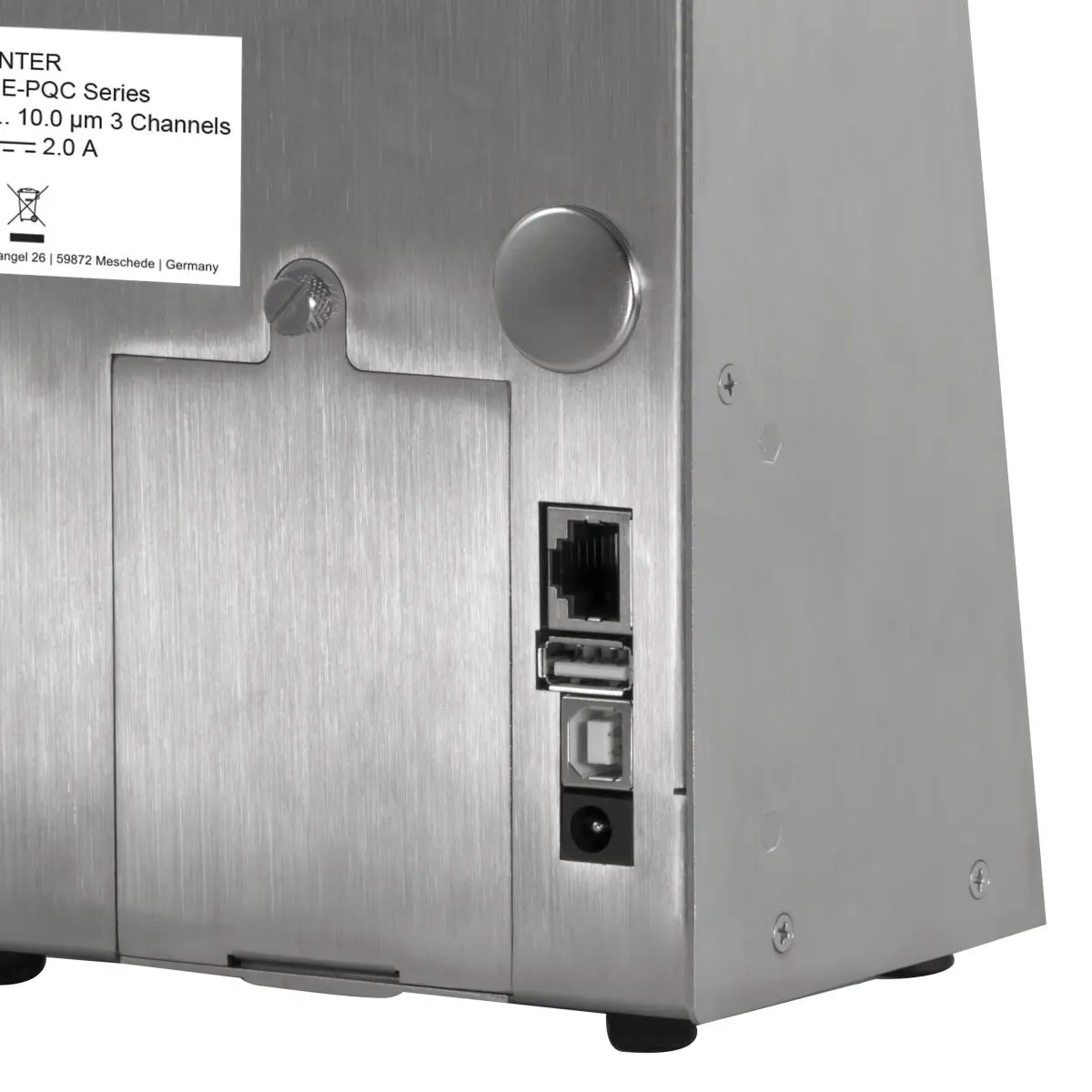

Interface	Ethernet, USB
Standard(s)	ISO 21501-4, JIS B9921
Sensor	Temperature
Operating time	8 h
Menu language	English
Power supply	110 ... 240 V AC 50/60 Hz
Connector type	Device-europlug
(Rechargeable) battery	1 x 10,8 V internal , Lithium-ion battery
Capacity	5200 mAh
Operating conditions	5 ... 40 °C , 0 ... 95 % RH
Storage conditions	0 ... 50 °C , 0 ... 98 % RH
Dimensions ( L x W x H )	133 x 105 x 210 mm
Weight	1800 g
