Order no.: PCE-CT 25FN

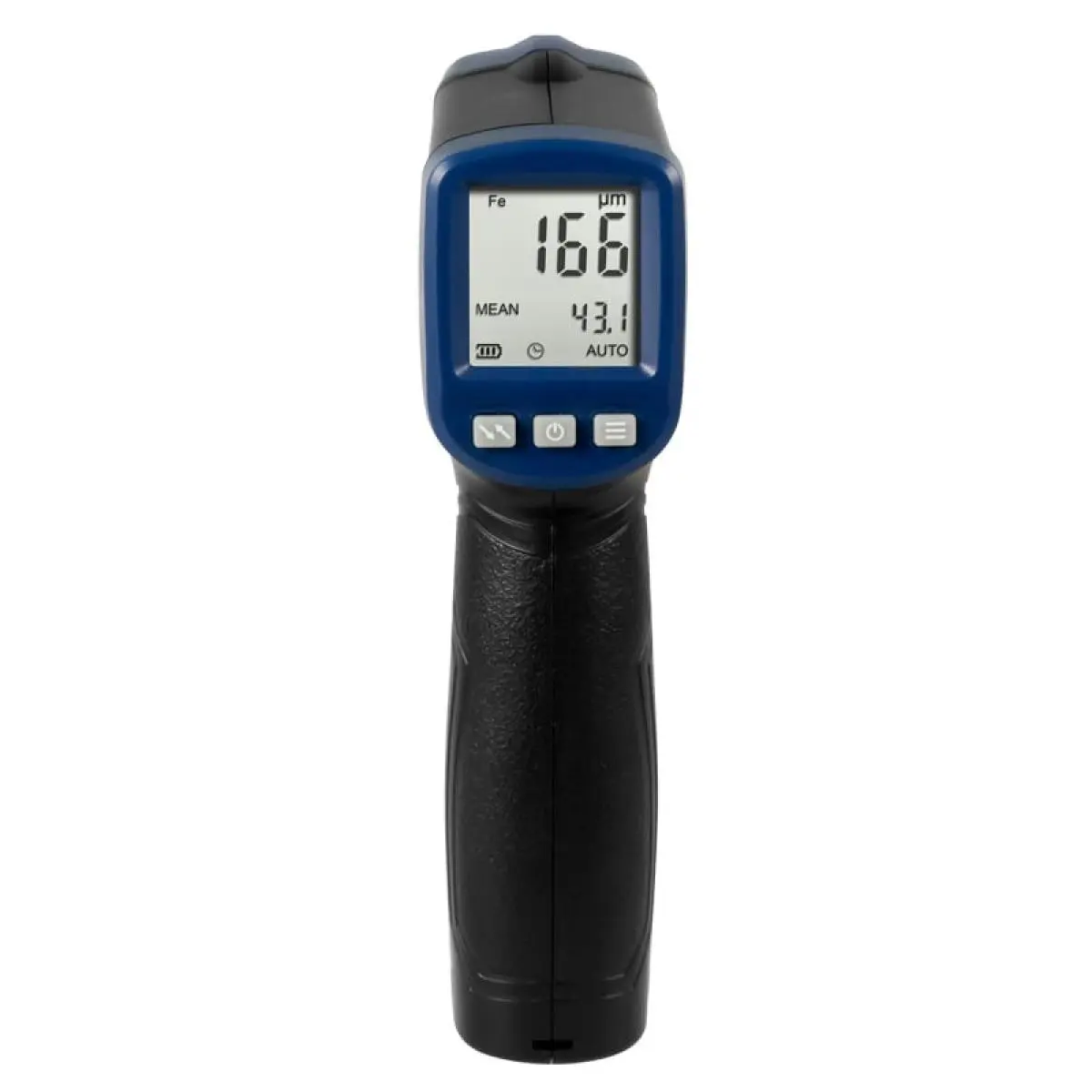

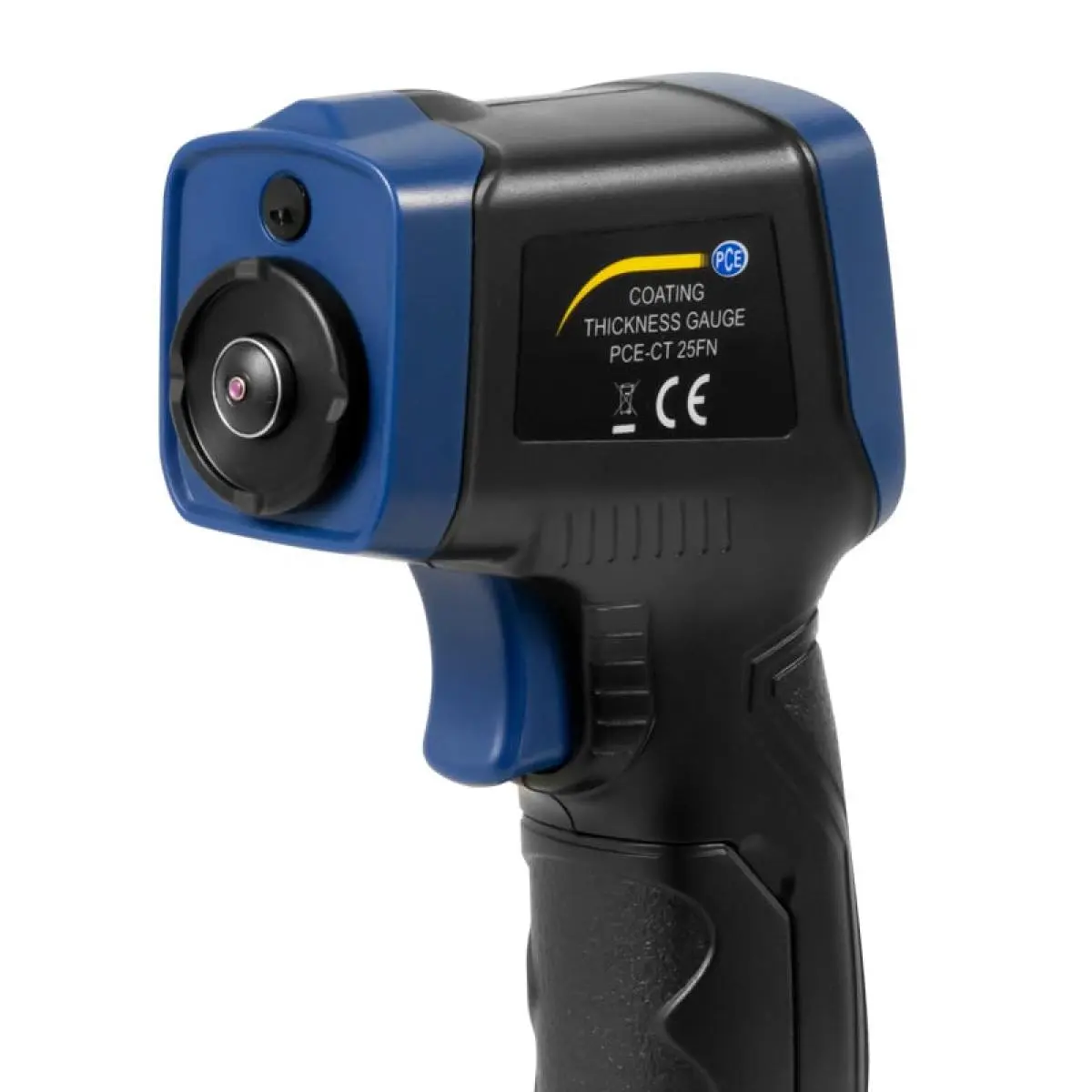

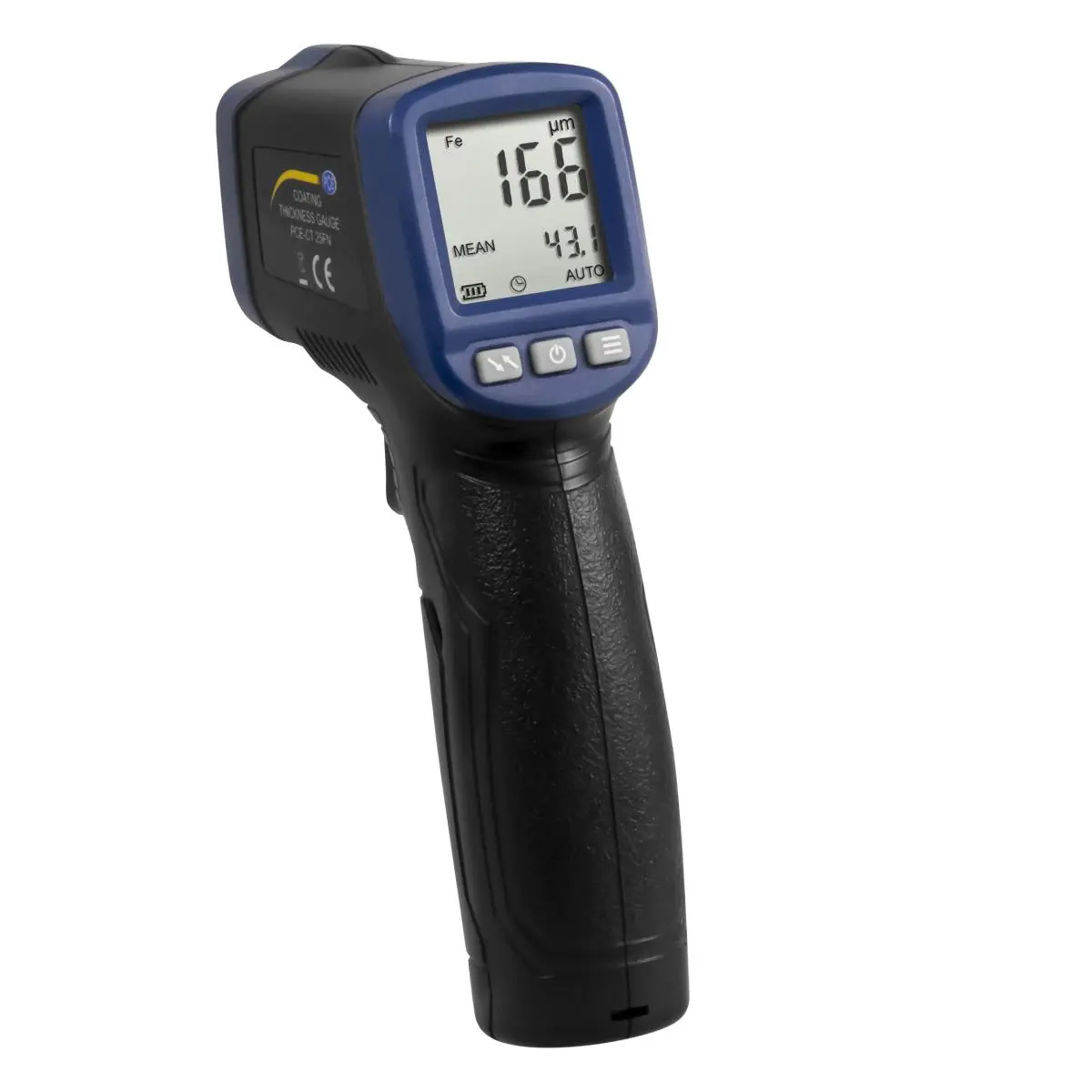

Paint Thickness Gauge PCE-CT 25FN

£ 124.00
£ 148.80
:
4250348721983
PCE-CT 25FN
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

Paint Thickness Gauge with convenient one-hand operation / MIN MAX and MEAN display /
Battery indicator / various units / automatic shutdown /
for ferrous and non-ferrous metals / small and compact design

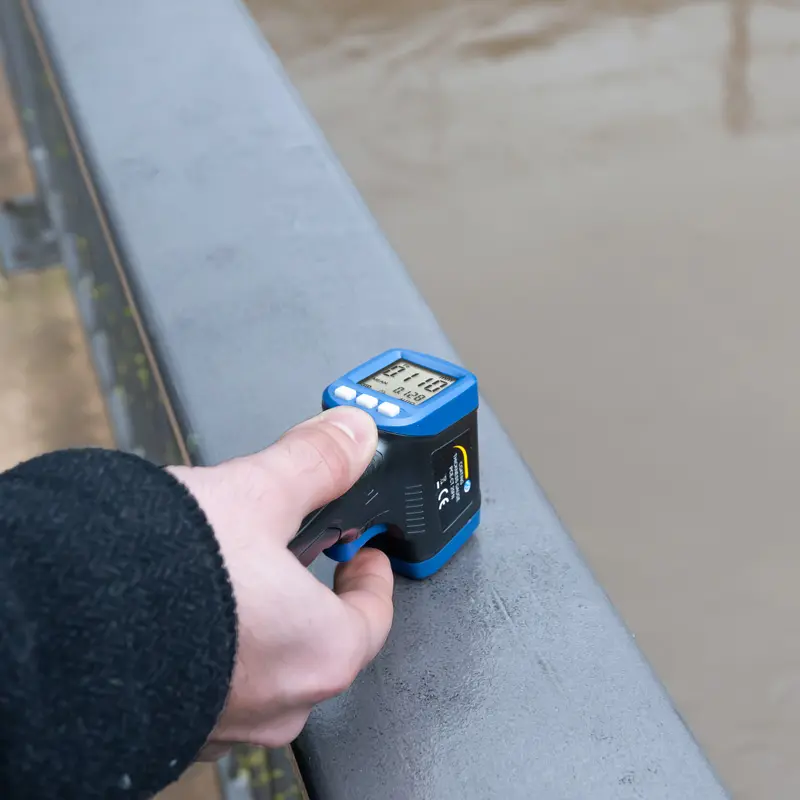

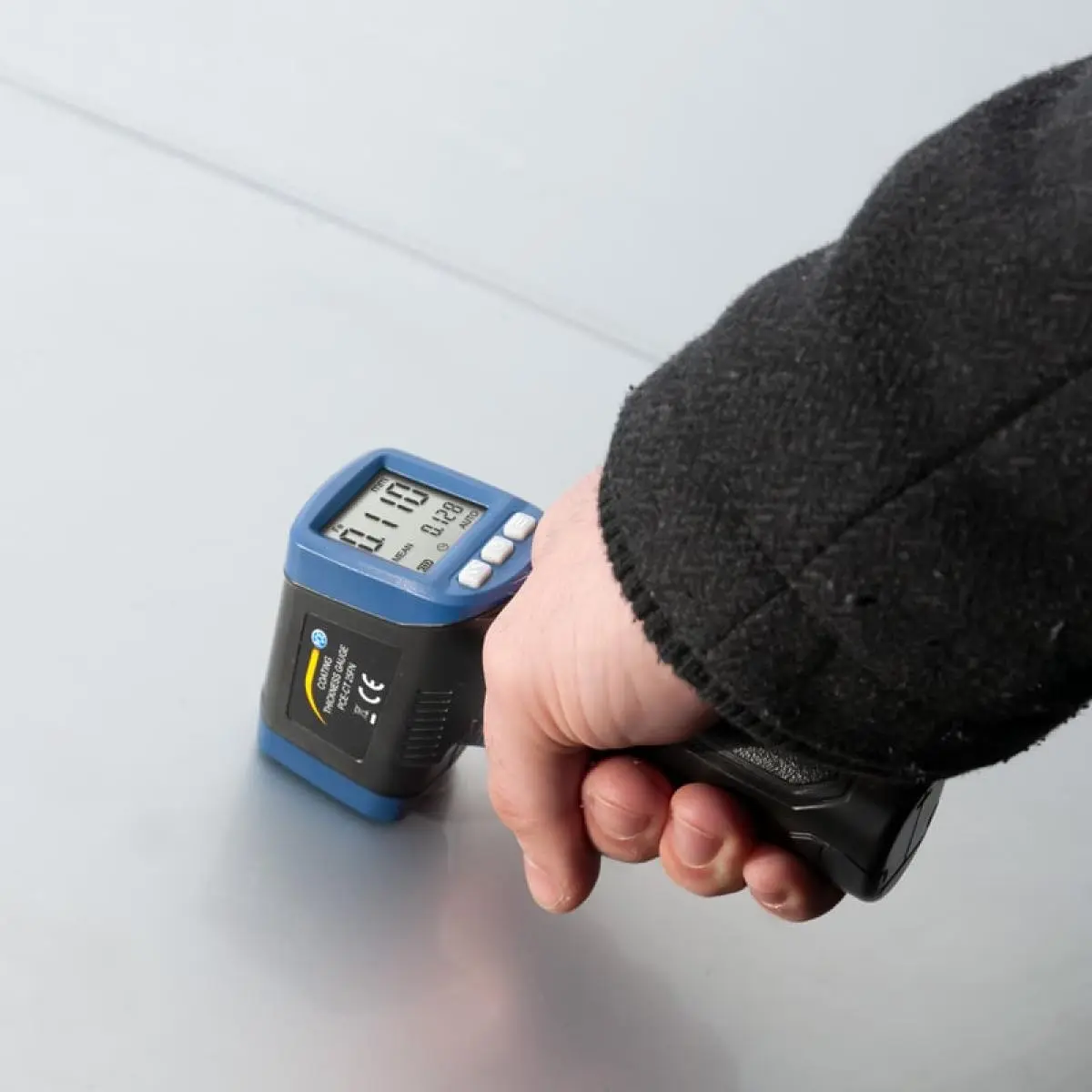

The paint thickness gauge is used for the quick and precise detection of layer thicknesses on metals. In comparison to many other thickness gauges, this paint thickness gauge does not have to differentiate between ferrous and non-ferrous metal. With the small and compact design of the paint paint thickness gauge, one-hand operation is possible. Despite its small size, the paint thickness gauge has a measuring range of 1500 µm and an accuracy of ± (3% + 1 µm).

The measured values displayed can be output in µm, mm and in mils on the paint thickness gauge. In addition to measuring the layer thickness, the paint thickness gauge can determine the smallest, the largest and also the mean value from a series of different measurements. The paint thickness gauge also has an automatic switch-off function.

Highlights

- small and compact design
- fast measuring frequency
- Calibration set included
- Different units can be selected
- also for continuous measurements
- comfortable one-hand operation

Specification

Measuring range 0 ... 1500 µm
Measurement accuracy ± (3% + 1 µm)
resolution 0.1 µm in the measuring range 0 ... 100 µm
  1 µm in the measuring range> 100 µm
units µm, mm, mils
Smallest curvature convex 5 mm, concave 25 mm
Smallest measuring area Ø 20 mm
Minimum thickness of the substrate     Fe: 0.3 mm
  NFe: 0.05 mm
Measuring rate Max. 2 Hz
Power supply 9 V block battery
Operating conditions -10 ... 50 ° C, 20 ... 90% RH non-condensing
Storage conditions -10 ... 60 ° C, 20 ... 90% RH non-condensing
Dimensions 143 x 85 x 39 mm
Weight approx. 100 g
Housing material SECTION

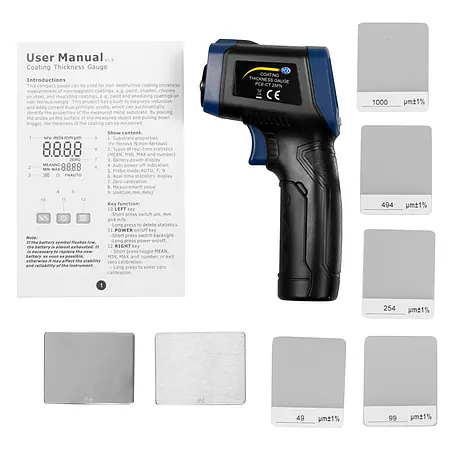

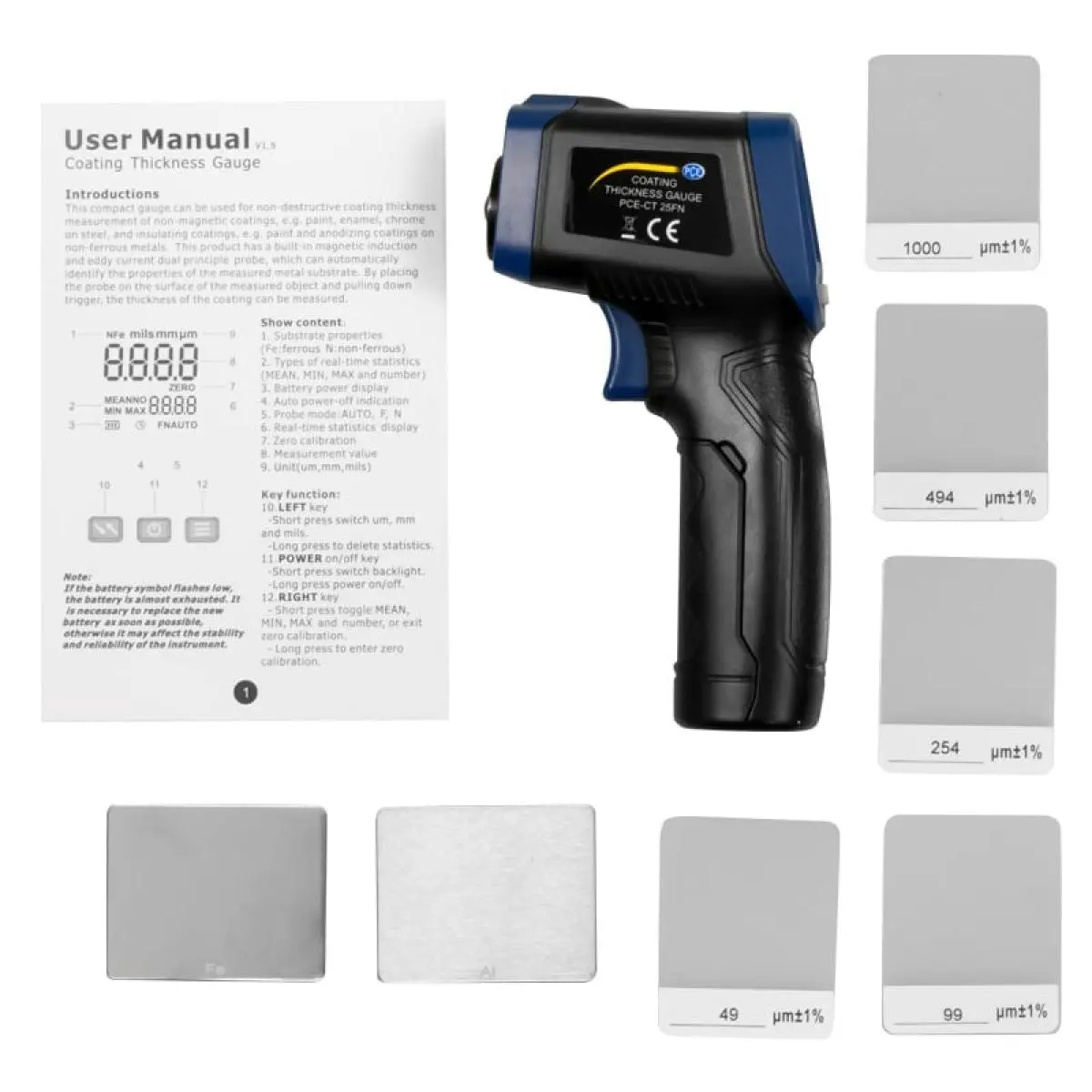

Delivery Scope

1 x Paint Thickness Gauge PCE-CT 25FN
5 x calibration foil reference
1 x Fe zero standard
1 x NFe zero standard
1 x 9 V block battery
1 x instruction manual
