Noise Meter / Sound Meter PCE-SLT-TRM

Order no.: PCE-SLT-TRM

GTIN (EAN): 4250348713230

Accessory

Class 2 Acoustic Calibrator PCE-SC 43

£ 129.00

ISO Calibration Certificate for Noise Meter CAL-SL

£ 111.00

Description

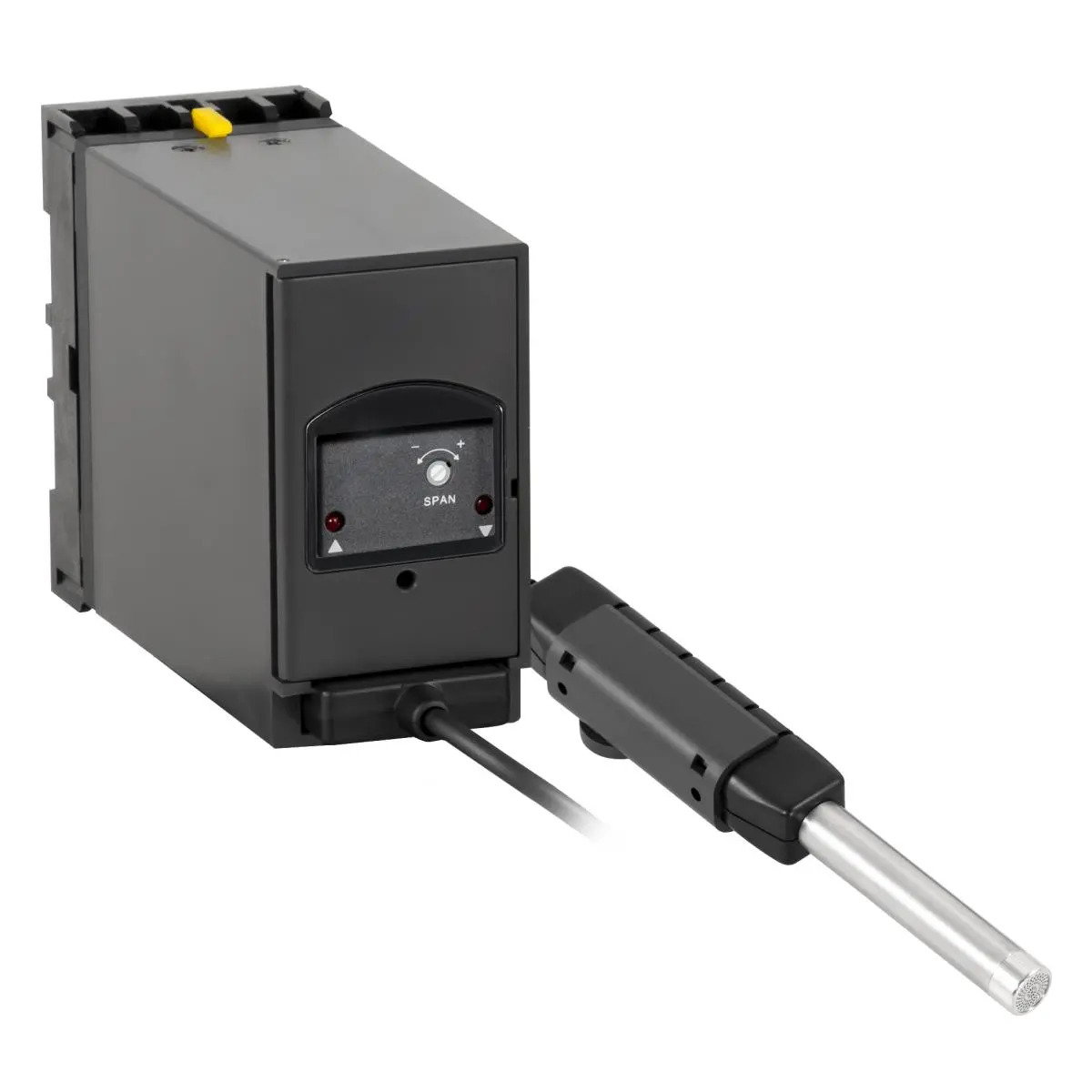

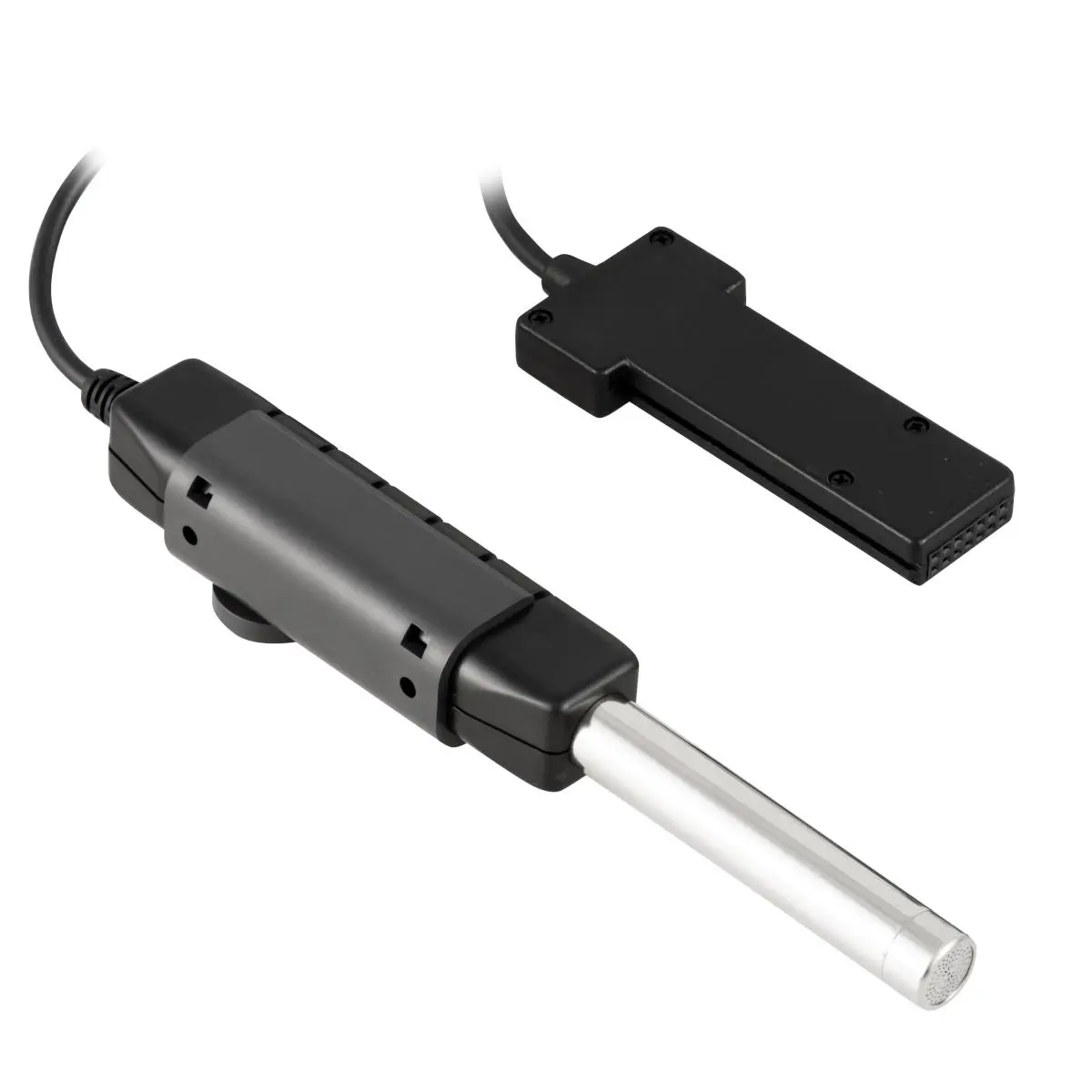

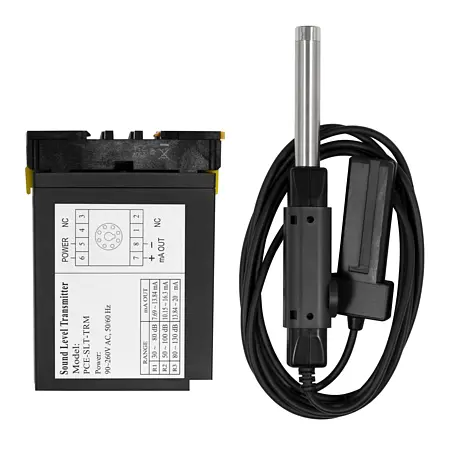

PCE-SLT-TRM is a class II (type 2) sound level, sound pressure level (SPL), decibel (dB) or noise meter with audible or visual alarm output capability. PCE-SLT-TRM is used for long-term, continuous monitoring of occupational noise exposure limits in industrial environments such as foundries, factories and manufacturing production floors. The measuring device consists of a wall-mountable acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter.

Highlights

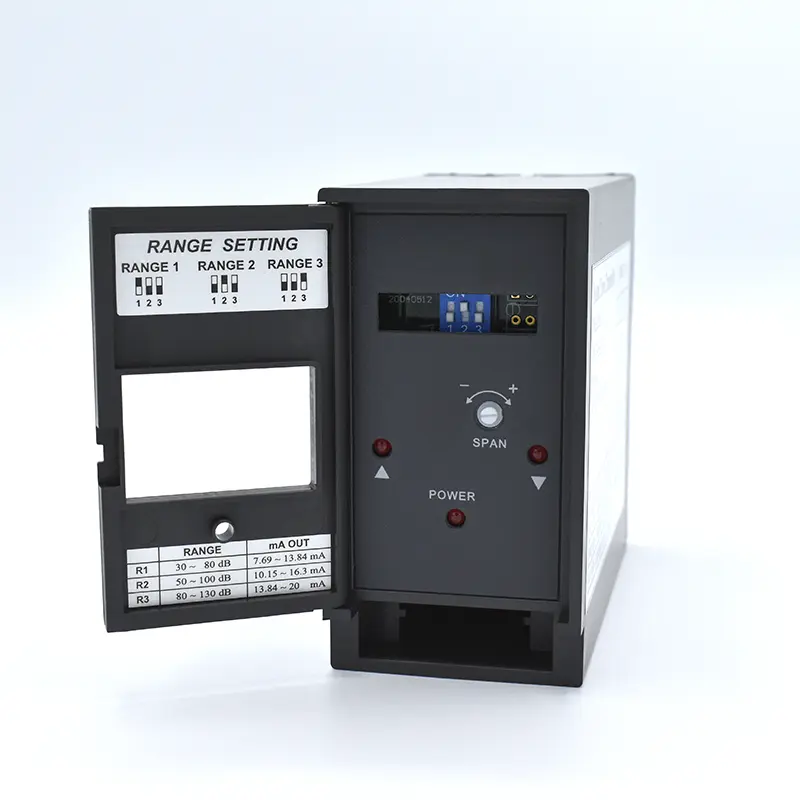

- Measuring range: 30 ... 130 dB in 3 ranges

- Resolution: 0.1 dB

- Accuracy: ± 1.5 dB

- IP 54

Specification

Sound level
Measuring range	30 ... 80 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

Sound level
Measuring range	50 ... 100 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

Sound level
Measuring range	80 ... 130 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

General technical data

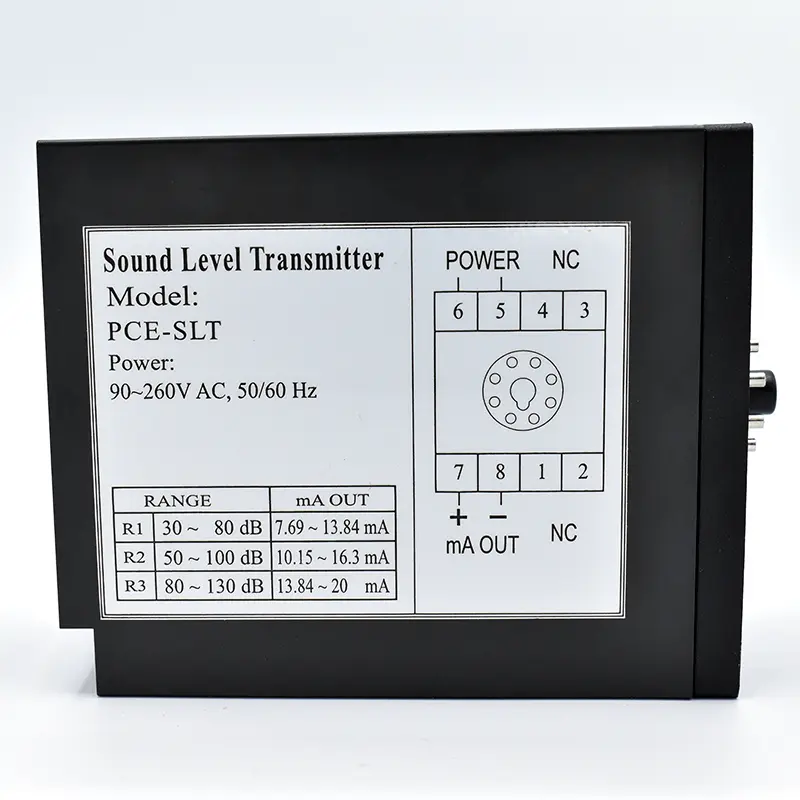

Outputs	4 ... 20 mA
Cable length	1,5 m
Connections	1/2 inch microphone
Frequency weighting	A
Microphone type	Electret capacitor
Standard(s)	IEC 61672-1 (Class II)
Housing	ABS (acrylonitrile-butadiene-styrene copolymers)

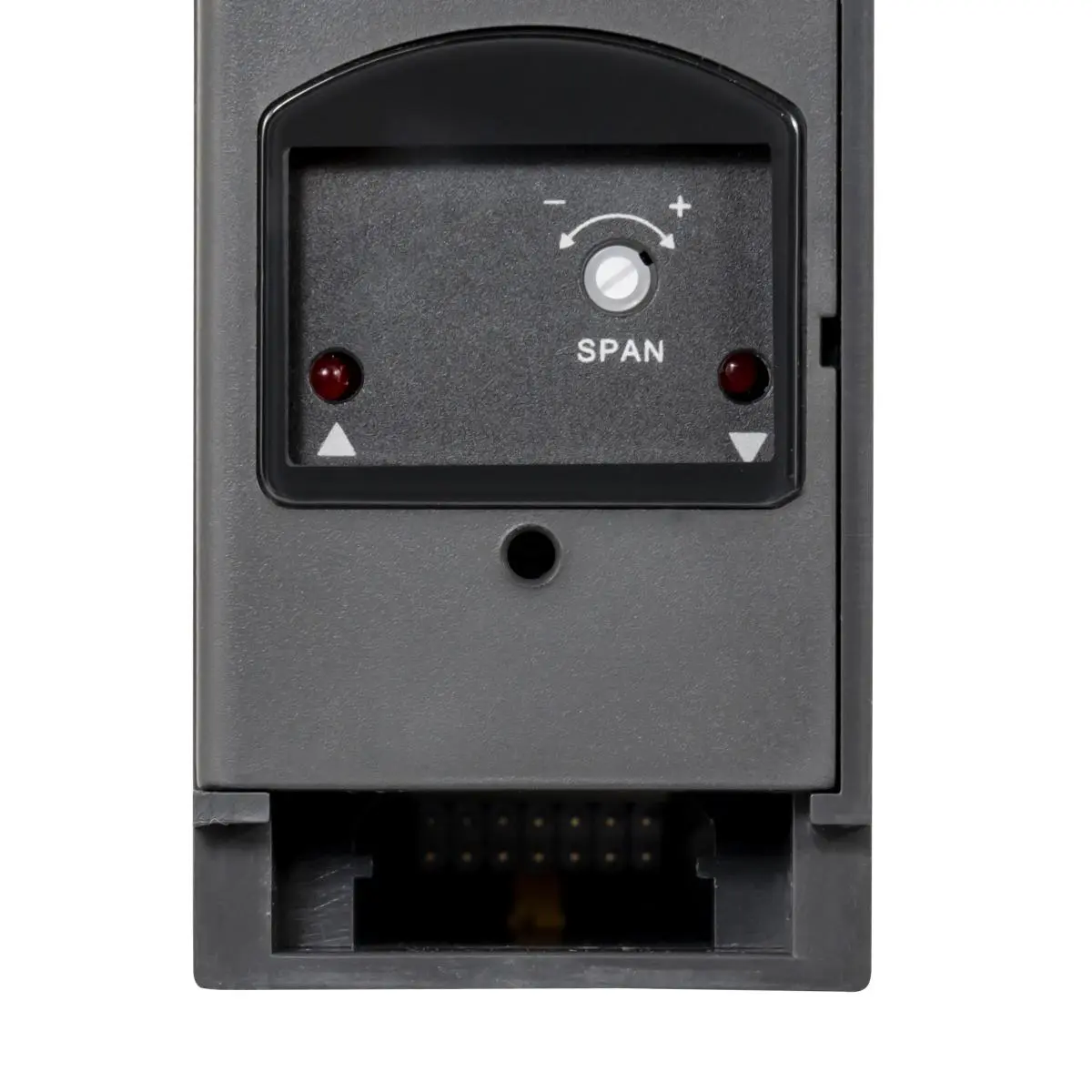

Calibration	adjustable via a grub screw
Weights	Sensor: 143 g
Protection class (device)	IP54, IP60
Power supply	Transmitter: 90 … 260V AC (max. 1.5 A) Digital display: 90 ... 260V AC / 50 ... 60 Hz
Operating conditions	0 ... 50 °C , 0 ... 85 % RH
Storage conditions	0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	125 x 97 x 50 mm
Weight	315 g
