  5. Class 1 Noise Meter PCE-432-SC 09 with Calibrator
Order no.: PCE-432-SC 09

Class 1 Noise Meter PCE-432-SC 09 with Calibrator

£ 2,471.00
£ 2,965.20
:
4250348728562
PCE-432-SC 09
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

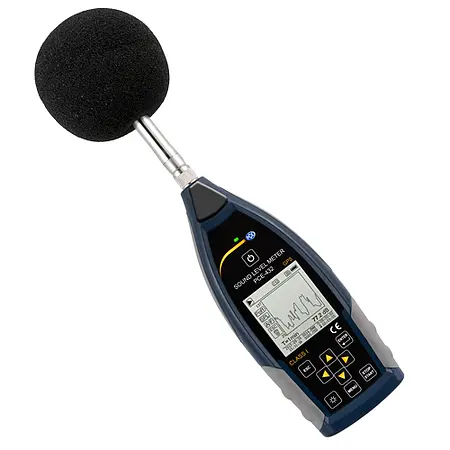

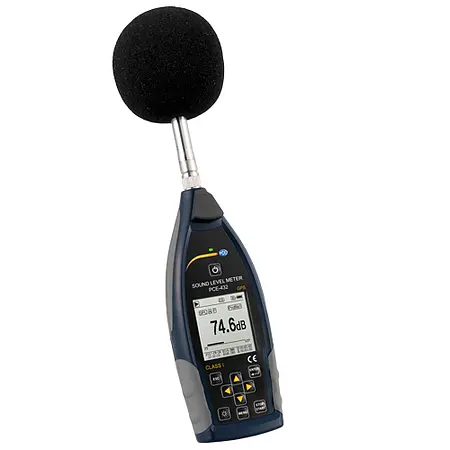

Handheld Noise Meter with GPS (class 1) incl. Class 1 calibrator
Octave band filter / A, B, C and Z evaluation filter can be upgraded / Fast, slow and impulse evaluation / Data logger / USB

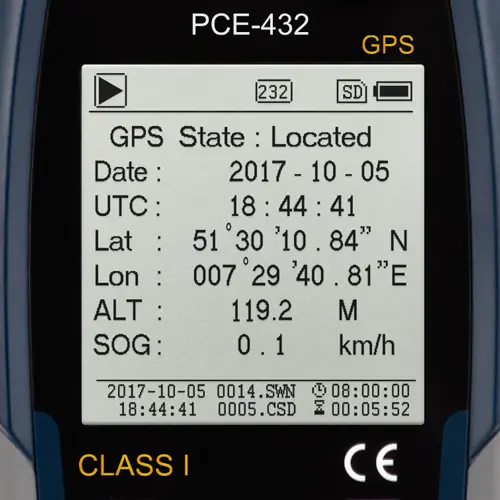

The Class 1 Noise Meter meets all the requirements for noise measurement and frequency analysis. In addition to the sound measurement function, the Noise Meter is equipped with a GPS receiver. The GPS function allows the user to assign the measured values ​​to an exact position.

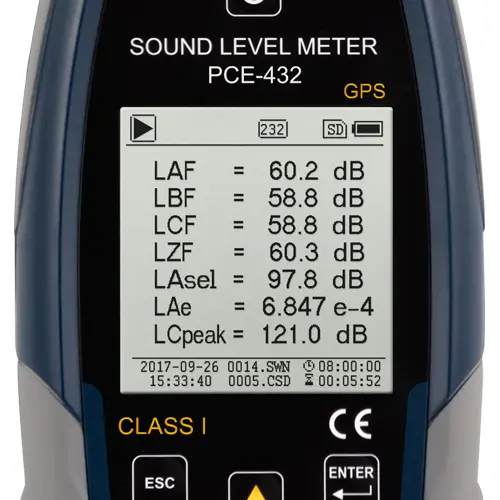

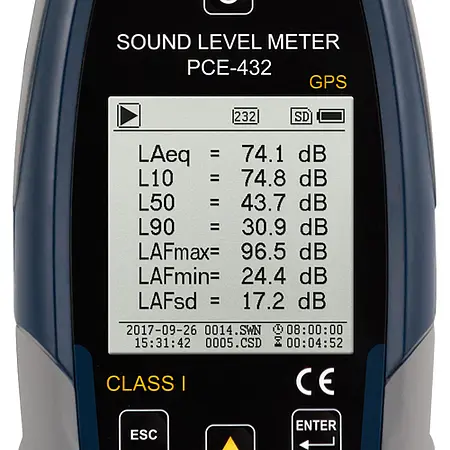

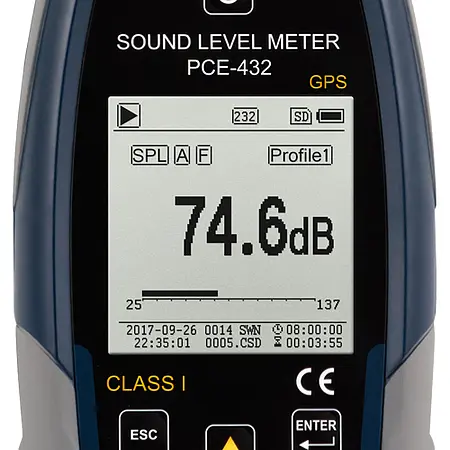

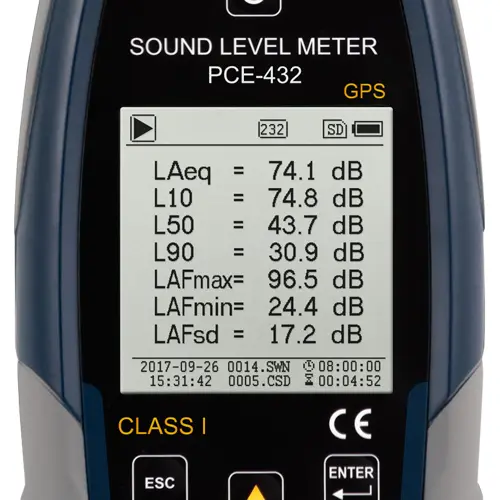

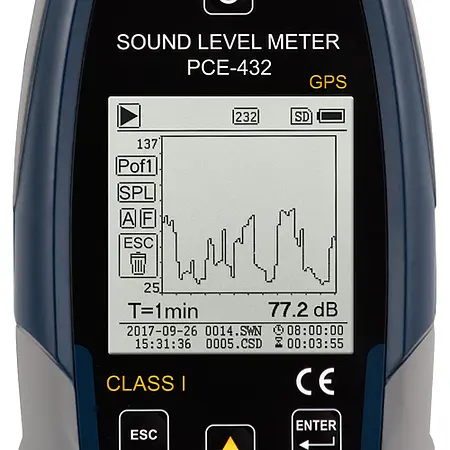

This integrating precision pulse Noise Meter complies with all applicable standards and guidelines (Class 1 EN / IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN / IEC61260, etc.). The Noise Meter has a very large illuminated display. The display of the Noise Meter shows the sound pressure level numerically and graphically in real time. The professional Noise Meter has an integrated data logger. The measurement data are saved on a micro SD card. This card can be read out directly on the PC.

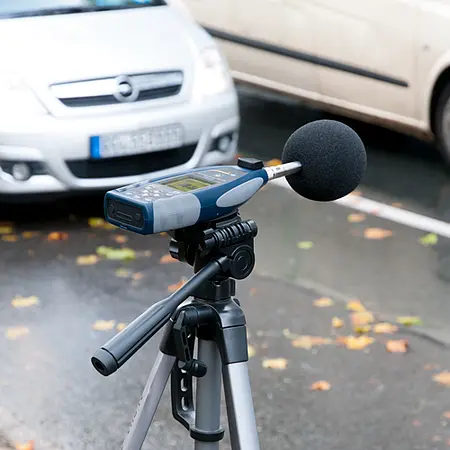

The Noise Meter can also be connected to the PC via USB and the memory can be read out. The post-processing software of the Noise Meter allows convenient measurement data analysis. The typical areas of application for this device are the measurement of workplace noise, compliance with regulations, determination of environmental noise, selection of hearing protection Protector Selection, selection of suitable noise control measures and estimation of noise exposure.

The impulse function of the Noise Meter enables short-term sound events to be recorded. Thanks to the integrated octave band function, even the slightest differences in the frequency band can be determined here. The frequency filter can be optionally upgraded. The measuring range of this professional Noise Meter extends from 22 ... 136 db (A) at a frequency of 3 Hz ... 20 kHz.

Highlights

- 1/1 octave band included
- 1/3 octave band optional
- Accuracy class 1
- GPS receiver integrated

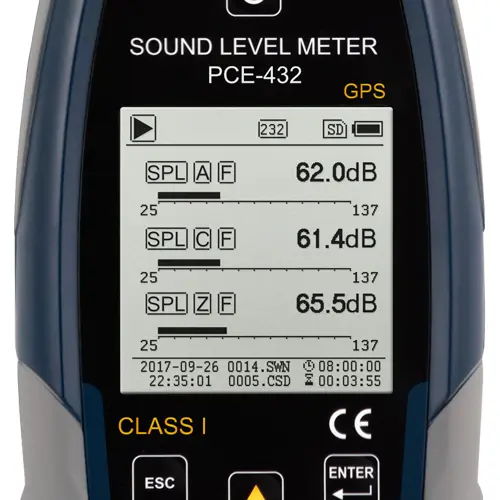

- A, B, C & Z frequency weighting
- Fast, Slow, Impulse and Peak time weighting

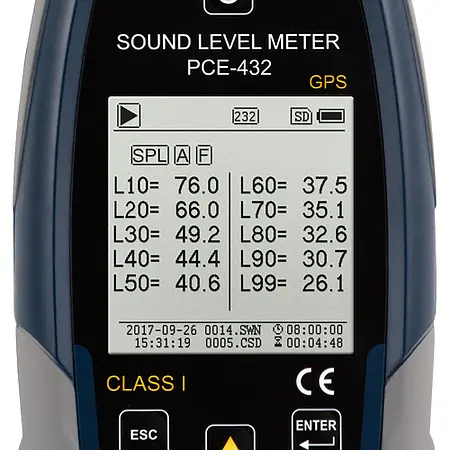

- Statistics function
- Display of the sound course as a graph
- 3 measurement profiles adjustable
- Low inherent noise
- ICCP microphone 40 mV / PA
- Adjustable alarm level
- Incl. class 1 sound calibrator

Specification

Measuring range

22 ... 136 db(A)

Accuracy

Class 1

Frequency range

3 Hz ... 20 kHz

Standards

GB/T 3785.1-2010
GB/T 3785.2-2010
IEC 60651:1979
IEC 60804:2000
IEC 61672-1:2013
ANSI S1.4-1983
ANSI S1.43-1997

Frequency analysis

1/1 Octave band filter: 8 Hz ... 16 kHz
1/3 Octave band filter: 6.3 Hz ... 20 kHz

Microphone

1/2"
Microphone Class: 1
Sensitivity: 40 mV/PA
Frequency range: 3 Hz ... 20 kHz
Connection: TNC
Power supply: ICCP Standard

Data-logging interval

1 s ... 24 h (adjustable)

Measuring functions

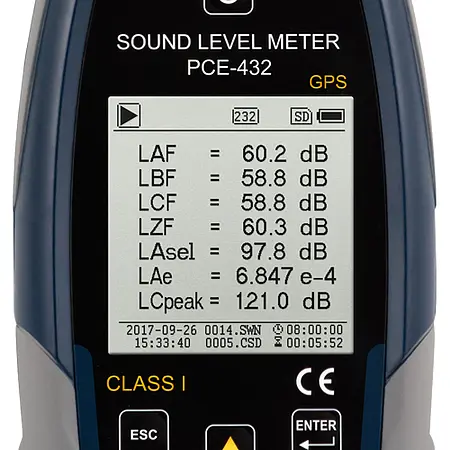

LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN

X = Frequency weighting: A, B, C, Z
Y = Time weighting: F, S, I
N = Statistics in %: 1 ... 99 %

Frequency weightings

A, B, C, Z

Time weightings

Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms

Inherent noise

Microphone: 19 db(A), 25 db(C), 31 db(Z)
Electronics: 13 db(A), 17 db(C), 24 db(Z)

AD converter

24 Bit

Sample rate

Standard: 48 kHz
LN Mode: 20 ms

Measuring display

Numerical
Bar graph
Graphical

Display

160 x 160 pixel LCD with backlight

Memory

4 GB Micro SD card

Interface

USB (Memory readable via software or directly as mass storage)
RS-232

Voltage output

AC 5V RMS
DC 10 mV/db

Alarm

Adjustable
GPS Yes, GPS receiver for location determination

Power supply

4 x 1.5 V AA Batteries
12 V / 1 A Power plug
5 V / 1 A USB

Battery life

Min. 10 h continuous use

Dimensions

70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D)

Weight

Approx. 620 g / 1.4 lbs incl. batteries


Delivery Scope

1 x Noise Meter PCE-432-SC 09
1 x 1/2 "measuring microphone class 1
1 x Wind noise suppressor (foam ball)
1 x USB interface cable
1 x Software
1 x Power supply
1 x Carrying case
1 x Operating instructions

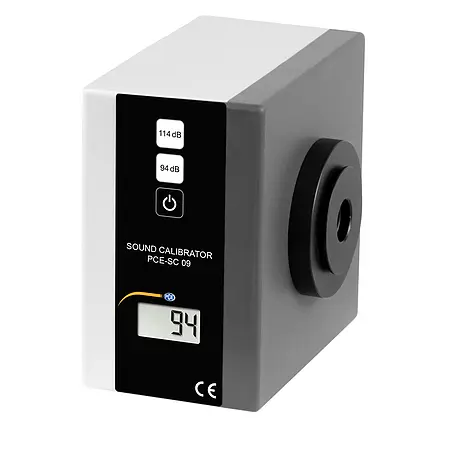

1 x Class I sound calibrator PCE-SC 09

Note: The Noise Meter is supplied with an octave band filter. An upgrade with a 1/3 octave band filter is optionally possible (see selection option)
