£ 236.00

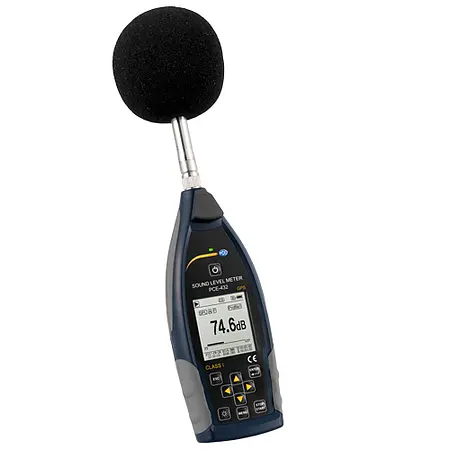

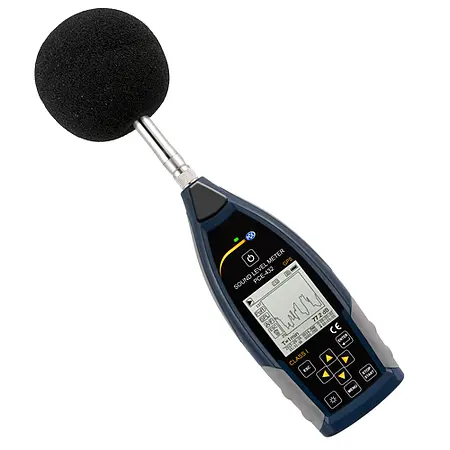

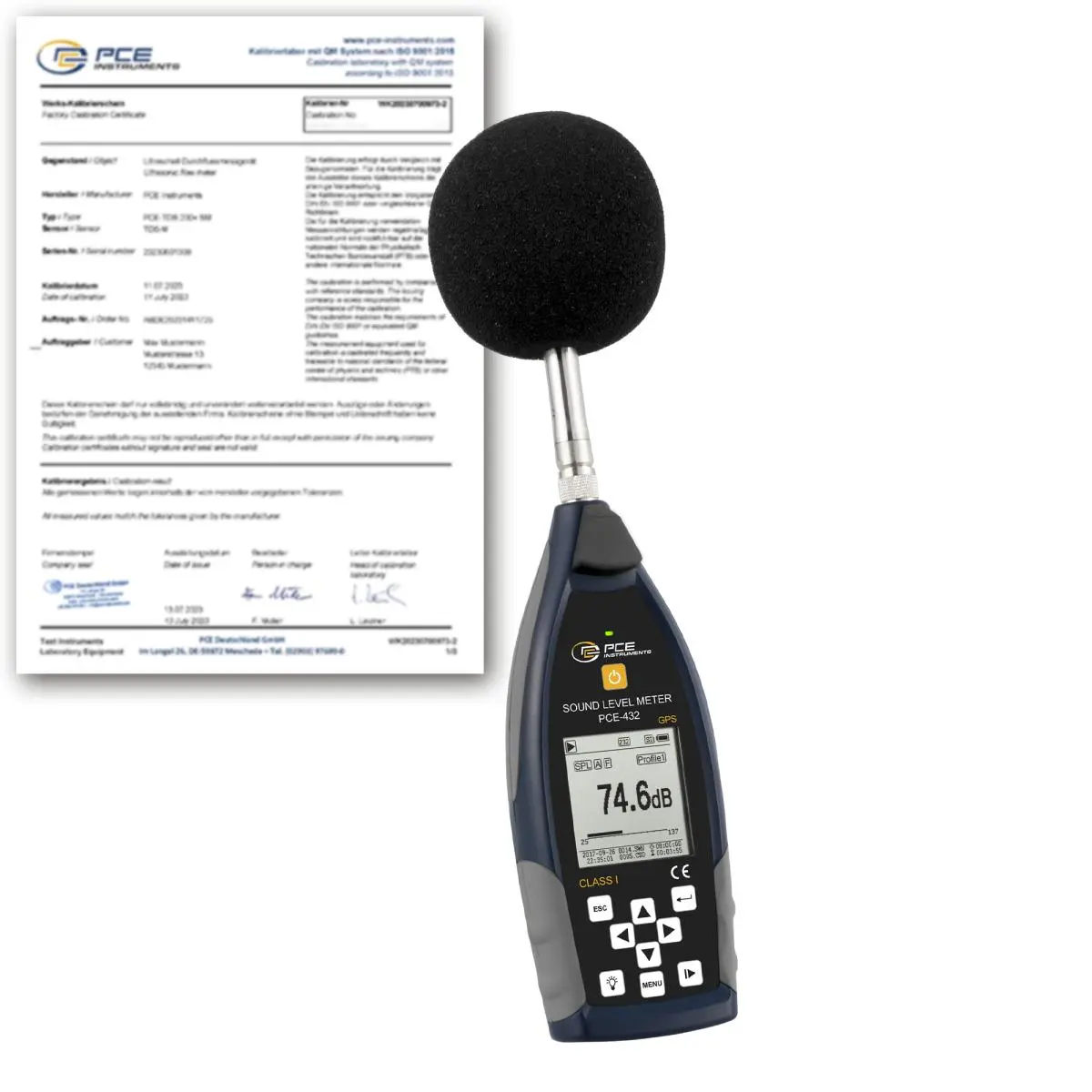

Class 1 Data-Logging Noise Meter / Sound Meter with GPS PCE-432-ICA incl. ISO Calibration Certificate
Portable high-accuracy decibel meter with 1/1 octave band filter (optional 1/3 octave band filter upgrade)

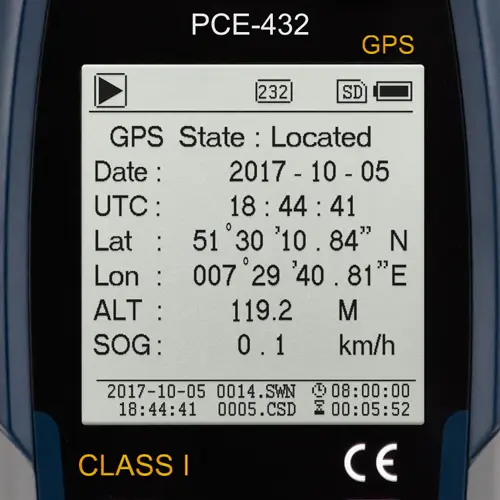

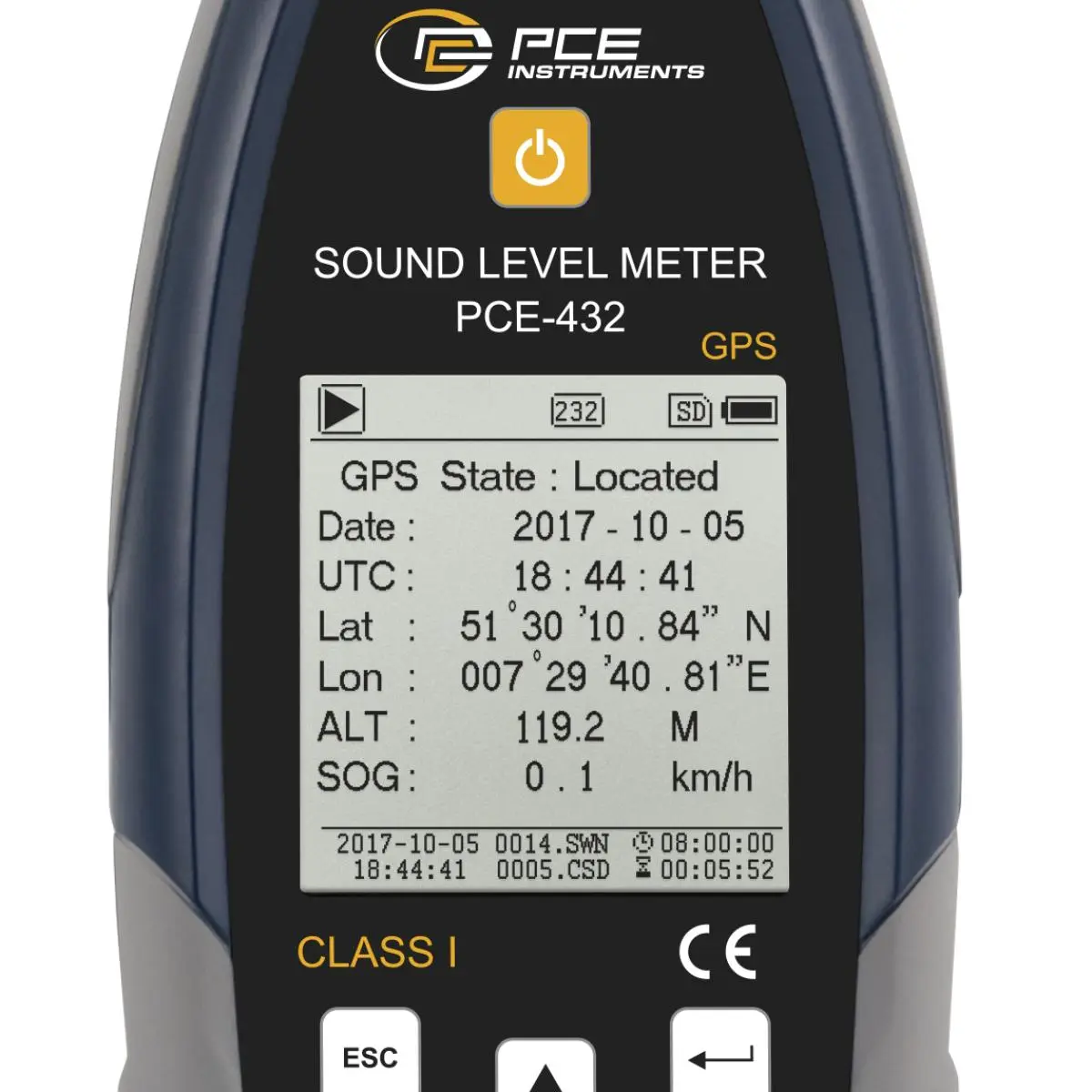

PCE-432 is a class 1 data-logging sound level meter that meets IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983 and ANSI S1.43-1997 requirements. This portable high-accuracy sound level meter is equipped with GPS functionality, allowing measured values to be assigned to an exact geographic location.

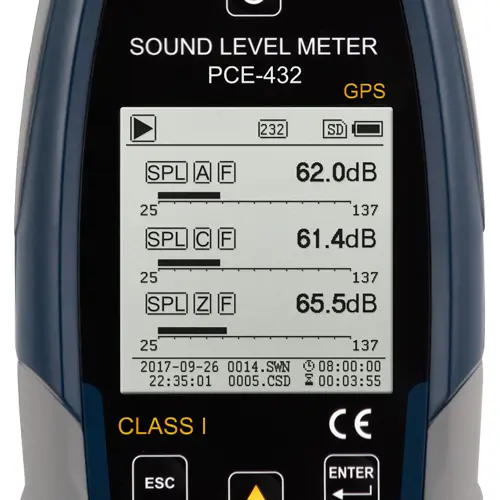

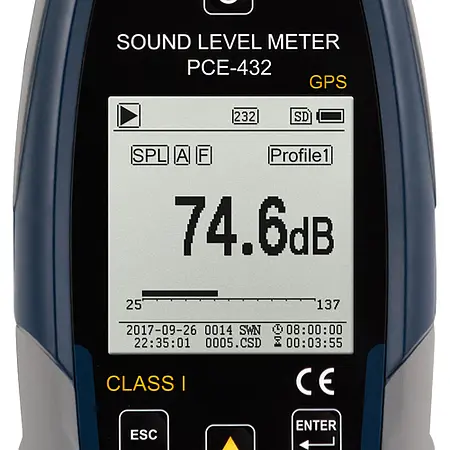

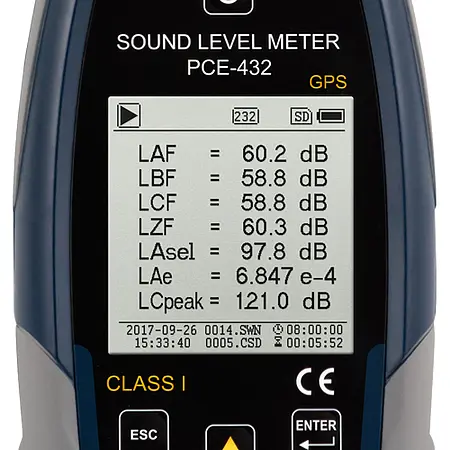

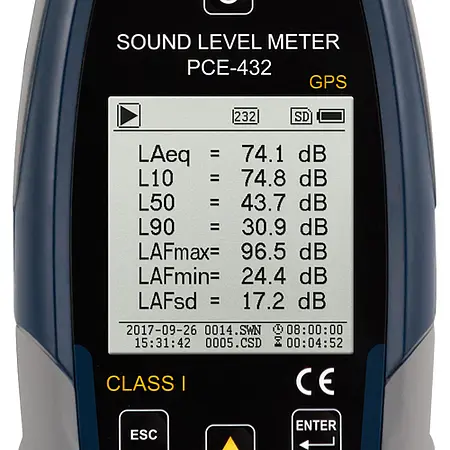

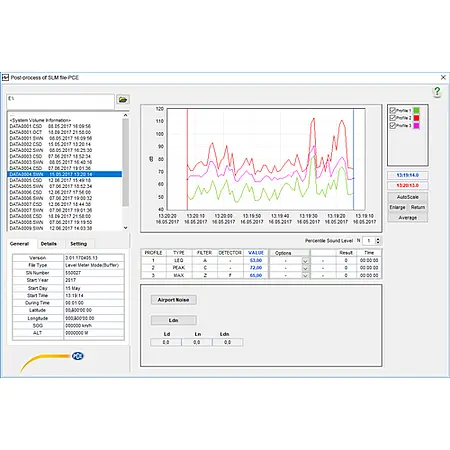

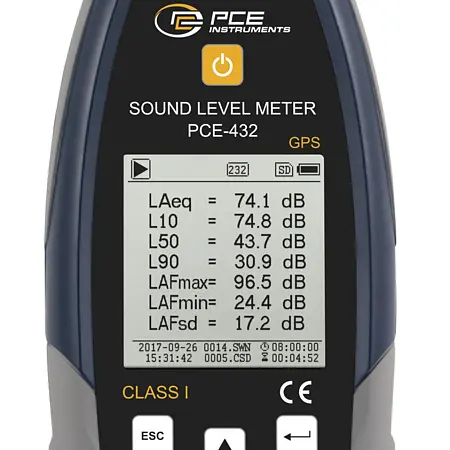

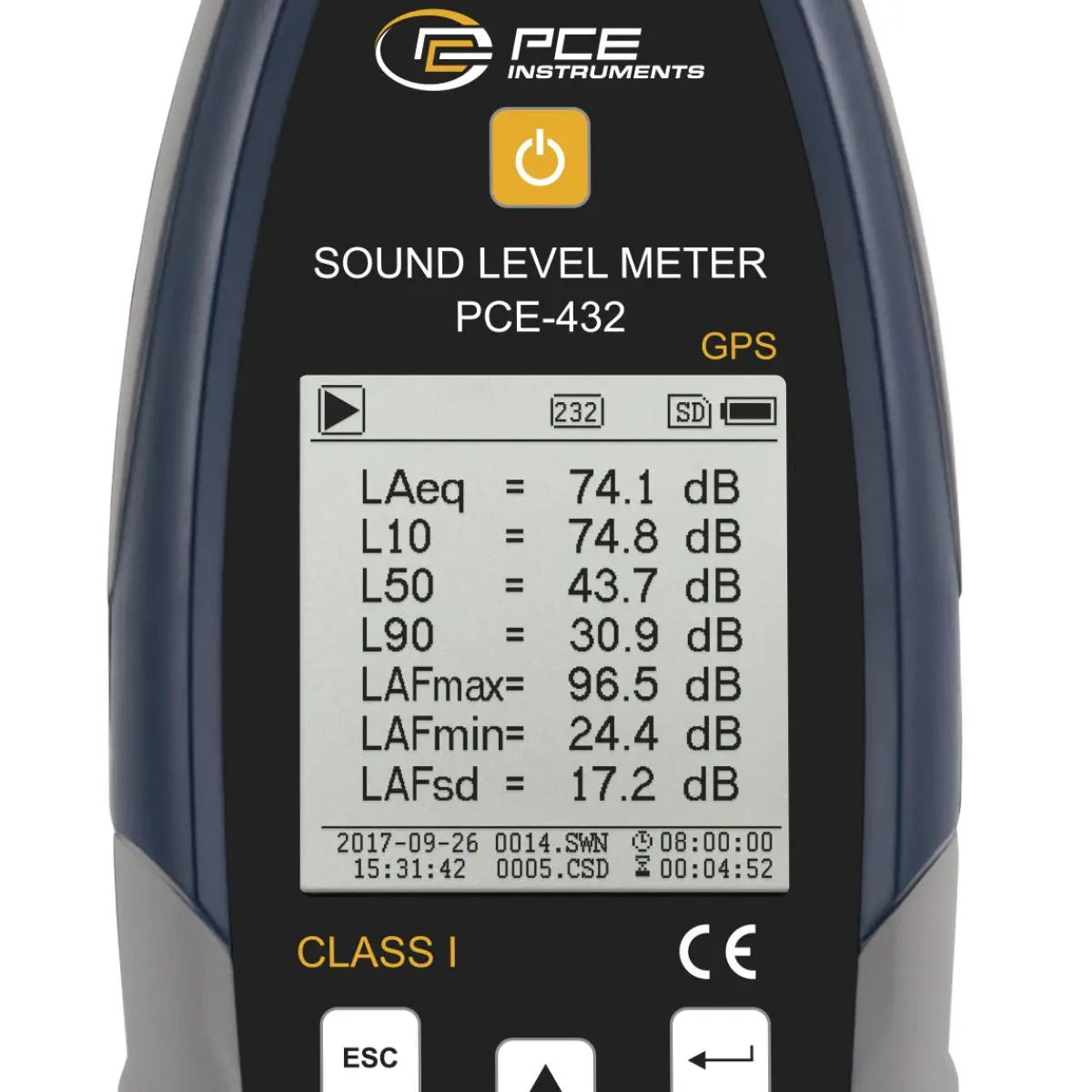

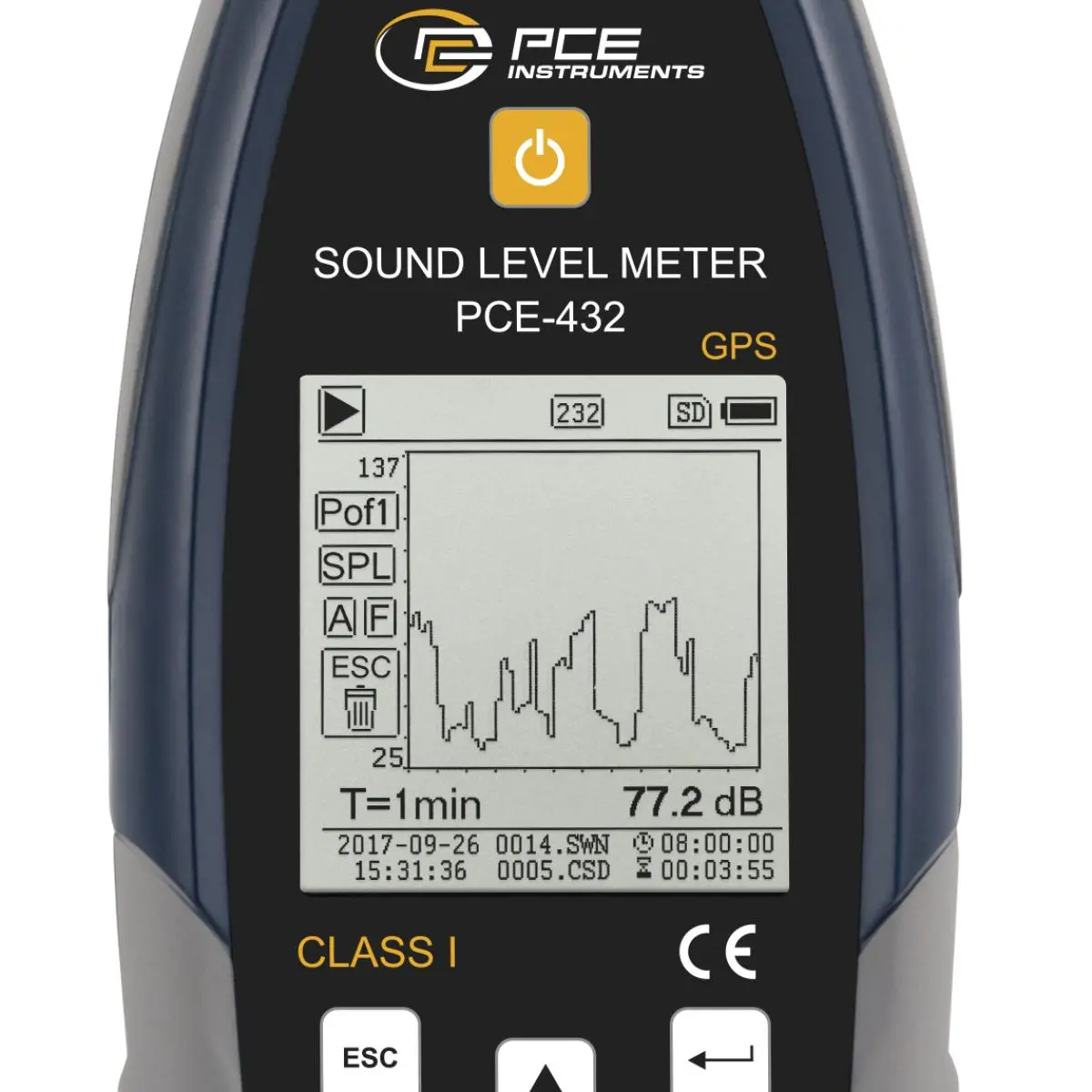

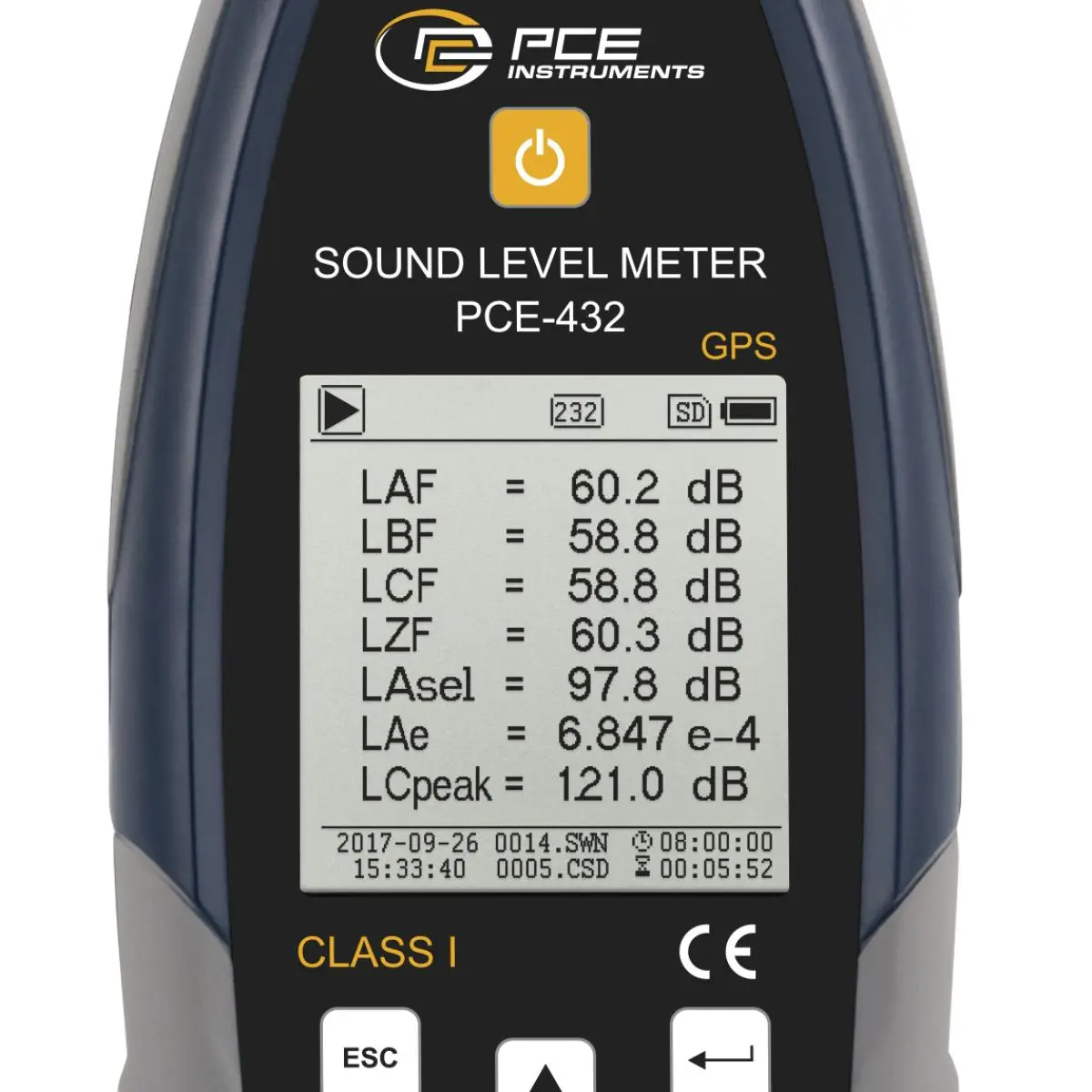

The meter has a large easy-to-read illuminated LCD screen that displays the sound pressure level (SPL) numerically and graphically in real time. Thanks to octave band filtering, even the slightest difference in frequency is detected. The handheld meter also functions as a data logger, recording measurements at an adjustable interval from 1 s ... 24 h and storing the recorded measurement data to a micro SD card memory. The SD card can be removed from the meter and inserted into the SD card reader of a PC. Alternatively, the decibel meter can be connected directly to a PC via USB. The provided PC-compatible software allows for quick and easy data analysis.

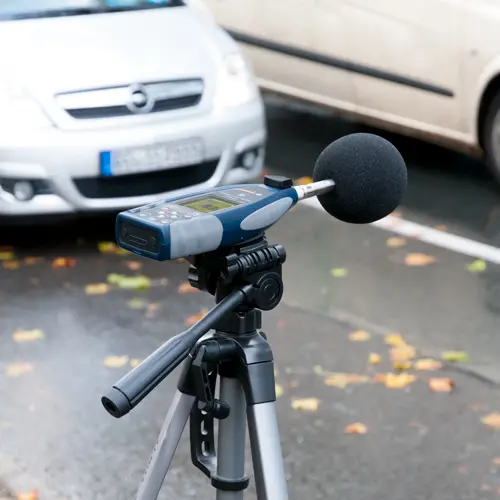

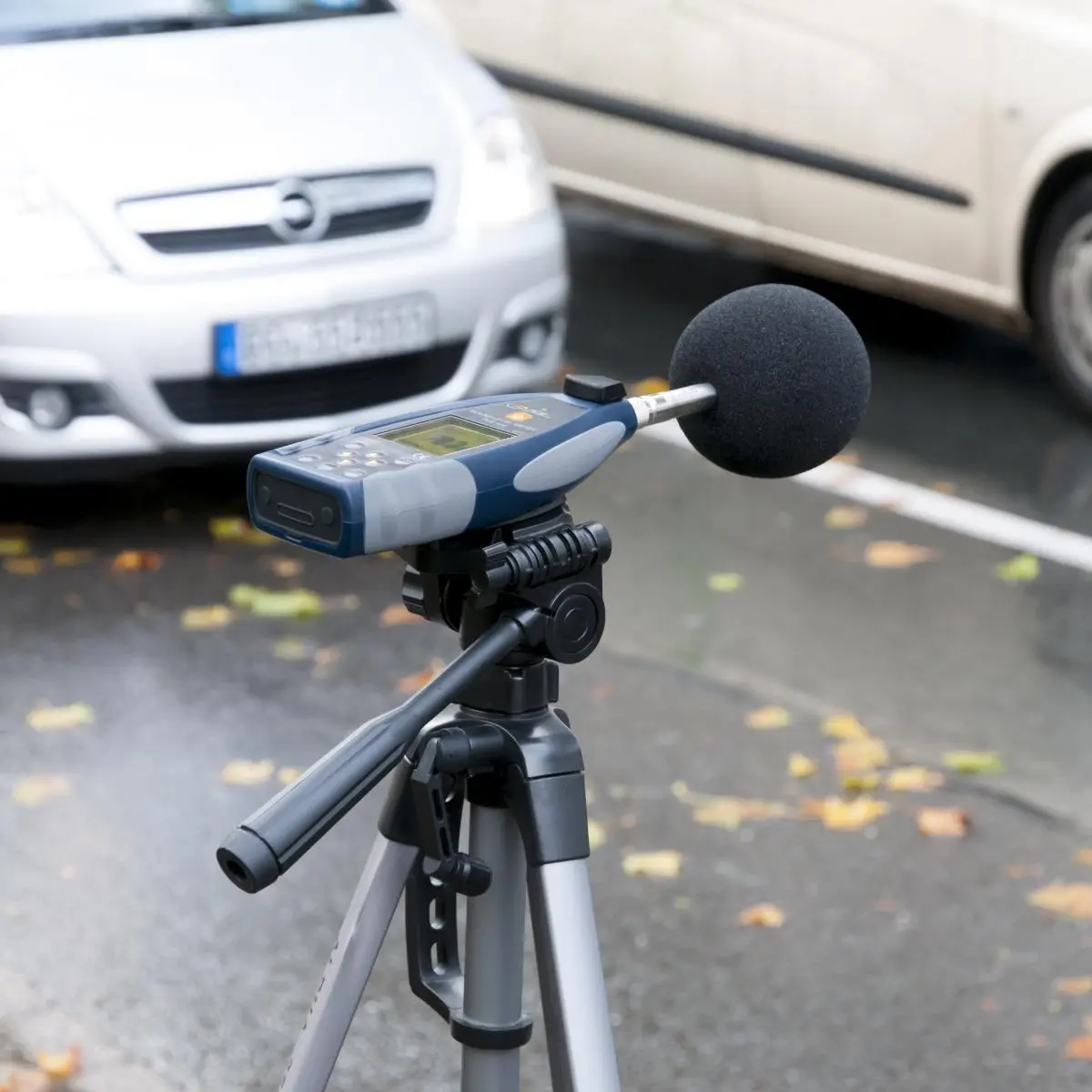

This device measures from 22 ... 136 db(A) at a frequency of 3 Hz ... 20 kHz. The meter features A, B, C and Z frequency weightings as well as fast, slow and impulse time weightings. The PCE-432 decibel meter is commonly used by professionals to ensure compliance with environmental noise regulations and workplace noise permissible exposure limits. It is also ideal for airport and air force base noise monitoring programs.
| Sound level | |
| Measuring range | 22 ... 136 dBA |
| Resolution | 0,1 dBA |
| Accuracy | Class 1 |
| General technical data | |
| Analogue output | AC 5V RMS, DC 10 mV/db |

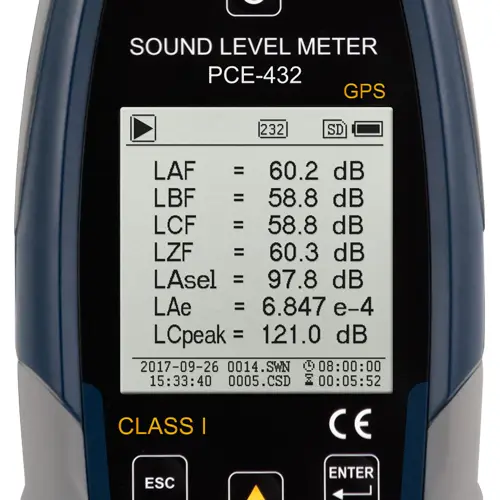

| Measuring functions | LXY(SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN |

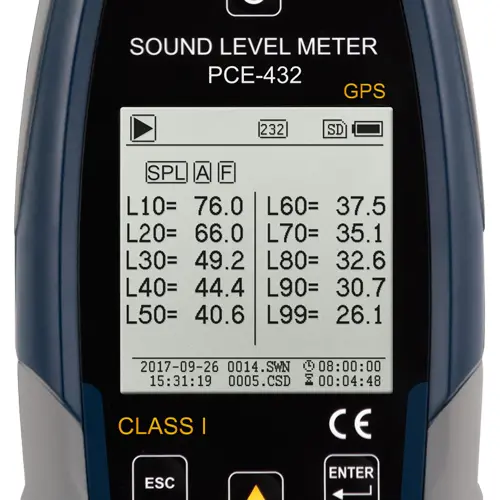

| Measuring functions (additional information) | X = Frequency weighting: A, B, C, Z; Y = time weighting: F, S, I; N = Statistics in %: 1 ... 99% Frequency analysis: Standard 1/1 octave filter 8 Hz ... 16 kHz Optional 1/3 octave filter 6.3 Hz ... 20 kHz |

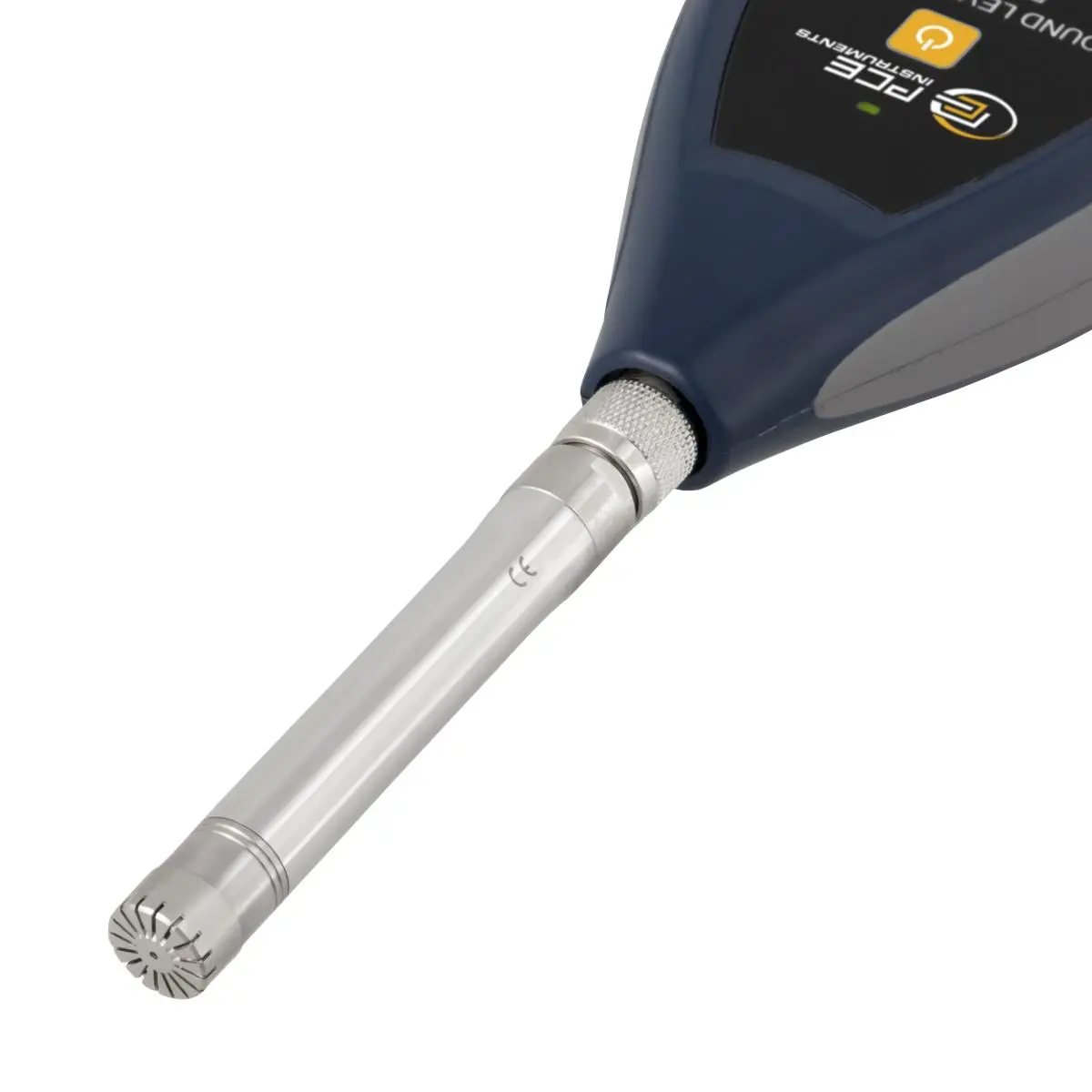

| Connections | 1/2 inch microphone |
| Time weighting | fast (125 ms), slow (1 s), Pulse (35ms), peak |
| Frequency weighting | A, B, C, Z |
| Frequency | 10 ... 20000 Hz |
| Display type | LCD with backlight |
| Display refresh rate | 1 x per second |
| Storage medium | Micro SD card |
| Storage capacity | 4 GB |
| Storage interval from | 0,1 s |
| Storage interval to | 24 h |
| Microphone type | Measurement microphone class 1 |
| Interface | Mini-USB, RS232 |
| Standard(s) | IEC 61672-1:2013, IEC 60651:1979, IEC 60804:2000, ANSI S1.43-1997, ANSI S1.4-1983, GB/T 3785.1-2010, GB/T3785.2-2010 |
| Operating time | 10 h |
| Automatic power-off | 30 min |
| Tripod thread | 1/4 inch |
| Sensitivity | 40 mV/PA |
| Menu language | German, English, Chinese, Portuguese, Spanish, French |
| Protection class (device) | IP20 |
| Power supply | 100 ... 240V AC | 50/60 Hz Plug-in power supply 12V / 1 A Mini-USB 5V / 1 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 4 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Performance | 4,5 Wh |
| Operating conditions | -10 ... 50 °C , 20 ... 90 % RH |
| Storage conditions | -10 ... 50 °C , 20 ... 90 % RH |
| Dimensions ( L x W x H ) | 200 x 80 x 36 mm |
| Weight | 252 g |
