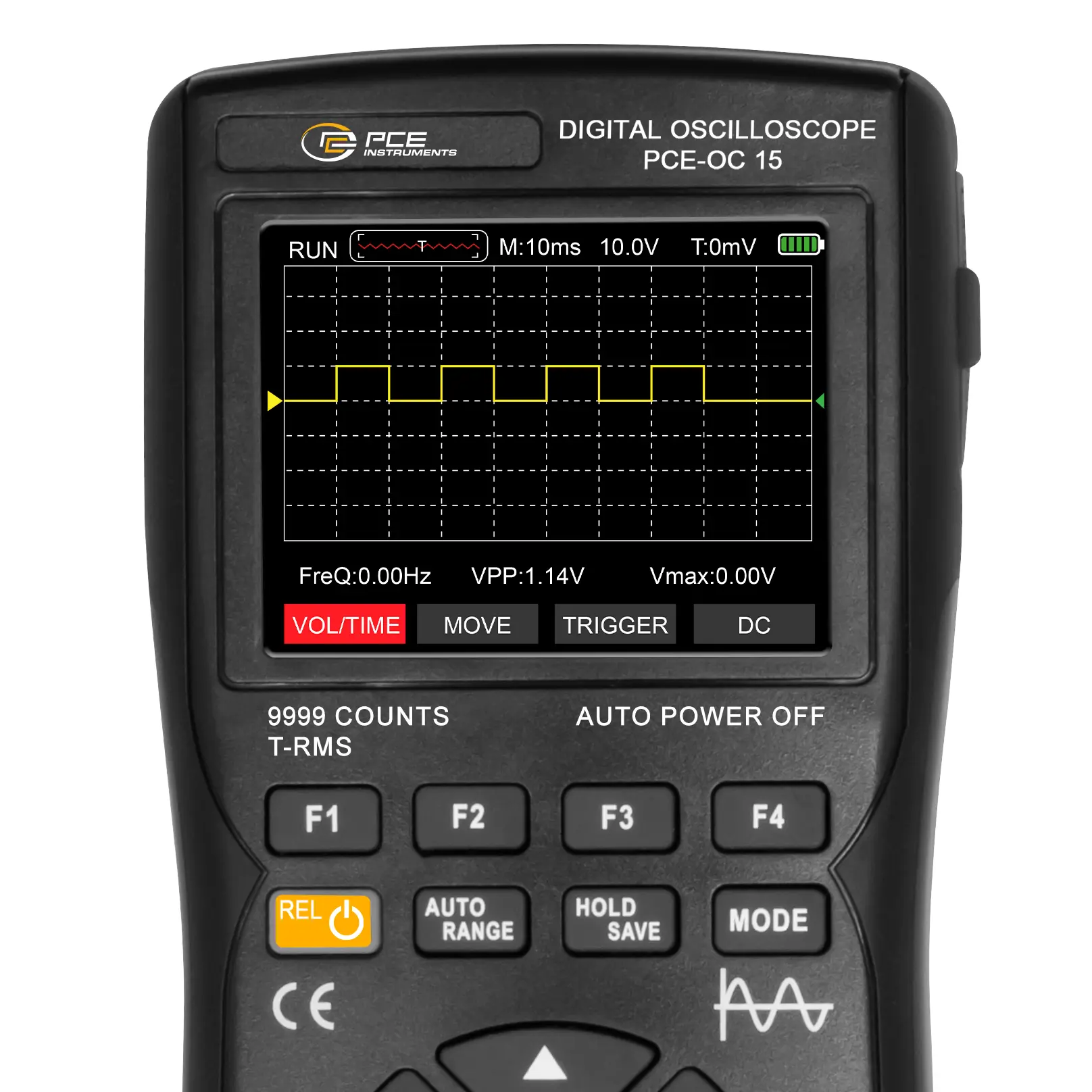

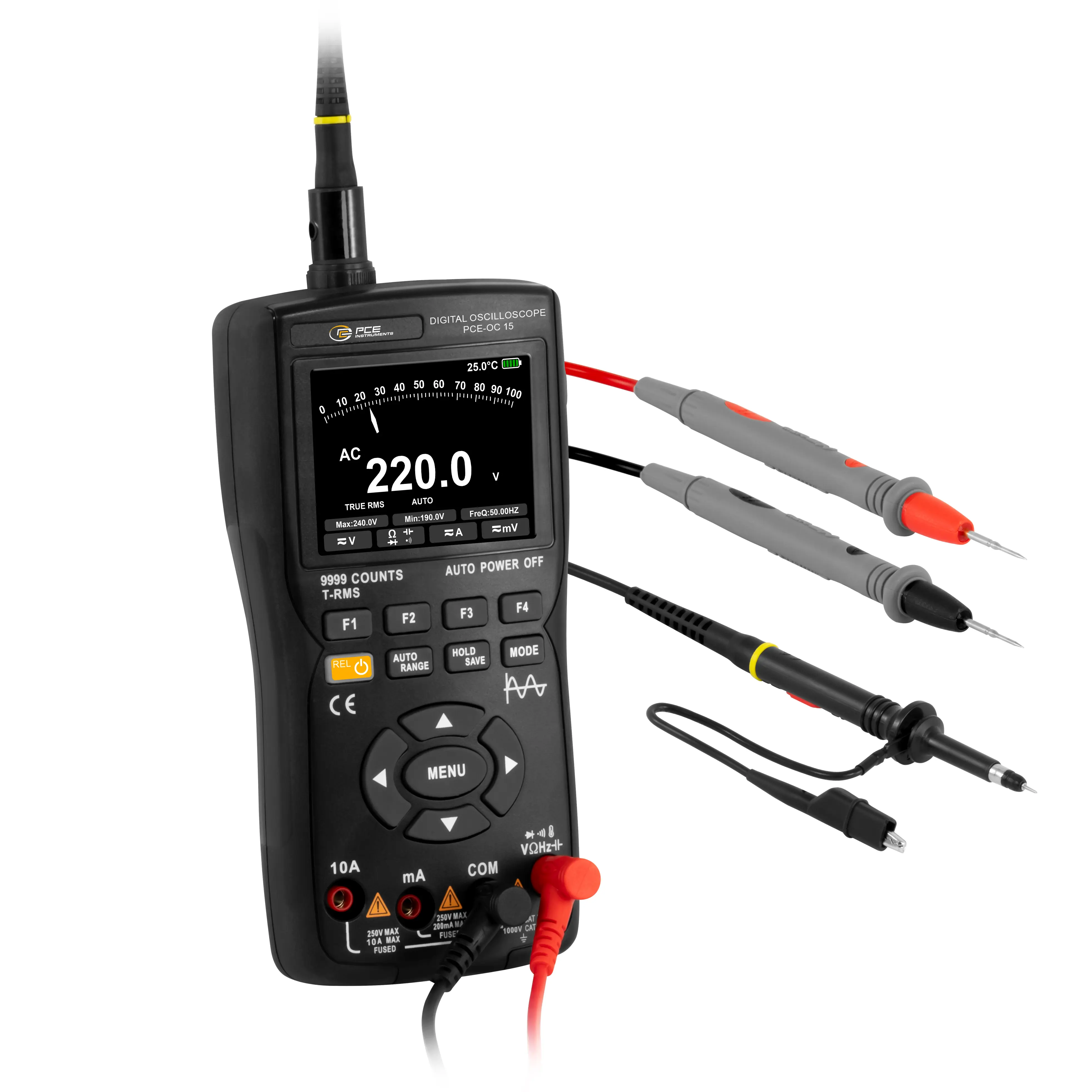

The Multimeter / TRMS Multimeter was developed for practical and mobile use and can be used universally thanks to its diverse measurement functions. Our Multimeter / TRMS Multimeter reliably measures voltage, current, frequency, resistance, temperature, capacitance and offers a diode and continuity test. The MODE key makes it easy to switch between digital multimeter and Multimeter / TRMS Multimeter mode. With a bandwidth of 10 MHz and a fast sampling rate of 48 MSa/s, it ensures precise and quick data acquisition.

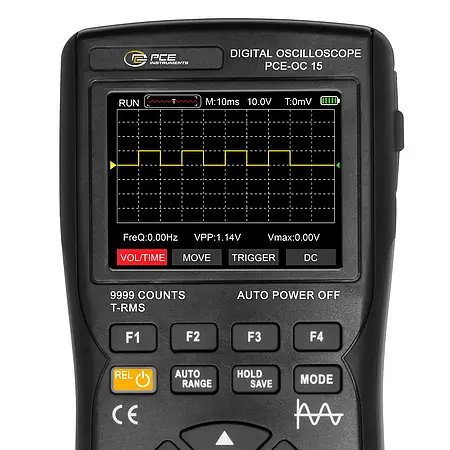

The device supports the storage of waveform data which can be exported as images and transferred to a PC. An LED backlight with adjustable brightness and power-off time as well as multifunctional keys make operation easier for the user. With a rechargeable battery via the C-type interface and a long standby time, the Multimeter / TRMS Multimeter multimeter is ideal for long working hours, while the measured values are updated three times per second to always provide up-to-date data. The hand-held Multimeter / TRMS Multimeter multimeter is an ideal companion for service technicians on site or in any electrical workshop.
| Direct voltage DC | |
| Measurement range up to | 0 ... 9,999 mV |
| Resolution | 0,001 mV |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct voltage DC | |
| Measurement range up to | 10 ... 99,99 mV |
| Resolution | 0,01 mV |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct voltage DC | |
| Measurement range up to | 100 ... 999,9 mV |
| Resolution | 0,1 mV |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct voltage DC | |
| Measurement range up to | 1 ... 9,999 V |
| Resolution | 0,001 V |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct voltage DC | |
| Measurement range up to | 10 ... 99,99 V |
| Resolution | 0,01 V |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct voltage DC | |
| Measurement range up to | 100 ... 999,9 V |
| Resolution | 0,1 V |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Direct current DC | |
| Measurement range up to | 0 ... 9999 µA |
| Resolution | 1 µA |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Direct current DC | |
| Measurement range up to | 10 ... 99,99 mA |
| Resolution | 0,01 mA |
| Accuracy | ±(0.8 % of Rd +3 digits) |
| Direct current DC | |
| Measurement range up to | 100 ... 999,9 mA |
| Resolution | 0,1 mA |
| Accuracy | ±(1 % of Rd +3 digits) |
| Direct current DC | |
| Measurement range up to | 1 ... 9,999 A |
| Resolution | 0,001 A |
| Accuracy | ±(1 % of Rd +3 digits) |
| Capacity | |
| Measurement range up to | 0 ... 9,999 nF |
| Resolution | 0,001 nF |
| Accuracy | ±(5 % of Rd +20 digits) |
| Capacity | |
| Measurement range up to | 10 ... 99,99 nF |
| Resolution | 0,01 nF |
| Accuracy | ±(2 % of Rd +5 digits) |
| Capacity | |
| Measurement range up to | 100 ... 999,9 nF |
| Resolution | 0,1 nF |
| Accuracy | ±(2 % of Rd +5 digits) |
| Capacity | |
| Measurement range up to | 1 ... 9,999 µF |
| Resolution | 0,001 µF |
| Accuracy | ±(2 % of Rd +5 digits) |
| Capacity | |
| Measurement range up to | 10 ... 99,99 µF |
| Resolution | 0,01 µF |
| Accuracy | ±(2 % of Rd +5 digits) |
| Capacity | |
| Measurement range up to | 100 ... 999,9 µF |
| Resolution | 0,1 µF |
| Accuracy | ±(5 % of Rd +5 digits) |
| Capacity | |
| Measurement range up to | 1 ... 9,999 mF |
| Resolution | 0,001 mF |
| Accuracy | ±(5 % of Rd +5 digits) |
| Capacity | |
| Measurement range up to | 10 ... 99,99 mF |
| Resolution | 0,01 mF |
| Accuracy | ±(5 % of Rd +5 digits) |
| AC voltage | |
| Measurement range up to | 0 ... 9,999 mV |
| Resolution | 0,001 mV |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 10 ... 99,99 mV |
| Resolution | 0,01 mV |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 100 ... 999,9 mV |
| Resolution | 0,1 mV |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 1 ... 9,999 V |
| Resolution | 0,001 V |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 10 ... 99,99 V |
| Resolution | 0,01 V |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 100 ... 750 V |
| Resolution | 0,1 V |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measurement range up to | 0 ... 9999 µA |
| Resolution | 1 µA |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measurement range up to | 10 ... 99,99 mA |
| Resolution | 0,01 mA |
| Accuracy | ±(1 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measurement range up to | 100 ... 999,9 mA |
| Resolution | 0,1 mA |
| Accuracy | ±(1.2 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| Alternating current AC | |
| Measurement range up to | 1 ... 9,999 A |
| Resolution | 0,001 A |
| Accuracy | ±(1.2 % of Rd +3 digits) |
| Frequency range | 40 ... 1000 Hz |
| Resistance | |
| Measurement range up to | 0 ... 99,99 Ω |
| Resolution | 0,01 Ω |
| Accuracy | ±(1 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 100 ... 999,9 Ω |
| Resolution | 0,1 Ω |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 1000 Ω ... 9,999 kΩ |
| Resolution | 0,001 kΩ |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 10 ... 99,99 kΩ |
| Resolution | 0,01 kΩ |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 100 ... 999,9 kΩ |
| Resolution | 0,1 kΩ |
| Accuracy | ±(0.5 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 1000 kΩ ... 9,999 M Ω |
| Resolution | 0,001 mΩ |
| Accuracy | ±(1.5 % of Rd +3 digits) |
| Resistance | |
| Measurement range up to | 10 ... 99,99 M Ω |
| Resolution | 0,01 mΩ |
| Accuracy | ±(3 % of Rd +5 digits) |
| Frequency | |
| Measurement range up to | 0 ... 99,99 Hz |
| Resolution | 0,01 Hz |
| Accuracy | ±(0.1 % of Rd +2 digits) |
| Frequency | |
| Measurement range up to | 100 ... 999,9 Hz |
| Resolution | 0,1 Hz |
| Accuracy | ±(0.1 % of Rd +2 digits) |
| Frequency | |
| Measurement range up to | 1000 Hz ... 9,999 kHz |
| Resolution | 0,001 kHz |
| Accuracy | ±(0.1 % of Rd +2 digits) |
| Frequency | |
| Measurement range up to | 10 ... 99,99 kHz |
| Resolution | 0,01 kHz |
| Accuracy | ±(0.1 % of Rd +2 digits) |
| Frequency | |
| Measurement range up to | 100 ... 999,9 kHz |
| Resolution | 0,1 kHz |
| Accuracy | ±(0.1 % of Rd +2 digits) |

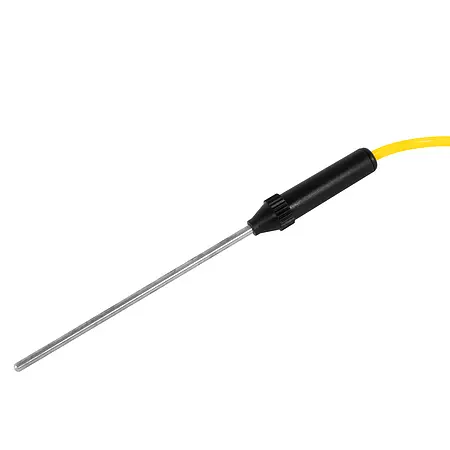

| Temperature | |
| Measurement range up to | -20 ... +1000 °C |
| Resolution | 1 °C |
| Accuracy | ±(2.5 % of Rd +5 digits) |
| Temperature | |
| Measurement range up to | -4 ... +1832 °F |
| Resolution | 1 °F |
| Accuracy | ±(2.5 % of Rd +5 digits) |
| Oscilloscope specifications | |
| Number of channels | 1 |
| Measuring functions | Period, Frequency, Peak-peak, MAX, MIN, RMS value |
| Sampling rate | 48 MSa/s |
| Input impedance | 1 M Ω |
| Probe factors | X1, X10 |
| Max. input voltage | 150 V |
| Adjustable sampling rate | 1.5 Sa/s ... 48 MSa/s |
| Time base | 100 ns/div ... 20 s/div |
| Accuracy | 20 ppm |
| Vertical sensitivity | 20 mV/div ... 10 V/div |
| Rise time | 10 ns |
| DC gain accuracy | ±3 % |
| General technical data | |
| Display type | LCD |
| Display size | 2,76 Inch |
| Measuring rate | 3 Hz |
| Storage medium | Internal memory |
| Storage capacity | 15 MB |
| Memory information | Screenshot on keystroke |

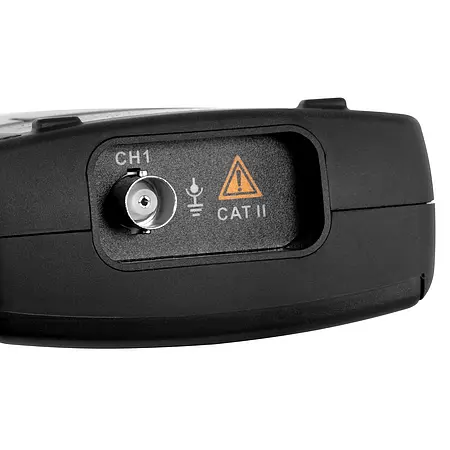

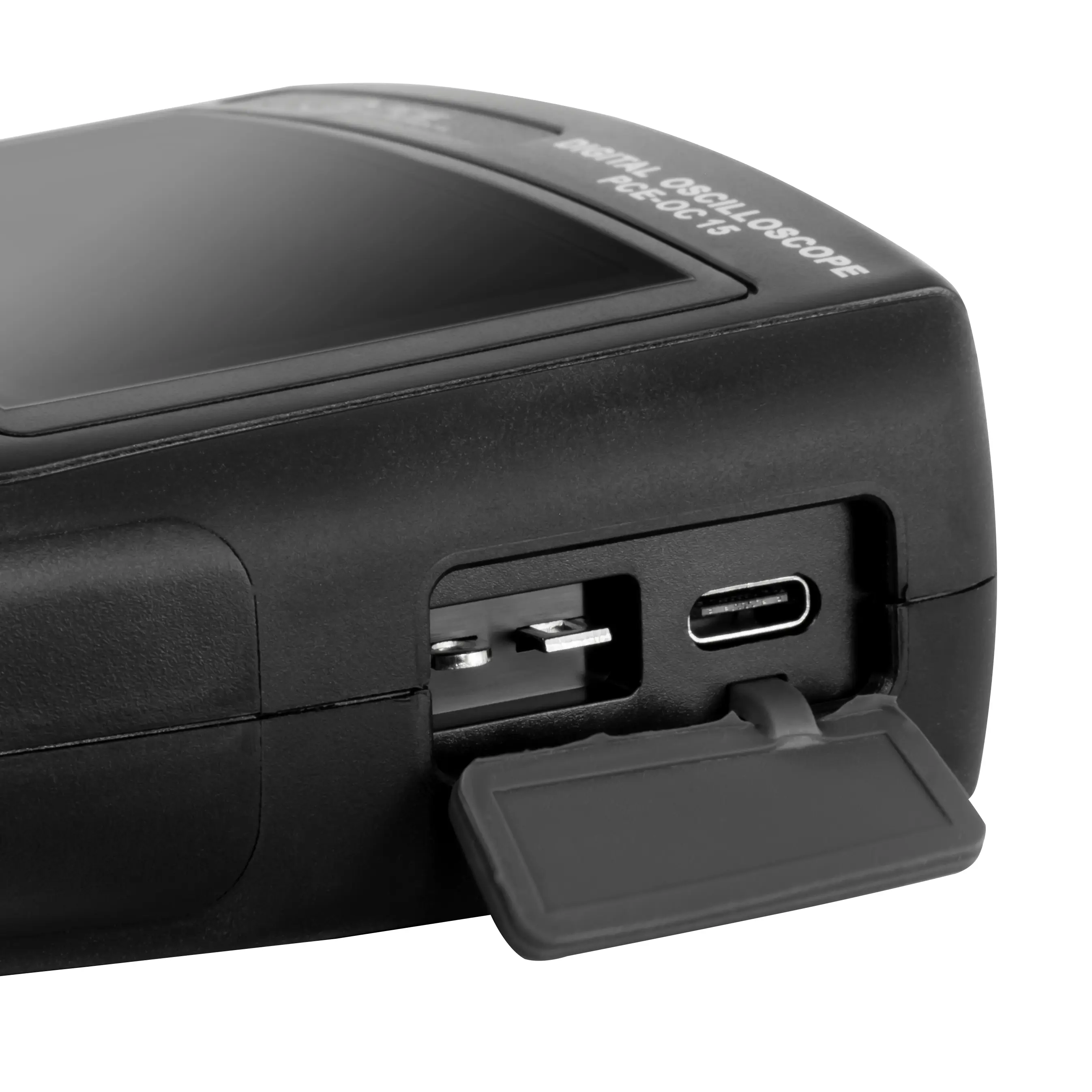

| Interface | USB-C, BNC |
| Automatic power-off from...to | 15 ... 120 min. |
| Automatic power-off can be deactivated | Yes |
| Safety standard | CAT III 600 V, CAT II 1000 V |
| Fuse(s) | Microfuse 10 A |
| Trigger input | Mode: auto, normal, single Edge: rising, falling |
| Menu language | English, Chinese, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 100 ... 240 V AC | 50/60 Hz |
| Weight | 352 g |
| Operating conditions | 0 ... 40 °C , 0 ... 75 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 80 % RH |
| (Rechargeable) battery | 1 x 3,7 V 18650 , lithium |
| Capacity | 2000 mAh |
| Dimensions ( L x W x H ) | 175 x 90 x 40 mm |
