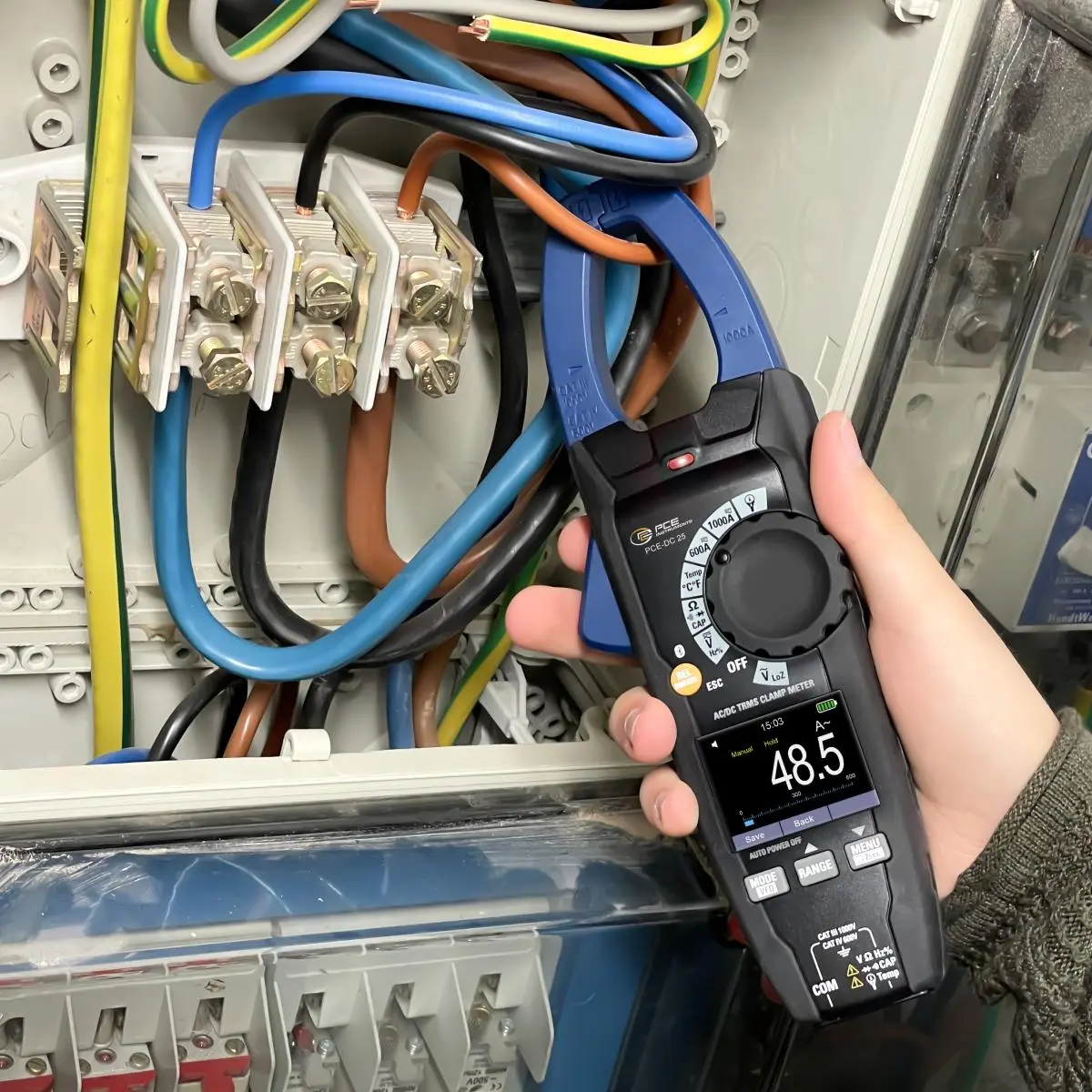

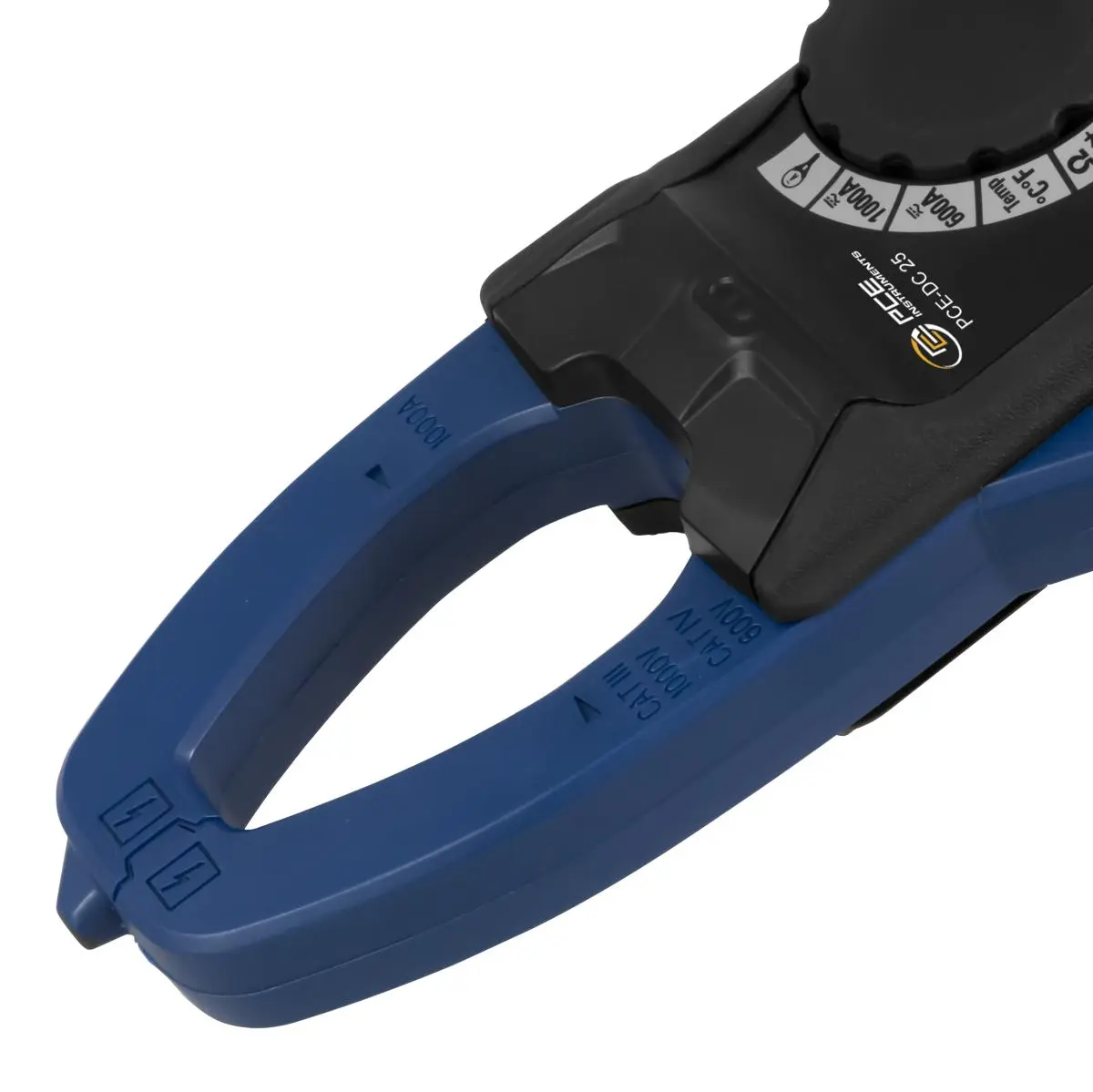

The Multimeter / TRMS Multimeter has a measuring range of 0 … 1000 A AC/DC. The current is measured inductively using the clamp on the measuring device. Live supply lines with a diameter of up to 32 mm (1.2") can be connected to the Multimeter / TRMS Multimeter. With the optional Rogowski coil, the measuring range of the Multimeter / TRMS Multimeter can be extended to up to 3000 A AC. The Multimeter / TRMS Multimeter has sub-functions for current measurement. The inrush current can be measured with the Multimeter / TRMS Multimeter. This is a particularly important function, as motors such as those installed in ventilation systems or hall lighting require a particularly high current when switched on.

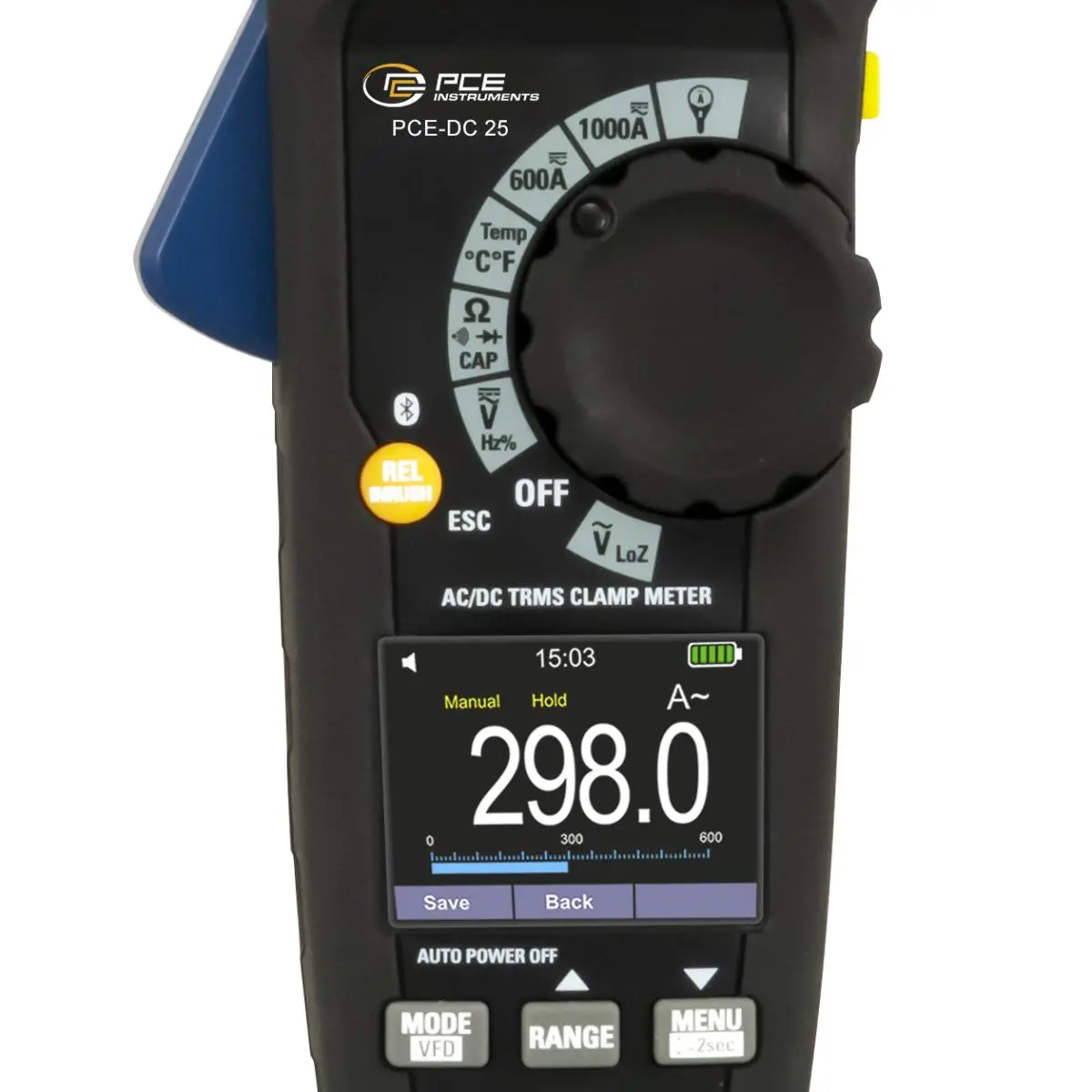

In addition to current measurement, the Multimeter / TRMS Multimeter can also measure voltages from 0 … 1000 V AC/DC, resistances, frequencies and capacitances. The functions can be set using the rotary selector switch on the Multimeter / TRMS Multimeter. With the NCV function, the Multimeter / TRMS Multimeter can be used to determine the absence of voltage without contact. As soon as a voltage of 150 V AC is applied, this is indicated by an additional red LED. This function is active for every measuring function selected using the rotary selector switch. An LED lamp is integrated in the Multimeter / TRMS Multimeter for optimal illumination of the measuring point.
The Multimeter / TRMS Multimeter can be connected to an Android or iOS device via the Bluetooth interface. With the free app for the Multimeter / TRMS Multimeter, the measured values can be displayed, saved and further processed. The Multimeter / TRMS Multimeter thus covers a wide range of measuring tasks due to the multitude of functions.
| Direct voltage DC | |
| Measuring range | 0 ... 600 mV |
| Resolution | 0,1 mV |
| Accuracy | ±(0.5 % +8 digits) |
| Overload | 1000 V AC/DC |
| Direct voltage DC | |
| Measuring range | 0 ... 6 V |
| Resolution | 0,001 V |
| Accuracy | ±(1.5 % +5 digits) |
| Direct voltage DC | |
| Measuring range | 0 ... 60 V |
| Resolution | 0,01 V |
| Accuracy | ±(1.5 % +5 digits) |
| Direct voltage DC | |
| Measuring range | 0 ... 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(1.5 % +5 digits) |
| Direct voltage DC | |
| Measuring range | 0 ... 1000 V |
| Resolution | 1 V |
| Accuracy | ±(1.5 % + 5 digits) |
| Direct current DC | |
| Measuring range | 0 ... 600 A |
| Resolution | 0,1 A |
| Accuracy | ±(2.5 % +5 digits) |
| Direct current DC | |
| Measuring range | 0 ... 1000 A |
| Resolution | 1 A |
| Accuracy | ±(2.8% +5 digits) |
| Capacity | |
| Measuring range | 0 ... 60 nF |
| Resolution | 0,01 nF |
| Accuracy | ±(4% +20 digits) |
| Capacity | |
| Measuring range | 0 ... 600 nF |
| Resolution | 0,1 nF |
| Accuracy | ±(3% +8 digits) |
| Capacity | |
| Measuring range | 0 ... 6 µF |
| Resolution | 0,001 µF |
| Accuracy | ±(3% +8 digits) |
| Capacity | |
| Measuring range | 0 ... 60 µF |
| Resolution | 0,01 µF |
| Accuracy | ±(3% +8 digits) |
| Capacity | |
| Measuring range | 0 ... 600 µF |
| Resolution | 0,1 µF |
| Accuracy | ±(3% +8 digits) |
| Capacity | |
| Measuring range | 0 ... 6000 µF |
| Resolution | 1 µF |
| Accuracy | ±(5% +8 digits) |
| Capacity | |
| Measuring range | 0 ... 60 mF |
| Resolution | 0,01 mF |
| Accuracy | ±(5% +20 digits) |
| Capacity | |
| Measuring range | 0 ... 100 mF |
| Resolution | 0,1 mF |
| Accuracy | ±(5% +20 digits) |
| Alternating current AC | |
| Measuring range | 0 ... 600 A |
| Resolution | 0,1 A |
| Accuracy | ±(2.5 % +5 digits) |
| Overload | 1000 A AC |
| Frequency range | 50 ... 60 Hz |
| Alternating current AC | |
| Measuring range | 0 ... 1000 A |
| Resolution | 1 A |
| Accuracy | ±(2.8% +5 digits) |
| Frequency range | 50 ... 60 Hz |
| Resistance | |
| Measuring range | 0 ... 600 Ω |
| Resolution | 0,1 Ω |
| Accuracy | ±(1% +10 Digits) |
| Resistance | |
| Measuring range | 0 ... 6 kΩ |
| Resolution | 0,001 kΩ |
| Accuracy | ±(1.5 % +5 digits) |
| Resistance | |
| Measuring range | 0 ... 60 kΩ |
| Resolution | 0,01 kΩ |
| Accuracy | ±(1.5 % +5 digits) |
| Resistance | |
| Measuring range | 0 ... 600 kΩ |
| Resolution | 0,1 kΩ |
| Accuracy | ±(1.5 % +5 digits) |
| Resistance | |
| Measuring range | 0 ... 6 M Ω |
| Resolution | 0,001 M Ω |
| Accuracy | ±(2.5 % +5 digits) |
| Resistance | |
| Measuring range | 0 ... 60 M Ω |
| Resolution | 0,01 M Ω |
| Accuracy | ±(3.5% +10 Digits) |
| Frequency | |
| Measuring range | 9,999 Hz ... 99,9 kHz |
| Resolution | 10 Hz |
| Accuracy | ±(1.2 % +5 digits) |
| Temperature | |
| Measuring range | -40 ... +600 °C |
| Resolution | 0,1 °C |
| Accuracy | ±(1.5 % +5 digits) |
| Temperature | |
| Measuring range | 600 ... 1000 °C |
| Resolution | 1 °C |
| Accuracy | ±(1.5 % +5 digits) |
| Temperature | |
| Measuring range | -40 ... +1112 °F |
| Resolution | 0,1 °F |
| Accuracy | ±(1.5% +9 Digits) |
| Temperature | |
| Measuring range | 1112 ... 1800 °F |
| Resolution | 1 °F |
| Accuracy | ±(1.5% +9 Digits) |
| General technical data | |
| Display type | LC colour display |
| Measuring rate | 3 x per second |
| Interface | Wireless |
| Maximum cable diameter | 34 mm |
| Automatic power-off from...to | 15 ... 60 min. |
| Dimensions | Clamp opening: 34 mm / 1.3 inches |
| Diode test | Test current: <1.5 mA Maximum voltage with open circuit: 3.3V DC |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 3 x 1,5 V AAA battery , Alkali-manganese |
| Capacity | 1200 mAh |
| Operating conditions | 5 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | -20 ... 40 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 250 x 80 x 40 mm |
| Weight | 210 g |
