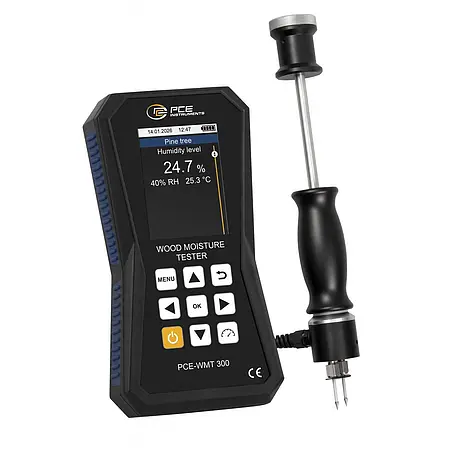

Moisture Tester for Wood PCE-WMT 300

Moisture Tester for Wood PCE-WMT 300

Order no.: PCE-WMT 300
GTIN (EAN): 4250348739469
£ 463.00
£ 555.60
price ex. (VAT / delivery)
:
4250348739469
PCE-WMT 300
Delivery time:1-2 working days

Description

Moisture Tester for Wood for more than 42 types of wood / Temperature compensation / Statistical evaluation / USB-C / PC software / Memory

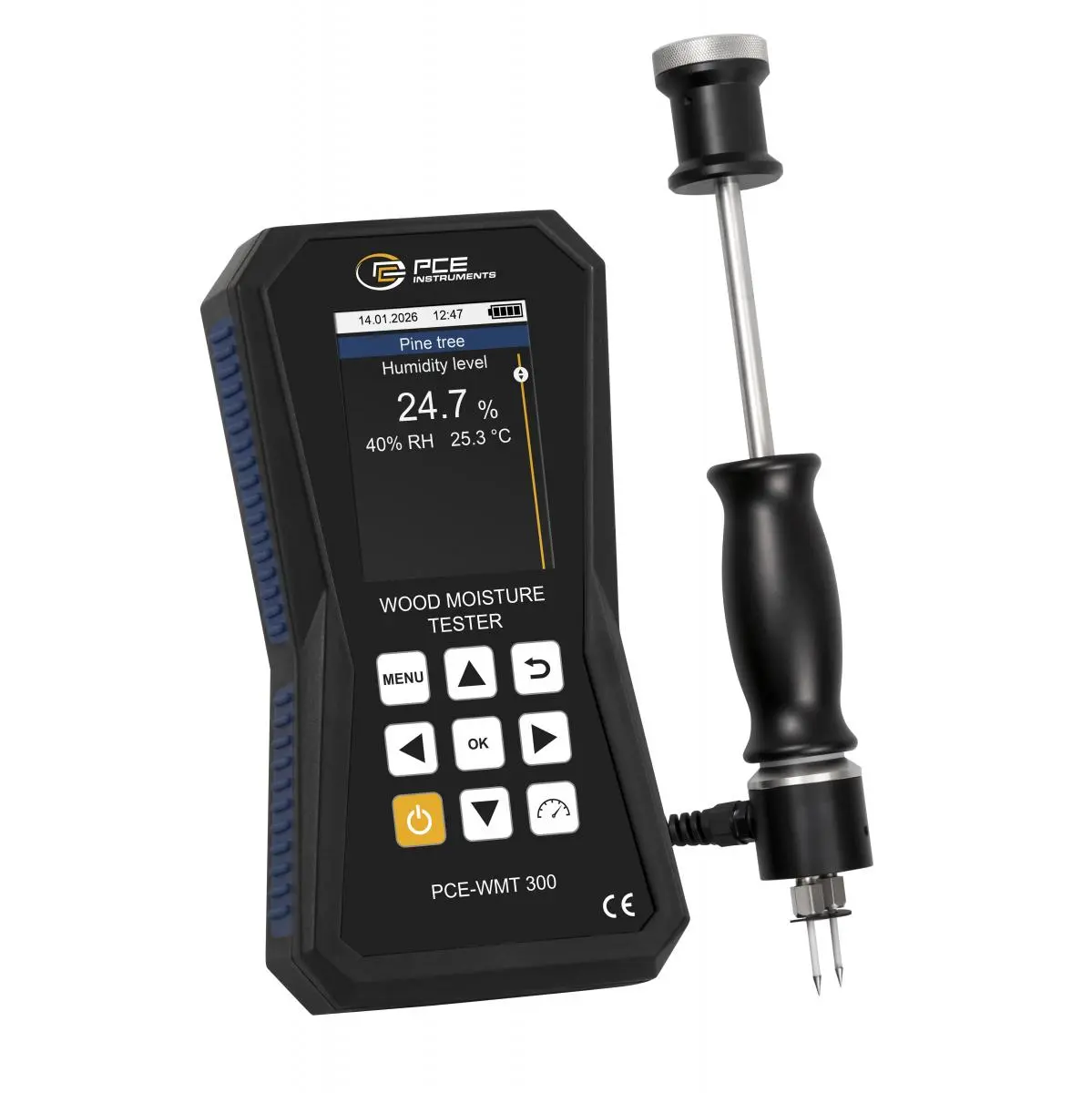

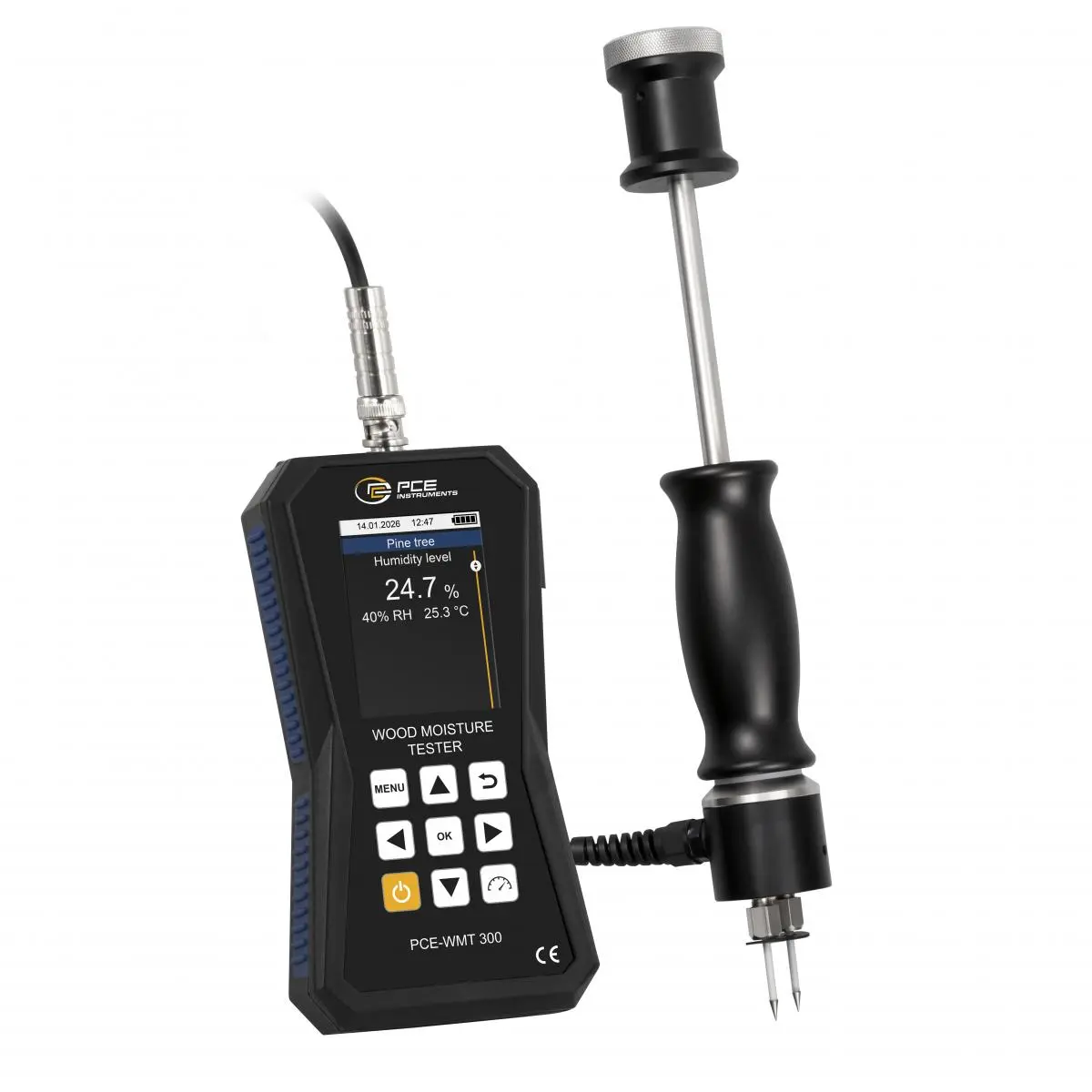

The Moisture Tester for Wood is a versatile measuring instrument for determining the moisture content in hardwoods, softwoods and selected building materials. With its resistive measuring principle and robust ram electrode, the Moisture Tester for Wood enables reliable and precise moisture measurements in up to 42 different types of wood. User-defined materials can also be added. Depending on the material, the measuring ranges extend from 3.5% to 150% wood moisture, with a high resolution of 0.1% and a repeat accuracy of ±0.5%. Temperature compensation can be performed both manually and automatically to ensure accurate results under different environmental conditions.

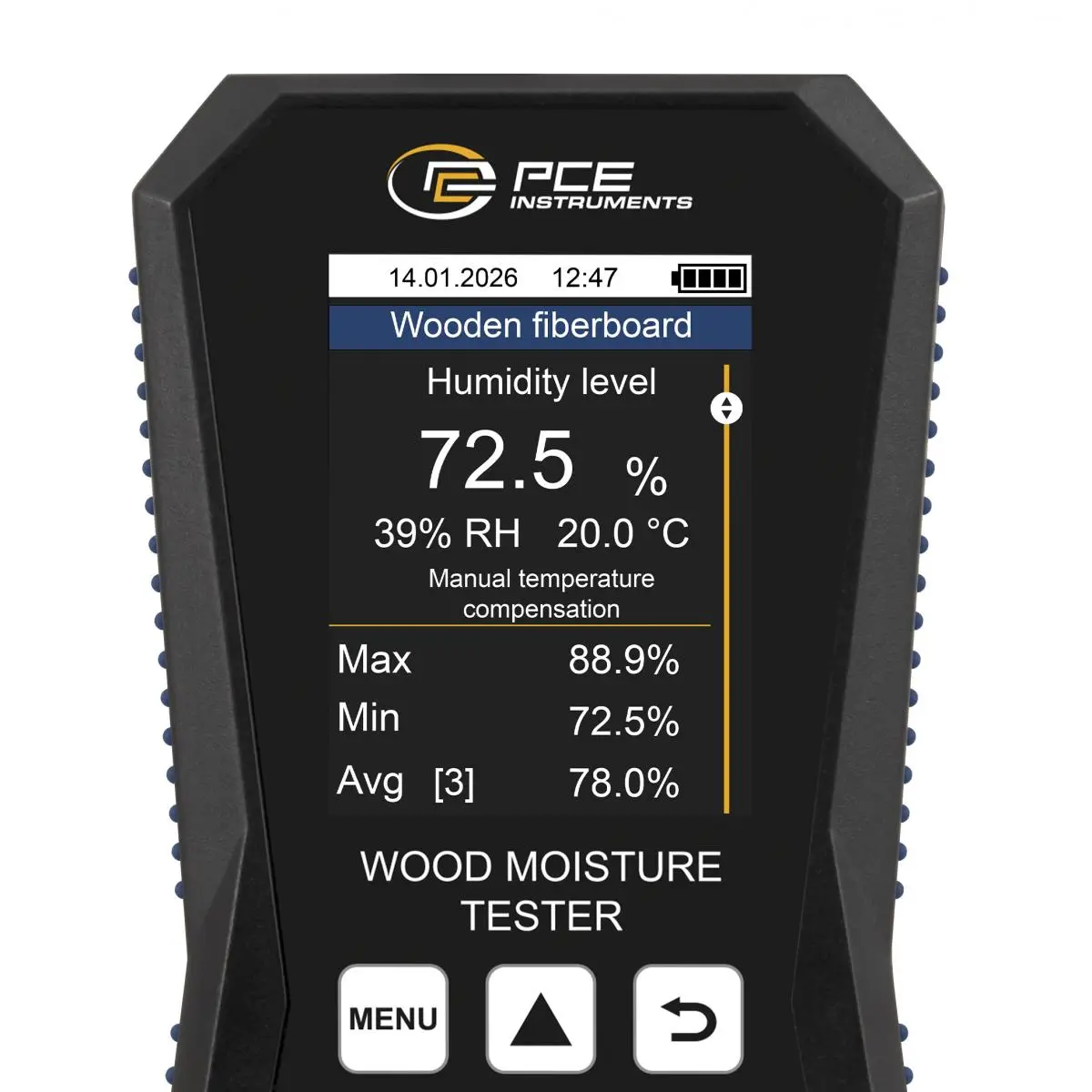

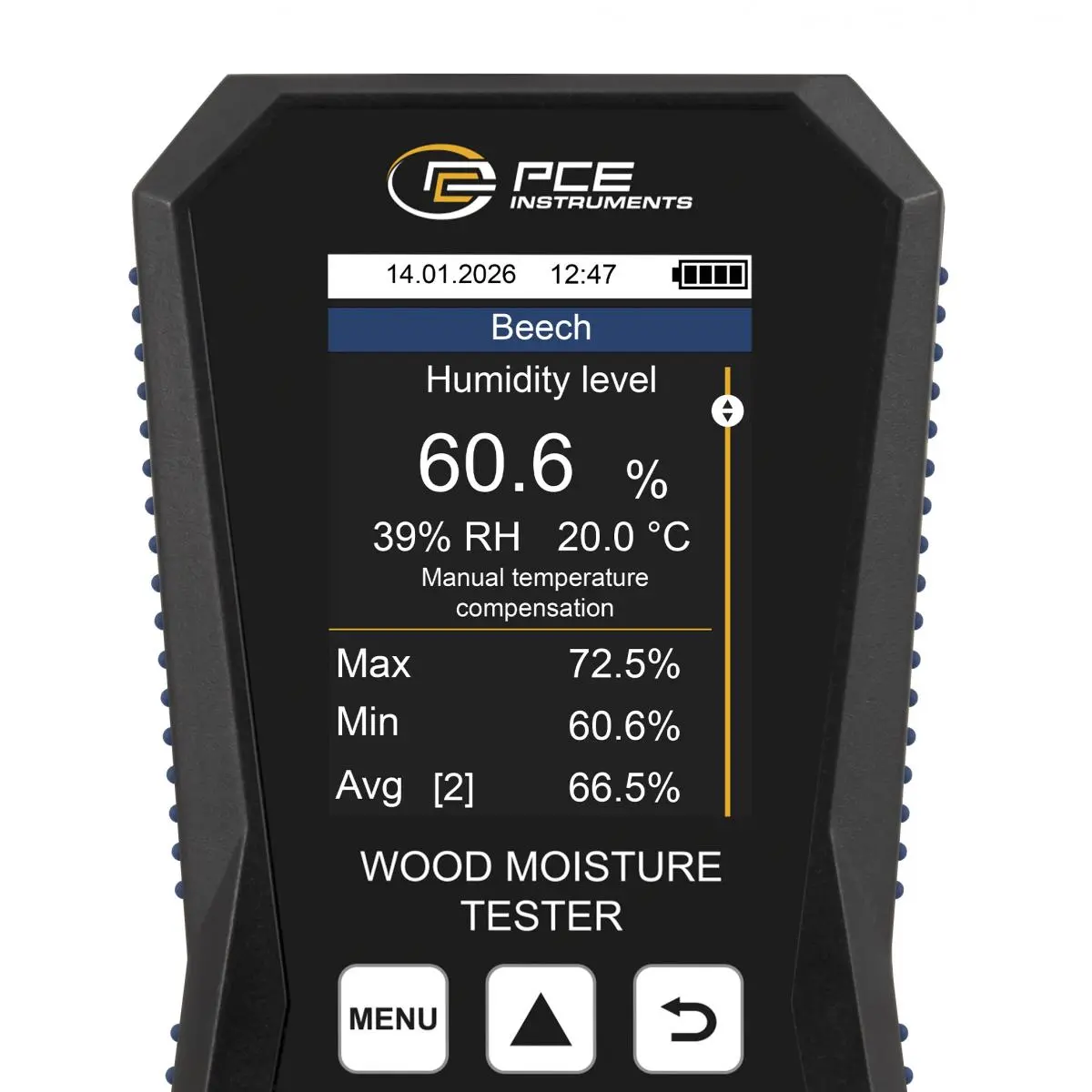

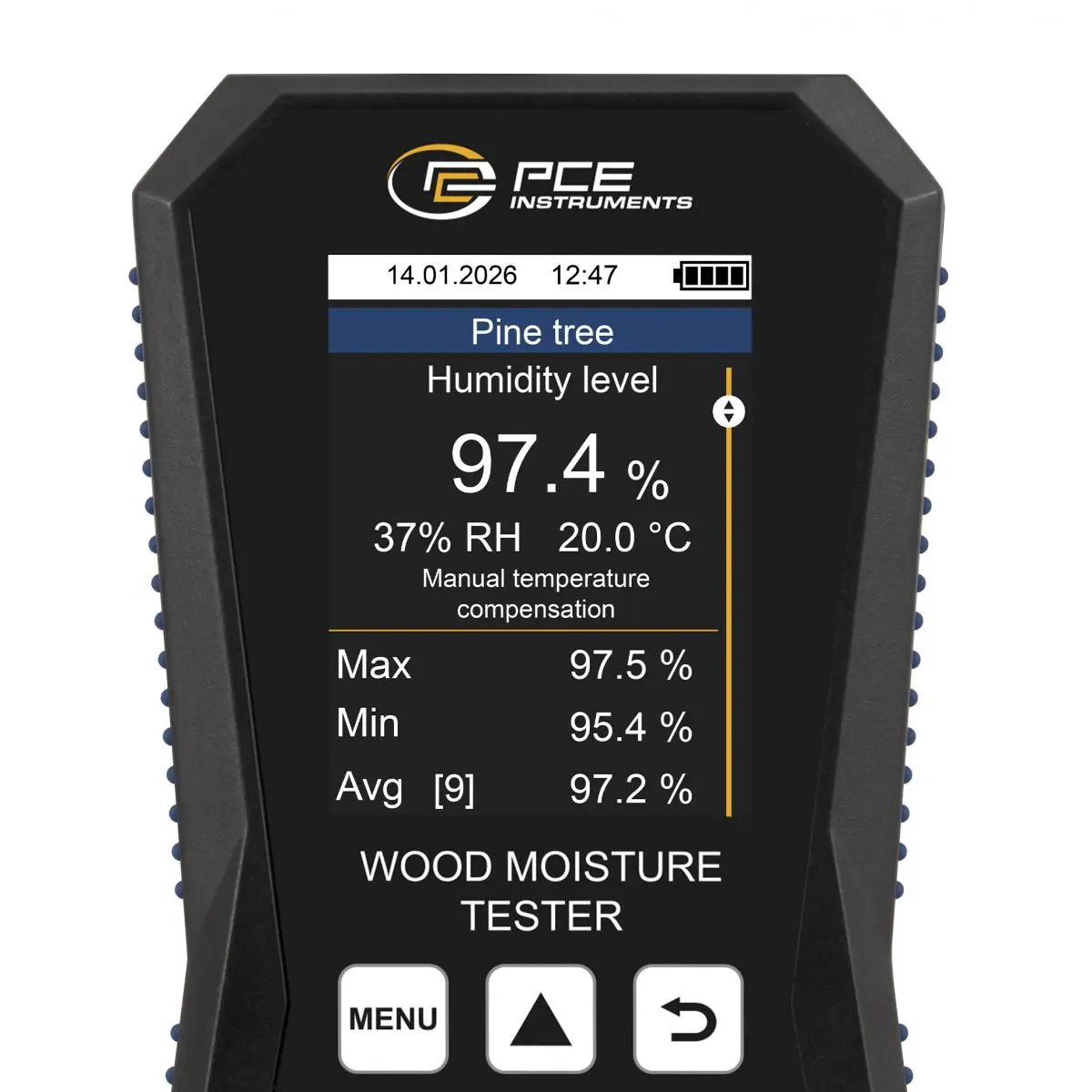

The Moisture Tester for Wood has a 2.8" LCD display that shows the current measurement value as well as the ambient temperature and humidity. Statistical functions such as the display of minimum, maximum and average values support the evaluation of the measurement data. The measured values are stored internally, and the data can be easily transferred, analyzed and archived via the USB-C interface and the supplied PC software. The menu navigation is available in several languages, including English, French, Spanish and others. The Moisture Tester for Wood is operated via clearly arranged function keys. Various measurement modes, such as the choice between % wood moisture and % water content, as well as the option to create user-defined materials, offer flexibility for different applications. The powerful LiPo battery ensures a long operating time of up to 22 hours. Thanks to its IP52 protection rating, the device is protected against dust and dripping water.

The Moisture Tester for Wood is ideal for use in wood processing, construction, drying processes and for quality control of wood and wood-based materials.


Highlights

- Softwoods, hardwoods, building materials
- Choice of 42 wood types
- User-defined materials
- Manual/automatic temperature compensation
- Statistical evaluation (min/max/average)
- Memory for measured values
- USB-C interface for data transfer
- 2.8-inch LCD display

Specification

Absolute moisture
Material  Deciduous woods
Measurement range up to  6,1 ... 150 %
Resolution  0,1 %
Accuracy  ±0.5 %

Absolute moisture
Material  Coniferous woods
Measurement range up to  6,6 ... 150 %
Resolution  0,1 %
Accuracy  ±0.5 %

Absolute moisture
Material  Building materials
Measurement range up to  11 ... 200 Digits
Resolution  1 Digits
Accuracy  ±0.5 %

Absolute moisture
Material  Wood fiber insulation board
Measurement range up to  6,8 ... 150 %
Resolution  0,1 %
Accuracy  ±0.5 %

Absolute moisture
Material  chipboard
Measurement range up to  3,5 ... 150 %
Resolution  0,1 %
Accuracy  ±0.5 %

General technical data
Cable length  1,2 m
Temperature compensation  -20 ... 50°C, manual / automatic
-4 ... 122°F, manual / automatic
Measuring principle  Resistivity
Display type  LCD
Display size  2,8 Inch
Interface  USB-C
Operating time  22 h
Dimensions  Ram electrode 332 x Ø45 mm
Nadel pair 165 x Ø2.85 mm
45 x Ø3.05 mm
Menu language  German, English (GB), English, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese, Danish
Protection class (device)  IP52
Power supply  5 V DC
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion polymer battery
Capacity  2500 mAh
Operating conditions  -20 ... 65 °C , 10 ... 95 % RH
Storage conditions  -20 ... 65 °C , 10 ... 95 % RH
Dimensions ( L x W x H )  165 x 85 x 32 mm
Weight  250 g

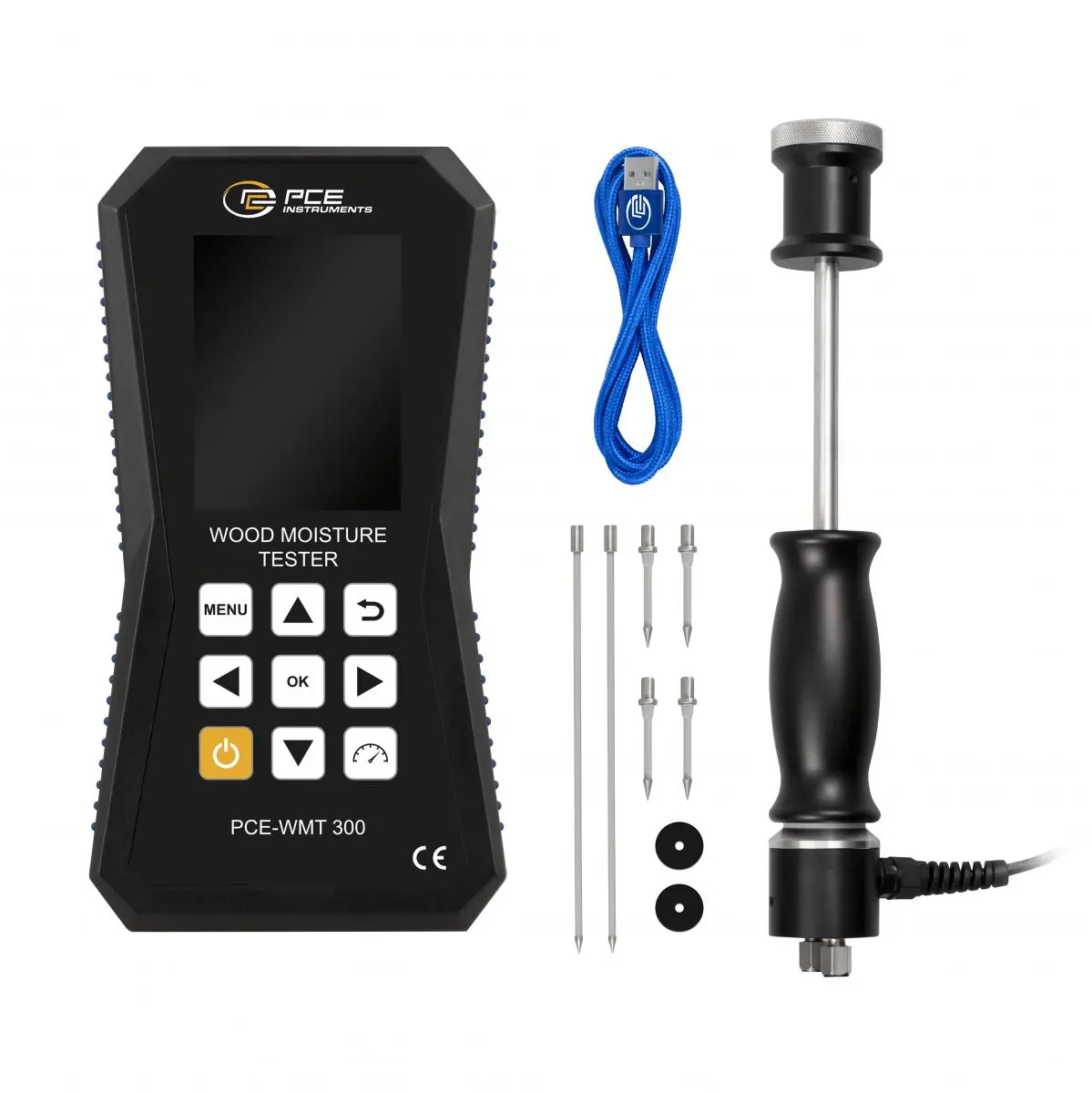

Delivery Scope

1 x PCE-WMT 300 Moisture Tester for Wood

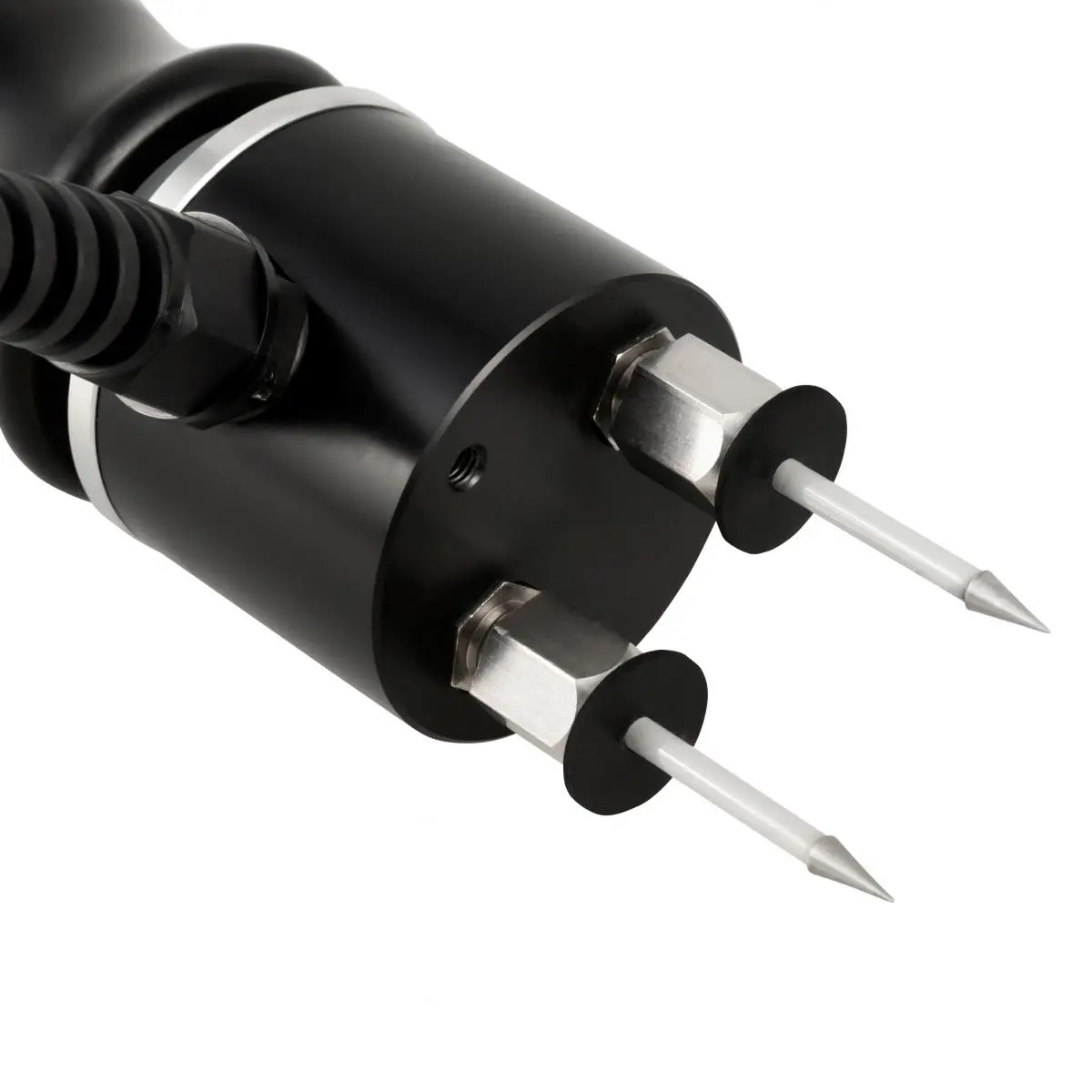

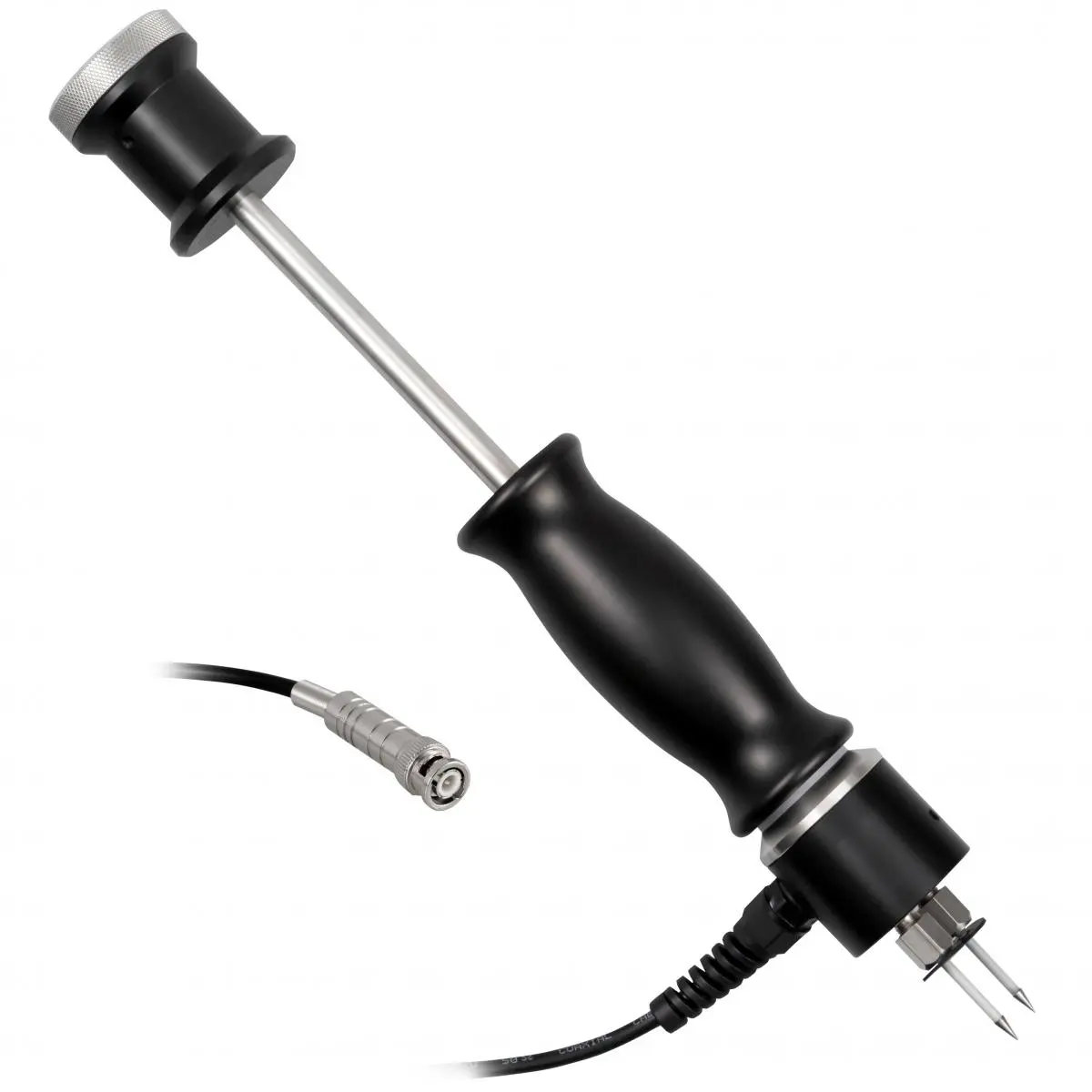

1 x Ram electrode

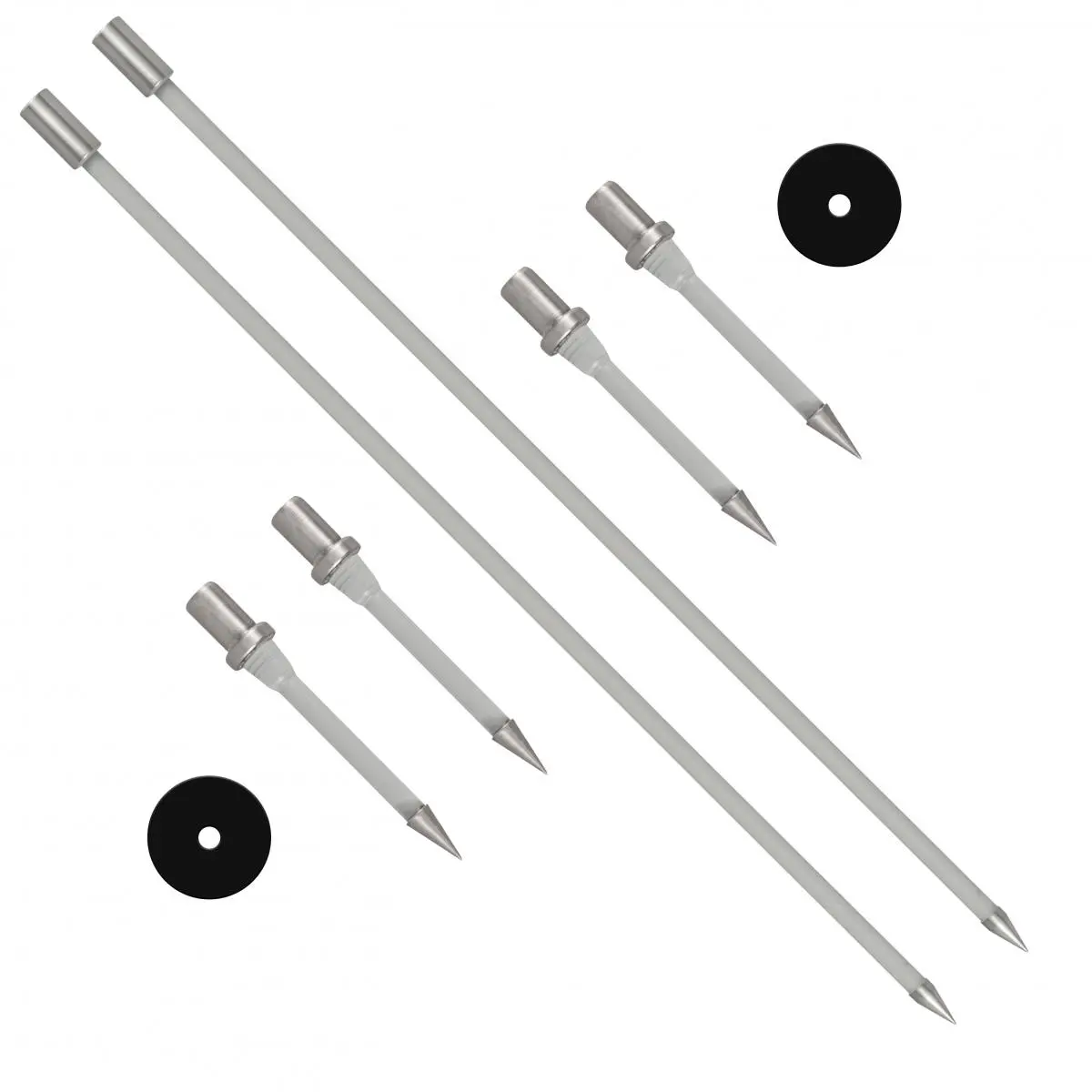

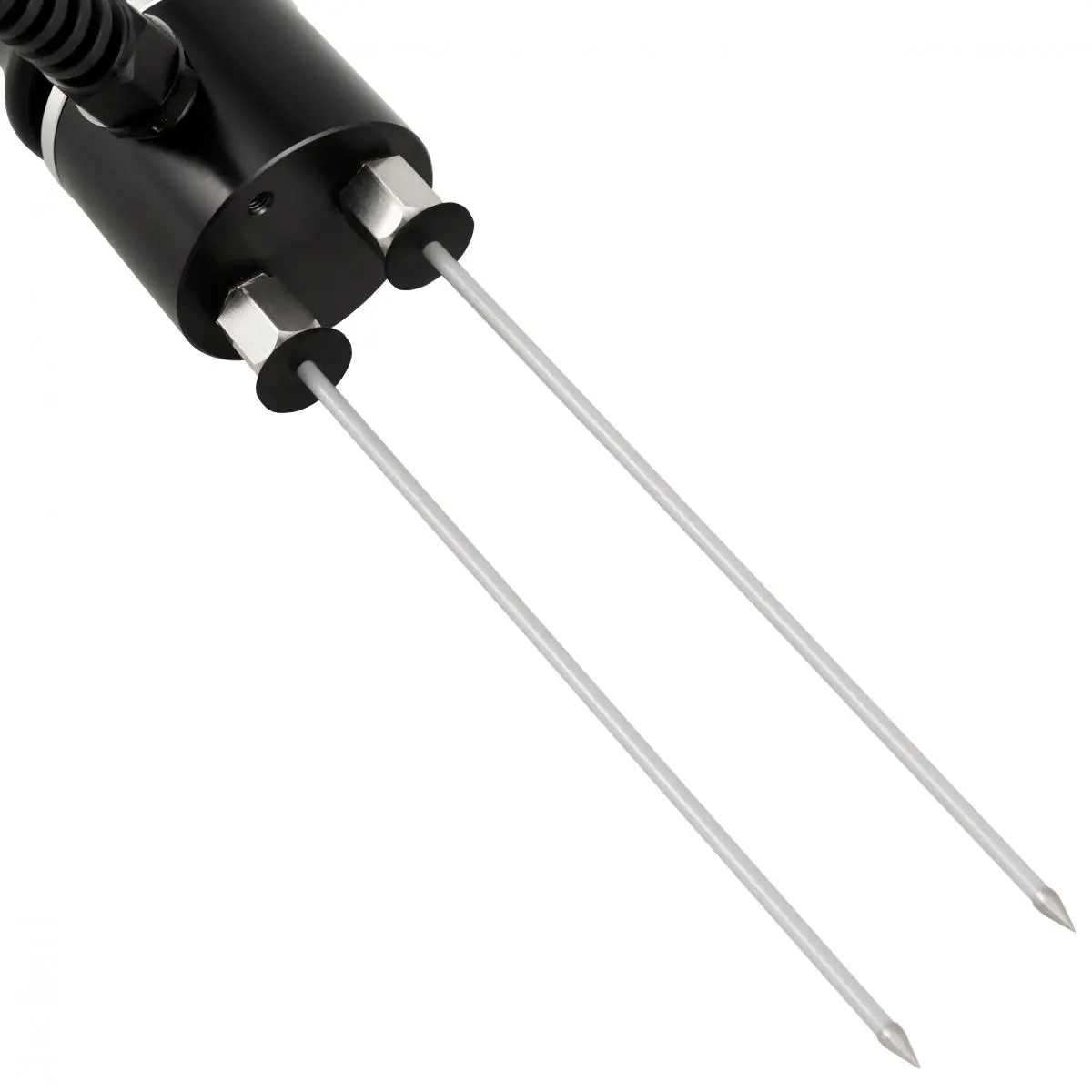

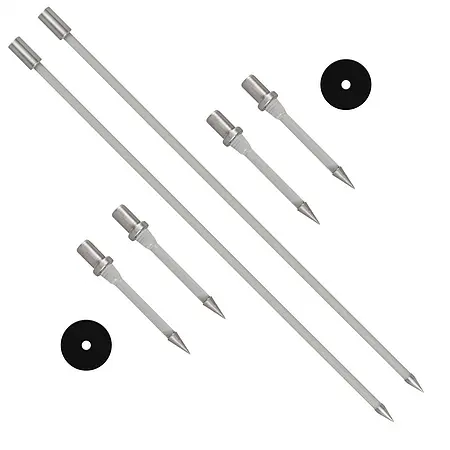

1 x Pair of needles 165 x Ø2.85 mm
2 x Pairs of needles 45 x Ø3.05 mm
1 x Pair of insulators
1 x 5V power supply unit
1 x USB-C cable
1 x Transport case
1 x Quick start guide
