Order no.: PCE-PDA 10L

Manometer PCE-PDA 10L


£ 627.00
£ 752.40
:
4250348717658
PCE-PDA 10L
price ex. (VAT / delivery)
Digital
Handheld
0 to 2 kPa
Yes
No
Delivery time: 1-2 working days

Description

 PCE-PDA 10L Manometer for relative and differential pressure / Pitot tube adaptable to differential pressure gauge / MAX MIN function / Data logger

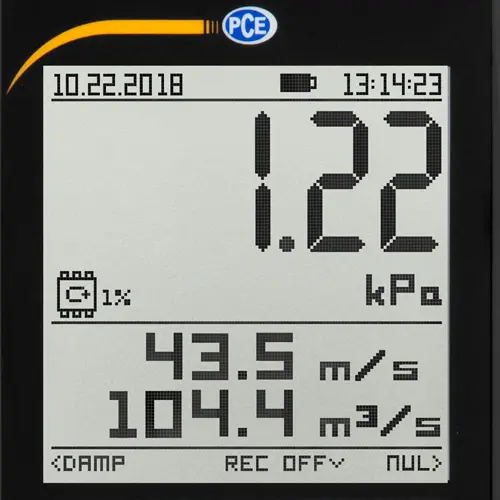

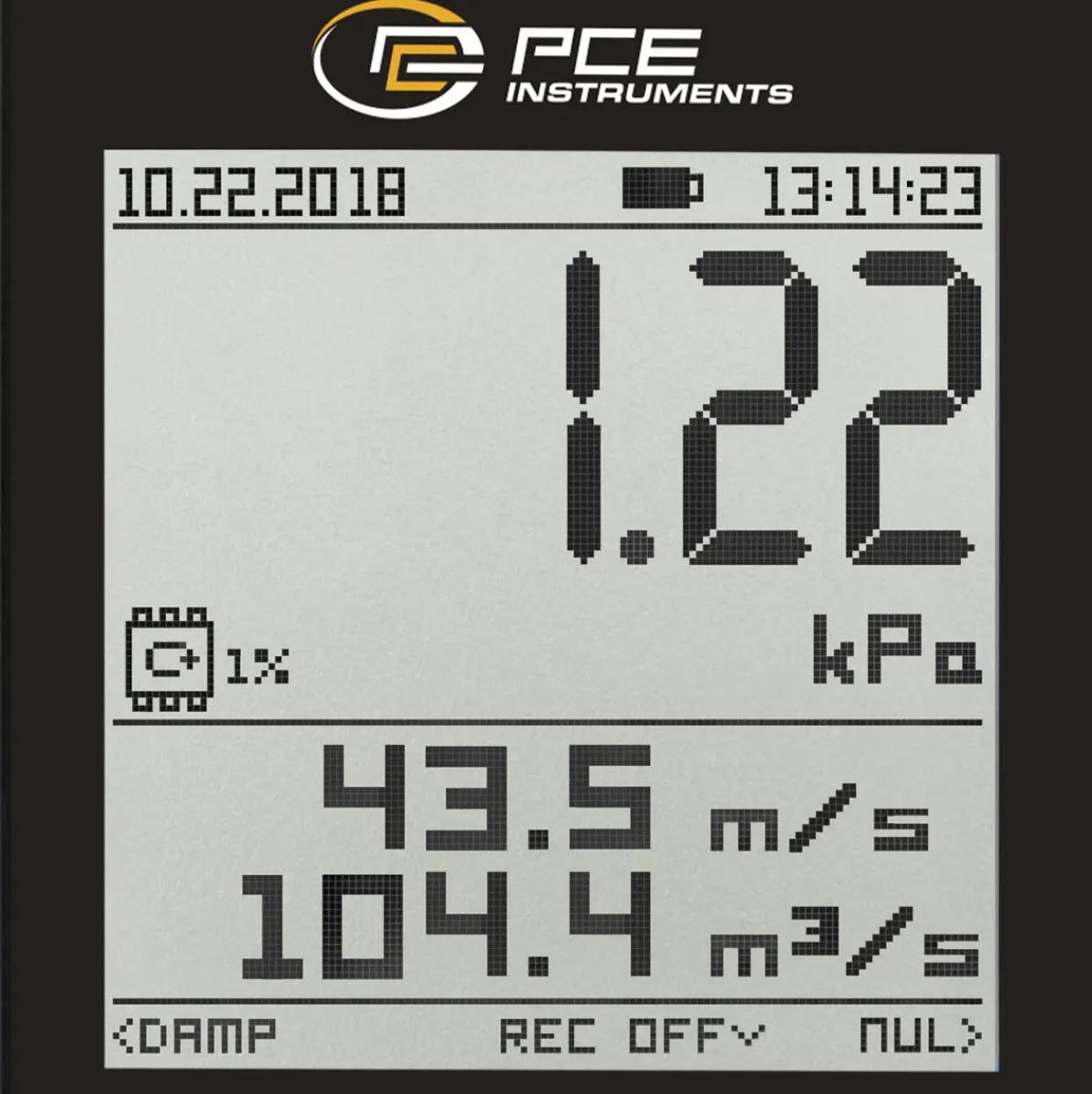

The differential pressure gauges of the PCE-PDA series are reliable differential pressure gauges for pressure measurement of gases in the range of ± 200 kPa, ± 2 kPa and 20 kPa depending on the model. The differential pressure gauge has many different pressure measuring functions. This gives the user more than 16 units. Furthermore, the differential pressure gauge measures in addition to the differential pressure, the temperature, flow velocity and volume flow. In addition, the maximum and minimum differential pressure can be displayed in the two-part graphic display. The resolution of the differential pressure can optionally be switched. The differential pressure gauge incorporates a high-precision mode that increases the resolution tenfold.

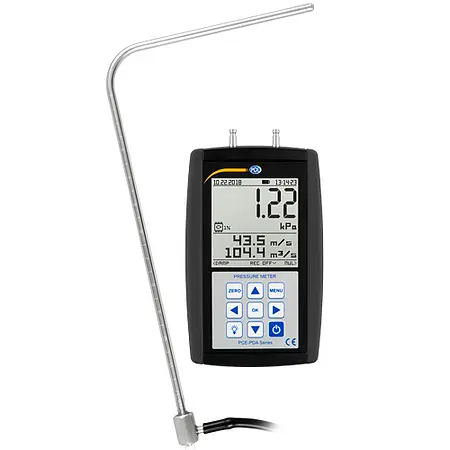

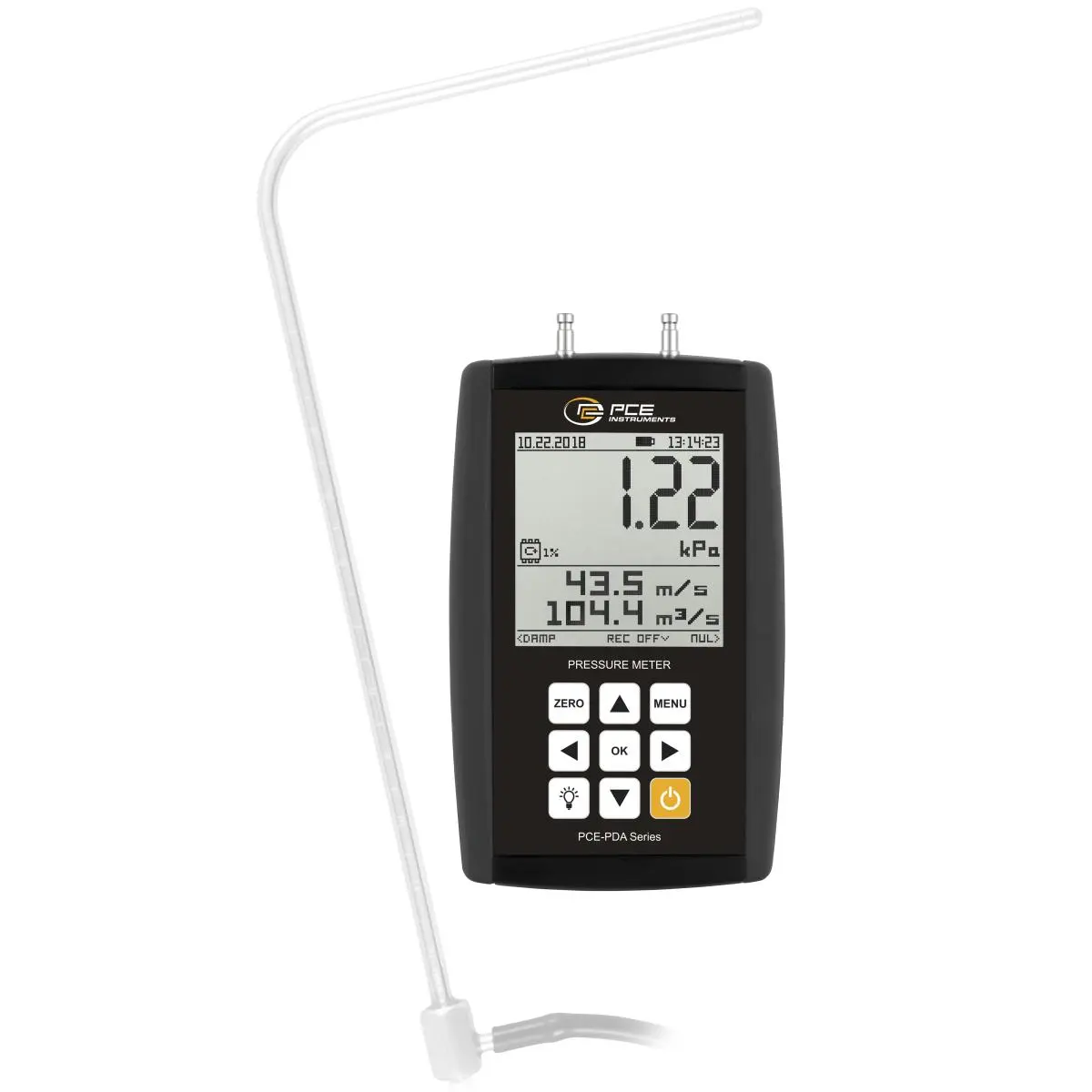

The PCE-PDA differential pressure gauge has a data logger function. This makes it possible to carry out a leak test on pressure lines in addition to the continuous storage of the measured values. In the data logger mode, it is possible to set the differential pressure gauge to a duration in which the data is stored at a previously selected interval. In the leakage measurement mode, the user must specify the measurement duration and the differential pressure level. After the measurement, the differential pressure gauge then displays the deviation from the set point. In addition to these two functions, the differential pressure gauge, with optional pilot pitot tubes, can determine the flow velocity or volume flow in pipes.


Highlights

- Graphic display with lighting

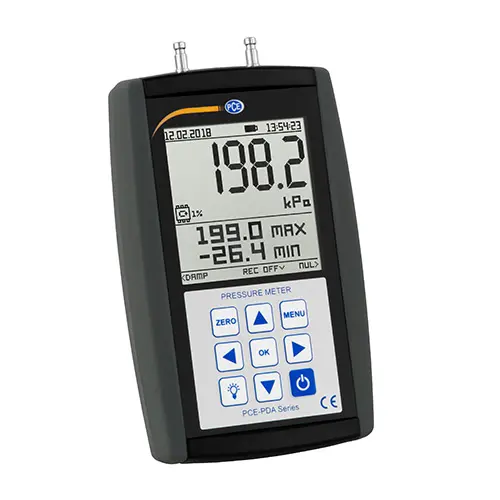

- Min and Max value memory
- Datalogger and leak test
- Quick coupling connection
- Temperature measurement, flow measurement
- High precision measuring mode
- Simple operation (voice-controlled)
- Units switchable (Pa, kPa, hPa, ...)

Specification

Measuring range temperature

0 ... 50°C / 32 ... 122°F

Resolution 0.1°C / 0.18°F
Accuracy ± 1°C / 1.8°F

Measuring range pressure ± 20 kPa
Resolution 1/ 10 Pa
Accuracy ± 0.5% of final value

Nominal pressure 20 kPa
Overpressure 40 kPa
Burst pressure 100 kPa
Media Liquids, air

Measuring rate 10 Hz
Measurement units Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
Pressure Differential
Pressure relative pressure (if neg. Pressure connection open)
Pressure connections 5 mm nipple for quick connectors
Max, Min and Hold function Yes
Data logger 1024 memory slots
1 s ... 255 h Recording time per memory location
1 s ... 24h recording interval
Medium For air and non-explosive gases
Zero correction Yes, with a zero key
Averaging Yes, between 0.1 ... 9.9 s
Display Graphic LCD with backlight
Protection IP41
Power supply 2 x 1.5V AA battery / 1.2V NiMh battery
5V / 500-mA USB power adapter
Current consumption 50-mA (with backlight)
10-mA (without backlight)
Operating temperature 0 ... 50°C / 32 ... 122°F
Storage temperature 10 ... 55°C / 50 ... 131°F
Dimensions 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
Weight About 285 g / < 1 lb

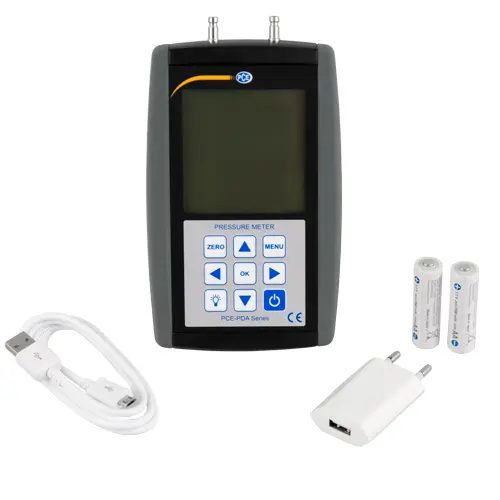

Delivery Scope

1 x Manometer PCE-PDA 10L
2 x 1.2V AA NiMh batteries
1 x USB power adapter
1 x Micro USB cable
1 x User manual
