Order no.: PCE-LMD 5-ICA

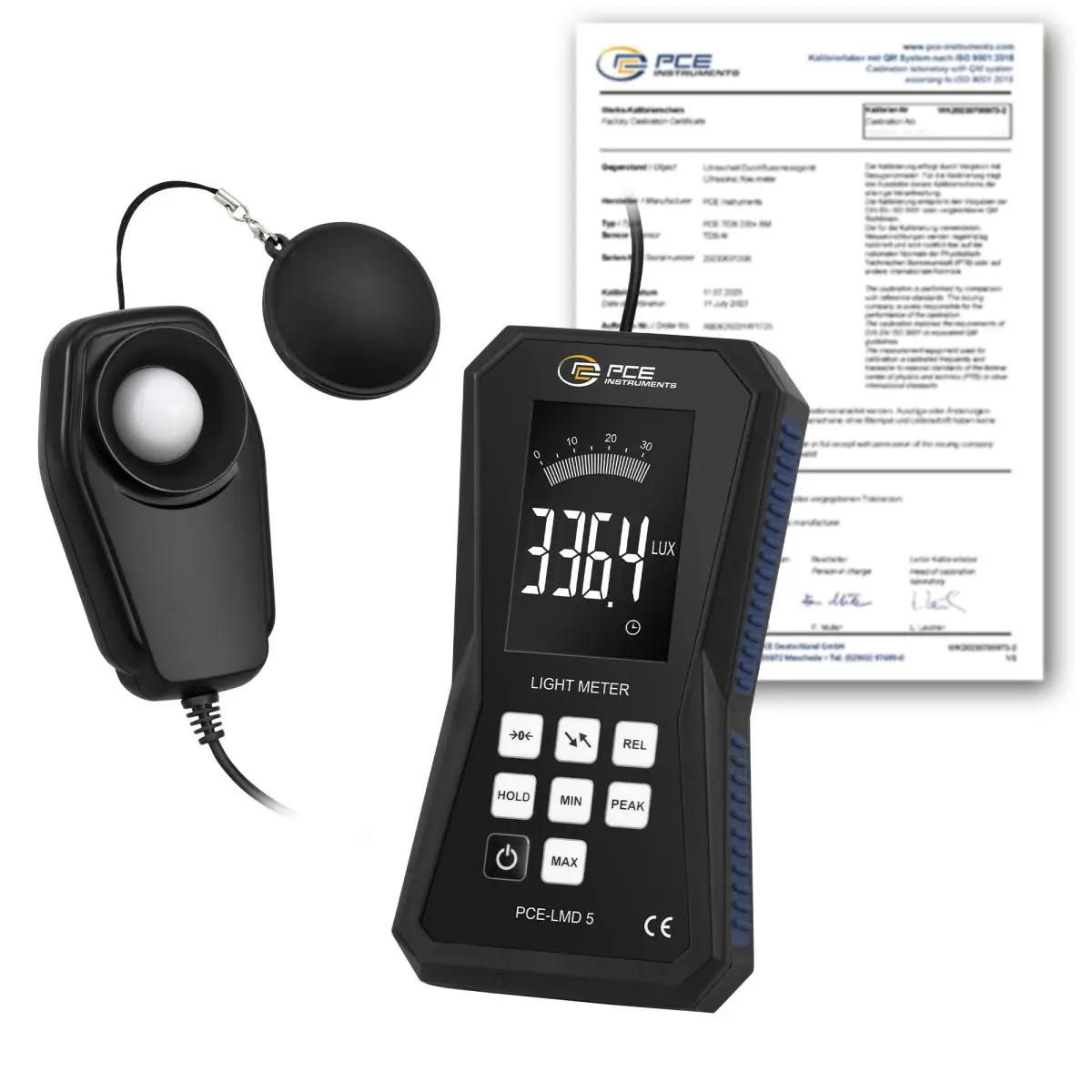

Lux Meter PCE-LMD 5-ICA incl. ISO Calibration Certificate

ISO Calibration

£ 327.00
£ 392.40
PCE-LMD 5-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

Description

Lux meter with external probe / Sampling rate 4 Hz / Measuring range 0 ... 400 kLux / Micro-USB interface / Units: lux, footcandle / Incl. ISO calibration certificate

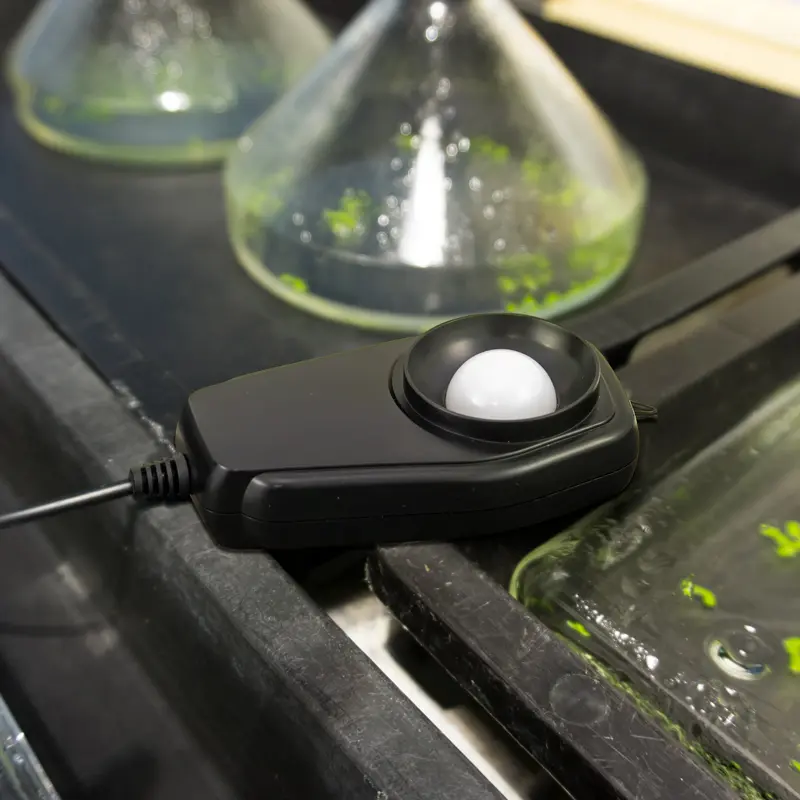

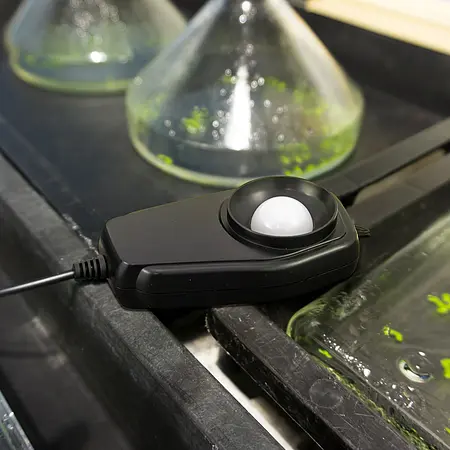

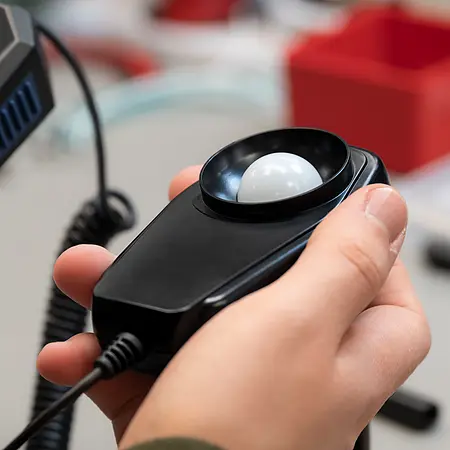

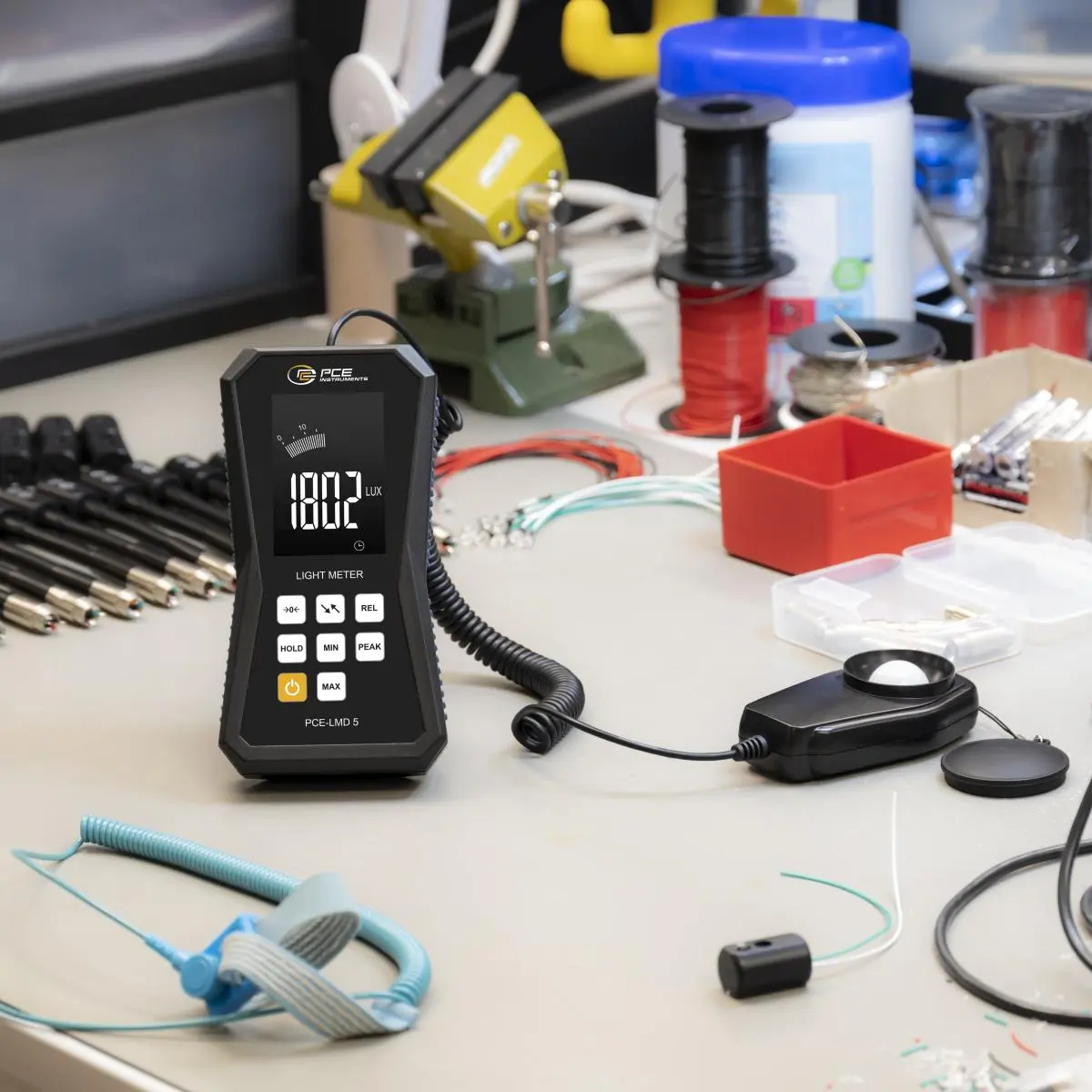

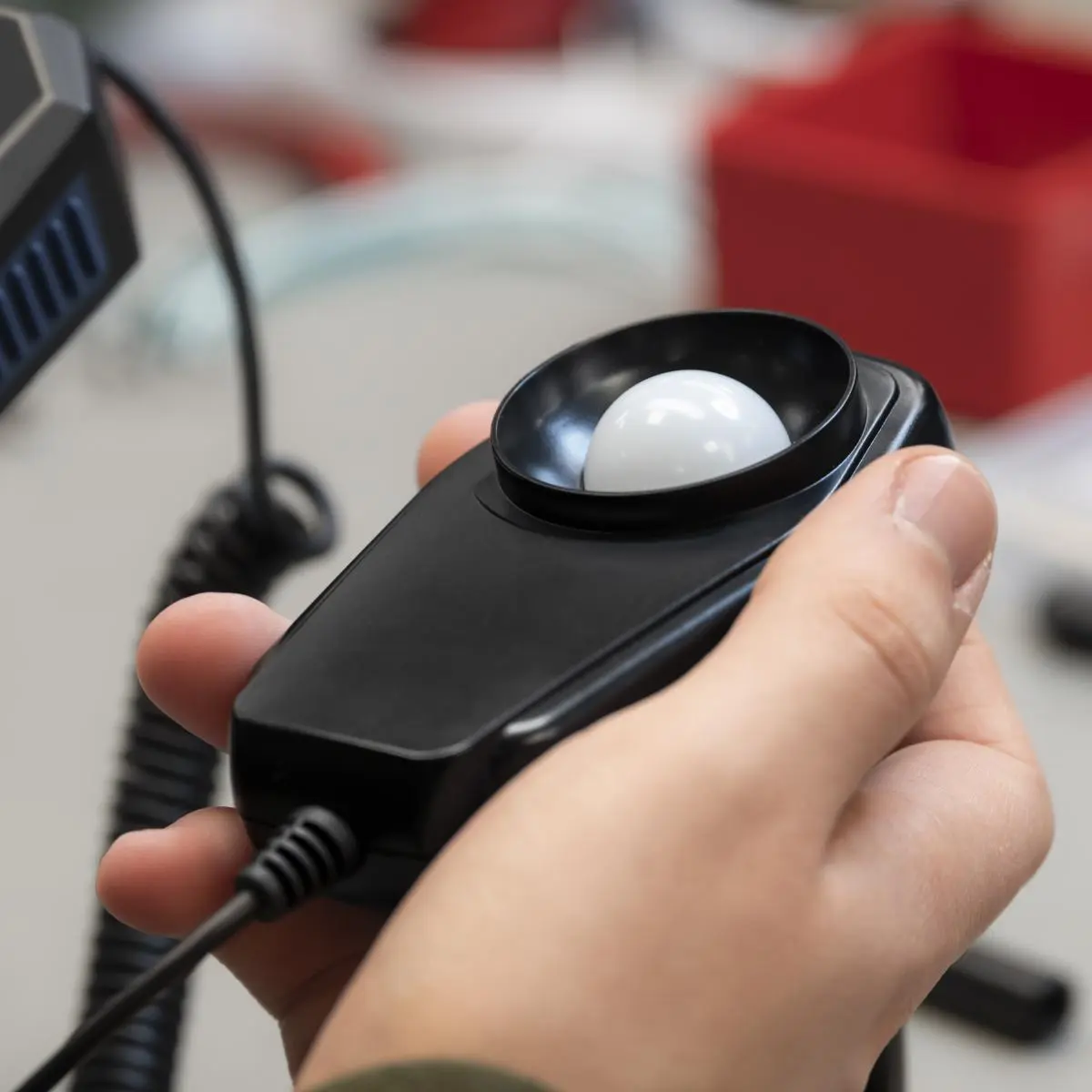

The lux meter has a large measuring range of 0 … 400 kLux. The illuminance is measured using an external silicon photodiode with a spectral filter. This means that the light meter can be positioned appropriately for every measuring task. The measured values ​​can be displayed by the light meter in lux and in footcandles. In addition to the normal measured value display on the light meter, the measured value is also displayed on a scale.

The lux meter has additional functions so that an analysis of the illuminance can be carried out. With the additional functions of the light meter, the largest and smallest measured value can be output using the "MIN" and "MAX" buttons. In addition, the displayed measured value can be set in relation to a reference using the "REL" button. With the "PEAK" function, the light meter records peak values. The light meter has a sampling rate of 10 µs.

The lux meter also has a data memory of 32,000 measured values. The measured values ​​from the light meter can be read out and analyzed on the PC after a measurement. A live measurement on the PC with the light meter is also possible. The data from the light meter can be exported in CSV format for further processing.

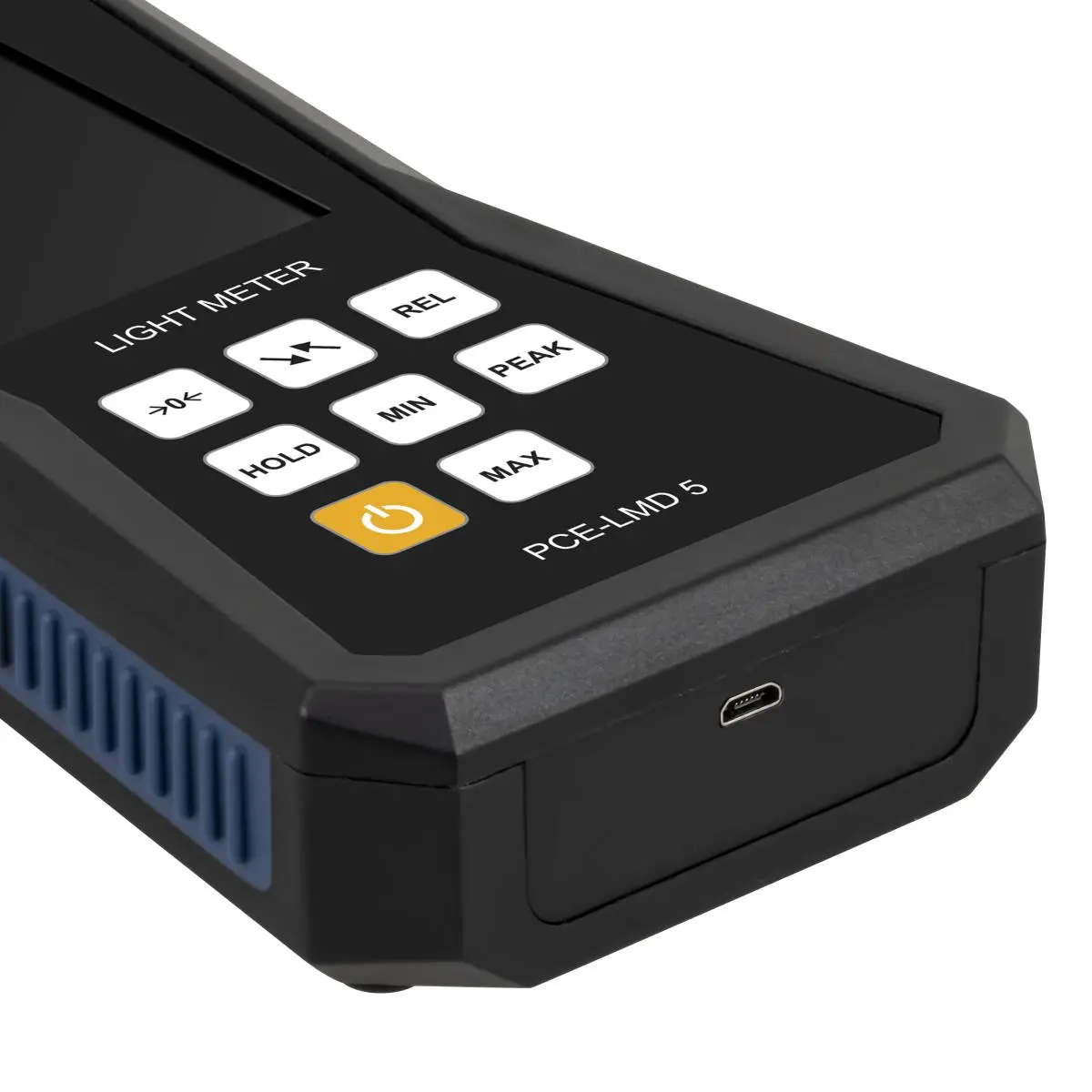

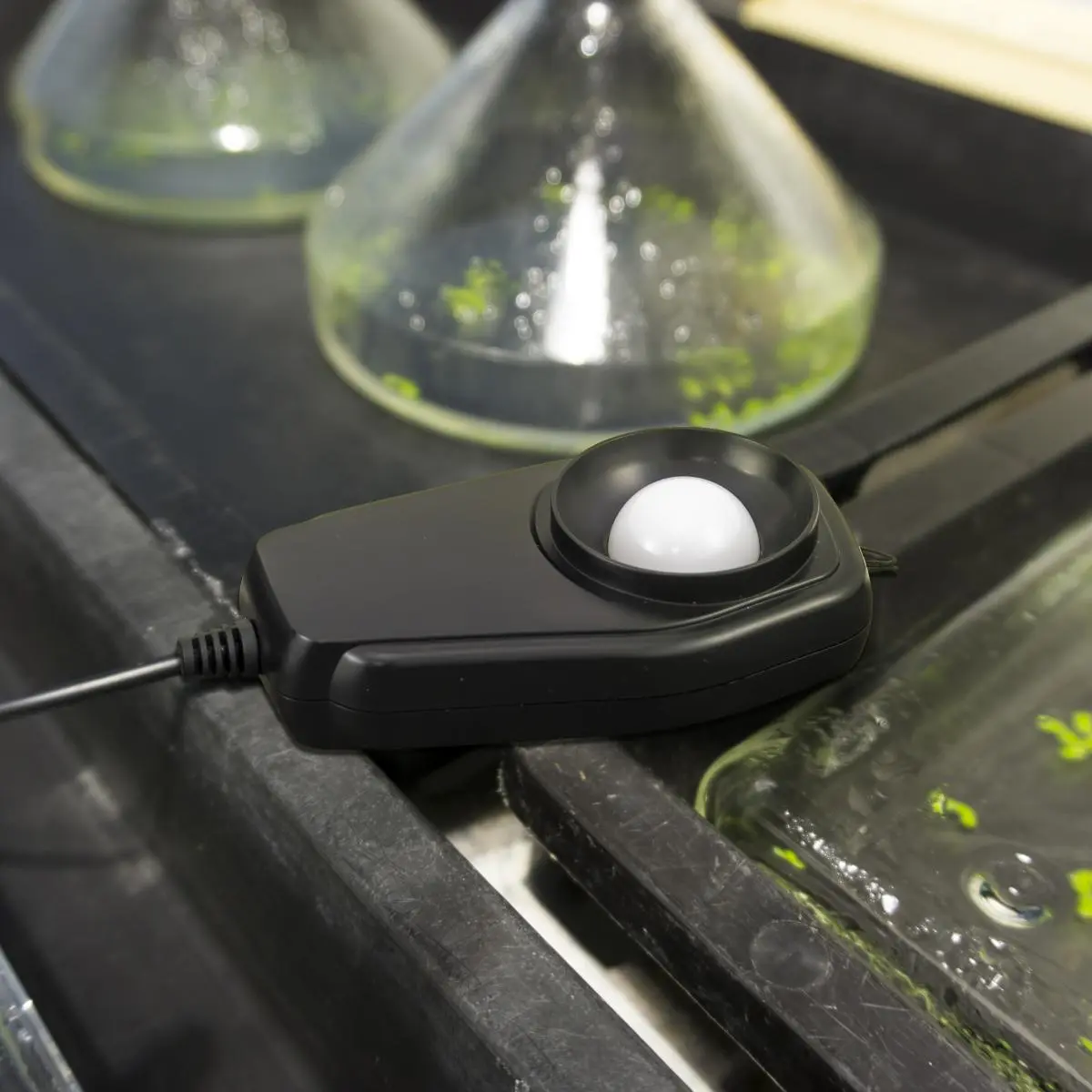

The built-in 3.7V Li-Ion battery can be recharged from the lux meter via a 5V DC connection via the micro-USB interface. Due to its measuring range and its various functions, the light meter is used to control the lighting in greenhouses, at the workplace in production workshops or in photo studios, for example. The light meter is equipped with an ISO calibration certificate.

Highlights

- Rechargeable battery
- Micro USB interface
- Measuring range 0 ... 400 kLux
- Lux and footcandle units
- LCD display with backlight
- Incl. ISO calibration certificate

Specification

Measuring range 1000 ... 400,000 Lux
  0.0 ... 999.9 Lux
Resolution 1 Lux
  0.1 Lux

Measuring range (footcandle)       1000 ... 400,000 fc
  100 ... 999 fc
  0.00 ... 99.00 fc
Resolution 1 fc
  1 fc
  0.01 fc

Accuracy ±5% of measured value ±10 digits with standard light A
  ±10% of measured value ±10 digits
Repeatability ±2%
Sampling rate 4 Hz
Sampling rate peak hold 10 µs
Sensor Silicon photodiode with spectral filter
Battery status display Battery symbol appears,
  when the battery voltage is too low.
Interface Micro-USB (only for charging)
Power supply battery
3.7V Li-Ion battery
Power supply USB 5 V DC, 1 A
Operating conditions -10 … 50°C / 14 ... 122°F / < 80% RH,
  non-condensing
Storage conditions -20 … 50°C / -4 ... 122°F / < 80% RH,
  non-condensing
Dimensions Meter: 162 x 88 x 32 mm /  6.4 x 3.5 x 1.3 in
  Sensor: 102 x 60 x 25 mm / 4 x 2.4 x 1 in
Weight ca. 320 g / 11.3 oz

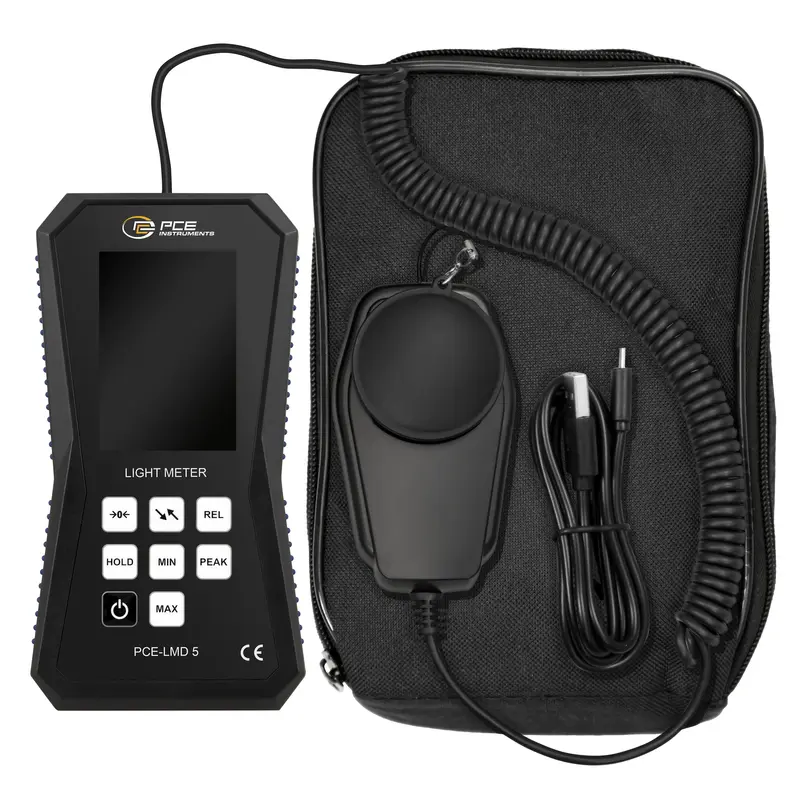

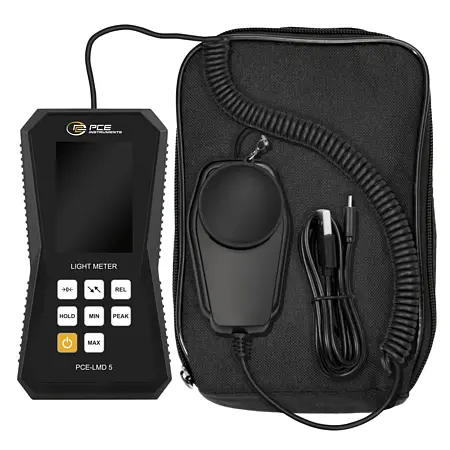

Delivery Scope

1 x Lux meter PCE-LMD 5-ICA
1 x USB Cable
1 x Service bag
1 x Instruction Manual
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
