Order no.: PCE-LXT-TRM-ICA

Light Meter PCE-LXT-TRM-ICA incl. ISO calibration certificate

ISO Calibration
£ 414.00
£ 496.80
price ex. (VAT / delivery)
Delivery time: 10 - 14 days


PCE-LXT-TRM-ICA light meter incl. ISO calibration certificate
Lux warning device for permanent installation with relay output and control output

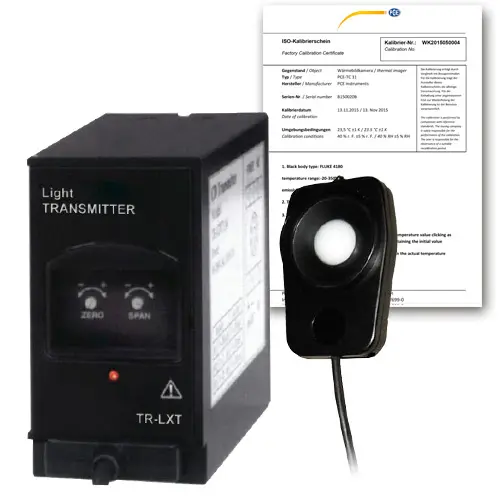

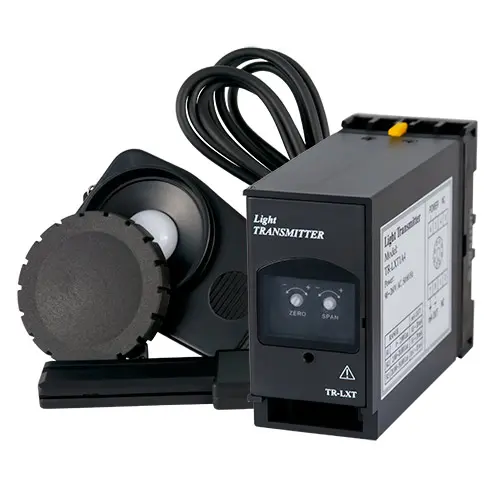

The light meter consists of a measuring sensor with handle, a wall bracket with a 1.5 m / 4.9 ft cable, and a light transmitter. The essential area of ​​application of this Lux-warning system is the continuous light measurement and light monitoring of photo laboratories and production areas, such as food or drug production.

Likewise, the analogue output signal can be used to control window flaps, or the signals of the transmitter can be stored, evaluated and documented on a logger. The light meter is very easy to connect and can be operated via 240V mains current.


Lux sensor
Measuring range 0 ... 50,000 lux in three areas
Resolution 0.1 lx / 1 lx
Accuracy ± 5% of the reading
Sensor Photo diode with color correction filter according to CIE
Care Via transmitter
Cable length (sensor to transmitter)    1.5 m / 4.9 ft
Environmental conditions Max. 80% relative humidity, 0 ... 50°C / 32 ... 122°F
Housing material ABS plastic
Casing ABS plastic
Care 90 ... 260 ACV
Calibration Adjustable via grub screws
Exit 4 ... 20-mA
Protection IP 54
Environmental conditions Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F

Delivery Scope

1 x Light meter PCE-LXT-TRM-ICA
1 x Lux sensor on 1.5 m / 4.9 ft cable
1 x Light transmitter
1 x User manual
1 x ISO calibration certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
