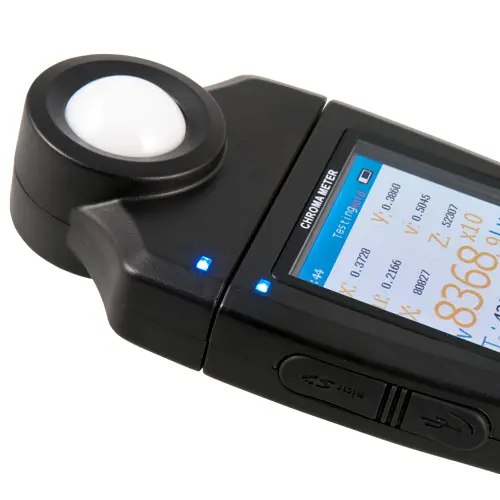

• LED Light Meter PCE-CRM 40 Sensor

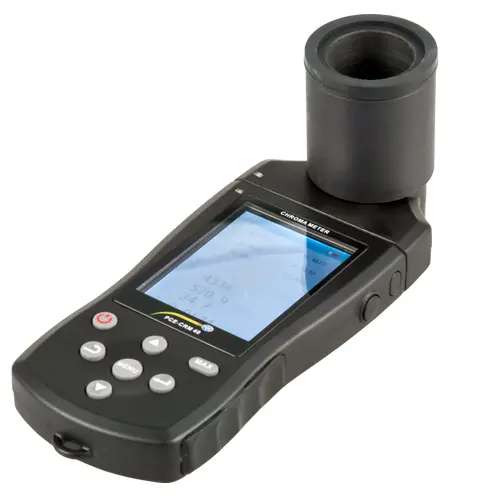

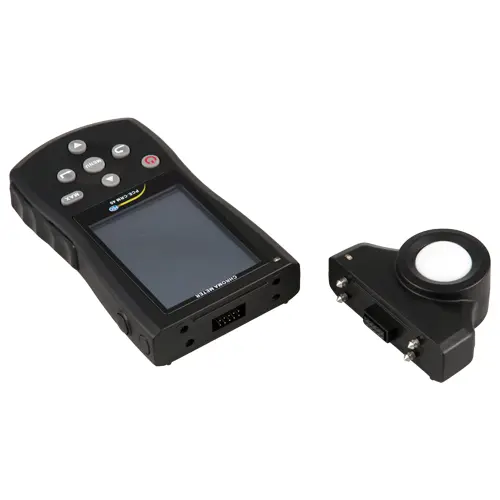

  • LED Light Meter PCE-CRM 40 Detachable Head

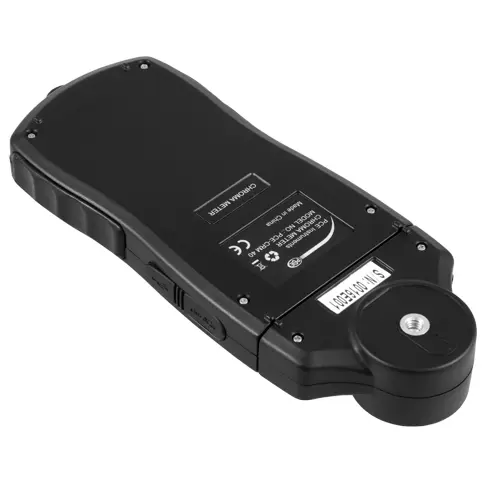

  • LED Light Meter PCE-CRM 40 Back

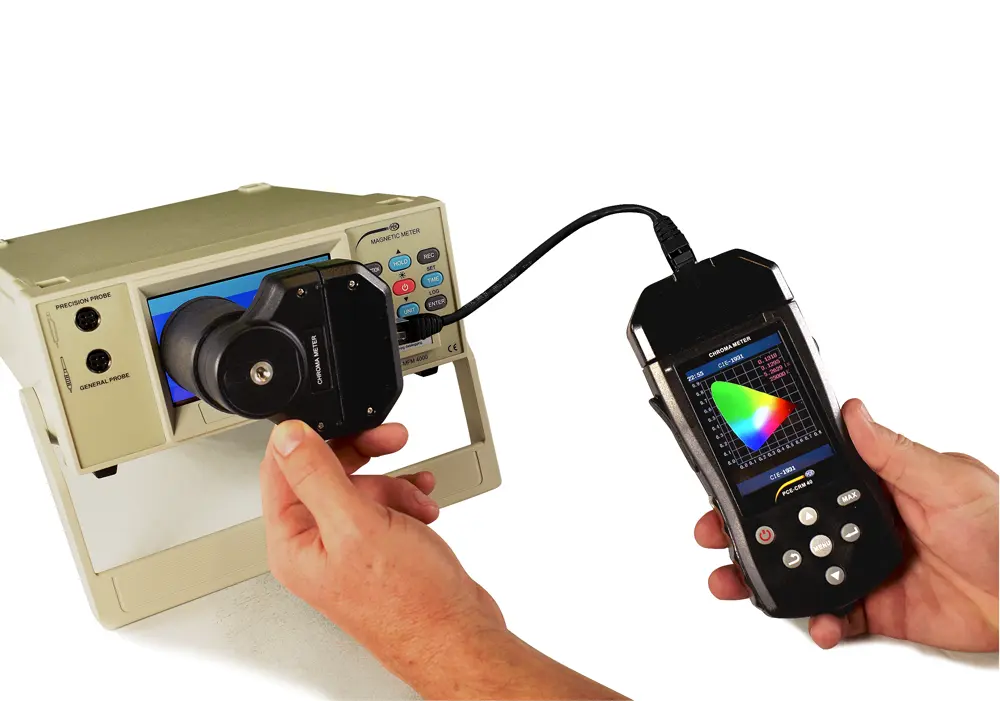

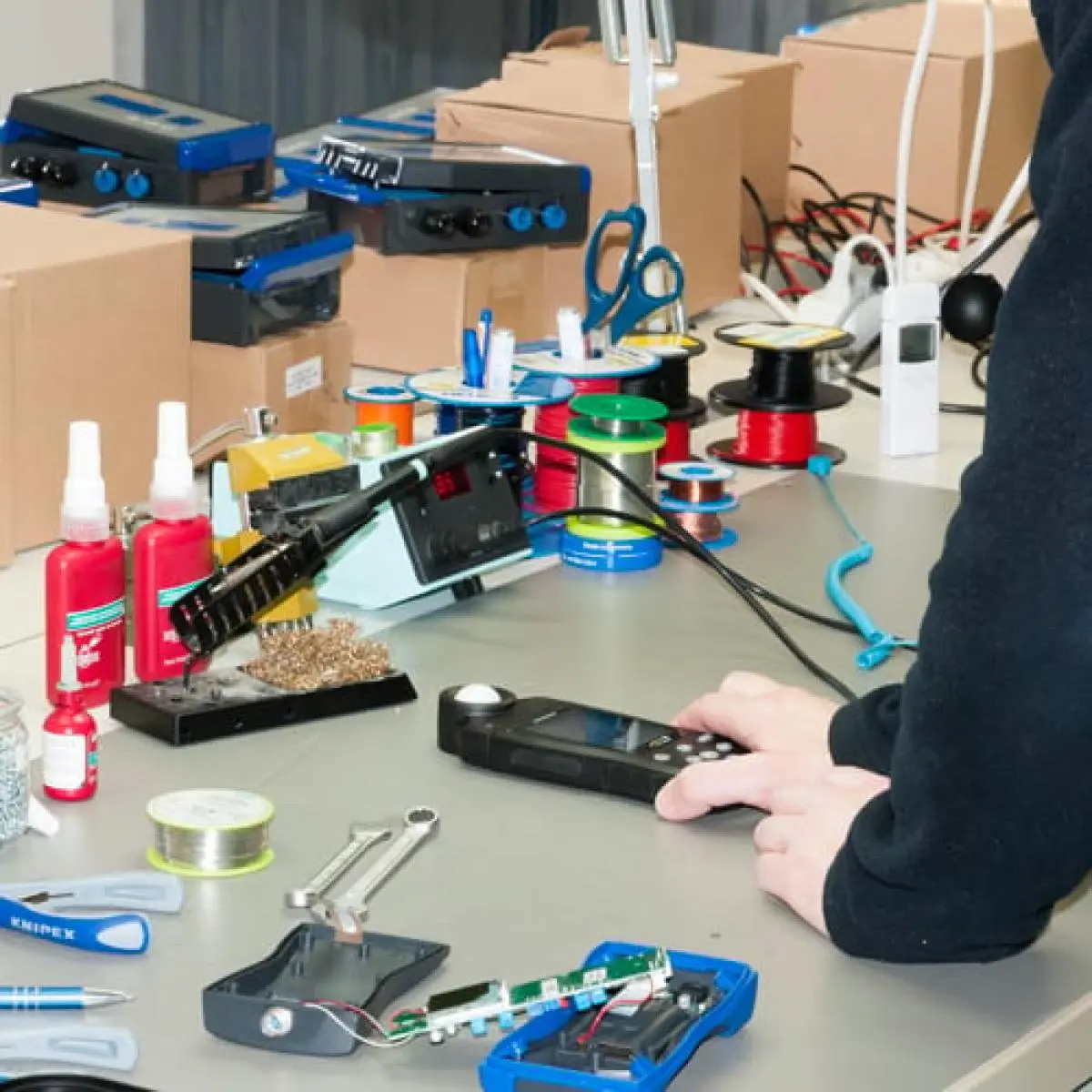

  • LED Light Meter PCE-CRM 40 Application

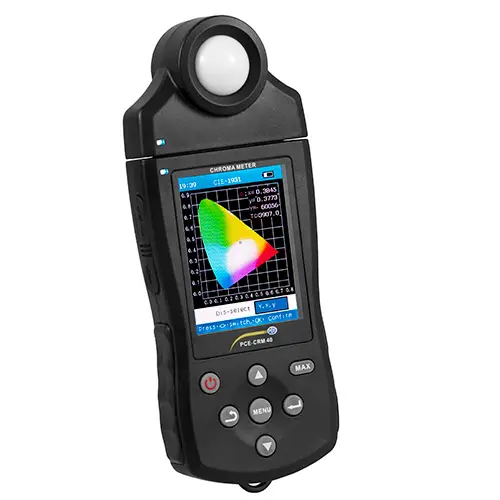

  • LED Light Meter PCE-CRM 40 Display
  • LED Light Meter PCE-CRM 40 Bag

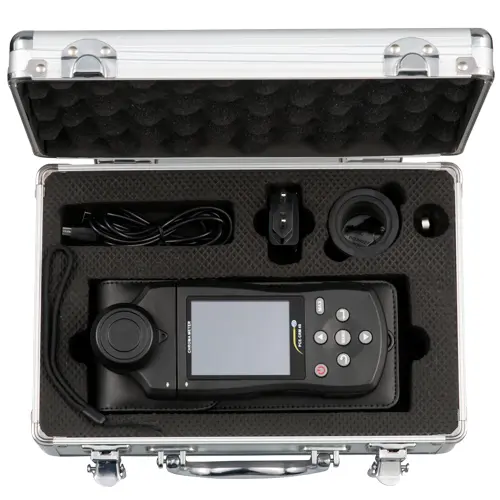

  • LED Light Meter PCE-CRM 40 Case
  • LED Light Meter PCE-CRM 40

LED Light Meter PCE-CRM 40

Order no.: PCE-CRM 40
£ 1,242.00
£ 1,490.40
4250348716057
PCE-CRM 40
price ex. (VAT / delivery)
Internal
Yes
Delivery time: 1-2 working days

PCE-CRM 40 LED Light Meter
Measurement range up to 150,000 lx / Measures correlated color temperature (CCT) / Standard chromaticity diagrams according to CIE 1931 and CIE 1976 / Indicates wavelength / Presents tristimulus and RGB values / Includes USB interface, cable and PC software

With the LED light meter or spectrophotometer PCE-CRM 40, important photometric factors in the field of light measurement can be determined. These include the tristimulus values of XYZ, the u´ and v´ color location coordinates according to CIE 1976, and the xy color location coordinates according to CIE 1931. Moreover, further color statistics are measured as absolute values and differences. The user can determine the dominant wavelength within the sensitivity range of the LED spectrophotometer, which is 360 … 780 nm, as well as the color density (Pe) and the correlated color temperature (CCT) in Kelvin.

Also, the LED spectrophotometer can measure the illuminance in lux (lx) or foot-candle (fcd) as well as the light flux in lumens (lm) and show the color location in the RGB color space. Due to the ergonomic single-handed operation, the large display, memory, data interface and software, measurements with the LED spectrophotometer can be carried out quickly and the results are reproducible. The test results can be recorded by means of the software. Its specifications make the LED spectrophotometer perfectly suitable to classify and optimize lighting installations and conditions in various fields of application.


- Measurement of colour temperature
- Lux measurement up to 150 kLux
- Representation of Tristimulus and RGB
- Ideal for LEDs
- SD memory
- Colour LCD

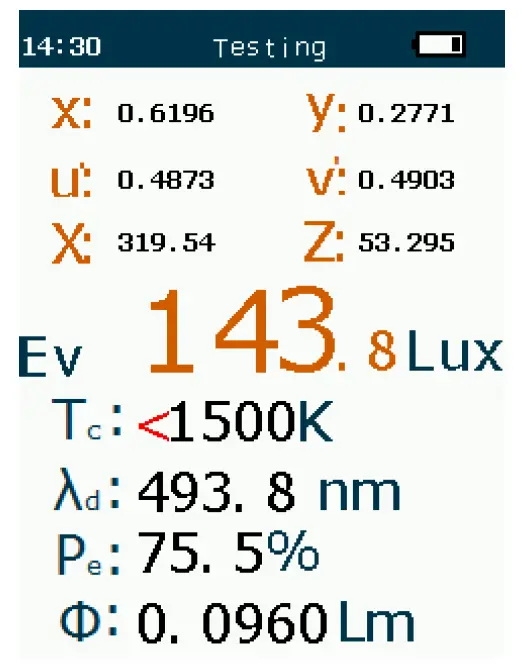

Measurement functions Tristimulus values: XYZ
Chromaticity: Ev xy, Ev u'v'
Correlated colour temperature: Tc
Colour difference: Δ (XYZ), Δ (Evxy ), Δ (Evuv ), ΔE v ΔTc Δuv
Chromaticity coordinates: ICE1931 (x, y), ICE1976 (u, v)
Dominant wavelength: λd
Colour fastness: Pe
Luminous flux: Φ, RGB parameter, colour chart, maximum recording and indicator
Measuring range 0.1 ... 150,000 lx
0.01 ... 15000 fcd
Ev: 5 lx / 0.5 fcd or above in four automatically selected ranges (lx or fcd is switchable)
Spectral range 360 ... 780 nm
Relative spectral sensitivity Based on CIE standard X (λ), y (λ), and Z (λ), deviation within 6% (f1 ') of CIE spectral luminous efficiency V (λ)
Cosine correction Ev: < 3% (f2)
Accuracy Ev : ± 5 % ± 1 digit of displayed value
Xy: ± 0.003 lx (at 500 lx, standard A)
Repeatability Ev : ± 0.5% + 1 digit (2σ)
xy: ± 0.0005 (measured at 500 lx, standard A)
Temperature drift Ev : ± 3% ± 1 digit of the indicated value
xy: + -0.003
Response time 0.5 second (for continuous measurement)
Sensor type Silicon photocell
Interface USB
Slot for SD card
Display 3.2" color LCD
Operating conditions -10 ... 40°C / 14 ... 10°F <85% RH
Storage conditions -20 ... 40°C / -4 ... 104°F <85% RH
Power supply 2200-mAh rechargeable lithium-ion battery
Battery life Min. 12 hours
Dimensions 210 x 80 x 35 mm / 8.2 x 3.1 x 1.37 in
Weight 300 g / < 1 lb including battery

1 x LED Light Meter PCE-CRM 40
1 x USB power adapter
1 x USB cable
1 x Luminance attachment
1 x USB stick
1 x Belt bag
1 x Carrying strap
1 x Carrying case
1 x User manual
