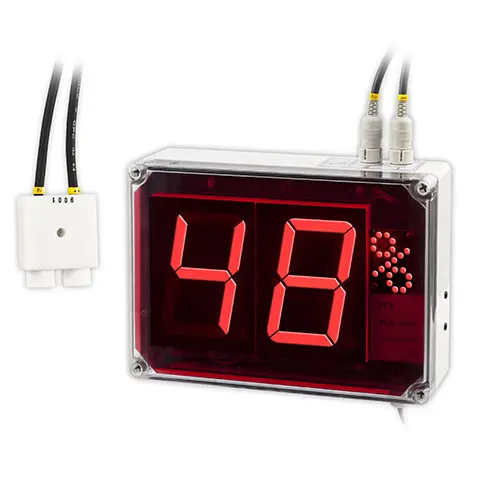

Large Display PCE-G1

Large Display PCE-G1 [zoom]
Large Display PCE-G1

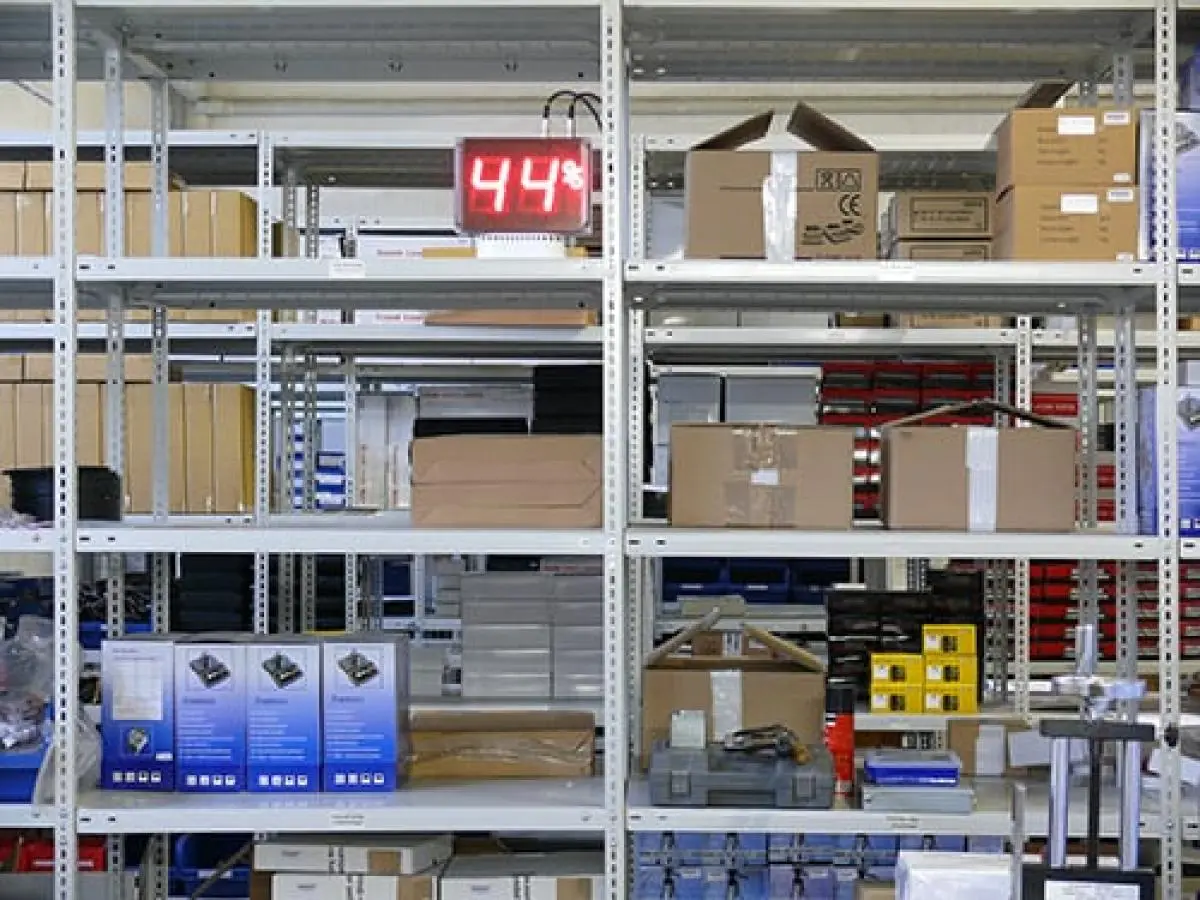

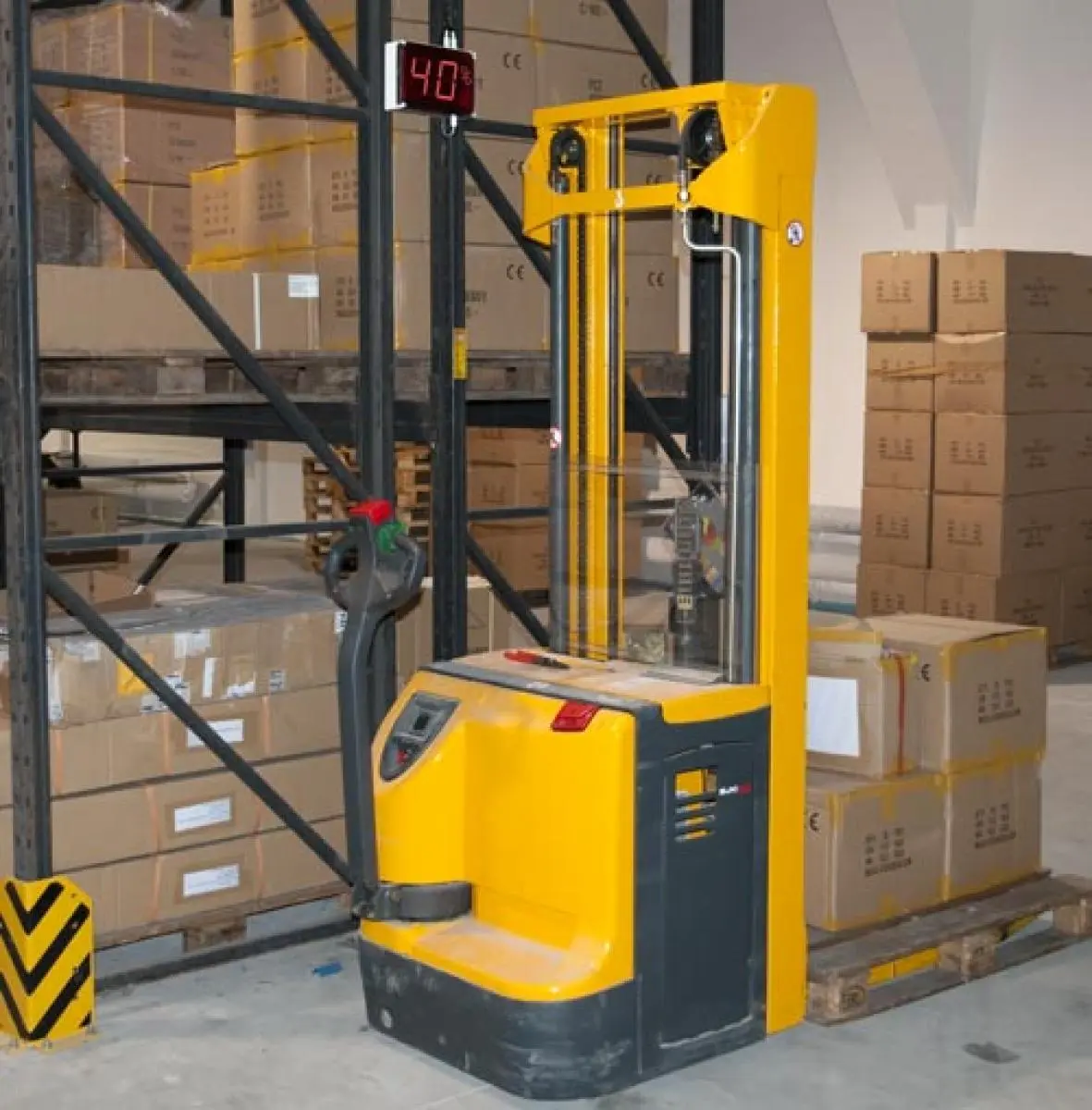

Large Display Application picture
Large Display Application picture

Large Display PCE-G1

Order no.: PCE-G1
GTIN (EAN): 4250348702746
£ 979.00
£ 1,174.80
price ex. (VAT / delivery)
:
4250348702746
PCE-G1
Delivery time:1-2 working days
* Includes a longer sensor cable + a measurement amplifier

Accessory

Description

Large Display PCE-G1 for relative humidity and temperature with
a large display (values can be read up to 50 m)
The large display is intended for stationary measurement of relative humidity and temperature and direct display on a large screen. This large display consists of a large monochrome display and is protected according to IP 54.

The measured variables are displayed alternately: relative humidity (2 s) and temperature (2 s). The sensors of the humidity and temperature meter are calibrated at the factory. However, an ISO calibration certificate can also be ordered as an option. Simple, accurate and robust.

Highlights

- Ingress protection type: IP 54 rating
- Large, easy-to-read 100 mm / 3.9 in tall LED digits
- Temperature and relative humidity values are displayed every 2 seconds (in
2-second intervals)
- Displays temperature in degrees Celsius (°C) only
- Ready for wall mounting
- Long life
- Excellent readability
- High accuracy

Specification

Relative humidity
Measuring range  10 ... 95
Resolution  1
Accuracy  ±2 % RH

Temperature
Measuring range  0 ... 60 °C
Resolution  1 °C
Accuracy  ±1 °C

General technical data
Cable length  1 m
Display type  LCD
Current consumption meter  20 mA DC
Response time  4 s
Dimensions  Sensor 50 x 70 x 20 mm
Sensors  Capacitive, Pt1000
Visibility  50 m
Protection class (device)  IP54
Power supply  230 V / 50 ... 60 Hz
Operating conditions  0 ... 60 °C , 0 ... 95 % RH
Storage conditions  0 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  175 x 175 x 75 mm
Weight  1300 g

Delivery Scope

1 x Large Display PCE-G1
1 x Sensor for temperature and humidity with connection cable (in selected
configuration)
1 x Mains power cable
1 x Instruction manual
