IoT Sensor PCE-CT 100N-ICA incl. ISO Calibration Certificate

Order no.: PCE-CT 100N-ICA

GTIN (EAN): 4250348725318

Accessory

Replacement Probe SP-PCE-CT 100N-F Fe type

£ 258.00

Replacement Probe SP-PCE-CT 100N-N NFe type

£ 258.00

Re-Calibration for Coating Thickness Meter

£ 154.00

ISO Calibration Certificate for Coating Thickness Meter

£ 154.00

Description

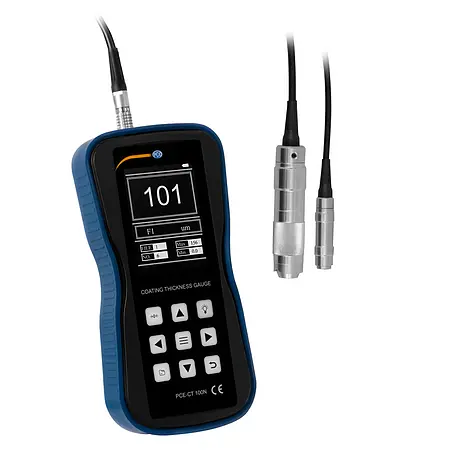

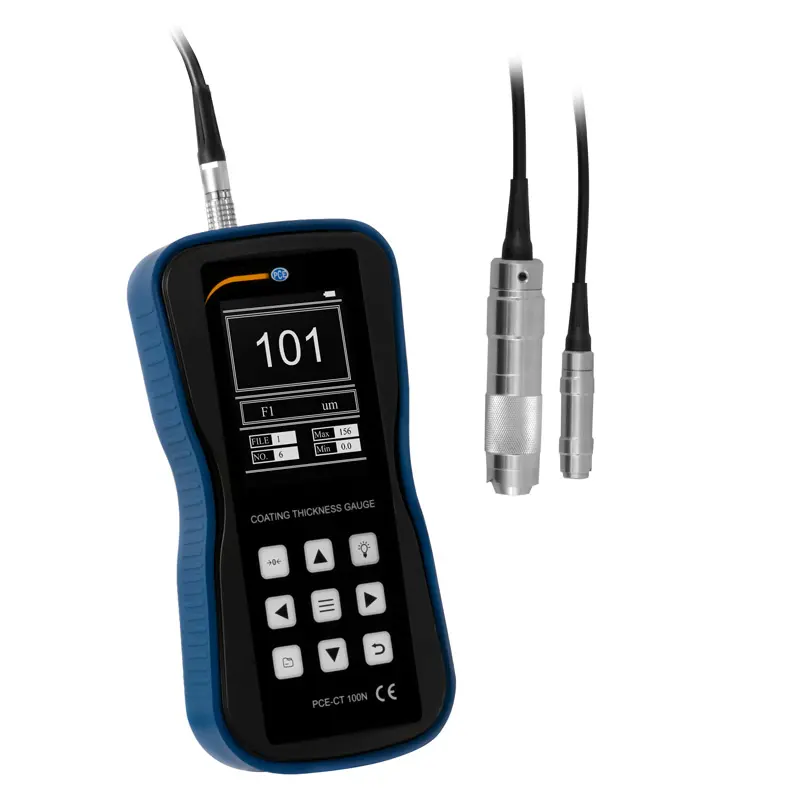

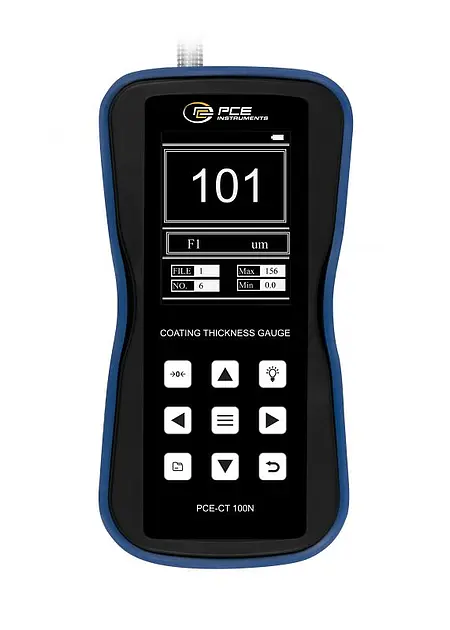

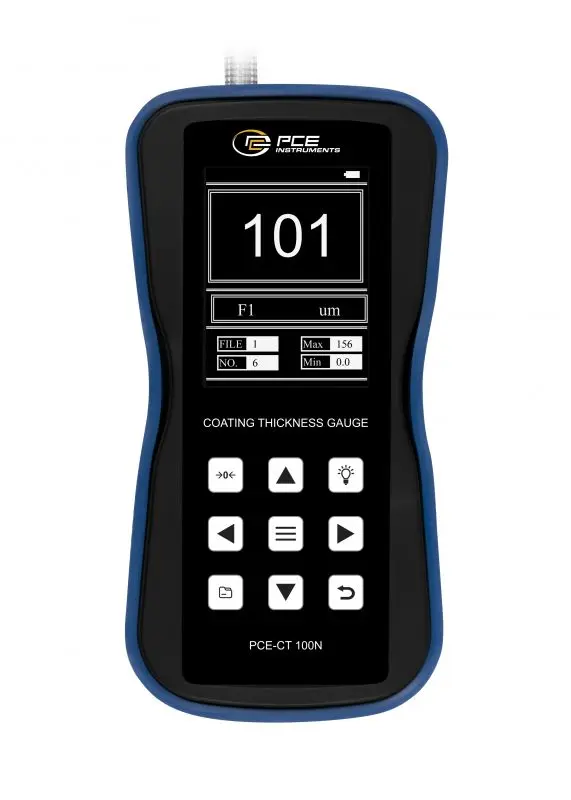

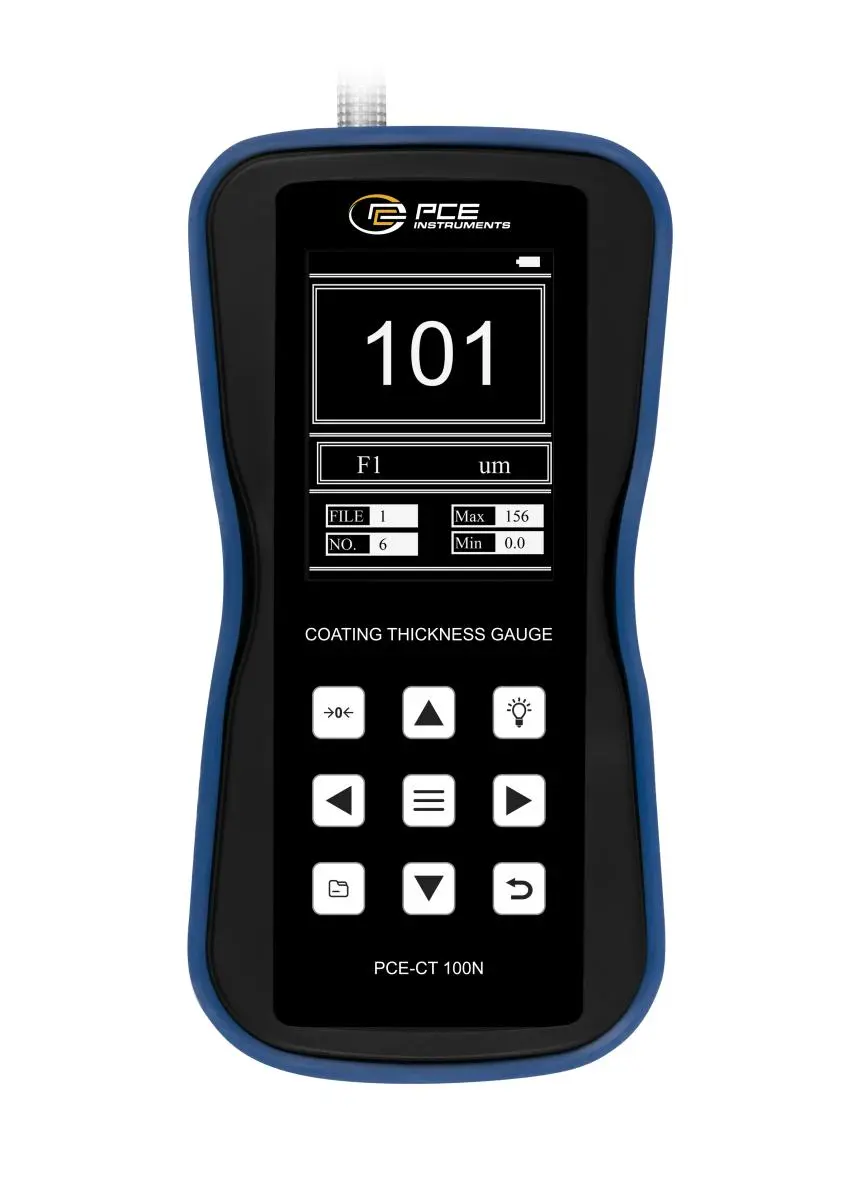

IoT Sensor PCE-CT 100N-ICA incl. ISO Calibration Certificate
Surface tester for ferrous and non-ferrous metals / Very compact size / Non-destructive, precise measurements / Data transmission via USB and Wifi / Simple operation / Uncomplicated and reliable

The IoT sensor works according to the magnetic inductive (ISO 2178) and the eddy current method (ISO 2360). These methods supported by the IoT sensor are used for the non-destructive testing of materials. The IoT sensor is used to measure the thickness of magnetically neutral layers on a magnetic or non-magnetic base material.

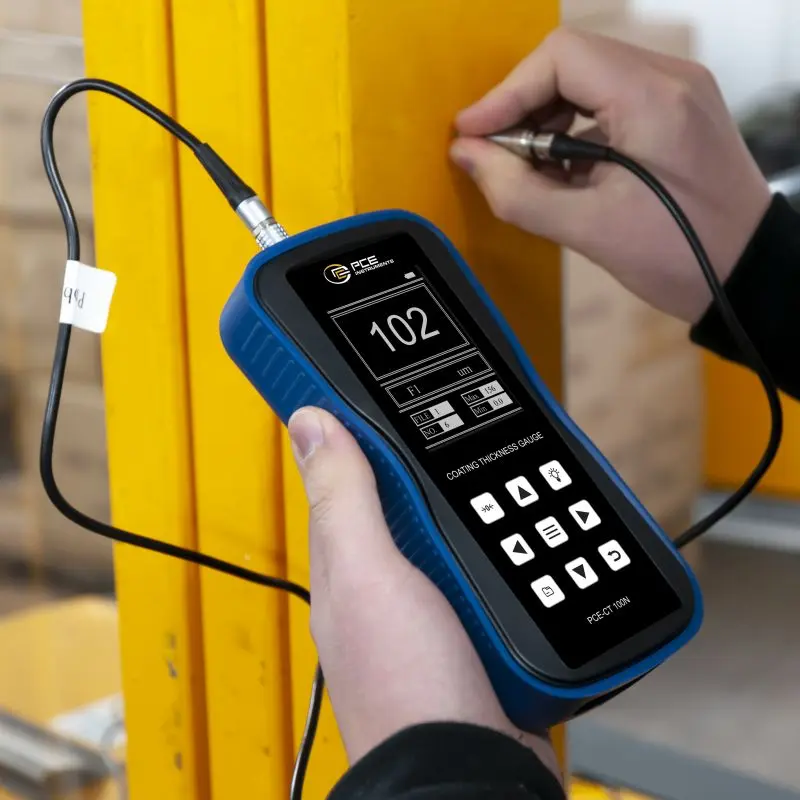

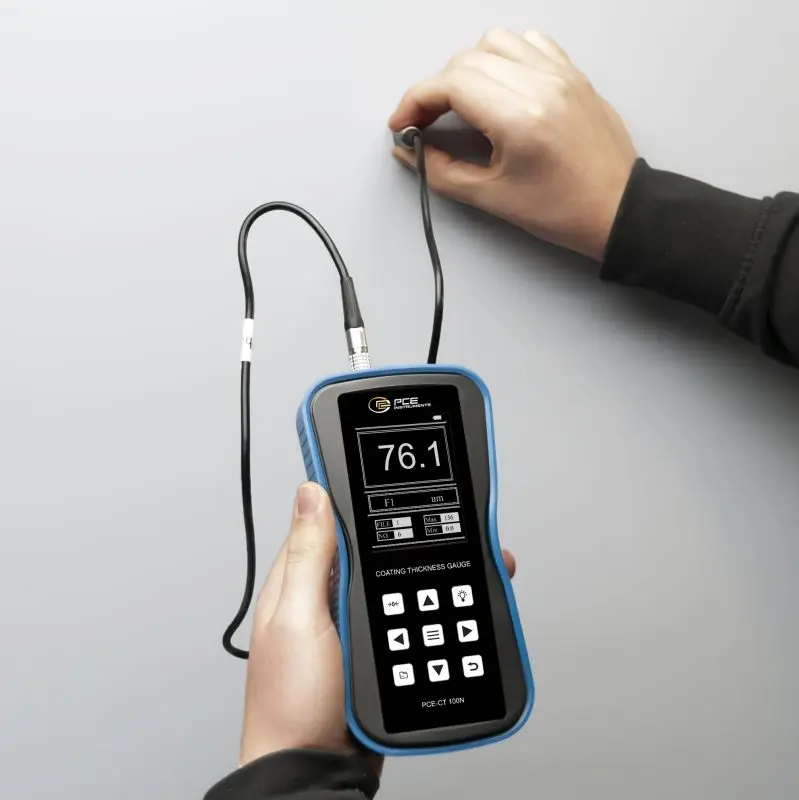

The IoT sensor is ideal for reliable layer thickness measurements on site. With the external probe, the layer thickness can be measured quickly and easily, even in hard-to-reach places. The IoT sensor was developed for non-destructive, fast and precise layer thickness measurements and is easy to use. Measured data can be easily transferred to a PC using a USB data storage device or via WiFi.

The IoT sensor is used in particular in the finishing industry, electroplating, ship and bridge construction, aircraft construction and the machine and chemical industry.

Highlights

- Illuminated touch keyboard

- Measurement data storage for up to 1260 data

- One-point and multi-point calibration

- Single measurement and continuous measurement

- Data transfer via wifi and USB

- Two different probes for NFe and Fe

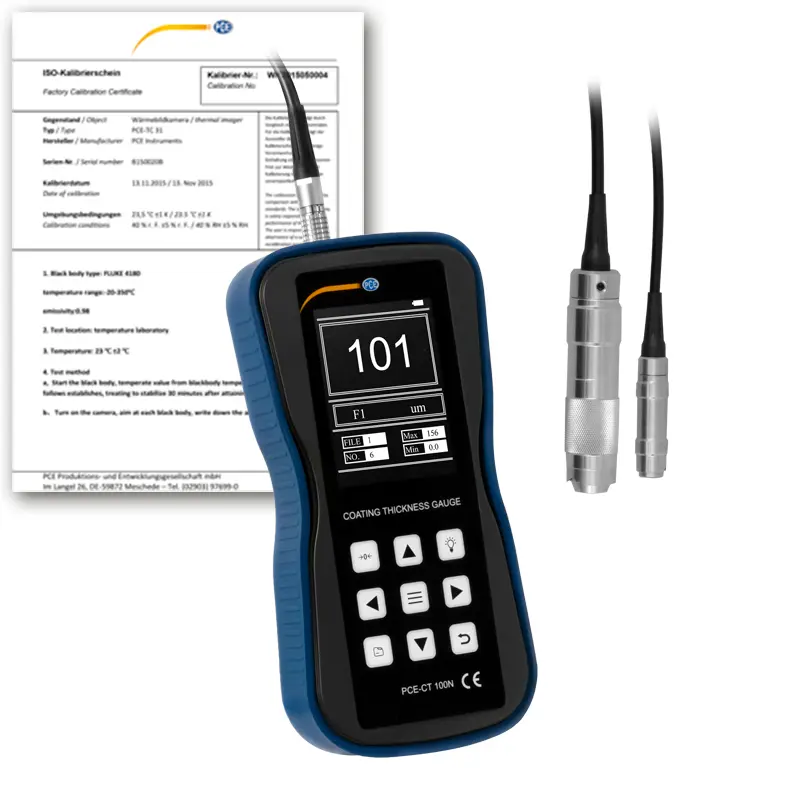

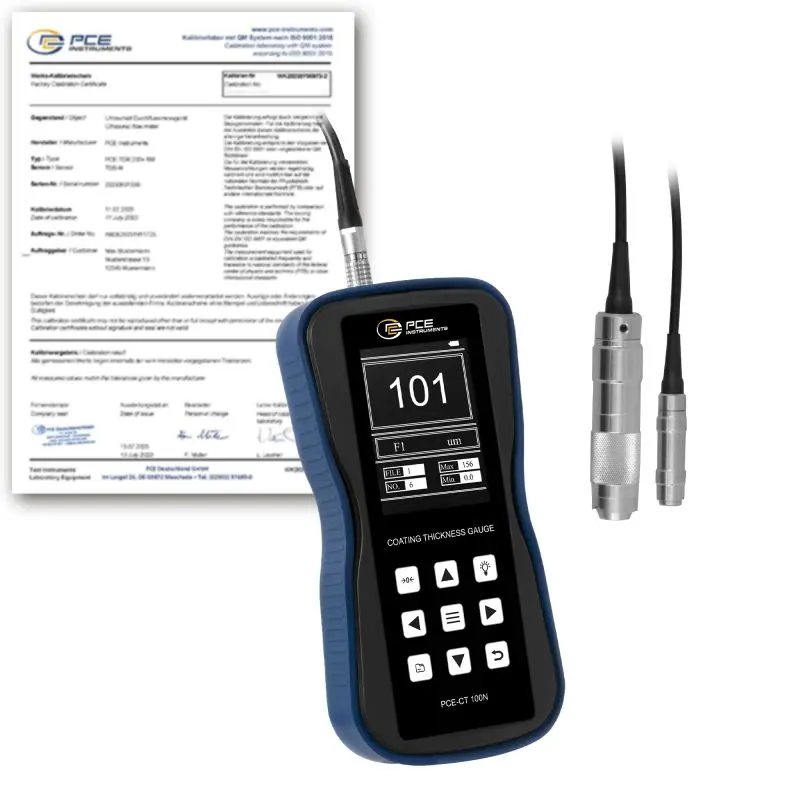

- incl. ISO-Calibration Certificate

Specification

Layer thickness
Measuring range	0 ... 99,9 µm
Resolution	0,1 µm
Accuracy	±(1% +1 µm)

Layer thickness
Measuring range	100 ... 1250 µm
Resolution	1 µm
Accuracy	±(1% +1 µm)

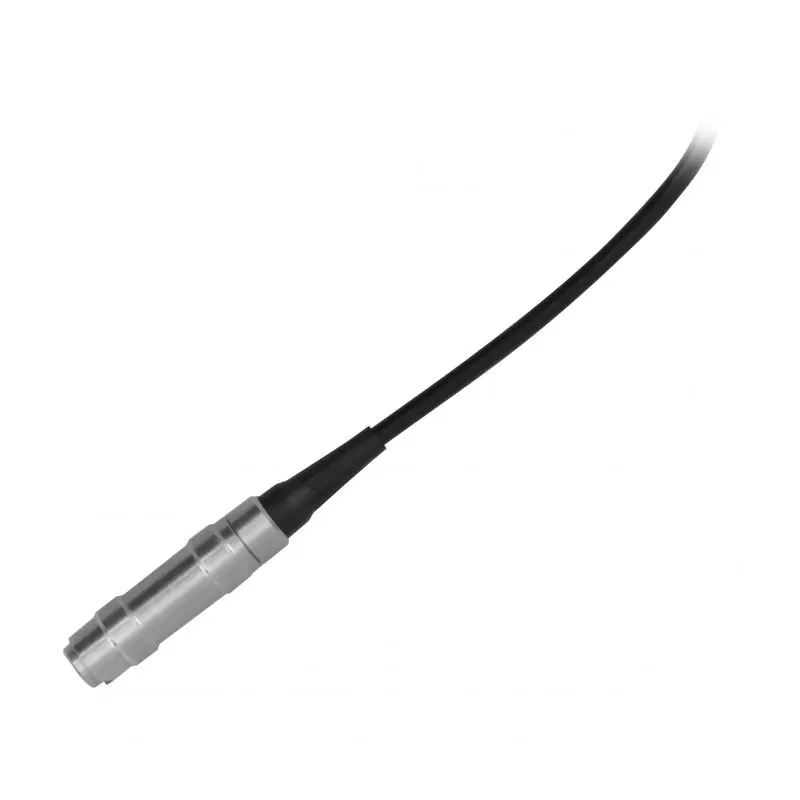

Sensor
Designation	SP-PCE-CT 100N-F
Battery type	Eddy current mode (NFe)
Min. measuring surface	10 mm
Min. layer thickness	50 µm
Min. radius of curvature convex	15 mm
Min. radius of curvature concave	15 mm
Cable length	100 cm
Dimension	55 x 15 mm / 2.2 x 0.6 in

Sensor
Designation	SP-PCE-CT 100N-N
Battery type	Magnetic mode (Fe)
Min. measuring surface	9 mm
Min. layer thickness	50 µm
Min. radius of curvature convex	15 mm
Min. radius of curvature concave	15 mm
Cable length	100 cm
Dimension	50 x 10 mm / 2 x 0.4 in

General technical data
Measuring functions	MIN, MAX
Units	µm, mils
Display type	LC colour display with backlight
Display size	2,8 Inch
Storage medium	Internal memory
Memory capacity (additional information)	5 memory groups with 252 memory locations each
Interface	WLAN, USB
Automatic power-off	5 min
Calibration	Single point, multipoint
Menu language	English, Chinese, English (GB)
Protection class (device)	IP20
(Rechargeable) battery	2 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	0 ... 50 °C , 20 ... 90 % RH
Storage conditions	0 ... 50 °C , 20 ... 90 % RH
Dimensions ( L x W x H )	160 x 78 x 35 mm
Weight	224 g
