Order no.: PCE-TG 300-NO2-ICA

IoT Meter PCE-TG 300-NO2-ICA incl. ISO calibration certificate

ISO Calibration
£ 1,056.00
£ 1,267.20
:
4250348731180
PCE-TG 300-NO2-ICA
price ex. (VAT / delivery)
Delivery time: 10 - 14 days

Description

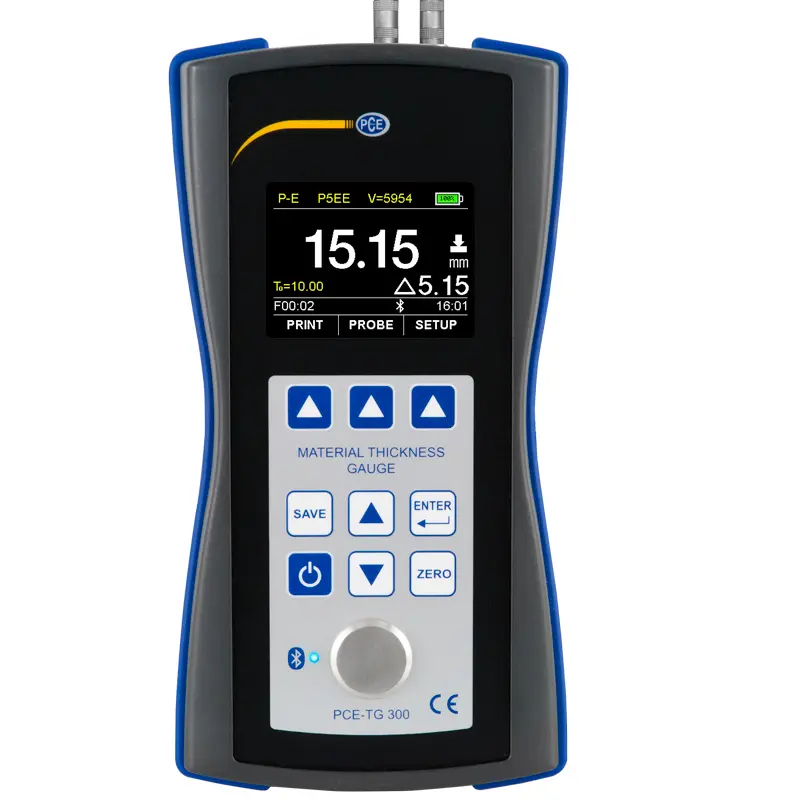

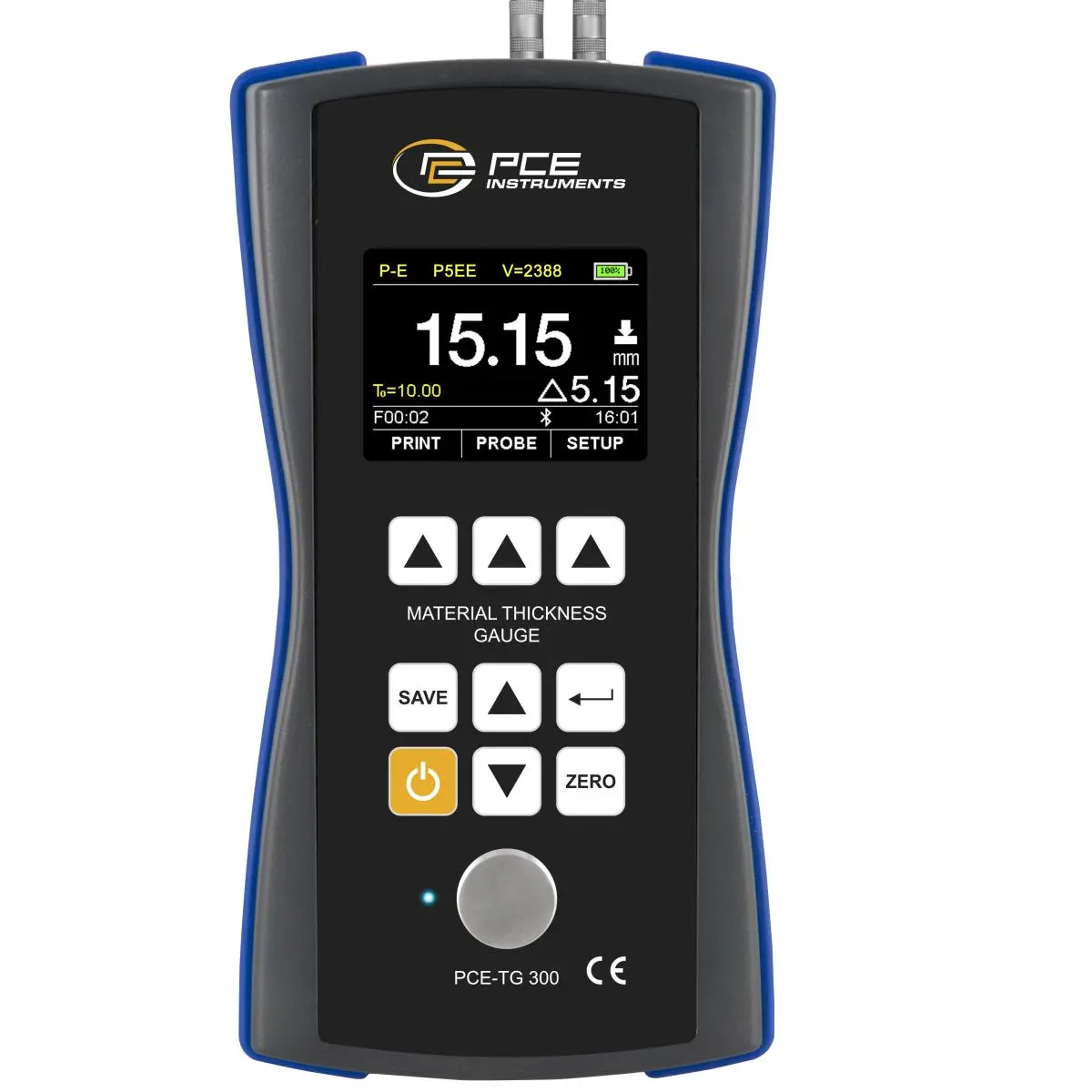

IoT meter
Large measuring range / Up to 600 mm / Pulse-echo or echo-echo mode /  For all homogeneous materials / Print function via Bluetooth / USB connection

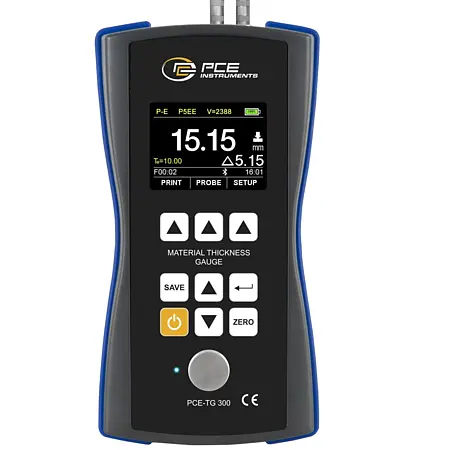

The PCE-TG 300-NO2 is an IoT meter with special sensors for various applications. In general, the wall thicknesses of all homogeneous materials can be measured with the thickness meter. For damping or scattering materials such as plastic or cast a special sensor is available. An angled 90° sensor also enables measurements at hard-to-reach measuring points. The speed of sound can be set freely on the thickness meter and thus adapted to a wide variety of materials.

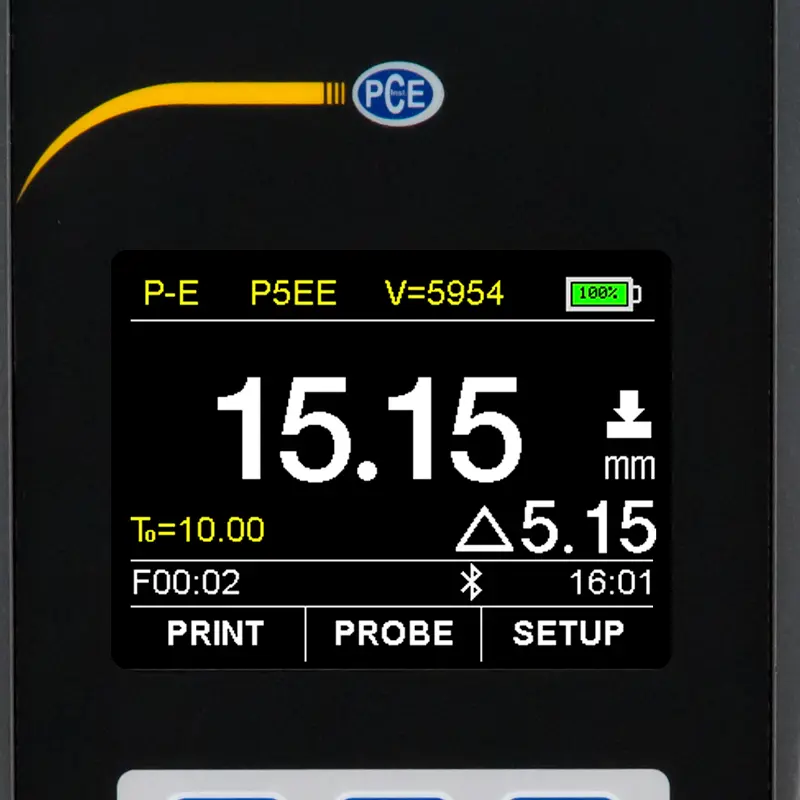

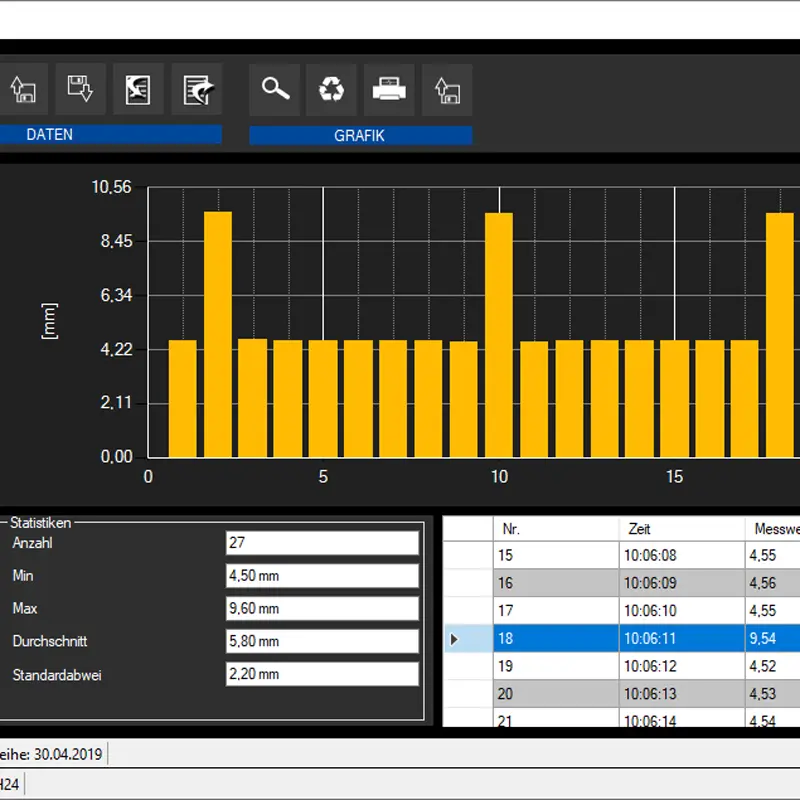

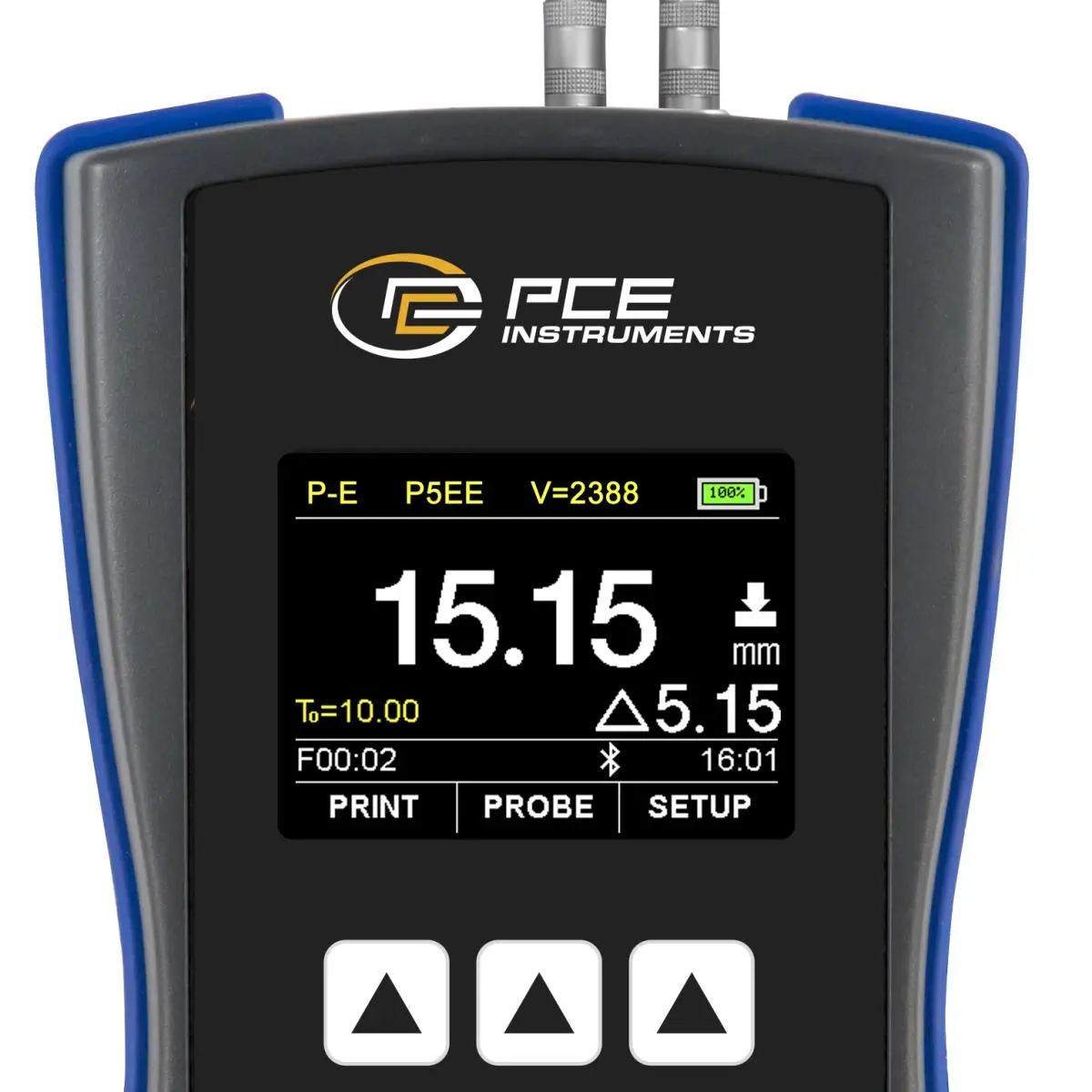

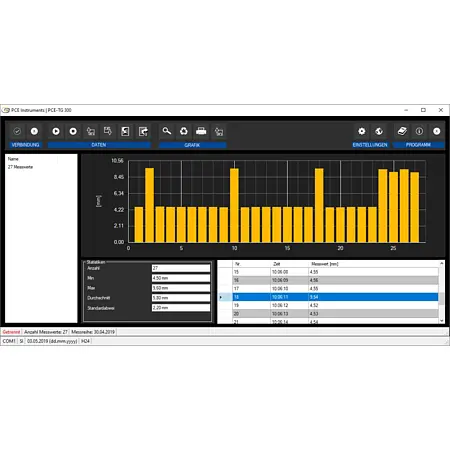

The measured values ​​are displayed directly on the easy-to-read TFT color display. Due to the internal memory, which can be read out via the optionally available software, different measuring points can be clearly stored. The non-destructive ultrasound measuring method enables the measurement even on end products. Thanks to the Echo-Echo working mode, even coated workpieces can be measured (only with PCE-TG 300-P5EE sensor).

Highlights

- Large measuring range
- Various sensors available
- Battery operation
- Error and voids detection
- Internal measurement data memory
- Print via Bluetooth

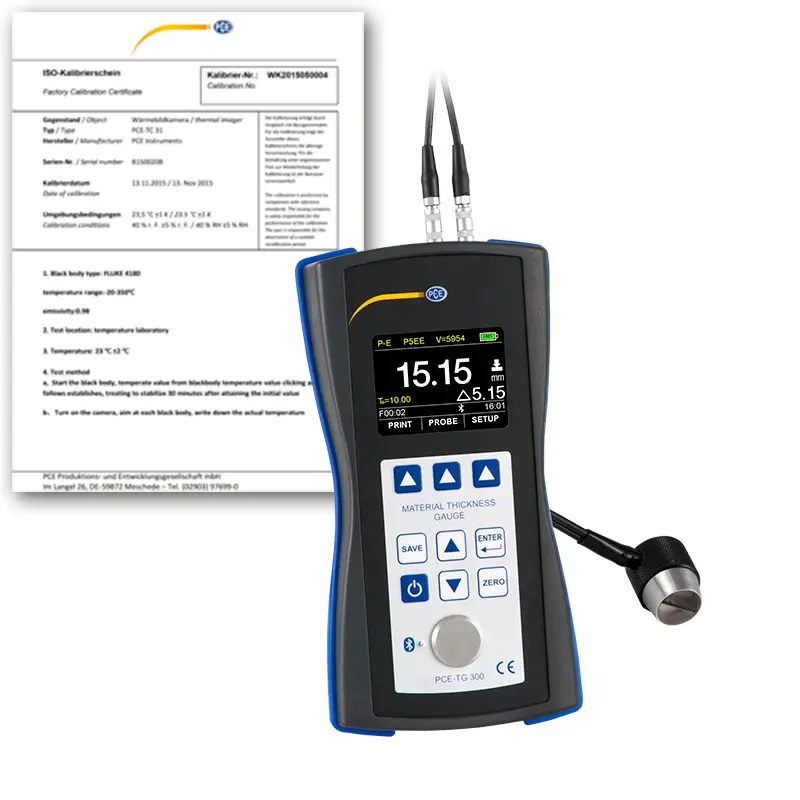

- incl. ISO calibration certificate

Specification

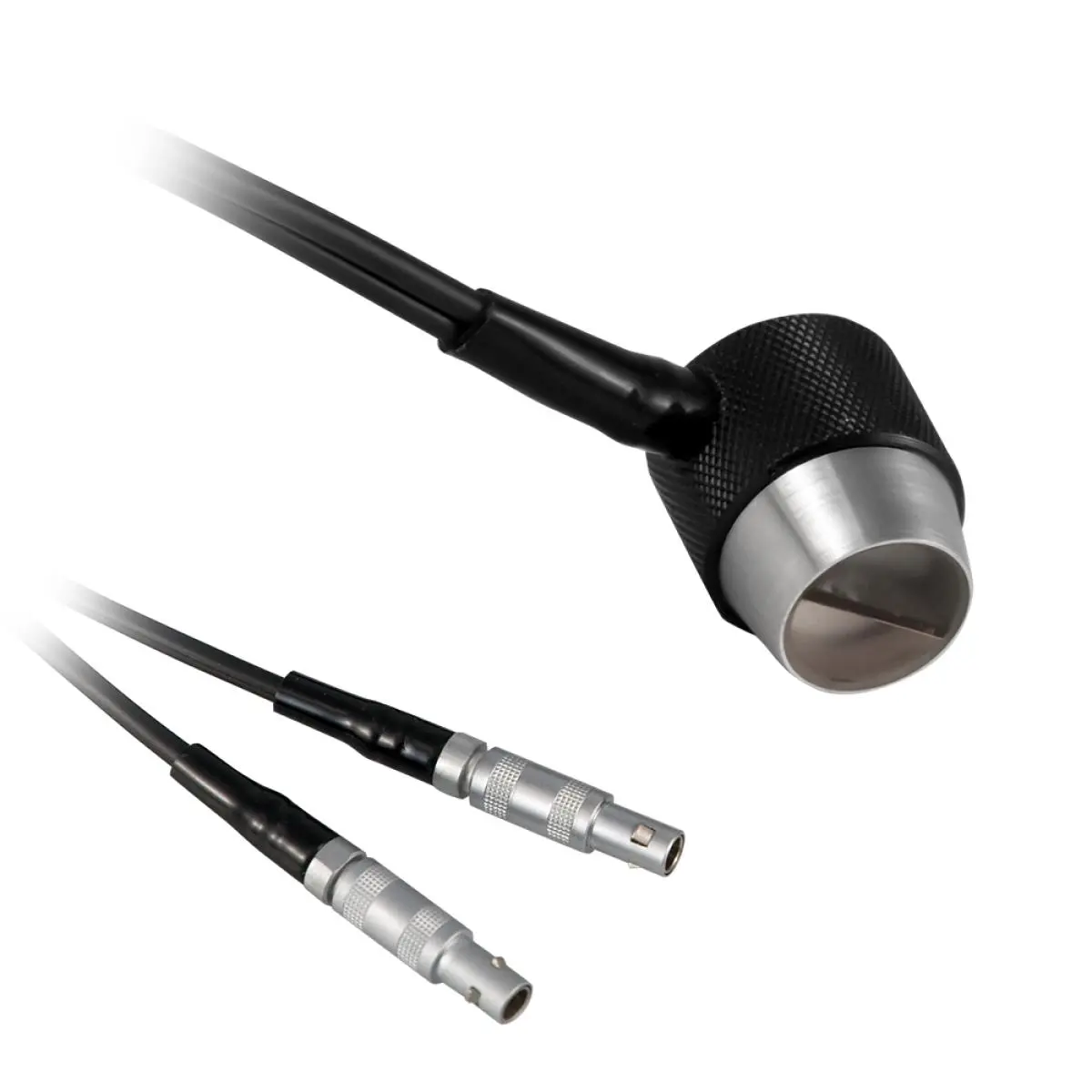

PCE-TG-NO2 sensor
Measuring range3.0 … 300.0 mm / 0.118 ... 11.81" (steel)
Minimum diameter of pipes
30 mm / 1.18"
Frequency2.5 MHz
Diameter14 mm / 0.55"
Descriptionnormal measurement
PCE-TG 300-NO2 device
Measuring rangeP-E: pulse-echo mode 0.65 ... 600 mm / 0.025 ... 23.62" (steel)"
 (measurement range varies depending on the sensor)
E-E: Echo-Echo mode 2.50 ... 100 mm / 0.098 ... 2.36"
 (only with PCE-TG 300-P5EE sensor)
Accuracy±0.04 mm H[mm] (<10 mm); ±0.4 % H[mm] (>10 mm)
 H refers to the material thickness of the workpiece
Resolution0.1 mm / 0.01 mm / 0.001 mm (adjustable)
Measurable materialsmetals
 plastics
 ceramics

epoxy resin
 glass
 and all homogeneous materials
Working modesPulse-echo mode (fault and void detection)
 Echo-echo mode (hide layer thicknesses, e.g. paint)
Calibrationsound velocity calibration
 zero calibration
 two-point calibration
View ModeNormal Mode, Scan Mode, Difference Mode
Unitsmm / inch

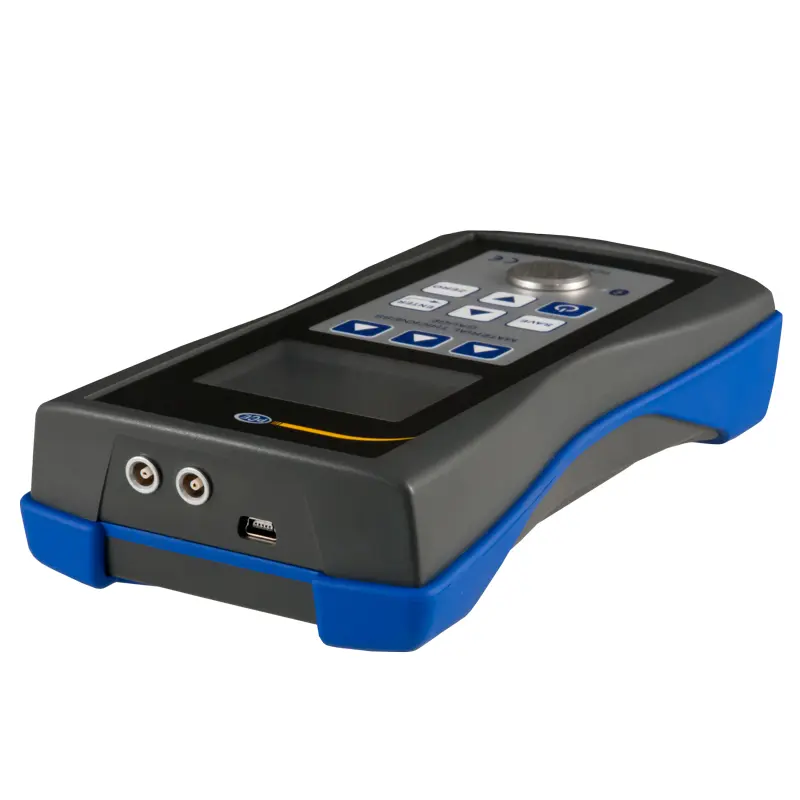

Data transferprinting via Bluetooth / USB 2.0
Memorynon-volatile memory with 100 data groups with 100 data sets each
Operating time
continuous operation 100 h
 automatic stand-by mode (adjustable)

auto power off mode (adjustable)
Power supply4 x AA battery 1.5 V
Display320 x 240 pixels TFT LCD color display with brightness adjustment
Operating conditions0 ... +50 °C / 32 ... 122 °F, ≤80 % RH non-condensing
Storage conditions-20 ... +70 °C / -4 ... 158 °F, ≤80 % RH non-condensing
Dimensions185 x 97 x 40 mm / 7.2 x 3.8 x 1.5"
Weight375 g / 13.2 oz

Delivery Scope

1 x IoT meter PCE-TG 300-NO2-ICA
1 x Sensor PCE-TG-NO2
1 x 100 ml coupling gel
1 x Transport case
4 x AA batteries
1 x User manual
1 x ISO calibration certificate
