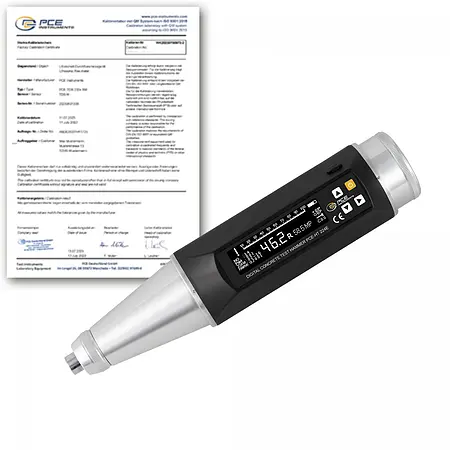

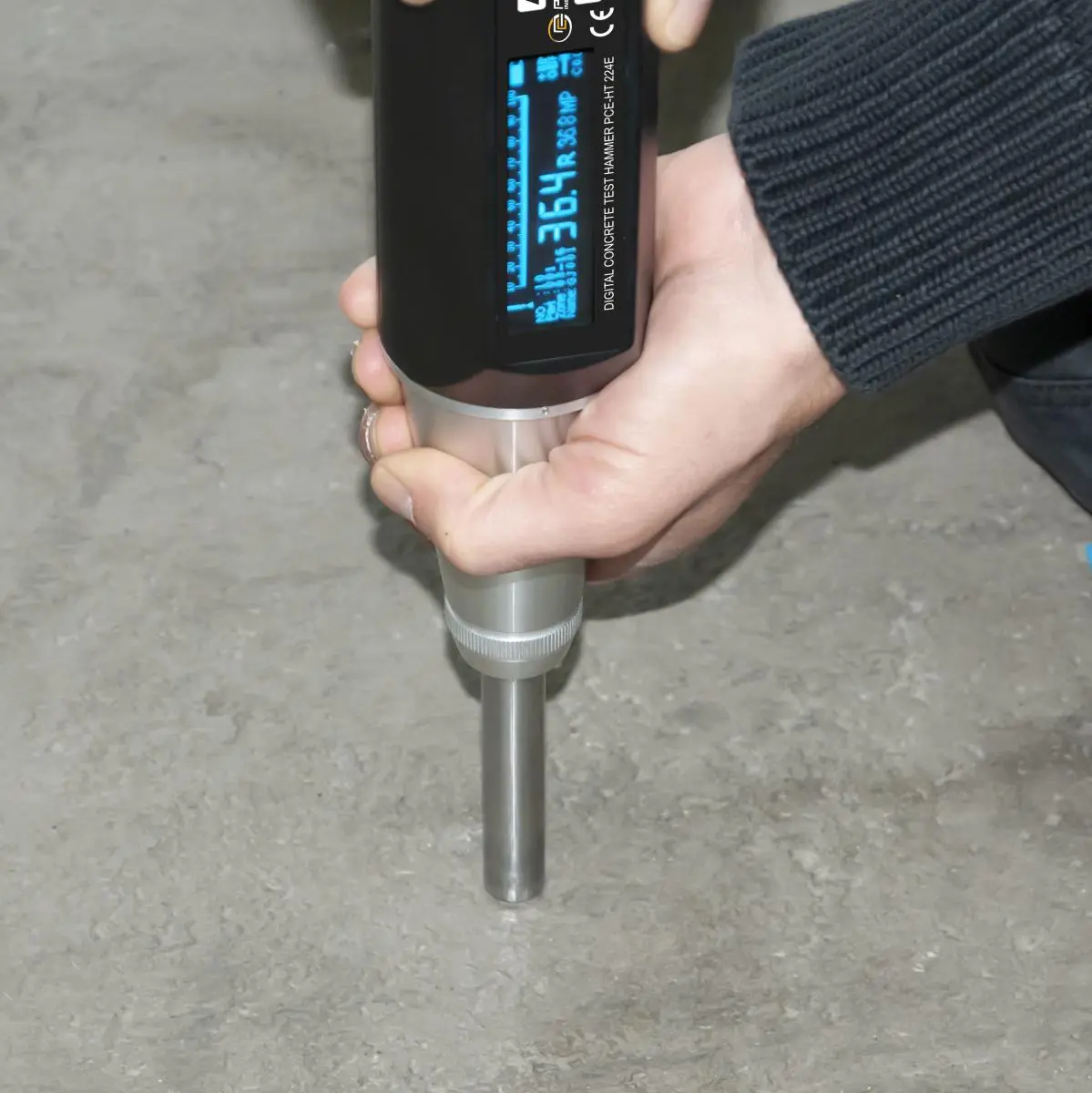

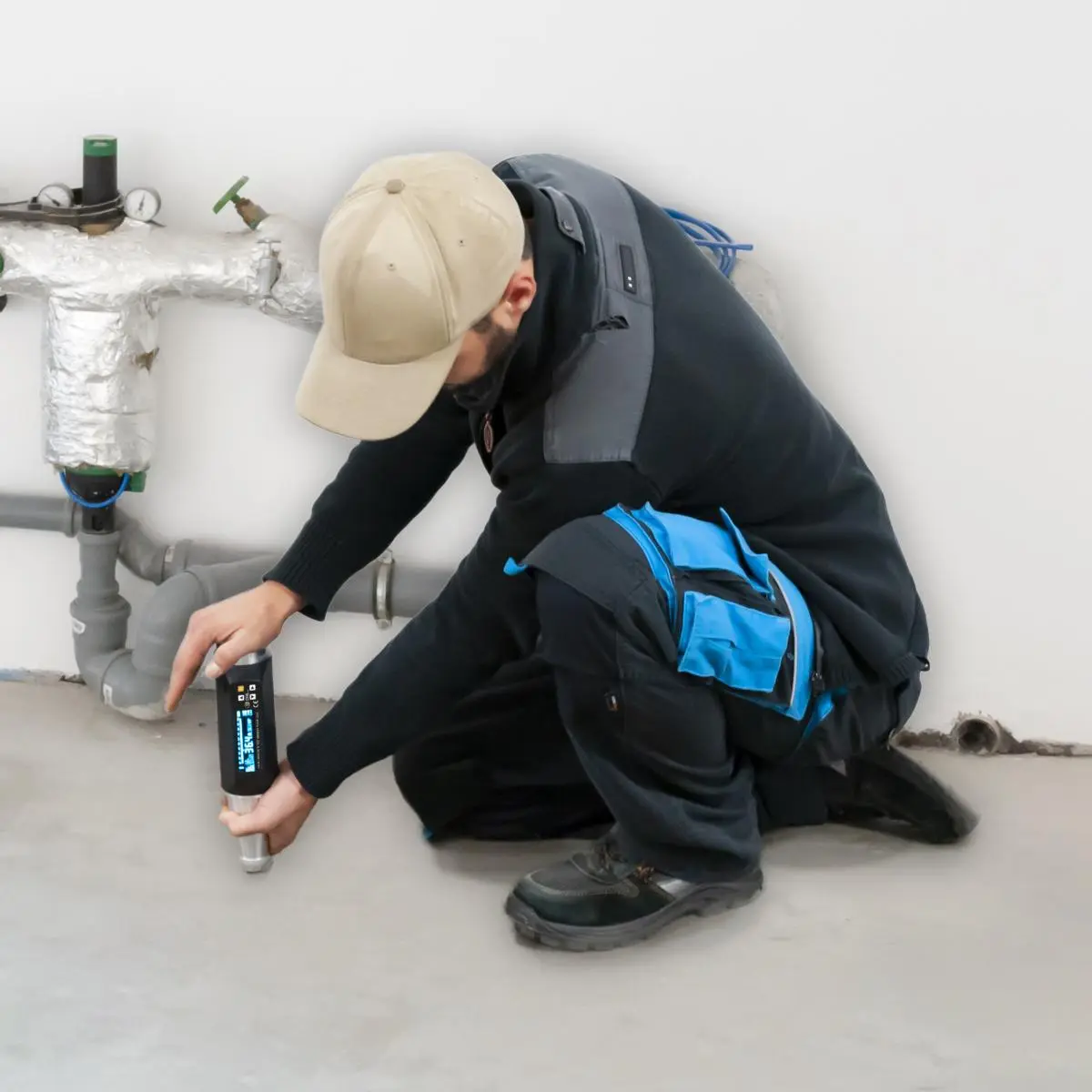

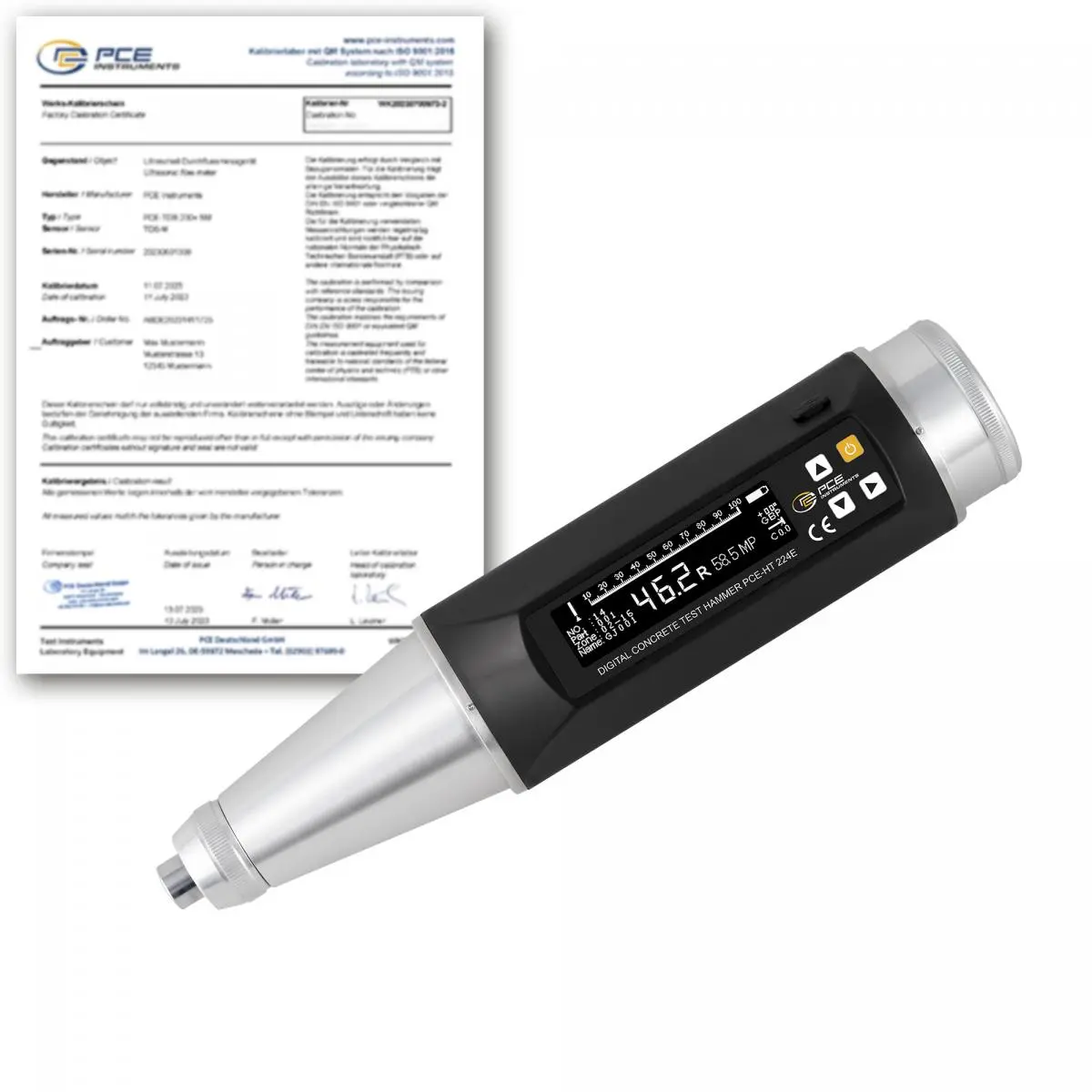

The IoT Meter / IoT Sensor is a measuring tool for testing the strength of concrete. The IoT Meter / IoT Sensor measures strength according to the Schmidt principle. According to this measurement method, the quality of concrete can be measured with the IoT Meter / IoT Sensor. Thus, the IoT Meter / IoT Sensor finds its essential application in construction and in the construction sector. The IoT Meter / IoT Sensor is also suitable for measuring the hardness of rolled paper. The built-in mechanism on the IoT Meter / IoT Sensor always ensures the same impact energy of 2.207 Nm.
The hardness tester displays measurements Rebound Value and can display force in PSI, MPa, kgF/cm², or N/mm². The IoT Meter / IoT Sensor can be set up to measure at test angles of downward(-90°), downward(-45°), horizontal (0°), upward(45°), or upward(90°).
| Hardness | |
| Measuring range | 10 ... 100 N/mm² |
| Resolution | 0,1 R |
| Accuracy | ±0.1 R |
| General technical data | |
| Units | MPa, N/mm², kgf/mm², psi |

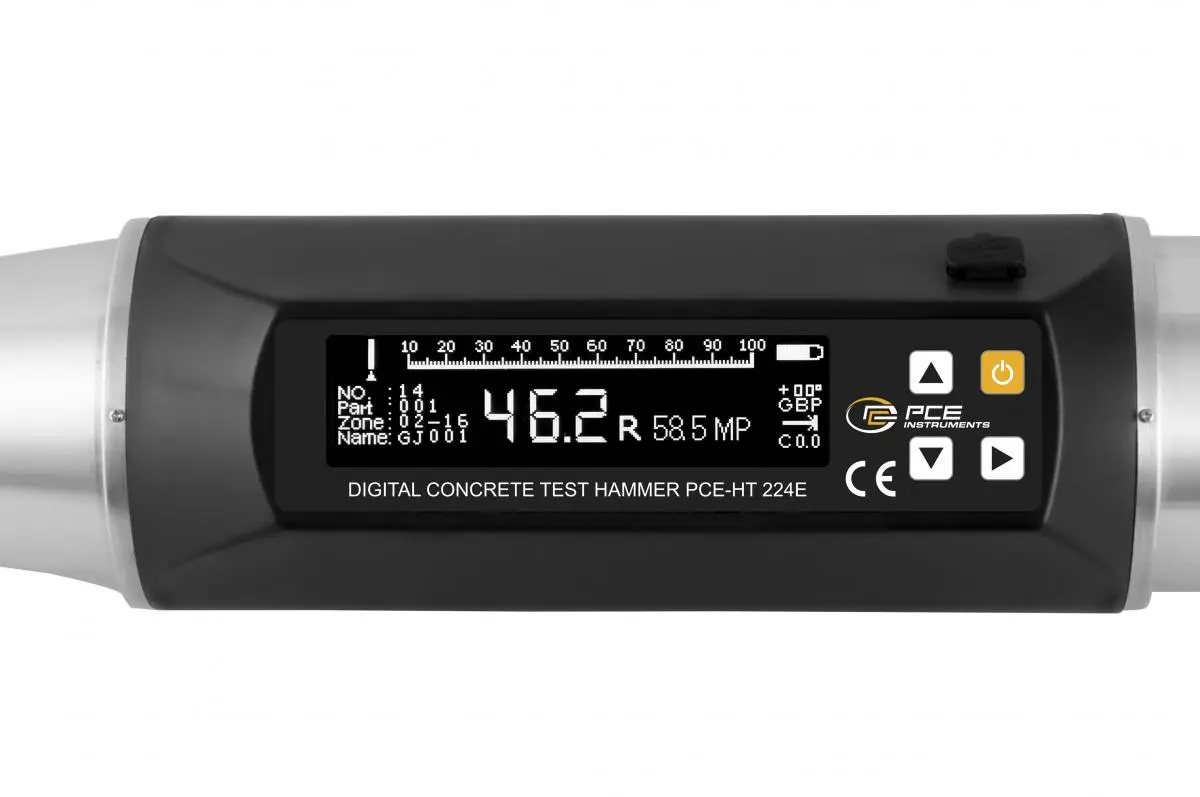

| Display type | OLED |
| Display resolution | 256 x 64 pixels |
| Storage medium | Internal memory |
| Storage capacity | 1000 Data records |
| Memory capacity (additional information) | with 256 measurements each |

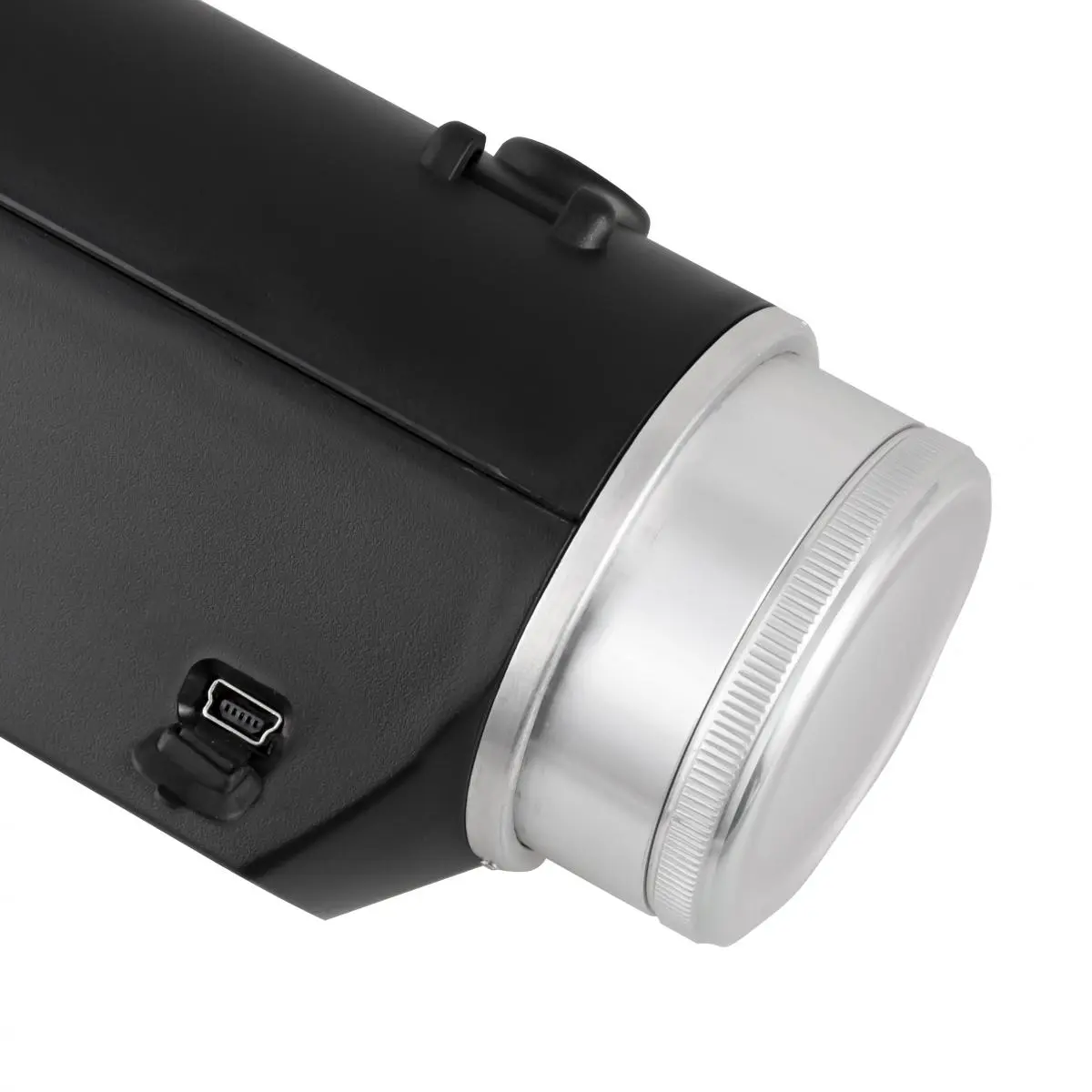

| Interface | Bluetooth, Micro-USB |
| Nominal kinetic energy | 2,207 Nm |
| Menu language | English, English (GB) |
| Protection class (device) | IP42 |
| Power supply | 5V DC, 1A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion polymer battery |
| Capacity | 1100 mAh |
| Operating conditions | -4 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | -4 ... 40 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 280 x 75 x 60 mm |
| Weight | 1800 g |
