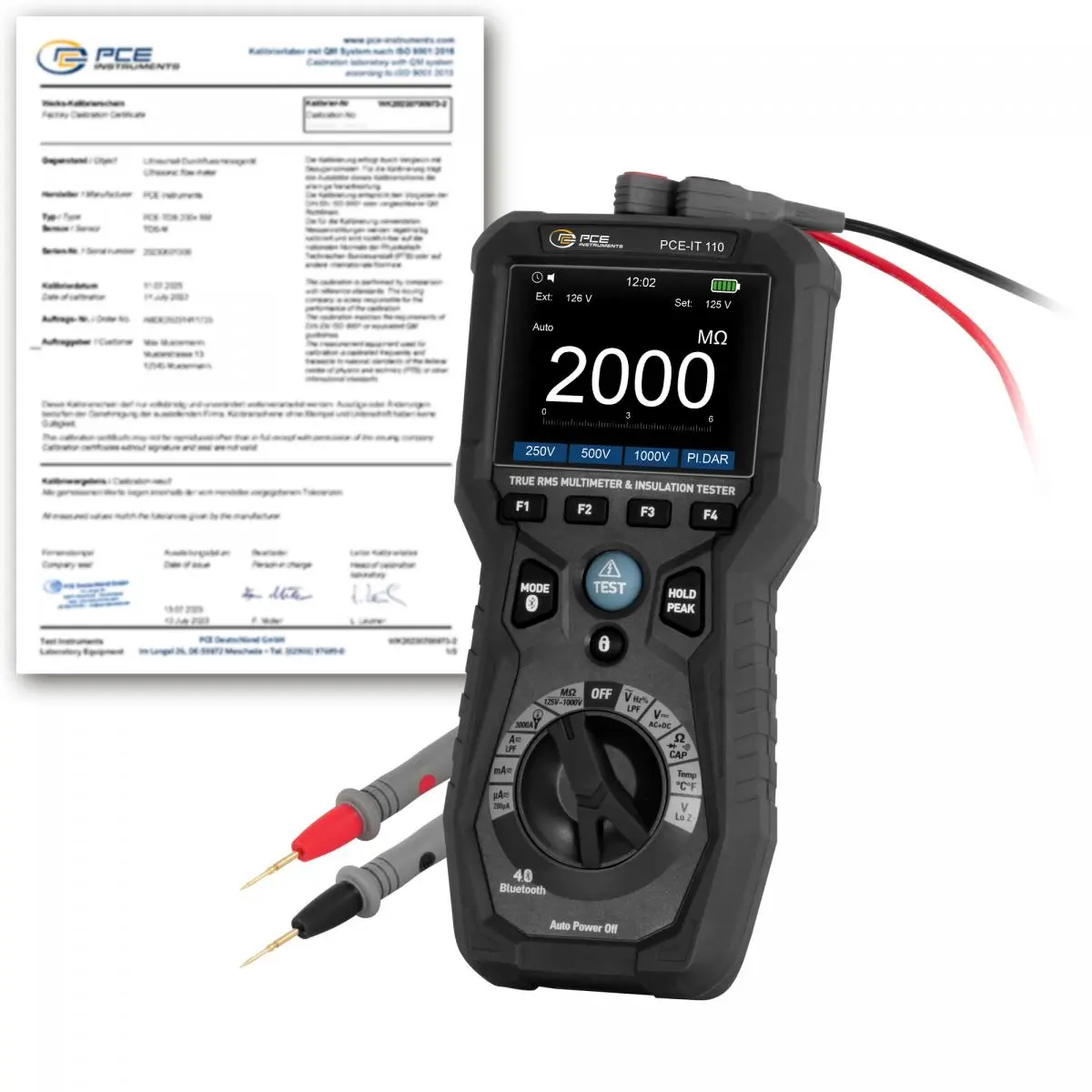

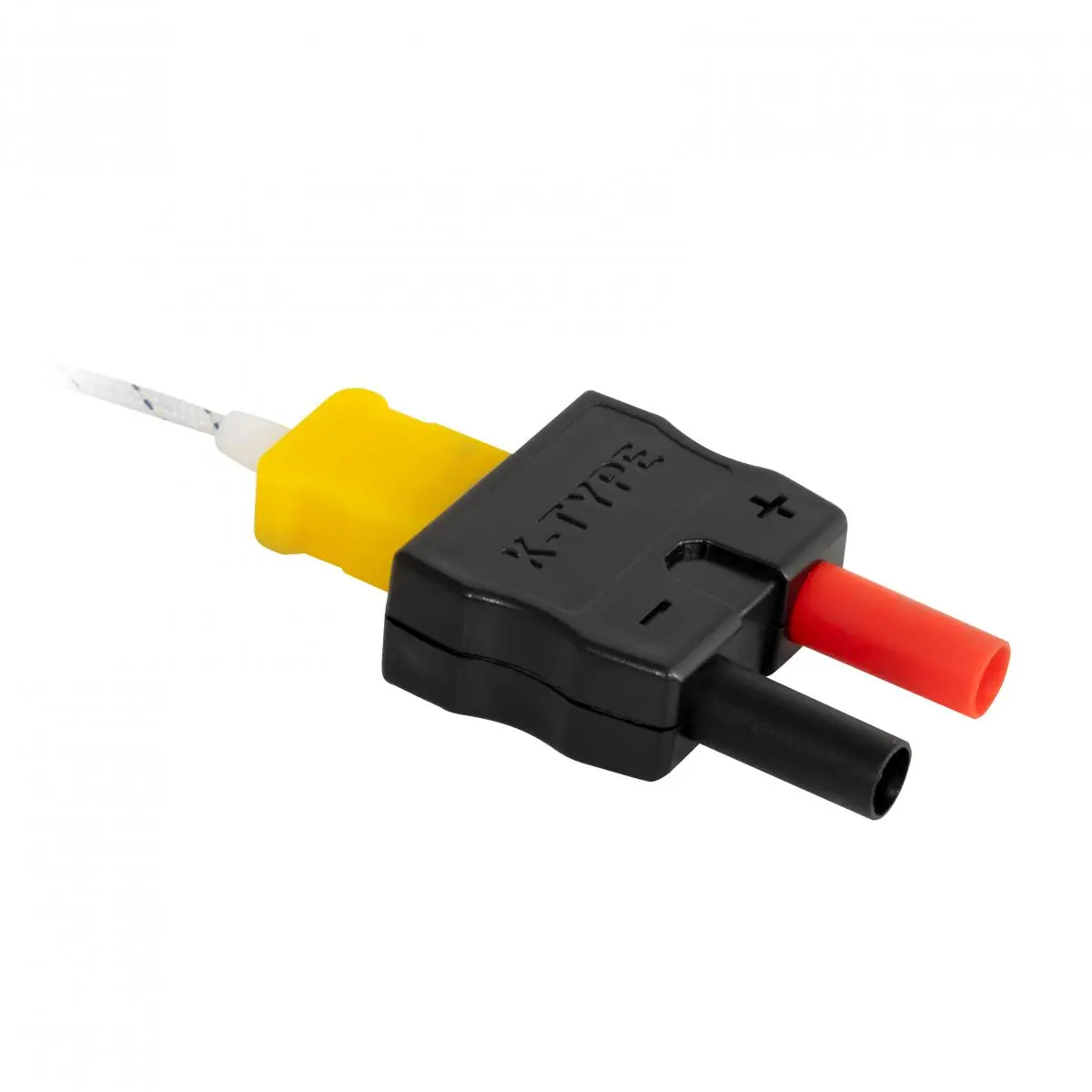

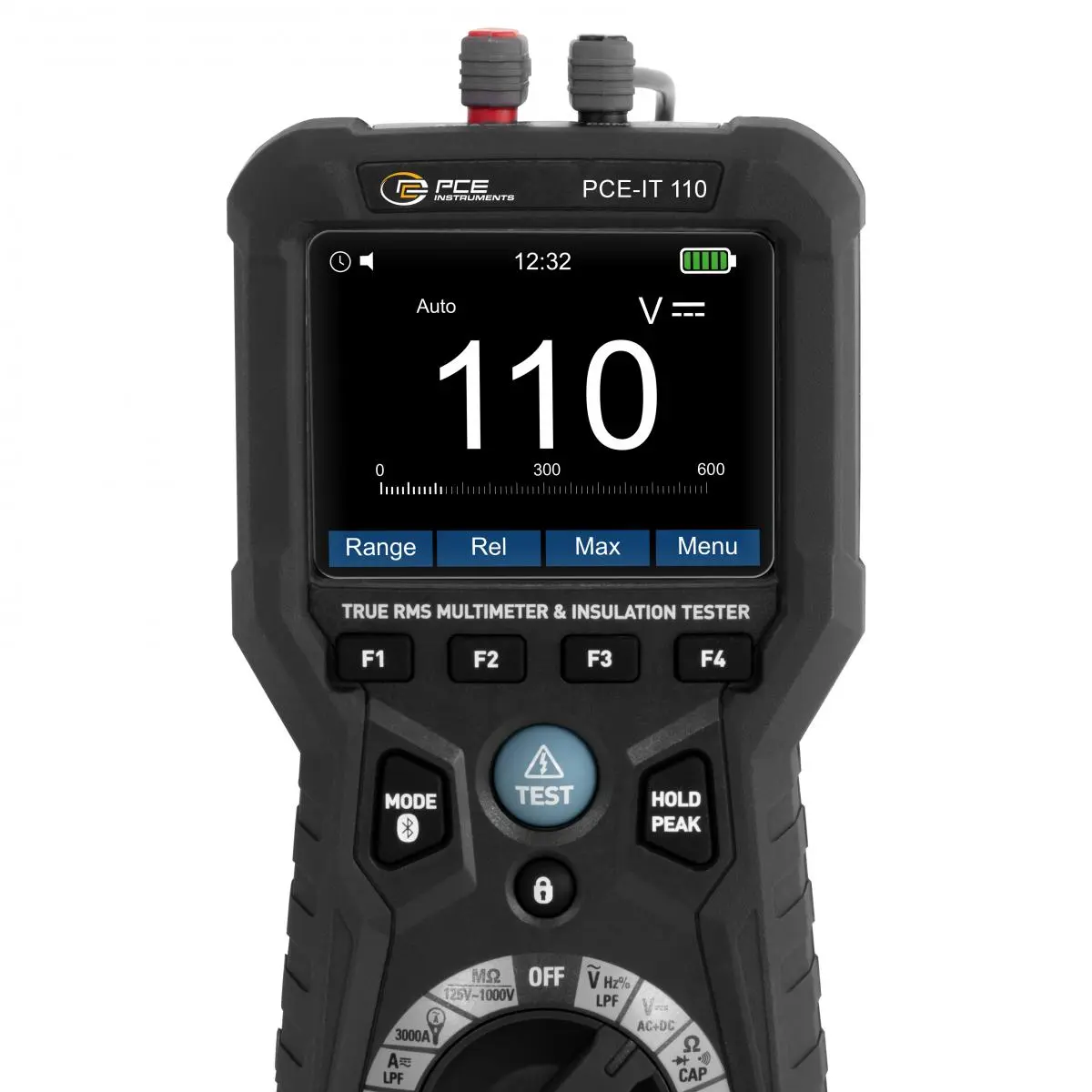

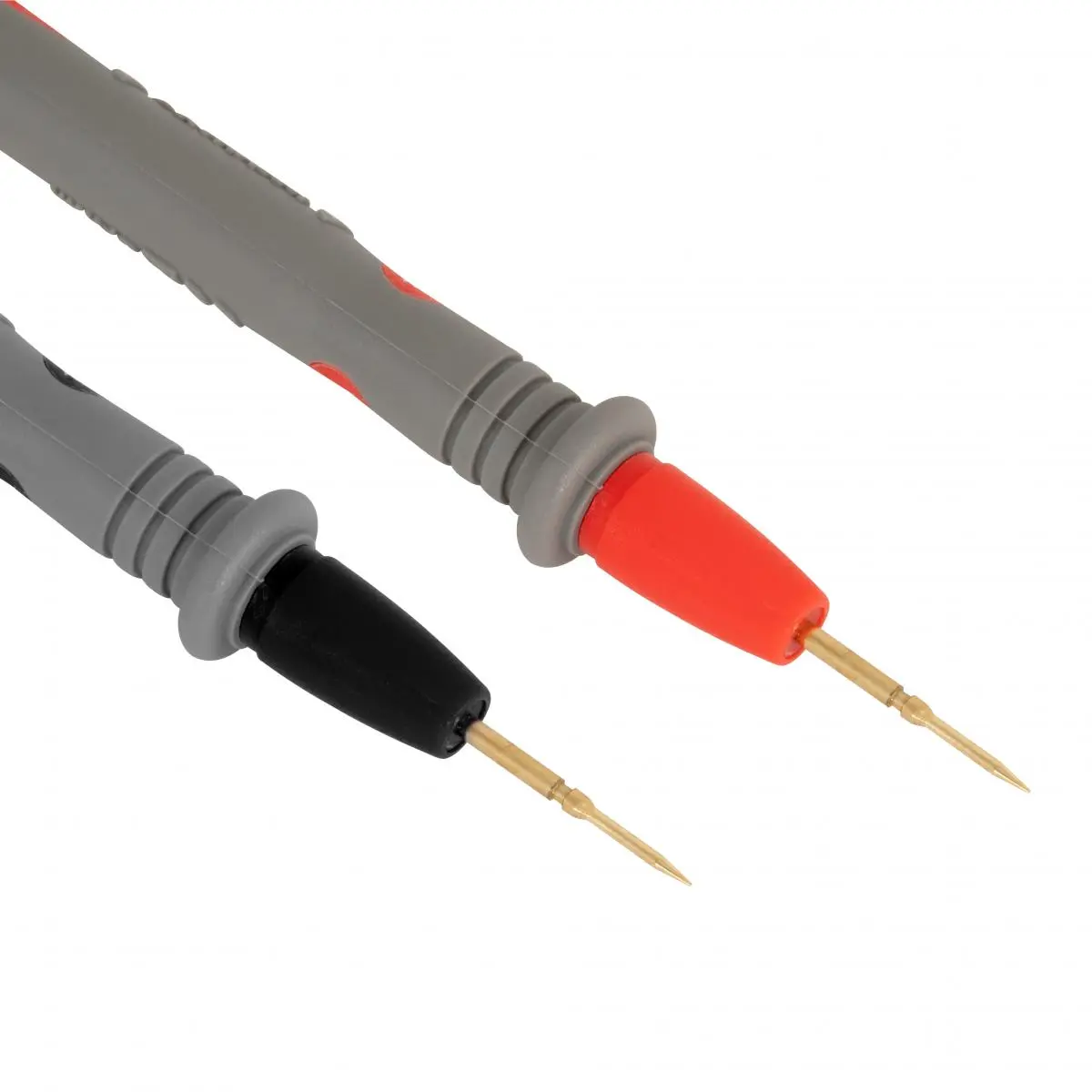

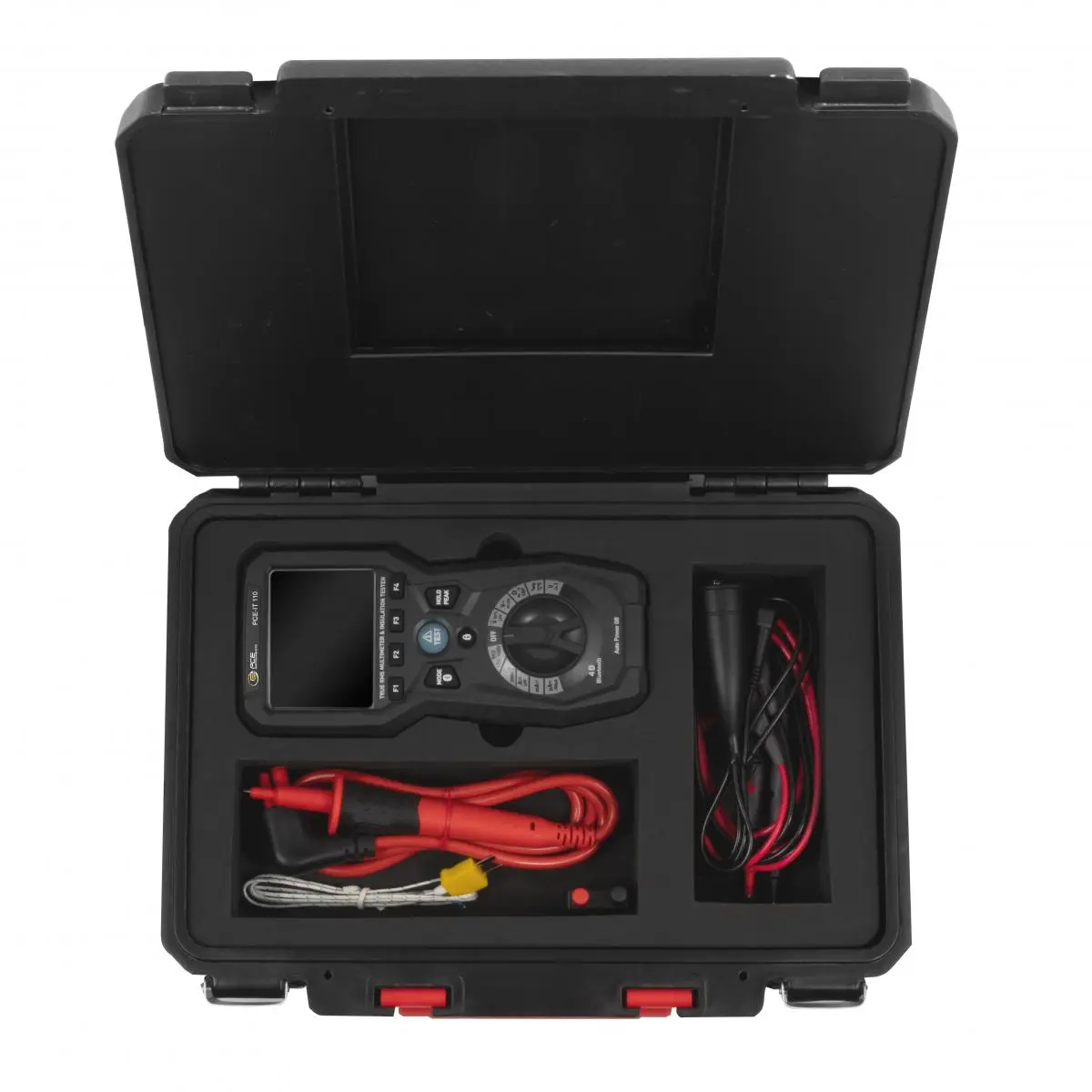

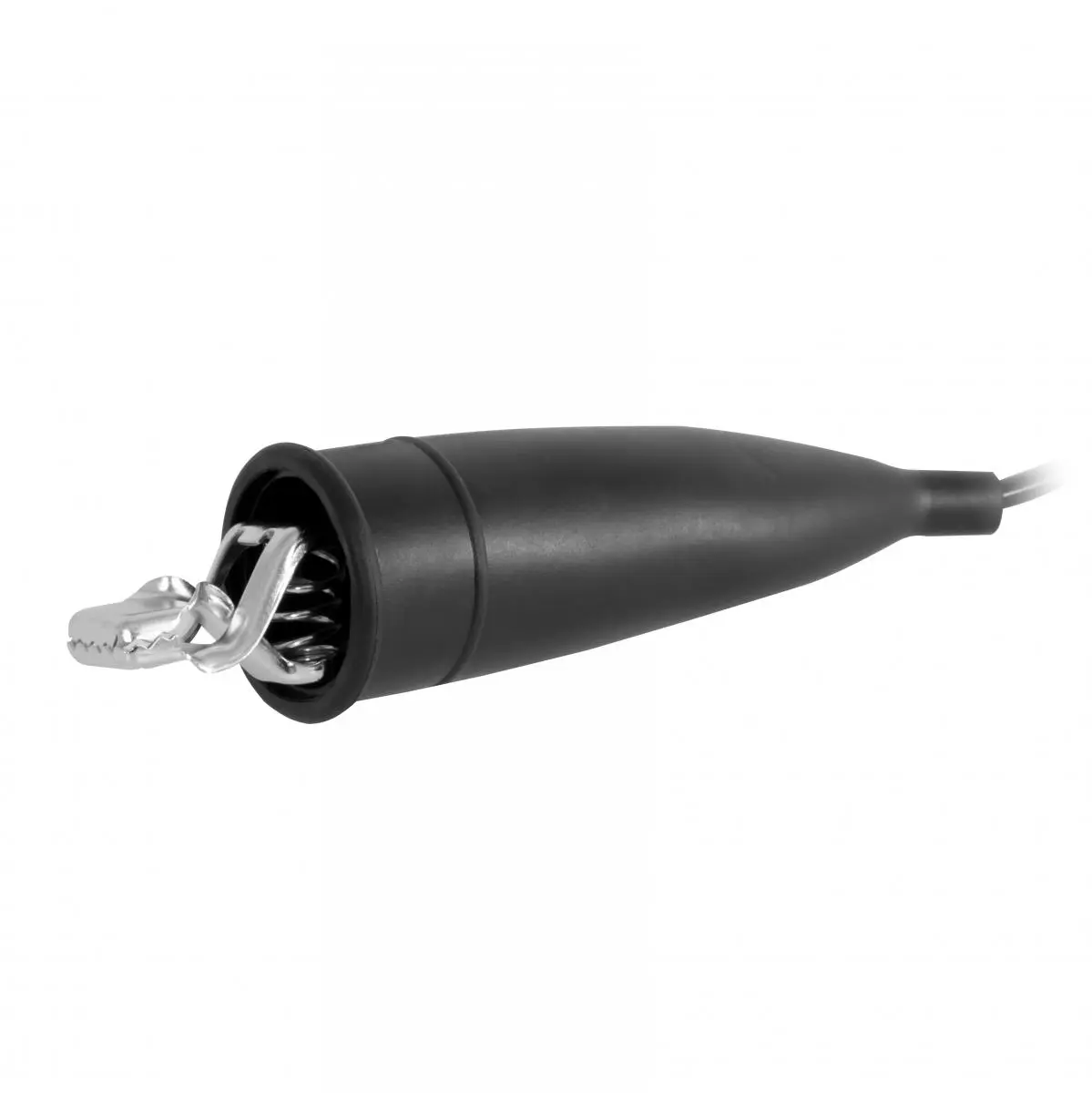

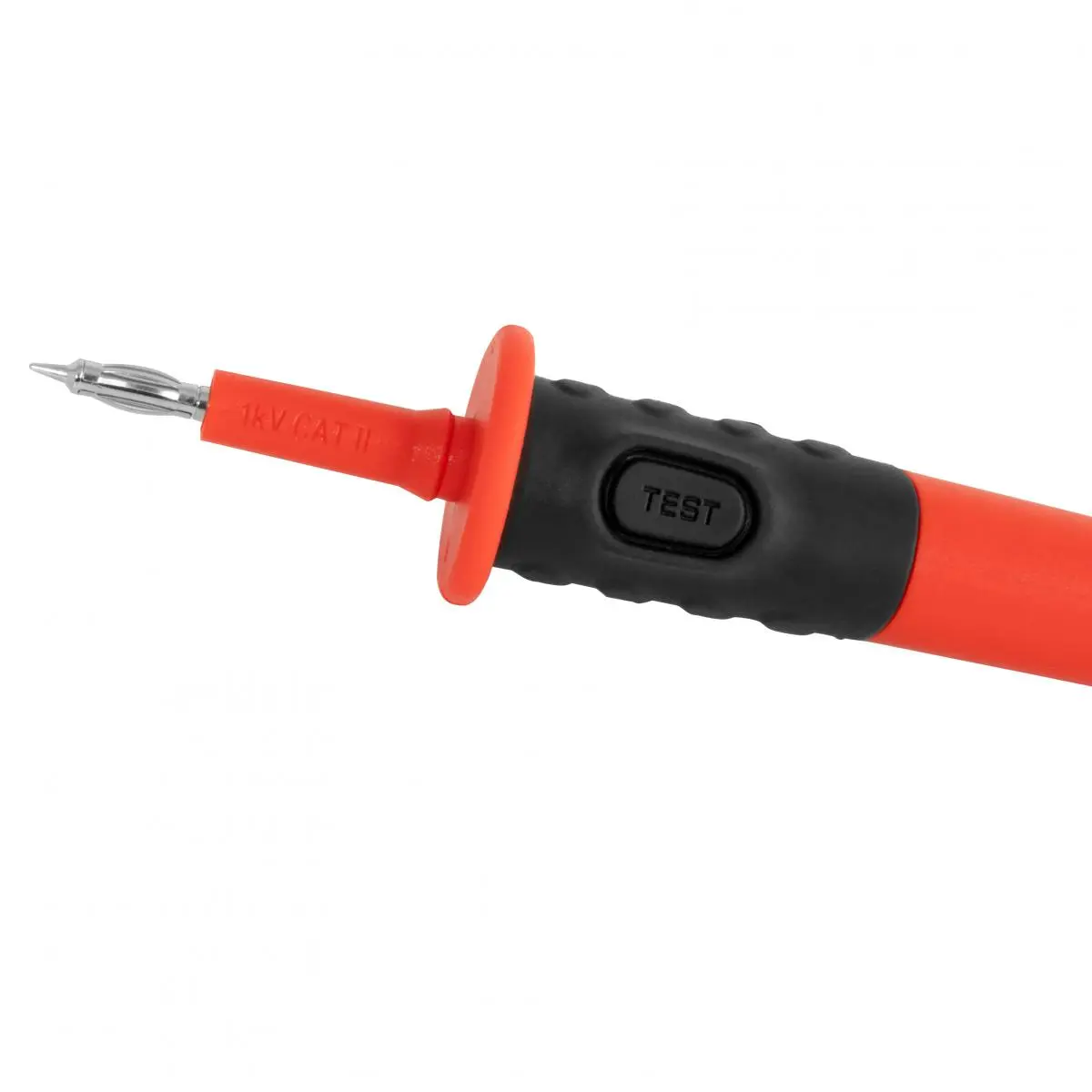

The Insulation Tester / Insulation Meter combines the functions of a fully-fledged digital multimeter with a powerful Insulation Tester / Insulation Meter and is ideal for professional applications in industry, trade and energy supply. In addition to measuring voltage, current and resistance, the device also offers frequency and capacitance measurement as well as temperature measurement via the supplied type K thermocouple. The automatic range selection and the 3.5 inch LCD color display enable simple and precise operation. The Insulation Tester / Insulation Meter allows insulation tests with selectable test voltages from 125 V to 1000 V and measures insulation resistances of up to 6000 MΩ. It also supports the measurement of the polarization index (PI) and the absorption ratio (DAR), which enables a well-founded assessment of the insulation quality of cables, motors, control cabinets and electrical systems.

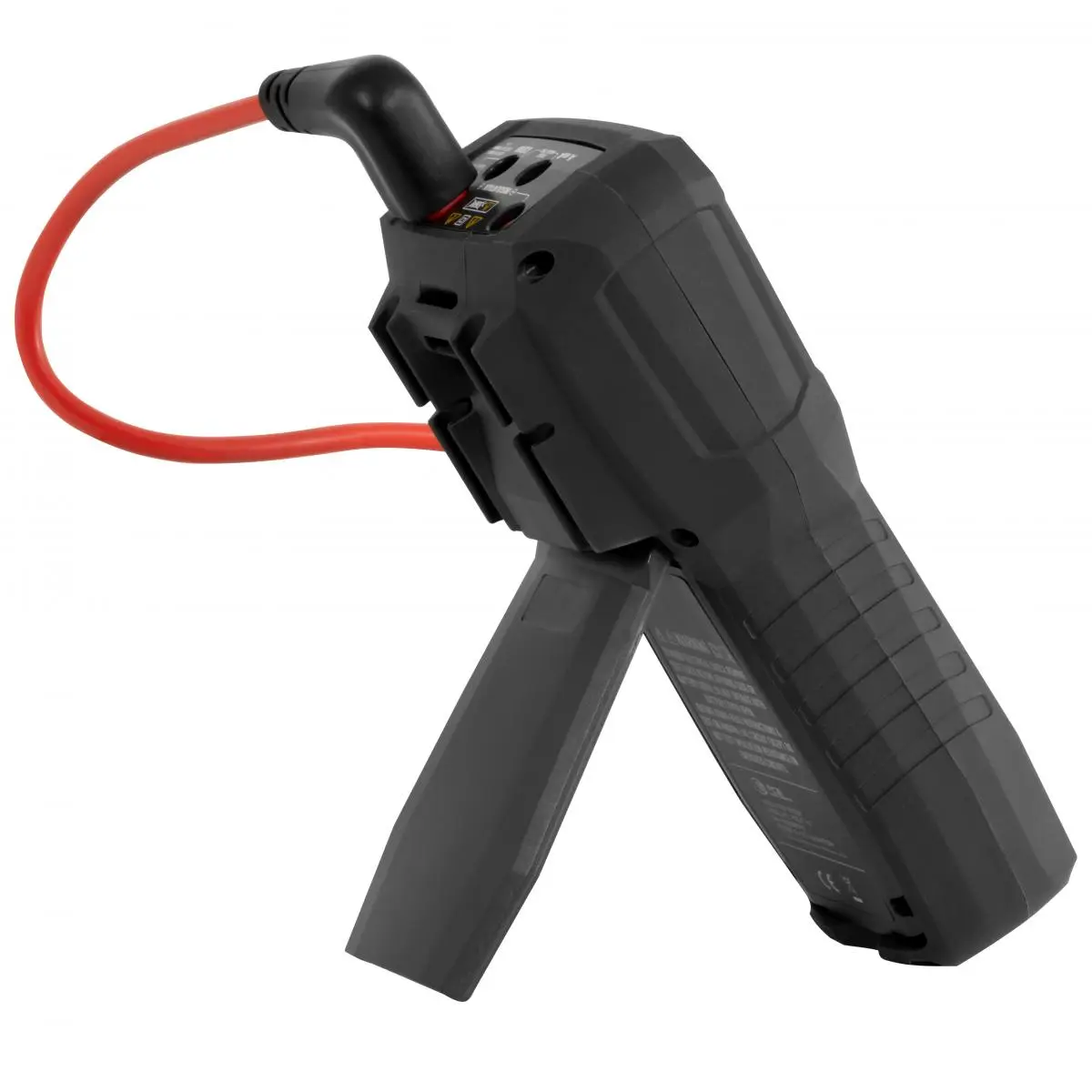

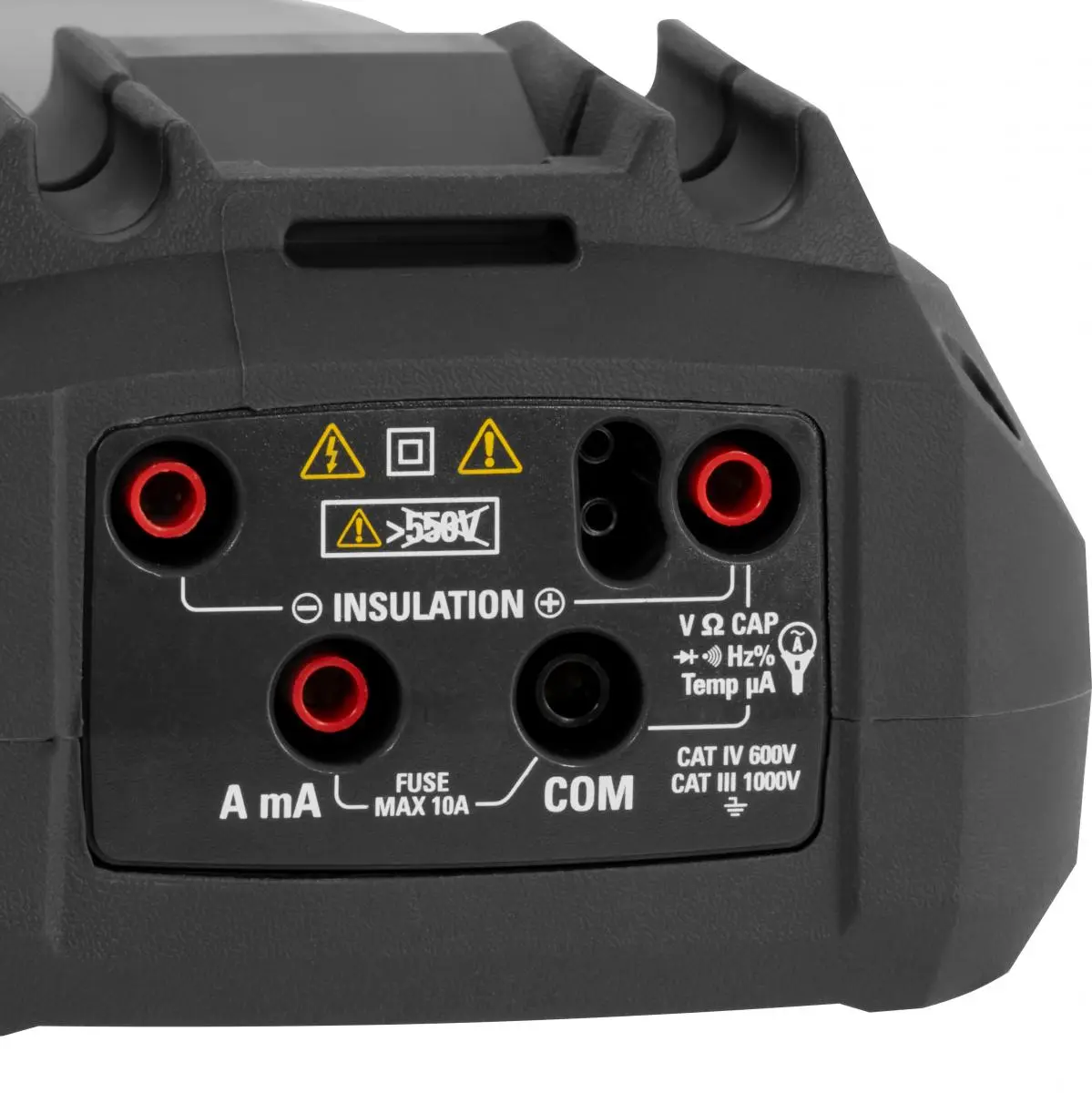

Thanks to the integrated data memory, measurement results can be called up directly on the device for later analysis. The recorded data can be transferred wirelessly to a smartphone or tablet via Bluetooth - particularly practical for documentation and test reports. Other features such as automatic discharge after the measurement, MIN/MAX/PEAK value recording, hold function and a lock button for hands-free operation round off the device. The Insulation Tester / Insulation Meter fulfils the highest safety requirements in accordance with CAT IV 600V / CAT III 1000V and can therefore also be used safely for work in energy distribution and on building technology.
Typical areas of application for this Insulation Tester / Insulation Meter include electrical installation, switch cabinet construction, maintenance of machines and systems, photovoltaic systems, the service sector and technical training centers. With its combination of versatility, precision and modern connectivity, this Insulation Tester / Insulation Meter is a good tool for any professional.
| Direct voltage DC | |
| Measurement range up to | 0 ... 600 mV |
| Resolution | 0,1 mV |
| Accuracy | ±(0.9% +5 digits) |
| Overload | 1000 V |
| Direct voltage DC | |
| Measurement range up to | 600 mV ... 6 V |
| Resolution | 0,001 V |
| Accuracy | ±(0.9% +5 digits) |
| Direct voltage DC | |
| Measurement range up to | 6 ... 60 V |
| Resolution | 0,01 V |
| Accuracy | ±(0.9% +5 digits) |
| Direct voltage DC | |
| Measurement range up to | 60 ... 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(1% +5 digits) |
| Direct voltage DC | |
| Measurement range up to | 600 ... 1000 V |
| Resolution | 1 V |
| Accuracy | ±(1% +5 digits) |
| Direct current DC | |
| Measurement range up to | 0 ... 200 µA |
| Resolution | 0,1 µA |
| Accuracy | ±(0.9% +8 digits) |
| Direct current DC | |
| Measurement range up to | 200 µA ... 600 mA |
| Resolution | 0,1 mA |
| Accuracy | ±(1.2% +3 Digits) |
| Direct current DC | |
| Measurement range up to | 600 mA ... 10 A |
| Resolution | 0,01 A |
| Accuracy | ±(1.5 % +5 digits) |
| Capacity | |
| Measurement range up to | 0 ... 60 nF |
| Resolution | 0,01 nF |
| Accuracy | ±(5% +35 digits) |
| Capacity | |
| Measurement range up to | 60 ... 600 nF |
| Resolution | 0,1 nF |
| Accuracy | ±(2.5 % +8 digits) |
| Capacity | |
| Measurement range up to | 600 nF ... 6 µF |
| Resolution | 0,001 µF |
| Accuracy | ±(3% +5 digits) |
| Capacity | |
| Measurement range up to | 6 ... 60 µF |
| Resolution | 0,01 µF |
| Accuracy | ±(3% +5 digits) |
| Capacity | |
| Measurement range up to | 60 ... 600 µF |
| Resolution | 0,1 µF |
| Accuracy | ±(3% +5 digits) |
| Capacity | |
| Measurement range up to | 600 ... 6000 µF |
| Resolution | 1 µF |
| Accuracy | ±(2.5% +20 Digits) |
| Temperature K-type | |
| Measurement range up to | -20 ... +600 °C |
| Resolution | 0,1 °C |
| Accuracy | ±(3 % of Rd +5 °C) |
| Temperature K-type | |
| Measurement range up to | 600 ... 1000 °C |
| Resolution | 1 °C |
| Accuracy | ±(3 % of Rd +5 °C) |
| Temperature K-type | |
| Measurement range up to | -4 ... +600 °F |
| Resolution | 0,1 °F |
| Accuracy | ±(3% v.Mw. +9°C) |
| Temperature K-type | |
| Measurement range up to | 600 ... 1832 °F |
| Resolution | 1 °F |
| Accuracy | ±(3% v.Mw. +9°C) |
| AC voltage | |
| Measurement range up to | 0 ... 6 V |
| Resolution | 0,001 V |
| Accuracy | ±(1% +5 Digits) @50 ... 60 Hz / ±(3% +5 Digits) @61 ... 1000 Hz |
| Overload | 1000 V |
| Frequency range | 50 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 6 ... 60 V |
| Resolution | 0,01 V |
| Accuracy | ±(1% +5 Digits) @50 ... 60 Hz / ±(3% +5 Digits) @61 ... 1000 Hz |
| Frequency range | 50 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 60 ... 600 V |
| Resolution | 0,1 V |
| Accuracy | ±(1% +5 Digits) @50 ... 60 Hz / ±(3% +5 Digits) @61 ... 1000 Hz |
| Frequency range | 50 ... 1000 Hz |
| AC voltage | |
| Measurement range up to | 600 ... 1000 V |
| Resolution | 1 V |
| Accuracy | ±(1.2% +5 Digits) @50 ... 60 Hz / ±(3% +5 Digits) @61 ... 1000 Hz |
| Frequency range | 50 ... 1000 Hz |
| Alternating current AC | |
| Measurement range up to | 0 ... 200 µA |
| Resolution | 0,1 µA |
| Accuracy | ±(1.2% +8 digits) |
| Frequency range | 50 ... 1000 Hz |
| Alternating current AC | |
| Measurement range up to | 200 µA ... 600 mA |
| Resolution | 0,1 mA |
| Accuracy | ±(1.2 % +5 digits) |
| Frequency range | 50 ... 1000 Hz |
| Alternating current AC | |
| Measurement range up to | 600 mA ... 10 A |
| Resolution | 0,01 A |
| Accuracy | ±(1.5 % +5 digits) |
| Frequency range | 50 ... 1000 Hz |
| Insulation resistance | |
| Test voltage DC | 125V |
| Measurement range up to | 0,125 ... 6 M Ω |
| Resolution | 0,001 M Ω |
| Accuracy | ±(2 % +10 digits) |
| Insulation resistance | |
| Test voltage DC | 250V |
| Measurement range up to | 0,25 ... 6 M Ω |
| Resolution | 0,001 M Ω |
| Accuracy | ±(2% +15 Digits) |
| Insulation resistance | |
| Test voltage DC | 500V |
| Measurement range up to | 0,5 ... 6 M Ω |
| Resolution | 0,001 M Ω |
| Accuracy | ±(2 % +10 digits) |
| Insulation resistance | |
| Test voltage DC | 1000V |
| Measurement range up to | 1 ... 6 M Ω |
| Resolution | 0,001 M Ω |
| Accuracy | ±(3% +10 Digits) |
| Insulation resistance | |
| Test voltage DC | 125V, 250V, 500V, 1000V |
| Measurement range up to | 6 ... 60 M Ω |
| Resolution | 0,01 M Ω |
| Accuracy | ±(2 % +10 digits) |
| Insulation resistance | |
| Test voltage DC | 125V, 250V, 500V, 1000V |
| Measurement range up to | 60 ... 600 M Ω |
| Resolution | 0,1 M Ω |
| Accuracy | ±(4% +5 digits) |
| Insulation resistance | |
| Test voltage DC | 125V, 250V, 500V, 1000V |
| Measurement range up to | 600 ... 6000 M Ω |
| Resolution | 1 M Ω |
| Accuracy | ±(5% +10 Digits) |
| Resistance | |
| Measurement range up to | 0 ... 600 Ω |
| Resolution | 0,1 Ω |
| Accuracy | ±(1.2% +10 digits) |
| Resistance | |
| Measurement range up to | 600 Ω ... 6 kΩ |
| Resolution | 0,001 kΩ |
| Accuracy | ±(1.5 % +5 digits) |
| Resistance | |
| Measurement range up to | 6 ... 60 kΩ |
| Resolution | 0,01 Ω |
| Accuracy | ±(1.5 % +5 digits) |
| Resistance | |
| Measurement range up to | 60 ... 600 kΩ |
| Resolution | 0,1 kΩ |
| Accuracy | ±(1.5 % +5 digits) |
| Resistance | |
| Measurement range up to | 600 kΩ ... 6 M Ω |
| Resolution | 0,001 M Ω |
| Accuracy | ±(1.5 % +5 digits) |
| Resistance | |
| Measurement range up to | 6 ... 60 M Ω |
| Resolution | 0,01 M Ω |
| Accuracy | ±(2.5% +10 digits) |
| Frequency | |
| Measurement range up to | 40 ... 10000 Hz |
| Resolution | 0,01 Hz |
| Accuracy | ±(1% +5 digits) |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD, PI, DAR |
| Display type | LC colour display |
| Display size | 3,5 Inch |
| Display refresh rate | 3 x per second |
| Measuring rate | 3 Hz |
| Storage medium | Internal memory |
| Storage capacity | 1800 Values |
| Storage interval from | 1 s |
| Storage interval to | 60 min. |
| Interface | Bluetooth |
| Automatic power-off from...to | 15 ... 60 min. |
| Automatic power-off can be deactivated | Yes |
| Safety standard | CAT III 1000V, CAT IV 600V |
| Diode test | Test current: <1.5 mA Max. Voltage in open circuit: 3.2V DC |
| Menu language | English, English (GB) |
| Protection class (device) | IP65 |

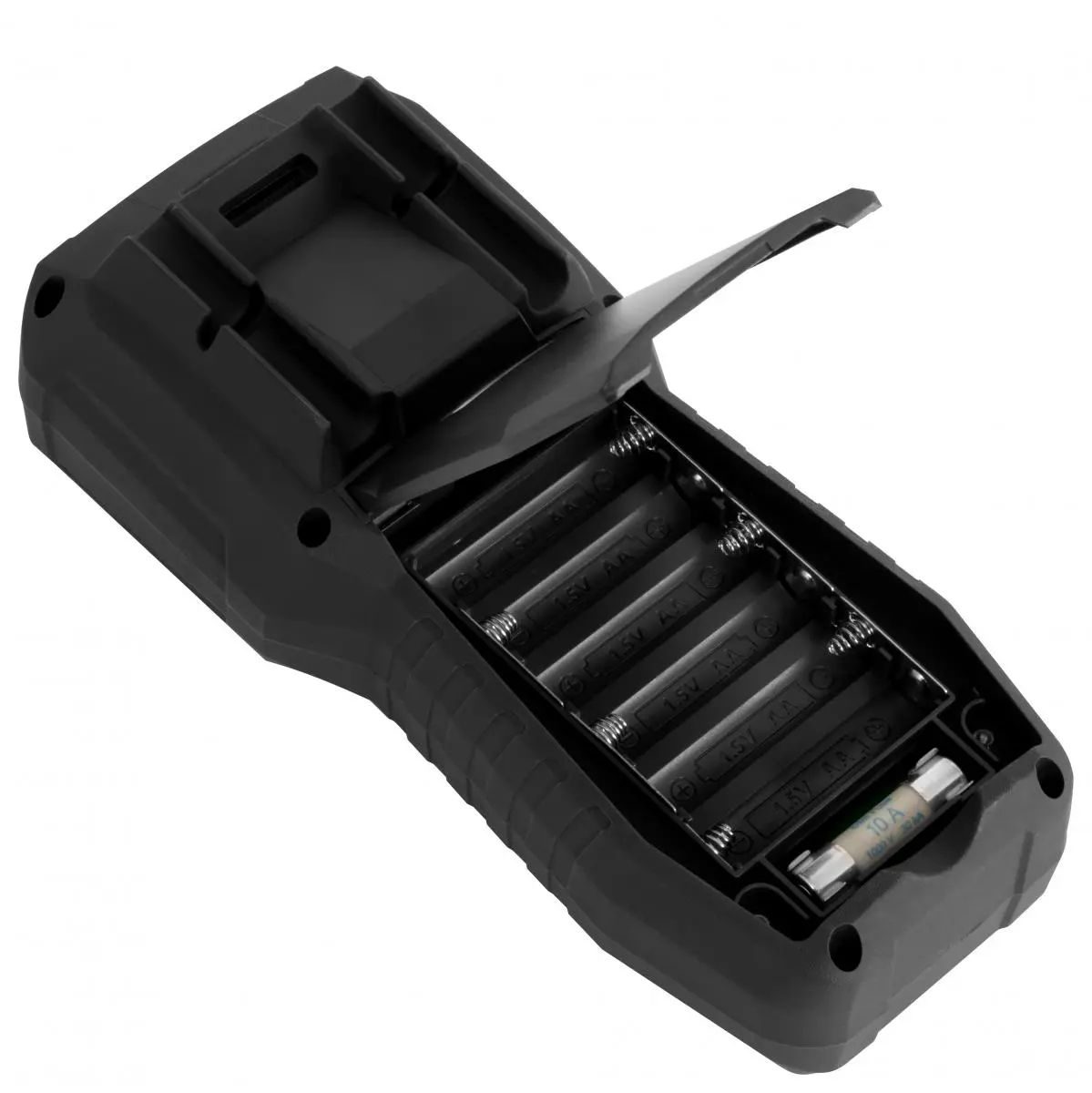

| (Rechargeable) battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 2500 mAh |
| Operating conditions | 5 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | -20 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 215 x 100 x 65 mm |
| Weight | 569 g |
