Infrared Thermometer PCE-JR 911-ICA

Infrared Thermometer PCE-JR 911-ICA incl. ISO Calibration Certificate

Order no.: PCE-JR 911-ICA
GTIN (EAN): 4250348727794
£ 481.00
£ 577.20
price ex. (VAT / delivery)
:
4250348727794
PCE-JR 911-ICA
Delivery time:5-7 working days
Handheld
8:1
-40 ... 500 °C / -40 ... 932 °F
Yes
Yes (RS-232)

Description

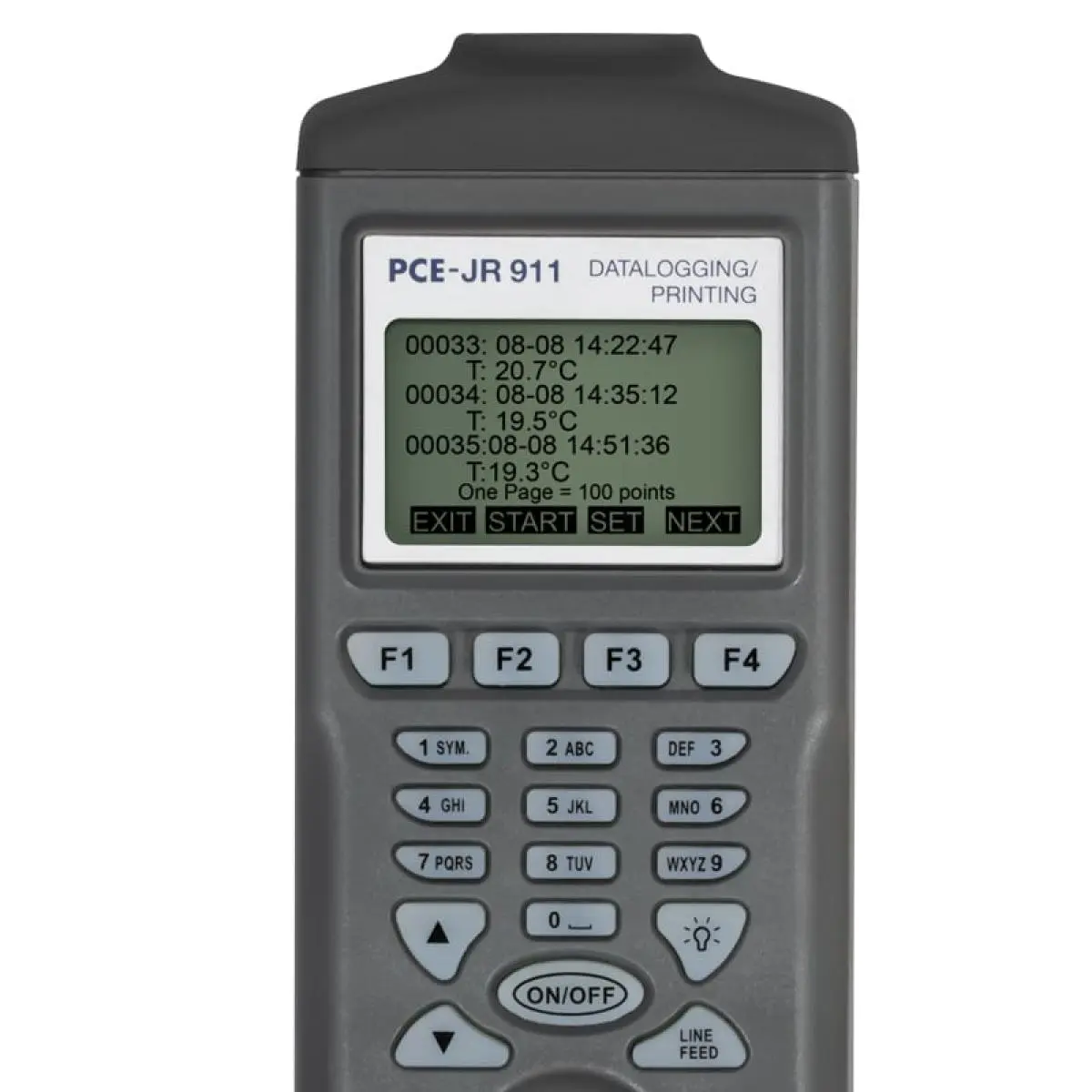

Infrared Thermometer with Data-Logger, internal memory,
software, data cable and integrated printer, incl. ISO Calibration Certificate

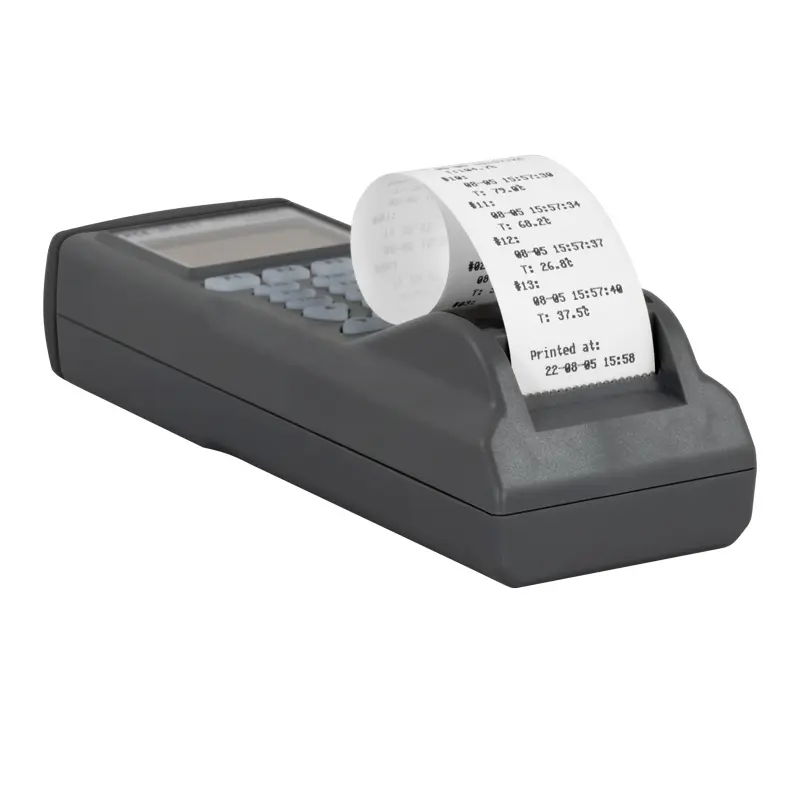

The infrared thermometer with data-logger is a versatile tool in that it can measure the temperature of objects without contact and readings can be stored in memory and transferred to a computer by way of its RS-232 interface and software. This infrared thermometer comes complete with a data-logger, allowing the user to program specific time intervals for taking measurements, such as over an entire week. Once a series of measurements have been taken, this data can be transferred to a computer for analysis. Incorporated in the thermometer is a small thermal printer so the user can print readings instantly. Another characteristic is the possibility to designate 99 measurement positions to allow for them to be clearly classified.

The infrared thermometer's emissivity can be adjusted between 0.3 and 1.0, depending on the surface material. The visible pointer allows for the object being measured to be targetted with accuracy. Due to its multiple capabilities, this infrared thermometer is used in many different sectors including the industrial and food sectors as well as research and development.

The many components provide the infrared thermometer with a multitude of uses. Optional components include a tripod, an RS-232 to USB adaptor and replacement rolls of paper for the printer.


Highlights

- Easy to use
- Adjustable date and time
- Printer, memory and Data- Logger integrated

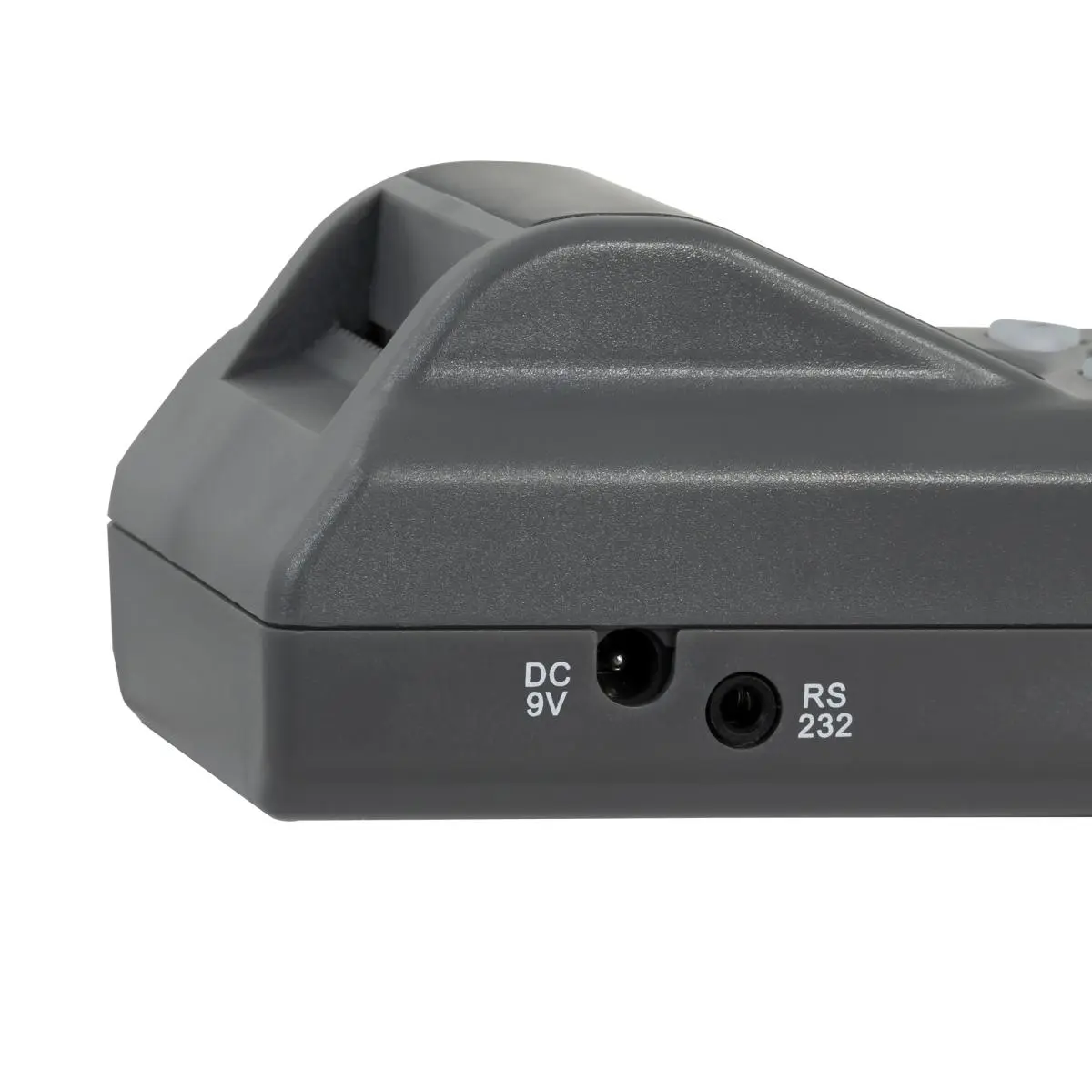

- RS-232 interface
- Data- Logger for up to 1200 readings
- Possibility to designate 99 measurement positions
- Software with RS-232 cable

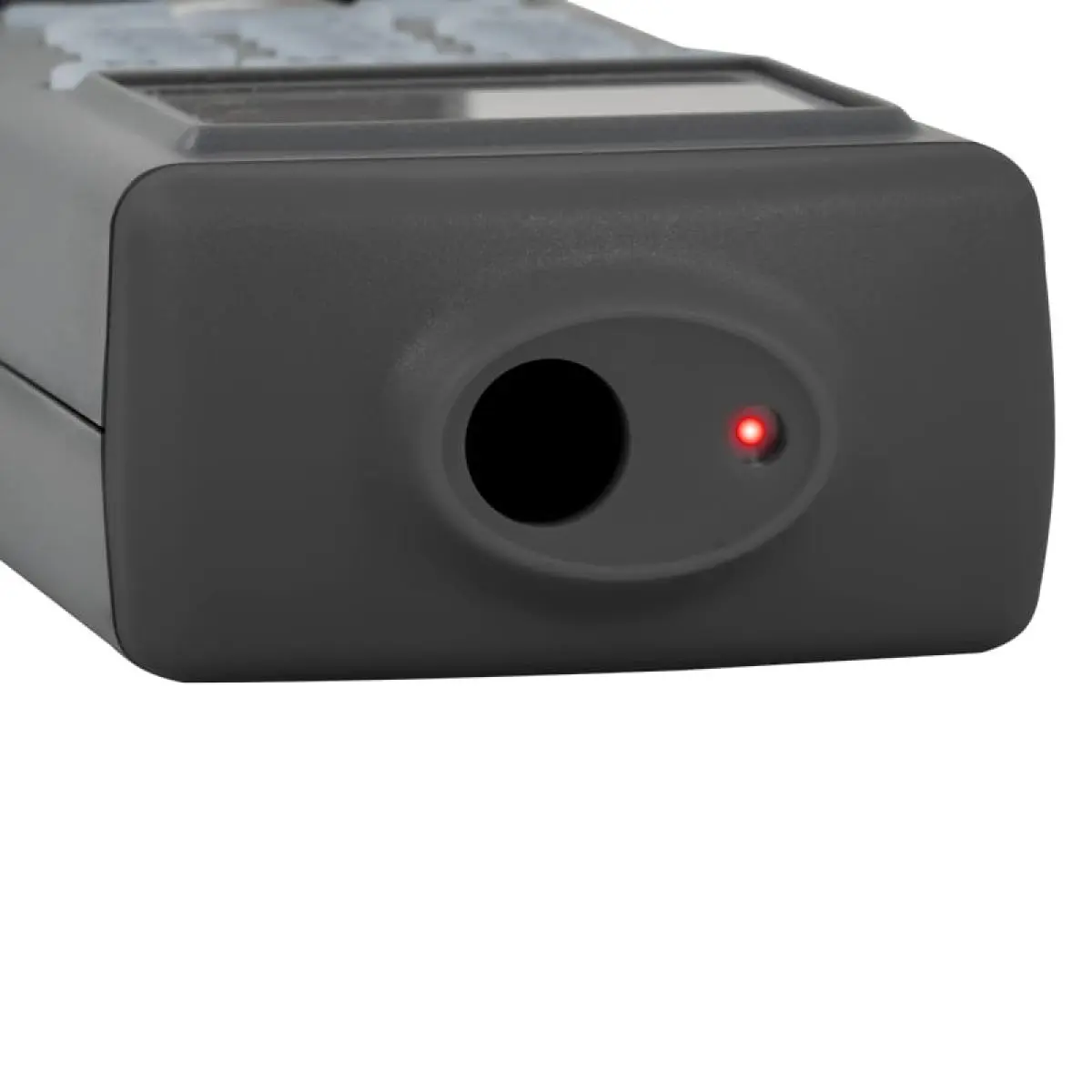

- Infrared point for accuracy
- Adjustable emissivity
- Can be mounted on a tripod
- Backlit display
- Auto shut-off function
- Modes of operation:
- Measurement and printing of data
- Measurement and printing of data in tables
- Measurement time intervals over a long duration, readings transferred to a
computer
*ATTENTION* Our temperature sensors are designed for industrial and
laboratory surface temperature measurement ONLY. They are not designed or
certified for body temperature measurement or for medical use.

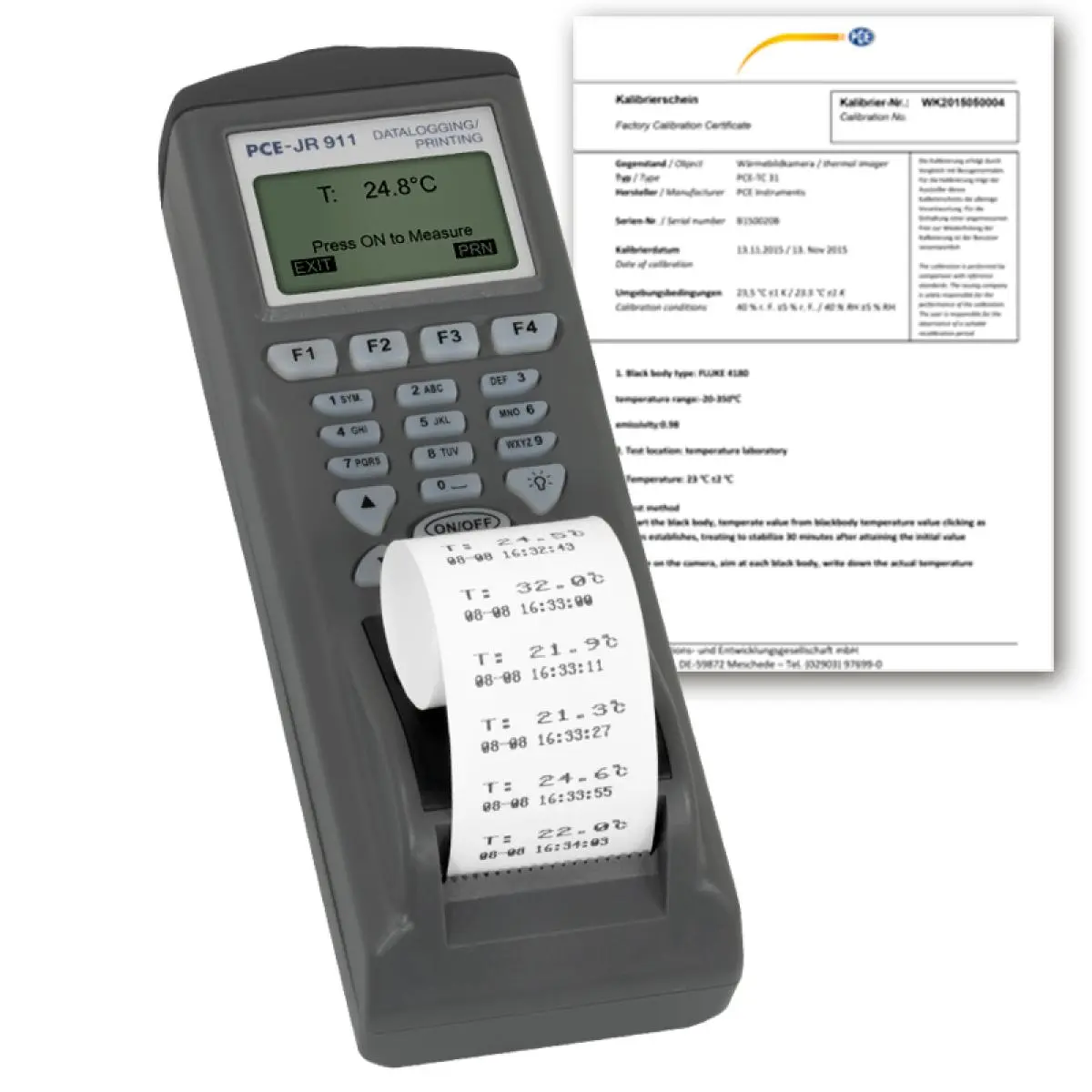

- incl. ISO-Calibration Certificate

Specification

Infrared temperature
Measuring range  -40 ... +500 °C
Resolution  0,1 °C
Accuracy  ±2 % of Rd or ±2 °C (whichever is higher)

General technical data
Units  °C, °F
Display type  LCD
Storage medium  Internal memory
Storage capacity  12000 Data records
Interface  RS232, USB
Response time  0,2 s
Automatic power-off from...to  1 ... 20 min.

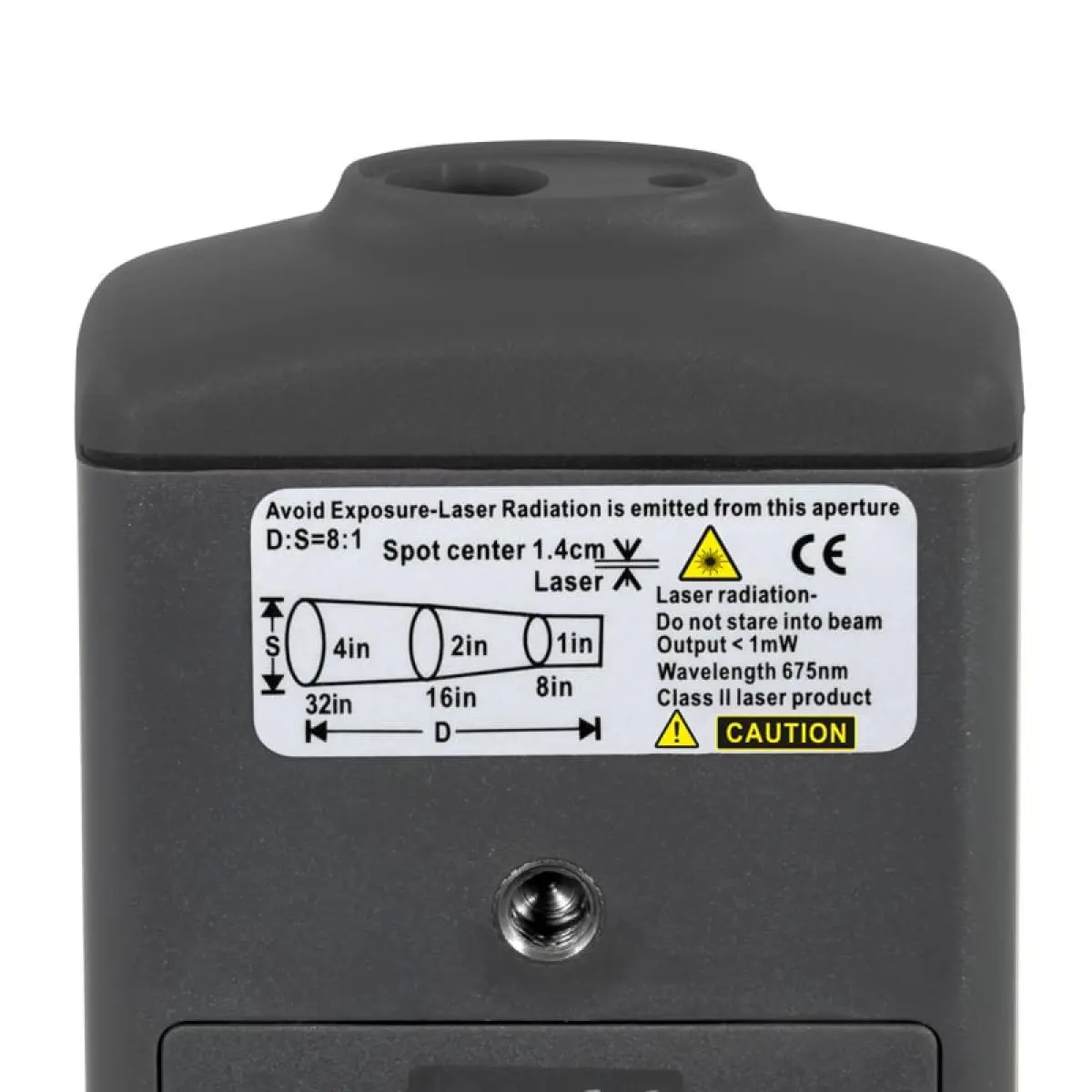

Measurement spot  8:1
Emissivity from/to  0.3 ... 1
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  4 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  -20 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  208 x 7 x 53 mm
Weight  260 g

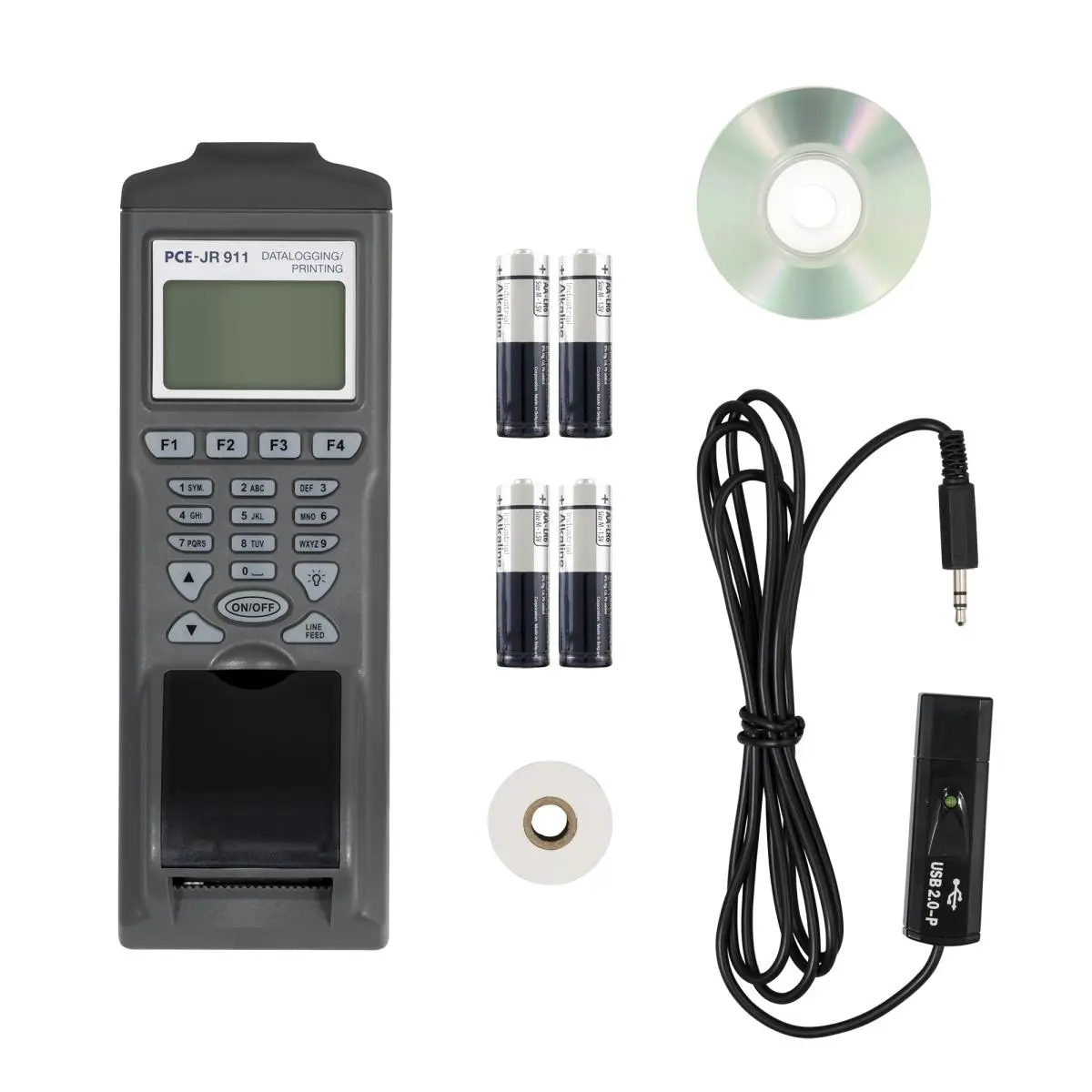

Delivery Scope

1 x PCE-JR 911-ICA Data- Logger
1 x Carrying case
4 x Batteries
1 x Roll of paper
1 x Software for Windows
1 x RS-232 cable
1 x User's manual
1 x ISO-Calibration Certificate
