Infrared Thermometer PCE-777N

Infrared Thermometer PCE-777N [zoom]
Infrared Thermometer PCE-777N

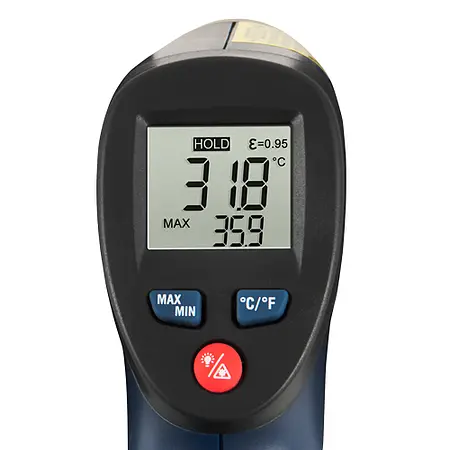

Infrared Thermometer PCE-777N display

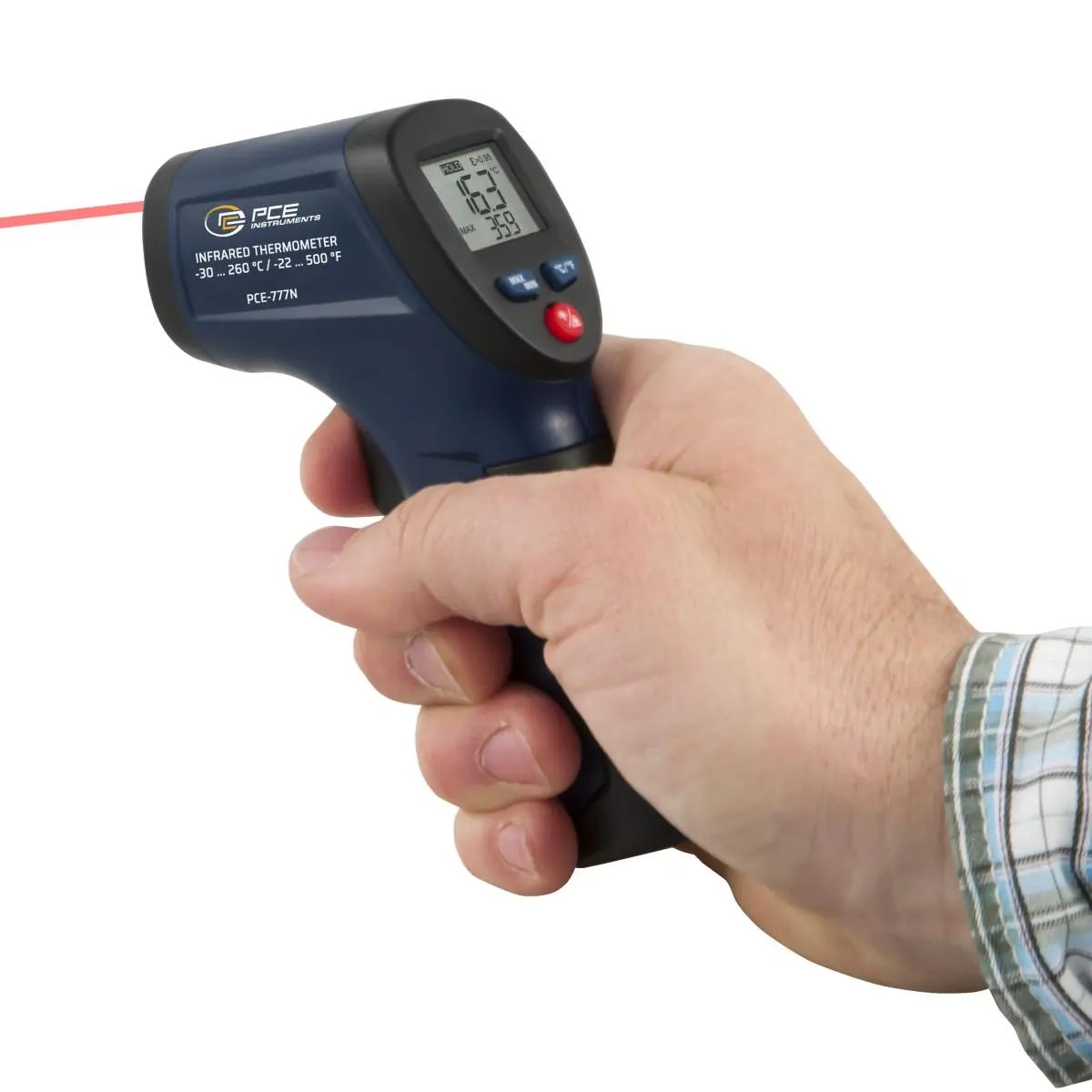

Infrared Thermometer PCE-777N in hand

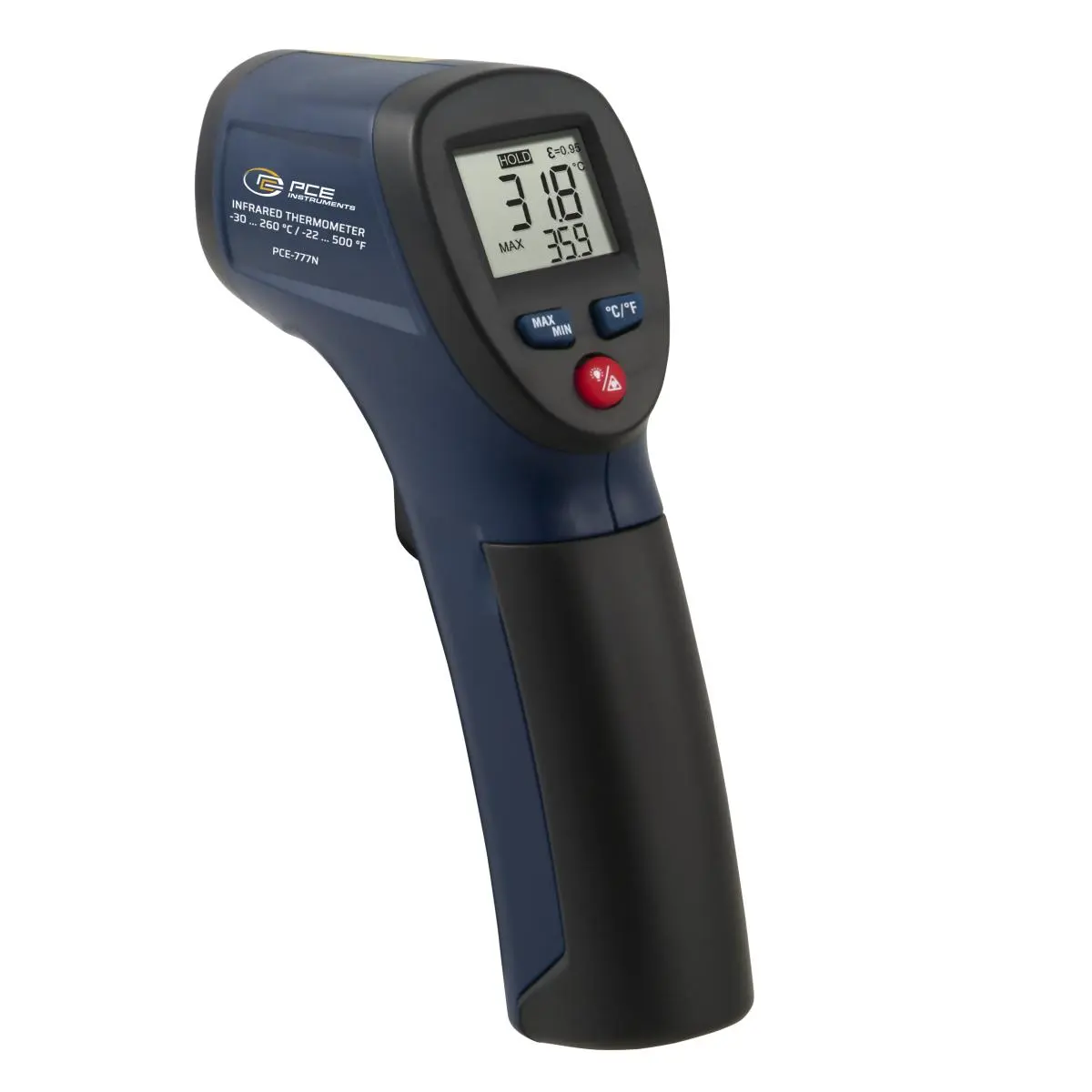

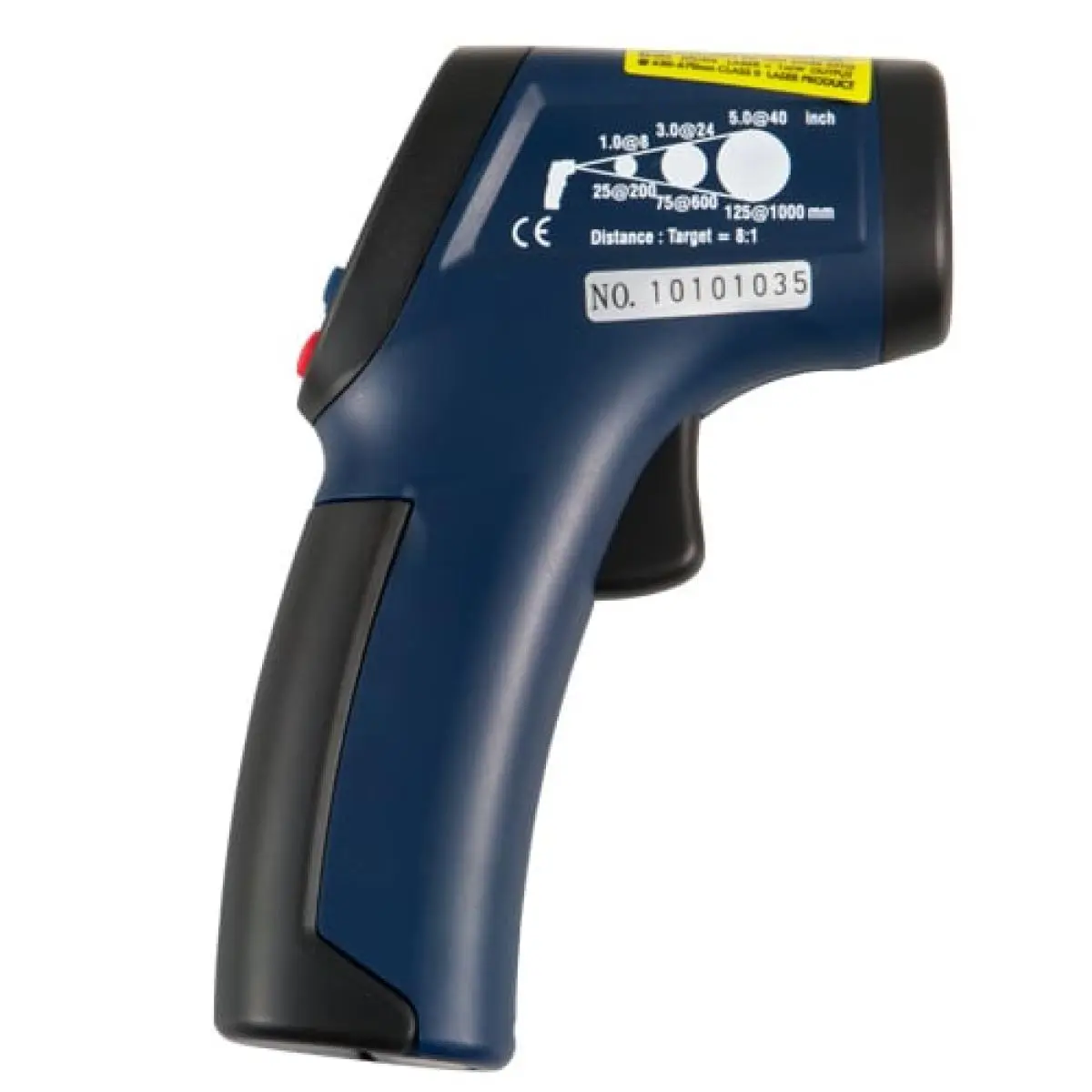

Infrared Thermometer PCE-777N side view

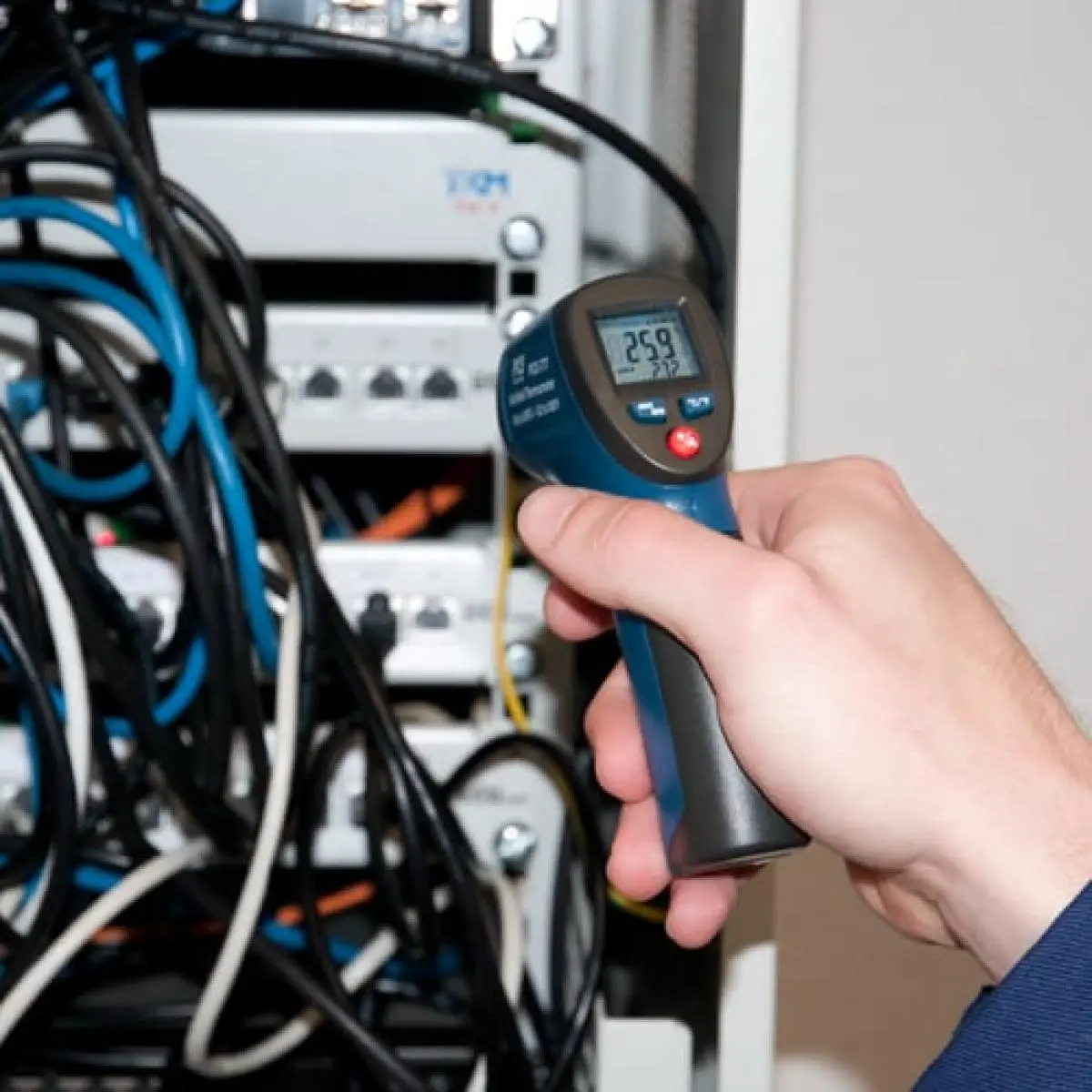

Infrared Thermometer PCE-777N application

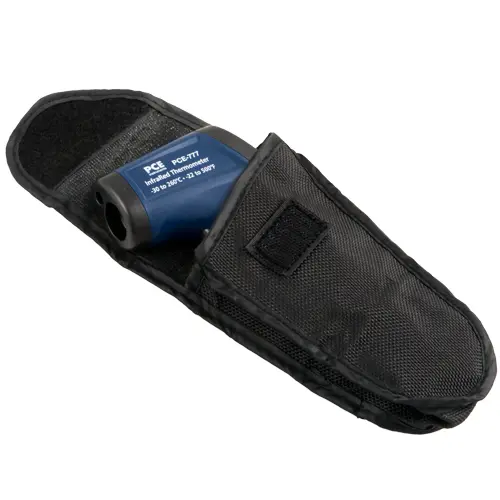

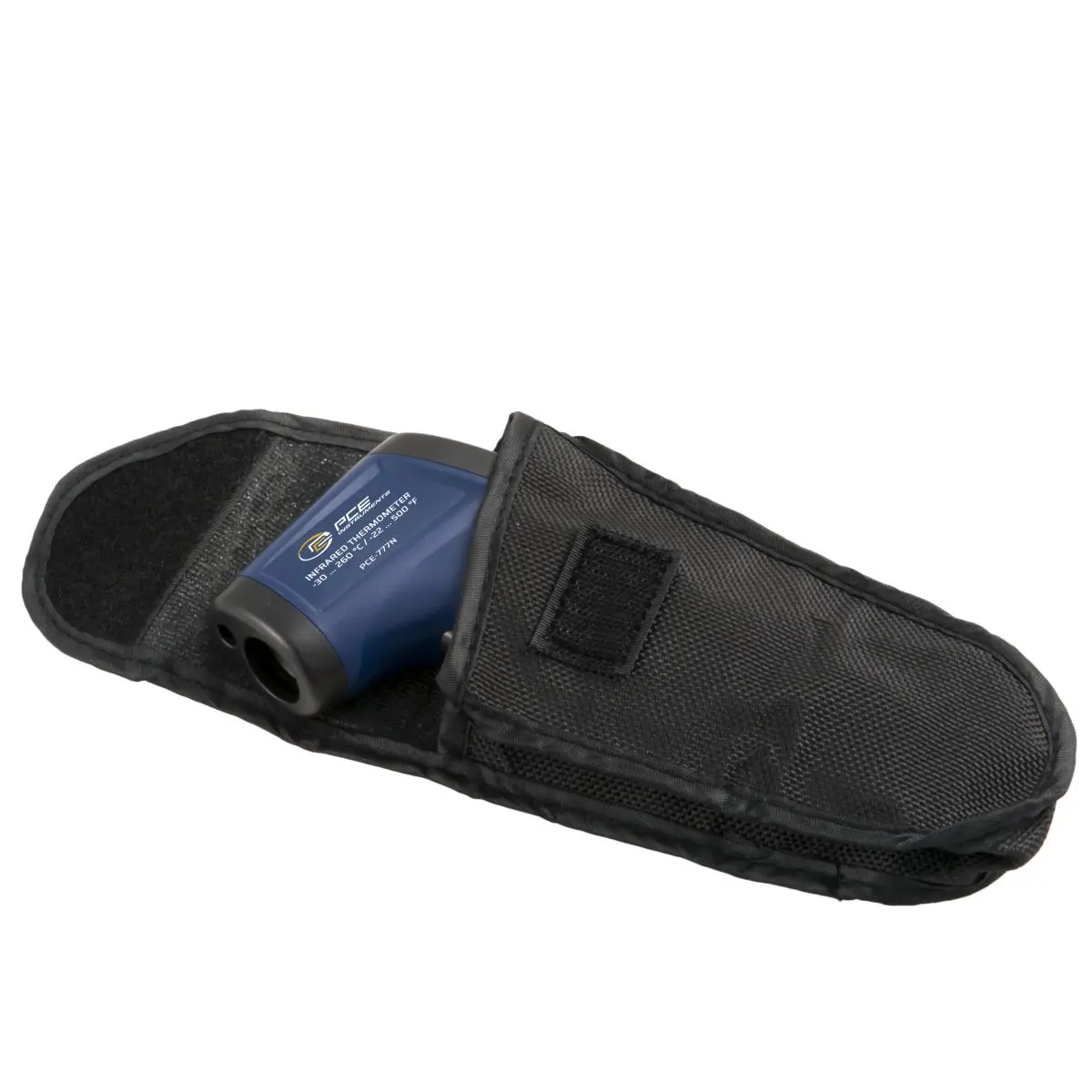

Infrared Thermometer PCE-777N with carry bag

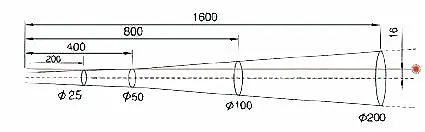

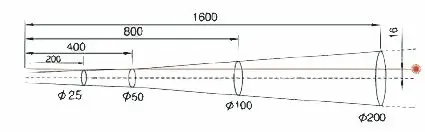

Schematic representation of the measuring spot ratio (8:1) of the contactless thermometer PCE-777N

Infrared Thermometer PCE-777N

Order no.: PCE-777N
GTIN (EAN): 4250348715166
£ 33.00
£ 39.60
price ex. (VAT / delivery)
:
4250348715166
PCE-777N
Delivery time:1-2 working days
Handheld
8:1
below 400 °C / 752 °F
No
No

Accessory

Description

Small and compact contactless infrared thermometer with red laser pointer /
Contactless, non-destructive measurement of surface temperatures /
Measuring spot ratio of 8:1 / Automatic shutdown

The contactless infrared thermometer measures the temperature of surfaces via infrared beam non-destructively and from a distance. This lightweight contactless infrared thermometer is characterized by simple operation and the red sighting tool. Therefore you can accurately measure the temperature of a particular area on a surface. The contactless infrared thermometer is for industry and craft, maintenance and servicing, e.g. in the field of heating, ventilation and air conditioning, automotive, and is useful in the control of electrical equipment and control systems.

The contactless infrared thermometer can also be used under difficult conditions and provides you with measurement results. The backlight of the contactless infrared thermometer is selectively turned on or off. The contactless infrared thermometer has a visible sighting tool for precise contactless pointing and quick temperature measurement from a safe distance of hot or moving objects or of difficult measuring points. The emission level is fixed for this contactless infrared thermometer at 0.95 and covers about 90% of all temperature measuring tasks.

Highlights

- Fast measurement result
- Measured value indication optionally in °C or °F
- Fixed emissivity
- Optical resolution 8: 1
- Automatic shutdown
- Battery operation
- Switchable sighting tool
- Compact and robust design

Specification

Temperature measuring range  -30 ... 260 °C
-22 ... 500 °F
Response time< 1 s
OverloadLCD display "------"
PolarityAutomatically (no indication of positive polarity)
Minus (-) sign for negative polarity
Emissivity (fixed)0.95
Measuring spot ratio
8:1
Laser pointA visible point laser beam power <1mW, Wavelength 630 ... 670 nm, Class II
Spectral range6 ... 14 µm
Automatic shutdownAfter 8 seconds of inactivity
Operating conditions0 ... 50 °C / 32 ... 122 °F, 10% ... 90% r.H.
Storage conditions-20 ... 60 °C / -4 ... 140 °F, < 80% r.H.
Power supply9V block battery
Dimensions82 x 41.5 x 160 mm / 3.2 x 1.6 x 6.3 in
Weight180 g / < 1 lb

Specifications Infrared Thermometer
Measuring range-30 ... 0 °C / -22 ... 32 °F (range 1)
0 ... 260 °C / 32 ... 500 °F (range 2)
Resolution0.1 °C / 0.1 °F (both ranges)
Accuracy±4 °C / ±4 °F (in range 1)
± 2% of reading / ± 2 °C / ± 4 °F (range 2)

Delivery Scope

1 x Infrared thermometer PCE-777N
1 x Battery
1 x Carry bag
1 x Instruction manual
