Infrared Thermometer PCE-IR 90-ICA

Food Infrared Thermometer PCE-IR 90-ICA incl. ISO-Calibration Certificate

Order no.: PCE-IR 90-ICA
GTIN (EAN): 4250348733290
£ 192.00
£ 230.40
price ex. (VAT / delivery)
:
4250348733290
PCE-IR 90-ICA
Delivery time:5-7 working days

Description

Food Infrared Thermometer with Bluetooth interface / Measuring range -40 ... 300°C (-40 ... 572°F) / Charging station / penetration temperature probe for checking the core temperature / Background lighting / Temperature indicator display / Stop watch / Emissivity 0.95

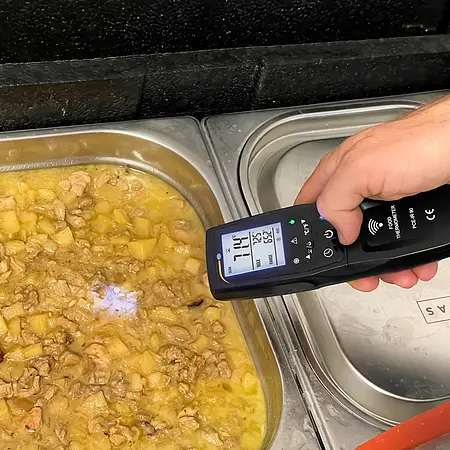

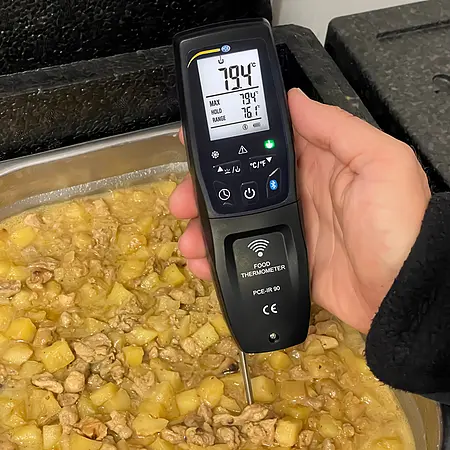

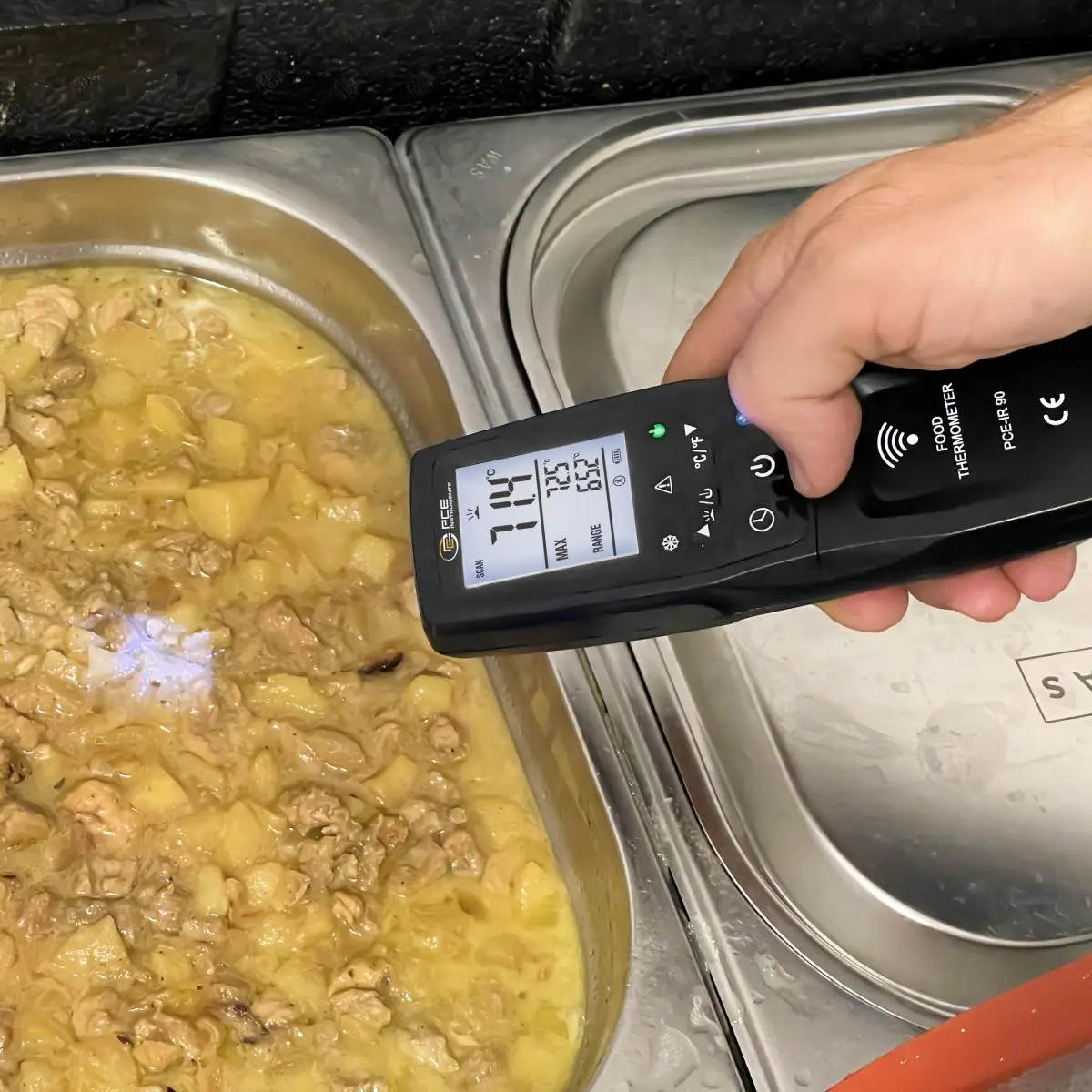

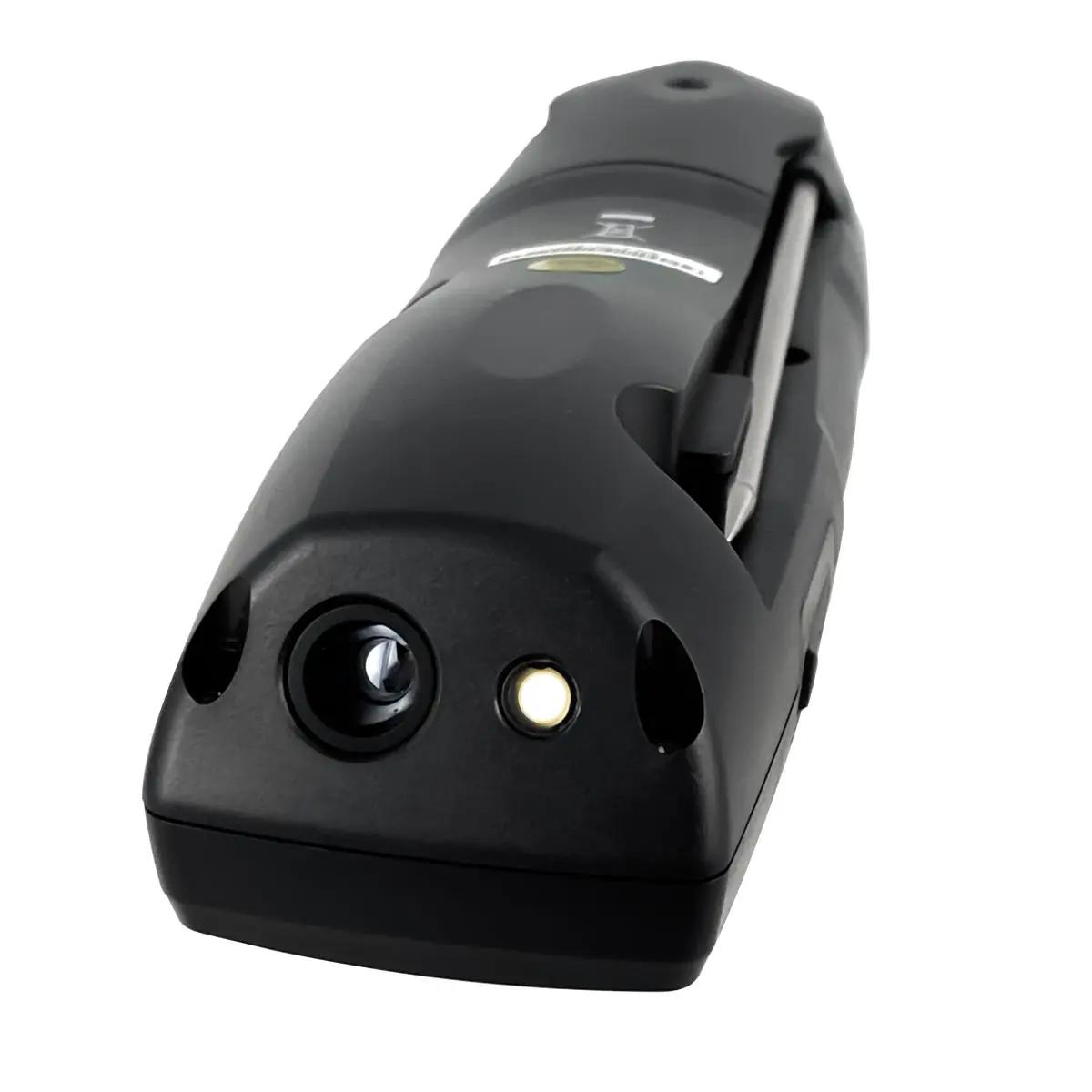

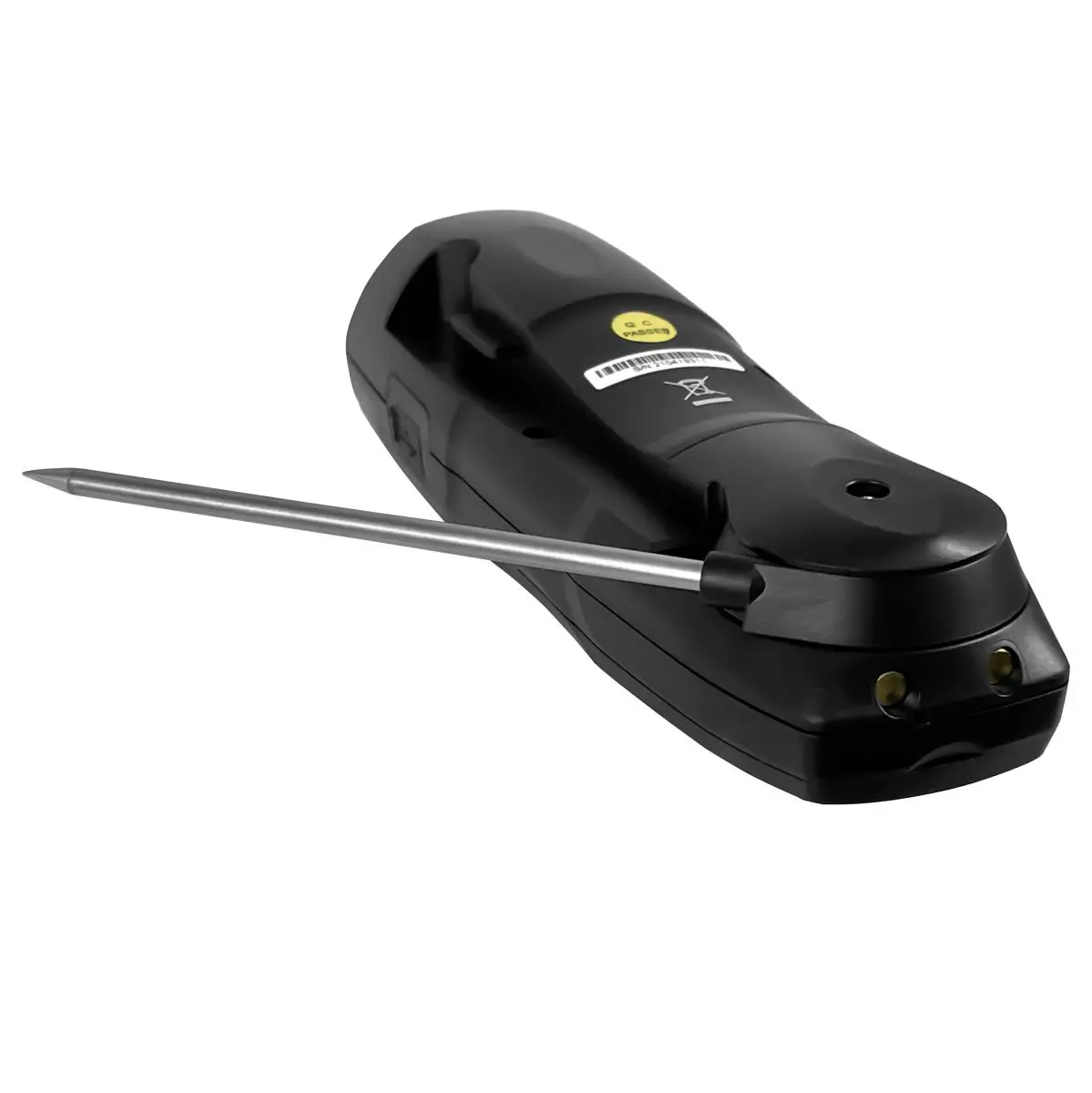

The food infrared thermometer is used to check the temperature of food. In addition to the surface temperature via the infrared sensor, the thermometer can also be used to determine the core temperature via the fold-out resistance temperature sensor. Both temperature sensors on the thermometer have a measuring range of -40 ... 300°C / -40 ... 572°F.

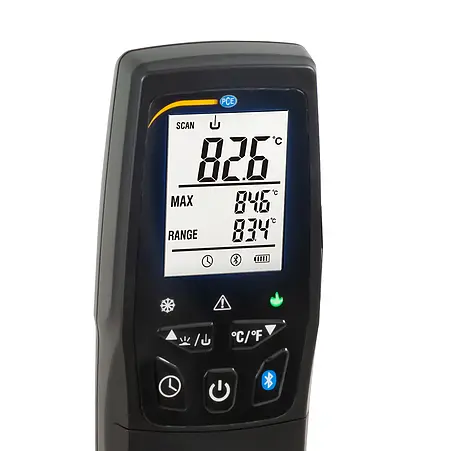

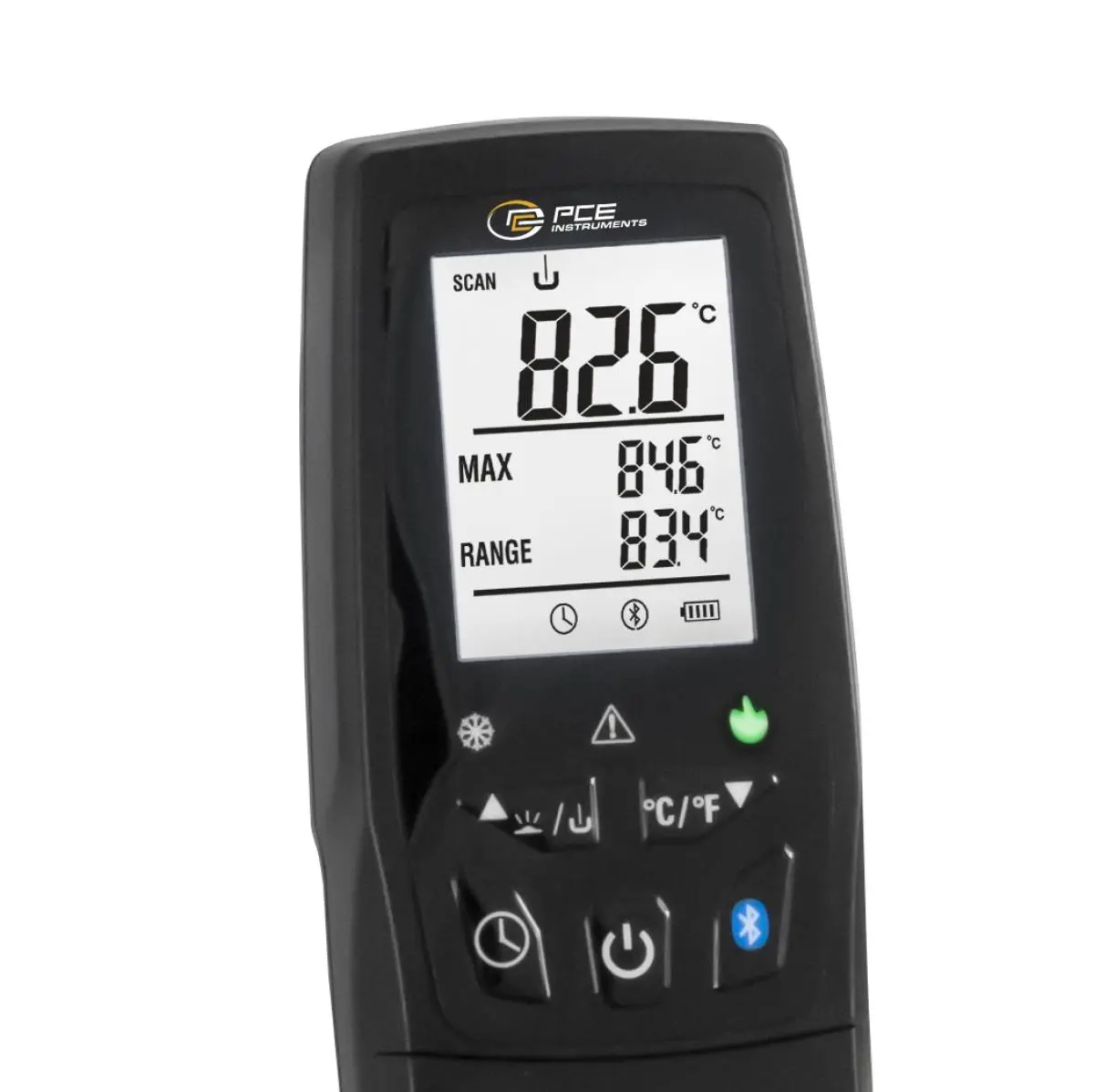

In addition to the normal measured value display, the thermometer has a temperature display. This display on the thermometer signals whether the temperature of the food being measured is optimal. If the temperature is between 4 … 65°C / 39.2 ... 149°F, this is indicated by a red LED. If the temperature is colder than 4°C / 39.2°F or warmer than 65°C / 149°F, this is indicated by a green LED. This function in the thermometer is particularly important in order to monitor the respective temperature chain. Therefore, the thermometer is used especially in the food industry.

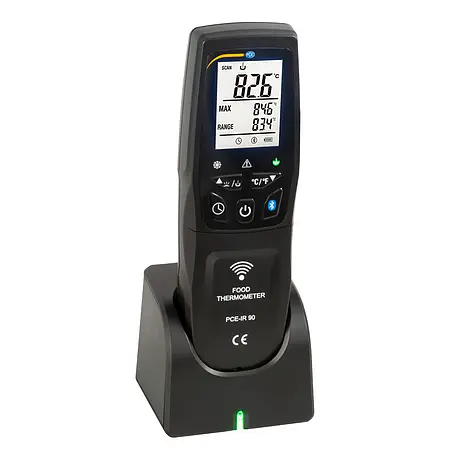

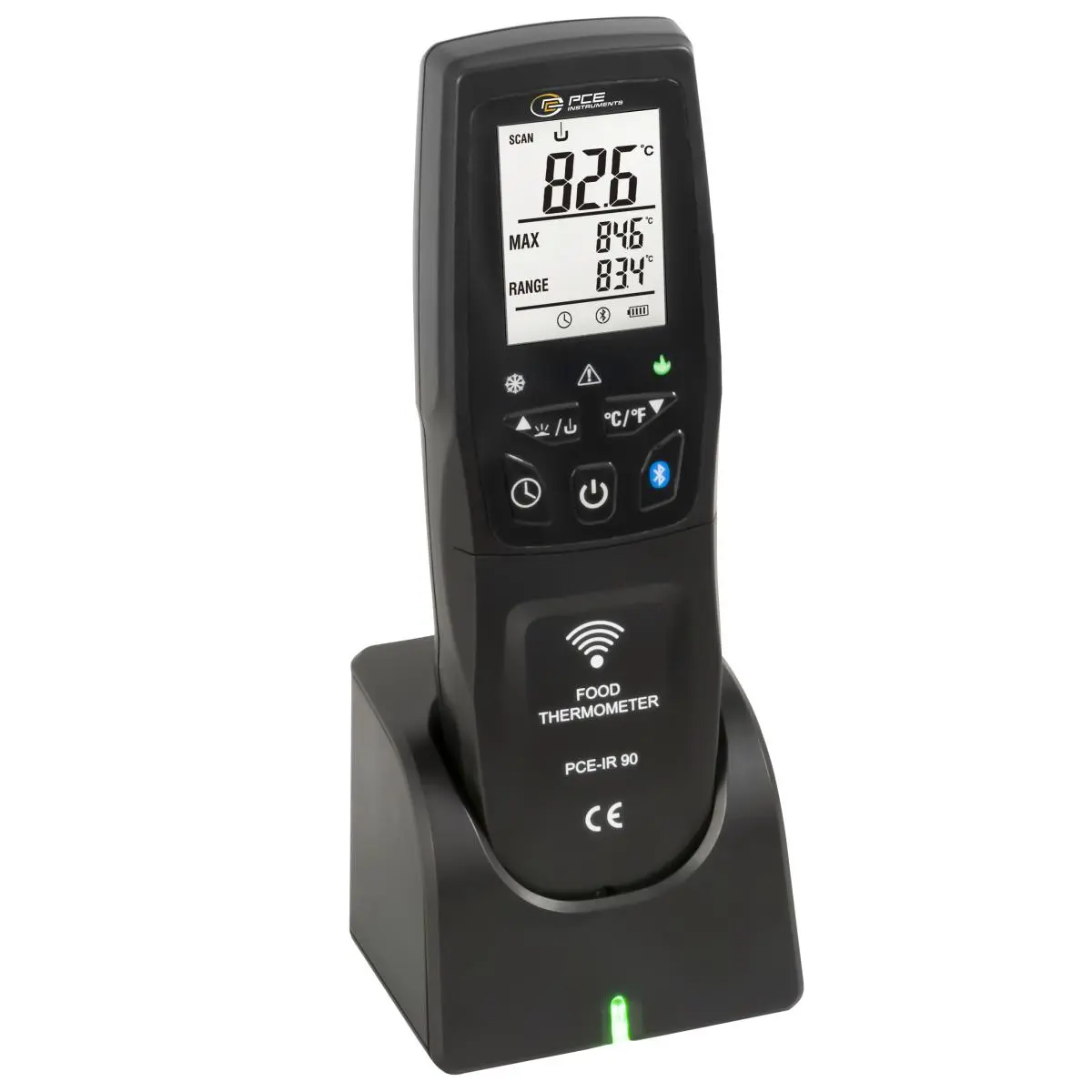

The Bluetooth interface enables communication between the thermometer and a mobile Android and iOS device. With the free app for the thermometer, the measured values ​​can be recorded with a mobile device and exported for later analysis. To charge the measuring device, the thermometer can be plugged into the charging station provided. If necessary, the thermometer can also be charged via a 5 V micro USB interface.

Highlights

- Measuring range -40 ... 300°C / -40 ... 572°F
- Infrared and penetration temperature sensor
- Timer and stopwatch function
- Charging station with micro USB cable
- Bluetooth interface
- Mobile temperature measuring device
- Easy handling
- incl. ISO-Calibration Certificate

Specification

Temperature K-type
Measuring range  -40 ... +200 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Temperature K-type
Measuring range  200 ... 300 °C
Resolution  0,1 °C
Accuracy  ±1.5 °C

Temperature K-type
Measuring range  -40 ... +392 °F
Resolution  0,1 °F
Accuracy  ±1.8 °F

Temperature K-type
Measuring range  392 ... 572 °F
Resolution  0,1 °F
Accuracy  ±4.5°F

Infrared temperature
Measuring range  -40 ... 0 °C
Resolution  0,1 °C
Accuracy  ±2.5°C

Infrared temperature
Measuring range  0 ... 65 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Infrared temperature
Measuring range  65 ... 300 °C
Resolution  0,1 °C
Accuracy  ±1.5% f.s.

Infrared temperature
Measuring range  -40 ... +32 °F
Resolution  0,1 °F
Accuracy  ±4.5 °F

Infrared temperature
Measuring range  32 ... 150 °F
Resolution  0,1 °F
Accuracy  ±1.8°F

Infrared temperature
Measuring range  149 ... 572 °F
Resolution  0,1 °F
Accuracy  ±1.5% f.s.

General technical data
Measuring functions  MAX, HOLD
Units  °C, °F
Display size  2 in
Interface  Bluetooth, Micro-USB
Response time  500 ms
Measurement spot  2:1
Emissivity  0,95
Dimensions  Sensor length: 100 mm
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  5 V DC / 1 A
(Rechargeable) battery  1 x 4,2 V internal , Lithium-ion battery
Capacity  1300 mAh
Operating conditions  0 ... 50 °C , 0 ... 85 % RH
Storage conditions  0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  176 x 55 x 40 mm
Weight  180 g

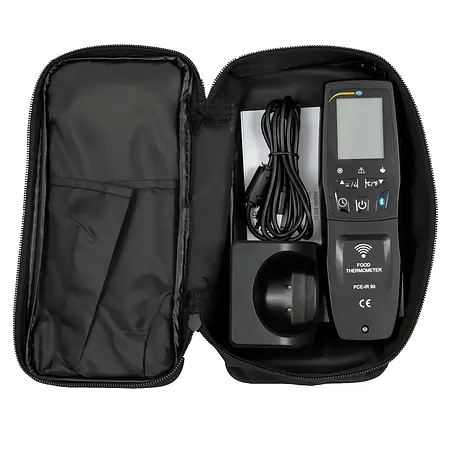

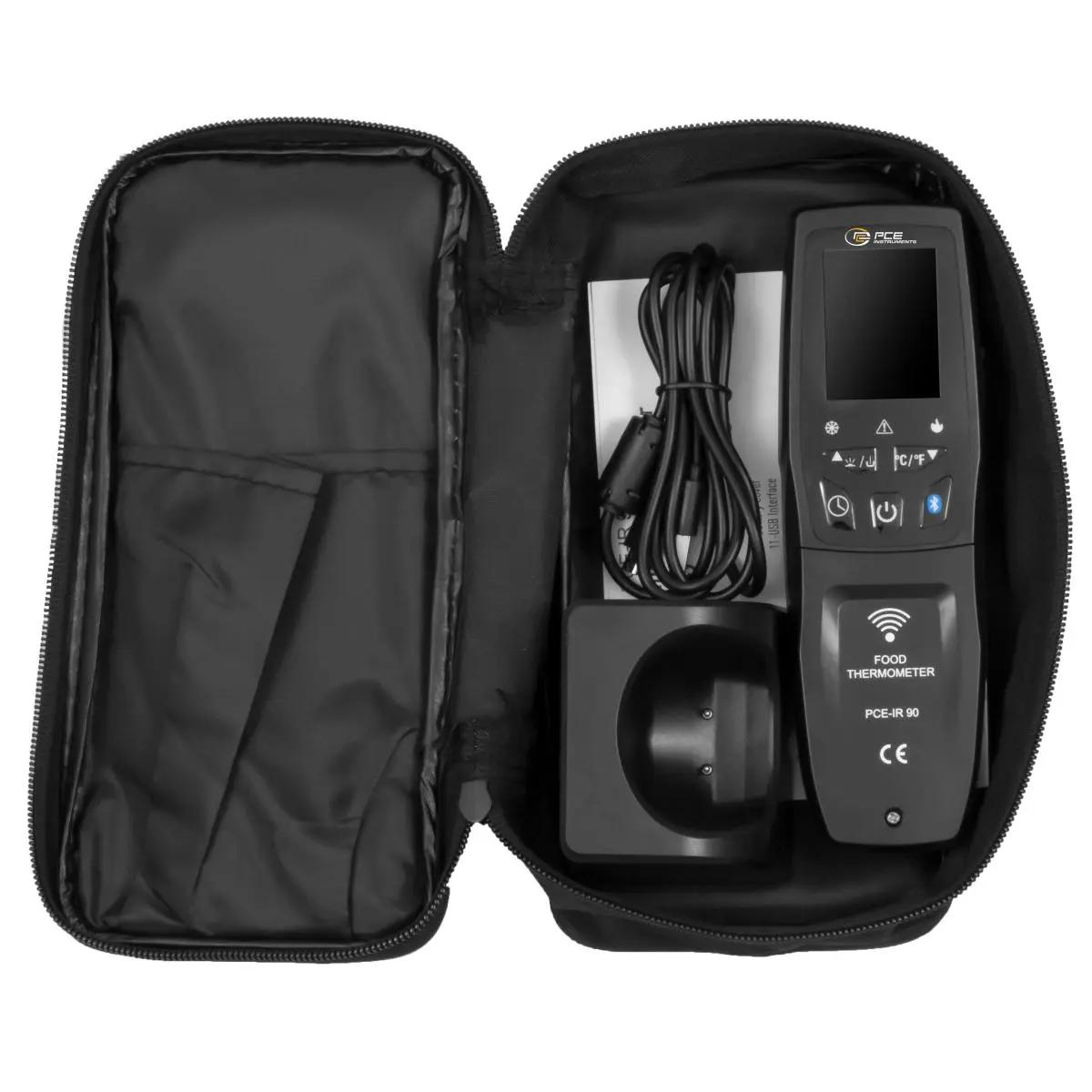

Delivery Scope

1 x Infrared Thermometer PCE-IR 90-ICA
1 x Micro USB charging cable

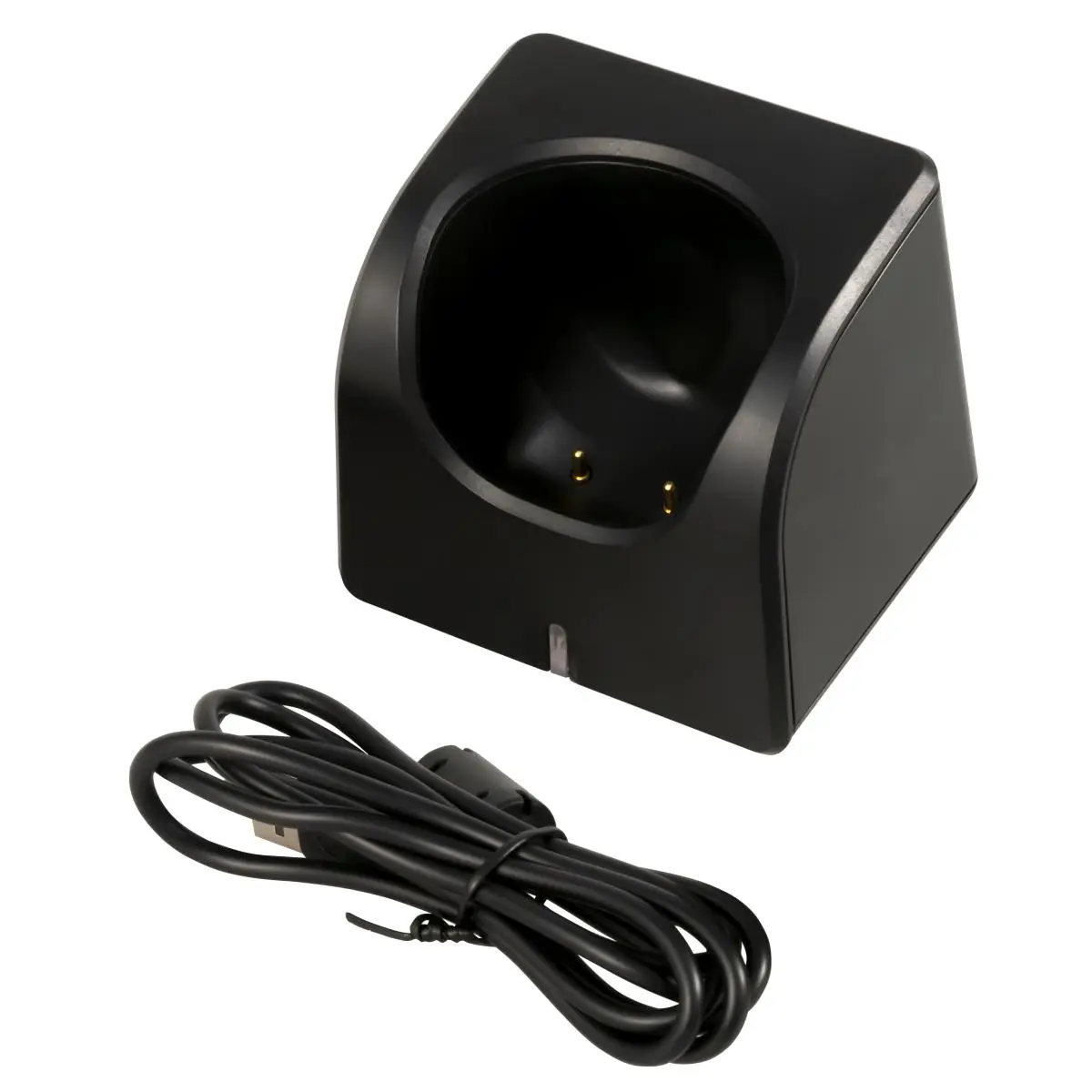

1 x Charging station
1 x Transport bag
1 x Operating instructions

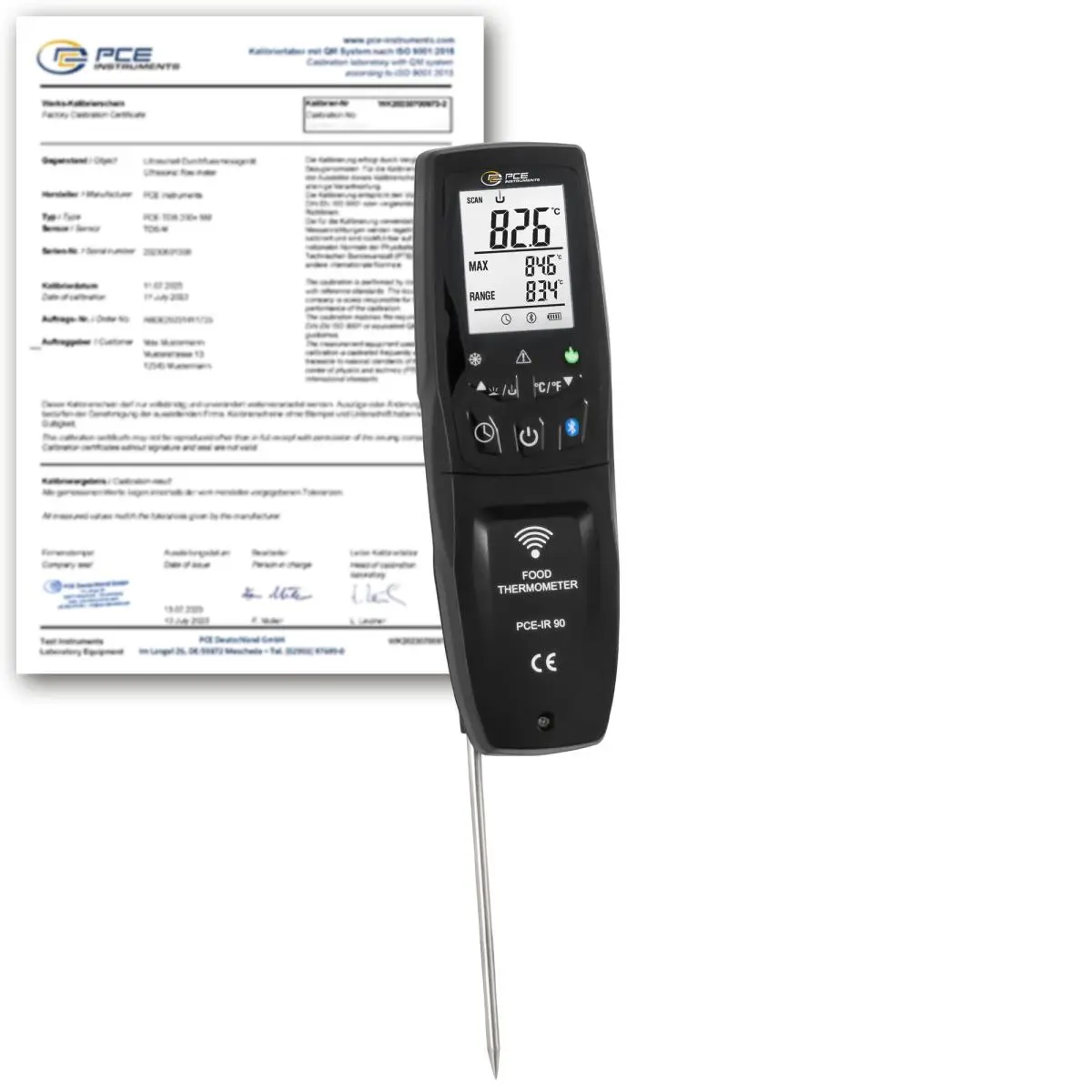

1 x ISO-Calibration Certificate
