Industrial Borescope PCE-RS 27

Rigid Industrial Borescope PCE-RS 27

Order no.: PCE-RS 27
GTIN (EAN): 4250348715630

£ 1,050.00
£ 1,260.00
price ex. (VAT / delivery)
:
4250348715630
PCE-RS 27
Delivery time:1-2 working days
Rigid
2.7 mm
175 mm
No

Description

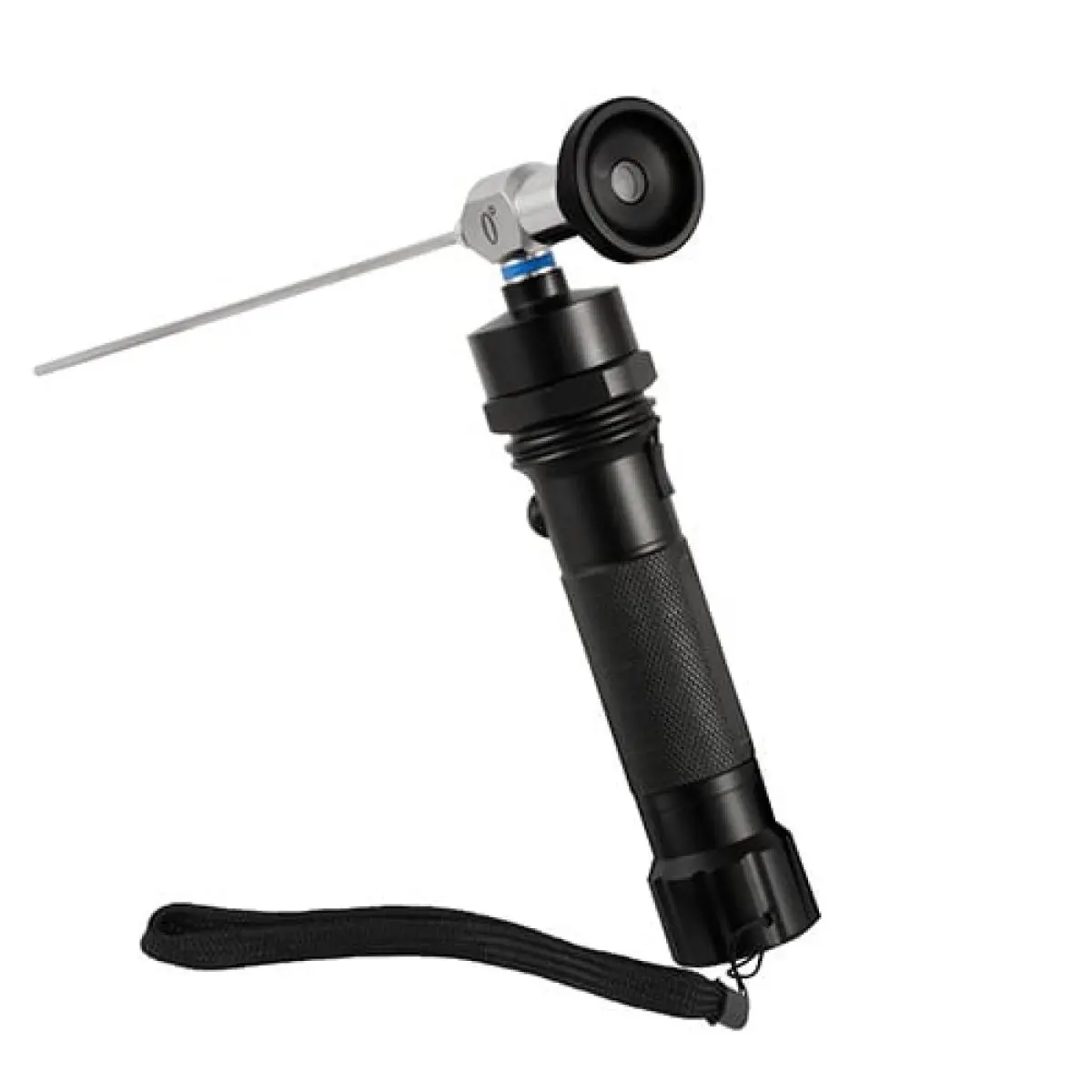

Rigid industrial borescope with a working length of 175 mm (6.9 in) / Diameter only 2.7 mm (0.11 in) / LED bulbs / Rugged metal housing / Battery operation



Rigid borescope for visual inspection in small and narrow holes and cavities. With a diameter of 2.7 mm / 0.11 in and a length of 175 mm / 6.9 in, this rigid borescope is very versatile. The integrated LED lamp allows for a very good illumination of cavities to be inspected. For image transmission, this rigid borescope uses a lens system with a field of view of 45°. The rigid borescope is robust and designed for industrial environments. This rigid borescope provides very high resolution images with high sharpness. A mirror attachment is available as an option on this rigid borescope. The rigid borescope is very well suited for inspections of small objects.



***Not for medical use***

Highlights

- Diameter only 2.7 mm / 0.11 in
- LED bulbs
- Working length 175 mm / 6.9 in
- Extremely robust
- High resolution
- Battery operation

Specification

General technical data
Light source  LED
Field of vision (FOV)  45°C
Dimensions  Useful length: 175 mm Diameter: 2.7 mm
angle of view  0 °
Protection class (device)  IP54
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V 18650 , Lithium-ion battery
Capacity  4800 mAh
Performance  17,76 Wh
Operating conditions  -10 ... 60 °C , 0 ... 85 % RH
Storage conditions  -10 ... 60 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  230 x 35 x 170 mm
Weight  182 g

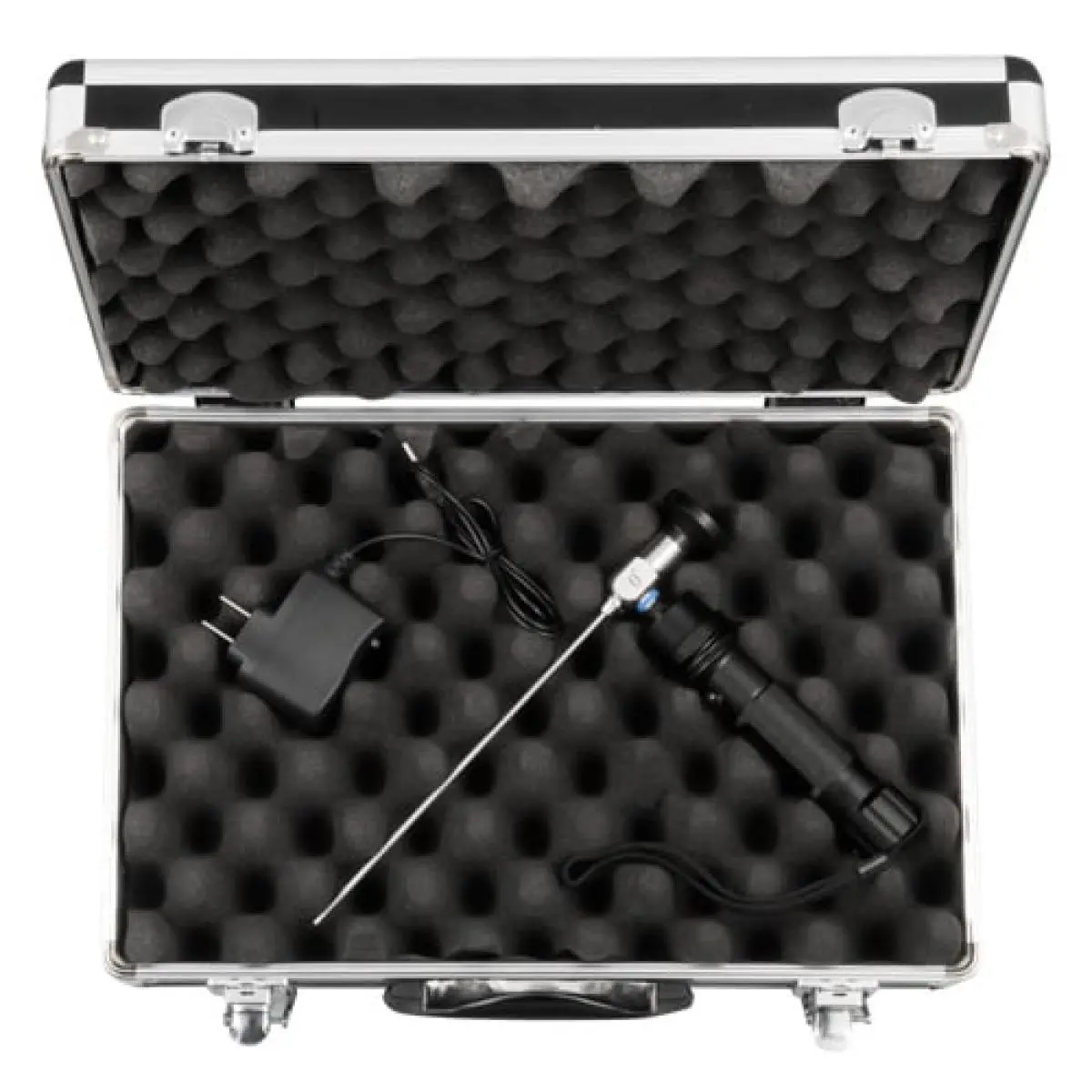

Delivery Scope

1 x Industrial Borescope PCE-RS 27
1 x Rechargeable battery
1 x Charger
1 x Carrying case
1 x Operating instructions
