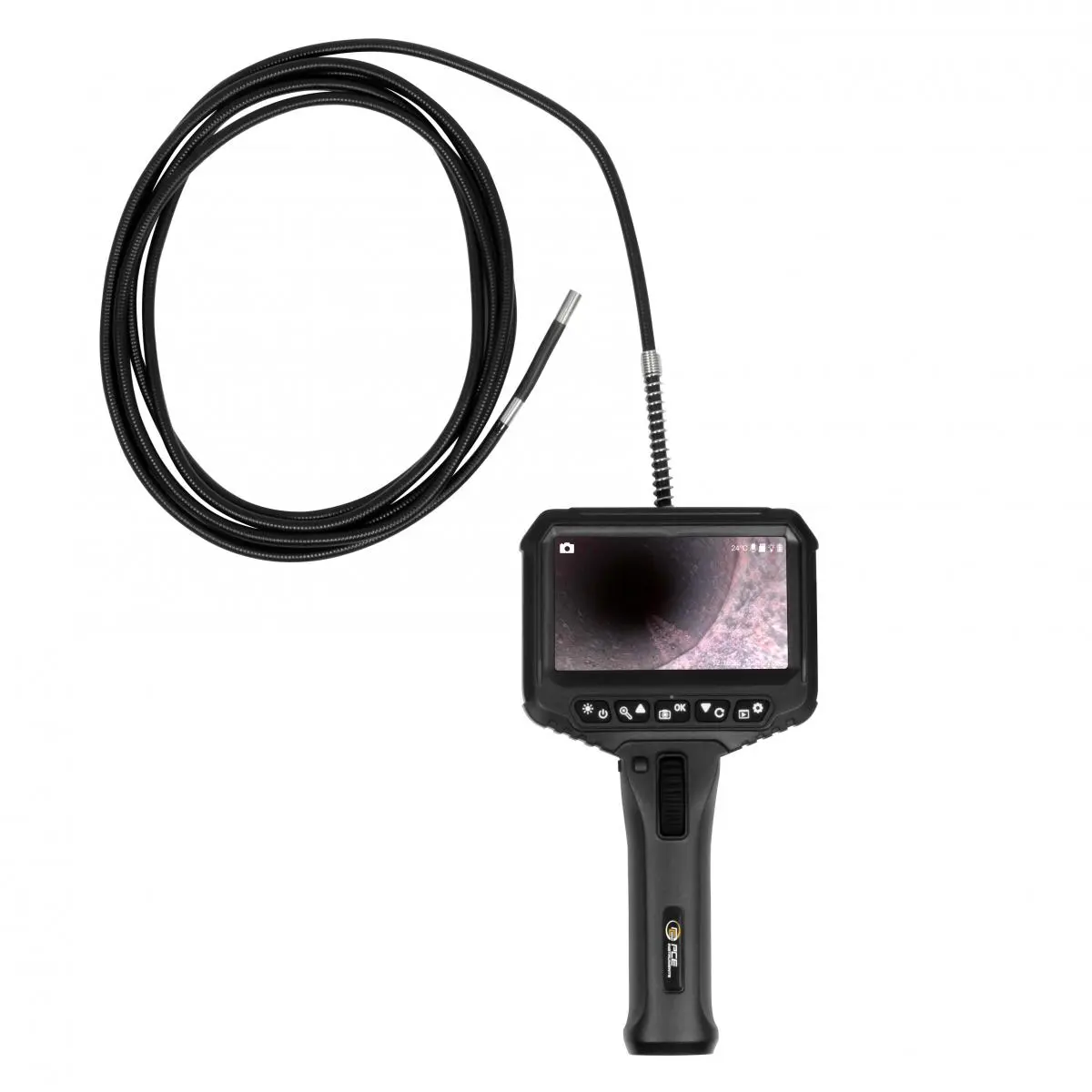

Industrial Borescope PCE-VE 300N

Industrial Borescope PCE-VE 300N

Order no.: PCE-VE 300N
GTIN (EAN): 4250348739056
£ 210.00
£ 252.00
price ex. (VAT / delivery)
:
4250348739056
PCE-VE 300N
Delivery time:1-2 working days

Description

Industrial Borescope / Movable camera probe / Integrated microphone in the device / Digital zoom / 6 bright LEDs / Battery operation / Incl. transport bag

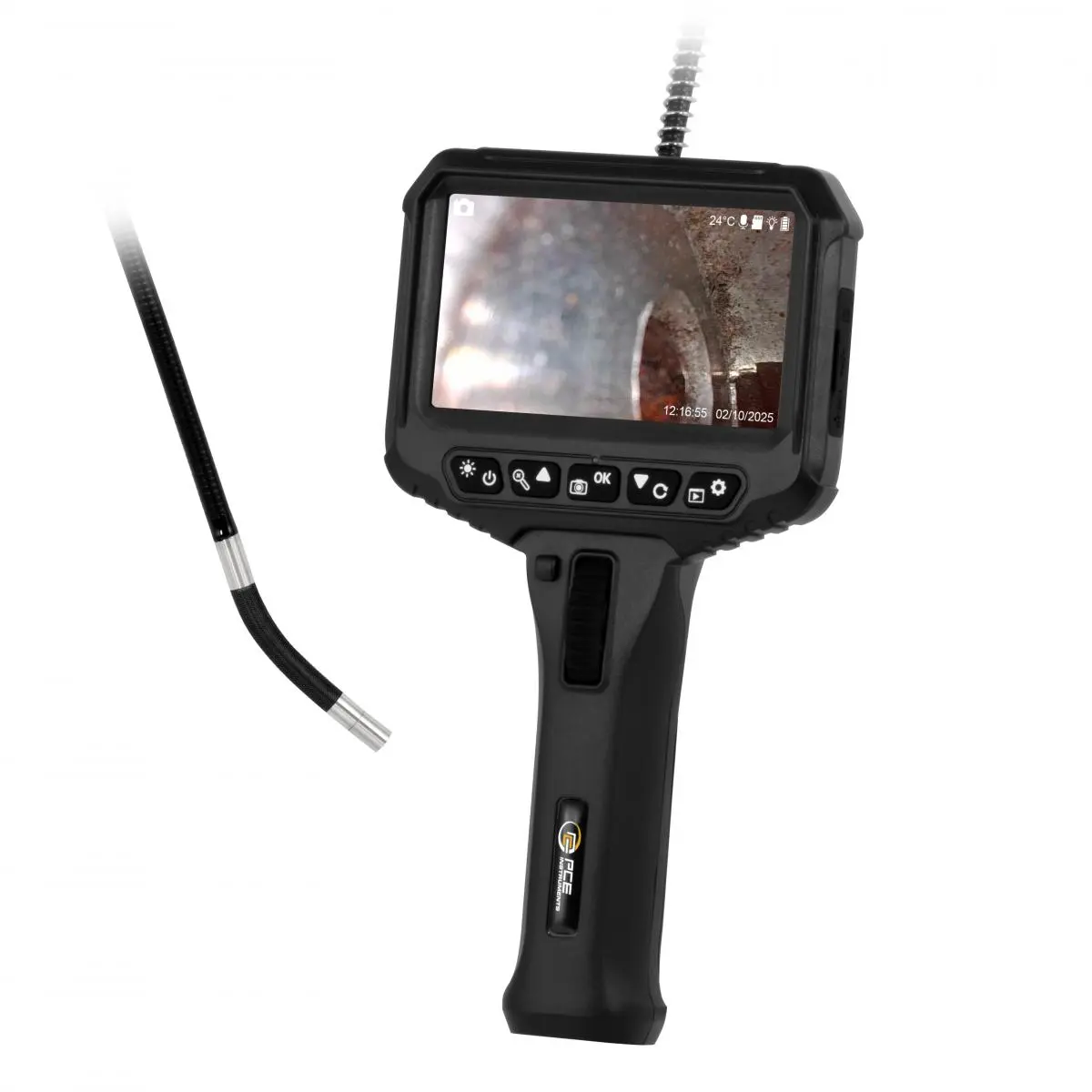

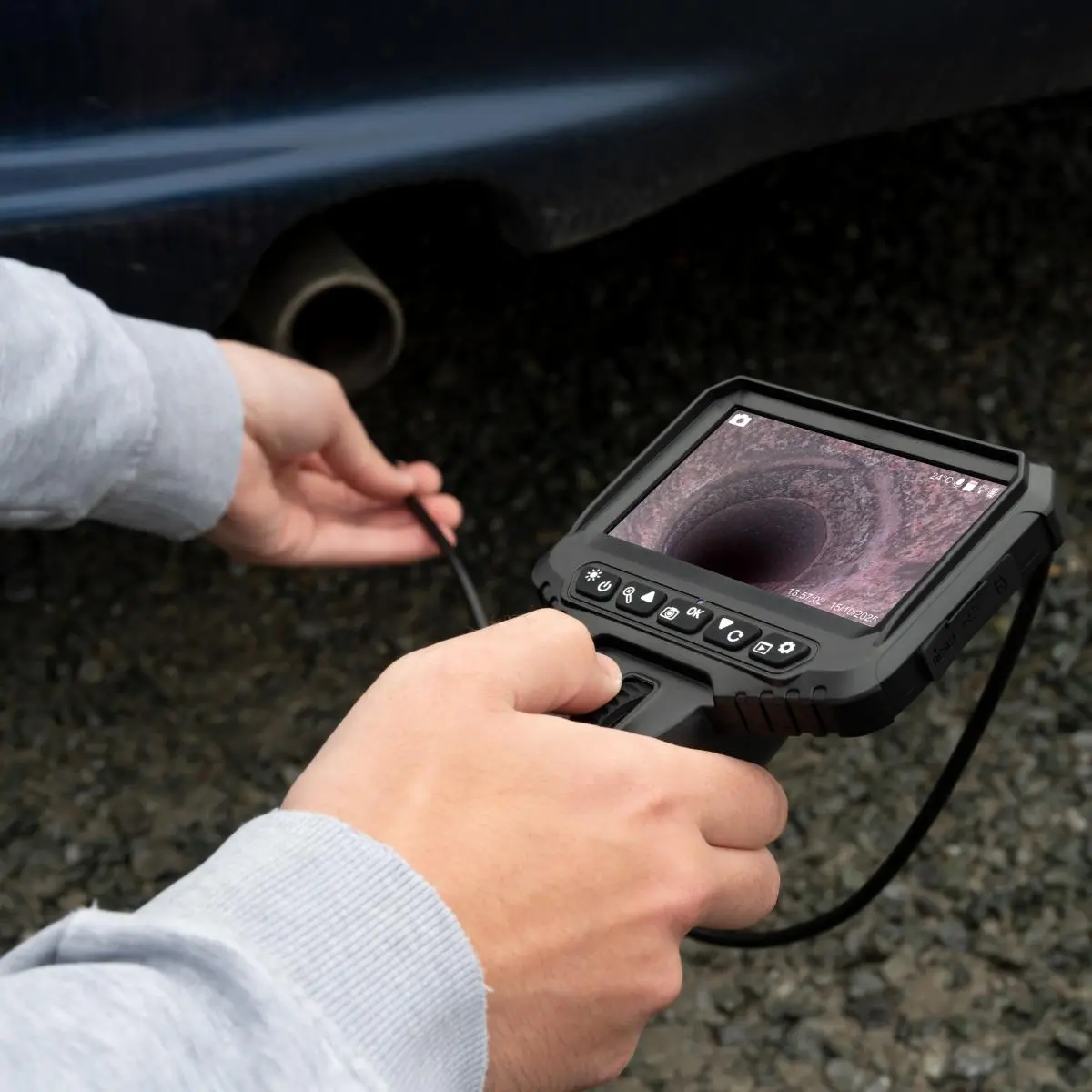

This state-of-the-art video Industrial Borescope is the essential tool for all professional visual inspections and detailed inspections in hard-to-reach places. It combines an extremely slim design with advanced recording functions to guarantee you maximum precision.

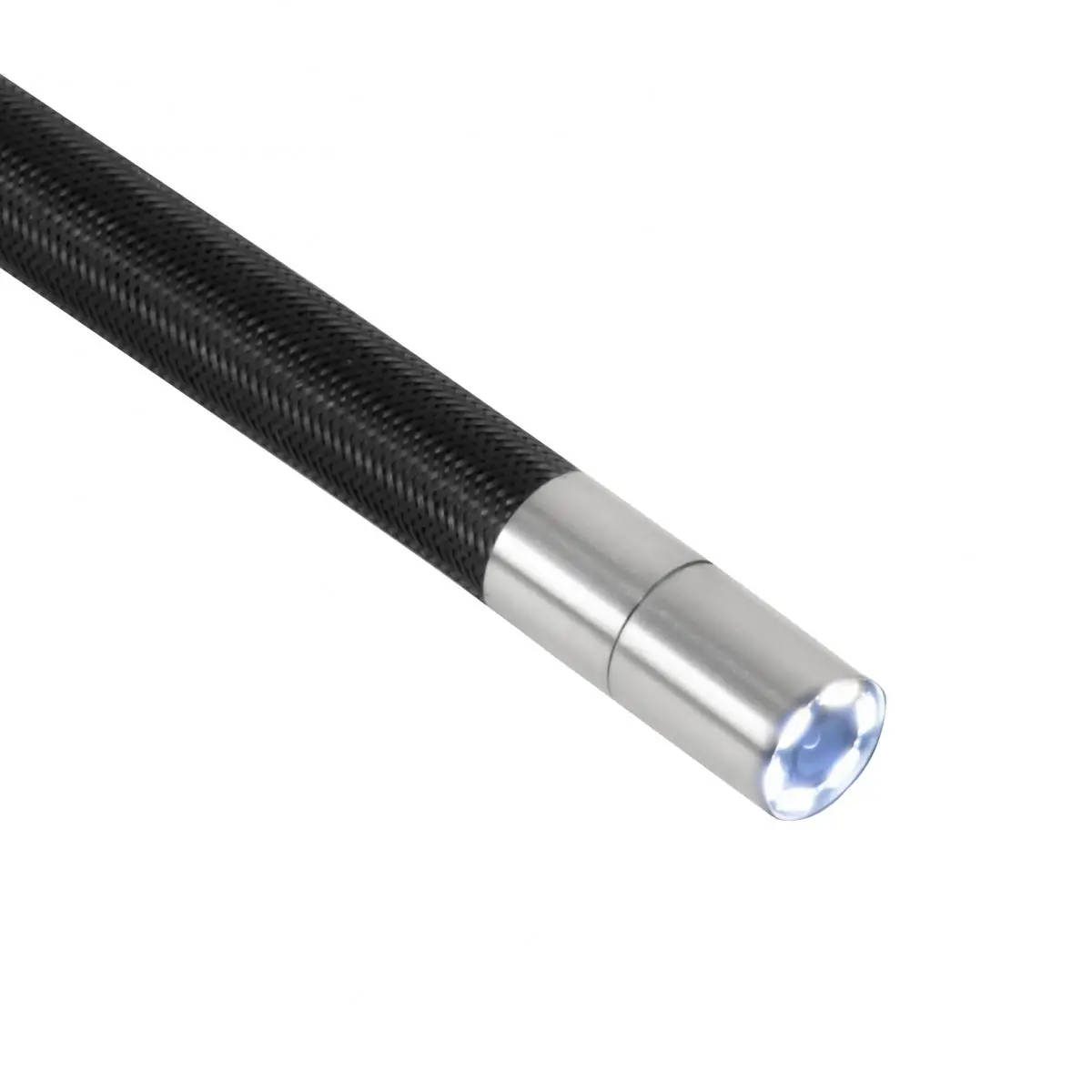

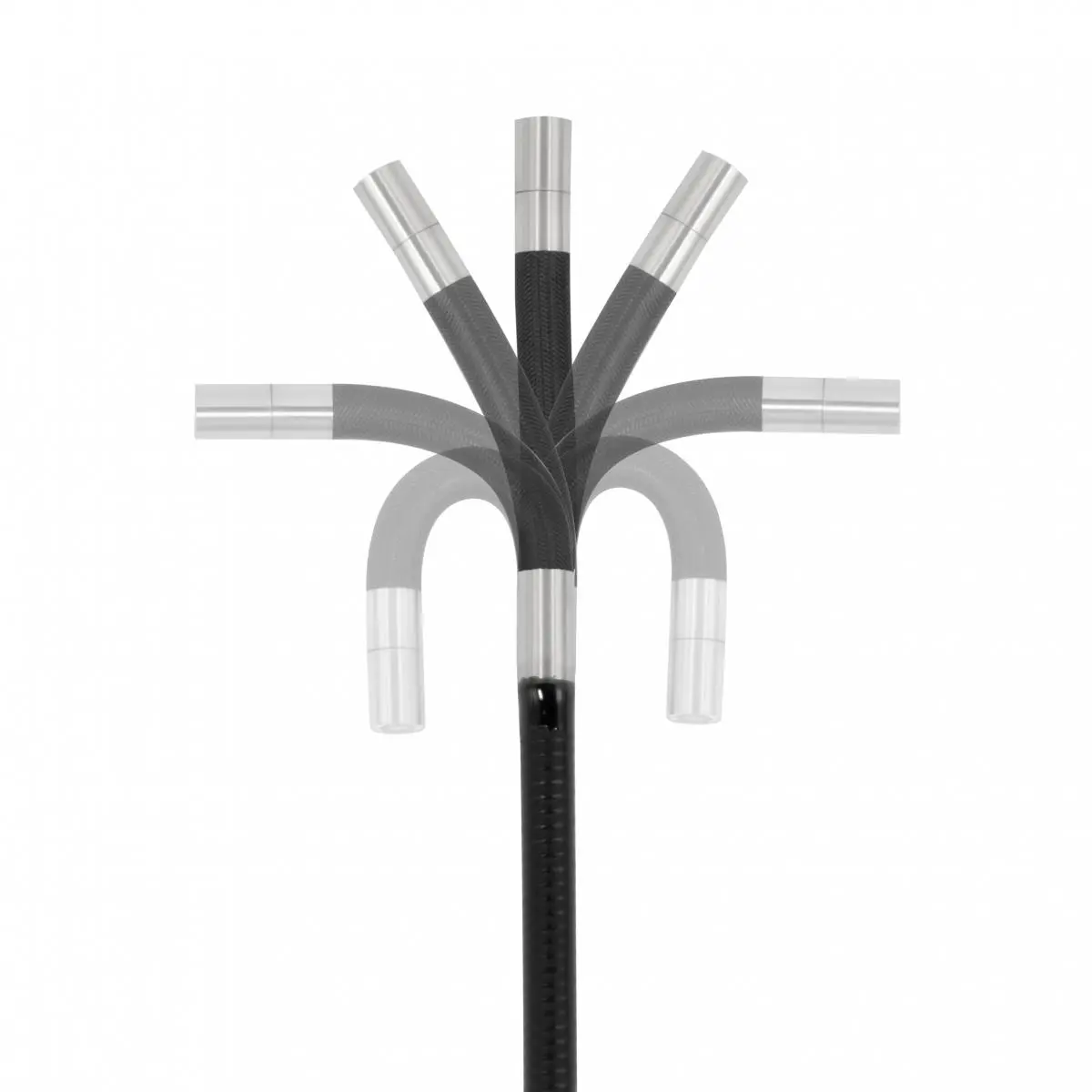

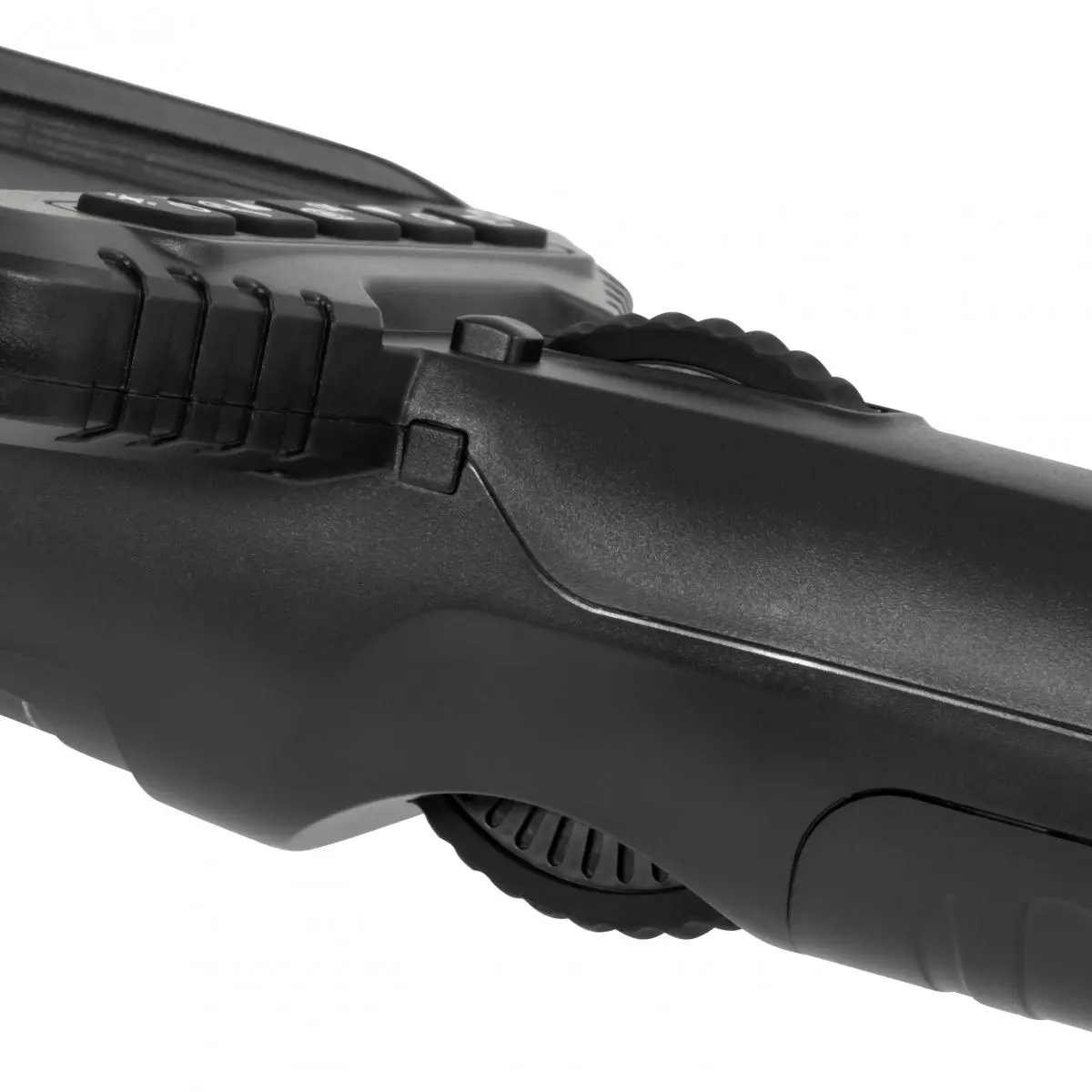

The centerpiece of the inspection system is the camera probe, which is only 6.2 mm / 0.24 in in size and has flexible 2-way articulation. This swiveling function enables precise control of the tip of the video Industrial Borescope in two directions to inspect hidden angles and side walls with ease. To ensure an excellent view, six bright LEDs are integrated into the camera probe, the brightness of which can be individually adjusted to optimally adapt the illumination to the respective environment.

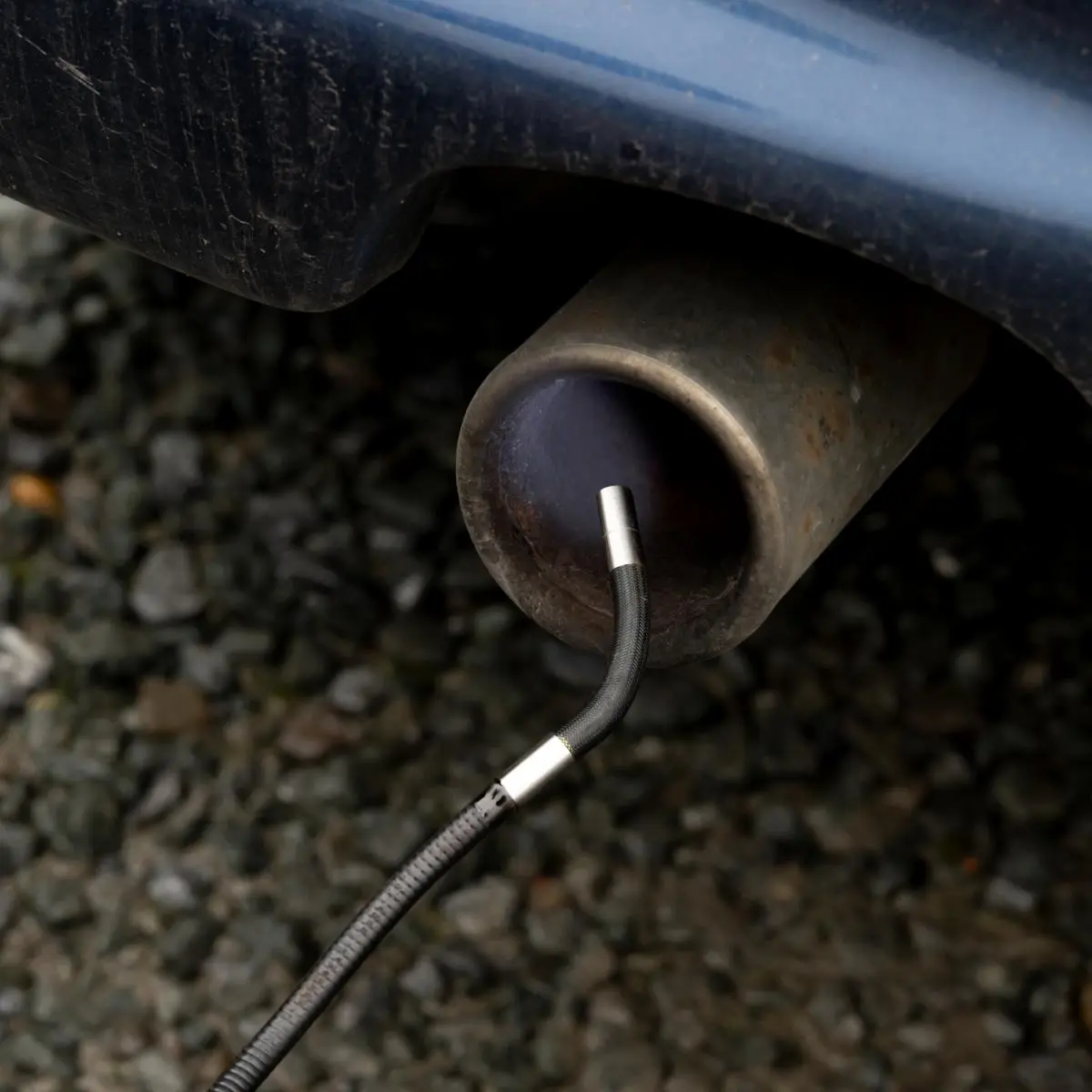

For documentation purposes, the video Industrial Borescope provides sharp image and video recordings in a maximum resolution of 1920 x 1080 (Full HD). All recordings are conveniently stored on the 32 GB micro SD card supplied. Flexibility is increased by the robust, 3 meter / 9.8 feet long camera cable, which allows easy insertion into narrow cavities and pipes. For detailed analysis, the device offers a 4x digital zoom and an image rotation function to perfectly adjust the orientation of the image to the inspection situation. This powerful video Industrial Borescope is supplied with a practical carrying case for safe and convenient storage.


Highlights

- 2-way camera probe Ø6.2 mm / 0.24 in
- Image and video recording
- max. resolution 1920 x 1080
- 32 GB micro SD card
- Integrated microphone in the device

Specification

General technical data
Type of cable  semi-rigid
Cable length  3 m

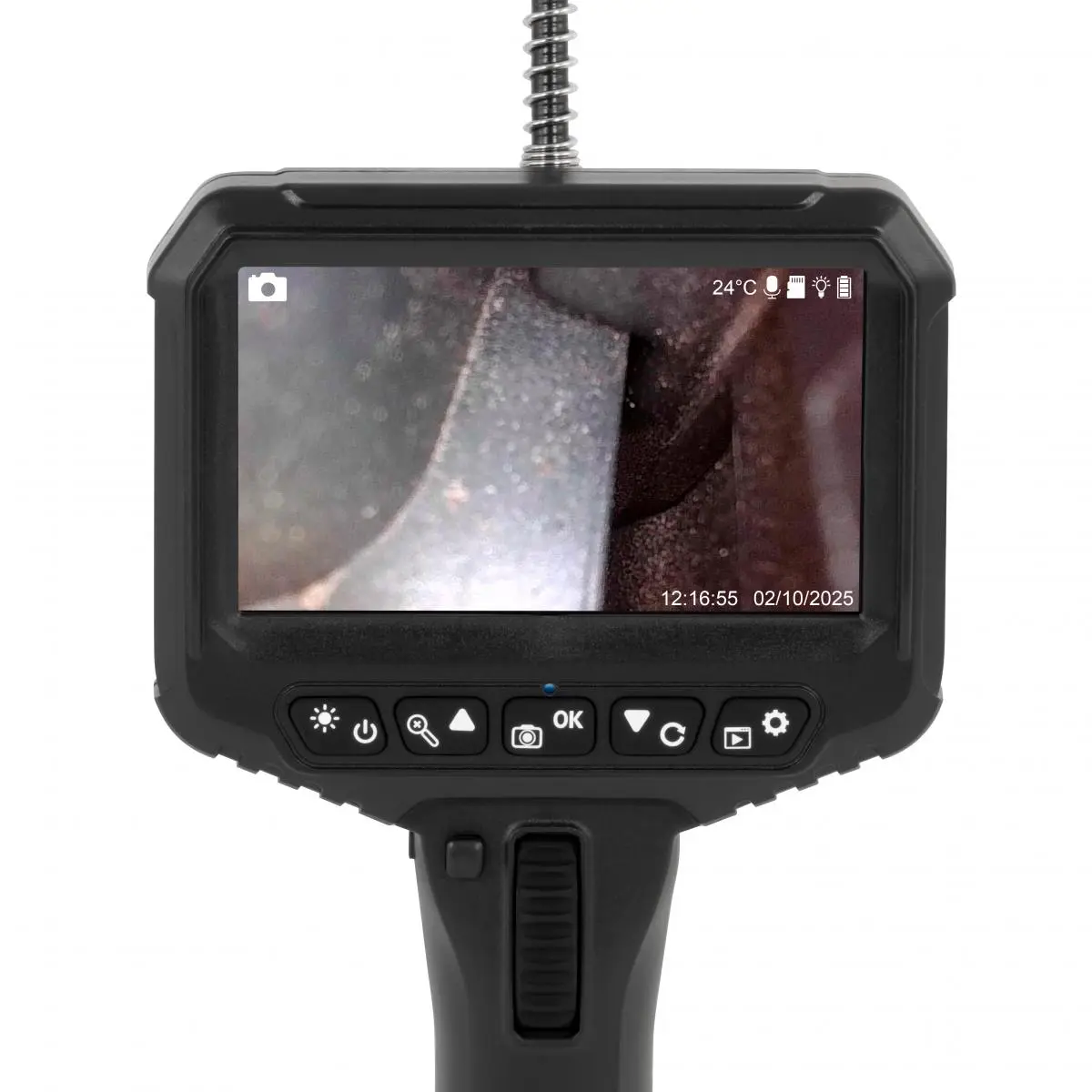

Display type  IPS
Display size  4,3 Inch
Display resolution  480 x 272 pixels
Storage medium  Micro SD card
Storage capacity  32 GB

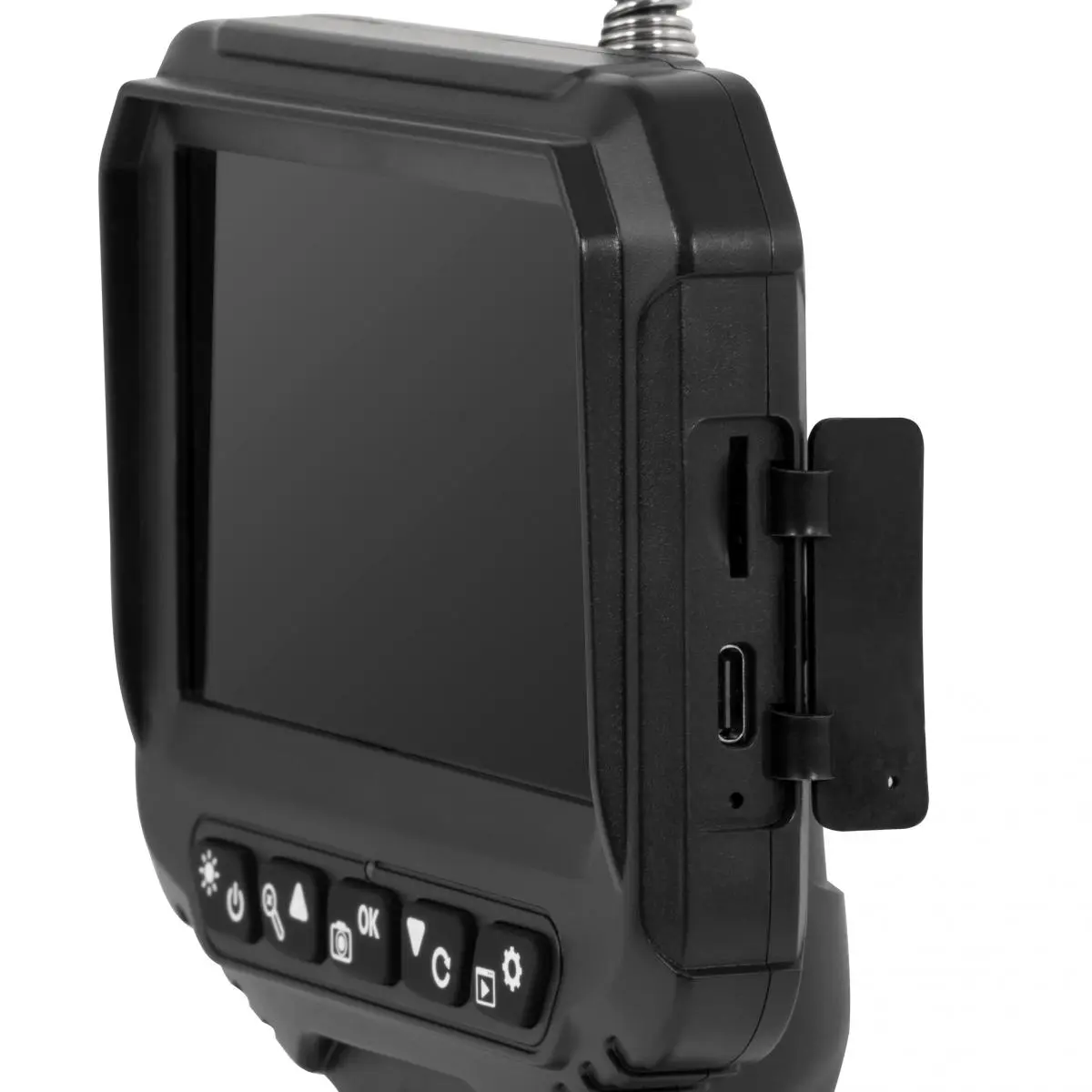

Interface  USB-C
Camera resolution  JPG: 640x480 / 1280x720 / 1920x1080
Operating time  4 h
Camera head diameter  6,2 mm
Camera probe length  60 mm
Camera probe material  Metal
Camera probe movement  2-way
Protection class camera probe  IP67
Field of vision  90 °
Depth of field of vision  15 ... 100 mm
Bending angle  210 °
Bending radius  30 mm
Image / video format  JPG
Menu language  German, English (GB), English, Chinese, Japanese, Russian, French, Polish, Spanish, Italian
Protection class (device)  IP42
Power supply  5V DC (USB-C)
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  2200 mAh
Operating conditions  -10 ... 50 °C , 0 ... 90 % RH
Storage conditions  -10 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  225 x 125 x 50 mm
Weight  431 g

Delivery Scope

1 x PCE-VE 300N Industrial Borescope
1 x Cleaning cloth
1 x USB-C cable

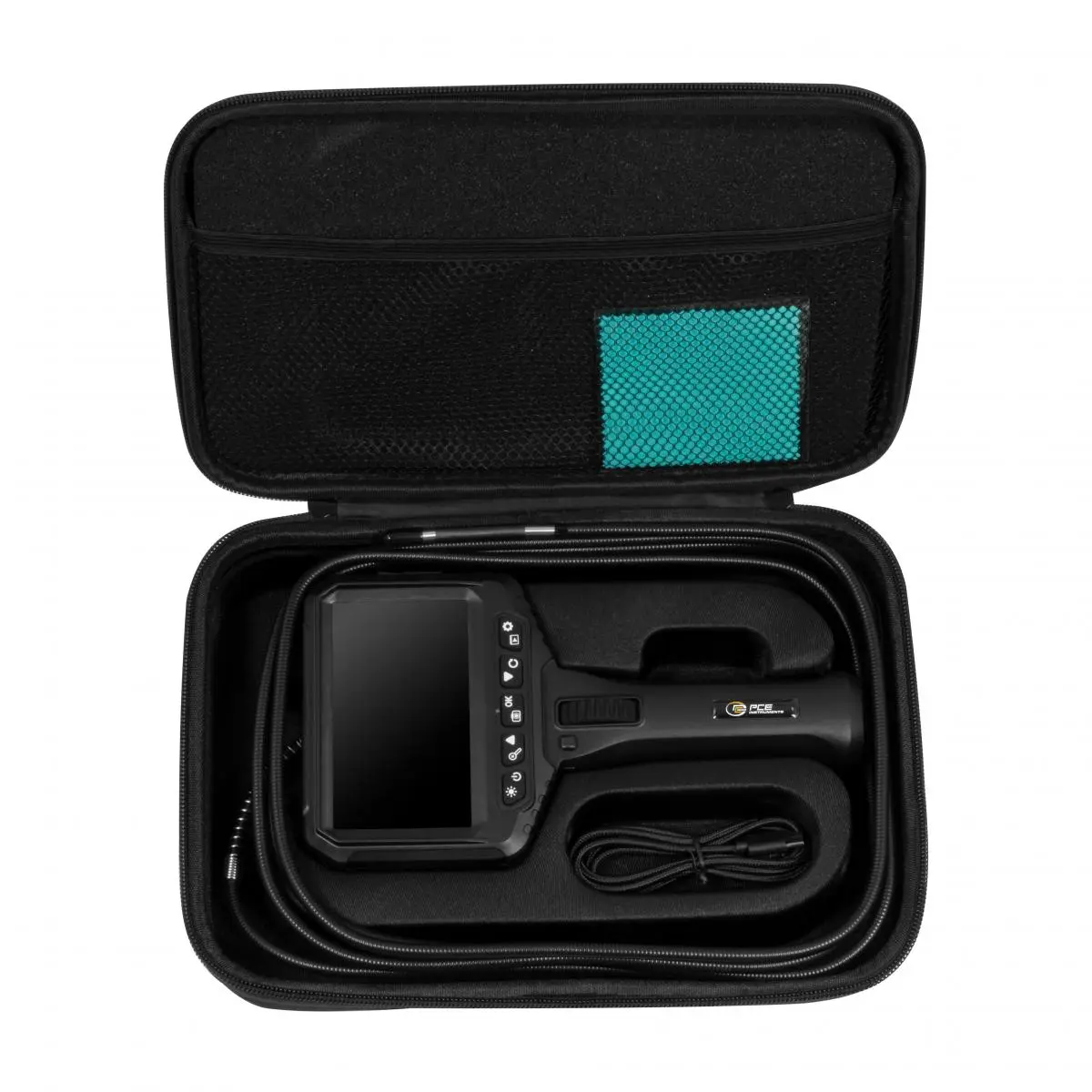

1 x Carrying case
