Industrial Borescope PCE-VE 100N4

Industrial Borescope PCE-VE 100N4

Order no.: PCE-VE 100N4
GTIN (EAN): 4250348723352
£ 1,433.00
£ 1,719.60
price ex. (VAT / delivery)
:
4250348723352
PCE-VE 100N4
Delivery time:1-2 working days
Flexible
6 mm
1 m
360°

Description

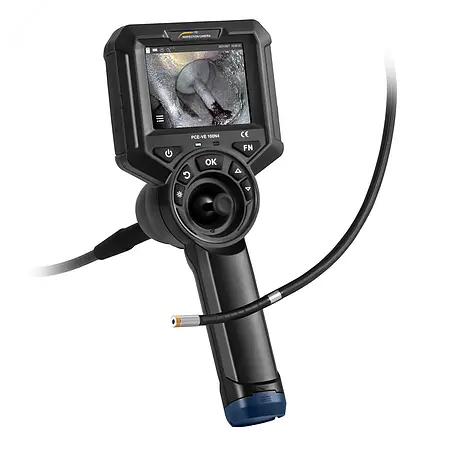

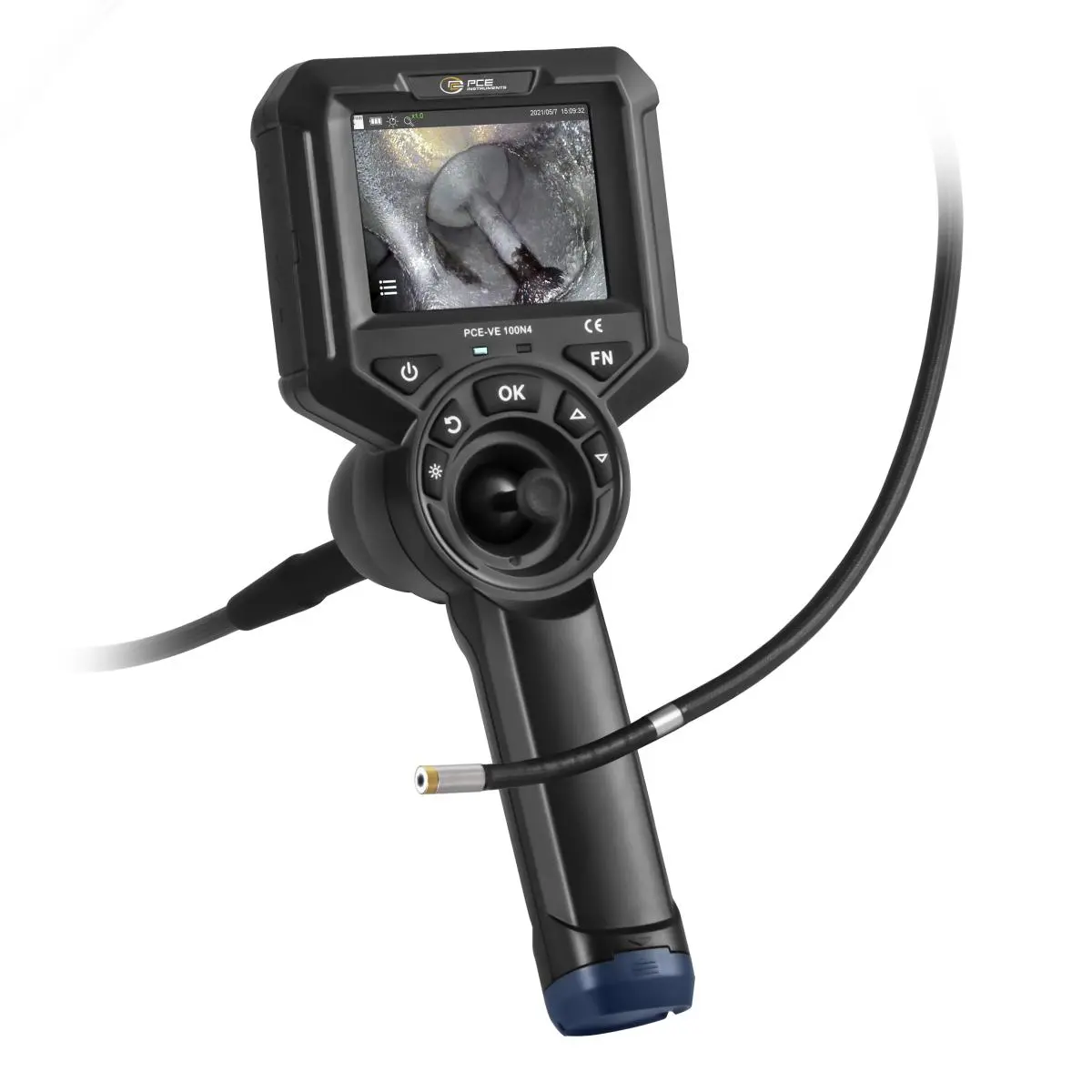

Multiway industrial borescope with photo and video recording / 1280 x 720 pixels / 360° swivel /
6 mm (0.23") diameter / 1 meter (3 ft 2") cable length / LED lighting / Micro-SD card memory /
Transport case / Battery life >3 hours / IP 67

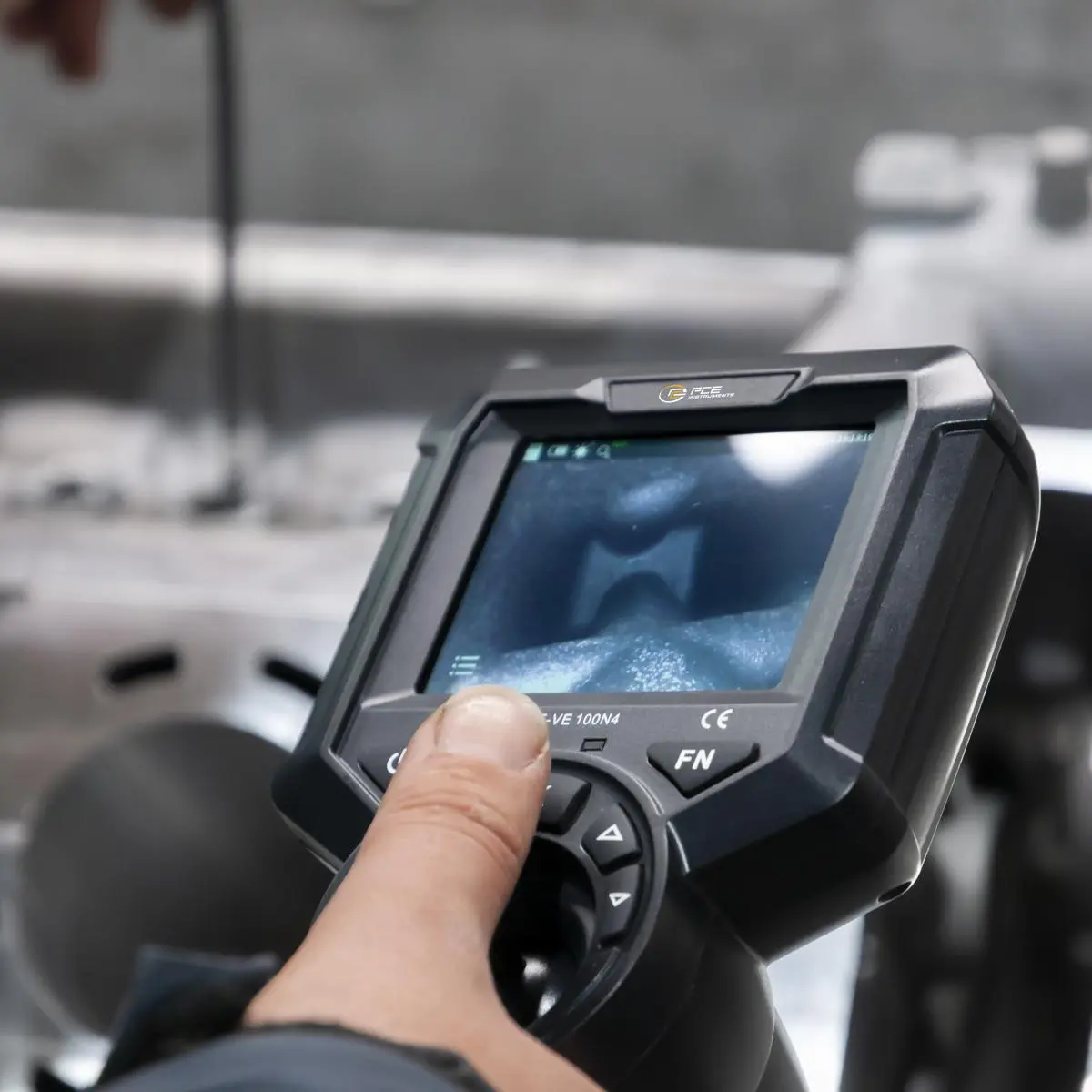

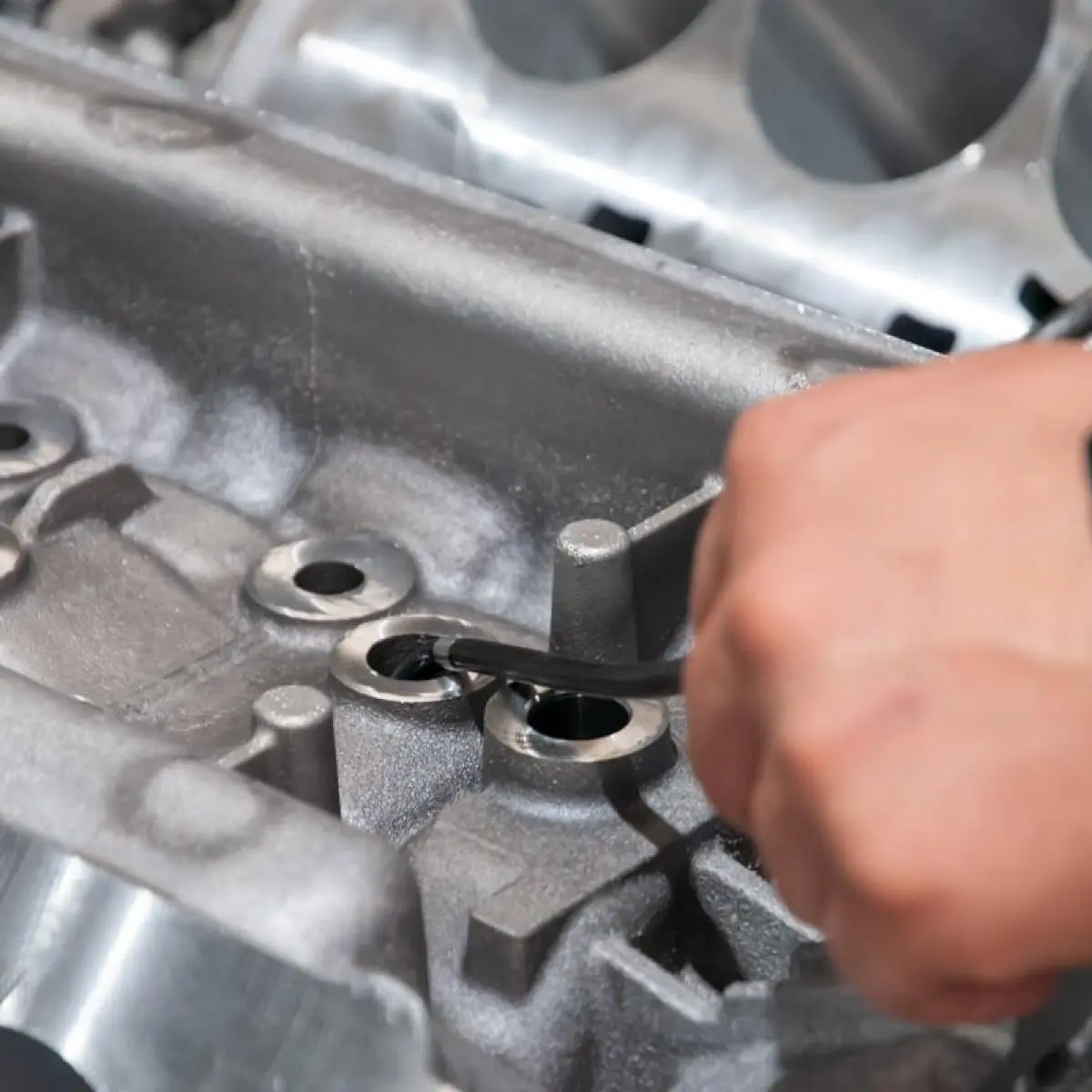

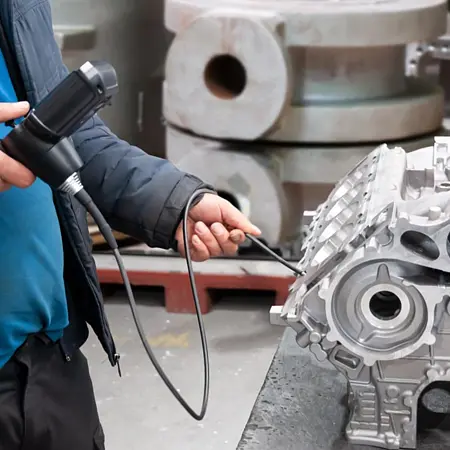

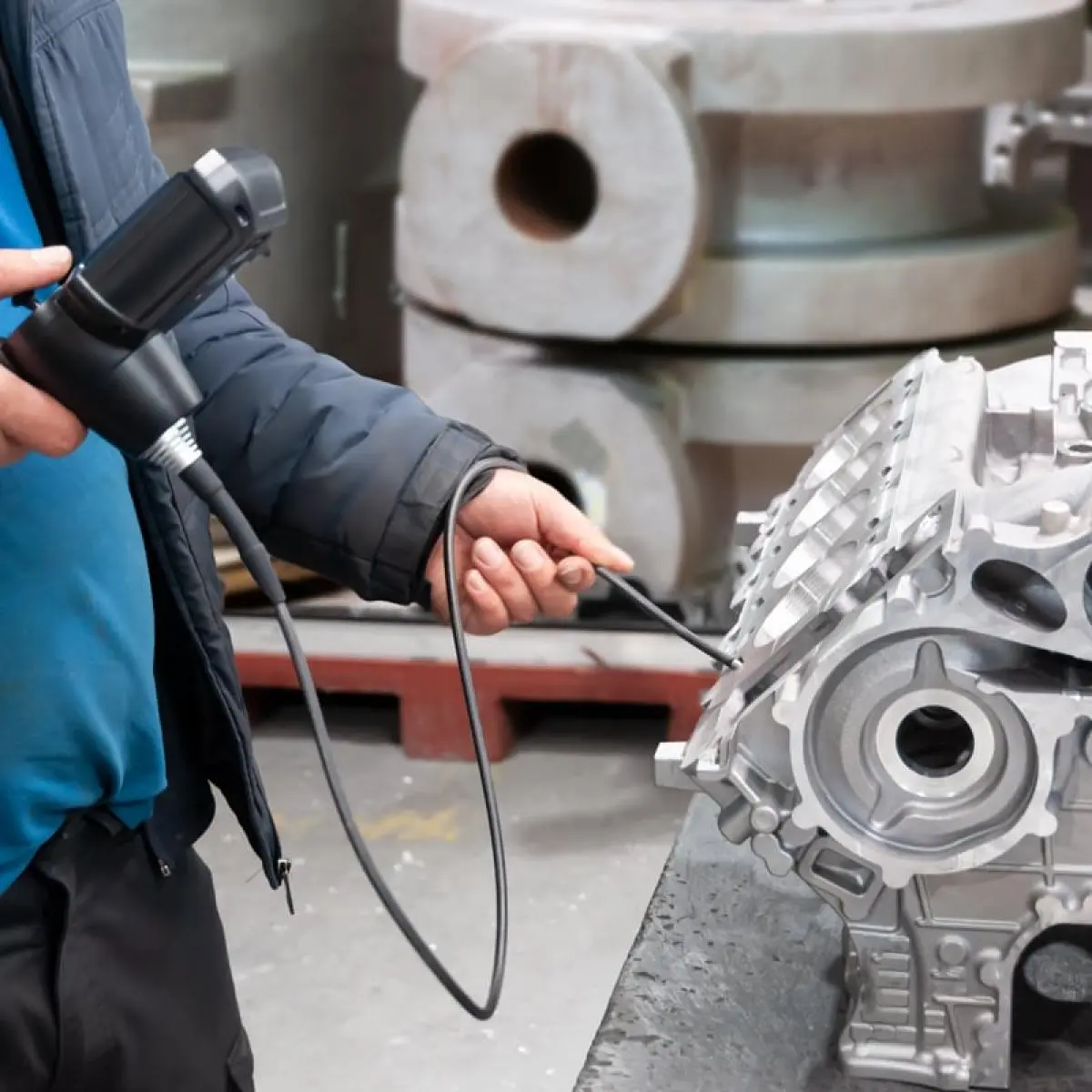

The multiway industrial borescope with a cable length of one meter and a camera head diameter of 6 mm is the ideal tool for endoscopy. The LED illuminance on the camera head can be set in 5 steps up to 25,000 lux. This ensures that the test item is adequately illuminated. With the mini-HDMI interface on the multiway videoscope, the image can be transmitted to an external monitor or projector. This has the particular advantage that the multiway videoscope can be used for presentations. Thus, the multiway videoscope is used in car workshops, heating and air conditioning technology, or vocational schools, universities and other educational facilities.

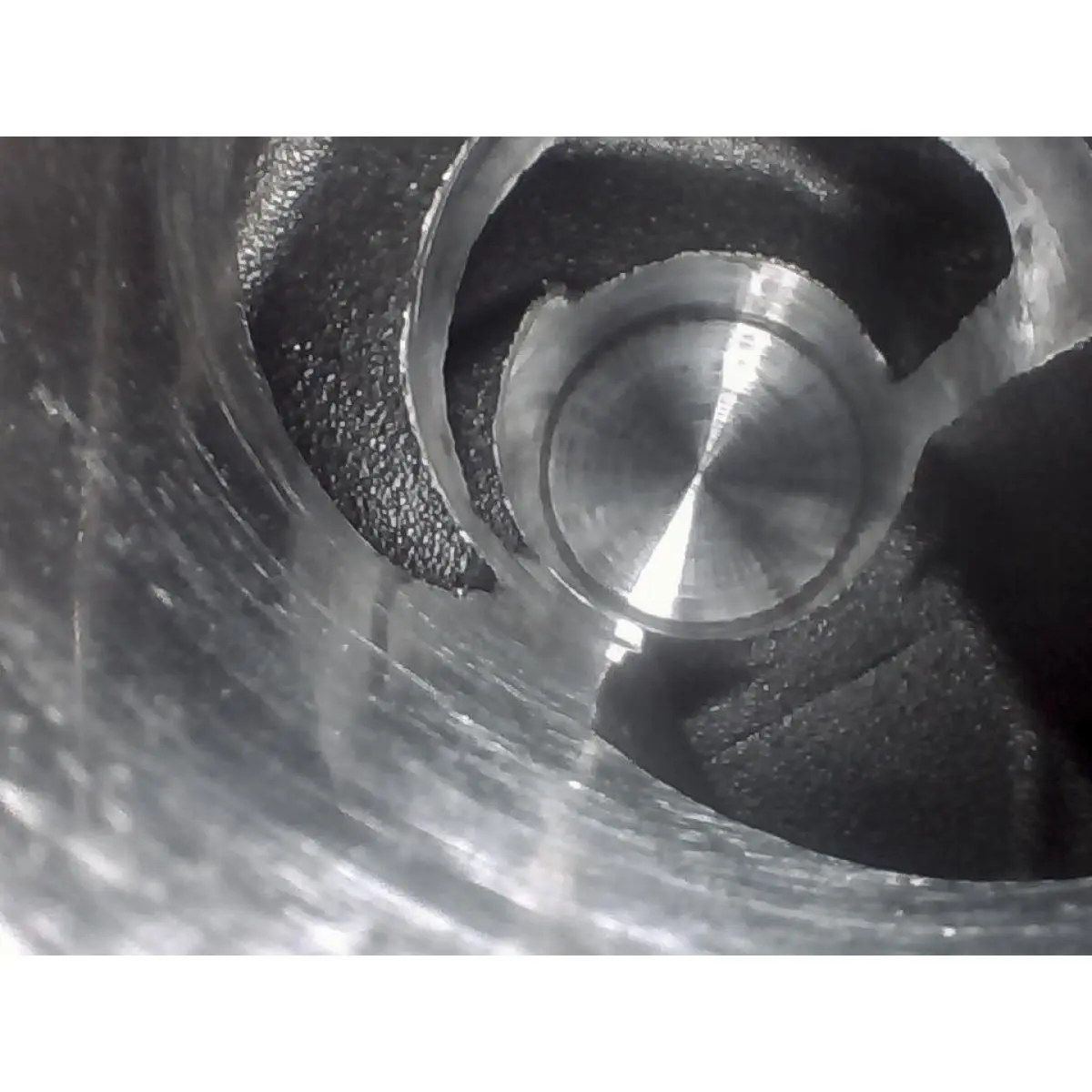

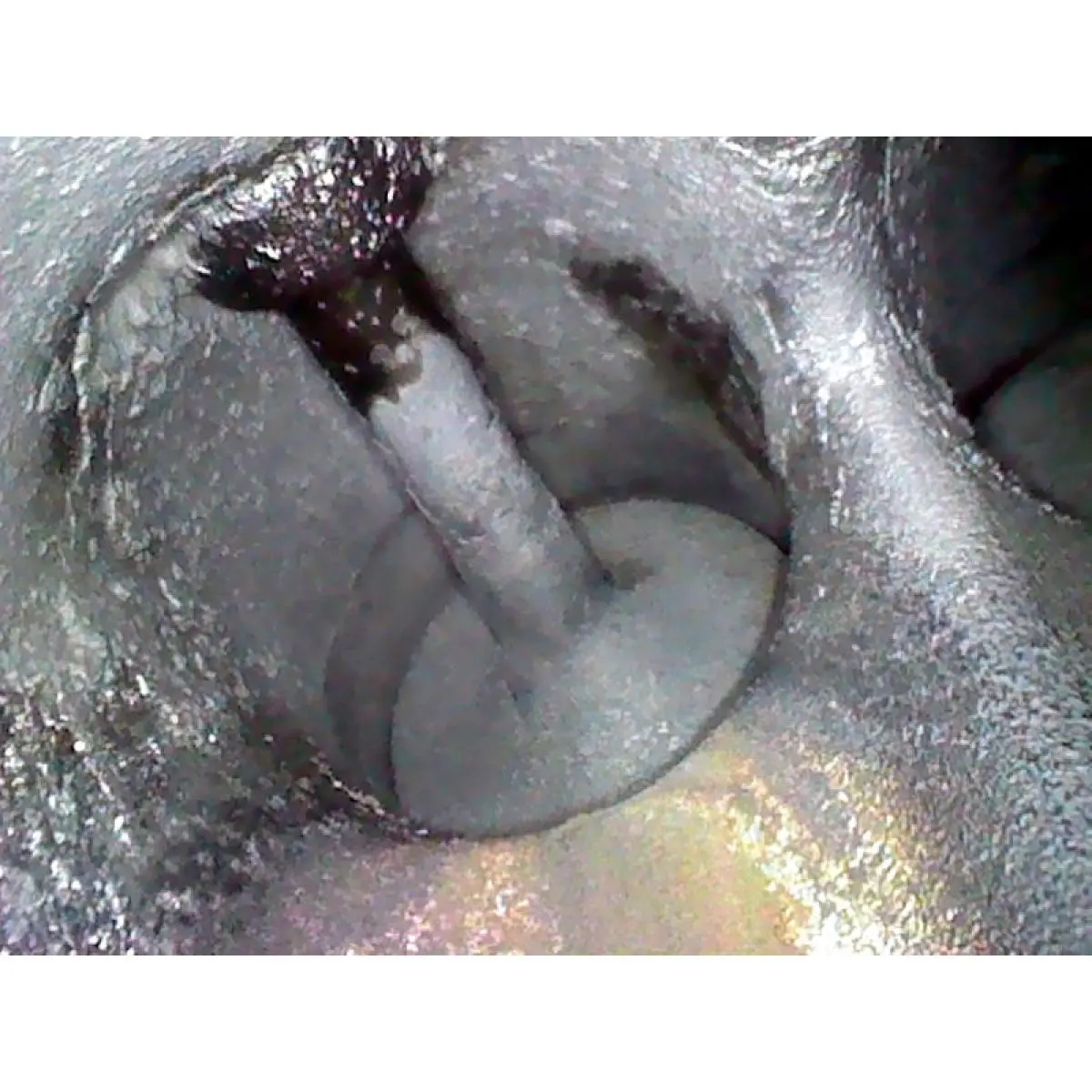

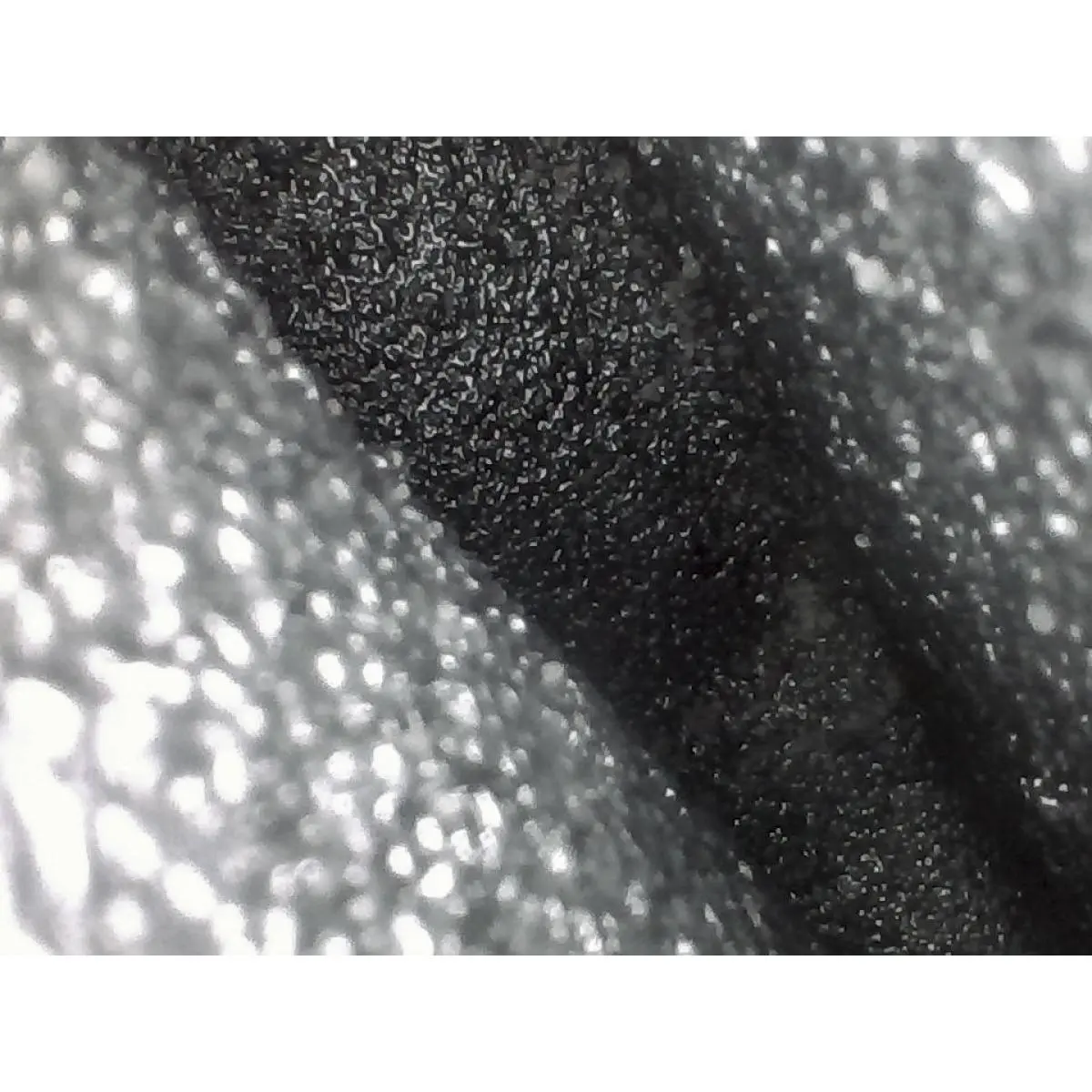

Photos as well as videos can be recorded with the multiway industrial borescope. The recordings are saved directly on the Micro SD card and can be viewed on the multiway videoscope. It is also possible to transfer the recordings from the Micro SD card to a computer. This means that the recordings from the multiway videoscope can be stored in expert reports, for example.

The 3500 mAh battery enables an operating time of more than 3 hours before it has to be recharged. To recharge the battery, the multiway videoscope can be connected to any 5 V USB interface.

Highlights

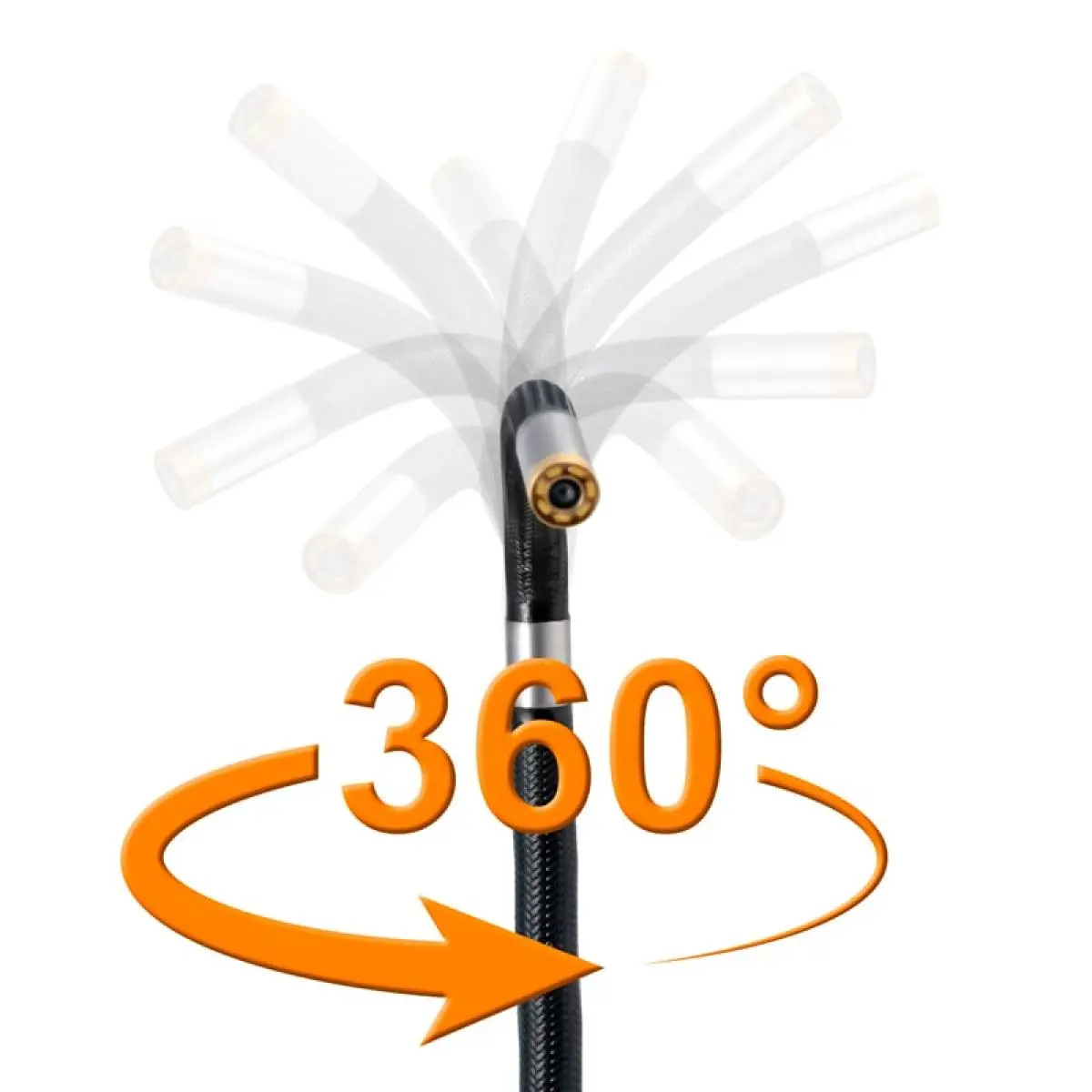

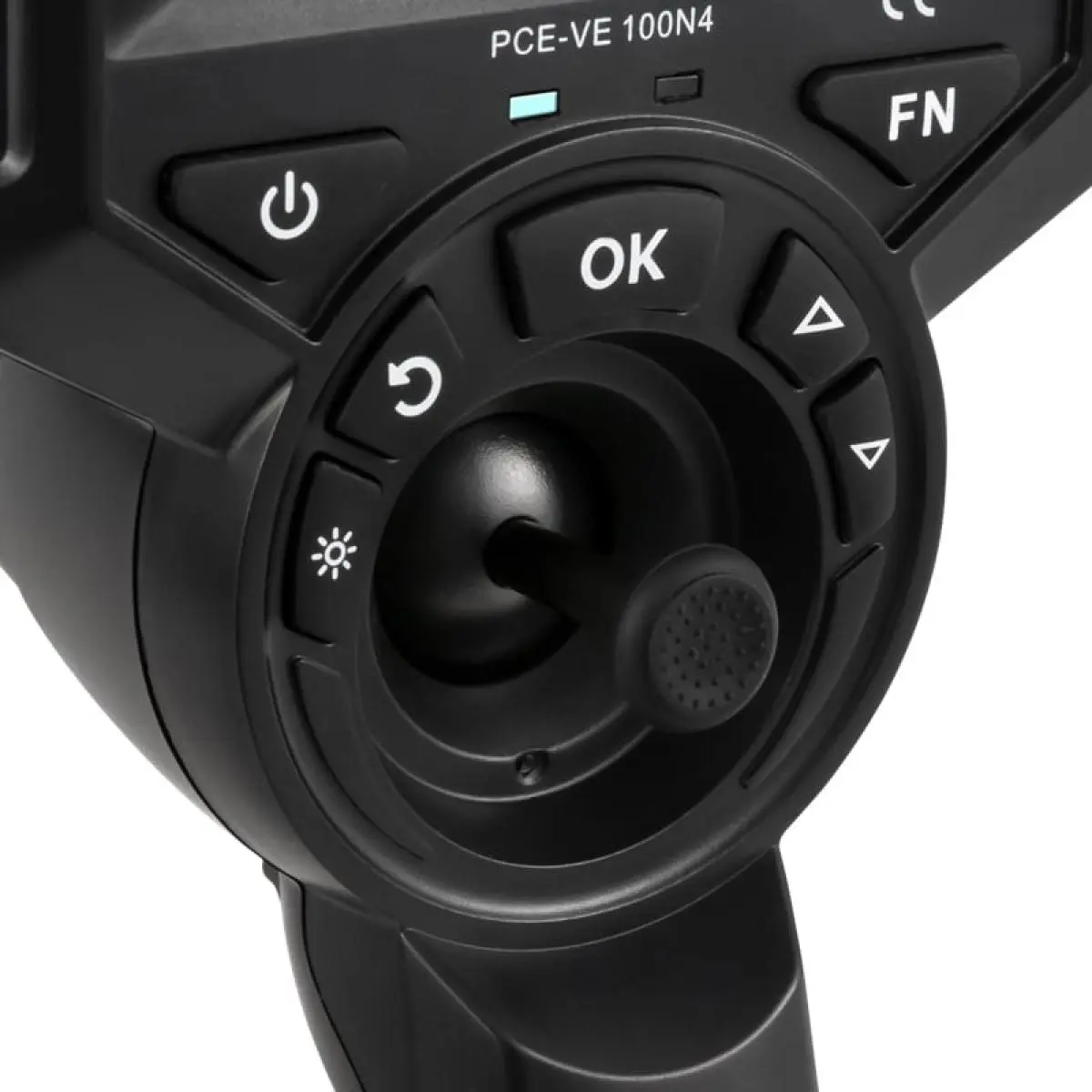

- Multiway 360° rotation head
- Rechargeable via USB interface

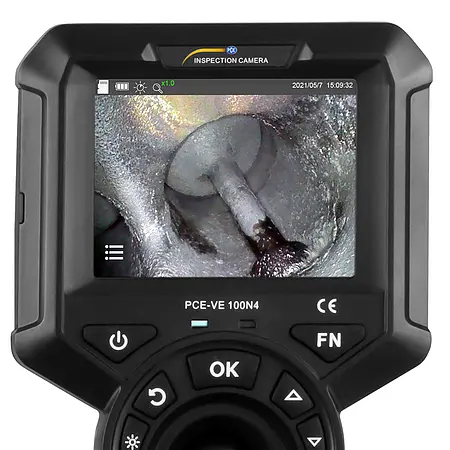

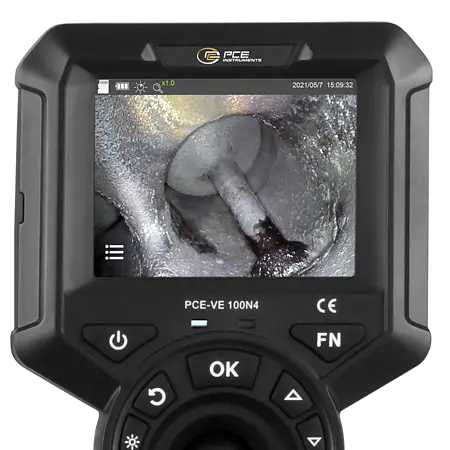

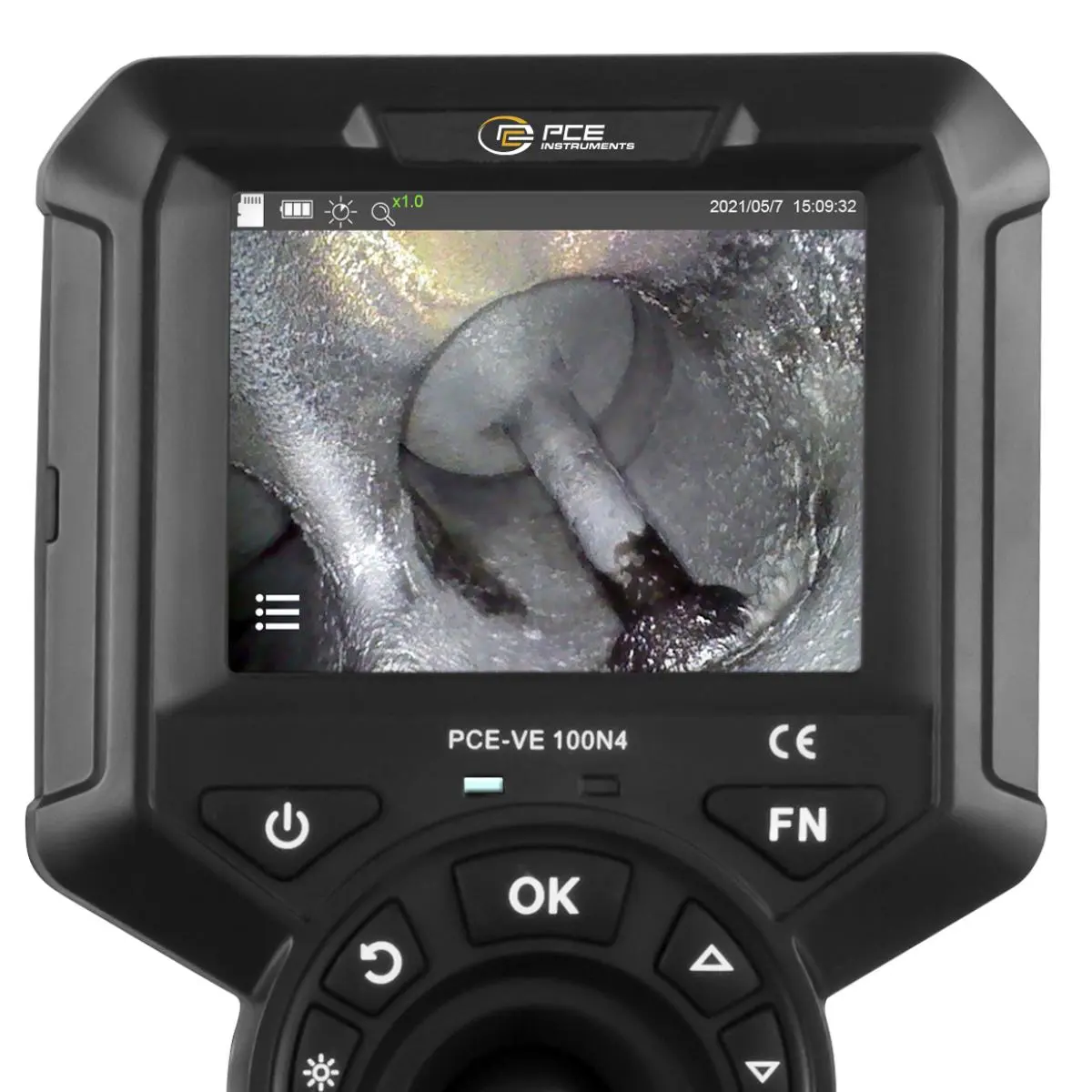

- 3.5" display
- Operating time of more than 3 hours
- Mini-HDMI interface for image output

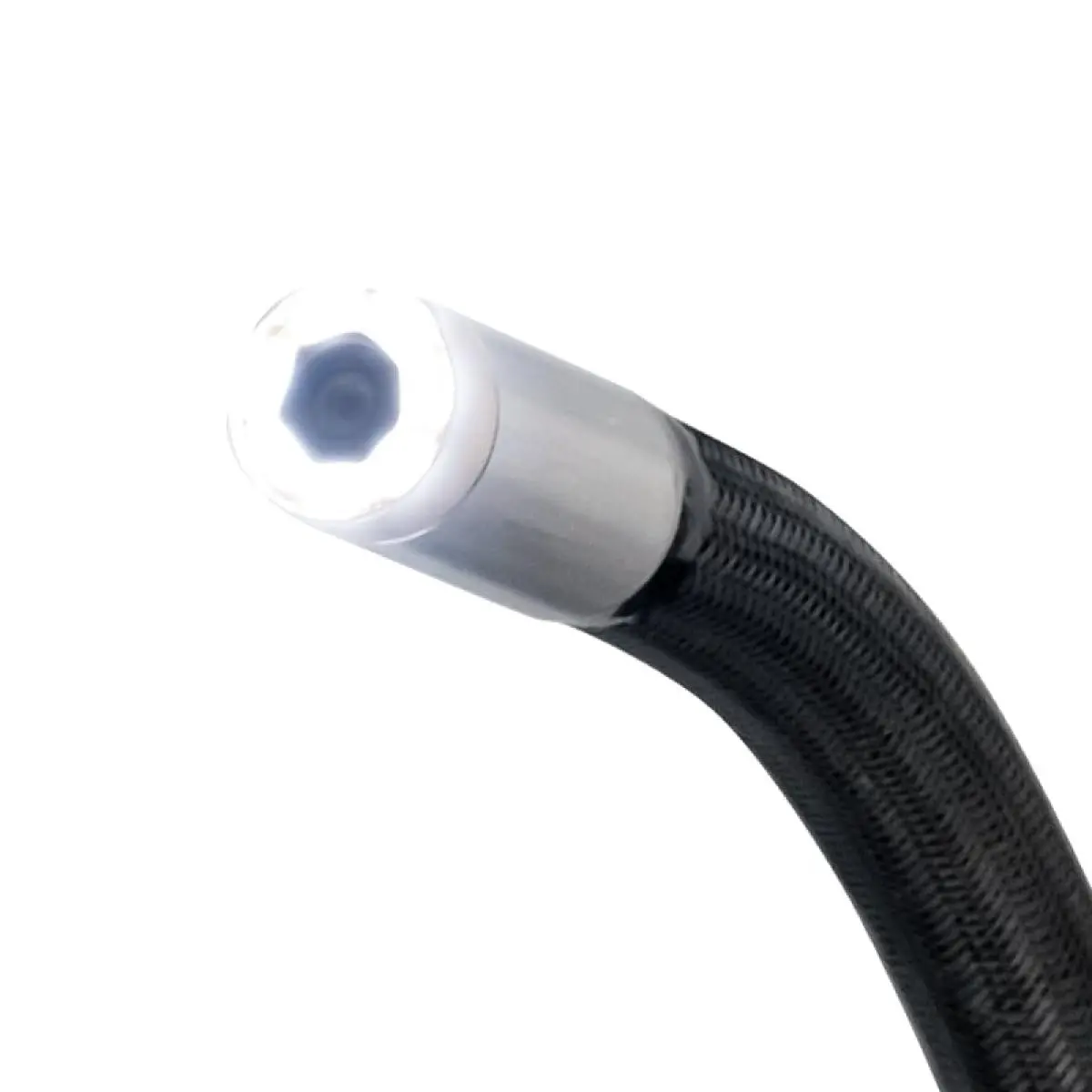

- Braided tungsten tube with a length of 1 m / 3 ft 2"

Specification

General technical data
Resolution  Image: 960 x 720
Video: 1280 x 720
Cable length  1 m
Display type  IPS
Display size  3,5 Inch
Display resolution  640 x 480 pixels
Storage medium  Micro SD card
Storage capacity  16 GB
Interface  Mini-HDMI, Micro-USB
Camera resolution  1 MP
Camera orientation  frontal 0°
Operating time  3 h
Camera head length  13 mm
Camera head diameter  6 mm
Camera probe material  Braided tungsten
Camera probe movement  4-way
Protection class camera probe  IP67
Field of vision  120 °
Depth of field of vision  7 ... 110 mm
Bending radius  220 °
Luminous intensity  five levels, adjustable up to 25,000 lx
Menu language  English
Protection class (device)  IP65
Power supply  100 ... 240 V AC, 50 ... 60 Hz
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V 18650 , Lithium-ion battery
Capacity  3200 mAh
Operating conditions  -10 ... 50 °C , 0 ... 92 % RH
Storage conditions  -10 ... 63 °C , 0 ... 92 % RH
Dimensions ( L x W x H )  277 x 106 x 92 mm
Weight  500 g

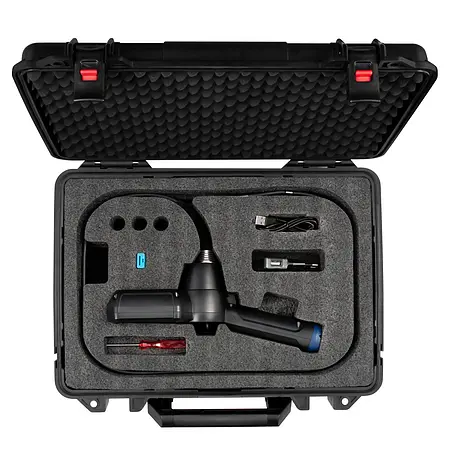

Delivery Scope

1 x Multiway Industrial Borescope PCE-VE 100N4
1 x 3.7 V 18650 battery
1 x Micro USB cable
1 x USB power adapter
1 x Micro SD memory card
1 x Micro SD card adapter
1 x Transport case
1 x Screwdriver
1 x Instruction manual
