£ 115.00
| Technical Data | |
| Humidity | |
| Measuring range | 0 ... 100 % RH |
| Accuracy | ± 2 % (in the range 10% .... 90% RH) ± 3 % (remaining range) |
| Hysteresis | ± 1 % RH |
| Temperature | |
| Measuring range | - 20 ... 60 °C |
| Accuracy | ± 0.5 % of measuring range |
| Temperature effect | ± 25 % / 10 °C |
| Output current | 4 ... 20 mA |
| Max. connectable resistor at the output | ≤ 500 Ω |
| Supply voltage | 19 V ... 30 V DC |
| Performance | < 1.5 W |
| Setting the output size | via DIP - switch |
| Ambient temperature | - 30 °C ... 85 °C |
| Max. humidity | ≤ 95 % RH |
| Preheating | 15 minutes |
| Degree of protection | IP 65 |
| Mounting | Wall mounting |
| Dimensions (W x H x D) | 35 x 58 x 118 mm |
| Weight | 125 g |

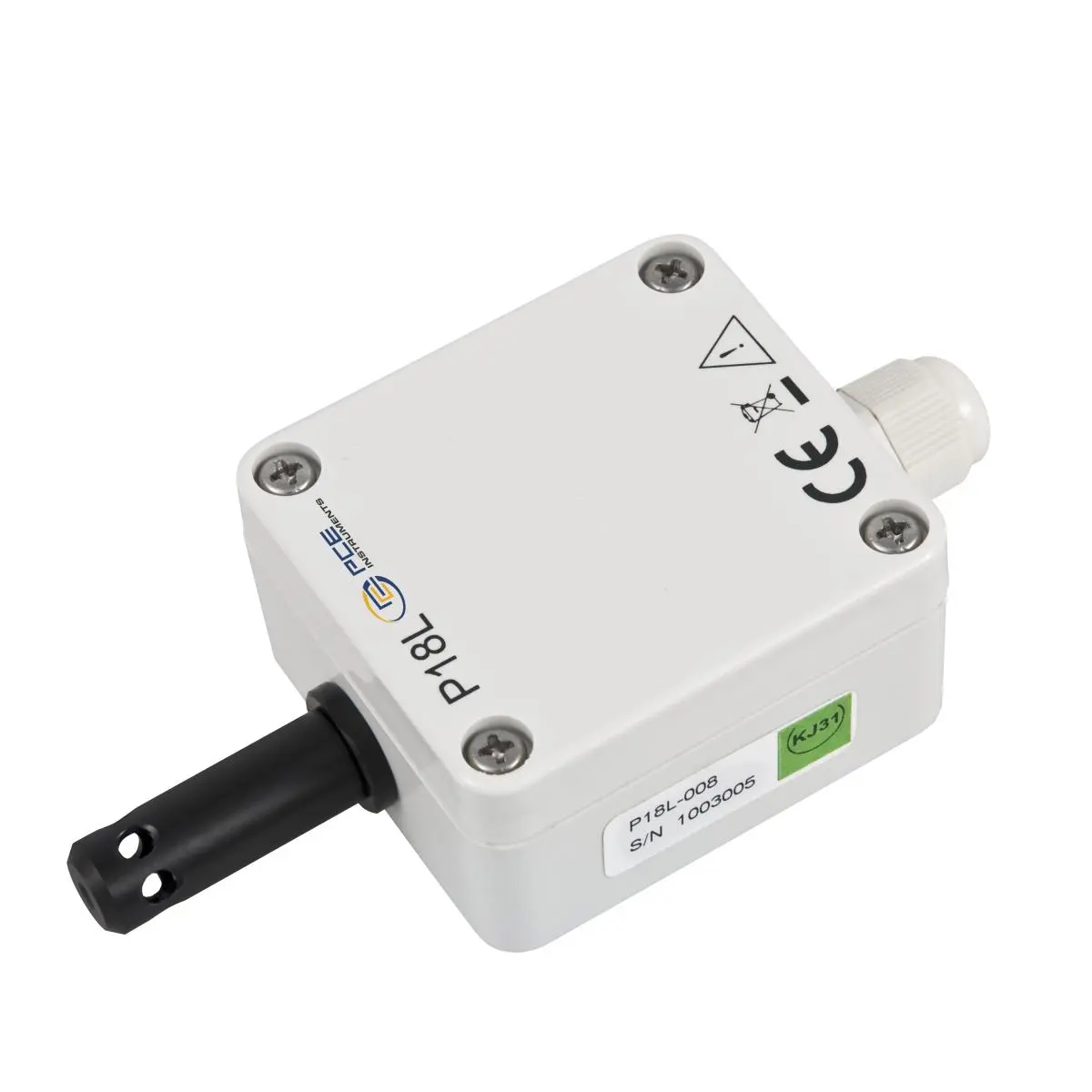

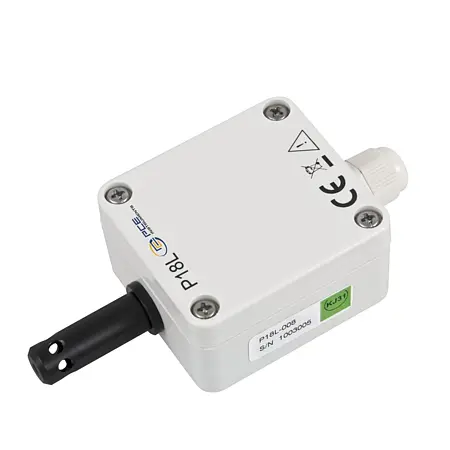

1 x Hygrometer PCE-P18L
1 x operating instructions
