Hygrometer PCE-G 2-ICA incl. ISO-Calibration Certificate

Order no.: PCE-G 2-ICA

GTIN (EAN): 4250348740168

Description

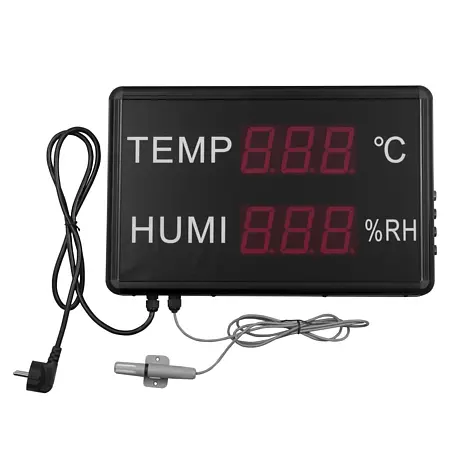

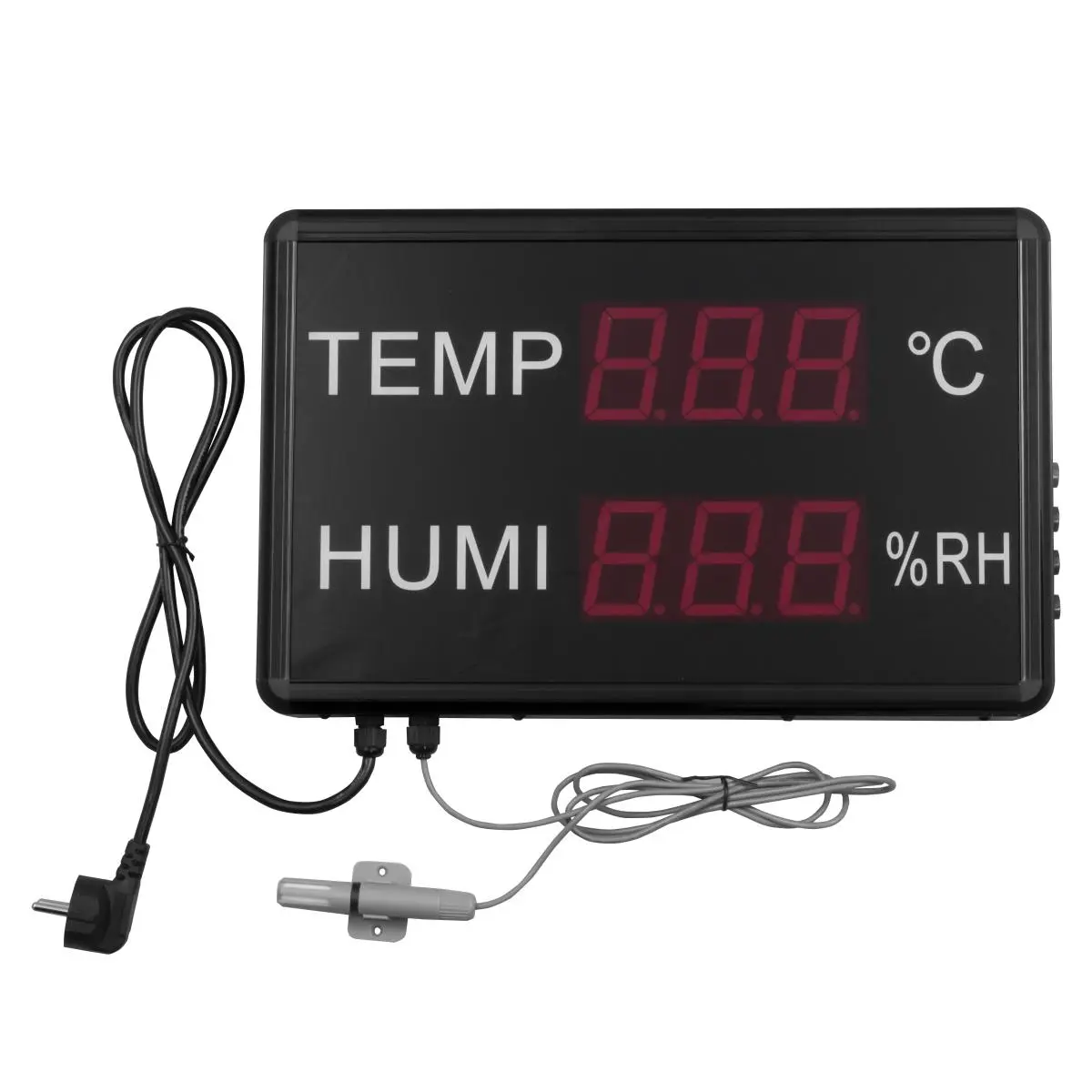

Hygrometer PCE-G 2 Large display for temperature and humidity / 55 mm character height / up to 30 m reading distance / external sensor / 230 V mains operation

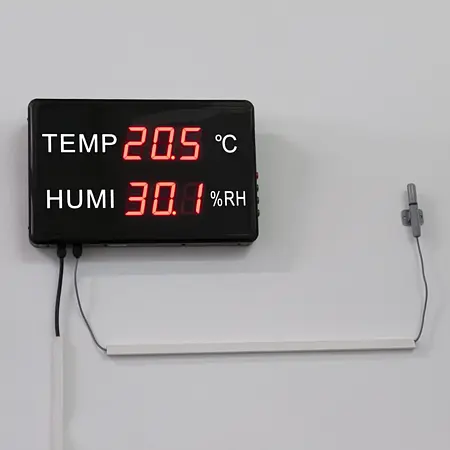

The hygrometer is used to measure the environmental parameters of temperature and humidity. The hygrometer finds its application in warehouses, open-plan offices, schools, etc. The hygrometer has 55 mm high digits that indicate the temperature and humidity.

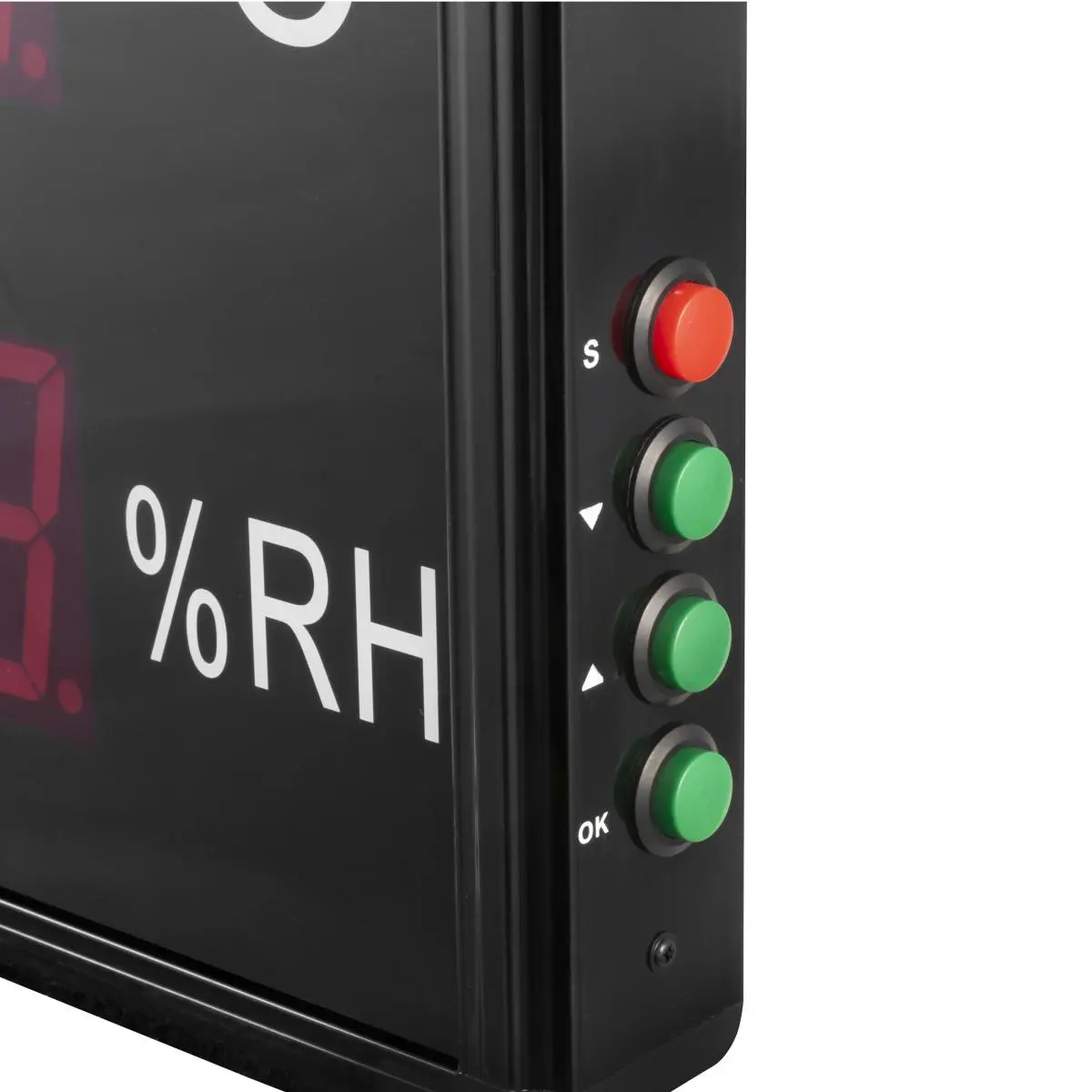

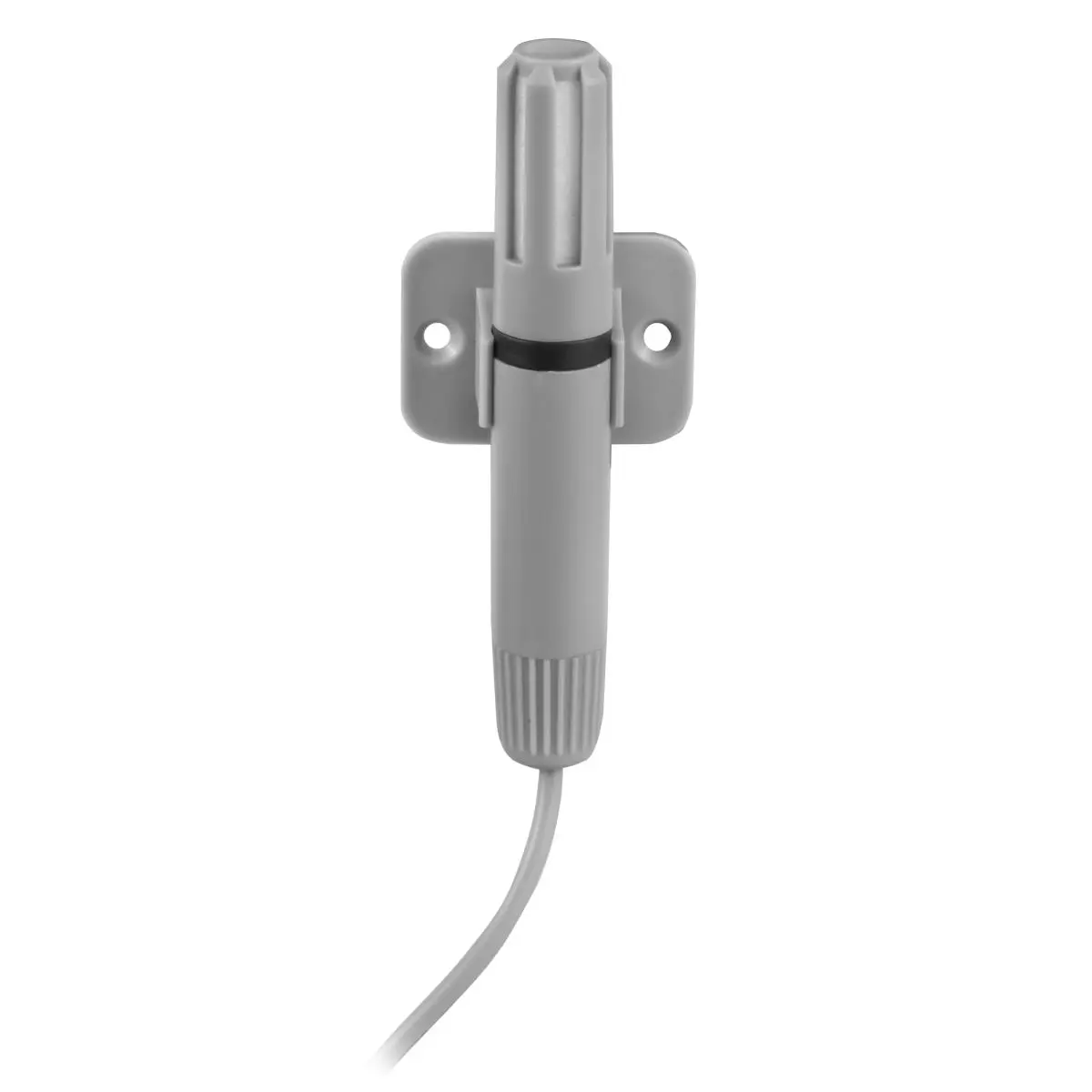

Due to the large size of the digits, the hygrometer display can be read from distances of up to 30 m. The temperature and humidity sensor of the hygrometer is connected by a 2 m long cable. The hygrometer is operated by 230 V AC mains voltage. Via the side-mounted buttons, alarm levels can be set on the hygrometer.

Highlights

- Temperature and air measurement

- Wall mounted

- 230 V AC power supply

- 55 mm character height

- Up to 30 m reading distance

- External sensor (wired)

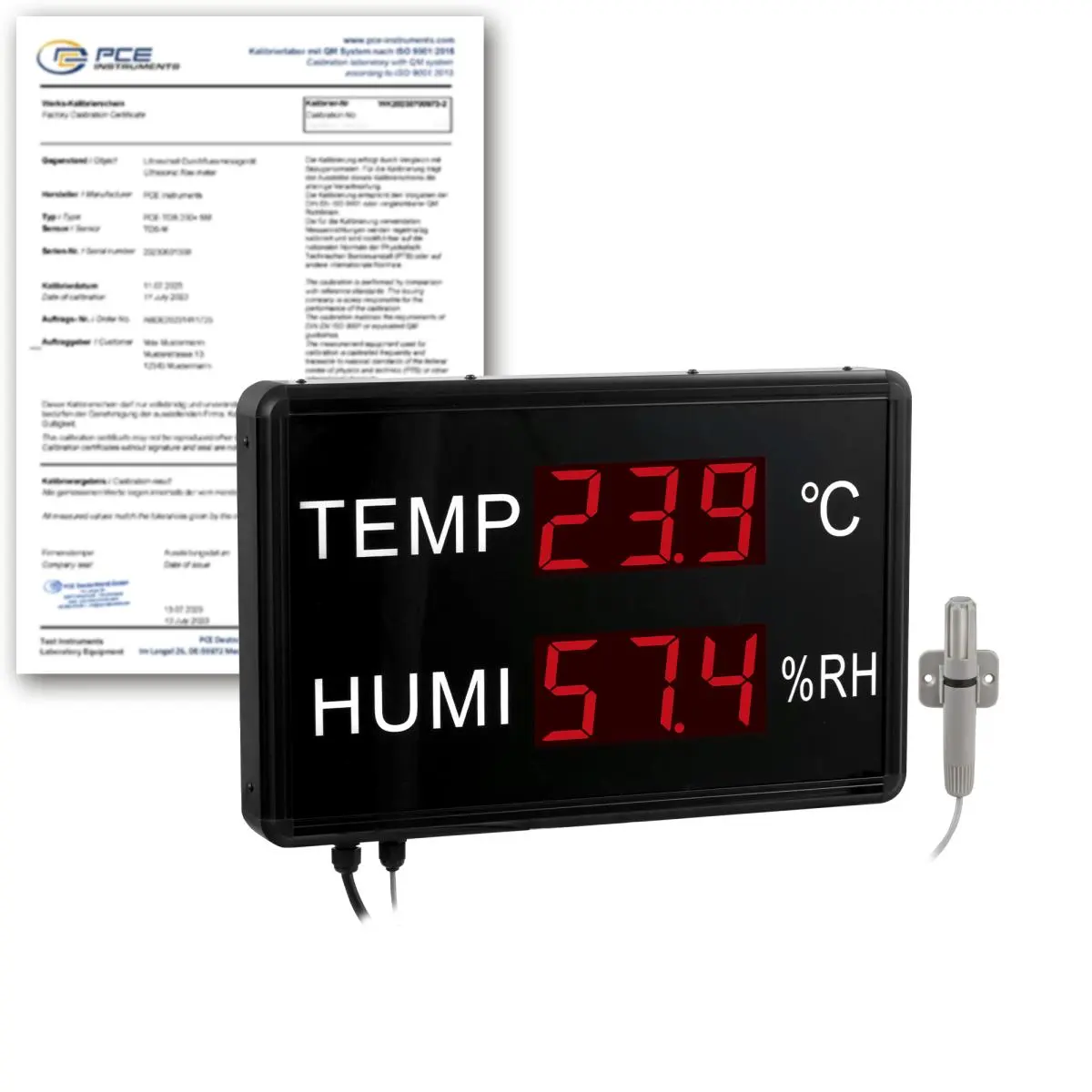

- incl. ISO-Calibration Certificate

Specification

Relative humidity
Measuring range	0 ... 99 % RH
Resolution	0,1 % RH
Accuracy	±3 % RH

Temperature
Measuring range	-40 ... -10 °C
Resolution	1 °C
Accuracy	±0.3 °C

General technical data
Display type	LCD
Alarm	Acoustic
Dimensions	Sensor cable: approx. 2 m Power supply cable: approx. 1 metre
Visibility	30 m
Protection class (device)	IP54
Power supply	Primary: 100 ... 240 V AC 50/60 Hz Secondary: 12 V DC, 0.5 A
Connector type	Schuko plug
Operating conditions	-20 ... 70 °C , 0 ... 85 % RH
Storage conditions	-20 ... 70 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	395 x 255 x 50 mm
Weight	2500 g
