HVACR Tester PCE-895

Order no.: PCE-895
£ 529.00
£ 634.80
4250348717689
PCE-895
price ex. (VAT / delivery)
Non-contact
Handheld
Dependent on sensor
Yes (Micro SD)
Yes (USB)
Delivery time: 1-2 working days

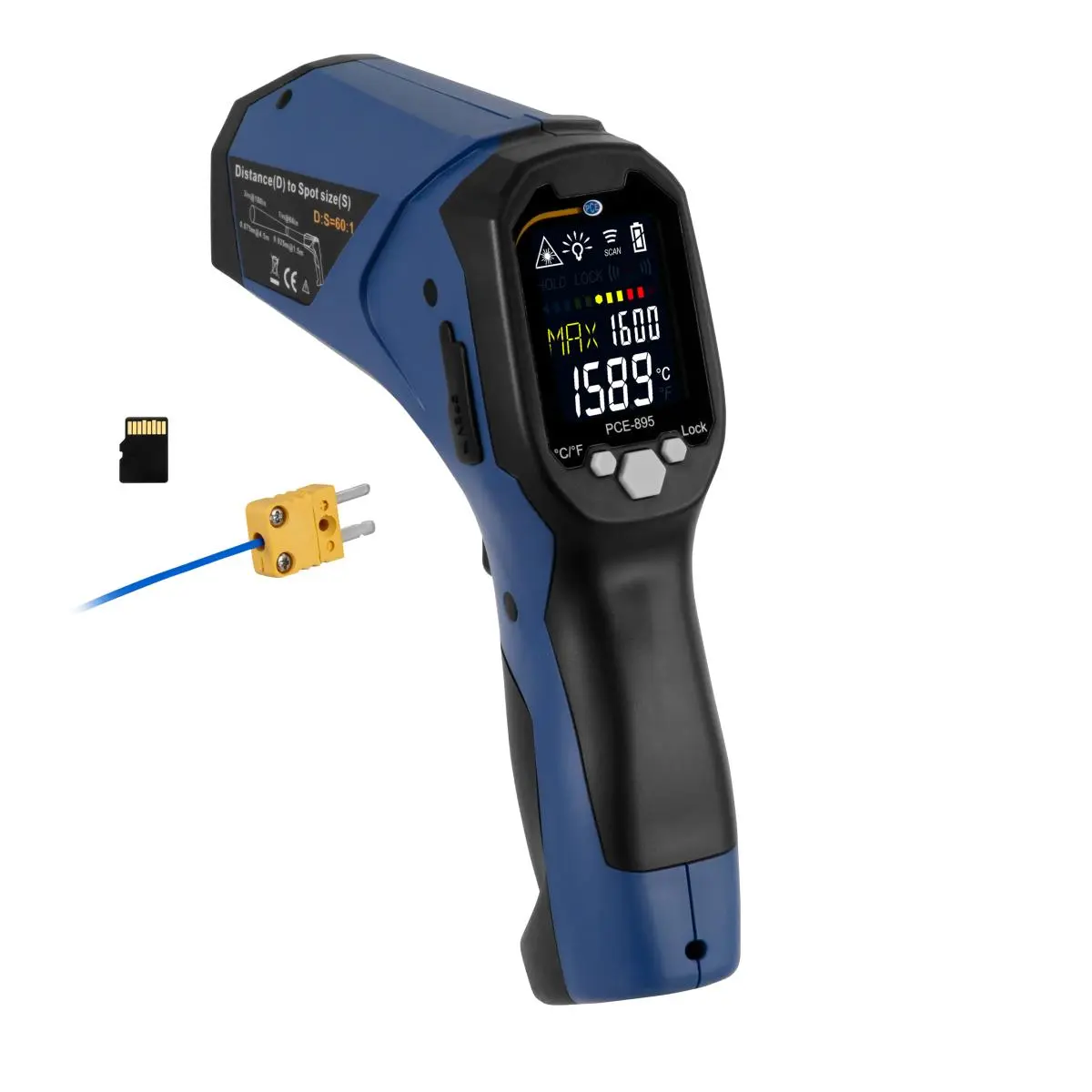

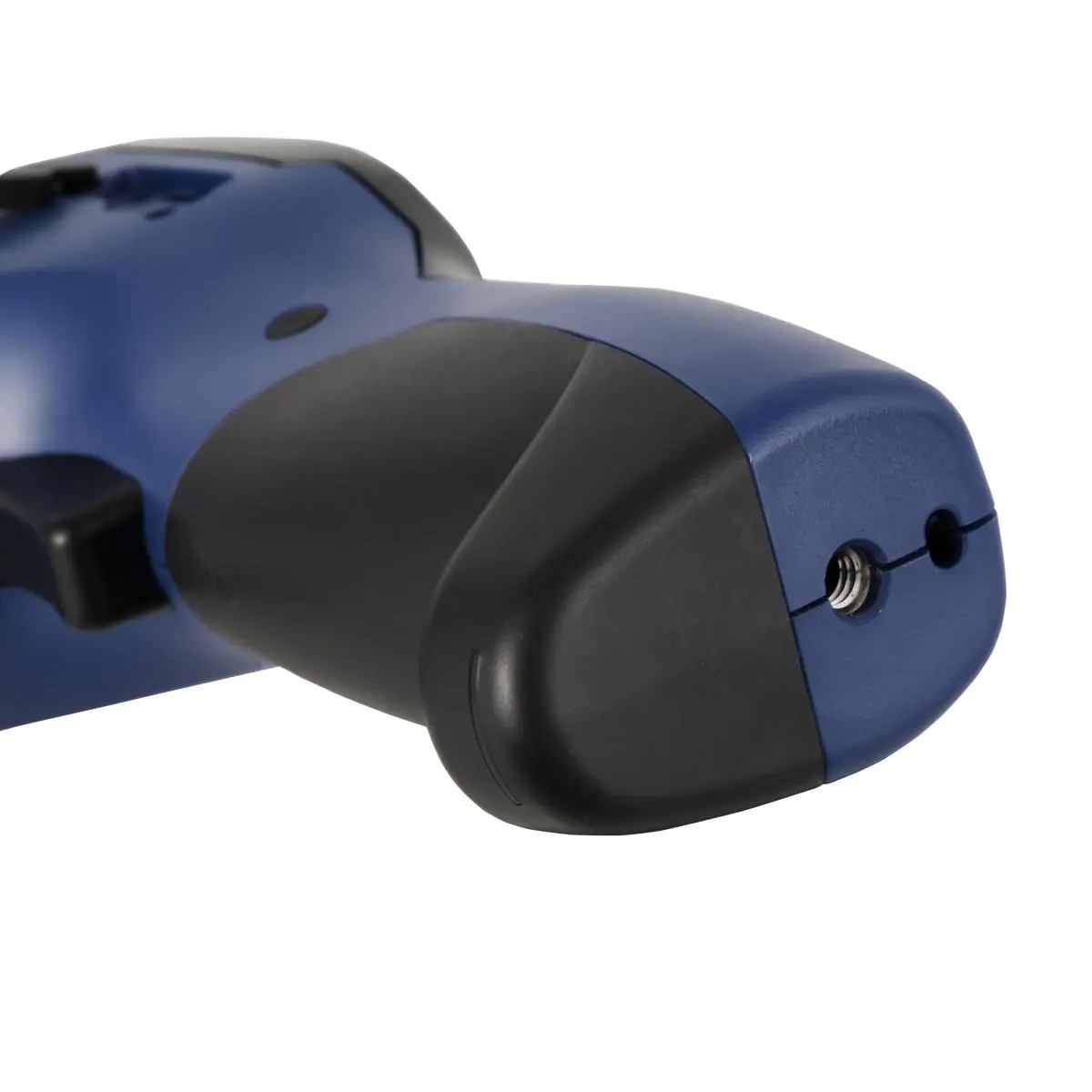

HVACR Tester PCE-895
Cross laser thermometer for non-contact measurement of surface temperatures /
Fast response time / Adjustable emissivity / Max-Min function / USB / SD card

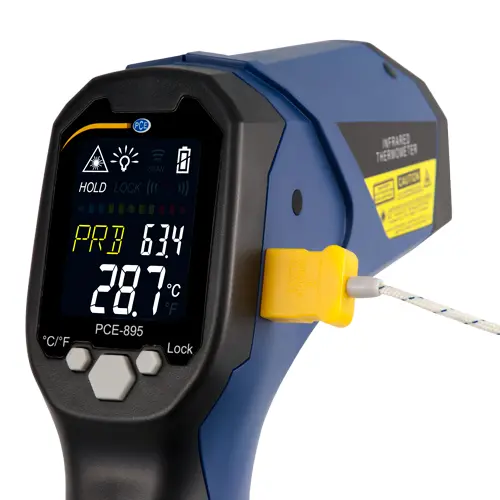

The HVACR tester is used for fast surface temperature measurement. The two laser points of the HVACR tester mark the exact measuring point and thus offer excellent assistance with the temperature measurement. Due to the cross laser function, the two laser spots indicate exactly how large the actual IR spot is. The emissivity of the HVACR tester is adjustable in the range of 0.10 ... 1.0. Thus, the HVACR tester is suitable for almost all surfaces.

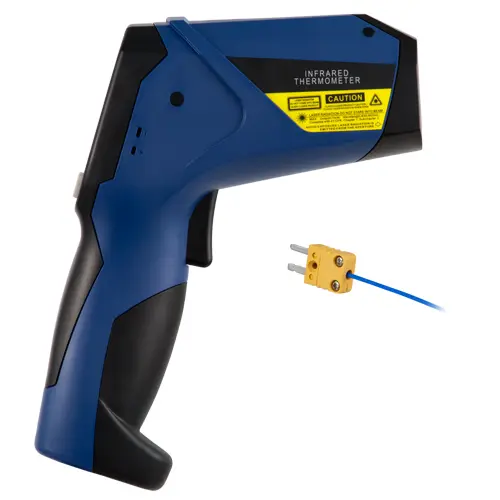

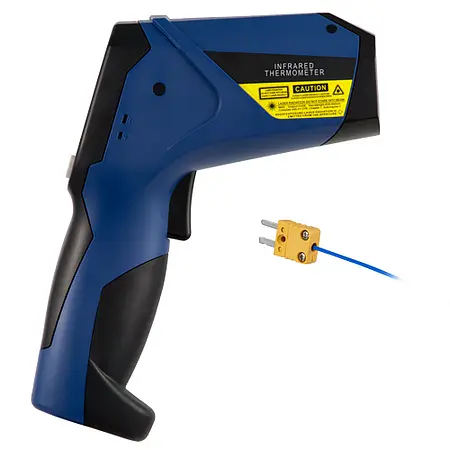

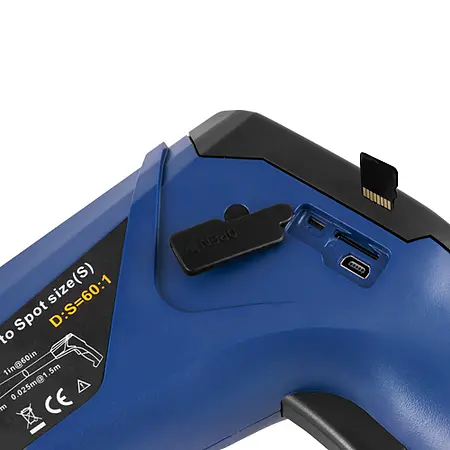

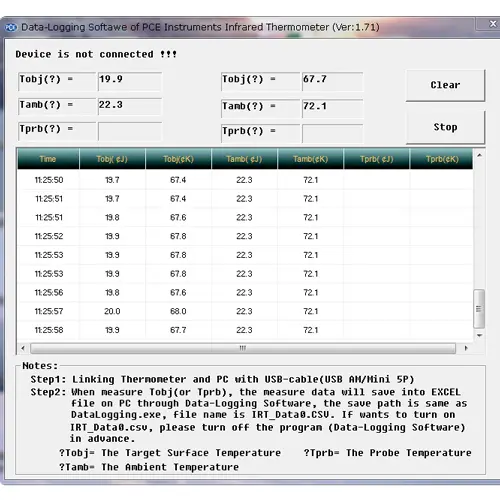

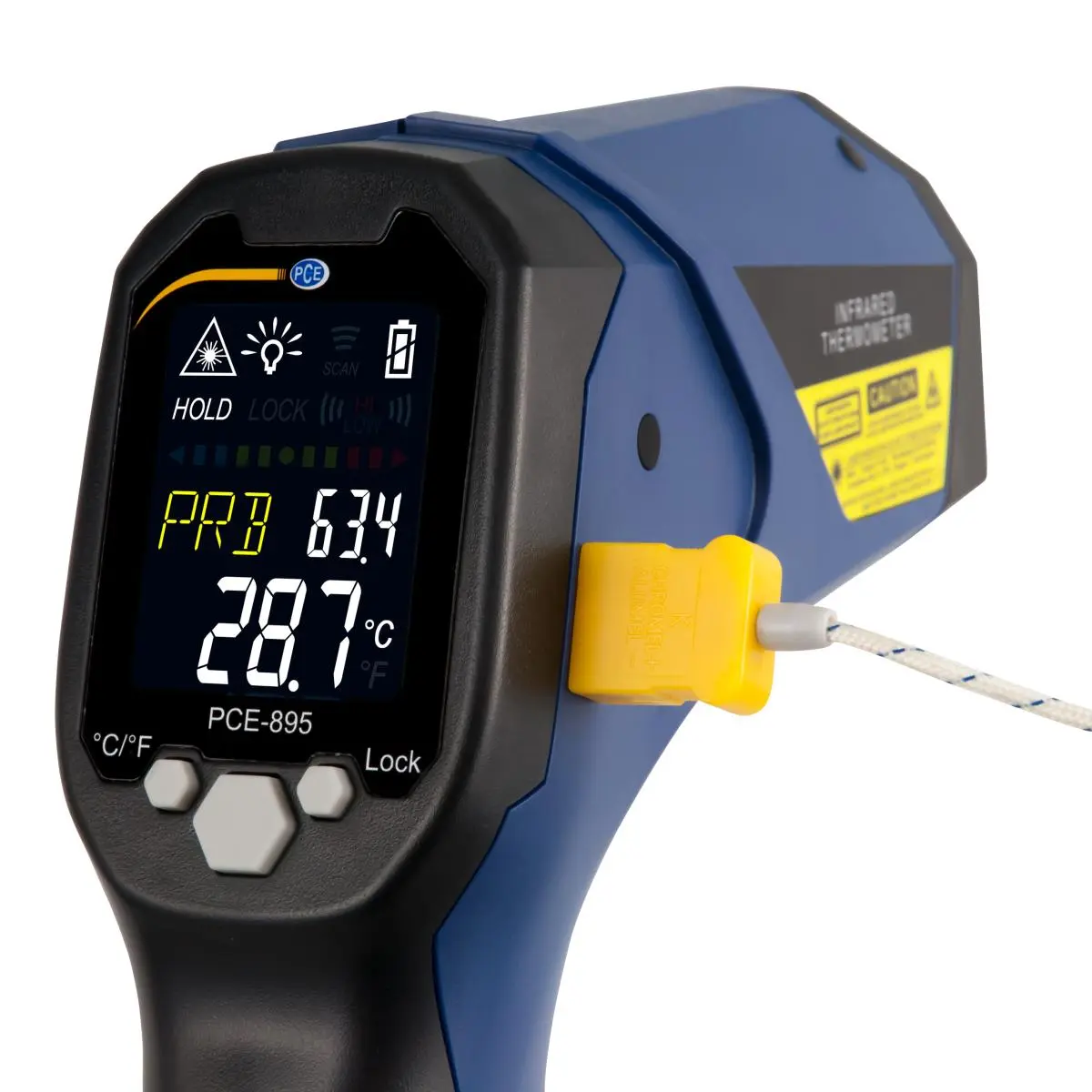

The temperature measuring range extends from -35 ... 1600°C / -31 ... 2912°F. In addition to the IR function, a type K thermocouple can also be connected to the HVACR tester. A USB interface and an SD memory card slot complete the functionality of this professional HVACR tester. The SD card enables data logging of several hours on machines and systems. Using the PC software, the stored temperature profiles can be read out and exported. This makes the HVACR tester ideal for long-term temperature measurements.


- Non-contact temperature measurement
- 60:1 optics
- Temperature measurement up to 1600°C / 2912°F
- Compact cross laser thermometer

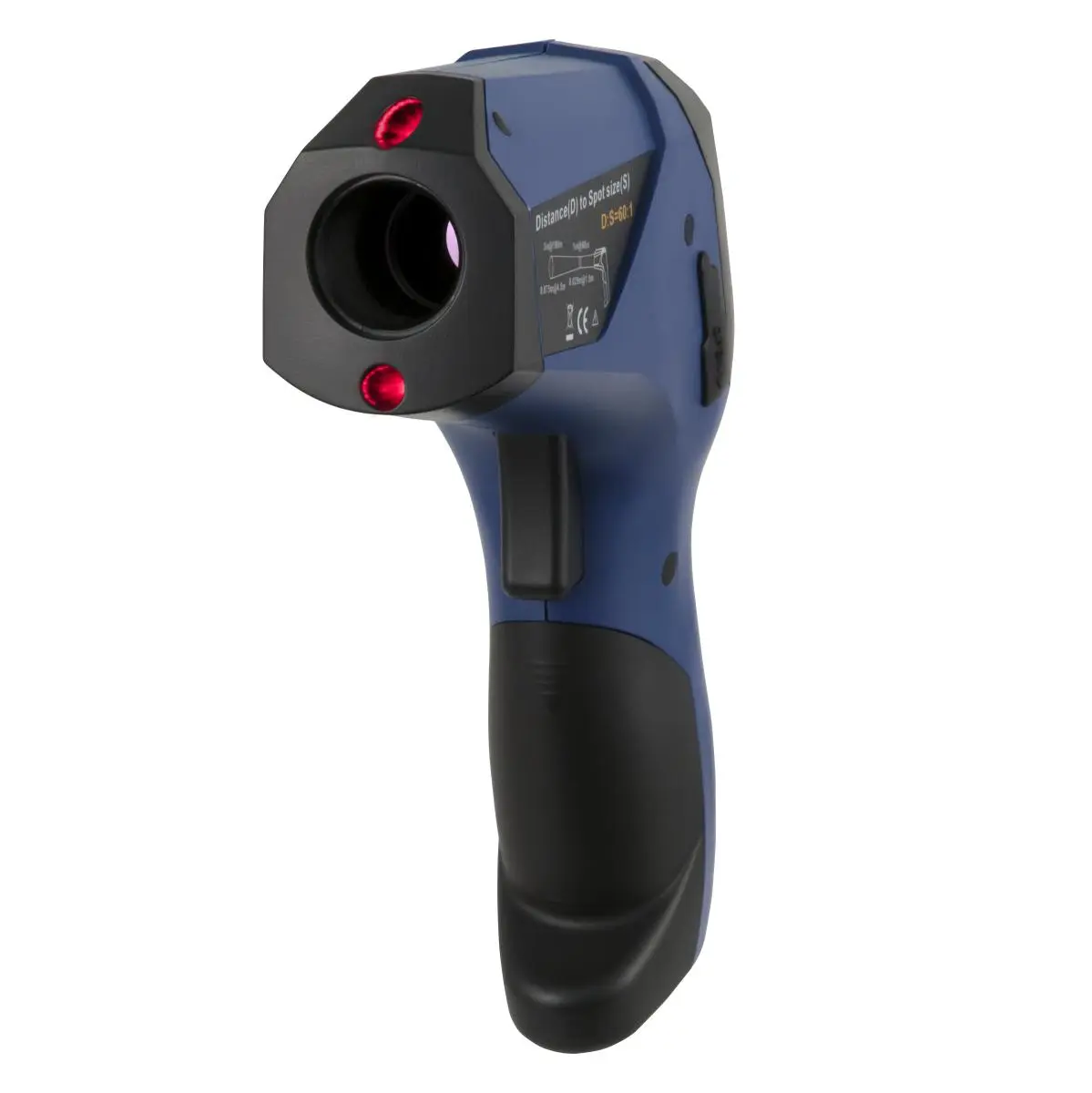

- Double laser shows the spot diameter
- Adjustable emissivity
- Adjustable emissivity
- Alarm function

Typical applications of Dual Laser Infrared Thermometer PCE-895

- Food inspection
- Hygiene tests
- Road construction

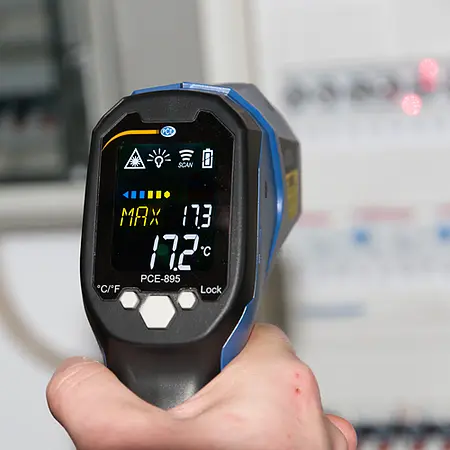

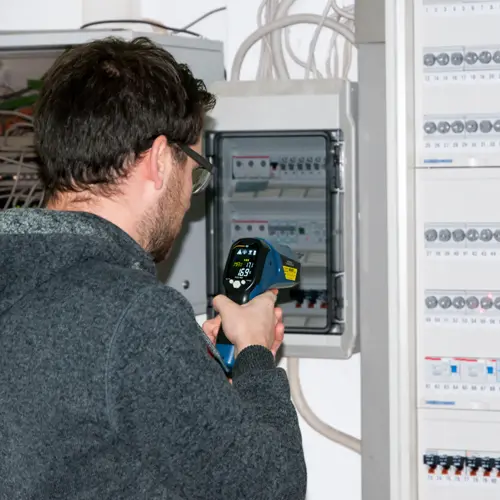

- Switch cabinet monitoring
- Heating and air conditioning technology
- Production monitoring
- Temperature measurement on motors

***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.
Infrared


Measuring range -35 ... 1600°C / -31 ... 2912°F
Measuring accuracy (at 23 ... 25°C ambient temperature) -35 ... 0°C / 0°F: ± 2°C / 3.6°F + 0.05*TObj
0 ... 1600°C: ± 2% of rdg. or ± 2°C / 3.6°F
Resolution 1°C / 1.8°F at 1000 .... 1600°C / 1832 ... 2912°F

Thermocouple
Measuring range Type K: -64 ... 1400°C / -83 ... 2552°F
Measuring accuracy (at 23 ... 25°C ambient temperature) ± 1% of rdg. or ± 1°C / 1.8°F
Resolution 0.1°C / 0.18°F at -64 ... 999.9°C / -83.2 ... 1831.8°F

Emissivity Adjustable 0.10 ... 1.0
Spectral range 8 ... 14 µm
Response time 1 s

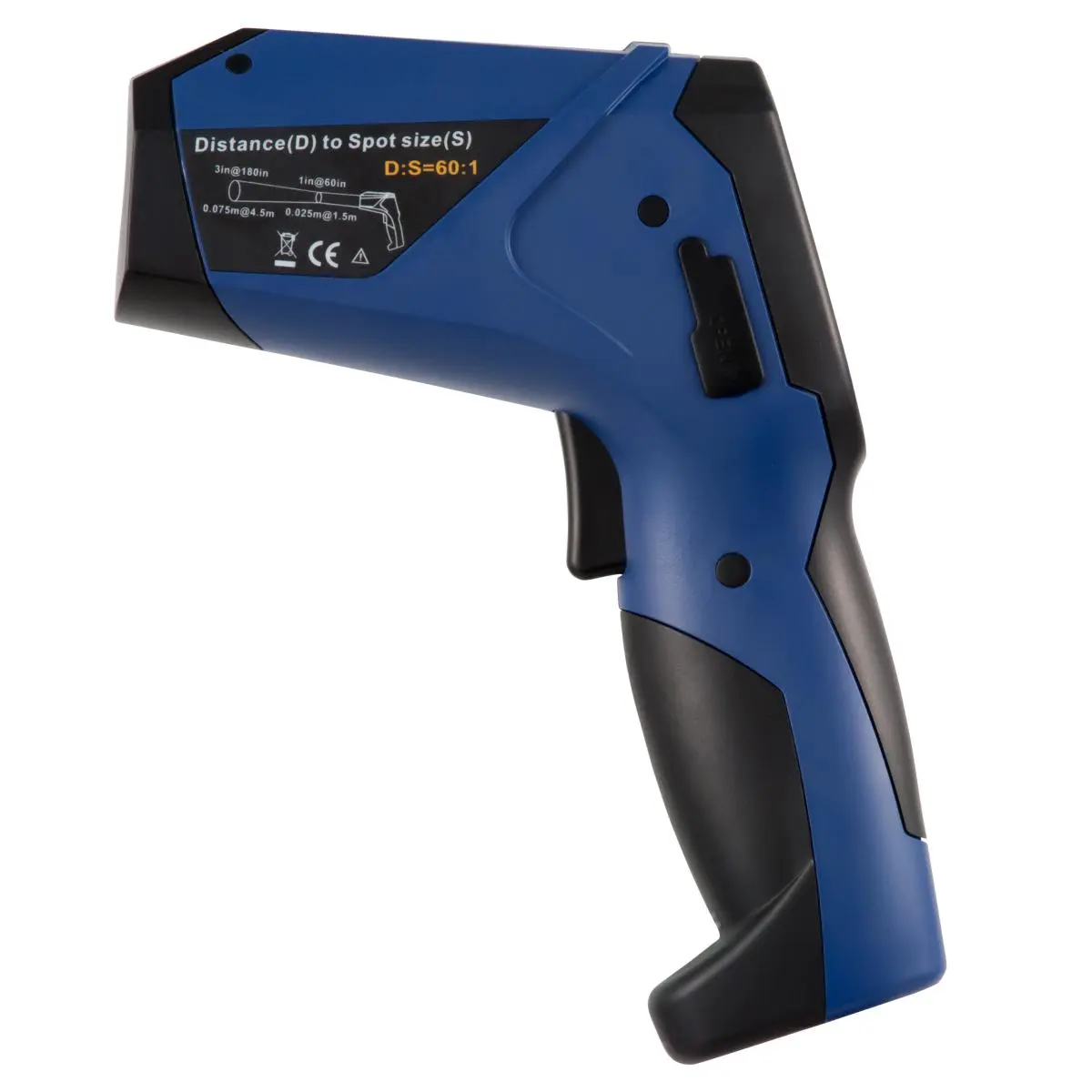

Optical resolution / measurement spot ratio 60:1
Storage Internal: 24 memory points
External (micro-SD card): max. 8 GB supported
Interface USB

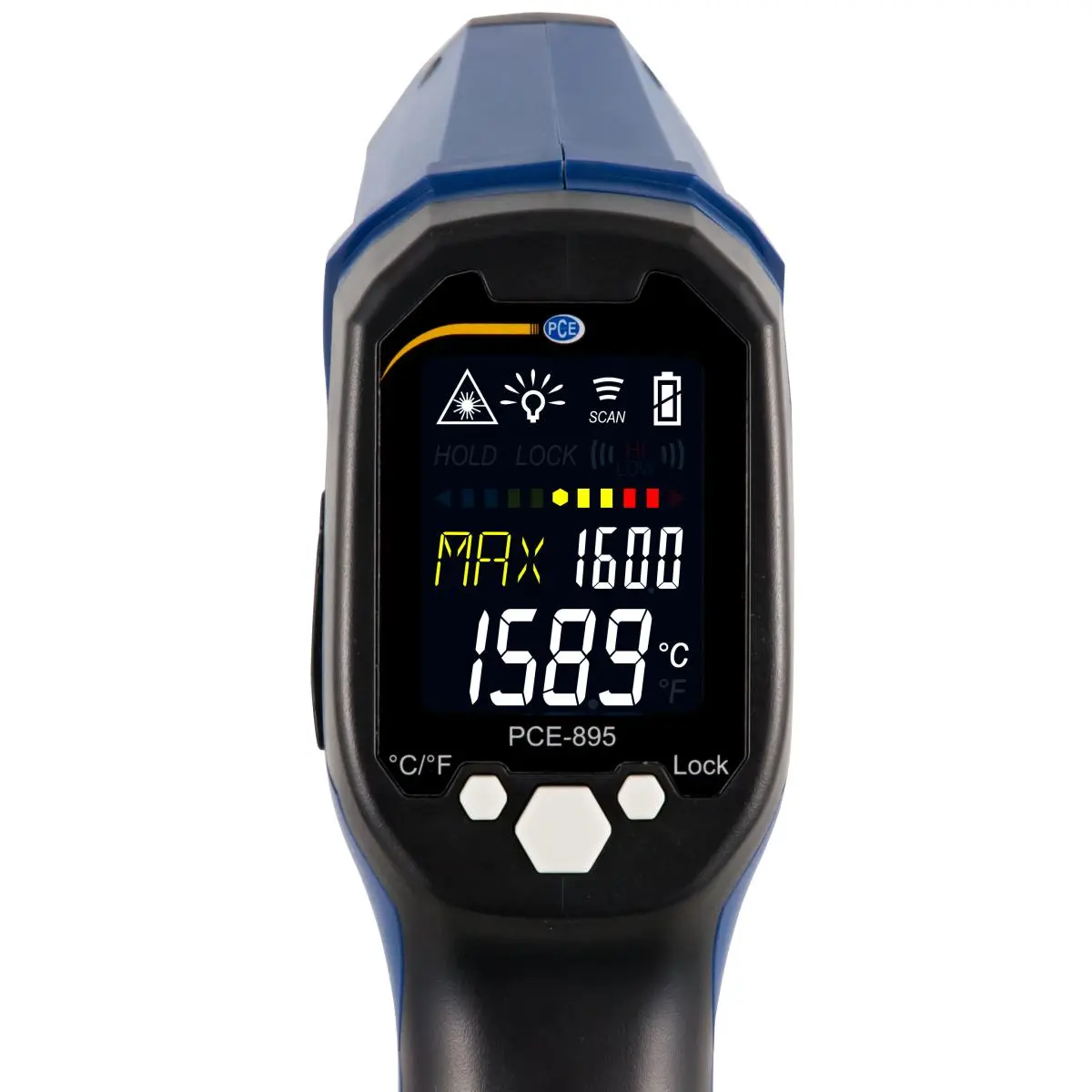

Display LCD illuminated
Power supply 2 x 1.5V AA batteries
Operating time Typical: 14 h
Continuous: 10 h
Operating conditions 0 ... 50°C / 32 ... 122°F
Weight ca. 400 g / 14.1 oz
Dimensions 203 x 176 x 89 mm / 7.9 x 6.9 x 3.5 in

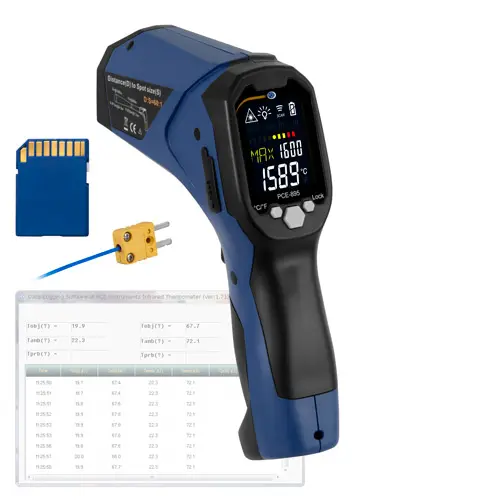

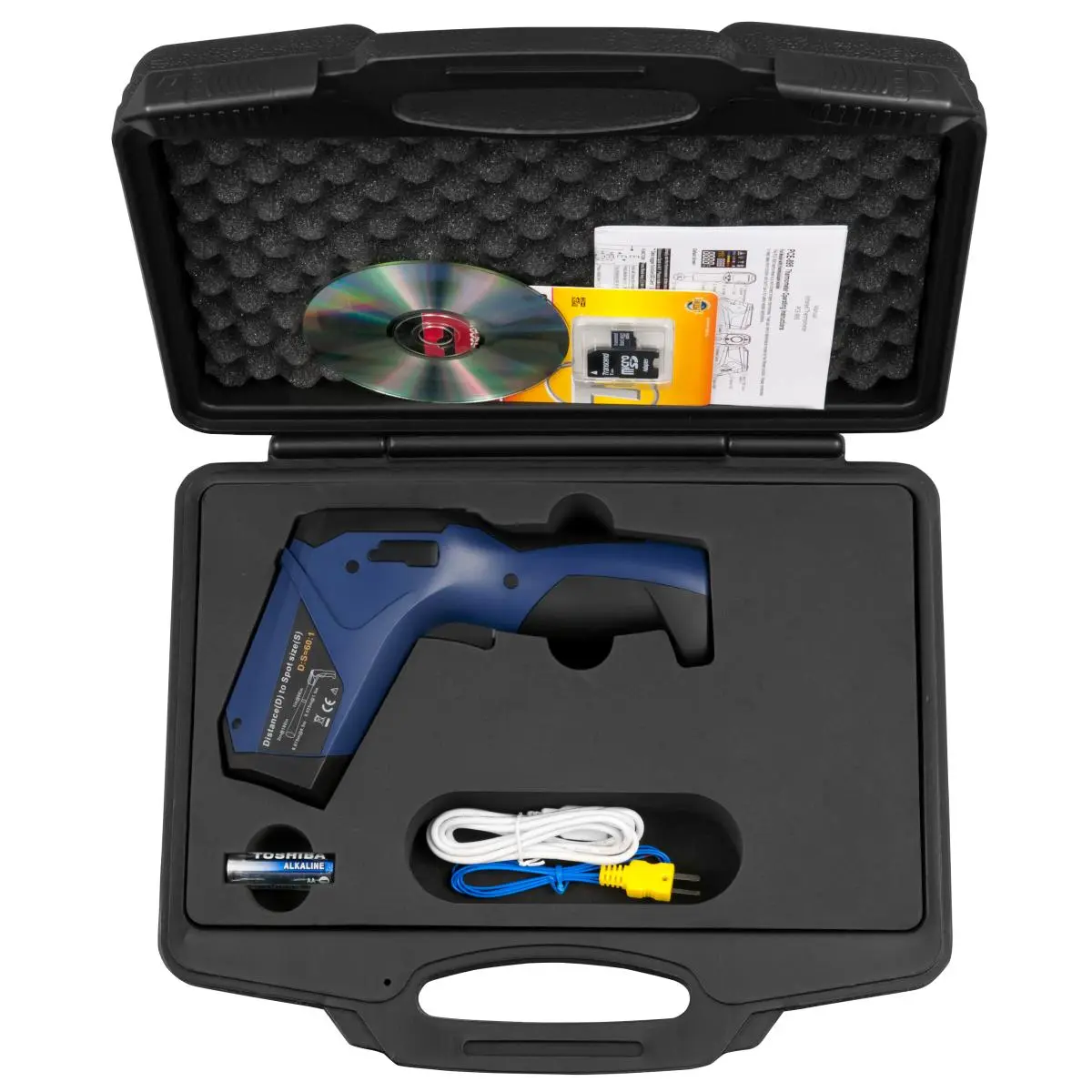

1 x HVAC Tester PCE-895
1 x USB Cable
1 x Micro SD Card 8 GB
1 x PC Software
2 x 1.5V AA Batteries
1 x Thermocouple Type K ( 0 ... 250°C / 32 ... 482°F)
1 x User manual

Accessories

Order no.: PCE-MS 25
PCE-MS 25 Measuring Point Sticker

Measuring point stickers for pyrometers with measuring surface for E = 0.95 (25 pieces)



Manufacturer: PCE Instruments
£ 13.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: CAL-IR
ISO Calibration Certificate for Infrared Thermometer
ISO calibration certificate, e.g. to comply with your DIN ISO 9000. For this purpose, we give the measuring device to our in-house calibration laboratory. As the client, the measured values and the serial number are recorded in this ISO calibration certificate.

- 4 measuring points evenly distributed over the measuring range
- Calibration range: 30 ... 500 °C
- Calibration applies to infrared sensors only

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
Catalogue: Measuring Instruments / Test Meters / Infrared Thermometer
£ 97.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: TF-102A
Insulated Surface Temperature Sensor TF-102A
Electrically insulated probe for measuring live surfaces

- Tmax.: 200 °C / 392 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 3.5 mm
- Length: 130 mm
- Type K thermocouple
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
Manufacturer: Thermo-Elektra B.V.
£ 49.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: TF-101
Temperature Sensor TF-101
Temperature sensor with resilient plate tip and 1m cable

- Ø3 mm
- Length: 120 mm
- Temperature Max: 450 °C / 842 °F
- Accuracy: ±1.5 °C
- Thermo couple: Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
Manufacturer: Thermo-Elektra B.V.
£ 60.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: TF-108
Air Sensor TF-108
Stainless steel air sensor with handle and 1 m cable for air and gases with fast response time

- Tmax.: 600 °C / 1112 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 6 mm
- Length: 130 mm
- Thermocouple Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
Manufacturer: Thermo-Elektra B.V.
£ 43.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
Order no.: TF-106
Penetration / Immersion Sensor TF-106
Stainless steel penetration / immersion sensor with handle and 1m spiral cable for liquids, semi-solid media and air

- Tmax: 600 °C / 1112 °F
- Accuracy: ± 1.5 °C
- Diameter: Ø 3.0 mm
- Length: 130 mm
- Thermocouple Type K
Catalogue: Measuring Instruments / Test Meters / Temperature Sensor
Manufacturer: Thermo-Elektra B.V.
£ 44.00

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturer
