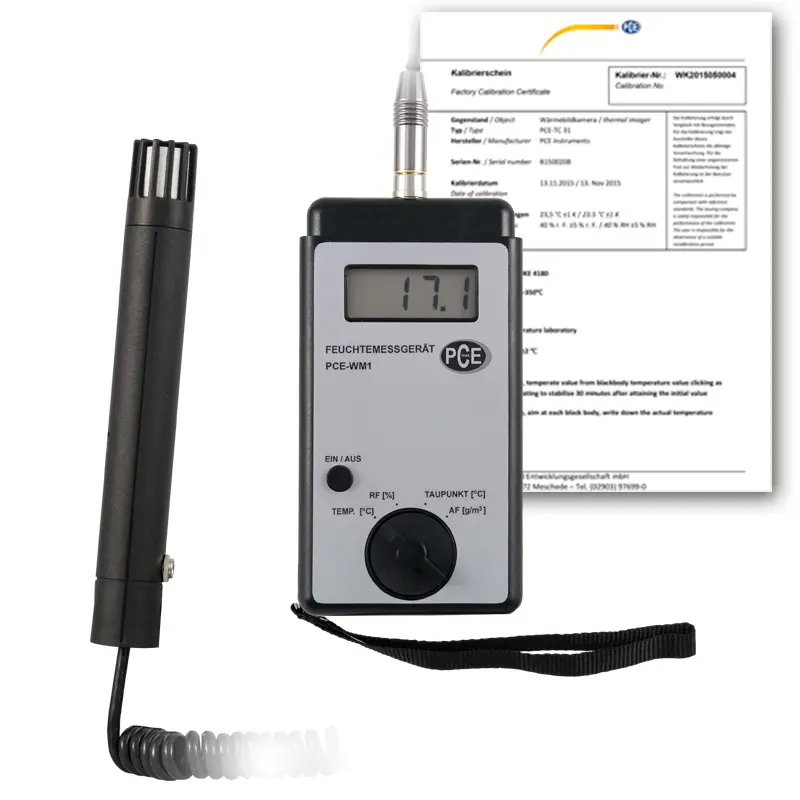

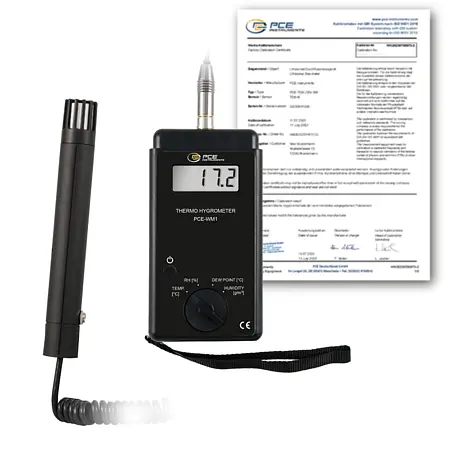

HVAC Meter PCE-WM1-ICA incl. ISO Calibration Certificate
Metric-only measuring instrument used to determine relative humidity (% RH), absolute humidity (g/m³), air temperature, dew-point temperature and surface temperature (°C)

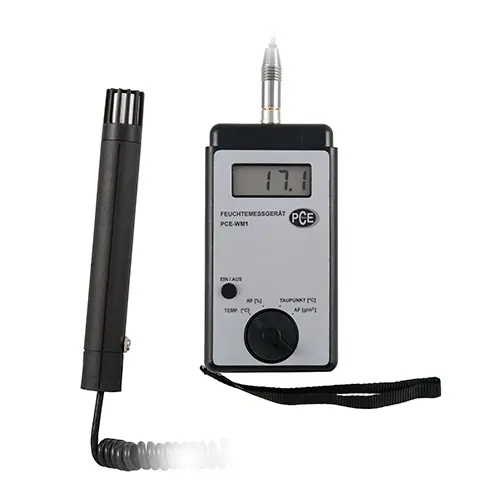

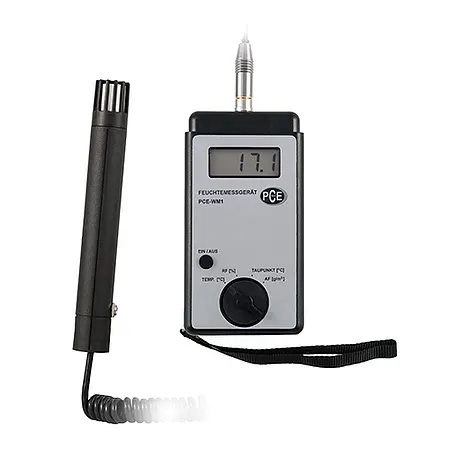

PCE-WM1 is a multi-function HVAC meter used to determine relative humidity (% RH), absolute humidity (g/m³), air temperature, dew-point temperature and surface temperature (°C). This Metric-only measuring instrument comes complete with an external sensor probe for taking the surface temperature of different materials.
This device is used extensively in the construction industry to evaluate building materials and working conditions. It is also used in the food industry to ensure product quality and freshness. In addition, heating, ventilation and air conditioning (HVAC) technicians trust this meter to perform HVAC system performance audits.
The humidity detector is calibrated by the manufacturer. An optional ISO calibration certificate issued by an accredited calibration laboratory can be ordered. Please see the accessories tab for details.
|Measuring ranges|| Temperature: -20 ... 80°C
Relative humidity: 10 ... 95% RH
Absolute humidity: 0.5 ... 74.4 g/m³
|Measuring units||Metric only|
Relative humidity: ±3%
Absolute humidity: ±2%
|Response time||Approx. 10 seconds|
|Functions||Minimum, maximum, peak hold, non-linearity correction|
|Sensor cable length||1.1 m / 3.6 cm|
|Power supply||1 x 9V battery|
|Auto power off||Yes, after 4 minutes of inactivity|
|Dimensions||Approx. 165 x 80 x 33 mm / 6.5 x 3.2 x 1.3 in|
|Weight||Approx. 380 g / < 1 lb|
