HVAC Meter PCE-P01-ICA Differential Pressure Incl. ISO Calibration Certificate

Order no.: PCE-P01-ICA
GTIN (EAN): 4250348726407

£ 318.00
£ 381.60
ISO Calibration
price ex. (VAT / delivery)
:
4250348726407
PCE-P01-ICA
Delivery time: 10 - 14 days
Digital
Handheld
0 to 0.137 bar
Yes
Yes

Description

PCE-P01 HVAC Meter - Differential Pressure incl. ISO calibration certificate
Portable handheld meter measures differential pressure from -0.137 to 0.137 bar (-2.000 to 2.000 psi) / Features real-time data-logging capabilities using the included PC software and USB cable

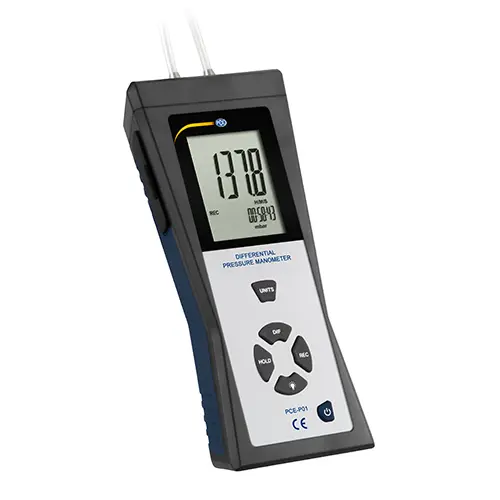

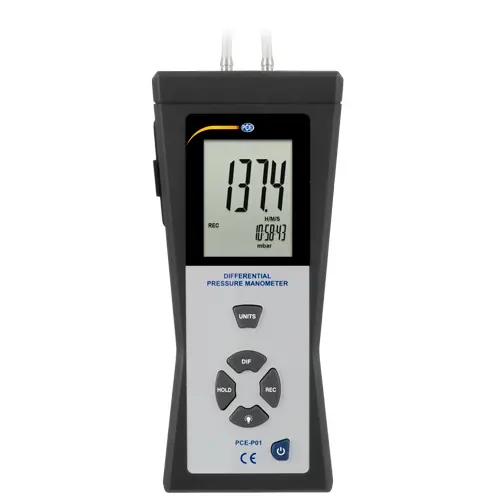

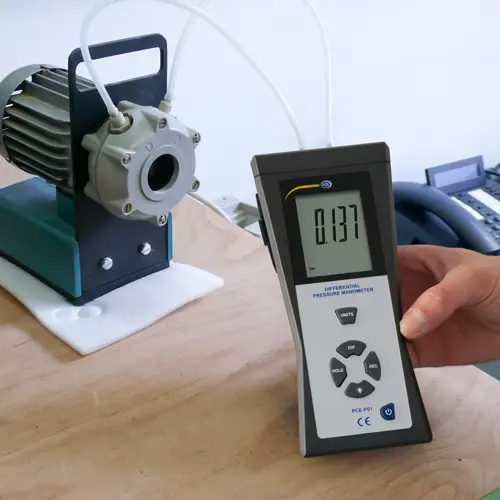

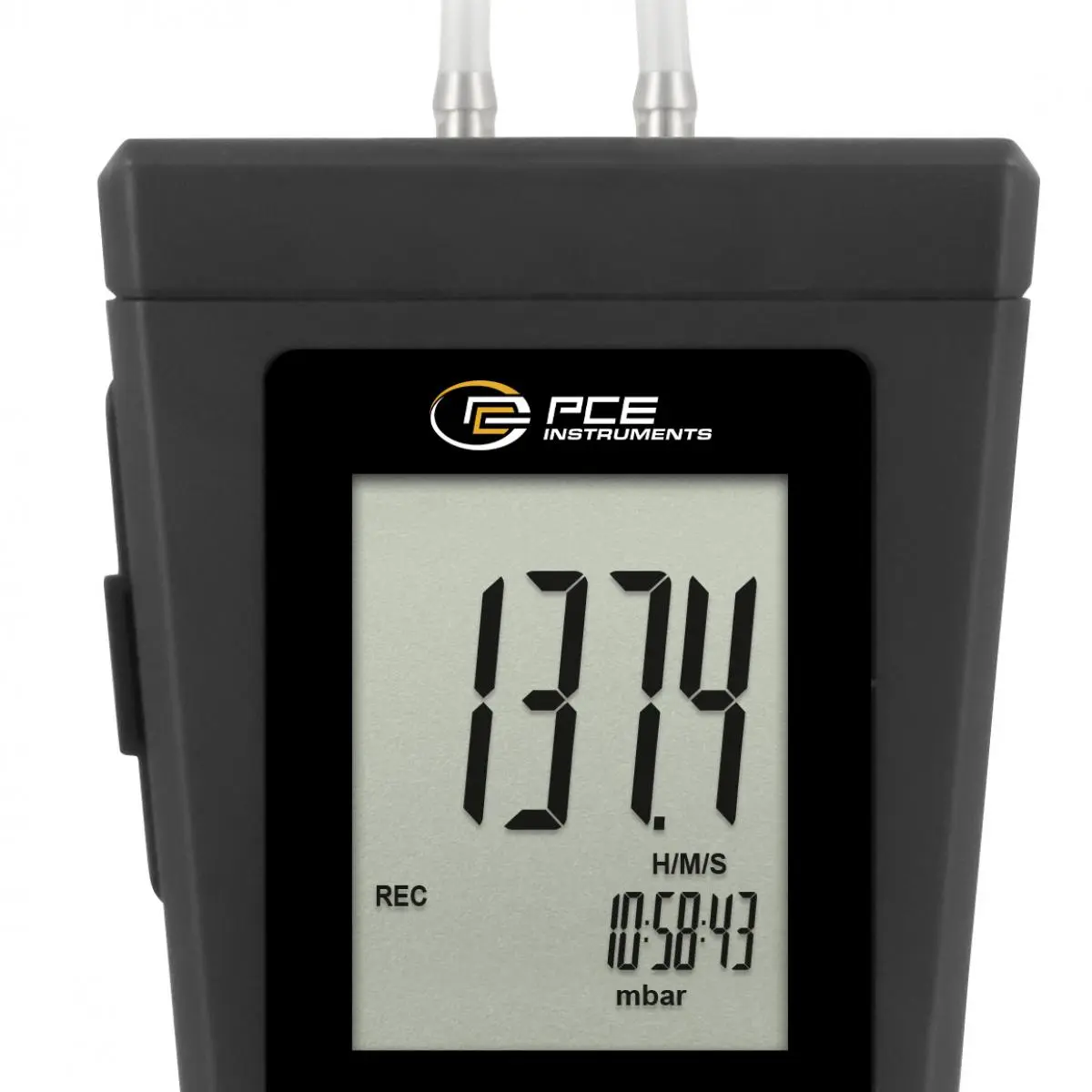

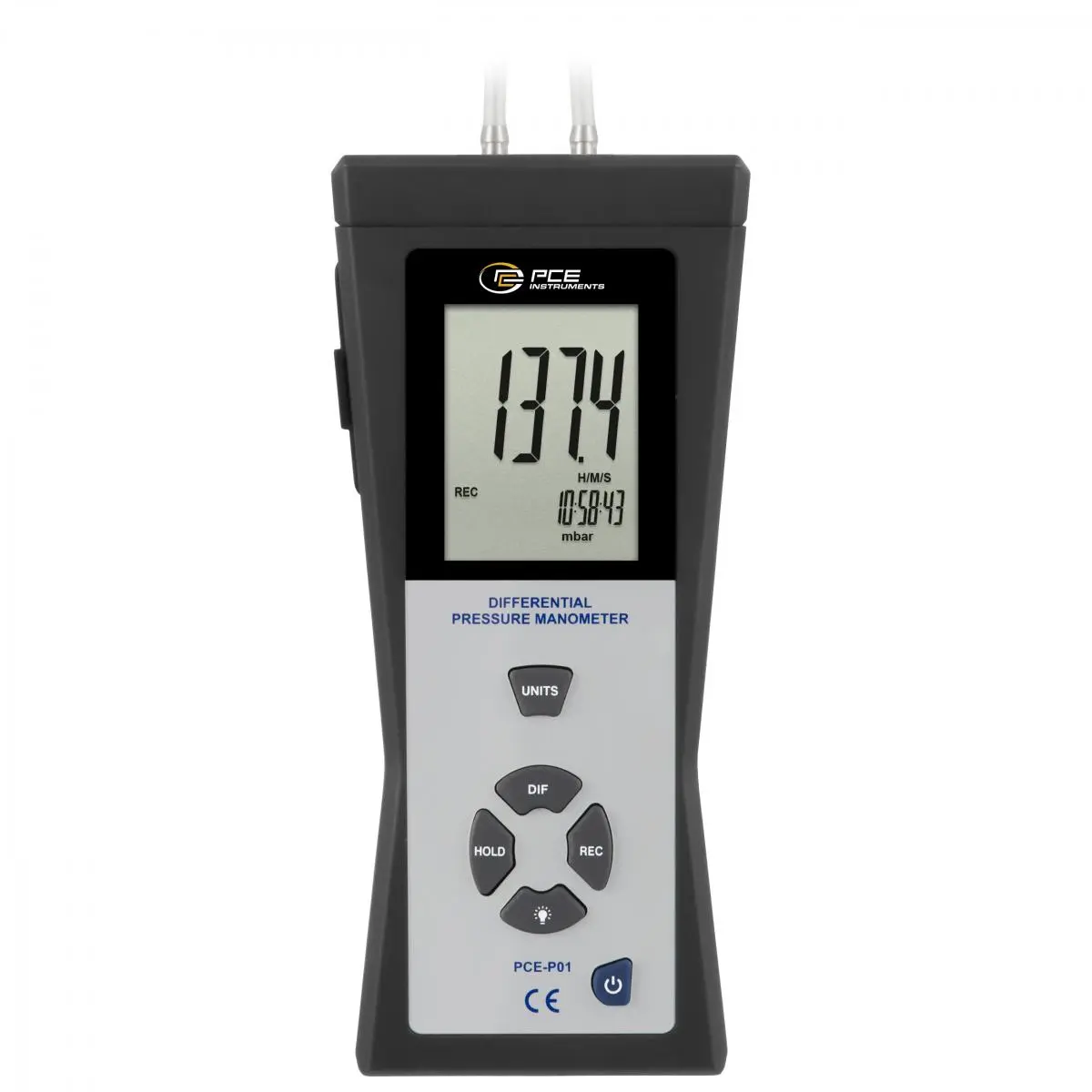

PCE-P01 is a portable handheld digital HVAC meter used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-P01 displays min / max / average values right on the meter's screen for comparison against current measurement values.

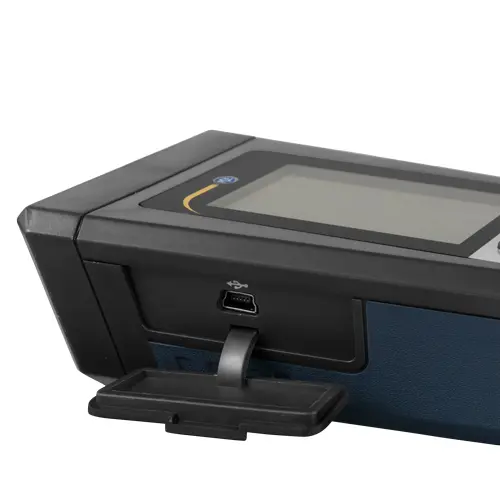

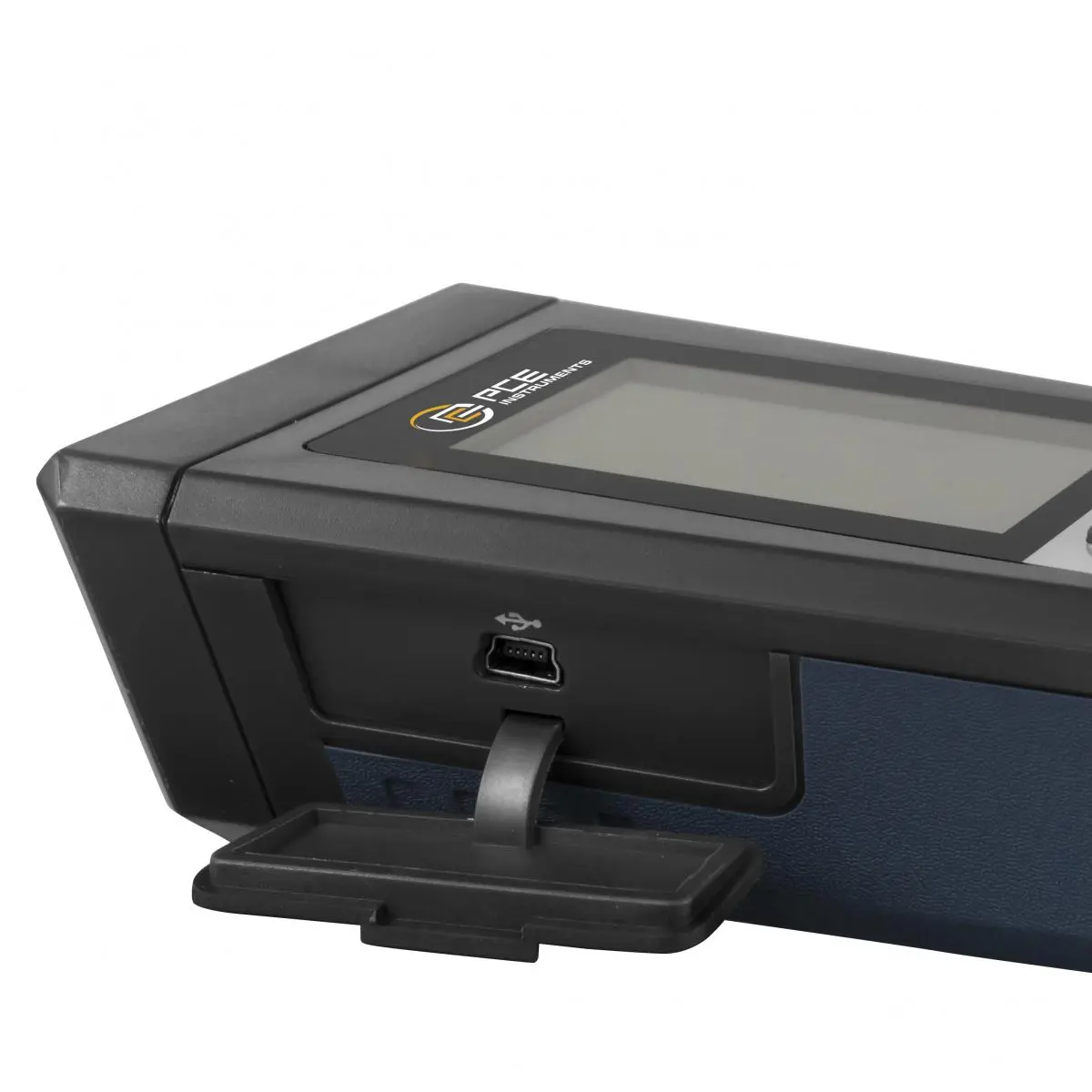

In addition, the PCE-P01 differential pressure HVAC meter features real-time data-logging capabilities with an adjustable interval from 1 second to 24 hours. The device comes with 4 x 30 cm / 11.81 in silicon tubes, 1 x 9 V block battery and 1 x AC power adapter. Also included in the delivery contents are PC-compatible software and a USB cable. The software can be used to detect and document pressure fluctuations, and to display the data graphically or in a table. For real-time data recording, simply connect the HVAC meter via USB to your computer, and save the measured values ​​according to your selected time interval. You can then calculate average values ​​directly in the software or export the saved data to Microsoft Excel.


Highlights

- Easiest operation
- Measurement of differential pressure and static pressure in 11 selectable units: mbar, bar, psi, kPa, ...
- Measuring range from -140 to +140 mbar
- Min / max and average value display
- "Hold" function
- Backlight can be switched on / off
- For long-term measurements including power supply
- Software with USB cable included
- Battery level indicator
- Auto-off function that can be switched off
- Zero point adjustment possible at any time

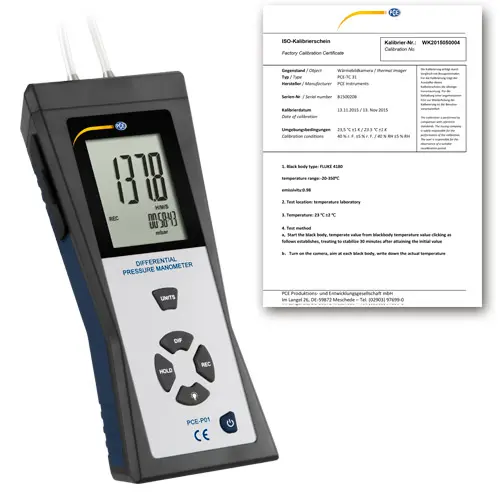

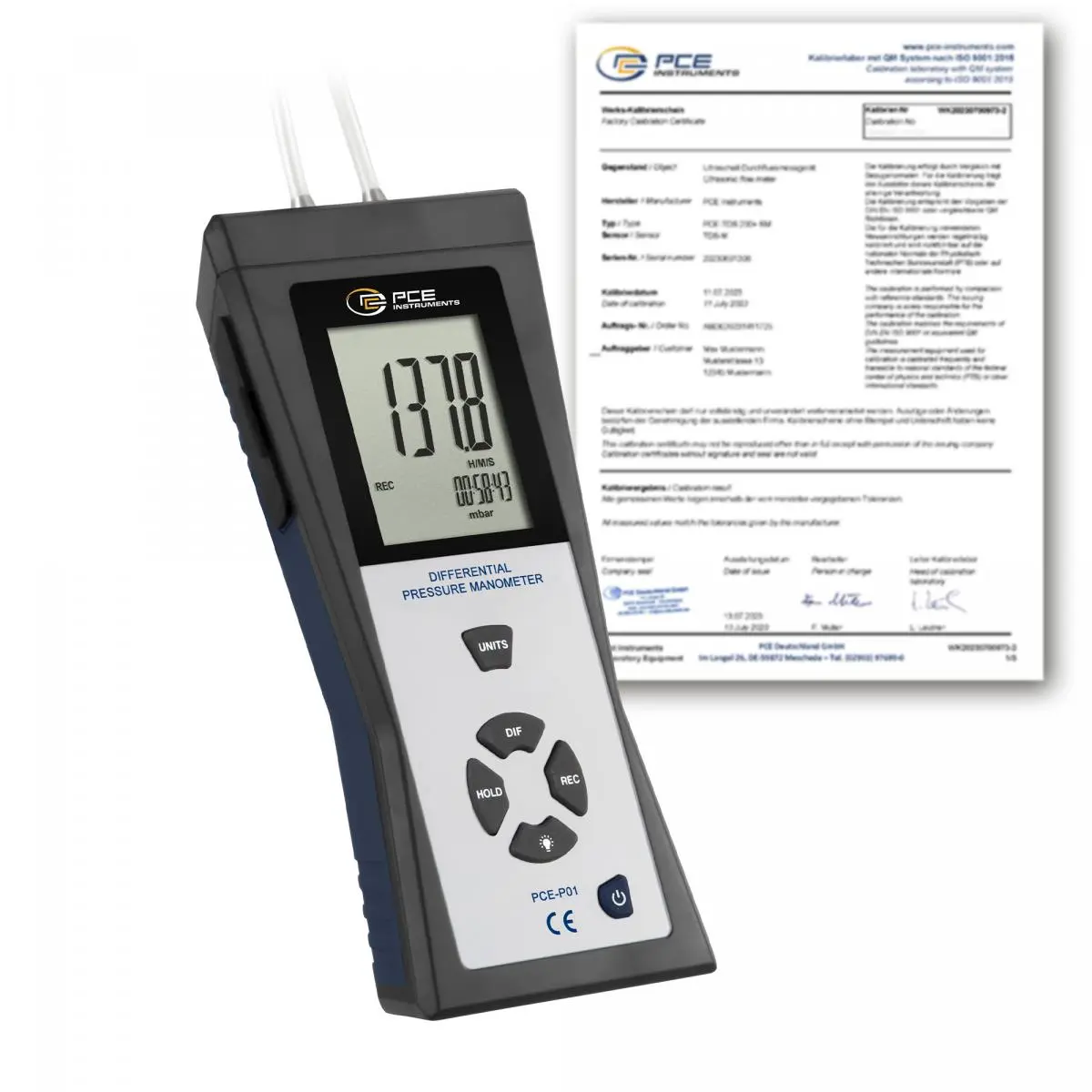

- Incl. ISO calibration certificate

Specification

Measuring range (±)
inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar

55.40
2.000
137.8
13.79
4.072
103.4
32.00
4.612
140.6
0.140
0.137
Resolution
inH2O
psi
mbar
kPa
inHg
mmHg
ozin²
ftH2O
cmH2O
kgcm²
bar

0.01
0.001
0.1
0.01
0.001
0.1
0.01
0.001
0.1
0.001
0.001
Accuracy (at 25°C / 77°F)± 0.3% of measuring range
Linearity± 0.2%
Response timeApprox. 0.5 sec.
Max. pressure689 mbar
Operating temperature0 ... 50°C / 32 ... 122°F
Storage temperature-10 ... 60°C / 14 ... 140°F
MediaAir and non-explosive gases
Real-time data-logging interval    1 sec. to 24 h adjustable

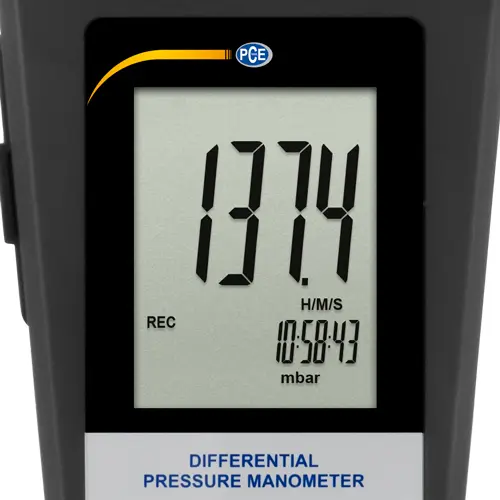

DisplayDual LCD
Dimensions210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D)
Weight (without batteries)650 g / 1.44 lbs
Power supplyBattery: 1 x 9V block

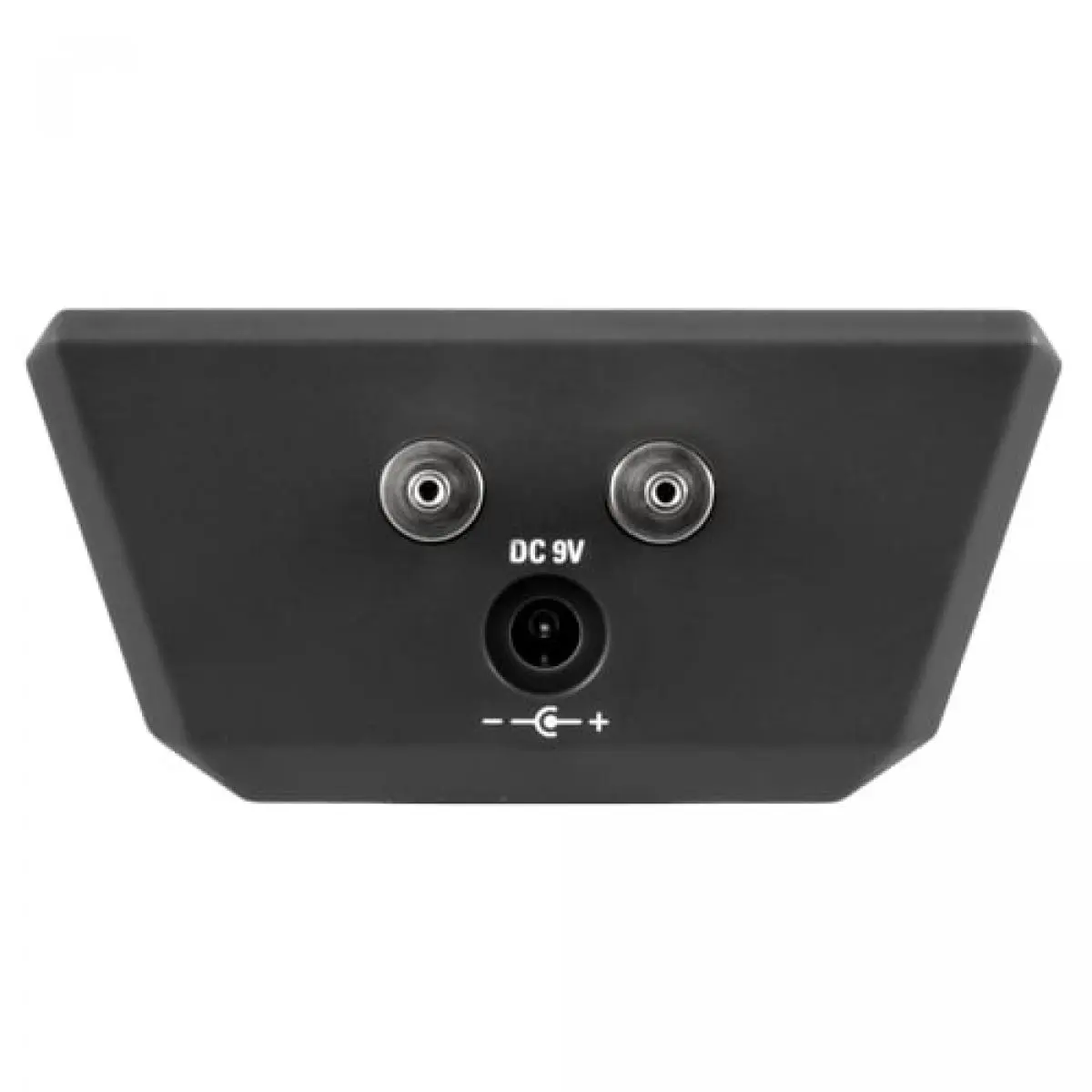

AC adapter: 9V DC / 500-mA

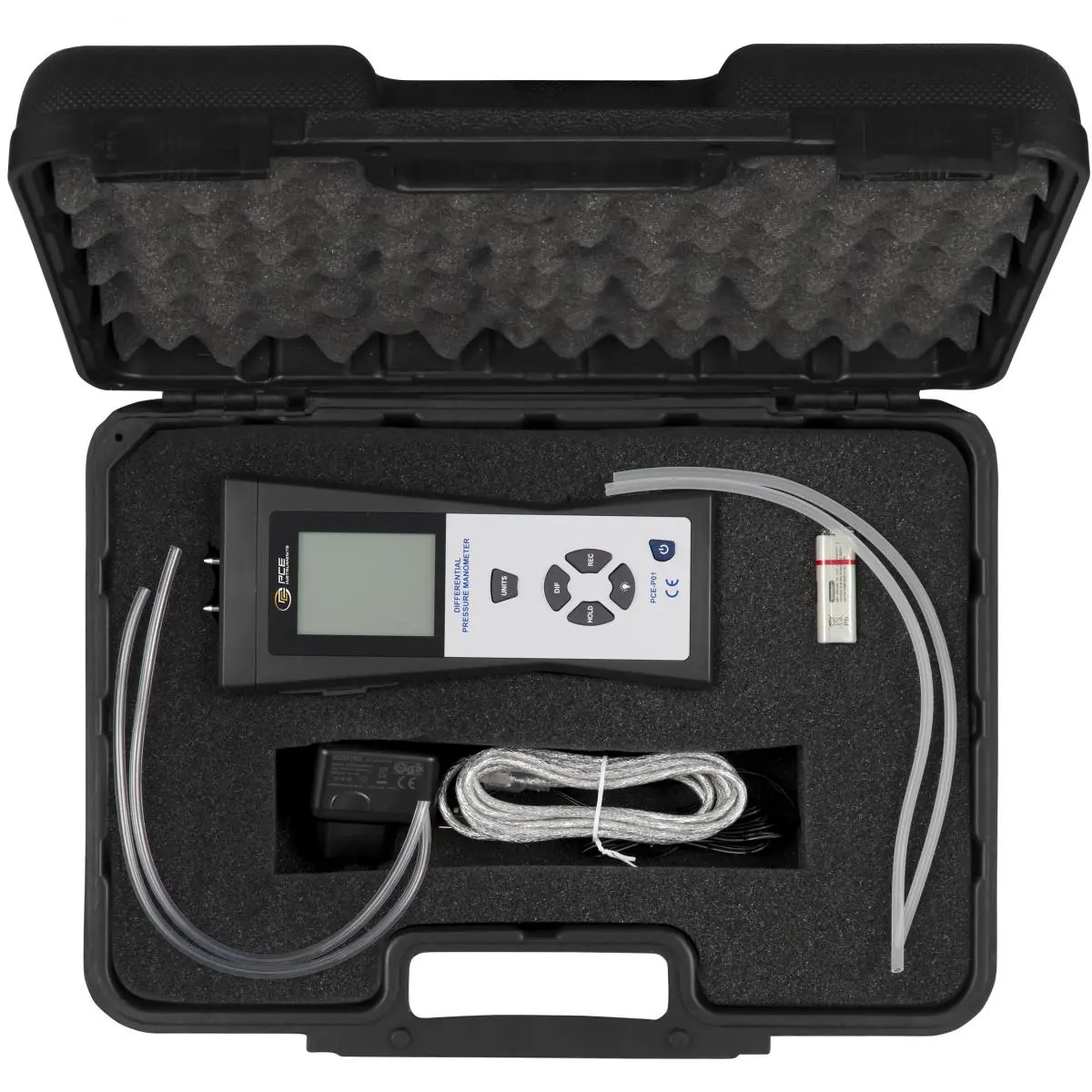

Delivery Scope

1 x HVAC Meter PCE-P01-ICA Differential Pressure
4 x 30cm / 11.8" silicone hose
1 x Software including USB cable
1 x 9V block battery
1 x 9V DC power supply
1 x Plastic case
1 x User manual
1 x ISO calibration certificate
