PCE-MAM 2 HVAC Meter
Lightweight portable handheld pocket-sized wind speed meter or air velocity measuring device / Displays velocity measurements in 5 different units (selectable) / Maximum and minimum functions / Also measures temperature

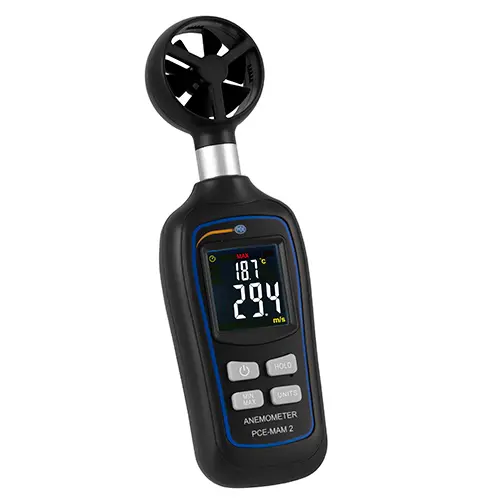

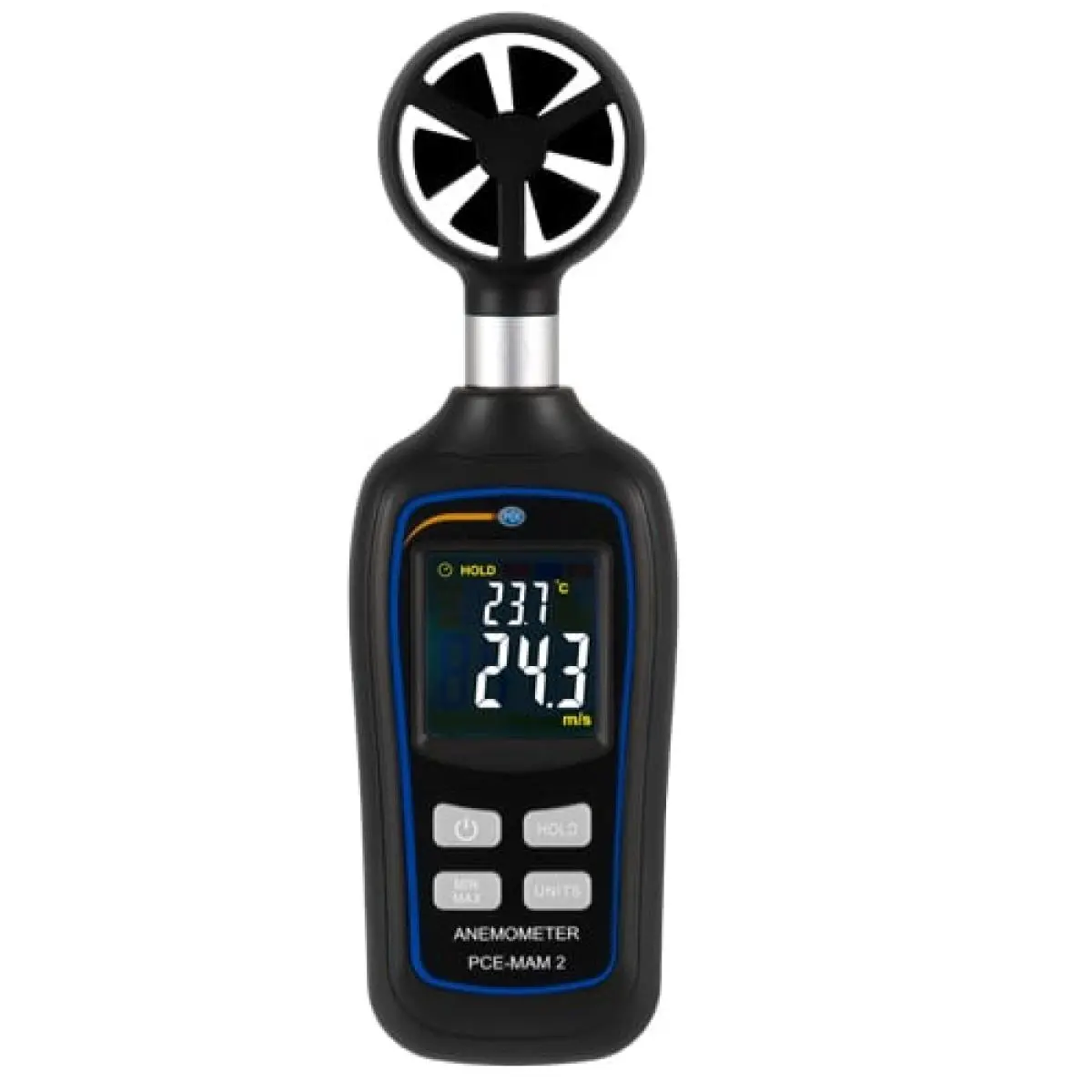

PCE-MAM 2 is a lightweight portable handheld pocket-sized mini anemometer, wind speed meter or air velocity measuring device with an impeller wheel sensor that is ideal for determining air or wind speeds inside or out. This mini anemometer allows you to take velocity and temperature measurements quickly and on the spot.

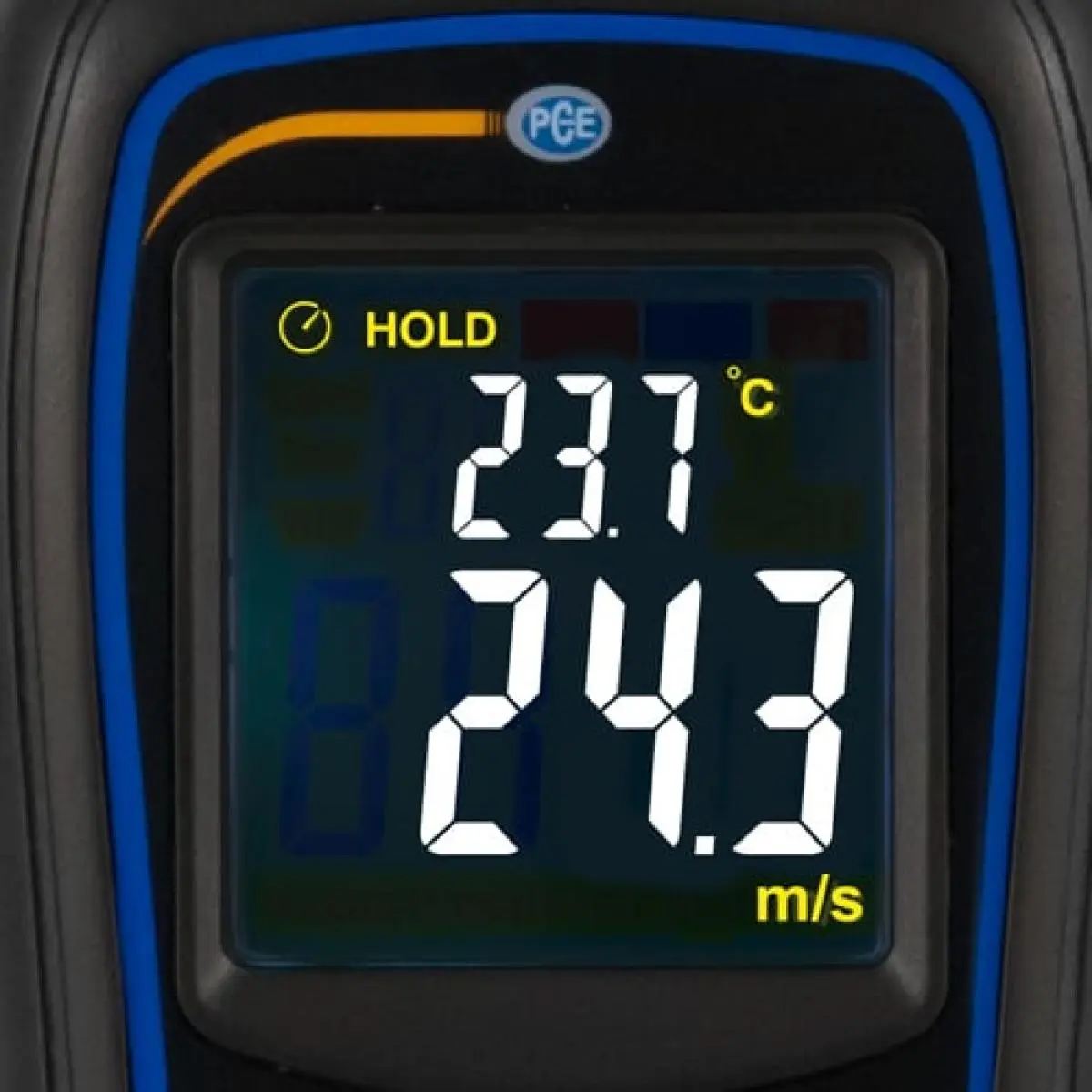

In addition to displaying the current air or wind speed, the mini anemometer has a MAX / MIN function for recording maximum and minimum air or wind velocity readings. The velocity measuring units (choice of 5 - m/s, km/h, mph, knots, ft/min) can be switched on the backlit display with just the touch of a button.
| Speed | |
| Measuring range | 0,4 ... 30 m/s |
| Resolution | 0.1 m/s |
| Accuracy | ±(3 % +0.3 m/s) |
| Temperature | |
| Measuring range | -20 ... +70 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.5 °C |
| General technical data | |
| Measuring functions | HOLD, MAX, MIN |
| Units | m/s, mph, km/h, ft/min, knots |
| Display type | LCD |
| Display size | 2 Inch |
| Display refresh rate | 1 x per second |
| Measuring rate | 1 Hz |
| Current consumption meter | 50 mA DC |
| Operating time | 60 h |
| Automatic power-off | 15 min |
| Housing | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Measuring interval | 300 mS |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 3 x 1,5 V AAA battery , Zinc-manganese dioxide |
| Capacity | 1200 mAh |
| Operating conditions | -20 ... 60 °C , 10 ... 90 % RH |
| Storage conditions | -20 ... 60 °C , 10 ... 90 % RH |
| Dimensions ( L x W x H ) | 178,5 x 56 x 30,5 mm |
| Weight | 87 g |
