HVAC Meter PCE-LD 1

Order no.: PCE-LD 1

GTIN (EAN): 4250348702562

Accessory

Replacement Gas Sensor for PCE-LD 1

£ 52.00

Description

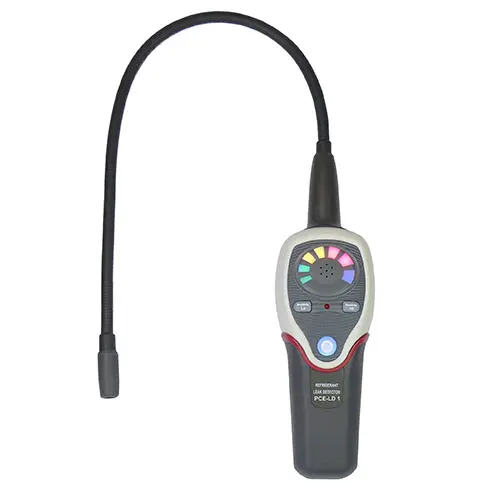

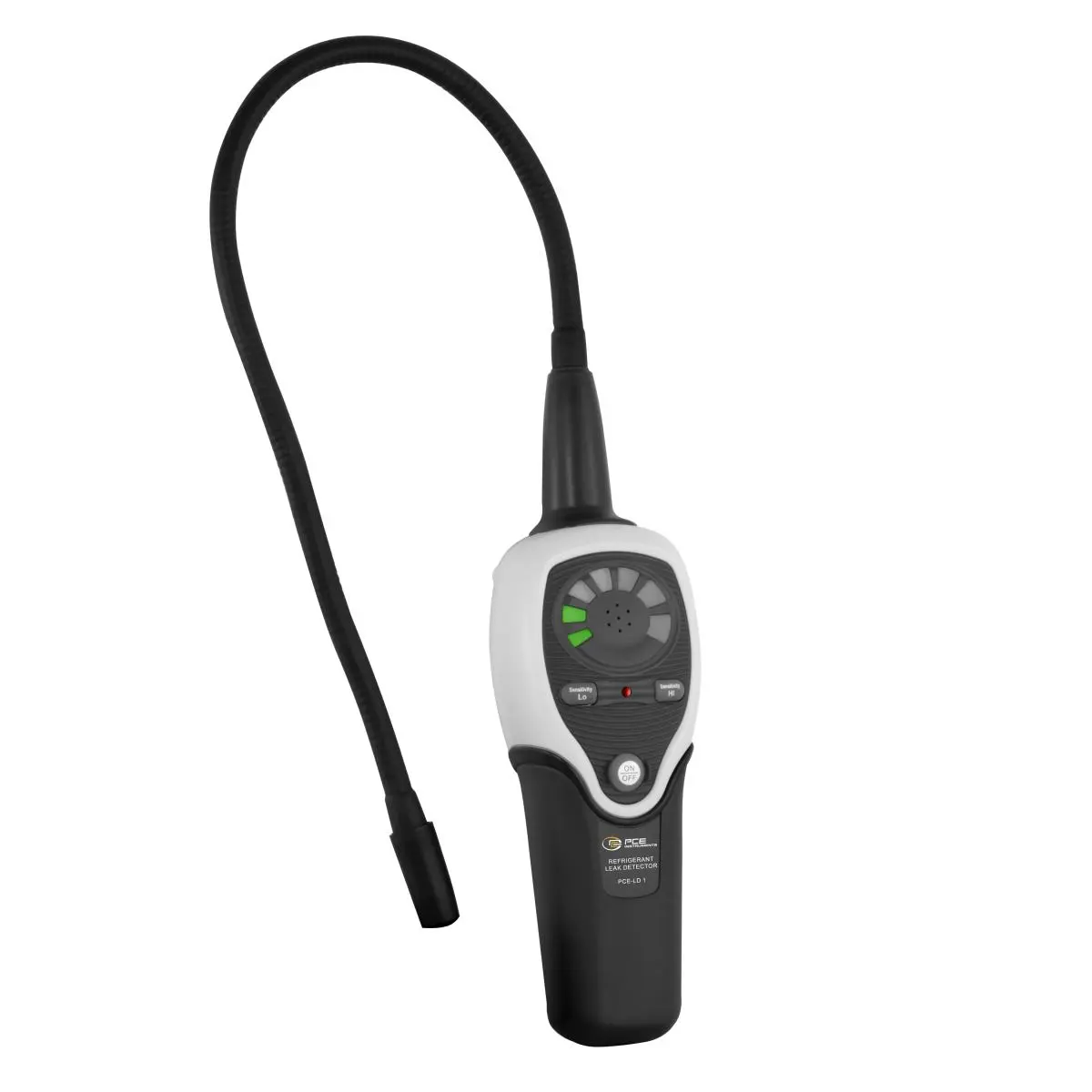

PCE-LD 1 HVAC Meter
Accurate, affordable handheld CFC / HFC refrigerant gas leak detector

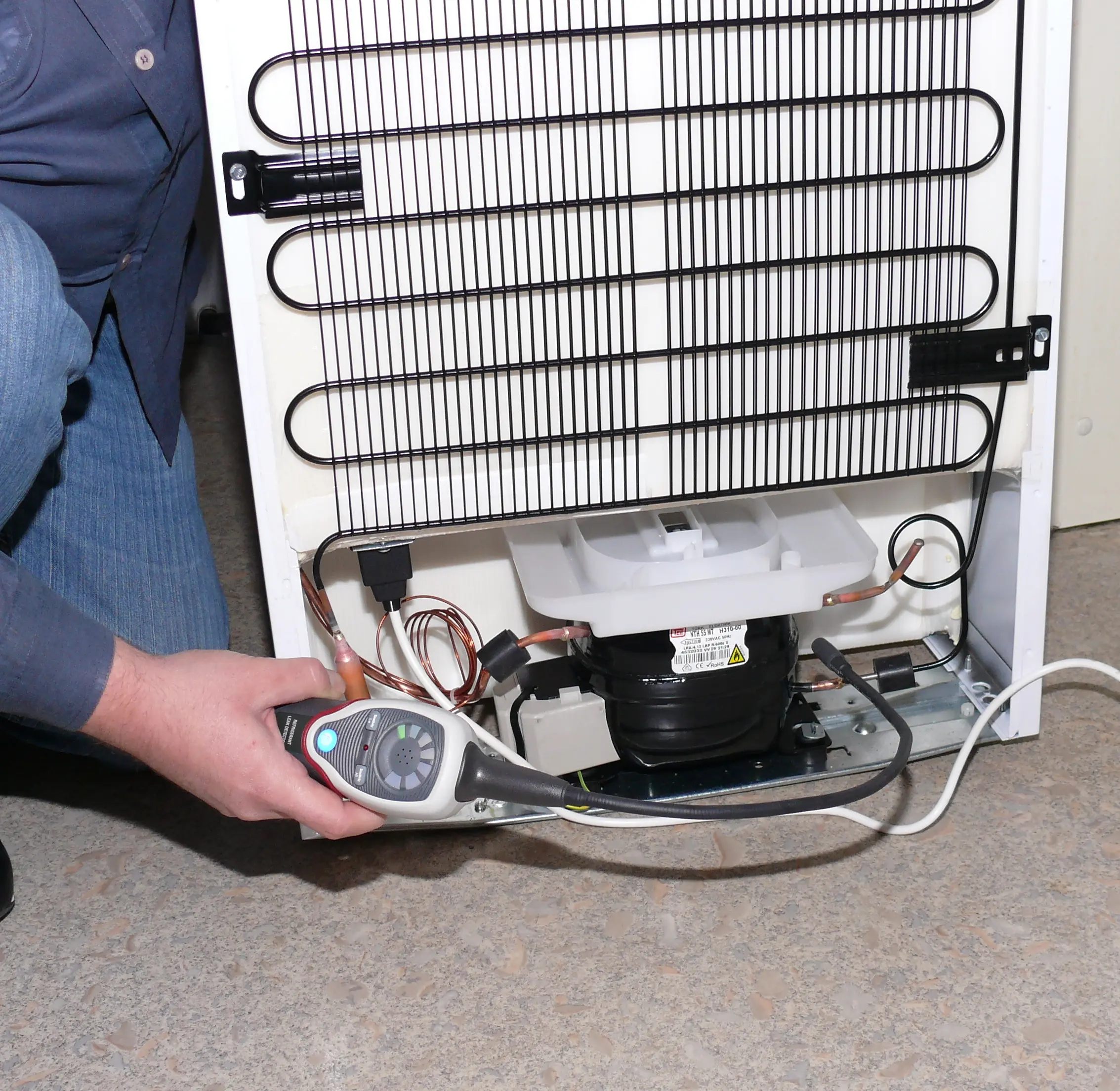

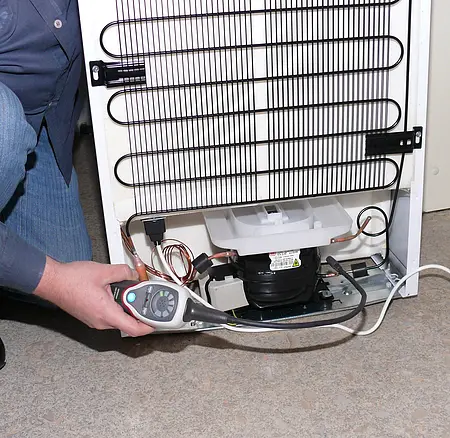

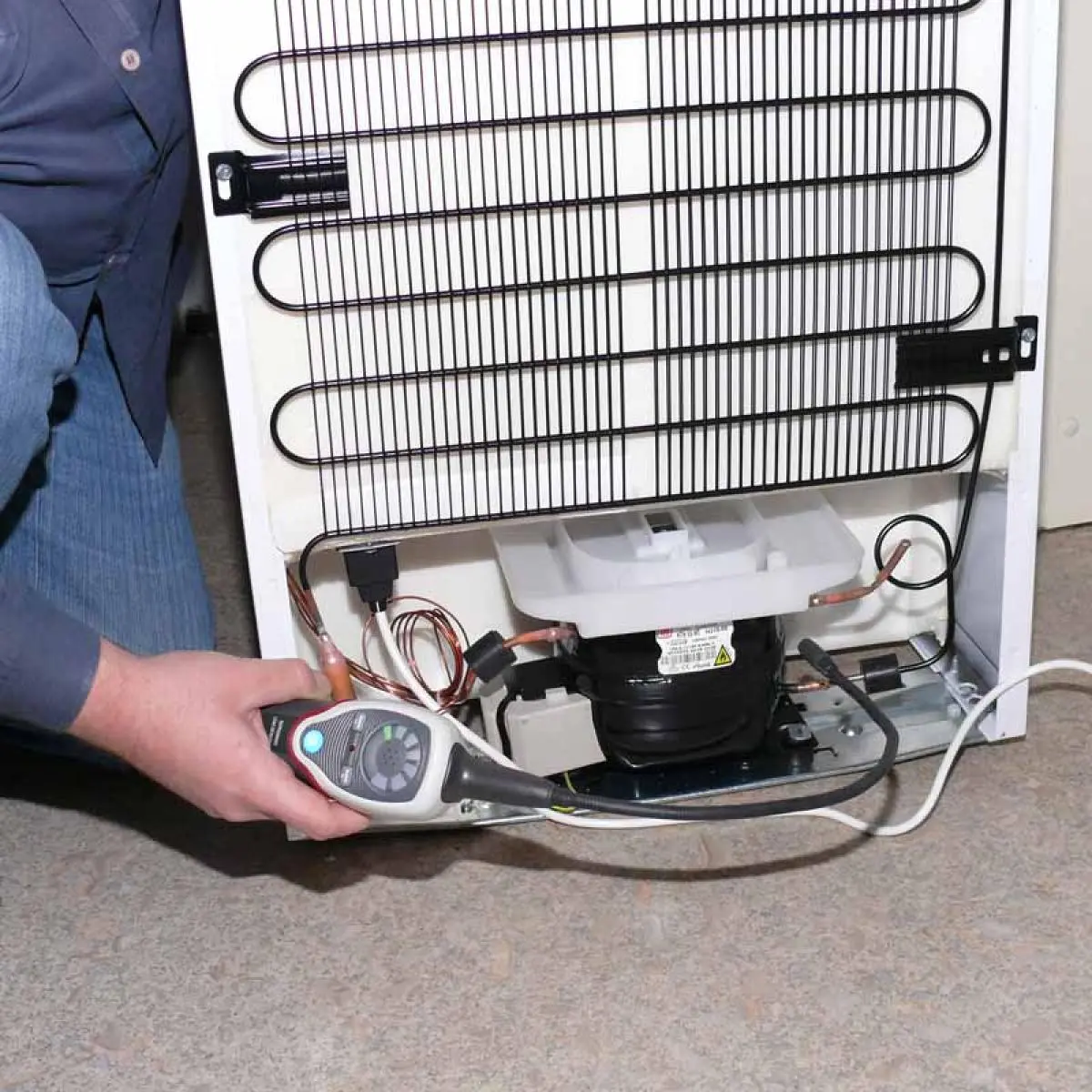

PCE-LD 1 is a portable handheld HVAC meter or refrigerant gas leak detector used to locate CFC/HFC refrigerant gas leaks. This highly sensitive gas leak detector can locate gas leaks from HVACR refrigeration systems even in areas contaminated by other gases. The gas sensor is located at the end of a 390 mm / 15.35 in flexible goose-neck tube, allowing unique access to hard-to-reach places.

Highlights

- Detects R-134a, R-404A, Freon R-407C, R-410A and R-22 (per EN 14624)

- High / low sensitivity per SAE J1627 rating criteria

- Audible and visual alarms

- Easy to use

- Tricolor LED indicator shows concentration of gas

- Sensor life: Approx. 1 year - see accessories for replacement

Specification

General technical data
Warm-up time	90 s
Operating time	40 h
Automatic power-off	10 min
Refrigerant	R134a, R407C, R22, R410A, R404A
Other dimensions	Sensor length 390 mm
Sensitivity	selectable (high and low)
Protection class (device)	IP20
(Rechargeable) battery	4 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	-10 ... 60 °C , 0 ... 70 % RH
Storage conditions	-10 ... 60 °C , 0 ... 70 % RH
Dimensions ( L x W x H )	173 x 66 x 56 mm
Weight	400 g
